Data Loggers

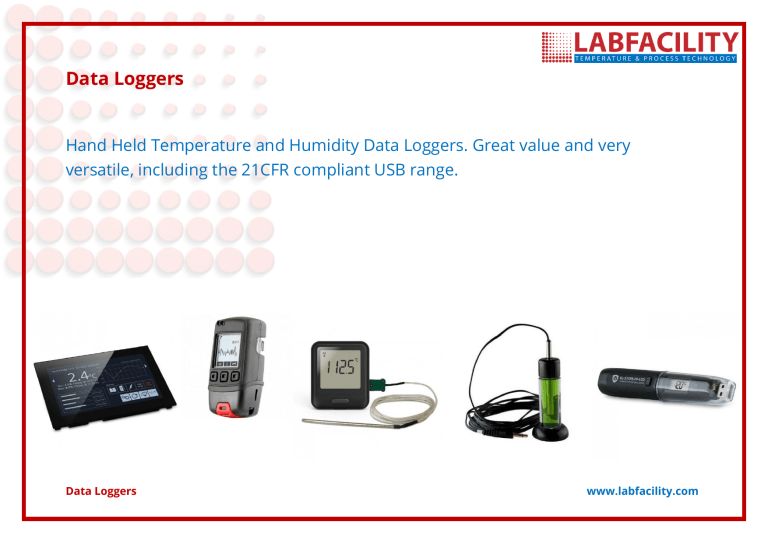

Hand Held Temperature and Humidity Data Loggers. Great value and very
versatile, including the 21CFR compliant USB range.
Data Loggers
www.labfacility.com
Data Loggers – Contents
1.
2.
3.
4.
5.
6.
EL-USB Loggers
21CFR Compliant Data Loggers
EL GFX USB Data Loggers with Graphics Screen
EL WiFi Temperature and Humidity Data Loggers
Panel Pilot Data Logger Displays & add-on Boards
Enviro & Datapad
Data Loggers
www.labfacility.com
EL-USB Data Loggers
A selection of USB Data Loggers including variants of the EL-USB-1, EL-USB-2 and
EL-USB-TC. Easy to set up and download data by plugging these units into a PC’s
USB port and using the free EasyLog software provided. Data can then be graphed,
printed and exported to other applications for detailed analysis.
EL-USB Loggers
www.labfacility.com
EL-USB-1, Temperature Data Logger
XE-3973-001
The EL-USB-1 is a USB temperature data logger with a measurement
range of -35 to +80°C (-31 to +176°--F). The data logger can store up to
16,382 readings and is supplied with a long-life replaceable lithium
battery, allowing the unit to log data continually for at least one year
(depending on logging rate and temperature). The status of EL-USB-1 is
indicated by flashing red, green and orange LEDs. The data logger is
protected against moisture to IP67 standard when the protective cap is
fitted.
USB Temperature Data Logger, IP67 rated, supplied with
configuration software:
•
•
•
•
•
USB temperature data logger
Configuration software
2 Settable alarm thresholds
LEDs indicate logger status
IP67 protection
Data logger configuration software is supplied, allowing the user to
easily set-up the data logger. Selectable parameters include logging
rate, measurement units, high & low alarms and start-time. The logged
data stored in EL-USB-1 is downloaded via the configuration software.
Once downloaded data can be graphed, printed or exported to other
applications.
The data logger configuration software is compatible with Windows
2000/XP/Vista/7.
The EL-USB-1 is suitable for a wide variety of applications, these
include:
•
•
•
•
Pharmaceutical fridge monitoring
Food & drink
Building & site monitoring
HVAC
EL-USB Loggers
www.labfacility.com
EL-USB-1-LCD - Temperature Data Logger with USB and Display
XE-4040-001
This standalone data logger measures more than 16,000 readings over
a -35 to +80°C (-31 to +176°--F) range. At the touch of a button, use the
on-board display to cycle between the current, minimum and
maximum temperature logs seen during the session.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free software provided. Data can
then be graphed, printed and exported to other applications for
detailed analysis. Supplied with ½ AA battery and wall mount clip.
The EL-USB-1-LCD is suitable for a wide variety of applications.
These include:
•
•
•
•
Transportation
Food & Drink
Building and Site Monitoring
Pharmaceutical Fridge Monitoring
EL-USB Loggers
www.labfacility.com
EL-USB-1-PRO - Industrial Temperature Data Logger with USB
XE-4041-001
This standalone data logger measures more than 32,000 readings over
a -40 to +125°C (-40 to +257°--F) range. Its robust stainless-steel
assembly provides protection from corrosion, impact and water
ingress to IP67/NEMA 4X.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free software provided. Data can
then be graphed, printed and exported to other applications for
detailed analysis. Supplied with a specialist high temperature 2/3 AA
battery.
The EL-USB-1-PRO is suitable for a wide variety of industrial
applications. These include:
•
•
•
Transportation
Food & Drink
Building and Site Monitoring
EL-USB Loggers
www.labfacility.com
EL-USB-2, Humidity & Temperature Data Logger
XE-3976-001
This data logger measures and stores up to 16,382 relative humidity
and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C
(-31 to +176°F) measurement ranges. The user can easily set up the
logging rate and start time, and download the stored data by plugging
the module straight into a PCs USB port and running the purpose
designed software under Windows 2000, XP, Vista and 7. Relative
humidity, temperature and dew point (the temperature at which water
vapour present in the air begins to condense) data can then be
graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery,
which can typically allow logging for a year. Status indication is via
flashing red and green LEDs. The logger is protected against ingress
from water and dust to IP67 standard when the plastic cap and seal
are fitted.
The EL-USB-2 is suitable for a wide variety of applications, these
include:
•
•
•
•
•
•
Pharmaceutical fridge monitoring
Environmental and weather monitoring
Agricultural and livestock
Food & drink
Building & site monitoring
HVAC
EL-USB Loggers
www.labfacility.com
EL-USB-2-LCD - Temperature & RH Data Logger with USB and Display
XE-4042-001
This standalone data logger measures over 16,000 readings over a -35
to +80°C (-31 to +176°--F) and 0 to 100% humidity (RH) range. At the
touch of a button, use the on-board display to cycle between the
current, minimum and maximum temperature logs seen during the
session for both temperature and humidity.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free EasyLog software provided.
Data can then be graphed, printed and exported to other applications
for detailed analysis. Supplied with ½ AA battery and wall mount clip.
The EL-USB-2-LCD is suitable for a wide variety of applications.
These include:
•
•
•
•
Transportation
Food and Drink
Building and Site Monitoring
Museum and Heritage Monitoring
EL-USB Loggers
www.labfacility.com
EL-USB-3 - Voltage Data Logger with USB
XE-4043-001
This standalone data logger measures more than 32,000 readings over
a 0 to 30V d.c. range at a resolution of 50 mV d.c. The data logger is
supplied with a 0 to 30V d.c. cap featuring a pair of screw terminals
and measurement leads terminating in crocodile clips.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free software provided. Data can
then be graphed, printed and exported to other applications for
detailed analysis. Supplied with ½ AA battery and wall mount clip.
The EL-USB-3 is suitable for a wide variety of applications. These
include:
•
•
Industrial
Energy
EL-USB Loggers
www.labfacility.com
EL-USB-4 - Current Data Logger with USB
XE-4044-001
This standalone data logger measures more than 32,000 readings over
a 4-20mA d.c. measurement range. The data logger is supplied with a
cap featuring a pair of screw terminals and measurement leads
terminating in crocodile clips.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free EasyLog software provided.
Data can then be graphed, printed and exported to other applications
for detailed analysis. Supplied with ½ AA battery and wall mount clip.
The EL-USB-4 is suitable for Industrial applications.
EL-USB Loggers
www.labfacility.com
EL-USB-LITE - Low Cost Temperature Data Logger with USB
XE-4048-001
This standalone data logger measures temperature every 30 minutes
over a -10 to +50°C (+14 to +122°F) range. Easily set up the logger and
view downloaded data by plugging the unit into a PC’s USB port and
using the free software provided.
Data can then be graphed, printed and exported to other applications
for detailed analysis. Supplied with a CR1620 battery.
The EL-USB-LITE is suitable for a wide variety of applications.
These include:
•
•
•
•
Transportation
Food & Drink
Building and Site Monitoring
Pharmaceutical Fridge Monitoring
EL-USB Loggers
www.labfacility.com
EL-USB-TC - Thermocouple Temperature K, J & T Type Data Logger with USB
XE-4050-001
This standalone data logger measures over 32,000 readings from interchangeable J, K or T type thermocouples. Supplied with a K Type probe,
its measurement range out of the box is from 0 to 200°C (32 to 392°F).
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free software provided. Data can
then be graphed, printed and exported to other applications for
detailed analysis.
Supplied with ½ AA battery, K-type probe and wall mount clip.
The EL-USB-TC is suitable for a wide variety of applications
particularly those which require a wide temperature
measurement range. These include:
•
•
•
•
•
Food & Drink
Building and Site Monitoring
Laboratory
Oven Monitoring
Dry Ice Shipments
EL-USB Loggers
www.labfacility.com
EL-USB-TC-LCD, K, J & T Type Thermocouple USB Data Logger with LCD
XE-3971-001
K, J, and T-type Thermocouple Temperature USB Data Logger with LCD
•
•
•
•
•
-200 to +1350°C K-type range
-200 to +1190°C J-type range
-200 to +390°C T-type range
Immediate, delayed and push-to-start mode
High contrast LCD shows last, high and low stored readings
This standalone data logger measures and stores over 32,000
temperature readings from either a K, J or T type thermocouple.
The thermocouple is attached via the thermocouple socket at the base
of the unit. The user can easily set up the logger and view downloaded
data by plugging the module into a PC's USB port and using the
supplied software. Data can then be graphed, printed and exported to
other applications.
The high contrast LCD can show several different temperature
variables. The user can cycle between these using the push button. The
data logger is supplied complete with a long-life lithium battery, which
can typically allow logging for up to 1 year.
EL-USB Loggers
www.labfacility.com
EL-USB-TP-LCD Thermistor Probe Data Logger with LCD
XE-4052-001
This standalone data logger records and displays over 32,000
temperature readings from the supplied thermistor probe. The ELUSB-TP-LCD features an LCD and push-button which allow the user to
cycle through the most recent, highest and lowest stored readings.
The EL-WIN-USB software enables quick configuration and data
download via the USB port available to download for free. Supplied
with thermistor probe and long-life lithium battery.
The EL-USB-TP-LCD is suitable for a wide variety of applications.
These include:
•
•
Medical
Food
EL-USB Loggers
www.labfacility.com
21CFR Compliant Data Loggers
A selection of 21CFR Complaint Data Loggers, specifically developed to meet the
data security required by the FDA's 21CFR part 11 regulations. As such these data
loggers are suitable for use in applications where the integrity of the data is of the
highest importance.
21CFR Compliant Data Loggers
www.labfacility.com
EL-21CFR-1-LCD Data Logger
XE-4020-001
This 21CFR-compliant standalone data logger measures more than
16,000 readings over a -35°C to +80°C (-31°F to +176°--F) range. At the
touch of a button, use the on-board display to cycle between the
current, minimum and maximum temperature logs seen during the
session.
Used in conjunction with the 21CFR Part 11 software, the logger enjoys
all of the core offerings of the original EasyLog software, but with
additional 21CFR characteristics including user permissions, encrypted
data which cannot be edited, full audit trail and electronic signatures
for all activity.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free 21CFR Part 11 software
provided.
21CFR Compliant Data Loggers
www.labfacility.com
EL-21CFR-2-LCD Data Logger
XE-4021-001
This 21CFR-compliant standalone data logger measures more than
16,000 readings over a -35°C to +80°C (-31°F to +176°--F) and 0 to 100%
relative humidity (RH) range. At the touch of a button, use the onboard display to cycle between the current, minimum and maximum
logs seen during the session for both temperature and humidity.
Used in conjunction with the 21CFR Part 11 software, the logger enjoys
all of the core offerings of the original EasyLog software, but with
additional 21CFR characteristics including user permissions, encrypted
data which cannot be edited, full audit trail and electronic signatures
for all activity.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free 21CFR Part 11 software
provided.
21CFR Compliant Data Loggers
www.labfacility.com
EL-21CFR-TC, K, J Thermocouple Data Logger
XE-4023-001
This 21CFR compliant, standalone data logger measures over 32,000
readings from inter-changeable J, K or T type thermocouples. Supplied
with a K Type probe, its measurement range out of the box is from 0 to
+200°C (-32 to +392°F).
Used in conjunction with the 21CFR Part 11 software, the logger enjoys
all of the core offerings of the original EasyLog software, but with
additional 21CFR characteristics including user permissions, encrypted
data which cannot be edited, full audit trail and electronic signatures
for all activity.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port.
The EL-21CFR-TC is suitable for a wide variety of applications
particularly those which require a wide temperature
measurement range. These include:
•
•
•
•
Food & Drink
Laboratory
Oven Monitoring
Dry Ice Shipments
21CFR Compliant Data Loggers
www.labfacility.com
EL-21CFR-TP-LCD Thermistor Probe Data Logger
XE-4024-001
This 21CFR-compliant standalone data logger records and displays
over 32,000 temperature readings from the supplied thermistor probe.
The data logger features an LCD and push-button which allow the user
to cycle through the most recent, highest and lowest stored readings.
Used in conjunction with the 21CFR Part 11 software, the logger enjoys
all of the core offerings of the original EasyLog software, but with
additional 21CFR characteristics including user permissions, encrypted
data which cannot be edited, full audit trail and electronic signatures
for all activity.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free 21CFR Part 11 software
provided.
21CFR Compliant Data Loggers
www.labfacility.com
EL-21CFR-TP-LCD-PROBE-G - High Accuracy Thermistor Probe Data
Logger with Probe
XE-4026-001
This 21CFR-compliant standalone data logger records and displays
over 32,000 temperature readings from the supplied thermistor probe.
The data logger features an LCD and push-button which allow the user
to cycle through the most recent, highest and lowest stored readings.
Used in conjunction with the 21CFR Part 11 software, the logger enjoys
all of the core offerings of the original EasyLog software, but with
additional 21CFR characteristics including user permissions, encrypted
data which cannot be edited, full audit trail and electronic signatures
for all activity.
Easily set up the logger and view downloaded data by plugging the unit
into a PC’s USB port and using the free 21CFR Part 11 software
provided.
The EL-21CFR-TP-LCD-PROBE-G comes with a calibration certificate
issued at 2 and 8°C.
21CFR Compliant Data Loggers
www.labfacility.com
EL GFX USB Data Loggers with Graphics Screen
The EL-GFX range of USB Data Loggers feature a graphics screen. Different
products feature a range of input types as well as temperature and humidity
sensors. Users can quickly set up the data logger and view downloaded data by
connecting the device to a PC.
EL GFX USB Data Loggers with Graphics Screen
www.labfacility.com
EL-GFX-1- Temperature Data Logger with Graphic Screen
XE-4030-001
This USB data logger records over 250,000 temperature readings in
one or more sessions for up to 1 year. Inside the rugged IP67 / NEMA
4X case, buttons for start, stop and restart and a graphic LCD with onscreen menus provide real-time analysis of data as a summary or as a
graph. EasyLog software enables quick configuration and data
download via the USB port. Supplied with two batteries, USB cover,
Mounting Clip and Micro USB cable.
The EL-GFX-1 is suitable for a wide variety of applications. These
include:
•
•
•
•
•
Pharmaceutical fridge monitoring
Transportation
Food & drink
Building & site monitoring
HVAC
EL GFX USB Data Loggers with Graphics Screen
www.labfacility.com
EL-GFX-2 - Temperature & Relative Humidity Data Logger with Graphic
Screen
XE-4031-001
This USB data logger records over 250,000 temperature and relative
humidity readings in one or more sessions for up to 1 year. Inside the
rugged IP67 / NEMA 4X case, buttons for start, stop and restart and a
graphic LCD with on-screen menus provide real-time analysis of data
as a summary or as a graph. The EasyLog USB software enables quick
configuration and data download via the USB port. Supplied with two
batteries, mounting clip and micro USB cable.
The EL-GFX-2 is suitable for a wide variety of applications. These
include:
•
•
•
•
•
Pharmaceutical fridge monitoring
Transportation
Food & drink
Building & site monitoring
HVAC
EL GFX USB Data Loggers with Graphics Screen
www.labfacility.com
EL-GFX-DTC Data Logger with dual K probe and graphic screen
XE-3972-001
•
•
•
•
Dual channel, compatible with K, J and T type Thermocouples
Logging rates between 1 second and 1 hour
Immediate, delayed, push-button or temperature triggered
start mode
Stores over 250,000 readings
The EL-GFX-DTC standalone USB data logger measures and stores over
250,000 temperature readings from two J, K, or T-type thermocouple
inputs at a resolution of 0.1ºC. Using the Windows control software,
users can quickly set up the data logger and view downloaded data by
connecting the device to the PC’s USB port using the supplied cable.
The data logger features a high-contrast graphic LCD and three-input
buttons which allows users to start, stop and restart the data logger
using on-screen menus. This menu also provides real-time analysis of
data either as a data summary (showing highest & lowest readings and
alarm conditions) or as a graph that updates as new data is added.
Multiple data logging sessions can be stored on the device ready for
upload to a PC at a later date.
The EL-GFX-DTC is suitable for a wide variety of applications, these
include:
•
•
•
•
Pharmaceutical fridge monitoring
Food & drink
Building & site monitoring
HVAC
EL GFX USB Data Loggers with Graphics Screen
www.labfacility.com
EL-GFX-DTP Dual Channel Thermistor Data Logger with Graphic
Screen
XE-4034-001
This USB data logger records over 250,000 temperature readings per
channel in one or more sessions for up to 4 months. Inside the rugged
case, buttons for start, stop and restart and a graphic LCD with onscreen menus provide real-time analysis of data as a summary or as a
graph.
EL-WIN-USB enables quick configuration and data download via the
USB port. Supplied with two thermistor probes and batteries, the ELGFX-DTP is a popular part.
The EL-GFX-DTP is suitable for a wide variety of applications.
These include:
•
•
•
•
•
Pharmaceutical fridge monitoring
Transportation
Food & drink
Building & site monitoring
HVAC
EL GFX USB Data Loggers with Graphics Screen
www.labfacility.com
EL-GFX-TC Thermocouple Data Logger with Graphic Screen
XE-4037-001
This USB data logger records over 250,000 temperature readings in
one or more sessions for up to 4 months. It is compatible with K, J and
T-type thermocouples. Inside the rugged case, buttons for start, stop
and restart and a graphic LCD with on-screen menus provide real-time
analysis of data as a summary or as a graph.
The EL-WIN-USB software enables quick configuration and data
download via the USB port. Supplied with K-type probe and batteries,
the EL-GFX-TC is a popular part.
The EL-GFX-TC is suitable for a wide variety of applications. These
include:
•
•
•
•
•
Pharmaceutical fridge monitoring
Transportation
Food & drink
Building & site monitoring
HVAC
EL GFX USB Data Loggers with Graphics Screen
www.labfacility.com
EL WiFi Temperature and Humidity Data Loggers
The EL-WiFi-TC sensor measures the temperature of the environment in which the
probe is situated. The accuracy of the K type probe supplied is ±1.5°C. Data is
streamed wirelessly over any WiFi network and can be viewed on a PC using the
free software package.
EL WiFi Temperature and Humidity Data Loggers
www.labfacility.com
EL-WiFi-DTC Wifi Dual Channel Thermocouple Probe Data Logging
Sensor
XE-4060-001
This WiFi-enabled dual channel data logger can remotely monitor an
environment using two inter-changeable J, K or T type thermocouples.
Supplied with two K Type probes, its measurement range out of the
box measures from 0 to 200°C (32 to 392°F). Data is uploaded
periodically using a standard WiFi network to the FilesThruTheAir
Cloud or a single host PC.
EasyLog Cloud gives access to each data logger, and data collected
from any internet-enabled device. Change data logger settings
remotely, receive email alerts of alarm conditions, link sensors from
multiple sites into one account and assign multiple user privileges.
The EL-WiFi-DTC is suitable for a wide variety of applications
particularly those which require a wide temperature
measurement range. These include:
•
•
•
Medical
Food
Cold Chain
EL WiFi Temperature and Humidity Data Loggers
www.labfacility.com
EL-WiFi-T - Wifi Temperature Data Logger
XE-4063-001
This WiFi-enabled data logger can remotely monitor an environment
over a -20 to +60°C (-4 to +140°--F) measurement range. Data is
uploaded periodically using a standard WiFi network to the
FilesThruTheAir Cloud or a single host PC.
EasyLog Cloud gives access to each data logger, and data collected
from any internet-enabled device. Change data logger settings
remotely, receive email alerts of alarm conditions, link sensors from
multiple sites into one account and assign multiple user privileges.
Use the FilesThruTheAir Apps for Android and Apple for true on-the-go
monitoring.
The EL-WiFi-T is suitable for a wide variety of applications. These
include:
•
•
•
•
Transportation
Food and Drink
Building and Site Monitoring
Pharmaceutical Fridge Monitoring
EL WiFi Temperature and Humidity Data Loggers
www.labfacility.com
EL-WiFi-TC, Thermocouple Data Logger with Cloud Storage
XE-3974-001
WiFi Thermocouple Temperature Data Logging SensorWiFi capability
and integrated display
•
•
•
•
Wireless connectivity to PC via WiFi
View and analyse multiple sensors using the PC application,
including immediate graphing of historic data
Temperature measurement range -270 to +1300°C (-454 to
+2372°F) (probe dependent)
Rechargeable internal lithium polymer battery
The EL-WiFi-TC sensor measures the temperature of the environment
in which the probe is situated. The accuracy of the K type probe
supplied is ±1.5˚C. Data is streamed wirelessly over any WiFi network
and can be viewed on a PC using the free software package.
The EL-WiFi-TC is suitable for a wide variety of applications,
particularly where remote monitoring is important, these include:
•
•
•
Food & drink
Building & site monitoring
HVAC
During configuration, the sensor will search for an existing wireless
network whilst physically connected to the PC. It can then be placed
anywhere within range of the network. If the sensor temporarily loses
connectivity with the network, it will log readings until it is able to
communicate again with the PC application or cloud service (max 30
days at 10 second sample interval). Logged data is retained if the
battery goes flat. Although the EL-WiFi sensors have an impressive
range this can be increased by using WiFi extenders.
Requires 802.11b compliant WiFi router/network.
EL WiFi Temperature and Humidity Data Loggers
www.labfacility.com
EL-WiFi-TH - Wifi Temperature & Humidity Data Logger
XE-4065-001
This WiFi-enabled temperature, humidity and dew point data logger
can remotely monitor an environment over a -20 to +60°C (-4 to
+140°--F) and 0 to 100% RH measurement range. Data is uploaded
periodically using a standard WiFi network to the FilesThruTheAir
Cloud or a single host PC.
EasyLog Cloud gives access to each data logger, and data collected
from any internet-enabled device. Change data logger settings
remotely, receive email alerts of alarm conditions, link sensors from
multiple sites into one account and assign multiple user privileges.
Use the FilesThruTheAir Apps for Android and Apple for true on-the-go
monitoring.
The EL-WiFi-TH is suitable for a wide variety of applications. These
include:
•
•
•
•
Transportation
Food and Drink
Building and Site Monitoring
Museum and Heritage Monitoring
EL WiFi Temperature and Humidity Data Loggers
www.labfacility.com
EL-WiFi-TP- Wifi Thermistor Probe Data Logger
XE-4067-001
This WiFi-enabled temperature data logging sensor can remotely
monitor an environment over a -40 to 125°C (-40 to 257°--F)
measurement range. Data is uploaded periodically using a standard
WiFi network to the FilesThruTheAir Cloud or a single host PC. Supplied
with thermistor probe and mounting clip.
EasyLog Cloud gives access to each data logger, and data collected
from any internet-enabled device. Change data logger settings
remotely, receive email alerts of alarm conditions, link sensors from
multiple sites into one account and assign multiple user privileges.
Use the FilesThruTheAir Apps for Android and Apple for true on-the-go
monitoring.
The EL-WiFi-TP is suitable for a wide variety of applications. These
include:
•
•
•
•
•
Environmental and weather monitoring
Agricultural and livestock
Food & drink
Building & site monitoring
HVAC
EL WiFi Temperature and Humidity Data Loggers
www.labfacility.com
Panel Pilot Data Logger Displays & add-on Boards
A range of 4.3" and 7" screen capacitive touch displays and add-on boards,
designed for use with PanelPilotACE Design Studio, a free drag-and-drop style
software package for rapid development of advanced user interfaces and panel
meters.
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
PanelPilot SGD 43-A - 4.3” Display with Analogue, Digital, PWM and
Serial Interfaces
XE-4071-001
SGD 43-A is a 4.3” capacitive touch display designed for use with
PanelPilotACE Design Studio, a free drag-and-drop style software
package for rapid development of advanced user interfaces and panel
meters.
This off the shelf display features a wealth of hardware interfaces,
including four 16-bit bipolar analogue inputs (to a maximum of ±40V
d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM
outputs and serial RS232 and accessories available to measure RS485
and temperature.
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
EL-SGD 43-ATP - Panel Mountable Four-Channel Temperature Data
Logger
XE-4070-001
The EL-SGD 43-ATP is a panel-mountable, four-channel temperature
data logger based on the PanelPilotACE platform. The product includes
a 4.3” panel mounted display module with capacitive touch screen, a
four-channel thermistor temperature board and x4 compatible
temperature probes.
The user interface comprises an advanced logging application which
shows real-time readings for all four temperature channels, live trend
graphs and access to a suite of real-time data analysis information. The
logger can store up to 100,000 readings per channel at sample rates
from 5 seconds to 12 hours
Each EL-SGD 43-ATP includes:
•
•
•
•
4.3” PanelPilotACE display with mounting kit SGD 43-A
Four-channel thermistor add-on board S43-TP
4 x 1m thermistor probe with 3.5mm plug EL-PROBE2-1.0M-TP
Mini USB cable CABLE USB A-MF
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
PanelPilot S43-TP - Four-channel thermistor add-on board
XE-4072-001
The S43-TP is an accessory to the PanelPilotACE range of compatible
displays and panel meters and is compatible with the 4.3”
PanelPilotACE display module SGD 43-A.
The S43-TP mounts on the rear of the SGD 43-A and provides up to
four thermistor inputs which can then be utilised within the free
PanelPilotACE Design Studio software to measure, display, log and
graph temperature readings.
Each S43-TP is supplied with a 1m thermistor probe fitted with a
3.5mm socket and featuring a potted metal sheath
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
PanelPilot SGD 70-A - 7” Display with Analogue, Digital, PWM, and
Serial Interfaces
XE-4074-001
SGD 70-A is a 7” capacitive touch display designed for use with
PanelPilotACE Design Studio, a free drag-and-drop style software
package for rapid development of advanced user interfaces and panel
meters.
This off the shelf display features a wealth of hardware interfaces,
including four 16-bit bipolar analogue inputs (to a maximum of ±40V
d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM
outputs, serial RS232 and RS485 and an additional add on board to
measure temperature.
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
EL-SGD 70-ATP - Panel Mountable Four-Channel Temperature Data
Logger
XE-4073-001
The EL-SGD 70-ATP is a panel-mountable, four-channel temperature
data logger based on the PanelPilotACE platform. The product includes
a 7” panel mounted display module with capacitive touch screen, a
four-channel thermistor temperature board and x4 compatible
temperature probes.
The user interface comprises an advanced logging application which
shows real-time readings for all four temperature channels, live trend
graphs and access to a suite of real-time data analysis information. The
logger can store up to 100,000 readings per channel at sample rates
from 5 seconds to 12 hours.
Each EL-SGD 70-ATP includes:
•
•
•
•
7” PanelPilotACE display with mounting kit SGD 70-A
Four-channel thermistor add-on board S70-TP
4 x 1m thermistor probe with 3.5mm plug EL-PROBE2-1.0M-TP
Mini USB cable CABLE USB A-MF
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
PanelPilot S70-TP - Four-channel thermistor add-on board
XE-4075-001
The S70-TP is an accessory to the PanelPilotACE range of compatible
displays and panel meters and is compatible with the 7” PanelPilotACE
display module SGD 70-A.
The S70-TP mounts on the rear of the SGD 70-A and provides up to
four thermistor inputs which can then be utilised within the free
PanelPilotACE Design Studio software to measure, display, log and
graph temperature readings.
Each S70-TP is supplied with a 1m thermistor probe fitted with a
3.5mm jack plug and featuring a potted metal sheath
Panel Pilot Data Logger Displays & add-on Boards
www.labfacility.com
EL EnviroPad TC
EL DataPad
This robust easy to use handheld
device takes and records temperature
readings via the attached k-type probe
that is supplied with the unit. A large
touch screen, colour display indicates
temperature.
The EL-DataPad allows users of
Lascar’s EL-USB data loggers to
configure their units and download
data and view logging results on-the
spot rather than removing the logger
from the environment being measured
and taking it to their PC.
EL EnviroPad TC & EL DataPad
www.labfacility.com
EL-DataPad Handheld Programmer & Data Collector
XE-3975-001
Handheld Programmer and Data Collector for EasyLog USB range
•
•
•
•
•
Collects and stores data from at least 500 data loggers
Full or quick set-up of compatible EasyLog USB data
Touch screen interface for navigation of menus
Stored data can be transferred to a PC/Mac via micro USB
cable
Integral rechargeable lithium battery provides up to 8 hours
use
can be transferred to a PC or Mac using a micro USB cable supplied
with the unit. Once uploaded, data is saved in comma separated
variable (csv) format, making it suitable for import into spreadsheet
packages such as Microsoft Excel or graphed on a PC using Lascar’s ELWIN-USB software.
The EL-DataPad is compatible with the following EL-USB data loggers
available from Labfacility: EL-USB-1, EL-USB-2, EL-USB-TC-LCD.
The EL-DataPad allows users of Lascar’s EL-USB data loggers to
configure their units and download data and view logging results onthe spot rather than removing the logger from the environment being
measured and taking it to their PC. This allows continual logging with
shorter breaks in data collection, less travel for the user, on-site data
collection in graph, legend and summary format and the ability for
users to reconfigure loggers in ‘the field’.
The logger is connected to the EL-DataPad via a standard USB port at
the top of the viewer. Once connected, the user is guided through a
simple touchscreen menu with options to Set-Up Logger, Stop Logger
& Download and View Data. On-screen instructions follow the same
structure as Lascar’s EL-USB-WIN software for PC currently provided
with each data logger.
Data from up to 100 loggers can be viewed on the EL-DataPad, with
data from a further 400 units stored on the unit at any one time. Data
EL EnviroPad TC & EL DataPad
www.labfacility.com
EL-EnviroPad-TC Thermometer with Inbuilt data logging and graphing
XE-3970-001
Thermometer with Inbuilt Data Logging & Graphing
•
•
•
•
•
Two modes: ‘Data Logging’ or ‘Spot Measurement’
High & Low Alarms
2.8” colour touch screen
Compatible with thermocouples type J, K, N & T
Downloadable data via USB
This robust easy to use handheld device takes and records
temperature readings via the attached k-type probe that is supplied
with the unit. A large touch screen, colour display indicates
temperature, maximum and minimum readings and will produce a
graph of the data.
It has two functions ‘Data Logging’ and ‘Spot Measurement’;
When in ‘Data Logging’ mode it can be set up and left to take
temperature readings at pre-determined intervals for a desired length
of time. All readings are saved to a file with a date and time stamp in
CSV format for up to 65,536 readings.
When in ‘Spot Measurement’ mode the unit can be used as a
thermometer to capture one-off temperature readings displayed on
screen. This can be repeated for up to 65,536 readings per file.
This data can then be downloaded to PC via a USB connection and
opened with Microsoft Excel® or the EasyLog software.
EL EnviroPad TC & EL DataPad
www.labfacility.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
