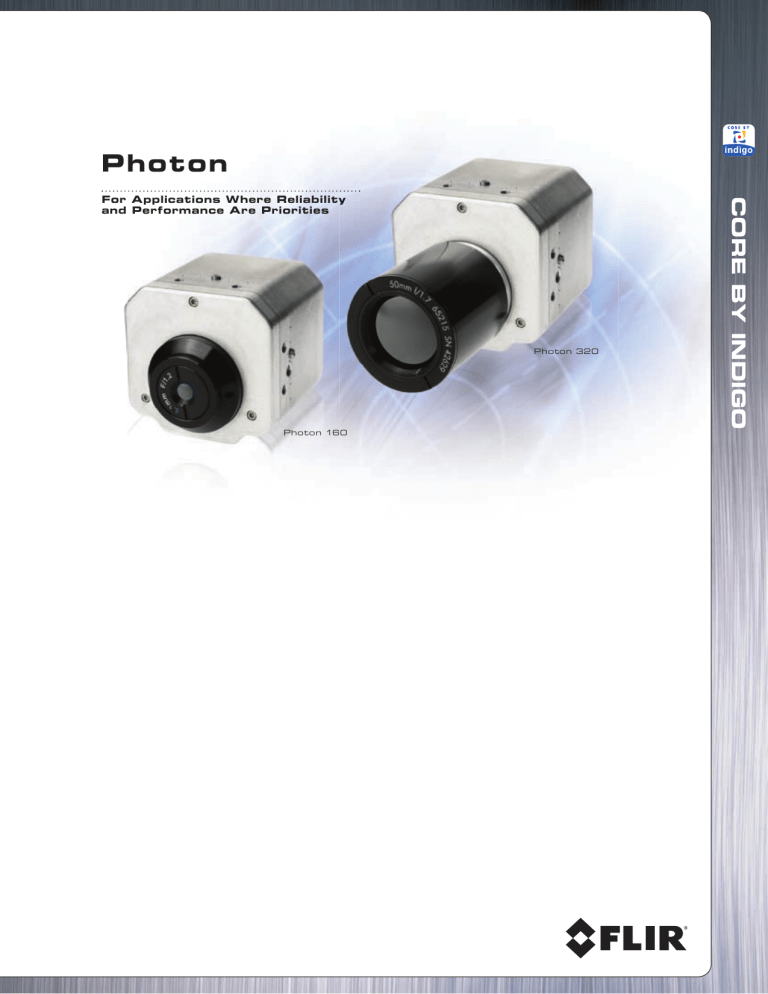

Photon
Photon 320
Photon 160
CORE BY INDIGO
For Applications Where Reliability
and Performance Are Priorities
The Industry Standard Thermal Imaging Camera Core:
For Applications Where Reliability and Performance Are Priorities
2.0 in
51.4mm
The Photon Camera Core is a compact, all-in-one thermal imager with outstanding
sensitivity and image quality. The on-focal-plane circuitry, combined with FLIR’s
advanced signal processing electronics, enables the camera to maintain excellent
dynamic range and image uniformity over a wide temperature range.
2.0 in
49.8mm
Integrators have embedded tens of thousands of Photon cores in a myriad of
applications including automotive night vision systems, firefighting equipment,
unmanned vehicle payloads, weapon sights, low-power security & surveillance
products, and more.
In addition to the standard Photon 320x240 format, FLIR offers a reduced-resolution
1.8 in
45.0mm
160x120 Photon. The Photon 160 replaces FLIR’s Micron/A10/Omega camera, at a
significantly reduced price. The Photon 160 is mechanically and electrically identical
to the Photon 320 camera. Except for the image format, the Photon 160 provides all the same performance and
functionality of the Photon 320 except for the 2X digital zoom feature. The Photon 160 is available as a lens-less
core, or with either a 6.3mm or 19mm lens.
The Photon Camera Core is a high-volume thermal imaging component that OEM
customers can integrate into products or systems of their own design. Most
OEM customers connect directly to the Photon’s 30-pin connector for power (in),
video (out), and other functions.
The Photon’s 30-pin connector also facilitates the interface to camera control
devices, and provides access to the digital data output. OEM customers typically
order the Photon core in this configuration.
Photon rear view of 30-pin connector.
While FLIR normally sells its factory-calibrated and tested Photon cameras with an
associated lens, a lens-less camera core configuration is also available. An optional
software program called Alternate Lens Cal is available to enable customers to
perform a supplementary gain calibration.
Photon lens-less camera core configuration
shown with optional Aperture Plate installed.
Photon OEM Configurations
Part Number
Photon 320
No Lens
2
Photon 160
14.25mm lens
19mm lens
35mm lens
50mm lens
No Lens
6.3mm Lens
19mm lens
NTSC 30Hz
500-0305-01-00
412-0035-14-07
412-0035-09-07
412-0035-17-07
412-0035-18-07
500-0305-06-07
412-0035-30-07
412-0035-38-07
NTSC 7.5Hz
500-0305-01-00S
412-0035-14-07S
412-0035-09-07S
412-0035-17-07S
412-0035-18-07S
500-0305-08-07S
412-0035-32-07S
412-0035-40-07S
PAL 25Hz
500-0305-02-00
412-0035-56-07
412-0035-52-07
412-0035-57-07
412-0035-58-07
500-0305-07-07
412-0035-31-07
412-0035-39-07
PAL 8.3Hz
500-0305-02-00S
412-0035-56-07S
412-0035-52-07S
412-0035-57-07S
412-0035-58-07S
500-0305-09-07S
412-0035-33-07S
412-0035-41-07S
Photon Benefi ts
• The best image quality in its class – FLIR’s proprietary Digital Detail Enhancement
(patent pending) sharpening filter brings out image detail that other cameras miss
• Compact and light weight for easy integration
• 2-second turn-on time for “On-Demand” applications
• Fully integrated design reduces integration time and expense
• Mature, proven design; complete imaging module, GUI, and SDK
• 2X digital zoom enables close-up imaging and electronic Pan/Tilt in zoom mode
(Photon 320 only)
• Backed by FLIR – the world leader in thermal imaging cameras
Digital Detail Enhancement Off.
Digital Detail Enhancement On.
IR image with no zoom.
IR image showing 2X zoom.
Soldier with Photon equipped UAV.
Fire fighter with Photon equipped MSA camera.
A small vehicle tracked from 750’.
IR image through thick smoke.
CORE BY INDIGO
• Widest operating temperature range, and highest shock rating of any camera
Specifications subject to change without notice.
3
Photon Accessory Kit
For evaluation purposes, FLIR offers an optional Accessory
Kit that enables customers to operate a Photon until they
develop their own interface. The Kit contains a power
supply, breakout box (called an I/O Module), an interface
cable, and a small adapter circuit (called a Wearsaver) that
attaches between the camera connector and interface
cable.
The Accessory Kit also includes a rear cover that
Photon OEM Accessory Kit.
encloses the Wearsaver adapter and provides for secure
connection to the interface cable. The end-user only needs
to provide a video cable and monitor, and an RS-232 cable
if remote control of the Photon is desired.
A camera control software program (GUI) is available for
download at:
www.corebyindigo.com/service/softwareupdates.cfm
Photon rear view showing
15-pin connector.
Photon OEM Accessory Kit Contents
The Photon OEM Accessory Kit part number is 421-0021-00. These items may also be ordered individually.
Part
Accessory Item
Functional Description
250-0194-00
Wearsaver
An adapter that converts the 30-pin SAMTEC connector on the
Photon power board to a 15-pin D-Sub connector.
261-1273-00
Wearsaver Cover
Rear cover encloses the wearsaver adapter and provides jack posts
for secure interface cable connection.
308-0076-00-02
6’ Interface Cable,
Provides electrical interface by means of a 15-pin mating connector
Photon to I/O Module
at the camera end, and 18-pin connector at the I/O module end.
Optional accessories include 3’ and 10’ interface cable lengths.
333-0005-00
I/O Module
A molded “break-out-box” providing electrical interface to the
camera, connectors for power-in (Switchcraft), video-out (BNC),
com port (RS-232, 9-pin D-Sub), and a 15-pin connector for
serial LVDS digital data. The I/O Module is designed to mate with the
SIPO for conversion of serial LVDS to a parallel digital data signal.
4
206-0001-20 &
AC/DC Power Supply
208-0004-02
& Line Cord
Provides nominal power (9 VDC) to operate the Photon.
Optional Accessories
Part
Accessory Item
Functional Description
110-0102-46
SDK for Windows & Embedded
The Photon SDK enables camera control using one of several
programming languages including VB6, VB.net, C#, and C++
(MFC). Code examples are included to help illustrate how some
of the camera control functions can be used.
Alternate Lens Cal Software
Allows OEM customers that purchase lens-less camera cores
to perform a supplementary gain calibration using their own
optics, while retaining the original factory calibration data
should it be needed again.
261-1357-00
Tripod Adapter
Adapter furnishes a ¼” x 20 helicoil insert.
308-0013-00
Interface Cable, SIPO to NI PCI-1422
Either of these cables can be used with a SIPO (333-0008-00)
308-0016-00-03
Interface Cable, SIPO to Bit Flow Road
to transfer digital data to the selected frame grabber. Contact
Runner
FLIR’s Client Services for camera files.
308-0076-00-01
3’ Interface Cable to I/O Module
The standard interface cable provided with the Accessory Kit is
308-0076-00-03
10’ Interface Cable to I/O Module
6’. Two other interface cable lengths are available: 3’ and 10’.
308-0126-00-01
3’ Power/Video Cable
Interface cable from Photon camera providing connectors
308-0126-00-02
6’ Power/Video Cable
for power in and output video (only) available in 3’, 6’, and 10’
308-0126-00-03
10’ Power/Video Cable
lengths. This cable replaces the standard interface cable
CORE BY INDIGO
110-0102-63
and I/O module when serial control and digital video are not
required.
333-0008-00
Serial-In, Parallel-Out Module (SIPO)
The SIPO converts serial digital data output into a parallel
data format for use with a frame grabber. The SIPO mates
directly to the I/O module’s digital data port, and furnishes a
68-pin connector that can be interfaced to a compatible frame
grabber via a 308-0013 or -0016 digital cable.
421-0008-00
421-0025-00
Rechargeable Battery & Cable Kit consisting
Rechargeable Lithium-Ion battery will power a Photon camera
of: - 206-0002-10 Battery Pack 7.2V, for 6+ hours on a full charge. The battery is furnished with
Li-Ion; Charger charger (not shown) and an 8” cable that interfaces to the I/O
- 260-0007-10 Battery Cable
module. The nominal voltage output of the battery is 7.2 VDC.
Ethernet Module
This 100/1000 baseT Ethernet Interface module allows for
camera control along with real-time streaming uncompressed
video data from the Photon via standard ethernet hardware.
The adapter auto senses network capability and runs at
standard 100-megabit or full gigabit ethernet speed. The
module includes the ethernet interface adapter and camera
cabling. The module allows capture of both 8-bit data and the
full 14-bit bandwidth digital video. Analog video is also output via
a BNC connector.
500-0312-00
EMI Rear Enclosure Assembly
With appropriate grounding, cable shielding, and power, this
enclosure mitigates radiated EMI emissions to near CE class A
performance levels (~0dB margin).
Specifications subject to change without notice.
5
Camera Configurations
Stand Alone Operation with Accessory Kit
Interface Cable
Photon
I/O Module
Power Supply
Monitor
Accessory Kit and Customer-Furnished PC: Remote Operation
DB-9 Serial
Interface Cable
I/O Module
Photon
Camera Control via RS-232
Power Supply
Monitor
PC
Accessory Kit, SIPO and Customer-Furnished Desktop PC: Digital Data Collection
DB-9 Serial
Camera Control via RS-232
I/O Module
Interface Cable
SIPO
Photon
Power Supply
Monitor
PC
Custom Digital Data Cable
NOTE: An appropriate frame grabber, as well as image acquisition & processing software, must be supplied and supported by the customer. The frame grabber may be either a
Bit Flow Road Runner Model 14 or National Instruments PCI-1422 IMAQ, depending on the digital cable and type of software planned for use by the customer.
Ethernet Module and Customer-Furnished PC: Digital Data Collection
RJ-45 CAT-5
Camera Control & Digital Data
Interface Cable
Photon
Ethernet Module
Monitor
Power Supply
PC
The Ethernet Module enables Photon control and video display/capture on a PC. Due to variability in user platforms and networks, FLIR cannot not guarantee the fidelity of captured video.
Overview of the Photon Electrical Interface
Photon 15-pin D-Sub Connector Pin Definitions
6
Pin #
Signal Name
Signal Definition
1
VIDEO_HI
Analog Video, positive output
2
SD_FSYNC+
Digital Port 1 Sync, positive output
3
GND
Ground
4
GND
Ground
5
GND
Ground
6
VIDEO_LO
Analog Video, negative output
7
SD_CLK+
Digital Port 1 Clock, positive output
8
SD_DATA+
Digital Port 1 Output Data, positive output
The 15-pin high-density D-Sub connector pin definitions are provided in the
9
TX
Primary Serial Communication transmit
case that the Wearsaver adapter is used. The signals on this connector
10
PWR_IN
Input Voltage
include input power, analog video output, serial communication for camera
11
SD_CLK-
Digital Port 1 Clock, negative output
control, and the digital data output.
12
SD_FSYNC-
Digital Port 1 Sync, negative output
13
SD_DATA-
Digital Port 1 Output Data, negative output
14
RX
Primary Serial Communication receive
15
PWR IN
Input Voltage
1
5
6
10
11
15
15-pin HD D-Sub (M)
connector on camera
NOTE: Access to the Photon’s external sync input is not available via this 15-pin D-sub connector
f/ number
6.3mm Lens
14.25mm Lens
19mm Lens
35mm Lens
50mm Lens
1.2
1.3
1.4
1.4
1.7
Field of View
Photon 160
52° x 40°
N/A
18° x 14°
N/A
N/A
Photon 320
N/A
50° x 38°
36° x 27°
20° x 15°
14° x 11°
IFoV (milliradians)
Minimum Focus Distance
Hyperfocal Distance
Hyperfocal Depth of Field
Weight (Lens & Lens Mount only)
Length (Lens only)
Diameter (maximum)
Lens Coating Type
6.032
2.667
2.000
1.086
0.760
~0.13 meters
~0.13 meters
~0.3 meters
~0.7 meters
~1.8 meters
5 meters
5 meters
7.5 meters
26 meters
35 meters
2.5 meters
2.5 meters
3.8 meters
13 meters
18 meters
35 g
56 g
33 g
88.5 g
128 g
9.6mm
30.7mm
19.5mm
43.4mm
66.9mm
31.8mm
42.0mm
26.0mm
42.0mm
High Efficiency
High Durability
Nominal Wavelength
45.0mm
Hard Carbon
8.0 to 14.0 microns
CORE BY INDIGO
Lens Data
Focal Length
* Note: Photon lenses are not designed, calibrated, or specified for close focus use. Questions? Email: [email protected]flir.com
Direct Interface to SAMTEC Connector
Pin definitions of the 30-pin board connector for
interface to the SAMTEC TFML-115-02-S-D-P
connector (J1) are shown below. This is the primary
connector interface to the Photon camera.
30
4 2
29
3 1
Note that FLIR’s
pinout differs from
SAMTEC pinout
30-pin SAMTEC (M) connector on
camera
Power Board to External I/O Connector Pin Definitions
Pin #
Signal Name
Signal Definition
Pin #
Signal Name
Signal Definition
Pin #
Signal Name
Signal Definition
1,2,5,6
GND
Ground
13
LVDS_VID2+
Digital Port 2 Output Data, positive output
22
SD_CLK-
Digital Port 1 Clock, negative output
3
3.15V_OUT
3.15V output
14
SD_DATA-
Digital Port 1 Output Data, negative output
23
LVDS_VID0-
Digital Port 2 Clock, negative output
4
PWR_IN
Input voltage
15
LVDS_VID2-
Digital Port 2 Output Data, negative output
24
SD_ CLK+
Digital Port 1 Clock, positive output
7
1.5V_OUT
1.5V output
16
SD_ DATA+
Digital Port 1 Output Data, positive output
25
TEMP2
Temp Sensor port 2
Not connected
17
LVDS_VID1+
Digital Port 2 Sync, positive output
26
DIS0_EXT
Frame Sync input
8
9
RX2
Spare Serial Communication receive
18
SD_FSYNC-
Digital Port 1 Sync, negative output
27
DIS2_EXT
Discrete Input Channel 2
10
RX
Primary Serial Communication receive
19
LVDS_VID1-
Digital Port 2 Sync, negative output
28
VIDEO_LO
Analog Video, negative output
11
TX2
Spare Serial Communication transmit
20
SD_ FSYNC+
Digital Port 1 Sync, positive output
29
DIS1_EXT
Discrete Input, Channel 1
12
TX
Primary Serial Communication transmit
21
LVDS_VID0+
Digital Port 2 Clock, positive output
30
VIDEO_HI
Analog Video, positive output
Note: The mating connector is SAMTEC SFML-115-T1-S-D-K
Specifications subject to change without notice.
7
Specifications
System Overview
System Type
Sensor Type
Photon 320
Photon 160
Pixel Size
Spectral Band
Performance
Uncooled LWIR Thermal Imager
324x256 VOx Microbolometer
160x128 VOx Microbolometer
38 μm
7.5 – 13.5 μm
< 85mK NEdT at f/1.6
Outputs
Analog Video
Digital Video
NTSC @ 30 Hz
PAL @ 25 Hz (optional)
9 Hz option for export (factory set)
8- or 14-bit serial LVDS
Operation
Image Control
Camera Control
Signal Interface
Invert, revert, 2x digital zoom (Photon 320 only), digital detail enhancement (DDE)
Autonomous, or manual via GUI or RS-232 serial command
30-pin SAMTEC connector for power, video, communication, digital data,
external sync, direct access to e-zoom & polarity
Power
Input Voltage
Power Dissipation
Time to Image
Range 5 – 24 VDC
1.6W steady-state
~2 seconds
Environmental
Operating Temp Range
Storage Temp Range
Scene Temp Range
Shock
Vibration
Humidity
-40 – +80 °C external temp
-50 – +85 °C external temp
To 150 °C standard
70 g shock pulse, 11ms half-sine profile
4.3 g ms random vibration for 8 hours (three axes)
Non-condensing, 5% – 95%
Physical Attributes
Size
Weight
Mounting Interface
51.4 x 49.8 x 34.0 mm (less lens)
97g (core only, no lens or cover)
7 heatsink attach points, M3
SANTA BARBARA
CVS World Headquarters
FLIR Systems, Inc.
70 Castilian Drive.
Goleta, CA 93117
USA
PH: +1 805.964.9797
FX: +1 805.685.2711
PORTLAND
Corporate Headquarters
FLIR Systems, Inc.
27700A SW Parkway Avenue
Wilsonville, OR 97070
USA
PH: +1 877.773.3547
FX: +1 503.498.3153
EUROPE
CVS Eurasian Headquarters
FLIR Systems CVS BV
Charles Petitweg 21
4847 NW Teteringen - Breda
The Netherlands
PH: +31 (0) 765 79 41 94
FX: +31 (0) 765 79 41 99
www.flir.com
www.corebyindigo.com
Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited.
Specifications are subject to change without notice. ©2008 FLIR Systems, Inc. All rights reserved. Rev B 04/08
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
