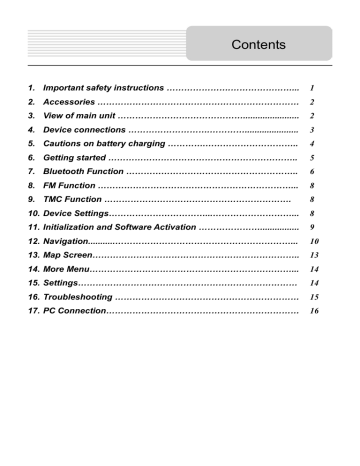

Contents
1. Important safety instructions ………………….…………………...
1
2. Accessories ……………………………………………………………
2
3. View of main unit …………………….……………….......................
2
4. Device connections ……………………….…………......................
3
5. Cautions on battery charging ………….…………………………..
4
6. Getting started ………………………………………………………..
5
7. Bluetooth Function …………………………………………………..
6
8. FM Function …………………………………………………………...
8
9. TMC Function ……………………………………………………….
8
10. Device Settings……………………………...………………………...
8
11. Initialization and Software Activation …………………................
9
12. Navigation...........……………………………………………………...
10
13. Map Screen……………………………………………………………..
13
14. More Menu……………………………………………………………...
14
15. Settings…………………………………………………………………
14
16. Troubleshooting ………………………………………………………
15
17. PC Connection…………………………………………………………
16
EN
Important Safety
Instructions
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
CAUTION
1.
2.
To reduce the risk of electric shock, do not remove the cover (or back). No
user-serviceable parts inside. Refer servicing to qualified service personnel.
The manufacturer should not hold responsibility for the damage caused by any
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit.
WARNING
The device should not be exposed to dripping or splashing and no objects filled with
liquids should be placed on the device.
EN – 1
EN
Accessories
Accessories List
ITEM
NAME
QTY
Car Charger
1
USB Cable
1
Stylus Pen
1
Stylish Carry Case
1
(GV5500BT only)
EN - 2
User Manual
1
Warranty Card
1
Driver/Document CD
1
View of Main Unit
Front and Side View
2
3
4
5
6
1.
2.
3.
4.
5.
6.
1
LCD Touch Screen
Tap the screen with touch pen or finger to select menu commands or to enter
information.
Battery Status Indicator
The indicator glows in bright green colour when battery is fully charged and in red
color when charging.
Earphone Jack
Connects to earphones or headsets.
MicroSD Slot
Receiving microSD memory card for data access or memory expansion.
USB Port
Connection to USB Cable for data access or battery charging
Microphone
Records sound.
View of Main Unit
Rear and Top View
3
4
1
1.
2.
3.
4.
2
Speaker
Emits sound, voice or music.
Reset Button
Press to reboot the device.
Light Sensor
Adjust the brightness of touch screen
Power Button
Press to power the device ON/OFF.
Device Connections
EN
Inserting microSD Card


To insert a microSD card, place the
connector towards the device and the
card label towards the front side of
the device.
To remove a microSD card, gently
press the edge of the card to release
the safety lock and pull the card out
of the slot.
NOTE:
Please always make sure that no application is accessing the microSD
card before extraction.
Connecting to External USB Device (Charging)


Insert the USB connector into the
appropriate USB port.
Insert the other USB connector into
the USB port on PC to start charging.
EN - 3
EN
Device Connections
Connecting to Car Charger


Insert the USB connector into the
appropriate USB port.
Insert car charger connector into
vehicle 12V accessory/cigarette
socket to start charging.
NOTE:
Please connect the car charger to vehicle 12V accessory/cigarette
socket after the vehicle engine is started to protect the device from
sudden surges in current.
EN -4
Cautions on Battery
Charging
About Rechargeable Battery
The device is equipped with a built-in rechargeable battery. Please fully charge the
battery (for at least 5 hours) before initial use. The battery status indicator glows in red
colour when charging and turns bright green colour when charging is complete. Charging
time is approximately 4 hours.
Working conditions and precautions for the rechargeable battery


Devices with new batteries should be fully charged before initial use.
It is not necessary to start charging the device before the battery is fully
discharged.
Getting Started
EN
1. Press and hold Power Button to turn
on the device.
2. Shortly after the greeting screen is
shown, the main menu will be
displayed.
3. Tap the corresponding buttons with
touch pen included to navigate
through various functions.
4. Press and hold Power Button to turn
the device off or to allow the device to
enter sleep mode.
5. Tap Sleep icon to put the device to
sleep mode or Power Off icon to turn
the device off.
EN - 5
Bluetooth Function
EN
(GeoVision 4500BTFM/5500BTFM/5500BTFMHD)
1.
2.
3.
4.
5.
Tap on
in Bluetooth interface to
start pairing with mobile phone
device with GPRS function.
Please make sure Bluetooth function
on mobile phone is detectable by
other devices.
6.
“Connection established” will be
displayed upon the successful
pairing.
7.
Tap on
in Bluetooth interface to
enter the Phone Keyboard.
Tap on digit buttons and tap on
/
/
to start Dialing,
Backspace, and enter Dial Record.
8.
EN - 6
Tap on Bluetooth icon on the main
menu to start using Bluetooth
function.
The link status is shown at the
bottom of the interface.
Tap on
to exit the current
function.
Bluetooth Function
(GeoVision 4500BTFM/5500BTFM/5500BTFMHD)
9.
Tap on
/
volume. Tap on
to adjust the
to end call.
10. Tap on
to enter call record. Tap
on
to enter keypad. Tap on
to switch the call to mobile phone or
switch it back to device.
11. The call fails to connect as
illustrated.
12. Tap on
to return to Phone
Keyboard interface.
13. Calling number will be displayed
upon the Incoming Call.
Bluetooth Function
(GeoVision 4500BTFM/5500BTFM/5500BTFMHD)
14. Tap on
on Bluetooth interface
to enter Dial Record.
15. Tap on / /
to view Dialed Call
list, Received Call list, and Missed
Call list. Tap on
to start dialing.
16. To delete a desired phone number
on the list, select the number and tap
on
. Tap on
to delete all
numbers on the list.
17. Tap on
in the Bluetooth
interface to redial the last dialed
number.
18. Tap on
in the Bluetooth
interface to enter Setting function.
19. Tap on
to reset a new PIN
code. Tap on
/
to select a
ring tone.
20. Tap on
to enable/disable the
Bluetooth function. Tap on
to
enable/disable automatic HFP
connection.
Bluetooth Function
EN
(GeoVision 4500BTFM/5500BTFM/5500BTFMHD)
21. Tap on
in Bluetooth interface
to enter Paired Device List function.
22. Tap on
to delete mobile phone
name from the list. Tap on
to
disconnect the PND (Personal
Navigation Device) from the mobile
phone. Select mobile phone name
from Paired Device List and tap on
to enter Profile list.
23. Tap on
to re-connect from
previously connected mobile phone.
Tap on
to disconnect the PND
(Personal Navigation Device) from
the mobile phone.
24. Tap on
in Bluetooth interface to
start searching process.
25. Mobile phone name desired for
connection will be displayed on the
list when search is completed.
26. Tap on the mobile phone name and
tap on
to pair. Tap on
to
enter Paired Device List.
EN - 7
Bluetooth Function
EN
(GeoVision 4500BTFM/5500BTFM/5500BTFMHD)
27. Tap on
enter Phonebook.
28. Tap on
to download the phone
numbers of the mobile phone to the
PND (Personal Navigation Device).
29. Tap on
to dial the phone
number.
30. Tap on
to delete mobile phone
name from the list.
NOTE:
Bluetooth Function is available for GeoVision 4500BTFM/5500BTFM/5500BTFMHD.
FM Function
(GeoVision 4500BTFM/5500BTFM/5500BTFMHD)
1. Tap on Function icon on the main
menu.
2. Tap on FM icon to start using FM
function.
3. Tap on
/
or drag the cursor to
tune FM frequency down/up.
4. Tap on
to save current FM
frequency.
5. Tap on
to enable the FM
function.
6. Tap on
to exit.
NOTE:
*Make sure the device is properly
connected to the car charger before using
FM function.
NOTE:
FM function is available for GeoVision 4500BTFM/5500BTFM/5500BTFMHD.
EN - 8
TMC Function
(GeoVision 4500TMC/5500TMC/5500TMCHD)
TMC is a specific application of the FM Radio Data System (RDS) used for broadcasting
real-time traffic and weather information. Route calculation can avoid road blocks or
unexpected traffic jams caused by an accident.
NOTE:
This feature is available only if your hardware supports TMC, and if it’s
in your country.
Prestigio GeoVision receiver will automatically search the FM radio stations for TMC
data, and the decoded information will immediately be used in route planning. The
moment Prestigio GeoVision receives traffic information that may affect your route, the
program will warn you that it is recalculating the route, and navigation will continue with a
new route that is optimal considering the most up-to-date traffic conditions.
To fine-tune this recalculation, you can set the minimum delay that can trigger a route
recalculation, or you can instruct Prestigio GeoVision to have you confirm the new
recommended route before it takes effect. You can do these in Traffic settings.
A special icon is displayed on the Map screen to show you whether traffic events are
received. The icon shows the status of the traffic receiver when there are no traffic
events on your route; otherwise it shows the type of the next traffic event on your route.
Road segments affected by traffic events are displayed with an alternate colour on the
map, and small symbols above the road show the nature of the event:
1. Tap
to open the Traffic
Summary screen.
2. Tap
traffic events.
to open the list of
TMC Function
(GeoVision 4500TMC/5500TMC/5500TMCHD)
3. Now tap any of the list items to see its
details, and to display the affected
road segment in its full length on the
map.
NOTE:
If there are traffic events on the recommended route that the application has not
bypassed, the icon
check them.
will open the list of significant traffic events to let you quickly
Device Settings


In the main menu, tap on
to
enter the device settings.
Tap
to display other settings.
Volume
Adjust sound volume, mute device, or enable warning messages.
Backlight
Adjust the brightness of touch screen.
Language
Select desired language.
DateTime
Set up Time Zone/Date/Time.
Calibration
Calibrate the screen when position deviation occurs.
USB
Set the data transmission mode between the navigator and
computer.
Factory Reset
Restore all system settings to factory default values.
Initialization and
Software Activation
When using the navigation software for the first time, an initial setup process starts
automatically. Do as follows:
Select the program language. If your preferred language does not appear on the
screen, tap
/
or drag the list up or down with your finger to view all available
to select your preferred language. Tap
languages. Tap
to
confirm your selection, and proceed to the next page.
Read the Software and Database End User Licence Agreement, and tap
if you agree with the terms of use.
The Configuration wizard starts in the selected language. Tap
to
continue.
Select the voice guidance language profile. If your preferred language does not
appear on the screen, scroll the list for other available profiles. Tap any item in the list for
a short voice sample. Tap
next page.
to confirm your selection, and proceed to the
Set your preferred time format and units. Tap
EN
Initialization and
Software Activation
to confirm your
preferences.
Set your preferred route planning options. Tap
to confirm your
preferences.
You are offered to watch the tutorial that leads you through the basic steps of
navigation. Tap
if you would like to get an instant understanding of the
functions of your software. You can run it later if you choose
.
You are now asked whether you allow the software to collect usage information and
GPS logs that may be used for improving the application and the quality and coverage of
maps. Tap
to allow the anonymous statistics or
to disable this
function.
The initial setup is now complete. The application starts.
EN - 9
EN
Navigation
Introduction
After the initial setup, and whenever the software is started, the Navigation menu
appears. You have the following options:
•
Tap
to select your destination by entering an address or selecting
a place of interest, a location on the map or one of your Favourite destinations.
You can also look up your recent destinations from the Smart History, enter a
coordinate or use the location saved in a photo.
•
Tap
to display the route parameters. You can view the route in its
full length on the map. You can also perform route-related actions such as
editing or cancelling your route, setting a start point for the route, picking route
alternatives, avoiding parts of the route, simulating navigation or adding the
destination to your Favourites.
•
Tap
to customize the way the navigation software works, watch the
Tutorial, simulate demo routes, or to run some additional applications.
•
Tap
•
Tap
EN - 10
to start navigating on the map.
to stop navigation and exit the software.
Navigation
Destination Menu
In the Navigation menu, tap
. The Find menu provides you with the
following options:
•
Tap
to specify an address as your destination.
•
Tap
to select a place of interest as your destination.
•
Tap
to navigate to a location selected on the map.
•
Tap
to choose from the list of your favourite destinations.
•
Tap
or
to navigate to the recent destination that is shown on the
button.
•
Tap
•
Tap
to choose from the list of all recent destinations.
to navigate to a coordinate or to a location saved in a photo.
Navigation
Navigating to An Address
In the Navigation menu, tap
, then tap
. By default, the screen
proposes the city or town where you are located.
If needed, change the country. Tap the button showing the name of the country.
1.
Use the keyboard to enter the name of the country.
2.
After entering a couple of characters, the list of countries that match the entered
string appears. Tap the country of your choice.
If needed, change the city/town. Tap the button showing the name of the city/town,
and use the keyboard to enter a part of its name. As you enter letters, the most likely
city/town name is always shown in the input field. You have the following options:
•
Tap
to select the city/town that is offered in the input field.
•
Tap
to correct your entry.
•
Tap
to browse the list of city/town names matching your input.
Select a city/town from the list.
Navigation
EN
Navigating to An Address
Enter the street name:
1.
Tap
2.
Use the keyboard to enter a part of the street name.
3.
Tap
.
to select the street that is offered in the input field or tap
to browse the list of all streets matching your input. Select a street from the list.
Enter the house number:
1.
Tap
2.
Use the keyboard to enter the house number.
3.
Tap
.
to finish entering the address.
The map appears with the selected destination in the middle. Tap another map
location if necessary, then tap
to confirm the destination.
After a short summary of the route parameters, the map appears showing the entire
route. Wait for a few seconds or tap
and start navigating.
EN
Navigation
Navigating to a Place of Interest (POI)
On the Map screen, tap
to return to the Navigation menu. In the
, then tap
Navigation menu, tap
. You are offered the following
preset search categories:
•
Tap
to get a list of petrol stations along the route or if it is not
available, around your current position or your last known position.
•
Tap
to get a list of parking lots near the destination or if it is
not available, around your current position or your last known position.
•
Tap
to get a list of restaurants along the route, around your
current position or your last known position.
•
Tap
to get a list of accommodation near the destination,
around your current position or your last known position.
You can also tap
EN - 12
and search for a place by entering its name.
Navigation
Navigating to a Place of Interest (POI)
If none of the above is appropriate, tap
to find a place of interest at the following
locations:
•
Tap
to search around the current position or if it is not available,
around the last know position.
•
•
Tap
to search for a place within a selected city or town.
Tap
to search for a place around the destination of the active
route.
•
Tap
to search along the active route, and not around a given point.
This is useful when you search for a later stopover that results in a minimal
detour only, such as searching for upcoming petrol stations or restaurants.
Navigation
Example of Navigating to a Place of Interest
Example: To find a park around your destination, do as follows (starting from the
Navigation menu):
Tap
.
Tap
.
Tap
.
Tap
.
The list of place categories appears. Tap
and tap
Tap
or slide your finger to browse the list,
.
to browse the whole category, or tap
to narrow
down your search.
Tap any of the list items.
Check the details and the location of the place, and then tap
.
After a short summary of the route parameters, the map appears showing the entire
route. Wait for a few seconds or tap
and start navigating.
Map Screen
EN
The Map screen is the most important and frequently used screen of the software. The
Vehimarker (a blue arrow by default) represents your current position, and the orange
line shows the recommended route. There are screen buttons and data fields on the
screen to help you navigate. During navigation, the screen shows route information.
•
At the top of the screen, you see your heading and the house numbers on left and
right if you have not selected a route destination. When navigating a route, you see
the next manoeuvre and the next street/road on your route. Tap either of them to
open the route itinerary.
•
Tap
to open the Quick menu with a selection of functions that are useful
during navigation.
•
Tap the map anywhere to explore the map around your current position. Additional
map control buttons appear.
•
Tap
to open three data fields on the map. Tap any of them to
suppress the others. The default values (you can change them in Map settings):
•
the remaining distance to the destination,
•
the estimated time of the arrival at the destination, and
•
the remaining time of the trip.
•
Tap
to return to the Navigation menu.
EN - 13
EN
More Menu
The 'More' menu provides you with various options and additional applications. In the
Navigation menu, tap
•
.
: Fine-tune route planning options, change the look of the Map screen, turn
on or off warnings, or restart the Configuration wizard, etc.
•
: Visit www.naviextras.com to get additional content, such as new maps or
3D landmarks and useful applications.
•
: Access multimedia applications: the Picture Viewer or the Music Player.
•
: Access travel applications: the unit converter, the clothing size converter
or country information.
•
: Access other useful applications: the calculator, the fuel and maintenance
monitor, sunrise and sunset information or the trip and track log monitor.
•
: Read the Tutorial to get instant understanding of the functions of your
software, or run the Demo to watch sample route simulations to see how
navigation works.
EN - 14
Settings
In the Navigation menu, tap
, then tap
. The Settings menu provides
you with the following options (scroll the list to see all):
•
: Adjust the different sound volumes, change the voice guidance
profile, or enable and set up warnings.
•
: Change the function buttons in the Quick menu of the Map screen.
•
: Before selecting one of the Lorry profiles as the Vehicle type used
in route calculation, set up the editable lorry attribute profile with the parameters
of your lorry. These parameters will be used in route calculation.
•
: You can turn Smart Routes on or off, select whether to take traffic
events into consideration when calculating the route or you can change the
radio station.
•
: Select the type of vehicle you are driving, the road types used in
route planning, and the route planning method.
•
: These settings determine how Green routes will be calculated.
They are also used to display the cost and CO2 emission of routes.
Settings
•
: Adjust map related settings: change the daytime and night colour
schemes, change the default zoom level, switch between 2D and 3D map,
suppress buildings or change the Vehimarker.
•
: Change the values of the data fields on the Map screen, show or
suppress junction views and signpost or display a route progress bar on the left
of the map.
•
: Turn the menu animations on or off, select a different skin for the
application, adjust the display backlight.
•
: Change the program language, the time format and units or the
time zone.
•
: Turn the automatic trip or track log saving on or off, check the
current size of the trip database.
•
: The application collects usage information and GPS logs that may
be used for improving the application and the quality and coverage of maps.
Here you can enable or disable collecting these logs.
•
: Modify the basic software parameters set during the initial setup
process.
•
: Delete all saved data and reset all settings to their factory defaults.
Troubleshooting
EN
Take steps described in the tables below to solve simple problems before contacting
customer service.
NOTE:
Immediately turn off the device and disconnect the power adapter if the
device is not working properly. Never try to repair the unit without
authorized professionals for it may damage the unit.
PROBLEM
POSSIBLE CAUSE
POSSIBLE SOLUTION
The adaptor is not
connected well.
Connect the adaptor
correctly.
The built-in rechargeable
battery is weak.
Use the adaptor to supply
power or charge the
battery.
There is no
sound.
The volume may be turned
down or mute.
Turn up the volume or turn
on the sound output.
There is no
picture.
The brightness may be
turned down.
Adjust the brightness of the
LCD.
The unit cannot
receive satellite
signals or cannot
orient.
The unit work may be
obstructed by buildings or
metal blocks.
Make sure to use the unit
outdoors; if in vehicle, you
can use the external GPS
antenna to solve this
problem.
Users cannot
turn on the unit.
EN - 15
Troubleshooting
EN
PROBLEM
Irregularity or
instability in
signal receiving.
EN - 16
POSSIBLE CAUSE
POSSIBLE SOLUTION
The built-in rechargeable
battery is weak.
Use the adaptor to supply
power or charge the
battery.
The unit may be obstructed
by material, such as heat
insulation paper.
Remove the material.
The movement of the unit is
too strong.
Avoid any movement of the
unit.
PC Connection
To establish connection with PC for data access and synchronization, please execute
setup file included in the Driver/Documentation CD or download the file from Microsoft
website to install:
Microsoft Active Sync® software for operating system Microsoft XP or earlier
versions
(http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/activesync-dow
nload.mspx)
and/or
Microsoft Mobile Device Center® software for operating system Microsoft Vista
(http://www.microsoft.com/windowsmobile/en-us/downloads/microsoft/device-center-d
ownload.mspx).
Please refer to its user manual for more detailed instructions.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
