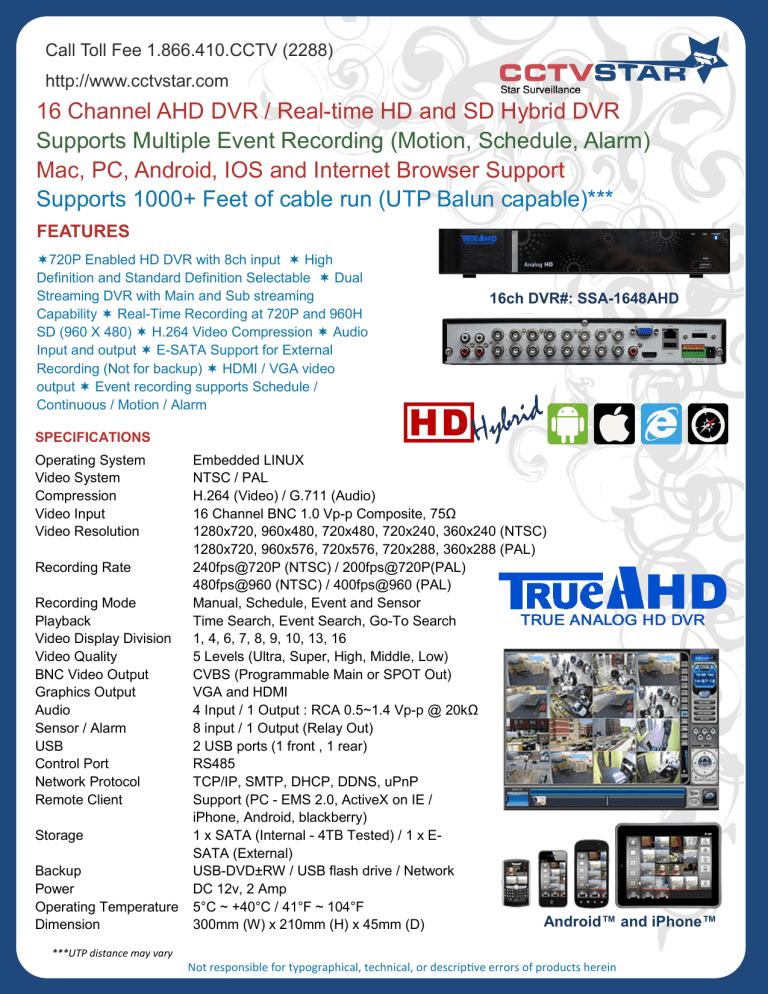

16 Channel AHD DVR / Real-time HD and SD Hybrid DVR Supports

16 Channel AHD DVR / Real-time HD and SD Hybrid DVR Supports
Call Toll Fee 1.866.410.CCTV (2288)
http://www.cctvstar.com
16 Channel AHD DVR / Real-time HD and SD Hybrid DVR
Supports Multiple Event Recording (Motion, Schedule, Alarm)
Mac, PC, Android, IOS and Internet Browser Support
Supports 1000+ Feet of cable run (UTP Balun capable)***
FEATURES
720P Enabled HD DVR with 8ch input  High
Definition and Standard Definition Selectable  Dual
Streaming DVR with Main and Sub streaming
Capability  Real-Time Recording at 720P and 960H
SD (960 X 480)  H.264 Video Compression  Audio
Input and output  E-SATA Support for External
Recording (Not for backup)  HDMI / VGA video
output  Event recording supports Schedule /
Continuous / Motion / Alarm
16ch DVR#: SSA-1648AHD
SPECIFICATIONS
Operating System
Video System
Compression
Video Input
Video Resolution
Recording Rate
Recording Mode
Playback
Video Display Division
Video Quality
BNC Video Output
Graphics Output
Audio
Sensor / Alarm
USB
Control Port
Network Protocol
Remote Client
Storage
Backup
Power
Operating Temperature
Dimension
Embedded LINUX
NTSC / PAL
H.264 (Video) / G.711 (Audio)
16 Channel BNC 1.0 Vp-p Composite, 75Ω
1280x720, 960x480, 720x480, 720x240, 360x240 (NTSC)
1280x720, 960x576, 720x576, 720x288, 360x288 (PAL)
[email protected] (NTSC) / [email protected](PAL)
[email protected] (NTSC) / [email protected] (PAL)
Manual, Schedule, Event and Sensor
Time Search, Event Search, Go-To Search
1, 4, 6, 7, 8, 9, 10, 13, 16
5 Levels (Ultra, Super, High, Middle, Low)
CVBS (Programmable Main or SPOT Out)
VGA and HDMI
4 Input / 1 Output : RCA 0.5~1.4 Vp-p @ 20kΩ
8 input / 1 Output (Relay Out)
2 USB ports (1 front , 1 rear)
RS485
TCP/IP, SMTP, DHCP, DDNS, uPnP
Support (PC - EMS 2.0, ActiveX on IE /
iPhone, Android, blackberry)
1 x SATA (Internal - 4TB Tested) / 1 x ESATA (External)
USB-DVD±RW / USB flash drive / Network
DC 12v, 2 Amp
5°C ~ +40°C / 41°F ~ 104°F
Android™ and iPhone™
300mm (W) x 210mm (H) x 45mm (D)
***UTP distance may vary
Not responsible for typographical, technical, or descriptive errors of products herein
