wdr bullet network camera

wdr bullet network camera
4
"Control Panel > Internet Options > Security" menu, press [Custom
5. level...]
button.

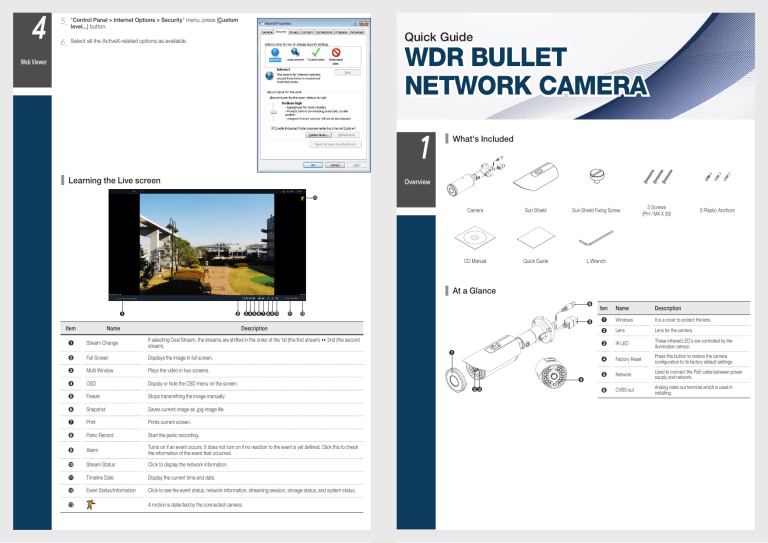

Quick Guide
6. Select all the ActiveX-related options as available.
WDR BULLET
NETWORK CAMERA
Web Viewer
1
\\Learning the Live screen
\\What's Included
Overview
m
Camera
Sun Shield
Sun Shield Fixing Screw
CD Manual
Quick Guide
L Wrench
\\At a Glance
a
Item
Name
b cdefghij
k
Description
a
Stream Change
If selecting Dual Stream, the streams are shifted in the order of the 1st (the first stream) < 2nd (the second
stream).
b
Full Screen
Displays the image in full screen.
c
Multi Window
Plays the video in two screens.
d
OSD
Display or hide the OSD menu on the screen.
e
Freeze
Stops transmitting the image manually.
f
Snapshot
Saves current image as .jpg image file.
g
Print
Prints current screen.
h
Panic Record
Start the panic recording.
i
Alarm
Turns on if an event occurs. It does not turn on if no reaction to the event is yet defined. Click this to check
the information of the event that occurred.
j
Stream Status
Click to display the network information.
k
Timeline Date
Display the current time and date.
l
Event Status/Information
m
Click to see the event status, network information, streaming session, storage status, and system status.
A motion is detected by the connected camera.
Item
e
a
Windows
It is a cover to protect the lens.
b
Lens
Lens for the camera.
c
IR LED
These infrared LED’s are controlled by the
illumination sensor.
d
Factory Reset
e
Network
f
CVBS out
a
d
bc
3 Plastic Anchors
f
l
Name
3 Screws
(PH / M4 X 30)
Description
Press this button to restore the camera
configuration to its factory default settings.
Used to connect the PoE cable between power
supply and network.
Analog video out terminal which is used in
installing.
2
Installation
\\Installing
Installing on the ceiling
You can install the camera on the ceiling, and then adjust and fix its angle.
1. Fix the bottom surface of the camera on the ceiling by using the screws supplied.
It must be installed in a place where it can bear the camera's weight.
3
Connecting
It is recommended to inject silicon into the gap between the camera and the ceiling for secure waterproofing.
Connecting to the network
To connect with a PC ina local network
If you connect the network camera with a PC in the same network, you can perform monitoring and setting process by using the PC's Web
Viewer.
1. Connect the network port on the back panel with a router or hub.
2. Connect a local PC with a router or hub.
the address in “http://IP address:web service port” format in address window of the web browser or dedicated software
3. Enter
program at local PC.
4.
Ex : http://192.168.0.23:80 web service port is set as 80 by factory default. You can modify the port number in Network Setup screen.
Enter your ID and password to log in. You can watch the monitoring screen after login.
JJ You must register your login password when accessing for the first time.
To change your password, refer to "How to connect".
To connect with a PC in remote network
Installing on a wall
You can access the network camera from your PC through the internet.
You can install the camera on a wall, and then adjust and fix its angle.
1. Connect router's network port directly with static IP LAN cable or with the ADSL modem.
2. If using a router, you should configure the port forwarding settings.
1. Fix the bottom surface of the camera on a wall by using the screws supplied.
2.
It must be installed in a place where it can bear the camera's weight.
Mount your camera on the wall by using the screws supplied.
It is recommended to inject silicon into the gap between the camera and the wall for secure waterproofing.
Installing sun shield
You can install the sun shield to avoid strong light such as direct sunlight or electric light.
1. Fix your camera at your desired angle.
2. Align the provided sunshield’s hole to the camera’s hole and fix it by fastening screws.
4
Web Viewer
You can get relevant support from your router manufacturer or qualified installation company for how to configure the port forwarding of your router.
When you access the network camera from your PC via internet, make sure to access the following site.
\\How to connect to the camera
Since the network settings of your network camera are not configured by factory default, you cannot access to WebRA. To configure your
network, run the “MDload” in CD to check the IP and access to your camera.
<Search> button to search for the network camera linked to your
1. Press
network.
search results are displayed if finished. You can distinguish your network
2. The
camera(s) by checking its model information. Click your desired apparatus
whose network settings you want to configure in the list.
3.
Select “DHCP” or “STATIC” for <Network Type> in bottom left. If selecting
“STATIC”, enter the values for IP Address, Subnet Mask, Gateway, and DNS
information, and then press <Apply>.
list is automatically updated in a moment. Check if all the values look
4.The
correct and finish the network environment settings.
3
Connecting
\\Connecting to External Device
Installation monitor
Connect the video output cable of the network camera with the installation monitor.
You can watch the video input from the installed camera in the monitor.
\\Web Viewer
1. Security page (Internet Explorer) is displayed. Click <Continue to this website (not recommended).>.
2. Enter your ID and password in the ID input window.
Default user name : ADMIN
Password : 1234
JJ You should not use the installation monitor continuously as it is only designed to check the video output during the camera installation process.
Connecting with power supply
Connect the PoE (Power Over Ethernet) cable between the power supply and the network port.
JJ If your network camera is installed as standalone setup, the power should be supplied by PoE Hub.
3. You should run the activities after installing corresponding Active-X.
the Active-X installation window does not appear in the top right area for a
4.Iflong
time (longer than 1 minute), change the “Internet Options” settings.
