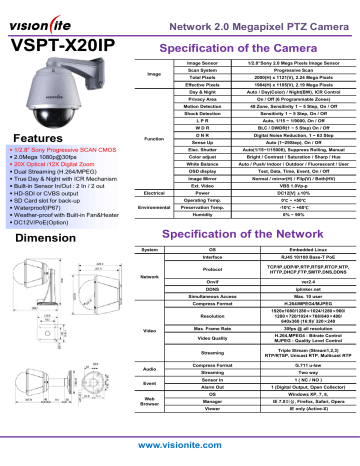

Network 2.0 Megapixel PTZ Camera
VSPT-X20IP
Specification of the Camera
Image Sensor
Features
§ 1/2.8" Sony Progressive SCAN CMOS
§ 2.0Mega [email protected]
§ 20X Optical /12X Digital Zoom
§ Dual Streaming (H.264/MPEG)
§ True Day & Night with ICR Mechanism
§ Built-in Sensor In/Out : 2 In / 2 out
§ HD-SDI or CVBS output
§ SD Card slot for back-up
§ Waterproof(IP67)
§ Weather-proof with Built-in Fan&Heater
§ DC12V/PoE(Option)
Function
1/2.8“Sony 2.0 Mega Pixels Image Sensor
Scan System
Progressive Scan
Total Pixels
2000(H) x 1121(V), 2.24 Mega Pixels
Effective Pixels
1984(H) x 1105(V), 2.19 Mega Pixels
Day & Night
Auto / Day(Color) / Night(BW), ICR Control
Privacy Area
On / Off (6 Programmable Zones)
Motion Detection
48 Zone, Sensitivity 1 ~ 5 Step, On / Off
Shock Detection
Sensitivity 1 ~ 5 Step, On / Off
LPR
Auto, 1/15 ~ 1/9000, On / Off
WDR
BLC / DWDR(1 ~ 5 Step) On / Off
DNR
Digital Noise Reduction, 1 ~ 63 Step
Sense Up
Auto (1~29Step), On / Off
Elec. Shutter
Auto(1/15~1/15000), Suppress Rolling, Manual
Color adjust
Bright / Contrast / Saturation / Sharp / Hue
White Balance
Auto / Push/ Indoor / Outdoor / Fluorescent / User
OSD display
Text, Data, Time, Event, On / Off
Image Mirror
Normal / mirror(H) / Flip(V) / Both(HV)
Ext. Video
VBS 1.0Vp-p
Electrical
Power
DC12[V] ±10%
Operating Temp.
0℃ ~ +50℃
Environmental
Preservation Temp.
-10℃ ~ +60℃
Humidity
0% ~ 90%
Specification of the Network
Dimension
System
OS
Embedded Linux
Interface
RJ45 10/100 Base-T PoE
Protocol
TCP/IP,UDP/IP,RTP,RTSP,RTCP,NTP,
HTTP,DHCP,FTP,SMTP,DNS,DDNS
Network
Video
Audio
Event
Web
Browser
Onvif
ver2.4
DDNS
iplinker.net
Simultaneous Access
Max. 10 user
Compress Format
H.264/MPEG4/MJPEG
Resolution
1920x1080/1280×1024/1280×960/
1280×720/1024×768/640×480/
640x360 (16:9)/ 320×240
Max. Frame Rate
30fps @ all resolution
Video Quality
H.264,MPEG4 : Bitrate Control
MJPEG : Quality Level Control
Streaming
Triple Stream (Stream1,2,3)
RTP/RTSP, Unicast RTP, Multicast RTP
Compress Format
G.711 u-law
Streaming
Two way
Sensor In
1 ( NC / NO )
Alarm Out
1 (Digital Output, Open Collector)
OS
Windows XP, 7, 8,
Manager
IE 7.0이상, Firefox, Safari, Opera
Viewer
IE only (Active-X)
www.visionite.com
