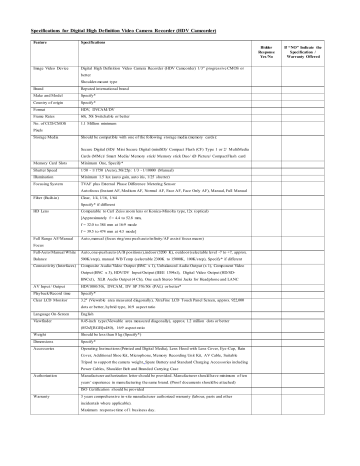

Specifications for Digital High Definition Video Camera Recorder

Specifications for Digital High Definition Video Camera Recorder
Specifications for Digital High Definition Video Camera Recorder (HDV Camcorder)
Feature
Specifications
Bidder
Response
Yes/No
Image Video Device
Digital High Definition Video Camera Recorder (HDV Camcorder) 1/3” progressive CMOS or
better
Shoulder-mount type
Brand
Reputed international brand
Make and Model
Specify*
Country of origin
Specify*
Format
HDV, DVCAM/DV
Frame Rates
60i, 50i Switchable or better
No. of CCD/CMOS
1.1 Million minimum
Pixels
Storage Media
Should be compatible with one of the following storage media (memory cards):
Secure Digital (SD)/ Mini Secure Digital (miniSD)/ Compact Flash (CF) Type 1 or 2/ MultiMedia
Cards (MMc)/ Smart Media/ Memory stick/ Memory stick Duo/ xD Picture/ CompactFlash card
Memory Card Slots
Minimum One, Specify*
Shutter Speed
1/50 - 1/1750 (Auto), 50i/25p: 1/3 - 1/10000 (Manual)
Illumination
Minimum 1.5 lux (auto gain, auto iris, 1/25 shutter)
Focusing System
TVAF plus External Phase Difference Metering Sensor
Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual
Filter (Built-in)
Clear, 1/4, 1/16, 1/64
Specify* if different
HD Lens
Comparable to Carl Zeiss zoom lens or Konica-Minolta type, 12x (optical)
[Approximately f = 4.4 to 52.8 mm,
f = 32.0 to 384 mm at 16:9 mode
f = 39.5 to 474 mm at 4:3 mode]
Full Range AF/Manual
Auto, manual (focus ring/one push auto/infinity/AF assist/ focus macro)
Focus
Full-Auto/Manual White
Auto, one-push auto (A/B positions), indoor (3200 K), outdoor (selectable level -7 to +7, approx.
Balance
500K/step), manual WB Temp (selectable 2300K to 15000K, 100K/step), Specify* if different
Connectivity (Interfaces)
Composite Audio/Video Output (BNC x 1), Unbalanced Audio Output (x 1), Component Video
Output (BNC x 3), HDV/DV Input/Output (IEEE 1394x1), Digital Video Output (HD/SDBNCx1), XLR Audio Output (4 Ch), One each Stereo Mini Jacks for Headphone and LANC
AV Input / Output
HDV1080/50i, DVCAM, DV SP 576/50i (PAL) or better*
Playback/Record time
Specify*
Clear LCD Monitor
3.2" (Viewable area measured diagonally), XtraFine LCD Touch Panel Screen, approx. 922,000
dots or better, hybrid type, 16:9 aspect ratio
Language On-Screen
English
Viewfinder
0.45-inch type (Viewable area measured diagonally), approx. 1.2 million dots or better
(852x3[RGB]x480), 16:9 aspect ratio
Weight
Should be less than 8 kg (Specify*)
Dimensions
Specify*
Accessories
Operating Instructions (Printed and Digital Media), Lens Hood with Lens Cover, Eye-Cup, Rain
Cover, Additional Shoe Kit, Microphone, Memory Recording Unit Kit, AV Cable, Suitable
Tripod to support the camera weight, Spare Battery and Standard Charging Accessories including
Power Cables, Shoulder Belt and Branded Carrying Case
Authorization
Manufacturer authorization letter should be provided. Manufacturer should have minimum of ten
years’ experience in manufacturing the same brand. (Proof documents should be attached)
ISO Certification should be provided
Warranty
3 years comprehensive in-site manufacturer authorized warranty (labour, parts and other
incidentals where applicable).
Maximum response time of 1 business day.
If “NO” Indicate the
Specification /
Warranty Offered
