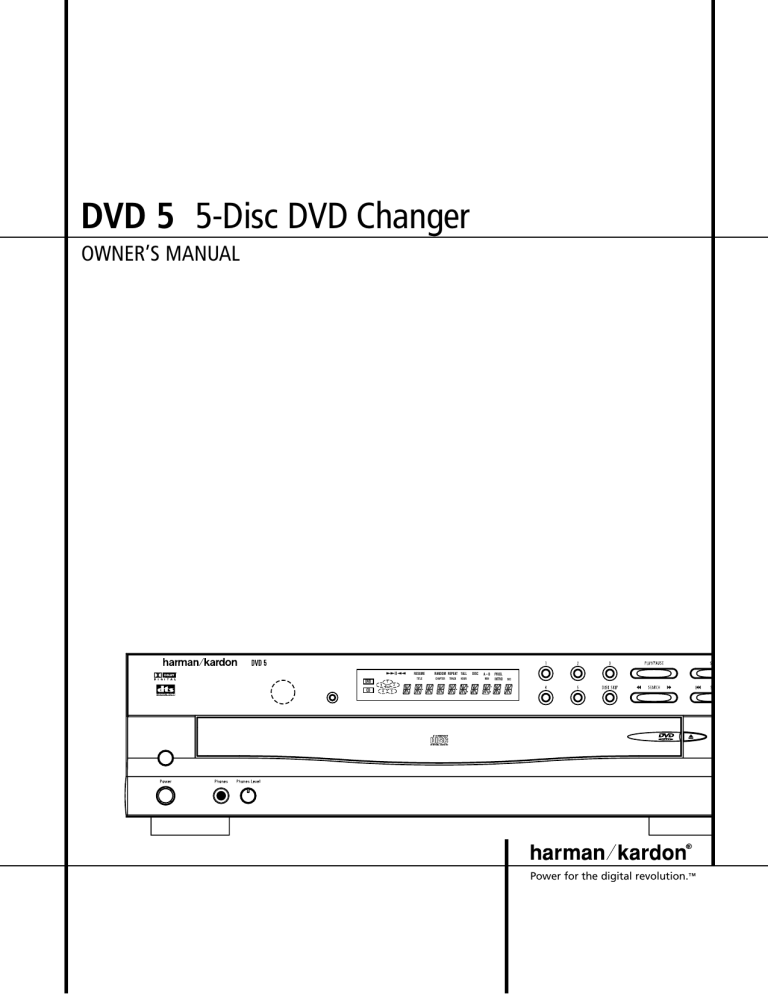

DVD 5 5-Disc DVD Changer
OWNER’S MANUAL
/
—±‚
DVD
CD
TITLE
1
5
RANDOM REPEAT 1ALL
CHAPTER
TRACK
HOUR
DISC
A–B
MIN
PROG.
INTRO
SEC
2
DISC
4
RESUME
3
®
Power for the digital revolution.™
DVD 5 5-Disc DVD Changer
3
4
5
6
7
8
9
11
15
15
16
16
17
17
19
20
20
21
21
23
23
24
24
25
25
26
27
29
30
31
32
Introduction
Safety Information
DVD Compatibility & Terminology
Front Panel Controls
Front Panel Information Display
Rear Panel Connections
Remote Control Functions
Installation and Connections
Setup Menu
Remote Control Operation
Audio Language Selection
Subtitle Language Selection
Menu Language Selection
Ratings Selection and Password Control
Aspect Ratio
Dynamic Range Setting
Digital Audio Out
Playback Basics
Loading Discs
DVD Playback
Using a DVD’s Menu
Using the On-Screen Menu Bar for
DVD Playback
Selecting Titles and Chapters
Changing Languages
Changing Camera Angles
CD Playback
Programmed Play
Bookmarks
DVD Language Codes
Troubleshooting Guide
Technical Specifications
Typographical Conventions
In order to help you use this manual with the remote control, front-panel controls and rear-panel
connections, certain conventions have been used.
EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel
connection jack
EXAMPLE – (OCR type) indicates a message that is visible on the front-panel information display
1 – (number in a square) indicates a specific front-panel control
a – (number in an oval) indicates a button or indicator on the remote
¡ – (number in a circle) indicates a rear-panel connection
A – (letter in a square) indicates an indicator in the front-panel display
A
2 TABLE OF CONTENTS
– (letter in a triangle) indicates a step in the installation process
Introduction
Thank you for choosing the Harman
Kardon DVD 5. The DVD 5 is a multipurpose
five-disc player, capable of playing both DVD
discs and conventional CD audio discs with the
highest fidelity. To enable you to get the maximum quality from DVDs, the DVD 5 is equipped
with the latest in design techniques, including
advanced 10-bit video digital-to-analog connectors (DAC) and component video outputs, to
ensure that you get all the quality inherent in
today’s DVD medium. In addition, Harman
Kardon’s audio heritage continues into the digital video era with audiophile-grade AKM output
DACs to ensure that the audio quality matches
the superb video. Of course, both coaxial and
optical digital audio outputs are available for
direct connection to A/V receivers or processors
so that you may take advantage of Dolby
Digital* and DTS® soundtracks. When playing
audio CDs, the playback quality is state-of-theart, matching that of the finest players available
while delivering the convenience of a five-disc
changer.
Special Features
■ Plays DVD-movie discs, standard CD
audio discs, and CD-RW rewritable
audio discs
■ High-quality video playback 10-bit
DACs and component video outputs
■ Extensive programming capability for
audio and video discs
■ Parental lock controls prevent
unauthorized viewing of restricted
movies
■ Multiple options for language,
soundtrack and subtitle selection
■ Dolby Digital and DTS data signal output through both optical and coaxial
digital audio connections
■ Multiple-angle capabilities with
specially encoded DVD discs
■ Audiophile-grade AKM output DACs for
the finest audio reproduction
■ Bookmark function for easy return to
favorite scenes
■ Easy-to-use on-screen navigation
system
■ Backlit, ergonomically designed
remote control
■ Five-disc-capacity changer with
play-exchange feature
A wide range of programming features makes it
easy to program an evening’s worth of entertainment, selecting from tracks on multiple
discs. When playing DVDs, easy-to-understand
on-screen menus and icons make it simple to
change languages, soundtracks, subtitles or
aspect ratio, while a parental-lock function
enables you to control which discs may be
viewed by younger members of the household.
DVD players are among the fastest growing
consumer electronics products ever brought to
market, but this may, nevertheless, be the first
DVD player you’ve owned. Although many of
the features of the DVD 5 resemble those of
standard CD changers or players, there are a
number of functions that you may be unfamiliar
with. To ensure that you are able to take advantage of all the power and flexibility the DVD 5
has to offer, we encourage you to review this
manual. That small investment in your time will
pay major dividends in the enjoyment you will
get from proper use of the DVD 5.
If you have additional questions about this
product, or its installation or operation, that are
not answered in this manual, please contact
your dealer, as he is your best source of
local information. You may also contact
Harman Kardon via e-mail through our Web site
at www.harmankardon.com.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock,
do not use this (polarized)
plug with an extension cord,
receptacle or other outlet
unless the blades can
be fully inserted to
prevent blade exposure.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
NOTE: This player is designed and
manufactured for compatibility with Region
Management Information that is encoded on
most DVD discs. This player is designed only for
playback of discs with Region Code 1, or for
discs that do not contain Region Code information. If there is any other Region Code on a
disc, that disc will not play on the DVD 5.
1
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
3 INTRODUCTION
Safety Information
Verify Line Voltage Before Use
Your DVD 5 has been designed for use with
120-volt AC current. Connection to a line voltage other than that for which it is intended can
create a safety and fire hazard and may damage the unit.
■ Avoid installation in extremely hot or cold
locations, or an area that is exposed to
direct sunlight or heating equipment.
If you have any questions about the voltage
requirements for your specific model, or about
the line voltage in your area, contact your selling dealer before plugging the unit into a wall
outlet.
Cleaning
When the unit gets dirty, wipe it with a clean,
soft, dry cloth. If necessary, wipe it with a soft
cloth dampened with mild soapy water, then a
fresh cloth with clean water. Wipe immediately
with a dry cloth. NEVER use benzene, aerosol
cleaners, thinner, alcohol or any volatile cleaning agent. Do not use abrasive cleaners, as they
may damage the finish of metal parts. Avoid
spraying insecticide near the unit.
Do Not Use Extension Cords
We do not recommend that extension cords be
used with this product. As with all electrical
devices, do not run power cords under rugs or
carpets or place heavy objects on them.
Damaged power cords should be replaced
immediately by an authorized service depot
with cords meeting factory specifications.
Handle the AC Power Cord Gently
When disconnecting the power cord from an
AC outlet, always pull the plug, never pull the
cord. If you do not intend to use the unit for
any considerable length of time, disconnect the
plug from the AC outlet.
Do Not Open the Cabinet
There are no user-serviceable components
inside this product. Opening the cabinet may
present a shock hazard, and any modification
to the product will void your guarantee. If water
or any metal object such as a paper clip, wire
or a staple accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service station.
Installation Location
■ To assure proper operation, and to avoid the
potential for safety hazards, place the unit
on a firm and level surface. When placing
the unit on a shelf, be certain that the shelf
and any mounting hardware can support the
weight of the product.
■ Make certain that proper space is provided
both above and below the unit for ventilation. If this product will be installed in a cabinet or other enclosed area, make certain
that there is sufficient air movement within
the cabinet.
■ Do not place the unit directly on a carpeted
surface.
■ Avoid moist or humid locations.
4 SAFETY INFORMATION
■ Do not obstruct the ventilation slots on the
top of the unit, or place objects directly over
them.
Unpacking
The carton and shipping materials used to protect your new receiver during shipment were
specially designed to cushion it from shock and
vibration. We suggest that you save the carton
and packing materials for use in shipping if you
move, or should the unit ever need repair.
To minimize the size of the carton in storage,
you may wish to flatten it. This is done by carefully slitting the tape seams on the bottom, and
collapsing the carton down to a more twodimensional appearance. Other cardboard
inserts may be stored in the same manner.
Packing materials that cannot be collapsed
should be saved along with the carton in a
plastic bag.
If you do not wish to save the packaging materials, please note that the carton and other sections of the shipping protection are recyclable.
Please respect the environment and discard
those materials at a local recycling center.
Moving the Unit
Before moving the unit, be certain to disconnect any interconnection cords with other components, and make certain that you disconnect
the unit from the AC outlet.
IMPORTANT NOTE: To avoid damage to the
DVD 5, which may not be covered by the warranty, be certain that all discs are removed from
the unit before it is moved. Once the DVD 5 is
installed, discs may be left in the unit when it is
turned off, but the unit should NEVER be
moved with discs left in any of the positions of
the disc tray.
Important Information for the User
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
The limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communication. However, there
is no guarantee that harmful interference will
not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
■ Consult the dealer or an experienced
radio/TV technician for help.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
interference received, including interference that
may cause undesired operation.
NOTE: Changes or modifications may cause
this unit to fail to comply with Part 15 of the
FCC Rules and may void the user’s authority to
operate the equipment.
CAUTION: The DVD 5 uses a laser system. To
prevent direct exposure to the laser beam, do
not open the cabinet enclosure or defeat any of
the safety mechanisms provided for your protection. DO NOT STARE INTO THE LASER BEAM.
To ensure proper use of this product, please
read this Owner’s Manual carefully and retain it
for future use. Should the unit require maintenance or repair, please contact your local
Harman Kardon Service Station. Refer servicing
to qualified personnel only.
DVD Compatibility & Terminology
The DVD 5 is more than a DVD player; it will
play the following disc formats:
■ Both 5-inch (12cm) and 3-inch (8cm) discs
■ CD audio discs
■ DTS audio discs
■ CD-RW audio discs
■ DVD movie discs
However, it will NOT play the following:
■ DVD discs with a Region Code other than
the one the player is set for.
■ DVD discs with PAL format video
■ DVD-ROM data discs
■ DVD-RAM discs
■ VCD discs
■ CD-R discs
■ CD-I discs
■ CD-G discs
■ SVCD discs
■ Photo CD discs
■ MP3 Audio Discs
NOTE: Due to differences in the format of
certain discs, it is possible that some discs may
include a mix of features that are not compatible with the DVD 5. Similarly, although the
DVD 5 is capable of a wide range of features,
not all discs include every capability of the DVD
system. For example, although the DVD 5 is
compatible with multi-angle discs, that feature
is only possible when the disc is specially
encoded for multiple-angle play. In addition, the
DVD 5 is capable of playing back both Dolby
Digital and DTS soundtracks, but the number
and types of tracks available will vary from disc
to disc. To make certain that a specific feature
or soundtrack option is available, please check
the options noted on the disc jacket.
■ Playback of DTS audio discs requires connection to a processor or receiver with a DTS
decoder.
■ Playback capability for CD-RW discs may
vary due to variations in the quality of the
CD-RW disc and the recorder used to create
the disc.
Since they share some of the characteristics and
technology of CD players, many of the terms
and operational concepts used in a DVD player
are similar to what you may be familiar with
from CD players and changers, or older video
disc formats such as Laser Disc. However, if this
is your first DVD product, some of the terms
used to describe the features of a DVD player
may be unfamiliar. The following explanations
should solve some of the mysteries of DVD, and
help you to enjoy all the power and flexibility of
the DVD format and the DVD 5.
Aspect Ratio: This is a description of the
width of a video image in relation to its height.
A conventional video screen is four units wide
for every three units of height, making it almost
square. Newer wide aspect ratio video displays
are 16 units wide for every nine units of height,
making them more like the screen in a movie
theater. The program material on a DVD may be
recorded in either format and, in addition, you
may configure the DVD 5 to play back in either
format, depending on the features recorded on
a disc.
Chapter: DVD programs are divided into chapters and titles. Chapters are the sub-sections
programmed into a single title on a disc.
Chapters may be compared to the individual
tracks on an audio CD. Press the Menu button
to see a listing of the chapters on a disc.
Component Video: This is a new form of
video signal that eliminates many of the artifacts of traditional composite video signals by
splitting the signal into a separate luminance
channel and two color difference signals. With a
component video connection you will see
greater picture resolution and eliminate many
picture imperfections such as the moiré patterns often seen on checked patterned cloths.
However, in order to benefit from component
video you must have a video display with
Y/Pr/Pb component video inputs. Do not
connect the component video outputs of the
DVD 5 to the standard composite or S-Video
inputs of a TV or recorder.
Multiple Angle: DVDs have the capability to
show up to four different views of the same
scene in a program. When a disc is encoded
with multiple-angle information, pressing the
Angle button will enable you to switch between
these different views. Note that at present, few
discs take advantage of this capability and,
when they do, the multiple-angle technology
may only be present for short periods of time
within the disc. Producers will usually insert
some sort of icon or graphic in the picture to
alert you to the availability of multiple-angle
scenes.
Reading: This is a message that you will see
when you first press the Play button. It refers to
the fact that the player must first examine the
contents of the disc to see if it is a CD or DVD,
and then extract the information about the type
of material on the disc, such as languages,
aspect ratios, subtitles, number of titles and
more. The slight delay while the contents of the
disc are read is normal.
Resume: The operation of the Stop Button on
the DVD 5 works differently from what you are
used to on CD or CD players. On a traditional
CD player, when you press the Stop button, the
unit does just that: it stops playback. On a CD
player, when you press the start button again,
the disc starts from the beginning. With the
DVD 5, however, you have two options when
playing DVD discs. Pressing Stop once will stop
the playback, but it actually puts the unit in the
Resume mode. This means that you can turn
the machine off and, when you press play the
next time, the disc will resume or continue from
the point on the disc where the Stop button
was pressed. This is helpful if you are watching
a movie and must interrupt your viewing session but wish to pick up where you left off.
Pressing the Stop button twice will stop the
machine in a traditional manner and, when
the disc is played again, it will start from the
beginning.
Title: For a DVD, a title is defined as an entire
movie or program. There may have as many
chapters within a title as the producers decide
to include. Most discs include only one title, but
some may have more than one, to give you a
“Double Feature” presentation. Press the Title
button to see a listing of the titles on a disc.
When a disc has only one title, pressing the title
button may show a list of the chapters.
5 DVD COMPATIBILITY & TERMINOLOGY
Front Panel Controls
^
%
#
$
@
!
/
—±‚
DVD
CD
1 2 3
TITLE
1
5
CHAPTER
TRACK
HOUR
DISC
A–B
MIN
PROG.
INTRO
SEC
3
4 5
1 Master Power Switch
2 Standby Switch
3 Status Indicator
4 Headphone Jack
RANDOM REPEAT 1ALL
2
DISC
4
RESUME
7
6
5 Headphone Level Control
6 Disc Tray
7 Disc Skip
8 Search Forward/Reverse
1 Master Power Switch: Press this switch
to apply power to the DVD 5. When the unit is
first turned on, the Status Indicator 3 will
turn green. Once the unit has been turned on
with this switch, it may be operated from either
the front panel or remote control. Press the
switch again to turn the unit completely off.
2 Standby Switch: Press the button once to
turn the DVD 5 on, press it again to put the
unit in the Standby mode. Note that in order for
this switch to operate, the Main Power Switch
1 must be pressed in so that it is in the
ON position.
3 Status Indicator: When the DVD 5 is in
the On mode, this indicator will glow green.
When the unit has been placed in the Standby
mode by pressing the Power-Off button 29
on the remote, the indicator will glow amber,
indicating that the unit is still connected to the
AC main supply and is ready to be turned on
from the remote control.
4 Headphone Jack: Connect standard headphones to this jack for private listening.
5 Headphone Level Control: Turn this
control to adjust the volume level to the headphones. Note that the use of this control will
not change the analog output levels at the rear
panel audio outputs.
6 FRONT PANEL CONTROLS
9 Open/Close Button
) Skip Forward/Reverse
! Stop
@ Play/Pause
8
9 )
# Direct Access Buttons
$ Information Display
% Display Dim
^ Remote Sensor
6 Disc Tray: This tray holds as many as five
DVD or CD discs that can be played one at a
time in the DVD 5.
also work if the unit was turned off. To stop a
disc and have play start from the beginning,
press the button twice.
7 Disc Skip: Press this button to change the
disc being played. Each press of the button will
move the tray forward to the next occupied
position in the tray. Note that the unit will skip
over the empty disc positions.
@ Play/Pause: Press this button to momentarily pause playback. To resume playback,
press the button again. If a DVD is playing,
action will freeze and a still picture will be
displayed when the button is pressed.
8 Search Forward/Reverse: Press this button to move forward or backward through a CD
or DVD at one of four speeds. Each press and
release will increase the search speed, as indicated in the on-screen display. Once you have
selected the desired speed, release the button
and the disc will continue to search at fast
speed. To resume normal playback speed, press
the play button.
# Direct Access Buttons: Press one of
these buttons to play any of up to five discs
loaded in the Disc Tray.
9 Open/Close Button: Press this button to
open or close the Disc Tray 6.
) Skip Forward/Reverse: Press this button
to move forward or backward through the
music tracks on a CD disc or the chapters on a
DVD disc.
! Stop: Press this button once to place the
disc in the Resume mode, which means that
playback will stop, but as long as the tray is not
opened or the disc changed, DVD playback will
continue from the same point on the disc when
the Play Button is pressed again. Resume will
$ Information Display: This display contains a variety of indicators that provide information about the status of the DVD 5 and the
disc currently playing.
% Display Dim: Press this button to adjust
the brightness of the Information Display by
50% or to turn the display off completely in the
following order: FULL BRIGHTNESS ➔ HALF
BRIGHTNESS ➔ OFF ➔ FULL BRIGHTNESS.
^ Remote Sensor: The sensor that receives
the infrared commands from the remote control
is behind this area. Do not cover or obscure this
part of the front panel in order to avoid a malfunction with the remote.
Front Panel Information Display
K
J
—±‚
RESUME
L
A
DVD
CD
TITLE
1
5
H
RANDOM REPEAT 1ALL
CHAPTER
TRACK
HOUR
G
DISC
A–B
MIN
PROG.
INTRO
SEC
2
DISC
4
I
F
3
B
C
D
E
A Disc Type Indicators
B Disc-Number Indicators
C Title Indicators
D Chapter/Track Number Indicators
E Program Time Indicators
F Intro Indicator
G Program Indicator
H Repeat Indicators
I Random Indicator
J Resume Indicator
K Playback-Mode Indicators
L Parental Lock Indicator
A Disc Type Indicators: The DVD or CD
indicator will illuminate to show the type of
disc currently being played.
NOTE: The Program Time Indicators will also
display text messages about the DVD 5’s status,
including Reading when a disc is loading,
Bye when the unit is turned off, and Disc
Error when a disc not compatible with the
DVD 5 is put into the play position.
›› Lights when the disc is in the Fast Search
Forward mode. For DVDs, When both triangles
glow steadily, the disc plays at 2x normal
speed. When the right triangle is flashing, the
disc plays at 4x normal speed. When the left
triangle is flashing, the disc plays at 8x normal
speed. When both triangles are flashing, the
disc plays at 16x normal speed. For CDs, only
the first three Fast Search modes are available.
B Disc-Number Indicators: When the
DVD 5 has sensed that a disc is loaded in one
or more of the tray positions, the number inside
the corresponding disc icon will illuminate. The
disc position that is currently playing will flash.
Note that if a disc is added to, or removed
from, the tray while a disc is playing, the
indicator will not show the change until all
discs are cycled.
C Title Indicators: These two positions in
the display will show the current title number
when a DVD disc is playing.
D Chapter/Track Number Indicators:
When a DVD disc is playing, these two positions in the display will show the current chapter. When a CD disc is playing they will show
the current track number.
E Program Time Indicators: These positions in the indicator will show the running
time of a DVD in play. When a CD is playing,
these indicators will show the current track
time, time remaining in the current track, or the
total remaining time on the disc.
F Intro Indicator: This indicator lights when
the Intro Scan function is active.
G Program Indicator: This indicator lights
when the programming functions are in use.
H Repeat Indicators: These indicators light
when any of the Repeat functions are in use.
I Random Indicator: This indicator lights
when the unit is in the Random Play mode.
J Resume Indicator: This indicator lights
when the Stop button has been pressed once
to put the unit in the Resume mode.
K Playback-Mode Indicators: These indicators light to show the current playback mode:
›± Lights when the disc is paused
‹‹ Lights when the disc is in the Fast Search
Reverse mode. For DVDs, When both triangles
glow steadily, the disc plays at 2x normal
speed. When the left triangle is flashing, the
disc plays at 4x normal speed. When the right
triangle is playing, the disc plays at 8x normal
speed. When both triangles are flashing, the
disc plays at 16x normal speed. For CDs, only
the first three Fast Search modes are available.
L Parental Lock Indicator: This indicator
lights when the parental-lock system is
engaged in order to prevent anyone from
changing the rating level without a code.
› Lights when a disc is playing in the normal
mode
7 FRONT PANEL INFORMATION DISPLAY
Rear Panel Connections
¡ ™
£
¢∞
¡ Optical Digital Output
™ Coaxial Digital Output
£ Analog Audio Outputs
¢ Composite Video Output
∞ S-Video Output
§ Component Video Outputs
¡ Optical Digital Output: Connect this jack
to the optical digital input of an A/V receiver or
surround processor for Dolby Digital, DTS or
PCM audio playback.
§ Component Video Outputs: If your TV or
video projector has component video inputs,
you may connect these output jacks to the set
for the highest video quality available. Note
that the component video inputs may be
labeled as Y/Pr/Pb or Y/Cr/Cb but, for connection purposes, they are the same. The outputs
of these jacks should NOT be connected to a
standard composite video input.
™ Coaxial Digital Output: Connect this jack
to the coaxial digital input of an A/V receiver or
surround processor for Dolby Digital, DTS or
PCM audio playback.
NOTE: The coaxial digital output should only be
connected to a digital input. Even though it is
the same RCA-type connector as standard analog audio connections, DO NOT connect it to a
conventional analog input jack.
£ Analog Audio Outputs: Connect these
jacks to an audio input on an A/V receiver or
surround processor for analog audio playback.
¢ Composite Video Output: Connect this
jack to the video input on a television or video
projector, or to a video input on an A/V receiver
or processor if you are using that type of device
for video input switching.
∞ S-Video Output: Connect this jack to the
S-Video input on a television or video projector,
or to an S-Video input on an A/V receiver or
processor if you are using that type of device
for S-Video input switching.
8 REAR PANEL CONNECTIONS
ª
¶•
§
¶ Remote Control Output: Connect this
jack to the infrared (IR) input jack of another
compatible Harman Kardon remote controlled
product to have the built-in Remote Sensor ^
on the DVD 5 provide IR signals to other
compatible products.
• Remote Control Input: Connect the output of a remote infrared sensor, or the remote
control output of another compatible Harman
Kardon product, to this jack. This will enable
the remote control to operate even when the
front panel Remote Sensor ^ is blocked. This
jack may also be used with compatible IR
remote control-based automation systems.
ª AC Power Cord: Connect this plug to an
AC outlet. If the outlet is controlled by a switch,
make certain that it is in the ON position.
¶ Remote Control Output
• Remote Control Input
ª AC Power Cord
Remote Control Functions
a Audio Button
b Power-On Button
c Mode Button
d Enter Button
e Navigation Buttons
f Return Button
g Play Button
h Reverse Search Button
i Open/Close Button
j Stop Button
k Next Button
l Previous Button
m Random Button
n Disc-Skip Button
o Numeric Keys
p Repeat Button
q Repeat A-B Button
r Light Button
s Clear Button
t Check Button
u Program Button
v Step Buttons
w Slow-Play Buttons
x Pause Button
y Forward Search Button
z Subtitle On/Off Button
` Menu Button
28 Title Button
●
29 Power-Off Button
●
30 Angle Button
●
31 Subtitle Button
●
32
3
31
a
POWER
b
30
POWER
OFF
ON
SUBTITLE
AUDIO
29
ANGLE
MODE
TITLE
ENTER
MENU
c
28
`
d
e
SUBTITLE
ON/OFF
RETURN
g
f
z
PLAY
SEARCH
SEARCH
y
h
PAUSE
STOP
OPEN/CLOSE
x
i
j
k
PREV.
NEXT
SLOW
DISC SKIP
STEP
l
w
RANDOM
v
m
n
PROG.
1
2
u
3
CHECK
o
4
5
t
6
CLEAR
7
8
REPEAT
p
s
9
A-B
LIGHT
r
0
q
DVD 5 RC
a Audio Button: When a DVD is playing,
press this button to select from the available
audio tracks or languages on the disc.
b Power-On Button: Press this button to turn
the DVD 5 on. Note that in order for this control
to function, the Front Panel Main Power Switch
1 must first be pressed in, so that the unit is in
the Standby mode.
c Mode Button: When a disc is playing,
pressing the button will display the Status Banner
which contains information about the disc and
enables you to change the functions.
d Enter Button: Press this button to select
the item that is highlighted in the DVD 5’s Status
Banner or in the on-screen menu displayed by a
DVD disc.
9 REMOTE CONTROL FUNCTIONS
Remote Control Functions
e Navigation Buttons: Press these buttons
to change or select an item from the DVD 5’s
Status Banner or in the on-screen menu
displayed by a DVD disc.
f Return Button: When viewing the menu
display from a DVD disc, press this button to
return to the previous menu screen.
g Play Button: Press this button to begin
playback. If the disc tray drawer is open, it will
automatically close when the button is pushed.
Pressing the Play button when the unit is in the
Standby mode will turn the unit on and begin
playback of the last disc in use.
h Reverse Search: Press this button to
move backward through a CD or DVD at one
of four speeds. Each press and release will
increase the search speed, in the following
order: R. Search x 2 ➔ R. Search x 4 ➔
R. Search x 8 ➔ R. Search x 16. Once you have
selected the desired speed, release the button,
and the disc will continue to search at fast
speed. To resume normal playback, press the
Play Button g.
i Open/Close Button: Press this button to
open or close the disc tray drawer. If the drawer
is opened while a disc is still playing, playback
will continue and discs not in use may be
changed. If the drawer is opened while the
unit is stopped, the disc that was playing will
be presented at the front-center position of
the tray.
j Stop Button: Press this button once to
place the disc in the Resume mode, which
means that playback will stop; as long as the
tray is not opened or the disc changed, DVD
playback will continue from the same point on
the disc when the Play Button g is pressed
again. Resume will also work if the unit is
turned off. To totally stop a disc, press the
button twice.
k Next Button: Press this button to move
forward through the music tracks on a CD disc
or the chapters on a DVD disc.
l Previous Button: Press this button to
move backward through the music tracks on a
CD disc or the chapters on a DVD disc.
m Random Button: Press this button to
begin the playback of all tracks on a disc in
random order.
n Disc-Skip Button: Press this button to
move to the next available disc in the tray.
10 REMOTE CONTROL FUNCTIONS
o Numeric Keys: Press these keys to enter
data for sequential programming, to enter or
change the access password for parental control, to enter a language code, or to respond to
menu options presented by a disc.
p Repeat Button: Press this button to
select a Repeat-Play mode. Each press of the
button shows the choice selected in either the
on-screen Status Banner display or in the
Repeat Indicators H.
q Repeat A-B Button: Press this button
once to begin the selection of a portion of a
disc to be repeated. Press it again to choose the
end point of the repeat-play selection.
r Light Button: Press this button to activate the remote’s backlighting so that the keys
are visible in low-light conditions.
x Pause Button: Press this button to stop
the disc in use. To resume playback, either press
the Pause Button again or press the Play
Button g/@.
y Forward Search: Press this button to
move forward through a CD or DVD at one of
four speeds. Each press and release will
increase the search speed, in the following
order: F. Search x 2 ➔ F. Search x 4 ➔
F. Search x 8 ➔ F. Search x 16. Once you have
selected the desired speed, release the button
and the disc will continue to search at fast
speed. To resume normal playback speed, press
the play button.
z Subtitle On/Off Button: When a DVD is
playing, press this button to turn the subtitle
display on or off.
s Clear Button: Press this button to remove
the Status Banner or other displays from your
video screen. This button is also used to
clear items from Programmed Play lists.
(See page 29.)
` Menu Button: This button has two functions. When a DVD disc is playing, press this
button to stop the disc playback and display the
DVD’s main menu screen for the current title.
When the unit is stopped, press this button to
display the Setup Menu.
t Check Button: When a CD is playing,
press this button to check the status of the
current disc via the on-screen display. This
button is also used to verify the contents of a
programmed play list via the front panel
Information Display. (See page 28 for more
information about programming the DVD 5.)
28 Title Button: When a DVD disc is playing, press this button to display the disc’s Title
Select Menu. If the disc does not offer this function, a symbol () will appear on the screen to
indicate that there is only one title on the disc
or that the disc does not allow this feature.
u Program Button: When the unit is
stopped, press this button to display the
program menu and enter a programmed play
sequence. When a disc is playing, press this
button to switch between normal play and
programmed playback.
v Step Buttons: When a DVD disc is playing, press these buttons to move forward or
backward one frame at a time. Press the Play
Button g/@ to resume normal play. These
buttons do not function when a CD is playing.
w Slow-Play Buttons: When a DVD disc is
playing, press these buttons to move forward or
backward through the disc in slow speed. Each
press of these buttons changes the slow-play
speed in the following order: 1/16 Normal
Speed ➔ 1/8 Normal Speed ➔ 1/4 Normal
Speed ➔ 1/2 Normal Speed.
To resume normal play, press the Play Button
g/@. These buttons do not function when a
CD is playing.
29 Power-Off Button: Press this button to
place the unit in the Standby mode.
30 Angle Button: When a DVD encoded
with multiple-angle information is playing, press
this button to change the angle in use. Note
that this function is only available on discs that
are specially prepared to take advantage of the
multiple-angle function, and only for those
parts of the disc that are recorded with
multiple-angle content. The DVD 5 will display a
camera icon on the screen to indicate when this
feature is available.
31 Subtitle Button: When a DVD disc is
playing, press this button to change the subtitle
choice. To actually turn the subtitles on or off,
press the Subtitle On/Off Button z.
Installation and Connections
Installation
Connections will vary, depending on the type of
audio and video components used with your
DVD 5. However, regardless of the complexity
of your system, the installation guidelines on
pages 11–14 should always be followed to
ensure a safe installation and reliable operation
of the product.
Important Note: To prevent possible damage
to your speakers or other components in your
home entertainment system, we strongly recommend that ALL system components, including the DVD 5, be turned off and unplugged
from their AC power source when any connections are made or a new component is
installed.
Placement of the DVD 5
Since the laser transport mechanism and
carousel tray in the DVD 5 are precision instruments that are designed and manufactured to
precise tolerances, they are subject to interference from vibration. To minimize the possibility
of skipping during playback, it is recommended
that the unit be placed on a level, solid,
vibration-free surface.
Installation Options
The diagrams on pages 12–14 describe the
three basic ways to connect the DVD 5 to your
system components.
When installing the DVD 5 in a cabinet or tight
space, always make certain that there is enough
room in front of the unit for the disc tray to
open fully, and that there is enough space
above the unit so that discs may easily be
inserted into the spaces in the tray.
■ Option #2: Use this setup if the video connections will go directly to a television set or
video projector, but the audio connections
will be made to an A/V Receiver or surround
processor.
As the disc drawer extends out about six inches
from the front of the unit when it is open, you
should also make certain that there is sufficient
clearance in front of the unit to accommodate
the disc drawer without it bumping into other
objects or getting in the way of anyone walking
in front of the unit.
■ Option #1: Use this setup if all audio and
video connections from the DVD 5 will go
directly to a television set or video projector
without the use of an A/V receiver or
surround processor.
■ Option #3: Use this setup if all audio and
video connections will be made through an
A/V receiver or a surround processor.
In addition to the safety considerations outlined
on page 4, it is also recommended that the
DVD 5 not be placed in a location that is subject to direct sunlight or extreme heat or cold,
as these conditions may damage the discs used
in the player, or the player itself. Note that
audio amplifiers or high-power receivers, as
well as certain other electronic products, can
generate significant heat. For that reason, do
not place the DVD 5 directly on top of an
amplifier, receiver, or other heat source.
Always allow at least one inch of free space on
all sides of the DVD 5 as well as around other
electronic products to allow for proper
ventilation.
11 INSTALLATION AND CONNECTIONS
Installation and Connections
OPTION 1:
Direct Connections to a Television or
Video Projector
This is the simplest installation, as it does not
require anything other than a television set.
However, note that in this type of system you
will not be able to enjoy the benefits of Dolby
Digital or DTS discrete playback, as that
requires the digital audio processing found in
A/V receivers or surround processors. Follow as
many of these steps as needed, based on the
capabilities of your television:
Connect the left and right Analog Audio
Outputs £ on the DVD 5 to the audio
inputs on your television. B Connect the
Composite Video Output ¢ on the DVD 5
to a video input on your television. Note that
composite video connections typically have a
yellow center ring for easy identification.
A
Installation Notes and Hints
■ If your television has both standard composite video and S-Video inputs, you only need
to use one of the two connections. Where
possible, we recommend using the S-Video
connection due to the higher picture quality.
■ Do not connect any of the video outputs of
the DVD 5 through a VCR. Due to the use of
Macrovision encoding on most DVD discs,
connections through the circuitry of a VCR
will distort the picture so that it will become
unwatchable.
■ Note that the volume level for DVD playback
may different from the level for TV broadcasts. This is normal and does not indicate a
problem with the DVD 5 or your TV set.
Simply use the volume control on the TV set
to set the desired level.
If your television or projector is equipped
with component video inputs, connect the three
Component Video Outputs § on the DVD
5 to the matching component video inputs on
your video display.
■ Depending on the product and brand, a
number of different descriptions are used to
label component video connections. You may
see them as Y/Pr/Pb, Y/Cr/Cb or Y/R-Y/B-Y.
For the purpose of connecting a DVD player,
all of these labels are normally identical. The
best guide is to connect the component
video connections using the green/red/blue
color coding of the inner rings of the connection jacks.
■ When making connections to a high definition (HDTV) or “digital ready” set, do not
connect the component video outputs of the
DVD 5 to inputs labeled “HD Component
Inputs” unless you have checked with the
set’s owner’s manual to ensure that the HD
input is also compatible with standard scan
(NTSC) video.
C
TV
D Connect the S-Video Output ∞ on the
DVD 5 to an S-Video input on your television.
A
B
C D
E
Connect the AC power cord to an AC
outlet.
E
L
R
DVD 5
12 INSTALLATION AND CONNECTIONS
Installation and Connections
OPTION 2:
Direct Connections to a Television or
Video Projector with Audio Connections
to an A/V Receiver or Surround Processor
To hear the benefits of discrete, multichannel
digital audio, you will need to use an external
Dolby Digital/DTS-capable A/V receiver or
surround processor. In this installation, you
maintain a direct video connection to your
television, but use the audio processing from
another device.
Note that step A is not used, as it is for
analog audio connections only. This installation
starts with step B
B Connect the Composite Video Output
¢ on the DVD 5 to a video input on your television. Note that composite video connections
typically have a yellow center ring for easy
identification.
C If your television or projector is equipped
with component video inputs, connect the three
Component Video Outputs § on the DVD
5 to the matching component video inputs on
your video display.
Installation Notes and Hints
■ Only one type of audio connection is
required, either digital or analog. If possible,
a digital connection is preferred, as that will
enable you to listen to DVD soundtracks
with the clarity, definition and channel separation made possible by Dolby Digital and
DTS. Follow Step F for digital audio connections. However, if you do not yet have a
receiver capable of digital audio processing,
you will still benefit from an analog connection so that the receiver may create a multichannel soundfield using Dolby Pro Logic or
other matrix decoding. Follow Step G for
instructions on analog audio connections.
■ If your television has both standard composite video and S-Video inputs, you only need
to use one of the two connections. Where
possible, we recommend an S-Video connection due to the higher picture quality.
■ Do not connect any of the video outputs of
the DVD 5 through a VCR. The use of
Macrovision encoding on most DVD discs
means that most discs will have a distorted
picture when connections are made through
a VCR.
■ Note that the volume level for DVD playback
may different from the level for other input
sources to your receiver. This is normal and
does not indicate a problem with the DVD 5
or your receiver. Simply use the volume control on the receiver to set the desired level.
■ Depending on the product and brand, a
number of different descriptions are used to
label component video connections. You may
see them as Y/Pr/Pb, Y/Cr/Cb or Y/R-Y/B-Y.
For the purposes of connecting a DVD player, all of these labels are normally identical.
The best guide is to connect the component
video connections using the green/red/blue
color coding of the inner rings of the connection jacks.
■ When making connections to a high definition (HDTV) or “digital ready” set, do not
connect the component video outputs of the
DVD 5 to inputs labeled “HD Component
Inputs” unless you have checked with the
set’s owner’s manual to ensure that the HD
input is also compatible with standard scan
(NTSC) video.
D Connect the S-Video Output ∞ on the
DVD 5 to an S-Video input on your television.
E Connect the AC power cord to an AC
outlet.
TV
Connect either the Optical Digital
Output ¡ or the Coaxial Digital Output
™ on the DVD 5 to the matching digital input
jacks on your A/V receiver or surround processor. Note that only one of these connections is
required, not both.
F
B
C
E
D
G Connect the left/right Analog Audio
Outputs £ of the DVD 5 to the matching
left/right analog inputs on your A/V receiver or
surround processor.
DVD 5
G
F
G
F
Audio In
Receiver
Digital In
13 INSTALLATION AND CONNECTIONS
Installation and Connections
OPTION 3:
Audio and Video Connections through an
A/V Receiver or Surround Processor only
If your home entertainment system has other
audio/video input sources in addition to the
DVD 5, such as a VCR, cable set-top box or
satellite receiver, LD player, personal video
recorder or HDTV tuner, the most efficient way
to manage the various components is to make
all audio/video connections through an A/V
receiver or surround processor. This simplifies
the selection of an input source, and allows
many different components to be connected to
the same video display and speakers.
Note that steps A / B / C and D are not
used. This installation starts with step E
E Connect the AC power cord to an AC
outlet.
F Connect either the Optical Digital
Output ¡ or the Coaxial Digital Output
™ on the DVD 5 to the matching digital input
jacks on your A/V receiver or surround processor. Note that only one of these connections is
required, not both.
G Connect the left/right Analog Audio
Outputs £ of the DVD 5 to the matching
left/right analog inputs on your A/V receiver or
surround processor.
■ Note that the volume level for DVD playback
may different from the level for other input
sources to your receiver. This is normal and
does not indicate a problem with the DVD 5
or your receiver. Simply use the volume control on the receiver to set the desired level.
Installation Notes and Hints
■ For this installation, make the connections
from the receiver or processor to your video
display and speakers as described in the
owner’s manuals for those products.
■ Only one type of audio connection is
required, either digital or analog. If possible,
a digital connection is preferred as that will
enable you to listen to DVD soundtracks
with the clarity, definition and channel separation made possible by Dolby Digital and
DTS. Follow Step F for digital audio connections. However, if you do not yet have a
receiver capable of digital audio processing,
you will still benefit from an analog connection so that the receiver may create a multichannel soundfield using Dolby ProLogic or
other matrix decoding. Follow Step G for
instructions on analog audio connections.
■ Depending on the product and brand, a
number of different descriptions are used to
label component video connections. You may
see them as Y/Pr/Pb, Y/Cr/Cb or Y/R-Y/B-Y.
For the purposes of connecting a DVD player, all of these labels are normally identical.
The best guide is to connect the component
video connections using the green/red/blue
color coding of the inner rings of the connection jacks.
■ When making connections to a high definition (HDTV) or “digital ready” set, do not
connect the component video outputs of the
DVD 5 to inputs labeled “HD Component
Inputs” unless you have checked with the
set’s owner’s manual to ensure that the HD
input is also compatible with standard scan
(NTSC) video.
■ If your television has both standard composite video and S-Video inputs, you only need
to use one of the two connections. Where
possible, we recommend an S-Video connection due to the higher picture quality.
■ Do not connect any of the video outputs of
the DVD 5 through a VCR. The use of
Macrovision encoding on most DVD discs
means that most discs will have a distorted
picture when connections are made through
a VCR.
B
C
D
H Connect the Composite Video Output
¢ on the DVD 5 to a video input on your
receiver or processor. Note that composite video
connections typically have a yellow center ring
for easy identification.
J
E
J
Connect the S-Video output ∞ on the
DVD 5 to an S-Video input on your receiver or
processor.
J
I
DVD 5
J
If your television or projector is equipped
with component video inputs, connect the three
Component Video Outputs § on the
DVD 5 to the matching component video inputs
on your video display. However, if your receiver
or processor has multiple component input
switching capability, connect the Component
Video Output Jacks ∞ on the DVD 5 to the
matching component video inputs on your
receiver, surround processor or video processor.
14 INSTALLATION AND CONNECTIONS
G
F
G
H
I
Video In
S-Video In
F
Audio In
Digital In
A/V Receiver or Surround Processor
Setup Menu
Remote Control Operation
The DVD 5’s remote control contains all of the
codes needed to operate the product. In addition, it offers a built-in backlight that may be
used to identify the remote buttons when the
remote is used in low-level lighting conditions.
A guide to the operation of the remote’s functions is found in this manual on page 9.
Batteries
Before using the remote, install the AA batteries
provided with the product by turning the
remote over and moving the small latch on the
bottom in the direction of the arrow. After the
latch is loosened, flip the cover up and then
remove it. Install the two batteries as shown
here, being careful to observe the “+” and “–”
polarity indications for proper placement of the
batteries in their compartment. Replace the
battery cover by first sliding the two teeth on
the cover into their matching slots towards the
top of the remote. Then, gently press down on
the cover until the latch firmly snaps into place.
The remote is now ready for operation.
which may lead to malfunctions as well as
damage to the remote, which is not covered
by the warranty.
Notes on Remote Control
Operational Range
■ The DVD 5’s remote will operate up to a
range of about 23 feet (7 m) from the
Remote Sensor ^ in a range of about 30
degrees to each side of the unit., as shown
in the diagram below.
/
—±‚
DVD
CD
30°
RANDOM REPEAT 1ALL
CHAPTER
TRACK
HOUR
DISC
A–B
MIN
PROG.
INTRO
SEC
2
DISC
4
RESUME
TITLE
1
5
3
30°
POWER
POWER
OFF
ON
SUBTITLE
AUDIO
ANGLE
TITLE
MODE
ENTER
MENU
RETURN
SUBTITLE
ON/OFF
PLAY
SEARCH
PREV.
RANDOM
SEARCH
PAUSE
STOP
OPEN/CLOSE
System Defaults
The final step of the installation is to establish
the system’s defaults. The factory settings for
the unit will accommodate most requirements,
so it is not essential that they be changed. If
you wish to immediately play a disc, proceed to
page 21. However, it is helpful to take a few
minutes to familiarize yourself with these settings, as they may require change from time
to time.
SLOW
NEXT
STEP
DISC SKIP
PROG.
1
2
4
5
7
8
3
CHECK
6
CLEAR
REPEAT
9
A-B
LIGHT
0
DVD 5 RC
■ The operating distance may vary according to
the brightness of the room.
■ Do not point any bright lights in the direction of the unit’s Remote Sensor ^, as
this will decrease operating range.
Notes on Batteries for the DVD 5 Remote
■ The batteries normally last for about one
year although this depends on how often,
and for what operations, the remote control
is used.
NOTE: When replacing batteries, it always a
good idea to replace both at the same time.
When the remote will not be used for an
extended period of time, it is also a good idea
to remove the batteries to avoid the possibility
of damage due to corrosion. Batteries contain
chemical substances and we recommend that
you dispose of them properly and in compliance
with any local regulations.
■ Should any electrolyte leak from the batteries inside the remote control unit, wipe it
away but avoid any contact. If any electrolyte should come into contact with your
skin, wash it off thoroughly with water.
■ If the backlight does not illuminate, or if the
remote control unit fails to work even when
it is operated near the player, replace the
batteries. When replacing the batteries, do
not mix old and new batteries; always
change both cells at the same time.
■ Always dispose of used batteries in an environmentally safe manner and in compliance
with any local regulations.
■ Do not use rechargeable (Ni-Cd) batteries
and do not attempt to recharge, short-circuit
or disassemble the batteries.
Before using the DVD 5 for the first time, make
certain that the unit is properly connected to
any audio/video components it will be used
with, as described on the previous pages. When
the installation is done, make certain that the
batteries are properly installed in the remote
and that the unit is plugged into an AC power
source.
The first step in checking or changing the system defaults is to access the Setup Menu. First,
make certain that the DVD 5 is properly connected to a video display, and that power is
connected. For this process, however, you do
not need to load any discs into the unit.
To turn the DVD 5 on, press the Main Power
Switch 1 in until it latches almost flush with
the unit’s front panel. Note that the Status
Indicator 3 will turn amber. Next, press the
Standby Switch 2/b. The Status
Indicator 3 will turn green and the
Information Display $ will light up.
To access the Setup Menu, press the Menu
Button ` on the remote. The Setup Menu
will appear on the video display screen as
shown in Figure 1. The left side of the screen
will show the various options, and the box
on the right side of the screen will show the
current defaults.
■ If the remote control unit is not going to be
used for an extended period of time, remove
the batteries. Otherwise, electrolyte may leak
15 SETUP MENU
Setup Menu
To change the default setting, press the ⁄ / ¤
Navigation Buttons e until the desired
choice is highlighted, and then press the Enter
Button d. Note that the circle for your
choice will fill in, and the menu will return to
the default listings.
Figure 1
To navigate through the settings on the screen,
use the ⁄ / ¤ Navigation Buttons e to
scroll up or down through the list of settings or
the list of options. Press the ‹ / › Navigation
Buttons to move back and forth between the
list of settings and the list of options for those
settings. To choose a specific option, use the
⁄ / ¤ Navigation Buttons e until it is
highlighted. Press the Enter Button d to
select the choice. When a selection is made,
you may confirm the choice by checking to see
that a black dot fills the “radio button” circle
next to the choice. This filled circle, not the
highlighted option, is the active choice.
Audio Language Selection
The Audio Language option sets the default
choice for the language that will be played
from a DVD disc.
To select the language default, you must be
viewing the Setup Menu (Figure 1), which is
available by pressing the Menu Button `
while the unit is in the Stop mode. Audio
Language Selection is the first option, so it will
automatically be highlighted in dark blue when
the Setup Menu is displayed.
To change the default Language, press the ›
Navigation Button e and note that the list
of system defaults will be replaced with a list of
the available options, as shown in Figure 2. The
current language choice will be indicated by a
filled-in circle on the list on the right side of
the screen.
If you wish to change the default to a language
other than English, Spanish or French, press the
⁄ / ¤ Navigation Buttons e until the
“Other” line on the bottom is highlighted.
Consult the Language Codes lists on page 30
for the desired language. Press the Enter
Button d, and then enter the four-digit code
from the list using the Numeric Keys o.
Although your selection will be entered, the
word “Other” will appear on the default list.
Note that when a default language is selected,
it will be used whenever that language is present on the DVD disc being played. However,
when that language is not present, the language used will be the one preprogrammed
into the disc itself. (Typically, that default will
be English for discs sold in Region 1, but the
selection will vary at the discretion of the disc’s
producer.)
Although the default will set the language that
will be used when a disc is first put into play,
the language may easily be changed at any
time by using the Audio Button a. See
page 25 for more information.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Subtitle Language Selection
The Subtitle Language option sets the default
choice for the language that will be displayed
when subtitles are turned on during DVD
playback.
To select the Subtitle Language default, you
must be viewing the Setup Menu (Figure 1),
which is available by pressing the Menu
Button ` while the unit is in the Stop Mode.
At the Setup menu, press the ¤ Navigation
Button e until the Subtitle Language option
is highlighted.
To change the default Subtitle Language, press
the › Navigation Button e and note that
the list of system defaults will be replaced with
a list of the available options, as shown in
Figure 2
16 SETUP MENU
Figure 3. The current subtitle language choice
will be indicated by a filled-in circle on the list
on the right side of the screen.
Figure 3
To change the default setting, press the ⁄ / ¤
Navigation Buttons e until the desired
choice is highlighted, and then press the Enter
Button d. Note that the circle for your
choice will fill in, and the menu will return to
the default listings.
If you wish to change the subtitle default to a
language other than English, Spanish or French,
press the ⁄ / ¤ Navigation Button e until
the “Other” line on the bottom is highlighted.
Consult the Language Codes list on page 30 for
the desired language. Press the Enter Button
d, and then enter the four-digit code from
the list using the Numeric Keys o.
Although your selection will be entered, the
word “Other” will appear on the default list.
Note that when a default subtitle language is
selected, it will be used whenever that language is present on the DVD disc being played.
However, when that language is not present,
the language used will be the one preprogrammed into the disc itself. (Typically, that
default will be English for discs sold in
Region 1, but the selection will vary at the
discretion of each disc’s producer.)
Although the default will set the language that
will be used when the disc is first put into play,
the language may easily be changed at any
time by using the Subtitle Button 31 . See
page 25 for more information.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Setup Menu
Menu Language Selection
The Menu Language option sets the default
choice for the language that will be used for
the DVD 5’s own on-screen menu displays. This
default setting DOES NOT impact the playback
of DVD discs.
To select the Menu Language default, you must
be viewing the Setup menu (Figure 1), which is
available by pressing the Menu Button `
while the unit is in the Stop mode. At the Setup
Menu, press the ¤ Navigation Button e
until the Menu’s option is highlighted.
To change the default Menu Language, press
the › Navigation Button e and note that
the list of system defaults will be replaced with
a list of the available options, as shown in
Figure 4. The current language choice will be
indicated by a filled-in circle on the list on the
right side of the screen.
The ratings system is dependent on information
encoded into the DVD disc being played so,
although most movies will carry an MPAA or
other rating symbol, the disc may or may not
contain that rating in its software. In addition
to the five MPAA ratings of G, PG, PG-13, R
and NC-17, the DVD 5 will accommodate a
total of eight ratings steps, as set by the creators of the DVD format. These additional steps
allow for more critical control of program playback for all audiences.
To select the permitted ratings values, you must
be viewing the Setup Menu (Figure 1), which is
available by pressing the Menu Button `
while the unit is in the Stop mode. At the Setup
Menu, press the ¤ Navigation Button e
until the Ratings option is highlighted.
To change the default Ratings setting, press the
› Navigation Button e and note that the
list of system defaults will be replaced with
a list of the program ratings as shown in
Figure 5. Some ratings will be highlighted in
orange, while others will be highlighted in blue.
Discs with a rating in the orange color band
will play without any further action by the
viewer. Discs with ratings in the blue band will
only play after a password is entered.
Password Selection and Control Lock
The DVD 5’s Password System is used to control
viewing of restricted programs and one’s capability to change the password itself. The DVD 5
is shipped without a password and with the
settings for the password system unlocked. The
following instructions will show how to add a
password and to lock the settings.
To set a password or lock the password system,
you must be viewing the Setup Menu
(Figure 1), which is available by pressing the
Menu Button ` while the unit is in the
Stop mode. At the Setup Menu, press the ¤
Navigation Button e until the Password
option is highlighted.
To enter a password, press the › Navigation
Button e and note that the list of system
defaults will be replaced with a list of the three
password options (Figure 6). To enter a password, check to make certain that the words Set
Password are highlighted in light blue and then
press the Enter Button d. The Enter
Password screen will then appear on your video
display (Figure 7).
Figure 4
To change the default setting, press the ⁄ / ¤
Navigation Buttons e until the desired
choice is highlighted, and then press the Enter
Button d. Note that the circle for your
choice will fill in, and the menu will return to
the default listings.
Figure 6
Figure 5
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Ratings Selection and Password Control
The DVD 5 enables you to control the discs that
are viewed by setting a ratings level. When a
disc that’s ready to play has a rating level
greater than the default, it will not play. To further protect against unauthorized viewing of
restricted discs, the ratings-level option may be
locked so that only authorized persons (such as
a parent) may change the rating level after a
password is entered.
To change the range of ratings that may be
viewed without a password, press the ⁄ / ¤
Navigation Buttons e until the desired
range is set, and then press the Enter Button
d. Note that the circle for your choice will fill
in, and the menu will return to the default listings. The listing in the default settings will show
the highest rated program that may be viewed
without entering a password.
Figure 7
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
17 SETUP MENU
Setup Menu
To enter a password you may either enter the
four-digit number directly, using the Numeric
Keys o, or you may use the ⁄ / ¤
Navigation Buttons e to select the
number for a position, and then press the ›
Navigation Button e to move to the next
position. Note that as each number is entered,
it will turn to a solid circle when you move to
the next position to protect the password’s
privacy. When all four numbers of the
password have been entered, press the Enter
Button d.
After the password has been entered once, a
second set of data entry boxes will appear, asking you to confirm the entry. Using the same
method described earlier, enter the password
again. When all four numbers have been
repeated, press the Enter Button d to set
the password in the DVD 5’s memory. If the
two passwords do not agree, an “Incorrect
Password” message will appear to ask you to
try entering the number again.
Once this password is entered, you will need to
use this four-digit number to view a disc when
the rating of the disc exceeds the settings
entered in the Ratings Menu. If a password
has been entered, it is also required that you
change the settings range in the Ratings Menu.
Finally, the password is required if you wish to
unlock the system again to permit access to the
Ratings Menu.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Clearing Passwords
Once a password has been entered, the system
remains locked until the password is cleared. To
clear a password so that the ratings may be
changed or to permit any movie to be viewed
regardless of ratings, you must be viewing the
Setup Menu (Figure 1), which is available by
pressing the Menu Button ` while the unit
is in the Stop mode. At the Setup Menu, press
the ¤ Navigation Button e until the
Password option is highlighted. As the system is
locked, you will first be asked to enter the password previously set. Enter that password using
the Numeric Keys e and then press the
Enter Button d.
18 SETUP MENU
Figure 8
To clear the password lock once you have
entered the correct password, press the ¤
Navigation Button e so that the words
Clear Password are highlighted in light blue
(Figure 8). Next, press the Enter Button d
to complete the process. Note that the wording
for Clear Password will change to white as a
confirmation that the system is now unlocked.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Changing The Password
If you feel that the password has become
known to an unauthorized person, you may
change the password without unlocking the
system. To change a password, you must be
viewing the Setup Menu (Figure 1), which is
available by pressing the Menu Button `
while the unit is in the Stop mode. At the Setup
Menu, press the ¤ Navigation Button e
until the Password option is highlighted. As the
system is locked, you will first be asked to enter
the password previously set (Figure 9). Enter
that password using the Numeric Keys e
and then press the Enter Button d.
Figure 9
Figure 10
To change the password, press the ¤
Navigation Button e so that the words
Change Password are highlighted in light blue
(Figure 10). Next, press the Enter Button d.
On the next screen that appears (Figure 11),
enter the new four-digit password directly by
using the Numeric Keys o, or you may use
the ⁄ / ¤ Navigation Buttons e to select
the number for a position, and then press the ›
Navigation Button e to move to the next
position. Note that as each number is entered,
it will turn to a solid circle when you move to
the next position to protect the password’s
privacy. When all four numbers of the
password have been entered, press the Enter
Button d.
Figure 11
Setup Menu
After the password has been entered once, a
second set of data entry boxes will appear, asking you to confirm the entry (Figure 12). Using
the same method described above, enter the
password again. When all four numbers have
been repeated, press the Enter Button d to
set the password in the DVD 5’s memory. If the
two passwords do not agree, an “Incorrect
Password” message will appear to ask you to
try entering the number again.
Figure 12
Once the new password has been entered, the
system remains locked with the new password
in effect. If you have no other changes to make
after setting this default, press the Menu
Button ` to remove the Setup Menu from
the screen, or press the Play Button g/@
to begin or resume playback.
Aspect Ratio
The aspect ratio of a television picture is the
relationship between its width and height, and
it defines the shape of the picture. Television
sets have traditionally had an aspect ratio of
4 x 3, which is to say that they are almost
square, with slightly more width than height.
Almost all television programming is presented
in the 4 x 3 aspect ratio so that the pictures fit
within the confines of the TV screen.
Movies, on the other hand, have a variety of
what are known as “wide aspect ratio” formats
that are significantly wider in relation to their
height than traditional television pictures.
Indeed, the development of wide-screen movies
was something that was popularized in the
1950’s in response to the success of television;
movie producers wanted to provide a wider
vista than afforded by TVs.
However, since many movies are produced for a
wider screen than the TV set they are played
on, there is a problem that is like fitting a
square peg in a round hole. In many instances
this is taken care of by the disc’s producers,
who reformat the image to fit within a standard
4 x 3 TV screen. Discs such as this require no
special setting. The only downside to this is that
when wide-screen movies are converted to
4 x 3, some of the information at the sides of a
scene may be cut off due to the difference in
picture shape. This is also called a “pan and
scan” presentation, as a 4 x 3 viewing area is
moved across the wider cinema image.
Other discs are produced in what is called a
“letterbox wide-screen” format. In this case the
entire wide image is fit inside the 4 x 3 screen
shape from side to side. This means that you
see the entire picture as the movie’s director
intended, but the height of the picture is
reduced to accommodate the added width. The
blank areas that appear at the top and bottom
of the screen make the image in the center
appear as if you are looking into a mail slot,
giving this sort of presentation the nickname of
“letterbox.”
The DVD format accommodates both of these
formats, though it is up to the producer of the
disc to select which way to convert the movie
to video. Sometimes you will have a choice of
only one of the two formats, while some discs
offer a full screen, with the pan and scan version on one side of a disc and the widescreen,
but letterbox version, on the other side.
The DVD 5 will play either type of disc, and you
may select a default that tells which way to
present the image when there is a choice.
To select an aspect ratio default, you must be
viewing the Setup Menu (Figure 1), which is
available by pressing the Menu Button `
while the unit is in the Stop mode. At the Setup
Menu, press the ¤ Navigation Button e
until the Aspect Ratio option is highlighted.
Next, press the Enter Button d. Select
one of the three choices in the options box
(Figure 13) using the ⁄ / ¤ Navigation
Buttons e.
Depending on the type of television set you
have, choose one of these three options:
■ 4 x 3 Letterbox: Choose this setting if you
have a standard 4 x 3 television set and prefer to see movies in their original aspect
ratio. You will see the entire movie but,
when it is presented in a letterbox fashion,
there will be black bars at the top and
bottom of the screen. Movies or other programs recorded in a 4 x 3 format will appear
normal.
■ 4 x 3 Pan Scan: Choose this setting if you
have a standard 4 x 3 television set and
always want the image to fill the entire
screen. When a wide screen movie is shown,
you may not see parts of the picture at one
side of the screen or the other. Note, however, that even when you select this option,
playing a wide-screen-only movie will result
in black letterbox bars at the top and bottom of the screen. This is due to the way
the disc was produced, and it cannot be
changed.
■ 16 x 9 Wide-screen: Choose this setting only
if you have a wide-screen television set
(16 x 9 aspect ratio). With this setting, the
DVD 5 will adjust the output for wide-screen
movies so that they fill the entire screen in
the proper aspect ratio. Note, however, that
in this setting a disc recorded in the 4 x 3
aspect ratio will appear in the wide-screen
as a boxed image in the center, with black
columns on the left and right side of the
screen.
NOTE: If the wide-screen option is chosen
and a wide-screen movie is played on a conventional 4 x 3 aspect ratio set, the image will
be distorted due to vertical compression.
When you have made your selection using the
⁄ / ¤ Navigation Buttons e to highlight
the desired option, press the Enter Button
d and note that the circle next to your choice
will fill in. The menu system will then automatically return to the status listing.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Figure 13
19 SETUP MENU
Setup Menu
Dynamic Range Setting
With the DVD format you have the opportunity
to hear a program’s soundtrack in the most
accurate and realistic presentation possible,
thanks to the use of digital audio technology.
However, in certain instances you may wish to
slightly compress the dynamic range of the
audio output (the difference between the loudest sounds and the quietest ones) so that you
may listen to a movie at a lower volume without losing dialog intelligibility.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
In most cases it is desirable to leave the
Dynamic Range setting at “OFF” so that no
compression is applied to the audio, but if you
wish to change to a compressed setting, follow
these steps.
Digital Audio Out
DVD players accommodate a variety of audio
formats, including Dolby Digital, DTS and the
PCM audio format used by conventional CD
discs and some DVD playback. Depending on
the type of equipment your DVD 5 is connected
to, you need to set a default for the type of
audio outputs accommodated. Although the
DVD 5 will play all of these disc types, this setting creates a default that tells which way to
present the soundtracks when there is a choice.
First, you must be viewing the Setup Menu
(Figure 1), which is available by pressing the
Menu Button ` while the unit is in the
Stop mode. At the Setup Menu, press the ¤
Navigation Button e until the Dynamic
Range option is highlighted. Next, press the
Enter Button d and select one of the two
choices in the options box using the ⁄ / ¤
Navigation Buttons e (Figure 14). The
choices are as follows:
■ Off: Select this option to turn off the
Dynamic Range compression and have the
soundtrack presented exactly as it was
authored.
■ On: Select this option to turn on the
Dynamic Range compression circuitry so
that the dialog will remain clear even at low
volume levels.
Note that the performance of the Dynamic
Range function is dependent on the audio
format of the disc being played, and whether
or not the disc’s soundtrack is capable of this
feature.
To select a Digital Audio Output default, you
must be viewing the Setup Menu (Figure 1),
which is available by pressing the Menu
Button ` while the unit is in the Stop mode.
At the Setup Menu, press the ¤ Navigation
Button e until the Digital Audio Out option
is highlighted. Next, press the Enter Button
d. Select one of the three choices in the
options box (Figure 15) using the ⁄ / ¤
Navigation Buttons e. The choices are
as follows:
■ PCM: Choose this setting if you are using
only the left/right Analog Audio Outputs
£, or if the Digital Audio Outputs
¡/™ are connected to a processor that is
capable of playing conventional PCM audio
for CDs.
■ Dolby Digital: Choose this setting if the
DVD 5 is connected to an A/V receiver or
surround processor that is capable of decoding Dolby Digital.
Figure 14
When you have made your selection using the
Navigation Buttons e to highlight
the desired option, press the Enter Button
d and note that the circle next to your choice
will fill in. The menu system will then automatically return to the status listing.
⁄/ ¤
20 SETUP MENU
■ DTS: Choose this setting if the DVD 5 is
connected to an A/V receiver or surround
processor that is capable of both DTS and
Dolby Digital decoding.
Figure 15
NOTE: If you select the DTS option, your
receiver or processor MUST be capable of
decoding DTS audio. If the DTS option is chosen
and the unit is connected to a product that
cannot support DTS, no audio will be heard
when a DTS disc is played.
Remember, regardless of the option chosen, you
may still have to adjust the settings on your
audio equipment to match the output of the
DVD 5. In addition, the choice of which audio
formats are available is limited by the type of
material recorded on the disc when it was
authored.
When you have made your selection using the
⁄ / ¤ Navigation Buttons e to highlight
the desired option, press the Enter Button
d and note that the circle next to your choice
will fill in. The menu system will then automatically return to the status listing.
If you have no other changes to make after setting this default, press the Menu Button `
to remove the Setup Menu from the screen, or
press the Play Button g/@ to begin or
resume playback.
Playback Basics
Loading Discs
To load discs in the DVD 5, first make certain
that the unit is turned on by pressing the
Standby Switch b/2 so that the Status
Indicator 3 turns green.
■ Some DVD discs are double sided. The title
information for these will be printed on the
inner ring of the disc, very close to the center hole. The title for the side you wish to
play should be facing up.
Next, press the Open/Close Button 9/i
until the Disc Tray 6 opens.
To move the discs in the tray so that you may
insert discs in slots that are partially hidden
inside the disc tray drawer, press the Disk-Skip
Button 7/n. Each press of the button will
move the carousel tray one position to the left
(counterclockwise).
Holding the discs by the edge, gently place
each one into one of the compartment slots in
the drawer. Note that there is a number
embossed onto the drawer tray at the right of
the disc slot. This is the number for that specific
disc position; it will be used to indicate the disc
in both the Information Display and the onscreen displays.
When loading discs, please note the following:
■ The DVD 5 will play discs with the following
logos only. DO NOT attempt to play another
type of disc, as shown in the list on page 5.
■ To access all disc positions, the unit must be
in the full-stop position. If the unit is in the
Play mode, press the Stop Button !/j
twice.
■ If the disc tray drawer is opened while a disc
is playing, the Play Exchange feature allows
you to change the remaining four discs.
Simply press the Disk Skip Button 7/n
to move the discs in the tray in one direction
or the other.
IMPORTANT NOTES ON DISC LOADING
ReWritable
■ The DVD 5 will only play discs in the NTSC
video format. It will not play discs for other
standards such as PAL or SECAM.
■ Remove all discs from the tray before
moving the player.
■ Do not push the disc tray drawer with the
power off.
■ The DVD 5 will only play discs that are
coded for Region 1 or discs that are open
to being played in all regions. Discs that
contain a Region Code of 2, 3, 4, 5 or 6
(as noted by a number inside a world map
logo on the disc’s cover jacket or case) will
not play.
■ Do not attempt to rotate the disc tray by
hand. If the tray drawer or carousel tray
appears to be stuck, contact your local
Harman Kardon authorized service center.
■ When loading CD audio discs, load the discs
with the label side up.
■ When loading DVD discs with printed labels,
load them label side up.
Once the disc’s data has been read, the type of
disc (DVD or CD) will be displayed by the Disc
Type Indicator A and the disc will automatically begin playing. The disc’s track timing information and other relevant data will appear in
the Information Display $. For CD discs
only, a Status Menu Bar will appear in the onscreen display. To view this display for DVD
discs, press the Mode Button c.
The Disc-Number Indicator B will show a
lighted number for the disc slot positions that
are occupied, and the disc in use will flash.
Note, however, that all occupied positions may
not be shown until the disc tray has been rotated past an empty or occupied slot by pressing
the Disk-Skip Buttons 7/n, or by manually selecting a specific disc with the Disc-Select
Buttons.
■ Make certain that all discs are properly
seated before closing the disc tray drawer.
■ Playback capability for CD-RW discs will vary
according to the quality of the CD-RW disc.
On some occasions it is possible that CD-RW
discs may not play on the DVD 5. This does
not indicate any problem with the DVD 5.
■ Both 5-inch (12cm) and 3-inch (8cm) discs
may be used.
Display and in the on-screen display to alert
you to the fact that the unit is determining the
type of disc (DVD or CD) and is reading the
data for track, chapter, title and other information about the disc. At the same time, the DiscNumber Indicator B for the disc in use will
begin to flash, indicating which disc is being
played.
■ Do not attempt to change discs or touch the
disc tray carousel while it is moving.
■ Do not load more than one disc in each slot
in the tray and do not attempt to place a
standard 5-inch (12cm) disc over a smaller
3-inch (8cm) disc.
Once the discs are loaded, press the
Open/Close Button 9/i to close the disc
tray. When the tray drawer closes, the disc that
was last in the center position facing outward
in the tray will be readied for playback. After
the drawer closes, you will see a brief indication
of Reading in both the Information
21 PLAYBACK BASICS
Playback Basics
Basic playback with the DVD 5 involves functions similar to those you may be familiar with
for conventional CD players or changers:
■ Turn the unit on by pressing in the Master
Power Switch 1, if it has not already
been engaged.
■ Press the Standby Switch 2/b. If there
are already discs loaded in the unit, the last
disc to be played will automatically begin
playing.
■ If the disc was stopped using the Resume
function, playback will begin from the point
where it was stopped. If the disc was
stopped by pressing the Stop Button
!/j twice, the disc will begin playing
from its beginning.
■ Load any new discs as indicated in the
previous section.
■ After loading discs, press the Open/Close
Button 9/i to begin play.
Playback Features for DVD and CD Discs:
■ To move to the next disc in the unit, press
the Disk-Skip Button 7/n.
■ To select a specific disc in the player, press
the Direct-Access Button # corresponding to the slot where that disc is loaded.
■ To momentarily pause playback and freeze
the current picture frame on a DVD, press
the Pause Button @/x. To resume playback after pressing the Pause button, press
the Play Button @/g.
■ To move forward or backward through the
tracks on a CD or the chapters on a DVD,
press the Skip Forward/Reverse Buttons
) on the front panel or the Previous/
Next Buttons on the remote k/l.
■ To move forward or backward through the
DVD or CD disc being played at fast speed,
press the Search Forward/Reverse
Buttons 8/h/y. Once one of these
buttons is pressed, the fast search will
continue until the Play Button @/g is
pressed. Note that the fast-play speeds vary
for CD discs and DVDs.
22 PLAYBACK BASICS
For DVD playback, there are four fast-play
speeds. Each press of the Search
Forward/Reverse Buttons 8/h/y will
cycle to the next speed in the following order:
■ In the 1/16th Speed Slow mode, the
‹‹ and ›› Playback Mode Indicators
K will both flash.
■ In Fast Search x2, the ‹‹ and ›› Playback
Mode Indicators K will both light
steadily.
■ In the 1/8th Speed Slow mode, the inside
‹‹ and ›› Playback Mode Indicator K
will flash and the outside indicator will
remain steadily lit.
■ In Fast Search x4, the outside ‹‹ or ››
Playback Mode Indicator K will flash
and the inside indicator will remain
steadily lit.
■ In the 1/4 Speed Slow mode, the outside
‹‹ or ›› Playback Mode Indicator K
will flash and the inside indicator will
remain steadily lit.
■ In Fast Search x8, the inside ‹‹ or ››
Playback Mode Indicator K will flash
and the outside indicator will remain
steadily lit.
■ In the 1/2 Speed Slow mode, both the
‹‹ and ›› Playback Mode Indicators
K will remain steadily lit.
■ In Fast Search x16, both ‹‹ and ››
Playback Mode Indicators K will flash.
Note that there will be no audio playback during fast-forward or -reverse play of DVD discs.
This is normal for DVD, as A/V receivers and
surround processors cannot process the
digital audio streams during fast-play modes;
audio will be heard during fast-play of
conventional CDs.
For CD playback, there are three fast-play
speeds. Each press of the of the Search
Forward/Reverse Buttons 8/h/y will
cycle to the next speed in the following order:
■ In Fast Search x2, the ‹‹ and ›› Playback
Mode Indicators K will both light
steadily
■ In Fast Search x4, the outside ‹‹ or ››
Playback Mode Indicator K will flash
and the inside indicator will remain
steadily lit.
■ In Fast Search x8, the inside ‹‹ or ››
Playback Mode Indicator K will flash
and the outside indicator will remain
steadily lit.
When playing a DVD disc, you may move forward or backward through the program being
played in one of four speeds by pressing the
Slow-Play Buttons w on the remote. Each
press of the buttons will move to the next
speed in the following order:
Note that there will be no audio playback during slow-forward or -reverse play of DVD discs.
This is normal for DVD, as A/V receivers and
surround processors cannot process the digital
audio streams during slow modes. Slow play is
not available for CD discs.
■ When a camera icon appears on the screen,
this is your indication that there is multipleangle information on the disc being played.
To change the angle, press the Angle
Button 30 until the desired angle view
appears. An on-screen banner message will
appear to indicate the angle view in use.
To illuminate the buttons on the remote control
so that they may be seen in low-light conditions, press the Light Button r.
Note: Playback of discs with 96kHz/24-bit
audio requires the use of circuitry normally used
for other features. Accordingly, Slow Play,
Forward/Reverse Search, Step Advance and
Pause features are not available with these
discs.
DVD Playback
Using a DVD’s Menu
One of the unique features of the DVD system
is that it offers a producer the opportunity to
include a wide range of features on a disc,
including multiple-language tracks; subtitles in
a variety of languages; special information such
as movie trailers and cast information; as well
as other custom-tailored information. In addition, producers may divide a movie or program
into chapters that allow for quick access to
specific parts of the program. These chapters
may be accompanied by thumbnail pictures
of a scene from the specific chapter to help
you select the desired spot on the disc.
When a disc is playing, press the Menu
Button ` to pause the playback and display
the disc’s menu. As there are no hard rules
about style and contents of DVD menus, the
way they appear on the screen and the information they contain will vary from one disc to
another. However, the following general rules
apply to most menus:
■ The first menu that appears is the Main
Menu, and you may move through the
options with the ⁄ / ¤/‹ / › Navigation
Buttons e, as the disc’s programming
allows. The option selected will typically be
highlighted in a certain color or inside an
outline box.
IMPORTANT NOTES ON DVD PLAYBACK
The DVD 5 is capable of all the features and
options covered by the DVD standards.
However, it is up to the producer of a DVD disc
to decide which of those features and functions
are available on any given disc. For that reason,
not all discs will function identically, and some
discs will not have many of the features of the
DVD system. For example, most current DVD
discs do not take advantage of the multipleangle feature. When you press a button and the
player displays the “Feature Prohibited” icon
“”, this is an indication that the disc has not
been programmed for that feature.
In addition, it is common for the producers of
DVD discs to block the use of certain functions
during only some parts of a disc. For example,
many discs prohibit the use of fast-play buttons
or prohibit access to the Chapter Menu display
during the playback of copyright notices, studio
logos, movie credits or trailers. The appearance
of the “Feature Prohibited” icon “”, or the
inability of certain features to operate when the
disc itself has prohibited them, does not indicate a problem with the DVD 5, as these features are outside of the unit’s control.
■ To select a highlighted option, which may
either play a portion of the disc or move to a
sub-menu, press the Enter Button d or
Play Button g/@.
■ On some discs, when you select the DVD
menu during the playback of a movie, the
disc will return to the point in the program
where the menu was selected by offering a
“Play Movie” option. Press the Enter
Button d or Play Button g/@ to
resume play. However, not all discs offer this
feature, and selecting the menu while playing a movie may mean that you will either
have to go back to the beginning of the program or the start of a chapter. This feature is
out of the control of the DVD 5, as it is set
by the disc’s internal programming.
23 DVD PLAYBACK
DVD Playback
Using the On-Screen Menu Bar for
DVD Playback
The DVD 5 is equipped with a powerful onscreen display system that serves the dual purpose of showing you the current status of the
DVD 5 while enabling quick and easy changes
to settings and functions. Depending on
whether a DVD or CD is in use, the menu will
vary to display information that is specific to
the type of disc in play.
DVD Menus and Controls
When a DVD is playing, press the Mode
Button c to view the status of the current
disc and to change the setting for key playback
functions (Figure 16).
Once the Menu Bar appears, press the ‹ / ›
Navigation Buttons e to move across the
display to select the desired option. When the
option to be changed is highlighted in white
with yellow brackets on both sides, press the
Enter Button d to change the setting for
that option.
Selecting a Title
Some discs contain more than one title.
Remember that a disc may contain one title,
two separate program titles, or the disc may
use the Title function to separate out the special feature sections on the disc. The use of
titles is optional with the producer of each DVD
disc, as is the way in which he/she may choose
to implement the feature.
1. During disc playback, press the Mode
Button c.
2. Press the ‹ / › Navigation Buttons e
until the icon showing a disc and a file folder
(second from the left), with the letter “C”
underneath it, highlighted in white between
yellow brackets.
3. Press the Enter Button d.
4. Note that the number to the right of the “C”
will be replaced with two dashes (– –).
5. Using the Numeric Keys o, enter the
number of the title to be accessed.
6. The desired title will automatically be started.
TITLE
AUDIO
ANGLES
DISC DISC NO
TYPE
To change the title on those discs using the
Menu Status Bar, follow these steps:
1. During disc playback, press the Mode
Button c.
CHAPTER
SUBTITLES
BOOKMARKS TIME INDICATOR
Figure 16
Title: The number shown indicates the number
of the title that is currently playing.
Chapter: The number shown indicates the
number of the chapter that is currently playing.
Audio: The number and abbreviation show the
audio language soundtrack that is currently
playing. Consult the DVD jacket for the key to
available audio tracks on the disc.
2. If needed, press the ‹ / › Navigation
Buttons e until the disc icon for the current
title, with the letter “T” underneath it, is highlighted in white between yellow brackets.
3. Press the Enter Button d.
4. Note that the number to the right of the “T”
will be replaced with two dashes (– –).
5. Use the Numeric Keys o to enter the
number of the title to be accessed.
Changing the Audio Track
DVD discs may contain a variety of audio
tracks, including foreign languages, special
commentaries, descriptive video for the sight
impaired, and various digital formats. In normal
play, the unit will always look for the default
setting for the audio track, but you may change
the audio track at any time using the Menu
Status Bar and following these steps:
1. During disc playback, press the Mode
Button c.
2. Press the ‹ / › Navigation Buttons e
until the speaker icon (third from the left) is
highlighted in white between yellow brackets.
3. Press the Enter Button d.
Subtitles: The number and abbreviation show
the subtitle language that is currently playing.
Consult the DVD jacket for the key to available
subtitle languages on the disc.
Angles: The number shown indicates the multiple angle view that is currently playing.
Bookmarks: Highlight this area and press the
Enter Button d to mark or go to previously
bookmarked locations on a disc.
Disc Type: The type of disc playing (DVD or
CD) is shown.
Disc Number: The slot number of the disc
being played is shown.
Time Indicator: The elapsed time of the
current title is shown.
24 DVD PLAYBACK
6. The desired title will automatically be started.
Titles may also be selected during the playback
of a DVD by pressing the Title Button 28 .
However, the action of the disc when pressing
this button will vary from disc to disc. On occasion, pressing this button will take you to the
disc’s main menu while, in other cases, pressing
this button will result in no action at all.
Selecting a Chapter
The movies or programs on most discs are
divided into individual chapters, as selected by
the disc’s producer. Using the on-screen Menu
Bar, you may view the number of the current
chapter and move to any chapter on the disc.
To change the chapter using the Menu Status
Bar, follow these steps:
4. Note that the main Menu Bar will be
replaced with a single display of the current
language type (Figure 17).
Figure 17
5. Press the Enter Button d until the
desired audio track is displayed. Note that the
audio tracks available on a disc will vary and
that they are always listed on the disc’s jacket
or cover.
6. Within a few seconds, the disc will continue
play with the newly selected audio track.
DVD Playback
Changing the Playback Language
Note that the audio track type selected in this
fashion is temporary and will only remain in
effect until the player is turned off. When the
unit is turned on for subsequent play, the
default audio type will always be used.
The audio track may also be selected during the
playback of a DVD by pressing the Audio
Button a. After pressing the button, the
audio track may be changed by pressing the
Enter Button d until the desired audio
track is shown. Note, however, that some discs
do not allow audio track change while a disc is
playing. When the Audio Button a is
pressed on this type of disc, the player will go
the disc’s own menu page for audio track
selection. In this case, use the ‹ / ›/⁄ / ¤
Navigation Buttons e to make the selection from the menu screen and then press the
Enter Button d.
The functionality of the Audio Button a
may vary from disc to disc. Many discs will
allow you to change the playback language
while the disc is playing, as noted earlier.
However, when the Audio Button a is
pressed with some discs, playback will stop and
you will be taken to the disc’s own audio menu.
At that menu, use the ‹ / ›/⁄ / ¤ Navigation
Buttons e to highlight the desired playback
language. Press the Enter Button d when
the choice is made and the disc will either
resume playback or take you to the disc’s main
menu. Note that these functions are controlled
by information programmed within the disc,
and are outside of the control of the DVD 5.
Changing the Subtitle Language
DVD discs may contain a variety of subtitles. In
normal play, the unit will always look for the
default setting for the subtitle language, but
you may change that language at any time
using the Menu Status Bar and by following
these steps:
1. During disc playback, press the Mode
Button c.
2. Press the ‹ / › Navigation Buttons e
until the letter “S” icon (fourth from the left) is
highlighted in white between yellow brackets.
3. Press the Enter Button d.
4. Note that the main Menu Bar will be
replaced with a single display of the subtitle
language (Figure 18).
Figure 18
5. Press the Enter Button d until the
desired subtitle language is displayed. Note
that the subtitles available on a disc will vary,
and they are always listed on the disc’s jacket
or cover. Some discs may not offer alternative
subtitles, or any subtitles at all.
6. Within a few seconds, the disc will continue
to play with the newly selected subtitle language.
Note that the subtitle language selected in this
fashion is temporary, and will remain in effect
until the player is turned off. When the unit
is turned on for subsequent play, the default
subtitle language will always be used.
The subtitle language may also be selected during the playback of a DVD by pressing the
Subtitle Button 31 . After pressing the button, the language may be changed by pressing
the Enter Button d until the desired choice
is shown. Note, however, that some discs do
not allow audio track change while the disc is
playing. When the Audio Button a is
pressed, the player will go to the disc’s own
menu page for subtitle disc selection. In this
case, use the ‹ / ›/⁄ / ¤ Navigation Buttons
e to make the selection from the menu
screen and then press the Enter Button d.
IMPORTANT NOTE: The steps indicated on
the page allow you to change the subtitle language, but they do not determine if the subtitles are actually displayed on the screen. To
have the subtitles appear at any time, press the
Subtitle On/Off Button z to toggle the
subtitles on or off with each press of the button. When the subtitles are active, a Checkmark icon “✔” will appear in the box to the
right of the subtitle description as shown earlier.
Also note that some DVD discs do not contain
subtitles. When the Subtitle On/Off Button
z is pressed on a disc with no subtitles, the
Prohibit icon “” will appear on screen.
Changing Camera Angles
A special feature of the DVD format is its capability of showing more than one view, or camera angle, of the same scene. This feature
enables you to become the director, selecting
the view of a scene that you wish. Note, however, that this feature does not appear on many
discs and, when it does appear, it will typically
be for only certain scenes and not for the entire
disc’s program. If you attempt to use the multiple-angle feature on a disc that is not programmed for it, you may see the Prohibited
Feature icon “” on the screen. This is not a
fault of the player, but it simply indicates that
the feature is not available on the disc being
played.
To see if a disc contains multiple angles, check
the disc’s cover or jacket. When a disc does
contain scenes with multiple angles, the producers will usually include some sort of special
on-screen icon to alert you to the availability of
different angles of view. When you see such an
icon, the angle may be changed by the following steps:
1. Press the Mode button c.
2. Press the ‹ / › Navigation Buttons e
until the camera icon with the letters “Ang”
below it (fifth from the left) is highlighted in
white between yellow brackets.
3. Press the Enter Button d.
4. Note that the main Menu Bar will be
replaced with a single display of the angle
number (Figure 19).
Figure 19
5. Press the Enter Button d until the
desired angle is shown. Note that the number
of angles available is set by the disc’s producer,
not the DVD 5, and it may vary from disc
to disc.
You may also change the angle directly by
pressing the Angle Button 30 when multiple angles are present, until the desired angle
appears on the screen.
25 DVD PLAYBACK
CD Playback
Using the On-Screen Menu Bar for
CD Playback
The DVD 5 allows you to take advantage of the
on-screen Menu Bar even when playing CDs.
The use of this graphical display makes it easy
to select CD Functions.
CD Menus and Controls
When a CD is playing, the Menu Bar will automatically appear in your video display, even
though there is no video on the CD itself. To
remove the Menu Bar at any time, press the
Clear Button s. If the Menu Bar is not
present, press the Mode Button c to have
it appear on the screen (Figure 20).
TRACK
DISC DISC
TYPE NO
BOOKMARKS
Selecting a Track
To select any track on a CD, follow these steps:
1. During disc playback, press the Mode
Button c if the Menu Bar is not already on
the screen.
2. If needed, press the ‹ / › Navigation
Buttons e until the disc icon with the letter
“T” underneath it is highlighted in white
between yellow brackets.
3. Press the Enter Button d.
4. Note that the number to the right of the “T”
will be replaced with two dashes (– –).
5. Using the Numeric Keys o, enter the
number of the track to be accessed.
Time Display Selection
When playing CDs, the DVD 5’s displays are
capable of the time displays that you are familiar with from traditional CD-only players. The
choice of a time display is made through the
use of the on-screen Menu Bar, but any
changes to the display will also change the
Time Display mode for the Information Display.
To change the time display during CD playback,
follow these steps:
1. During disc playback, press the Mode
Button c if the Menu Bar is not already on
the screen.
2. If needed, press the ‹ / › Navigation
Buttons e until the clock icon with the
word “Time” next to it is highlighted in white
between yellow brackets.
6. The desired title will automatically be started.
INTROSCAN
TIME
DISPLAY TYPE
TIME
INDICATOR
Track: The number shown indicates the number
of the track that is currently playing.
Using IntroScan
The IntroScan feature allows you to sample the
tracks on a CD by playing the first ten seconds
of each track and then moving to the next
track. To use IntroScan, follow these steps:
IntroScan: When the IntroScan feature is
active, the musical notes in this icon will
change.
1. During disc playback, press the Mode
Button c if the Menu Bar is not already on
the screen.
Bookmarks: Highlight this area and press
enter to enter or go to bookmarked locations
on a disc.
2. If needed, press the ‹ / › Navigation
Buttons e until the musical score icon with
the words “IntroScan” underneath it (second
from the left) is highlighted in white between
yellow brackets.
Figure 20
Time Display Type: This shows the type of
time indication being shown: Time Remaining
for the Current Track, Total Elapsed for the Disc,
or Total Remaining for the Disc.
Disc Type: Shows the type of disc being
played.
Disc Number: The slot number of the disc
being played is shown.
Time Indicator: The time indication selected is
shown.
Once the Menu Bar appears, press the ‹ / ›
Navigation Buttons e to move across the
display to select the desired option. When the
option to be changed is highlighted in white
with yellow brackets on both sides, press the
Enter Button d to change the setting for
that option.
26 CD PLAYBACK
3. Press the Enter Button d to select one of
these four choices. Each press of the button will
select the next option:
■ Track Elapsed: This shows the time that
has elapsed for the current track. At the start
of each track this display will reset to zero
and begin to count up again.
■ Track Remain: This shows the time
remaining for the current track. At the start
of each track the time will begin to count
down again, starting with the total time of
the track.
3. Press the Enter Button d.
■ Disc Elapsed: This shows the total
time that the current disc has played for
all tracks.
4. Note that the disc will immediately begin to
play the first track on the disc and the musical
notes in the icon will change and flash.
■ Disc Remain: This shows the total time
remaining for all tracks on the disc that have
not yet been played.
5. The unit will play the first ten seconds of
each track on the disc, moving from one track
to the next.
6. To play a track during IntroScan, press the
Play Button g/@.
7. If no track is selected, the disc will stop playing when it has played the first ten seconds of
each track in order.
Note that while the IntroScan feature is in use,
the Intro Indicator F will appear in the
Information Display $.
Programmed Play
The DVD 5 is equipped with a wide range of
programmed play functions that enable you to
have the unit select or repeat tracks for you, or
you may program a specific order for discs and
tracks to play.
Random Play
The Random Play function will play all of the
tracks on a CD or chapters on a DVD in a random order as selected by the DVD 5. Once the
disc has played all of the tracks, it will stop.
To select Random Play at any time while a CD
or DVD is playing, press the Random Button
m. The Random Play Banner (Figure 21) will
appear on the screen and the Random
Indicator I will appear in order to confirm
your selection. To remove the Random Play
Banner from the screen, press the Clear
Button s.
Figure 21
To return to Standard Play, with tracks or
chapters playing in order, press the Random
Button m again. Note that a Standard Play
Banner (Figure 22) will appear in order to confirm your selection and the Random Indicator
I will go out.
To select Repeat All, Repeat 1 Disc, Repeat Title
or Repeat Track/Chapter, simply press the
Repeat Button p until the banner display
with the desired playback method appears on
the screen. The selection process will follow
this order:
3. The selected sequence will now play continually until the Stop Button !/j is pressed.
■ For DVD Discs: Repeat All (Discs) ➔
Repeat 1 (Current) Disc ➔ Repeat (Current)
Title ➔ Repeat (Current) Chapter ➔
Repeat Off
■ For CD Discs: Repeat All (Discs) ➔
Repeat 1 (Current) Disc ➔ Repeat (Current)
Track ➔ Repeat Off
In addition, when the video display is not available, the Repeat Indicators H will illuminate
in the Information Display $ to show the
options in use.
To stop any Repeat Play function, press the
Repeat Button p until the Repeat Off
Banner appears in the on-screen display or the
Repeat Indicators H in the Information
Display $ go out.
Repeat Play may also be stopped by pressing
the Stop Button !/j twice.
Repeat A-B
The Repeat A-B function allows you to select
any portion of a DVD or CD and have it repeat
continually unit the unit is manually stopped.
Figure 22
Repeat Play
The DVD 5 offers five repeat functions that
allow you to take advantage of the five-disc
capacity of the unit for unattended playback:
To initiate a Repeat A-B playback sequence,
follow these steps while a disc is playing:
■ Repeat All: Plays all discs in the unit in
order from beginning to end.
1. Press the Repeat A-B Button q at the
start of the sequence to be repeated. Note that
a Repeat A Banner (Figure 23) will appear on
the video screen and the Repeat A Indicator
H will illuminate in the Information Display.
■ Repeat 1 Disc: Plays a specific disc from
start to finish until the disc is manually
stopped.
Figure 23
■ Repeat Title: For DVD discs only, this mode
repeats the title currently being played until
the disc is manually stopped.
■ Repeat Track/Chapter: Repeats the CD
track or DVD chapter currently being played
until the disc is manually stopped.
■ Repeat A-B: Repeats any selected portion
of a disc until the disc is manually stopped.
2. When the end of the sequence to be repeated. Note that the on-screen banner message
will change to Repeat A-B (Figure 24), as will
the Repeat A-B Indicator H in the
Information Display.
Figure 24
27 PROGRAMMED PLAY
Programmed Play
Programmed Play
Programmed play allows you to select any
track, title or chapter from any disc in the
DVD 5 for playback in a specific order. This type
of programming is particularly useful for parties
or other situations where you want continual
playback of specific selections for a long period
of time. To program the discs in the DVD 5 for
playback, follow these steps:
1. Press the Program Button u on the
remote. Note that the Program Edit Screen
(Figure 25) will appear on the video display.
of the disc. This is particularly important in discs
with large amounts of special feature material.
5. The third box will now be highlighted in blue
to indicate that a selection for chapter should
be made. This choice is available only for DVD
discs, as CD discs do not have chapter capability. The number in parenthesis under the box
shows the maximum number of chapters on the
disc. If “99” appears, it indicates that the disc
selected has not yet been played and the unit
does not yet know the type of disc and how
many titles or tracks are available. If “0”
appears, this is your indication that the disc
is a CD.
6. Press the ⁄ / ¤ Navigation Buttons e
to scroll through the list of available chapters.
Press the Enter Button d or › Navigation
Button e to move to the next selection
area.
Figure 25
2. Select the disc position for the first playback
selection by pressing the ⁄ / ¤ Navigation
Buttons e. When the desired disc number
appears in the disc’s box in white over a blue
background, press the Enter Button d or ›
Navigation Button e to move to the next
selection.
3. The second box will now be highlighted in
blue to indicate that a selection for track or title
is to be made. As the DVD 5 already knows the
disc type for the position selected, the heading
over the box will indicate “Track” for CD discs
and “Title” for DVD Discs. The number in parenthesis under the box shows the maximum
number of tracks or titles on the disc. If “99”
appears, it indicates that the disc selected has
not yet been played and the unit does not yet
know the type of disc and how many titles or
tracks are available.
4. Press the ⁄ / ¤ Navigation Buttons e
to scroll through the list of available tracks or
titles. Press the Enter Button d or ›
Navigation Button e to move to the next
selection.
Note that most DVD movie discs use “Title 1”
for movies, while “Title 2” is used for the opening logos and piracy warnings. Before selecting
a DVD title number, you may wish to preview
the disc while the on-screen Menu Bar is active
to see which title numbers refer to each portion
28 PROGRAMMED PLAY
7. The blue highlighted box will now appear
in a column where the options are “Add,”
“Delete,” “Play” and “Done.” Since this is the
first selection to be entered, press the Enter
Button d and note that the selected disc,
track, title and chapter will be added to the
Play List column over a beige highlighted area.
The blue highlight will return to the disc box to
allow you to enter additional selections by
repeating steps 2 through 7.
8. Repeat the steps as needed, noting that the
selections will be added to the Play List up to a
maximum of 22 steps.
■ To delete an entry from the Play List, press
the › and ⁄ / ¤ Navigation Buttons e
until the selection to be deleted is highlighted in dark green with green numbers on
the Play List. Press the Enter Button d
and then press the ¤ Navigation Button
e once, so that the word Delete is highlighted. Press the Enter Button d and
the selection will be deleted. A selection may
also be deleted by following this step to
highlight it in green and then pressing the
Clear Button s.
■ To insert an entry into a Play List that has
already been created, press the › and ⁄ / ¤
Navigation Buttons e until the place
on the Play List where you wish to insert a
selection is highlighted in dark green with
green numbers. Press the Enter Button
d and then press the ¤ Navigation
Button e once, so that the word
Insert is highlighted in blue, and then
follow steps 2 through 7. When you have
entered the data for the selection, highlight
the word Insert in blue and press enter.
9. When you have completed the Play List, you
may play the programmed selections by pressing the › and ⁄ / ¤ Navigation Buttons e
until the word Play is highlighted in blue. Press
the Enter Button d to begin playback of
the entire Play List. During Program Play the
Program Indicator G will illuminate
10. To exit from the programming screen, press
the Return Button f.
Notes on Programmed Play
■ To stop the playback of a Programmed Play
List, press the Stop Button j twice.
■ To cancel programmed Play Lists, press the
Clear Button s.
■ To edit the contents of a Play List using the
Information Display $ only, and not the
on-screen display, follow these steps:
• Press the Check Button t.
• Press the Check Button t again to
step through each of the programmed
items. The Program Sequence Number will
appear on the far right side of the
Information Display $, next to the
PR indication.
• Use the ‹ / › Navigation Buttons e
to select the disc, track or chapter to be
edited.
• Use the ⁄ / ¤ Navigation Buttons e
to change the selection.
• Press the Clear Button s to remove a
program step.
• When all steps have been programmed,
press the Play Button g to begin programmed play, or the Return Button f
to exit the programming function and
return to normal operation.
Programmed Play
Bookmarks
Bookmarks are a feature of the DVD 5 that
allows you to mark up to nine different points
on a disc and to quickly return to those points
later. The Bookmarks feature works on both
DVD and CD discs.
To Enter a Bookmark, Follow These Steps:
1. During disc playback, press the Mode
Button c if the Menu Bar is not already on
the screen.
2. Press the ‹ / › Navigation Buttons e
until the disc icon with the word “Mark”
below it is highlighted in white between yellow
brackets.
3. Press the Enter Button d to view the
Bookmark Banner.
4. At any point during playback where you wish
to mark a spot so that you may return to it
later, press the Enter Button d. Note that a
check mark “✔” will appear in the box on both
the “Go To” and “Mark” lines.
5. To enter additional Bookmark points, press
the ‹ / › Navigation Buttons e until
another empty box on the Mark line is highlighted in black. Press the Enter Button d.
6. Repeat steps 4 and 5 for up to nine
Bookmark points on a disc.
7. To exit the Bookmark Banner, press the ‹ / ›
Navigation Buttons e until the box at the
right side of the banner is highlighted with a
yellow outline and the arrow and open door
icons turn from white to green. Press the Enter
Button d to return to normal play. Press the
Clear Button s to remove the Bookmark
menu bar from the on-screen display.
To Recall a Bookmarked Scene or
Passage, Follow These Steps:
Note that a check mark “✔” will appear in the
box on both the “Go To” and “Mark” lines.
1. During disc playback, press the Mode
Button d if the Menu Bar is not already on
the screen.
2. Press the ‹ / › Navigation Buttons e
until the disc icon with the word “Mark”
below it is highlighted in white between yellow
brackets.
3. Press the Enter Button d to view the
Bookmark banner.
4. Press the ⁄ Navigation Buttons e so
that a box on the top “Go To” line of the banner is highlighted in black with a yellow outline.
5. Press the ‹ / › Navigation Buttons e so
that the box below the number of the desired
Bookmarked spot is highlighted.
6. Press the Enter Button d to go directly
to the selected point on the disc
7. To exit the Bookmark Banner, press the ‹ / ›
Navigation Buttons e until the box at the
right side of the banner is highlighted with a
yellow outline and the arrow and open door
icons turn from white to green. Press the Enter
Button d to return to normal play. Press the
Clear Button s to remove the Bookmark
menu bar from the on-screen display.
The marked spots will remain in the DVD 5’s
memory as long as the disc is not changed. The
Bookmark memory will remain active if the disc
is stopped or the unit turned off, but it will be
lost if the disc is removed from the player, or if
the disc tray drawer is opened when the unit is
the Stop mode.
29 PROGRAMMED PLAY
DVD Language Codes
The availability of specific languages for the main audio track or subtitles is dependent on the choices made by a disc’s producer. You should always
consult the disc’s jacket for information on languages for any disc. In the case of some languages, you may be required to enter a code from the list below
to access that language. See page 16 for more information on entering language codes.
Language
Code
Language
Code
Language
Code
Abkhazian
Afar
Afrikaans
Albanian
Ameharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali; Bangla
Bhutani
Bihari
Bislama
Breton
Bulgarian
Burmese
Byelorussian
Cambodian
Catalan
Chinese
Corsican
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
6566
6565
6570
8381
6577
6582
7289
6583
6588
6590
6665
6985
6678
6890
6672
6673
6682
6671
7789
6669
7577
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
7265
7387
7273
Hungarian
Icelandic
Indonesian
Interlingua
Interlingue
Iunpiak
Irish
Italian
Japanese
Javanese
Kannada
Kashmiri
Kazakh
Kinyarwanda
Kirghiz
Kirundi
Korean
Kurdish
Laothian
Latin
Latvian, Lettish
Lingala
Lithuanian
Macedonian
Malagsy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Naru
Nepali
Norwegian
Occitan
Oriya
Oromo (Afan)
Panjabi
Pashto, Pushto
Persian
Polish
Portuguese
Quechua
Rhaero-Romance
Romanian
7285
7383
7378
7365
7369
7375
7165
7384
7465
7487
7578
7583
7575
8287
7589
8278
7579
7585
7679
7665
7686
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7967
7982
7977
8065
8083
7065
8076
8084
8185
8277
8279
Russian
Samoan
Sangho
Sanskrit
Scots Gaelic
Serbian
Servo-Groatian
Sesotho
Setswana
Shona
Sindhi
Singhalese
Siswati
Slovak
Slovenian
Somali
Spanish
Sundanese
Swahili
Swedish
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Tsonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
8285
8377
8371
8365
7168
8382
8372
8384
8478
8378
8368
8373
8383
8375
8376
8379
6983
8385
8387
8386
8476
8471
8465
8484
8469
8472
6679
8473
8479
8483
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
30 DVD LANGUAGE CODES
Troubleshooting Guide
TROUBLESHOOTING GUIDE
SYMPTOM
POSSIBLE CAUSE
SOLUTION
Unit does not turn on
• Main Power Switch turned Off
• No AC power
• Press in Main Power Switch
• Check AC power plug and make certain any switched
outlet is turned on
Disc does not play
• Disc loaded improperly
• Incorrect disc type
• Invalid Region Code
• Rating is above parental preset
• Load disc label-side up
• Check to see that disc is CD, CD-RW or DVD-Movie;
other types will not play
• Use Region 1 disc only
• Enter password to override or change rating settings
No picture
• Intermittent connections
• Wrong Input
• Check all video connections
• Check input selection of TV or reveiver
No sound
• Intermittent connections
• Incorrect digital audio selection
• DVD disc is in fast or slow mode
• Check all audio connections
• Check digital audio settings
• There is no audio playback on DVD discs during
fast or slow modes
Picture is distorted or jumps during
fast forward or reverse play
• MPEG-2 decoding
• It is a normal artifact of DVD playback for pictures
to jump or show some distortion during rapid play
Some remote buttons do not operate
during DVD play
• Function not available for this disc
• Some discs do not include all DVD features
The menu is in a foreign language
• Incorrect menu language
• Change menu language selection
“” Symbol Appears
• Requested function not available at
this time
• Certain functions may be disabled during passages
of a disc
Picture is displayed in the wrong aspect ratio
• Incorrect match of aspect ratio settings
to disc
• Change Aspect Ratio settings
Remote control inoperative
• Weak batteries
• Sensor is blocked
• Change both batteries
• Clear path to sensor or use remote sensor
Disc will not copy to VCR
• Macrovision protection
• Most DVDs are encoded with Macrovision
to prevent copying to VCR
31 TROUBLESHOOTING GUIDE
Technical Specifications
Applicable Discs:
5-inch (12cm) or 3-inch (8cm) DVD-Movie, CD or CD-RW discs
Region 1 DVD-Movie discs
DVD: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer
Linear PCM, Dolby Digital or DTS Audio
Video Signal System:
NTSC
Composite Video Output:
1V p-p/75 Ω, sync, negative polarity
S Video Output:
Y/Luminance: 1V p-p/75 Ω, sync, negative polarity
C/Chrominance: 0.286V p-p
Component Video Outputs:
Y: 1V p-p/75 Ω, sync, negative polarity
Pr: 0.648V p-p/75 Ω
Pb: 0.648V p-p/75 Ω
Analog Audio Output:
2.0V RMS ±0.2
Coaxial Digital Audio Output: 0.5V p-p/75 Ω
Optical Digital Audio Output: 1.6V p-p
Frequency Response:
4Hz – 22kHz ±0.5dB (48kHz sampling)
Dynamic Range:
DVD: 105dB (20-bit)
CD: 100dB
Channel Separation:
>90dB
THD:
DVD: 0.0035%
CD: 0.0035%
Signal to Noise:
>100dB
Wow & Flutter:
Below measurable limits
Headphone Output:
1.2V RMS @ 32 Ω
AC Power:
120V/60Hz
Power Consumption:
25 watts
Dimensions (H x W x D):
5.1" x 17.3" x 17.2"
(130mm x 440mm x 437mm)
Weight:
15.4 lbs/7kg
Depth measurement includes knobs and buttons.
Height measurement includes feet and chassis.
All specifications subject to change without notice.
Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman Kardon, Inc.
Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” “AC-3” and the Double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-2000 Dolby
Laboratories, Inc. All rights reserved.
DTS and DTS Surround are trademarks of Digital Theater Systems, Inc.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
250 Crossways Park Drive, Woodbury, New York 11797
www.harmankardon.com
© 2000 Harman Kardon, Incorporated
Part #J9020000300X
