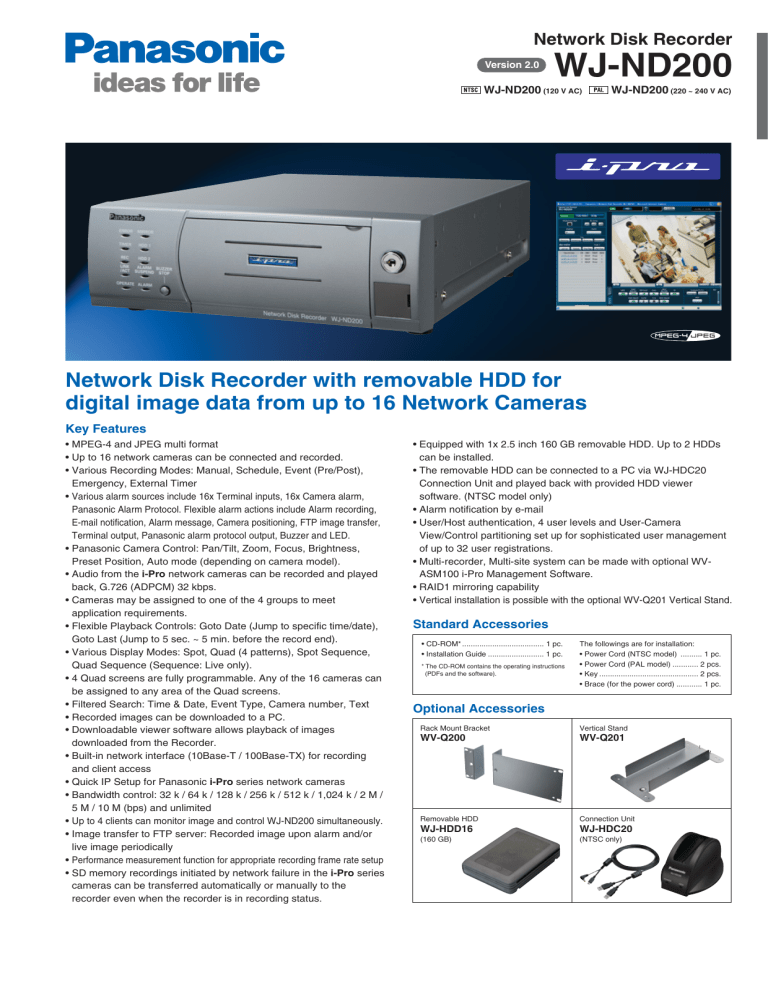

WJ-ND200 - PanaMed
Network Disk Recorder
Version 2.0
WJ-ND200
WJ-ND200 (120 V AC)
WJ-ND200 (220 ~ 240 V AC)
Network Disk Recorder with removable HDD for
digital image data from up to 16 Network Cameras
Key Features
• MPEG-4 and JPEG multi format
• Up to 16 network cameras can be connected and recorded.
• Various Recording Modes: Manual, Schedule, Event (Pre/Post),
Emergency, External Timer
• Various alarm sources include 16x Terminal inputs, 16x Camera alarm,
Panasonic Alarm Protocol. Flexible alarm actions include Alarm recording,
E-mail notification, Alarm message, Camera positioning, FTP image transfer,
Terminal output, Panasonic alarm protocol output, Buzzer and LED.
• Panasonic Camera Control: Pan/Tilt, Zoom, Focus, Brightness,
Preset Position, Auto mode (depending on camera model).
• Audio from the i-Pro network cameras can be recorded and played
back, G.726 (ADPCM) 32 kbps.
• Cameras may be assigned to one of the 4 groups to meet
application requirements.
• Flexible Playback Controls: Goto Date (Jump to specific time/date),
Goto Last (Jump to 5 sec. ~ 5 min. before the record end).
• Various Display Modes: Spot, Quad (4 patterns), Spot Sequence,
Quad Sequence (Sequence: Live only).
• 4 Quad screens are fully programmable. Any of the 16 cameras can
be assigned to any area of the Quad screens.
• Filtered Search: Time & Date, Event Type, Camera number, Text
• Recorded images can be downloaded to a PC.
• Downloadable viewer software allows playback of images
downloaded from the Recorder.
• Built-in network interface (10Base-T / 100Base-TX) for recording
and client access
• Quick IP Setup for Panasonic i-Pro series network cameras
• Bandwidth control: 32 k / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M /
5 M / 10 M (bps) and unlimited
• Up to 4 clients can monitor image and control WJ-ND200 simultaneously.
• Image transfer to FTP server: Recorded image upon alarm and/or
live image periodically
• Performance measurement function for appropriate recording frame rate setup
• SD memory recordings initiated by network failure in the i-Pro series
cameras can be transferred automatically or manually to the
recorder even when the recorder is in recording status.
• Equipped with 1x 2.5 inch 160 GB removable HDD. Up to 2 HDDs
can be installed.
• The removable HDD can be connected to a PC via WJ-HDC20
Connection Unit and played back with provided HDD viewer
software. (NTSC model only)
• Alarm notification by e-mail
• User/Host authentication, 4 user levels and User-Camera
View/Control partitioning set up for sophisticated user management
of up to 32 user registrations.
• Multi-recorder, Multi-site system can be made with optional WVASM100 i-Pro Management Software.
• RAID1 mirroring capability
• Vertical installation is possible with the optional WV-Q201 Vertical Stand.
Standard Accessories
• CD-ROM* ...................................... 1 pc.
• Installation Guide .......................... 1 pc.
* The CD-ROM contains the operating instructions
(PDFs and the software).
The followings are for installation:
• Power Cord (NTSC model) .......... 1 pc.
• Power Cord (PAL model) ............ 2 pcs.
• Key .............................................. 2 pcs.
• Brace (for the power cord) ............ 1 pc.
Optional Accessories
Rack Mount Bracket
Vertical Stand
WV-Q200
WV-Q201
Removable HDD
Connection Unit
WJ-HDD16
WJ-HDC20
(160 GB)
(NTSC only)
Specifications
Supported Browser
Alarm/
Event
Network
External
Interface
HDD
Viewer
Software
HDD
Viewer
Software
Admin Software
Quick IP Setup
Software
General
Specifications
Required PC
Alarm Source
Alarm Action
Alarm Control
Event Log
Network Interface
Maintenance Port
Maximum Band Width
Bandwidth Control
Supported Protocol
E-mail
No. of Client at a Time
FTP Client
User Registration
User Level
Partitioning
Security Method
Alarm Connector Alarm
(25pin D-sub)
Alarm/Control Alarm
Connector
Control
(25pin D-sub)
Error/
Warning
Type
RAID
Playback Control
Additional Functions
Supported OS
Playback Control
Additional Functions
Supported OS
Supported OS
Supported OS
Alarm output 8 ~ 16*2, Alarm suspension input*1, Alarm reset input*1
Emergency recording input*1, Power outage detection input*1, External recording mode switching*1,
Power outage recovery completion output*3, Time adjustment input/output*4, +5 V output*5
Network error output*2, Available disk space warning output*2,
HDD error output*2, Camera error output*2, Error output*2
1x 2.5 inch 160 GB removable HDD (UP to 2 HDDs)
RAID1 Mirroring mode supported
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next Image
Alteration detection, Save as JPEG, Two times zoom, Print
Same as browser GUI (English, German, French, Italian, Spanish.),
Language of the software is English.
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next Image
Search (Time date, Event type, Camera number), Save as JPEG, Print, HDD Check
Same as Viewer software, Language of the software is English.
Same as Viewer software, Language of the software is English.
Same as Viewer software, Language of the software is English.
UL (6500), FCC (Part15 ClassA),
CE (EN60065, EN55022 ClassB,
C-UL (E60065), DOC (ICES003 ClassA) EN55024), GOST (GOST R 51558)
Power Source
120 V AC, 60 Hz
220 ~ 240 V AC, 50 Hz
Power Consumption
approx. 35 W
Ambient Operating Temperature +5 °C ~ +45 °C (41 °F ~ 113 °F)
Ambient Operating Humidity 5 % ~ 90 % (without condensation)
Maximum Operating Altitude 2,000 m (6,500 feet) above sea level
Dimensions
270 mm (W) x 88 mm (H) x 360 mm (D)
(10-5/8"(W) x 3-1/2"(H) x 14-1/4"(D)) (excluding rubber feet and projections)
Weight
5 kg (11 lbs.)
Safety/EMC Standard
*1: Non-voltage make contact, +5 V pull-up 150 Ω *2: Open collector output, 24 V max., –100 mA
*3: High (+5 V ~ +12 V, 6.3 mA maximum) *4: 52 kΩ, 5 V pull-up, –100 mA / make contact *5: 200 mA at maximum
Key Hole
HDD Bay
Inside the Front Cover
Buzzer Stop Button
Alarm Suspension Indicator
HDD Access Indicators
Mirroring Indicator
Error Indicator
USE Button
FORMAT Button
Write Protection Indicator
Maintenance Port
Network Port
Alarm Connector (ALARM, 25pin D-sub, Female)
Alarm/Control Connector
(ALARM/CONTROL, 25pin D-sub)
Signal Ground Terminal
(SIGNAL GND)
Power Switch
Power Cord Inlet
Timer Indicator
Recording Indicator
Link Indicator
Operate Indicator
Alarm Indicator
Rear View
Appearance
270(10-5/8")
238(9-3/8")
Unit: mm (inches)
88(3-1/2")
9.5(3/8")
SD Memory Data
Download
Camera Title
Clock Display
Alarm Control
Digital Zoom
Text Attachment
System Logs
System Setup
Time Synchronization
Summer Time
GUI Language
Supported OS
Front View
360(14-1/4")
Search Mode
Display Mode
Camera Grouping
Image Download
Part Names and Functions
NTSC
PAL
Panasonic i-Pro series Network cameras, BB series (specific models) and Axis® (specific models)
MPEG-4 (Specific cameras), JPEG, M-JPEG
1,280 x 960, 960 x 720, 640 x 480, 320 x 240 (Depending on the camera)
G.726 (ADPCM) 32 kbps
16
Manual, Event, Schedule, Emergency, External timer
Up to 30 seconds
4 programs, 6 time zones/day, Independent setup for each day of the week
Up to 30 ips (Depending on the Camera)
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program
(up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset
REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record,
Prev Image, Next Image, Goto Date, Goto Last (5 sec. ~ 5 min.), Text display
Search criteria: Time date, Event type, Camera number, Text ON/OFF
4x Spot/Quad groups/Spot Sequence/Quad Sequence (Sequence: Live only)
4 groups each with 16 characters title
Recorded data of selected camera and time range can be
downloaded to a PC. Viewer software can be downloaded separately.
SD recording associated with network error in the i-Pro series cameras
can automatically be transferred to the recorder.
On the browser, Up to 16 characters
On the browser. Time: 12H/24H, Date: 3 formats (YY.MM.DD, MMM.DD.YY, DD.MMM.YY)
Reset, Suspend
Up to 4 times, Mouse wheel control supported
Free comment can be attached for each record and reviewed at later time. Up to 200 characters
Operator access (100), Network error (1,000), Error (100), Event (750)
Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese
Terminal (Master or Slave), NTP (Client)
User definable (using menu setup)
English, French, Italian, Spanish, German, Russian, Chinese, Japanese
Microsoft® Windows Vista® Business 32 bit, Microsoft® Windows® XP Home/Professional SP2
The language of the OS must be same as selected GUI language.
Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business 32 bit),
Microsoft® Internet Explorer® 6.0 SP2 (Microsoft® Windows® XP Home/Professional SP2)
CPU: Intel® Pentium® 4 3.0 GHz or faster, RAM: 512 MB or more, Microsoft® DirectX® 9.0c or later
16 x Terminal inputs, 16 x Camera alarms, Panasonic Alarm Protocol
Alarm recording, e-mail notification, Alarm message, Camera positioning,
FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED
Reset, Suspend
750 logs
10Base-T/100Base-TX (RJ-45)
10Base-T (RJ-45)
Total 48 Mbps
32 k / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M / 5 M / 10 M (bps) and unlimited
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP
Upon Alarm or Warning
4
Upon alarm or Periodic transfer
Up to 32 users
4 Levels (Programmable)
User - Camera (View only, View & Control, No Access)
User authentication (ID and Password), Host authentication (IP address), Alteration detection
Alarm input 1 ~ 16*1, Alarm output 1 ~ 7*2
30(1-3/16")
20(3/4") 263(10-11/32")
TV System
Supported Supported Cameras
Cameras Supported Image Format
Supported Image Resolution
Supported Audio Format
Maximum Number of Cameras
Recording Recording Mode
Pre-alarm Recording
Scheduled Recording Mode
Frame Rate/Camera
Browser Camera Control
GUI
REC/Playback Control
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and
other countries.
– Axis is a registered trademark of Axis Communications AB.
– Intel and Pentium are trademarks of Intel Corporation.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered trademarks
of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual
before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer
products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
