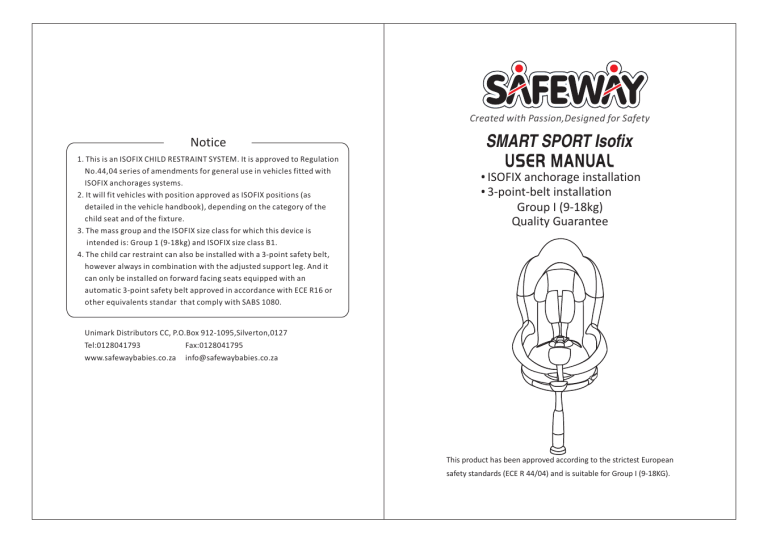

SMART SPORT Isofix

SMART SPORT Isofix
Created with Passion,Designed for Safety
Notice
SMART SPORT Isofix
1. This is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation
No.44,04 series of amendments for general use in vehicles fitted with
ISOFIX anchorages systems.
2. It will fit vehicles with position approved as ISOFIX positions (as
detailed in the vehicle handbook), depending on the category of the
child seat and of the fixture.
3. The mass group and the ISOFIX size class for which this device is
intended is: Group 1 (9-18kg) and ISOFIX size class B1.
4. The child car restraint can also be installed with a 3-point safety belt,
however always in combination with the adjusted support leg. And it
can only be installed on forward facing seats equipped with an
automatic 3-point safety belt approved in accordance with ECE R16 or
other equivalents standar that comply with SABS 1080.
.ISOFIX anchorage installation
.3-point-belt installation
Group I (9-18kg)
Quality Guarantee
Unimark Distributors CC, P.O.Box 912-1095,Silverton,0127
Tel:0128041793
Fax:0128041795
www.safewaybabies.co.za
[email protected]
This product has been approved according to the strictest European
safety standards (ECE R 44/04) and is suitable for Group I (9-18KG).
Content
1.Content .....................................................................................1
2.Warning ....................................................................................2
3.Know your child car seat ..........................................................3-4
4.Five positions of the child car seat ...............................................5
5.Install the child car seat using ISOFIX anchorages system.
Group 1(9-18kg) ........................................................................5
6.Install the child car seat using a 3-point belt with floor support leg.
Group 1(9-18kg).......................................................................6-7
7.Fit your child with harness system Group1(9-18kg) .......................8
8.Remove the harness system ...................................................9-11
9.Remove and refit the seat cover ................................................12
10. Care instructions ....................................................................13
12.Additional Instruction.............................................................14
Warning
PLEASE READ THOROUGHLY THESE INSTALLATION INSTRUCTIONS BEFORE
COMMENCING INSTALLATION AS AN INCORRECT INSTALLATION COULD BE
DANGEROUS.
DO NOT USE THIS CHILD CAR SEAT IN VEHICLE PASSENGER SEATS EQUIPPED WITH
AIRBAGS.
This child car seat must only be installed in a forward facing position in vehicle
passenger seats.Do not use on side facing or rear facing seats .
Never use this child car seat without fastening the child's harness correctly, and never
attempt to use it without fastening it into the vehicle as described in these instructions.
Do not modify this child car seat in any way.
In the event of an emergency it is important that the child can be released quickly, this
means that the buckle is not fully tamperproof and so your child must be taught never
to play with the buckle .
Do not leave your child unattended in the seat at any time.
It is recommended that this car seat should be changed when it has been subjected to
violent stresses in an accident or has become badly worn. Periodically inspect the
harness for wear, paying particular attention to the attachment points, stitching and
adjusting devices.
Rigid items and plastic parts of the child car seat must be so located and installed that
they are not liable,during everyday use of the vehicle to become trapped by a movable
seat or in a door of the vehicle.
Vehicle interiors can become very hot when in direct sunlight, it is therefore
recommended that the child seat is covered when not in use. This prevents
components ,particularly those attached to the child seat ,becoming hot and burning
the child.
Luggage and other heavy or sharp objects should be secured in the vehicle.Loose
objects are liable to cause injury in the event of an accident.
The safest seating position for a child car seat is on the rear seat of a vehicle.
The child restraint must not be used without cover.
The seat cover should not be replaced with any other than the one recommended by
the manufacturer, because the cover constitutes an integral part of the restraint
performance.
Do not make any alterations or additions to the child car seat without the approval of
the competent authority.
Keep this manual for future reference.
IMPORTANT :
When installed with a 3-point-belt in combination with the support leg,
the child car seat must be used with the 3-point belt that is approved to UN/ECE
Regulation No.16 or other equivalent standards that comply with SABS 1080.
When installed with the ISOFIX attachment, read the vehicle manufacturer’s
Know your child car seat
1 . Seat cover
2 . Seat shell
3. Upper shaft and lock
4. Lower shaft and lock
5. Lock-off device
6. Belt guard door
7. Red hooks
8. Warning markings
9. Belt yoke
10. Seat base
11. ISOFIX connectors
12. ISOFIX indicator
13. ISOFIX release button
Know your child car seat
14. Head pillow
15. Belt slots
16. Shoulder pads
17. Harness strap
18. Buckle
19. Crotch strap bracket
20. Harness release button
21. Recline handle
22. Adjuster strap
23. ISOFIX connector
extending lever
24. Floor support leg
Installation
Installation
Five positions of the car seat
The car seat can be used in five recline positions:
Lift the handle, under the front of the seat, up
and pull or push the shell forwards or
backwards. Release the handle in the
required position and push until you hear a
distinct click.
Installing the child car seat using the ISOFIX system.
Group 1(9-18kg)
Place the seat forward facing in your vehicle.
Pull the lever to extend the ISOFIX
connectors.
Extend the floor support leg fully out , Adjust
the height of the floor support leg by rotating
the end,to ensure that the leg is touching
the floor of the vehicle firmly .
Installing the child car seat using the 3 - point safety belt
with the floor support leg.
Group 1 ( 9 - 18kg )
This child seat can also be installed with a 3-point safety belt,
however always in combination with the adjusted floor
support leg.
Place the child seat on to the vehicle seat.
Pull the lower shaft out of the seat.
!
Lock the two ISOFIX connectors into the
ISOFIX anchorage fixtures of the vehicle .
The ISOFIX indicator will turn to green when
the connectors are locked to the anchorages.
Click
Pull and hold the ISOFIX adjusting lever, and
push the child seat backwards into the vehicle
seat. Release the lever when there is no space
between the child seat back and vehicle seat.
Adjust the child car seat into the most-reclined
position(1), then tilt the seat shell forward(2).
Installation
Installation
Extend the floor support leg fully out and
adjust the height of the floor support leg by
rotating the end. Make sure that the leg is
firmly in contact with the floor of the vehicle.
Click
Thread the vehicle seat belt through the child
seat base and secure the belt into the belt
buckle.
Ensure the lap portion of the vehicle seat belt
fits under the red hooks and the diagonal
portion of the vehicle seat belt runs directly
from the belt buckle diagonally upwards.
Fit your child with the harness system.
Group1(9-18kg)
Loosen the shoulder belts by pressing the
release button(1) and pulling the shoulder
belts towards you (2) .
Note ! Do not pull on the belt pads .
Then open the harness buckle ( press the
red release button ) (3) .
Push the child car seat firmly backwards into
the vehicle seat, pull the diagonal belt tight to
remove any slack in the belt, then place the
diagonal belt into the lock-off device and
fasten it. Return the seat shell backwards and
refit the lower shaft into the child seat back
and lock into position.
Then pull out a small section of the upper
metal shaft, feed the diagonal belt between
the shaft and the seat shell, and secure the
upper metal shaft again.
Ensure that there are no kinks or twists in the
vehicle seat belt.
Draw the belts over the hooks on the shell.
Put your baby comfortably with his / her back
against the shell and make sure that there
are no toys or other hard objects in the shell .
Slide buckle tongue sections together and
insert them into the buckle until you hear a click.
2
Pull the remaining slack out of the belt
system (4) & pull the belts tight with the harness
strap (1) .
08
Installation
Installation
Check:
Ensure that the harness belt strap slots
are level with or above your child's
shoulders.
Tilt the seat shell forward.
Adjusting the height of the shoulder belts
Open the belt guard door .
1
2
The correct belt height of the shoulder belts
is attained when the belt disappears into the
shell slightly above the shoulder of the child .
Ensure that the shoulder belts fit properly
over the shoulders of the child .
Remove the harness belt from the belt yoke.
Remove the harness system
Adjust the child car seat into the
most-reclined position , then take the lower
shaft out of the seat.
Pull out the metal part which is used to
fasten the shoulder pad strap to the back
of the seat shell.
Installation
Installation
Removing and refitting the seat cover
Pull the harness belts and the pads out of
the belt slots . Then open the harness
buckle .
Remove the harness .
SEE-Removing the Harness
System on Page 09.
G
Pull out the metal part which is used to
fasten the belt to the bottom of the seat shell.
Push the metal plate , with which the harness
buckle is fixed to the seat shell ,on its side and
upwards through the belt slot .
Take the elastic loops of the cover off the
hooks under the edge of the seat shell. Now
you can remove the seat cover.
Refitting the seat cover
Refit the seat cover on the seat in reverse order, as above.
Hook the elastic hoops onto the hooks under the edge of the seat shell
Refit the harness.
Care instructions
Washing instruction
The seat cover can be washed with luke-warm water and a gentle soap.
Do not use any abrasive detergents. The cover must be washed by
hand at a maximum temperature of 30 ℃ . Do not dryclean
(see also washing instructions).
The buckle may be cleaned with warm water.
It is advisable to buy an extra cover so you can use the child car seat at all
times when the original cover is being washed.
Notice: Take out the instruction manual from the pouch before washing
the seat cover.
Checklist
For safety's sake read through this checklist before you commence your
journey.
Check that the harness belt system fits properly and tightly around
your child and that the shoulder belts are at the correct height.
Check that the vehicle’s seat belts are not twisted.
Check that the lap strap of the child car seat is worn low down so that the
pelvis is firmly engaged.
Check regularly that the belt in the child car seat is not damaged.
If it is damaged do not use your product in any circumstances and
contact the supplier or your retail outlet.
Check that you have tightly secured your child car seat with the vehicle
seat belt or the ISOFIX anchorages.
If you have any questions, please contact the supplier or retailer.
