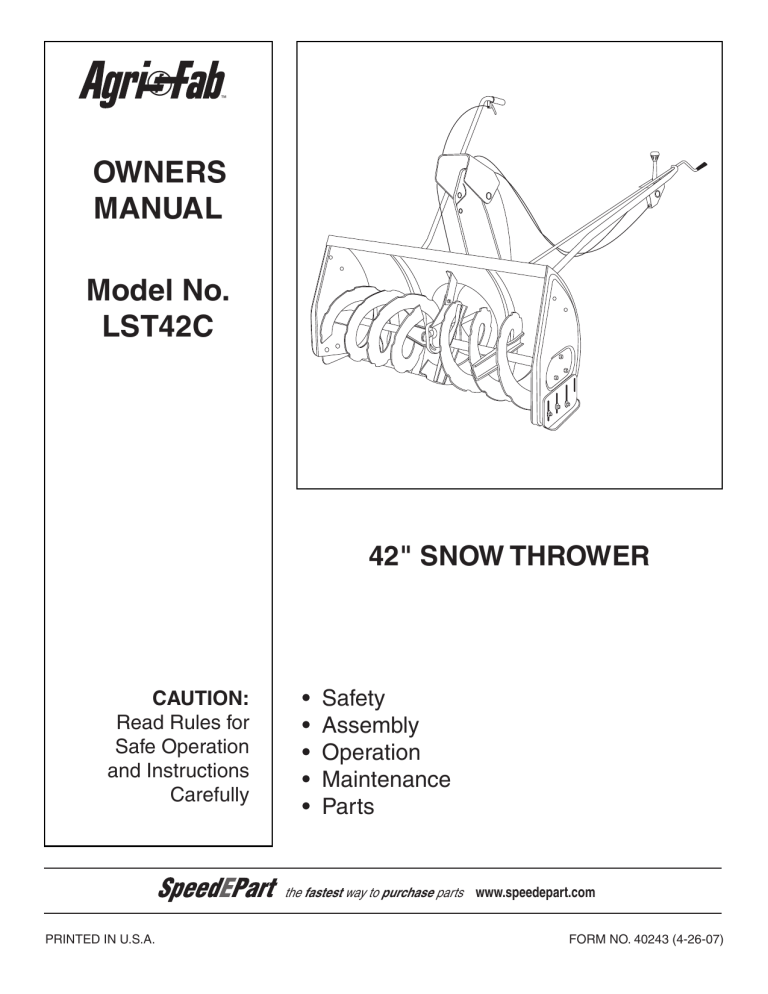

Model No. LST42C owNerS MaNuaL

Model No. LST42C owNerS MaNuaL

owNerS

MaNuaL

Model No.

LST42C

42" SNow THrower

CauTIoN:

Read Rules for

Safe Operation and Instructions

Carefully

• Safety

• Assembly

• Operation

• Maintenance

• Parts

PRINTED IN U.S.A. the

fastest way to purchase parts www.speedepart.com

FORM NO. 40243 (4-26-07)

TaBLe oF CoNTeNTS

ACCESSORIES .................................................................................................................................................................... 2

SAFETY RULES ................................................................................................................................................................... 3

FULL SIZE HARDWARE CHART ......................................................................................................................................... 4

CARTON CONTENTS .......................................................................................................................................................... 6

ASSEMBLY ........................................................................................................................................................................... 7

OPERATION ....................................................................................................................................................................... 25

MAINTENANCE ................................................................................................................................................................. 26

SERVICE AND ADJUSTMENTS ........................................................................................................................................ 27

STORAGE .......................................................................................................................................................................... 28

TROUBLESHOOTING ........................................................................................................................................................ 28

REPAIR PARTS ILLUSTRATION ............................................................................................................................. 30,32,34

REPAIR PARTS LIST................................................................................................................................................ 31,33,34

SLOPE GUIDE ................................................................................................................................................................... 35

PARTS ORDERING/SERVICE ........................................................................................................................BACK COVER

IMPorTaNT:

Rear wheel weights and tire chains are required to provide extra traction and stability when using this snow thrower attachment. These items are available where you purchased your tractor.

wHeeL weIGHTS TIre CHaINS

2

SaFeTY

Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment.

Exercise caution at all times, when using power equipment.

• Read this owner's manual carefully and know how to operate your snow thrower and how to stop the unit and disengage the controls quickly.

• Never allow children to operate the equipment.

• Never allow adults to operate the equipment without proper instruction.

• Keep the area of operation clear of all persons, especially small children, and pets.

• Thoroughly inspect the area where the equipment is to be used and remove all door mats, sleds, boards, wires and other foreign objects.

• Disengage all clutches and shift into neutral before starting engine.

• Do not operate equipment without wearing adequate winter outer garments.

• Wear substantial footwear which will protect feet and improve footing on slippery surfaces.

• Check fuel before starting the engine. Do not remove the fuel cap or fill the fuel tank while the engine is running or hot. Do not fill the fuel tank indoors.

Gasoline is an extremely flammable fuel.

• Make sure the snow thrower height is adjusted to clear the type surface it will be used on.

• Do not use the snow thrower without the rear weight attached to the tractor.

• Never make any adjustments while the engine is running.

• Always wear safety glasses or eye shield during operation or while performing adjustment or repair.

• Do not place hands or feet near rotating parts. Keep clear of the discharge opening at all times.

• Use extreme caution when operating on or crossing gravel surfaces.

• Do not carry passengers.

• After striking a foreign object, stop the engine, remove the wire from the spark plug and then thoroughly inspect the snow thrower for damage. Repair any damage before restarting and operating the snow thrower.

• If the snow thrower starts to vibrate abnormally, stop the engine immediately and check for the cause.

Vibration is generally a warning of trouble.

• Stop the engine whenever you leave the operating position, before unclogging the snow thrower or making any adjustments or inspections.

• Take all possible precautions when leaving the unit unattended. Disengage the attachment clutch lever or switch, lower the snow thrower, shift into neutral, set the parking brake, stop the engine and remove the key.

• When cleaning, repairing or inspecting, make certain all moving parts have stopped. Disconnect the spark plug wire and keep it away from the plug to prevent accidental starting.

• Do not run engine indoors except when transporting the snow thrower in or out of the building. Open the outside doors. Exhaust fumes are dangerous.

• Do not clear snow across the face of slopes. Exercise extreme caution when changing direction on slopes.

Do not attempt to clear steep slopes. Refer to the slope guide on page 35 of this manual.

• Never operate the snow thrower without guards, plates or other safety protection devices in place.

• Never operate the snow thrower near glass enclosures, automobiles, window wells, drop offs etc. without proper adjustment of the snow thrower discharge angle.

• Never direct discharge at bystanders or allow anyone in front of the snow thrower.

• Never run the snow thrower into material at high speeds.

• Do not overload the machine capacity by attempting to clear snow at too fast a rate.

• Never operate the machine at high transport speed on slippery surfaces. Look behind and use care when backing up.

• Watch for traffic and stay alert when crossing or operating near roadways.

• Disengage power to the snow thrower when transporting or when not in use.

• Use only attachments and accessories approved by the manufacturer of the snow thrower (such as wheel weights, counter weights, cabs etc.)

• Never operate the snow thrower without good visibility or light.

Look for this symbol to point out important safety precautions. It means —

attention!! Become alert!! Your safety is involved.

3

A B

HarDware PaCKaGe CoNTeNTS

SHOWN ACTUAL SIZE

C D

E

F

G

M

N

H

R

I

O

J

P

S,T

K

Q

U

DD

JJ

AA

KK

NOT SHOWN ACTUAL SIZE

BB

EE

FF

CC

GG

HH

II

NN

LL

MM

4

L

V

W

X

Y

Z

reF. QTY.

H

I

J

K

L

M

N

O

A

B

C

D

E

F

G

P

Q

R

S

T

DeSCrIPTIoN

1 Hex Bolt, 3/8" x 3-1/4"

2 Hex Bolt, 5/16" x 1-3/4"

4 Hex Bolt, 5/16" x 3/4"

6 Hex Bolt, 1/4" x 1"

6 Hex Bolt, 3/8" x 1" (Thread Forming)

2 Hex Bolt, 5/16" x 3/4" (Thread Forming)

6 Carriage Bolt, 3/8" x 1"

2 Carriage Bolt, 5/16" x 1-3/4"

2 Carriage Bolt , 5/16" x 1-1/4"

4 Carriage Bolt, 5/16" x 1"

2 Carriage Bolt, 5/16" x 3/4"

4 Shoulder Bolt

2 Shoulder Bolt

2 Shear Bolt (spare parts)

7 Lock Washer, 3/8"

7 Washer, 1/4"

6 Washer, 5/16"

8 Washer, 1/2"

1 Washer, 3/8" (Thin)

3 Washer, 3/8"

reF. QTY. DeSCrIPTIoN

CC

DD

EE

FF

GG

HH

II

JJ

U

V

W

X

Y

Z

AA

BB

2

6

1

10

17

2

1

3

1

2

4

1

2

1

2

2

Bowed Washer

Flanged Nut, 1/4"

Flanged Nut, 5/16"

Flanged Nut, 3/8"

Nylock Nut, 5/16" (2 spare parts)

Hex Lock Nut, 3/8"

Spring

Chute Keeper

Trunnion

Hairpin Cotter, 5/64"

Hairpin Cotter, 1/8"

Hairpin Cotter, 3/32"

Lock Pin

Plastic Cap

Nylon Tie

Chain, Tensioning

KK

LL

2 Tail Reflector

1 Small Spacer

MM 1 Large Spacer

NN 1 Pulley

5

CarToN CoNTeNTS

1. Suspension Arms (2)

2. Left Hand Side Plate

3. Right Hand Side Plate

4. Anti-rotation Bracket

5. Engagement Rod (Not used on some models)

6. Engine Pulley Keeper (Not used on some models)

7. Chute Crank Rod Assembly

8. Support Tube, Crank Rod

9. Lift Handle and Cable

10. Cable Bracket

11. L.H. Hanger Bracket (Outside Mounting)

12. R.H. Hanger Bracket (Outside Mounting)

13. Clutch Idler Assembly

14. V-Belt, Drive (Short) #46989

15 V-Belt, Drive (Long) #48138

16. V-Belt, Auger (Attached to Housing Assembly)

17. Chute and Control Cable Assembly

18. Housing Assembly

19. L.H. Hanger Bracket (Inside Mounting)

20. R.H. Hanger Bracket (Inside Mounting)

Hardware Package (Stored inside Plastic Keg)

1

2

3

4

5

6

11

12

18

13

7

8

9

10

17

14

15

16

19

20

6

TooLS reQuIreD For aSSeMBLY

(2) 7/16" Wrenches

(2) 1/2" Wrenches

(2) 9/16" Wrenches

(2) 3/4" Wrenches

(1) Screw Driver

(1) Knife

aDDITIoNaL ITeMS reQuIreD

General Purpose Grease

reMoVaL oF ParTS FroM CarToN

• Remove all parts and hardware packages from the carton. Lay out parts and hardware and identify using the illustrations on pages 4 and 6.

NoTe: Not all of the supplied parts and hardware will be needed for your particular tractor. Unneeded items may be discarded after you have completed assembly and checked operation of unit. Do NoT DISCarD the two spare shear bolts (N) and 5/16" nylock nuts (Y). Refer to the Service and Adjustments section on page 27.

aSSeMBLY

IDeNTIFY You TraCTor

STeP 1: (See FIGure 1)

• Look under the front of your tractor. If there is a single mower deck suspension bracket located underneath the middle of the front axle, continue on to step

2.

If your tractor does not have a mower deck suspension bracket underneath the middle of the

front axle, skip to step 21 on page 13 for tractors with dual suspension brackets.

MOWER DECK

SUSPENSION

BRACKET

FIGure 1

CauTIoN

: Before starting to assemble the snow thrower, remove the spark plug wire(s), set the parking brake and remove the key from the tractor ignition.

TraCTor PreParaTIoN

Before performing these instructions, refer to the Service and Adjustments section of your tractor owner's manual for specific safety instructions.

• Allow engine, muffler and exhaust deflector to cool before beginning.

• Remove any front or rear attachment which is mounted to your tractor.

• Remove the mower deck. Refer to your tractor owner's manual for removal instructions. Mark all loose parts and save for reassembly.

• Remove the tractor hood. Refer to your tractor owner's manual for removal instructions.

INSTruCTIoNS For TraCTorS wITH

SINGLe FroNT DeCK SuSPeNSIoN

BraCKeT

STeP 2: (See FIGure 2)

• Remove the browning shield from the front of the tractor as shown. Hold onto the shield as you remove the second screw to prevent it from falling.

• Be sure to reinstall the browning shield when so instructed in step 3.

IMPorTaNT: Right hand (R.H.) and left hand (L.H.) side of the tractor are determined from the operators position while seated on the tractor.

REMOVE

FRONT SCREWS

REMOVE

BROWNING SHIELD

7

FIGure 2 rIGHT SIDe VIew

INSTaLL SIDe PLaTeS

STeP 3: (See FIGure 3)

• Fasten the R.H. Side Plate (bend facing out) to the front three holes in the tractor frame using three 3/8" x 1" carriage bolts (G), three 1/2" washers (R) (see note) and three 3/8" flange nuts (X). For the rear hole, use a 5/16" x 1" carriage bolt (J), a 1/2" washer (R) and a 5/16" nylock nut (Y). Place the 1/2" washers (R) between the tractor frame and the side plate. Repeat for L.H. side plate.

• Reinstall the browning shield onto the tractor frame using the original screws.

NoTe: If there is an engine mounting plate (shown with dotted lines) leave the 1/2 washer off the bolt that goes through the plate.

5/16" x 1"

CARRIAGE BOLT (J)

SEE NOTE

5/16"

NYLOCK

NUT (Y)

ENGINE MOUNTING

PLATE

INSTaLL HaNGer BraCKeTS aND SHouLDer

BoLTS To ouTSIDe oF FraMe

STeP 5: (See FIGure 5)

• Remove the bolt, if present, in the hole directly behind the brake rod on the left side of the tractor frame.

• Attach the L.H. Hanger Bracket (tube facing out) to the hole using a 5/16" x 3/4" self threading bolt (F).

• Install a round head shoulder bolt (M) into the hole that is 9-1/2" to the rear of the bolt you just installed.

Secure it with a 3/8" flange nut (X) on the inside of the frame.

BRAKE ROD

5/16" x 3/4" SELF

THREADING BOLT (F)

FIGure 3

(3) 3/8" x 1"

CARRIAGE

BOLTS (G)

(4) 1/2" WASHERS (R)

(3) 3/8" FLANGE NUTS (X) rIGHT SIDe VIew

STeP 4: (See FIGure 4)

• Assemble a shoulder bolt (L) and a 3/8" washer (T) to the outside of R.H. side plate, securing it with a 3/8" flanged nut (X). Repeat for L.H. side plate.

FIGure 5

L.H. HANGER

BRACKET

SHOULDER

BOLT (M)

3/8" FLANGED

NUT (X)

LeFT SIDe VIew

STeP 6: (See FIGure 6)

• Remove the bracket, if present, from the hole directly behind the end of the brake rod on the right side of the tractor frame. Store the bracket and bolt.

• Attach the R.H. Hanger Bracket to the hole using a

5/16" x 3/4" self threading bolt (F).

• Install a round head shoulder bolt (M) into the hole that is 9-1/2" to the rear of the bolt you just installed.

Secure it with a 3/8" flange nut (X) on the inside of the frame.

5/16" x 3/4" SELF

THREADING BOLT (F)

RIGHT END OF

BRAKE ROD

R.H. HANGER

BRACKET

SHOULDER

BOLT (M)

SHOULDER

BOLT (L)

3/8" WASHER (T)

FIGure 4

3/8" FLANGED

NUT (X)

rIGHT SIDe VIew

8

FIGure 6

3/8" FLANGED

NUT (X) rIGHT SIDe VIew

THIS SeCTIoN IS For TraCTorS wITH a

MaNuaL aTTaCHMeNT CLuTCH

If your tractor has an electric attachment clutch go to step 14 on page 11.

STeP 7: (See FIGure 7)

• Attach the pulley (long end of hub facing down) and the large spacer (MM) to the hole shown in the clutch/ idler assembly. Use a 3/8" x 3-1/4" hex bolt (A), a 3/8" washer (T), a 3/8" lock washer (O) and a 3/8" hex lock nut (Z).

3/8" HEX LOCK NUT (Z)

3/8" LOCKWASHER (O)

PULLEY (NN)

LARGE SPACER (MM)

3/8"

WASHER (T)

LONG END

OF HUB

3/8" X 3-1/4"

HEX BOLT

(A)

STeP 9: (See FIGure 9)

• Attach the cable bracket to the slot shown in the clutch/idler assembly using a 5/16" x 3/4" carriage bolt (K) and a 5/16" nylock nut (Y). Place the bolt in the front hole of the bracket and in the end of the slot closest to the pulley.

Do not tighten yet.

5/16" x 3/4"

CARRIAGE BOLT (K)

CABLE

BRACKET

5/16" NYLOCK

NUT (Y)

FIGure 9

FIGure 7

STeP 8: (See FIGure 8)

• Attach the two suspension arms to the rear of the clutch/idler assembly using two 5/16" x 3/4" hex bolts

(C) and 5/16" nylock nuts (Y) for each arm. Place the arms on the outside of the frame with the notches to the rear.

• Insert a tensioning chain through the hole shown and attach the end link to the spring on the lower idler arm.

STeP 10: (See FIGure 10)

• Two different length drive belts are included with your snow thrower. Tractors with manual attachment clutches and single front deck suspension brackets use the 56" drive belt with #48138 printed on the outside of the belt. Do NoT uSe the other belt.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt down between the hex bolt and the flat idler pulley with the flat side of the belt against the pulley. Retighten the hex bolt.

• Loop the belt around the large v-pulley, placing it between the v-pulley and the hex bolt next to the pulley.

Place the belt to the inside of the other flat idler pulley.

HEX BOLTS

FLAT IDLER

PULLEYS

5/16" NYLOCK

NUT (Y)

5/16" x 3/4"

HEX BOLT (C)

FIGure 8

TENSIONING CHAIN (JJ)

9

(#48138)

DRIVE BELT

FIGure 10

SToP

Did you select the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

STeP 11: (See FIGure 11)

• Move the attachment clutch lever on the dash panel to the disengaged (down) position.

• Place the clutch/idler assembly on the floor on the left side of the tractor.

• Attach the tractor's clutch cable to the cable bracket.

Secure the cable housing guide (groove down) to the cable bracket using the original collar and a 5/64" hair cotter pin (DD).

• Place a spacer (LL) on the welded pin on the idler arm. Hook the end of the clutch cable spring over the pin and secure it with a 1/4" washer (P) and a 5/64" hair cotter pin (DD).

• Align cable bracket with welded pin and tighten the nut assembled in step 9.

5/64" HAIR

COTTER PIN (DD)

1/4" WASHER (P)

TRACTOR'S

CLUTCH CABLE

CABLE

BRACKET

FIGure 11

SPACER (LL)

5/64" HAIR

COTTER PIN (DD)

5/64" HAIR

COTTER PIN

PIVOT LOCK PIN (GG)

(use this hole)

L.H. HANGER

BRACKET

1/8" HAIRPIN

COTTER (EE)

SHOULDER

BOLT (M)

FIGure 12 VIeweD FroM LeFT SIDe

STeP 13: (See FIGure 13)

• Assemble the drive belt onto the engine pulley first and then onto the large pulley on top of the clutch/ idler assembly. The belt must be placed inside the engine pulley belt keeper(s) and between the large pulley and the keeper bolt next to it.

IMPorTaNT: Do Not assemble the "V" belt outside of the engine pulley keepers or outside of the keeper bolt next to the large pulley.

Go to step 48 on page 21.

CLuTCH/IDLer aSSeMBLY

ENGINE

PULLEY

KEEPER

ENGINE

PULLEY

ENGINE

PULLEY

KEEPER

1/4" WASHER

aTTaCH CLuTCH IDLer aSSeMBLY To TraCTor

STeP 12: (See FIGure 12)

• Attach the clutch/idler assembly to the tractor frame.

Hook the notched suspension arms onto the two shoulder bolts (M) assembled to the outside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins (GG) and 1/8" hairpin cotters (EE).

TRACTOR'S

CLUTCH CABLE

CABLE

BRACKET GROOVE

IDLER

PULLEY

Left Side of Tractor

KEEPER BOLT

10

FIGure 13 VIeweD FroM uNDerNeaTH

THIS SeCTIoN IS For TraCTorS wITH aN eLeCTrIC aTTaCHMeNT CLuTCH

STeP 14: (See FIGure 14)

• Attach the two suspension arms to the rear of the clutch/idler assembly using two 5/16" x 3/4" hex bolts

(C) and 5/16" nylock nuts (Y) for each arm. Place the arms on the outside of the frame with the notches to the rear.

• Insert a tensioning chain through the hole shown and attach the end link to the spring on the lower idler arm.

STeP 16: (See FIGure 16)

• Hook one end of the spring supplied in the parts bag through the end link of the tensioning chain.

• With the clutch/idler assembly turned upside down, hook the other end of the spring onto the end of the bolt and nut which secure the idler pulley to the upper idler arm. Assemble a 3/8" hex lock nut (Z) onto the bolt and nut, leaving enough gap between the nuts for the spring to pivot freely.

• Attach a 3/32" hairpin cotter (FF) to the chain, placing it in the fifth link from the spring.

SPRING

ATTACH

SPRING

HERE

5TH LINK

CHAIN

(L.H. SIDE)

3/8" HEX

LOCK NUT (Z)

5/16" NYLOCK

NUT (Y)

5/16" x 3/4"

HEX BOLT (C)

FIGure 14

TENSIONING CHAIN (JJ)

RIGHT

SIDE

FIGure 16

3/32" HAIR

COTTER PIN (FF)

LEFT

SIDE

VIew oF BoTToM

STeP 15: (See FIGure 15)

• Turn the clutch/idler assembly upside down and place the second tensioning chain (JJ) through the left front hole.

FIGure 15

LEFT FRONT HOLE

TENSIONING CHAIN (JJ)

SeLeCT THe CorreCT DrIVe BeLT

(electric clutch tractors with a single front deck suspension bracket)

STeP 17: (See TaBLe 1)

• Two different length drive belts are included with your snow thrower. Use the table below to select the correct drive belt for your type tractor. The part number is printed on the outside of the belt .

• Set aside the belt that is not for your tractor to avoid accidentally using it.

55" BeLT (ParT #46989)

TraCTor TYPe DeCK SIZe CLuTCH TYPe

(LT) Lawn Tractor 38", 42" Electric

11

56" BeLT (ParT #48138)

TraCTor TYPe DeCK SIZe CLuTCH TYPe

(LT) Lawn Tractor

(GT) Garden Tractor

48"

48", 54"

Electric

Electric

TaBLe 1

STeP 18: (See FIGure 17)

• Turn the clutch/idler assembly right side up.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt down between the hex bolt and the flat idler pulley with the flat side of the belt against the pulley. Retighten the hex bolt.

• Loop the belt around the large v-pulley, placing it between the v-pulley and the hex bolt next to the pulley.

HEX BOLTS

FLAT IDLER

PULLEY

DRIVE BELT

FIGure 17

SToP

Did you choose the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

STeP 20: (See FIGure 19)

• Assemble the drive belt onto the engine pulley first and then onto the large pulley on top of the clutch/ idler assembly. Place the belt to the inside of the idler pulley and the belt keeper bolt located beside the large pulley.

• Place tension on the belt by pulling the left side tensioning chain (JJ) out as far as the 3/32" hairpin cotter in the chain will allow. Secure the chain in this position by inserting a 1/8" hairpin cotter (EE) through the chain.

IMPorTaNT: Do Not assemble the drive belt around the outside of the keeper bolt beside the large pulley.

Go to step 48 on page 21.

CLuTCH/IDLer aSSeMBLY

ENGINE

PULLEY

1/8" HAIRPIN

COTTER (EE)

IDLER

PULLEY

STeP 19: (See FIGure 18)

• Attach the clutch/idler assembly to the tractor frame.

Hook the notched suspension arms onto the two shoulder bolts (M) assembled to the outside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins (GG) and 1/8" hairpin cotters (EE).

PIVOT LOCK PIN (GG)

(use second hole)

L.H. HANGER

BRACKET

1/8" HAIRPIN

COTTER (EE)

SHOULDER

BOLT (M)

FIGure 19

CHAIN (JJ)

(L.H. SIDE)

KEEPER

BOLT

VIeweD FroM uNDerNeaTH

FIGure 18 VIeweD FroM LeFT SIDe

12

INSTruCTIoNS For TraCTorS wITH DuaL

FroNT DeCK SuSPeNSIoN BraCKeTS

FaSTeN SIDe PLaTeS To TraCTor

I f your tractor resembles figure 20, start with step 21.

If your tractor resembles figure 22, start with step 23.

STeP 21: (See FIGure 20)

• Remove bolts from front three holes shown.

• If a bolt is present in the fourth hole, replace it with a

5/16" x 1" carriage bolt (J) without a nut. The bracket fastened to inside of frame must remain in place.

REPLACE BOLT

(IF PRESENT)

REMOVE BOLTS

(IF PRESENT)

FIGure 20

FRONT

SUSPENSION

BRACKET

rIGHT SIDe VIew

STeP 22: (See FIGure 21)

• Fasten the R.H. Side Plate (bend facing out) to the front three holes shown in the tractor frame using three 3/8" x 1" thread forming bolts (E), three 3/8" lock washers (O) and one 1/2" washer (R) placed on the third bolt as a shim between the side plate and the frame. Tighten all bolts. Repeat for the L.H. side.

NoTe: If you installed a bolt in the fourth hole in step 21, assemble a 5/16" flange nut (W) onto the bolt after the side plate is installed.

Go to step 25 on this page.

5/16" x 1"

CARRIAGE BOLT (J)

(SEE NOTE)

1/2" WASHER (R)

STeP 23: (See FIGure 22)

• Remove any bolts found in the holes shown.

REMOVE BOLTS

IF PRESENT

FRONT SUSPENSION

BRACKET

rIGHT SIDe VIew FIGure 22

STeP 24: (See FIGure 23)

• Fasten the R.H. Side Plate (bend facing out) to the three holes shown in the tractor frame. Use three 3/8" x 1" thread forming bolts (E), 3/8" lock washers (O) and 1/2" washers (R). Use the 1/2" washers as shims between the Side Plate and the tractor frame. Tighten all bolts and repeat for the L.H. side.

NoTe: If the bolt inserts freely into the front hole, assemble a 3/8" flanged nut (X) onto the bolt.

(3) 1/2" WASHERS (R)

(3) 3/8" LOCK

WASHERS (O)

(3) 3/8" x 1"

THREAD FORMING

BOLTS (E)

3/8" FLANGED NUT (X)

(SEE NOTE)

FIGure 23 rIGHT SIDe VIew

STeP 25: (See FIGure 24)

• Assemble a shoulder bolt (L) and a 3/8" washer (T) to the outside of each side plate, securing them with a

3/8" flanged nut (X).

5/16" FLANGED

NUT (W)

(SEE NOTE)

FIGure 21

(3) 3/8" x 1"

THREAD FORMING

BOLTS (E)

(3) 3/8" LOCK

WASHERS (O)

rIGHT SIDe VIew

13

FIGure 24

SHOULDER

BOLT (L)

3/8" WASHER (T)

3/8" FLANGED

NUT (X)

rIGHT SIDe VIew

INSTaLLING HaNGer BraCKeTS

For better clearance, lower the tractor's suspension arms using the attachment lift lever.

STeP 26: (See FIGure 25 or 26) on Tractors with Foot rest Brackets

• Remove the bolt and nut that fasten the L.H. and R.H. foot rest brackets to the frame.

• Attach the L.H. Hanger Bracket (marked "L") to the inside of the tractor frame using two 3/8" x 1" carriage bolts (G) and 3/8" flanged nuts (X). Bolt heads go on inside of tractor frame. Repeat for the R.H. side.

BOLT REMOVED

FROM THIS HOLE

3/8" FLANGED

NUT (X)

INSTaLLING SHouLDer BoLTS

STeP 27: (See FIGure 27)

• Remove the bolt, washer and nut which fasten the sway bar bracket to the L.H. side of the tractor frame.

Replace with a shoulder bolt (L) and a 3/8" flanged nut (X). Bolt goes on inside of frame.

SHOULDER BOLT (L)

FIGure 27

BOLT REMOVED

FROM THIS HOLE

3/8"

FLANGED

NUT (X)

SWAY BAR

BRACKET

LeFT SIDe VIew

3/8" x 1"

CARRIAGE

BOLT (K)

FIGure 25

SUSPENSION ARM

L.H. HANGER

BRACKET

LeFT SIDe VIew on Tractors without Foot rest Brackets

• Find the empty hole beneath the foot rest. Attach the

L.H. Hanger Bracket (marked "L") to the inside of the frame using a 3/8" x 1" carriage bolt (G) and a 3/8" flanged nut (X). Bolt head goes on inside of tractor frame. Repeat for the R.H. side.

3/8" FLANGED

NUT (X)

STeP 28: (See FIGure 28)

• Assemble a shoulder bolt (L) and 3/8" flanged nut (X) to the R.H. side of the tractor frame, using the first empty hole to the rear of the R.H. hanger bracket. Bolt goes on inside of frame.

3/8"

FLANGED

NUT (X)

3/8" x 1"

CARRIAGE

BOLT (G)

FIGure 26

SHOULDER BOLT (L)

R.H. HANGER BRACKET

SUSPENSION ARM

L.H. HANGER

BRACKET

LeFT SIDe VIew

14

FIGure 28 rIGHT SIDe VIew

INSTaLLING CLuTCH/IDLer aSSeMBLY

This section covers the installation of the Clutch/Idler assembly to tractors with attachment clutches that are either rod operated (p. 15), cable operated (p. 17) or electric (p. 19). Use the appropriate instructions for your tractor.

roD oPeraTeD MaNuaL aTTaCHMeNT CLuTCH

STeP 29: (See FIGure 29)

• Move the attachment clutch lever on the dash panel to the disengaged (down) position.

• Screw the trunnion (CC) onto the end of the snow thrower engagement rod.

• Locate the clutch arm (where the mower clutch rod was connected) underneath the right hand side the tractor, just to the inside of the suspension arm.

If

there is an extension attached to the clutch lever, the extension, bolt and nut must be removed and stored with the mower deck.

IMPorTaNT: re-attach the extension to the clutch lever before reinstalling the mower deck.

• Position the engagement rod to the inside of the clutch arm and insert the drilled end of the rod through the arm. Secure with a 5/64" hairpin cotter

(DD).

TRACTOR'S CLUTCH ARM

ENGAGEMENT ROD

TRUNNION (CC)

5/16" NYLOCK

NUT (Y)

5/16" WASHER (Q)

5/16" x 3/4"

HEX BOLT (C)

FIGure 30

TENSIONING CHAIN (JJ)

STeP 31: (See FIGure 31)

• Two different length drive belts are included with your snow thrower. Tractors with manual attachment clutches and dual front deck suspension brackets use the 55" drive belt with

#46989 printed on the outside of the belt.

Do NoT uSe the other belt.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt down between the hex bolt and the flat idler pulley with the flat side of the belt against the pulley. Retighten the hex bolt.

• Loop the belt around the large v-pulley, placing it between the v-pulley and the hex bolt next to the pulley.

HEX BOLTS FLAT IDLER

PULLEY

FIGure 29

SUSPENSION ARM

5/64" HAIRPIN

COTTER (DD)

REMOVE EXTENSION,

BOLT AND NUT

(IF PRESENT) rIGHT SIDe VIew

(#46989)

DRIVE BELT

FIGure 31

STeP 30: (See FIGure 30)

• Attach the two suspension arms to the inside of the clutch/idler assembly using two 5/16" x 3/4" hex bolts

(C), 5/16" washers (Q) and 5/16" nylock nuts (Y) for each arm. Place the washers between the arms and the assembly frame.

• Insert a tensioning chain through the hole shown and attach the end link to the spring on the lower idler arm.

15

SToP

Did you choose the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

STeP 32: (See FIGure 32)

• Be sure to lift up the front end of the engagement rod as shown when performing the next operation. You can temporarily support the rod using a rubber band tied to the engine pulley keeper.

• Attach the clutch/idler assembly to the tractor frame as follows. Hook the assembly's notched arms onto the two shoulder bolts you assembled to the inside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins (GG) and 1/8" hairpin cotters (EE).

PIVOT LOCK PIN (GG)

(use second hole)

1/8" HAIRPIN COTTER (EE)

ENGAGEMENT

ROD

NEW ENGINE PULLEY KEEPER WITH

ORIGINAL BOLT, NUT AND WASHER

TRUNNION (CC)

STOP BOLT

FIGure 32 rIGHT SIDe VIew

STeP 33: (See FIGure 33)

• Make sure the attachment clutch lever on the dash panel is in the disengaged (down) position.

• Pivot the upper idler arm so that it rests against the stop bolt and is pointing toward the front as shown.

Screw the trunnion (CC) along the threads of the engagement rod until it is aligned at the front end of the idler arm slot. Attach the trunnion (CC) to the slot using the 3/8" thin washer (S) and a 5/64" hairpin cotter (DD).

• Remove the engine pulley keeper from the side of the tractor frame by removing the washer and nut that secure the keeper. Attach the new pulley keeper supplied with the snow thrower, reusing the original bolt, washer and nut.

NoTe: Some tractors may already be equipped with a pulley keeper that is identical to the new one supplied.

FIGure 33

IDLER ARM

3/8" THIN

WASHER (S)

5/64" HAIRPIN

COTTER (DD) rIGHT SIDe VIew

STeP 34: (See FIGure 34)

• Assemble the short "V" belt onto the engine pulley and then onto the large pulley on top of the clutch/ idler assembly. The belt must be placed to the inside of the engine pulley keeper, the idler pulley and the keeper bolt located beside the large pulley.

IMPorTaNT: Do Not assemble the "V" belt around the outside of the engine pulley keeper or the keeper bolt.

Go to step 48 on page 21.

CLuTCH/IDLer aSSeMBLY

ENGINE

PULLEY

KEEPER

Left Side of Tractor

ENGINE

PULLEY

IDLER

PULLEY

KEEPER BOLT

16

FIGure 34 VIeweD FroM uNDerNeaTH

CaBLe oPeraTeD MaNuaL aTTaCHMeNT CLuTCH

STeP 35: (See FIGure 35)

• Attach the two suspension arms to the rear of the clutch/idler assembly using two 5/16" x 3/4" hex bolts

(C), 5/16" washer (Q) and 5/16" nylock nuts (Y) for each arm. Place the arms on the outside of the frame with the notches to the rear.

• Insert a tensioning chain through the hole shown and attach the end link to the spring on the lower idler arm.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt down between the hex bolt and the flat idler pulley with the flat side of the belt against the pulley. Retighten the hex bolt.

• Loop the belt around the large v-pulley, placing it between the v-pulley and the hex bolt next to the pulley.

HEX BOLTS FLAT IDLER

PULLEY

5/16" NYLOCK

NUT (Y)

5/16" WASHER (Q)

5/16" x 3/4"

HEX BOLT (C)

TENSIONING CHAIN (JJ)

FIGure 35

STeP 36: (See FIGure 36)

• Assemble the cable bracket to the clutch/idler assembly using two 5/16" x 3/4" carriage bolts (K) and

5/16" nylock nuts (Y). Use the two front holes in the cable bracket if your tractor has a 42" mower deck.

Use the two rear holes if your tractor has a 46" mower deck.

5/16" x 3/4"

CARRIAGE BOLT (K)

CABLE

BRACKET

(#46989)

DRIVE BELT

FIGure 37

SToP

Did you choose the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

STeP 38: (See FIGure 38)

• Move the attachment clutch lever on the dash panel to the disengaged (down) position.

• Place the clutch/idler assembly on the floor on the right side of the tractor.

• Attach the tractor's clutch cable to the cable bracket.

Secure the cable housing guide (groove down) to the cable bracket using the original collar and a 5/64" hair cotter pin (DD).

• Place a spacer (LL) on the welded pin on the idler arm.

Hook the end of the clutch spring over the pin and secure it with a 1/4" washer (P) and a 5/64" hair cotter pin (DD).

5/64" HAIR

COTTER PIN (DD)

1/4" WASHER (P)

46"

DECKS

42"

DECKS

5/16" NYLOCK

NUT (Y)

FIGure 36

STeP 37: (See FIGure 37)

• Two different length drive belts are included with your snow thrower. Tractors with manual attachment clutches and dual front deck suspension brackets use the 55" drive belt with #46989 printed on the outside of the belt. Do NoT uSe the other belt.

TRACTOR'S

CLUTCH CABLE

17

FIGure 38

5/64" HAIR

COTTER PIN (NN)

1/4" WASHER (X)

SPACER (LL)

5/64" HAIR

COTTER PIN (DD)

SPACER (HH)

TRACTOR'S

CLUTCH CABLE

GROOVE

STeP 39: (See FIGure 39)

• Remove the engine pulley keeper from the side of the tractor frame by removing the washer and nut that secure the keeper. Attach the new pulley keeper supplied with the snow thrower, reusing the original bolt, washer and nut.

NoTe: Some tractors may already be equipped with a pulley keeper that is identical to the new one supplied.

• Attach the clutch/idler assembly to the tractor frame as follows. Hook the assembly's notched arms onto the two shoulder bolts you assembled to the inside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins (GG) and 1/8" hairpin cotters (EE).

NEW ENGINE PULLEY KEEPER WITH

ORIGINAL BOLT, NUT AND WASHER

PIVOT LOCK PIN (GG)

(use second hole)

1/8" HAIRPIN COTTER (EE)

STeP 40: (See FIGure 40)

• Assemble the short "V" belt onto the engine pulley and then onto the large pulley on top of the clutch/idler assembly. The belt must be placed to the inside of the engine pulley keeper, the idler pulley and the keeper bolt located beside the large pulley.

IMPorTaNT: Do Not assemble the "V" belt around the outside of the engine pulley keeper or the keeper bolt.

Go to step 48 on page 21.

CLuTCH/IDLer aSSeMBLY

ENGINE

PULLEY

KEEPER

Left Side of Tractor

ENGINE

PULLEY

IDLER

PULLEY

KEEPER BOLT

FIGure 40 VIeweD FroM uNDerNeaTH

FIGure 39

18

eLeCTrIC aTTaCHMeNT CLuTCHeS

STeP 41: (See FIGure 41)

• Attach the two suspension arms to the rear of the clutch/idler assembly using two 5/16" x 3/4" hex bolts

(C), 5/16" washer (Q) and 5/16" nylock nuts (Y) for each arm. Place the arms on the outside of the frame with the notches to the rear.

• Insert a tensioning chain through the hole shown and attach the end link to the spring on the lower idler arm.

STeP 43: (See FIGure 43)

• Hook the spring from the parts bag through the end of the tensioning chain.

• Hook the other end of the spring onto the bottom of the bolt and nut which secure the idler pulley to the upper idler arm. Hold the bolt head and assemble a

3/8" hex lock nut (Z) onto the bolt, leaving enough space for the spring to pivot freely between the two nuts.

• Attach a 3/32" hairpin cotter (FF) to the chain, placing it in the fifth link from the spring.

SPRING

ATTACH

SPRING

HERE

5TH LINK

CHAIN

(L.H. SIDE)

3/8" HEX

LOCK NUT (Z)

5/16" NYLOCK

NUT (Y)

5/16" WASHER (Q)

5/16" x 3/4"

HEX BOLT (C)

FIGure 41

TENSIONING CHAIN (JJ)

RIGHT

SIDE

3/32" HAIR

COTTER PIN (FF)

LEFT

SIDE

FIGure 43 VIew oF BoTToM

STeP 42: (See FIGure 42)

• Pace the extra tensioning chain (JJ) through the left front hole in the clutch/idler assembly and then turn the assembly upside down.

FIGure 42

LEFT FRONT HOLE

TENSIONING CHAIN (JJ)

STeP 44: (See TaBLe 2)

• Two different length drive belts are included with your snow thrower. Use the table below to select the correct drive belt for your type tractor. The part number is printed on the outside of the belt .

• Set aside the belt that is not for your tractor to avoid accidentally using it.

55" BeLT (ParT #46989)

TraCTor TYPe DeCK SIZe CLuTCH TYPe

(LT) Lawn Tractor 38", 42", 46" Electric

56" BeLT (ParT #48138)

TraCTor TYPe DeCK SIZe CLuTCH TYPe

(LT) Lawn Tractor 48" Electric

TaBLe 2

19

STeP 45: (See FIGure 44)

• Turn the clutch/idler assembly right side up.

• Slightly loosen the hex bolt next to the flat idler pulley.

Install the drive belt down between the hex bolt and the flat idler pulley with the flat side of the belt against the pulley. Retighten the hex bolt.

• Loop the belt around the large v-pulley, placing it between the v-pulley and the hex bolt next to the pulley.

Place the belt to the inside of the other flat idler pulley.

HEX BOLTS FLAT IDLER

PULLEY

STeP 47: (See FIGure 46)

• Assemble the drive belt onto the engine pulley and then onto the large pulley on top of the clutch/idler assembly. The belt must be placed to the inside of the idler pulley and the keeper bolt located beside the large pulley.

• Place tension on the belt by pulling the left side tensioning chain out as far as the 3/32" hairpin cotter

(FF) will allow. Secure the chain in this position by inserting a 1/8" hairpin cotter (EE) through the chain.

IMPorTaNT: Do Not assemble the "V" belt around the outside of the engine pulley keeper or the keeper bolt.

CLuTCH/IDLer aSSeMBLY

ENGINE

PULLEY

Left Side of Tractor

1/8" HAIRPIN

COTTER (EE)

DRIVE BELT

FIGure 44

SToP

Did you choose the correct drive belt for your tractor? Using the wrong length belt may cause premature bearing or belt failure.

STeP 46: (See FIGure 45)

• Attach the clutch/idler assembly to the tractor frame as follows. Hook the assembly's notched arms onto the two shoulder bolts you assembled to the inside of the tractor frame. Lift the front of the assembly and attach it to the R.H. and L.H. hanger brackets using two pivot lock pins (GG) and 1/8" hairpin cotters (EE).

1/8" HAIRPIN COTTER (EE)

PIVOT LOCK PIN (GG)

(use second hole)

IDLER

PULLEY

FIGure 46

KEEPER

BOLT

VIeweD FroM uNDerNeaTH

FIGure 45 rIGHT SIDe VIew

20

aSSeMBLY oF THe SNow THrower

STeP 48: (See FIGure 47)

• Place the lift handle into the lift bracket on the right side of the snow thrower. Fasten the handle to the bracket using two 5/16" x 1-3/4" hex bolts (B) and 5/16" Nylock nuts (Y).

STeP 50: (See FIGure 49)

• Tilt the snow thrower back down to the ground.

• Remove the nylon tie which fastens the auger drive belt to the discharge housing, leaving the belt assembled around the pulleys.

• Remove the nylon tie which fastens the chute crank rod to the crank rod support tube.

• Assemble the crank rod support tube to the bracket on the left side of the discharge housing using two

5/16" x 1-1/4" carriage bolts (I), and 5/16" Nylock nuts

(Y).

DISCHARGE

HOUSING

5/16" x 1-3/4"

HEX BOLT (B)

5/16" NYLOCK NUT (Y)

FIGure 47 rIGHT SIDe VIew

NoTe: Be sure the lift release cable's plastic covering stays inserted into the trigger assembly for the next step.

STeP 49: (See FIGure 48)

• Push the lift handle down into the locked position.

Insert the end of the cable wire into the hole in the lift rod. Place the threaded fitting into the slot in the lift bracket, with one hex nut above and one hex nut and the lock washer below the slot. Tighten the nuts, adjusting them to eliminate slack in the cable wire.

Refer also to the Service and Adjustments section on page 27 in this manual.

HINT: For easier assembly of the lift release cable, tilt the snow thrower forward onto the spiral auger.

TRIGGER

ASSEMBLY

FIGure 48

5/16" NYLOCK NUT (Y)

FIGure 49

5/16" x 1-1/4"

CARRIAGE BOLT (I)

CRANK ROD

SUPPORT TUBE

LeFT SIDe VIew

STeP 51: (See FIGure 50)

• Attach the chute tilt control assembly to the top side of the crank support tube using two 5/16" x 1-3/4" carriage bolts (H), bowed washers (U) and 5/16"

Nylock nuts (Y).

LIFT RELEASE

CABLE

HEX NUT

CHUTE CRANK ROD

CRANK SUPPORT TUBE

TILT CONTROL HANDLE

5/16" x 1-3/4"

CARRIAGE BOLT (H)

BOWED WASHER (U)

LOCK

WASHER

HEX NUT

CABLE

WIRE

LIFT

ROD rIGHT SIDe VIew

21

5/16" NYLOCK NUT (Y)

FIGure 50

TILT

CONTROL

ASSEMBLY

LeFT SIDe VIew

STeP 52: (See FIGure 51)

• Attach the chute crank rod assembly brackets to the plastic bracket on the left side of the discharge housing. Align the chute crank bracket beneath the rod support bracket and assemble both to the plastic bracket using two 5/16" x 1" carriage bolts (J), 5/16" washers (Q) and 5/16" Nylock nuts (Y).

Do not tighten yet.

CHUTE CRANK

BRACKET

SPIRAL

FIGure 51

5/16" x 1"

CARRIAGE BOLT (J)

ROD

SUPPORT

BRACKET

5/16" WASHER (Q)

CHUTE

CRANK

ROD

5/16" NYLOCK NUT (Y)

LeFT SIDe VIew

STeP 53: (See FIGure 52)

• Coat the top of the ring around the discharge opening with general purpose grease.

• Place the discharge chute (facing forward) onto the ring. Place the anti-rotation bracket on top of the chute flange, aligning it with the holes on the right hand side of the flange. Attach the three chute keepers (BB)

(right side up as shown) to the bottom of the flange using six 1/4" x 1" hex bolts (D), 1/4" flat washers (P) and 1/4" flanged lock nuts (V). Tighten carefully so that the nuts are snug but do not dig into the plastic chute keepers.

• Place the plastic cap (HH) onto the short end of the anti-rotation bracket.

• Position the crank rod spiral (see figure 51) so that it does not rub against the bottoms of the notches in the chute flange. Tighten the nuts.

• Check if the crank rod rotates the chute freely. If not, loosen by 1/4 turn each of the six hex bolts holding the chute keepers to the chute flange.

• Secure the control cables to the crank rod support tube using a nylon tie (II).

1/4" x 1"

HEX BOLT (D)

1/4" FLAT

WASHER (P)

PLASTIC CAP (HH)

ANTI-ROTATION

BRACKET

FLANGE

GREASED

SURFACE

CHUTE KEEPER (BB)

1/4" FLANGED

LOCK NUT (V)

FIGure 52 rIGHT SIDe VIew

STeP 54: (See FIGure 53)

Skip this step if you have a lawn tractor.

This step is for garden tractors only.

• If you have a (GT) Garden Tractor, remove the stop bolts from each side of the snow thrower frame.

22

FIGure 53

STOP BOLT rIGHT SIDe VIew

aTTaCHING SNow THrower To TraCTor

NoTe: An additional person's help may be required to mount the snow thrower to the front of the tractor.

STeP 55: (See FIGure 54)

• Place the tractor and snow thrower on a flat, level surface so that the tractor can be rolled forward to attach the snow thrower.

• Remove the Attachment Pin from the snow thrower.

• Extend the auger belt out behind the snow thrower, making sure the belt is still looped over the top of the large drive pulley and underneath the two idler pulleys. The "V" side of the belt must be seated in the grooves of all three pulleys.

• Roll the tractor up behind the snow thrower, centering it between the snow thrower's mounting plates.

• Raise the rear of the snow thrower by lifting up on the lift handle until the notches in the mounting plates align with the shoulder bolts in the tractor's side plates. Guide the bolts into the notches.

• To ease the assembly of the auger drive belt, delay the installation of the attachment pin until you have assembled the belt as instructed in steps 56 and 57.

ATTACHMENT PIN

(After installing auger belt)

1/8" HAIRPIN

COTTER (EE)

SHOULDER

BOLT

SIDE PLATE

BeFore INSTaLLING THe auGer BeLT

STeP 56: (See FIGure 55)

• The auger belt comes preassembled to the pulleys on the snow thrower housing. Make sure the belt passes over the top of the auger pulley and then twists 1/4 turn to pass underneath each side idler pulley. The

"V" side of the belt must mate with the grooves of the pulleys.

TWIST

1/4 TURN

IDLER

PULLEY

AUGER PULLEY

TWIST

1/4 TURN

IDLER

PULLEY

FIGure 55

INSTaLLING THe auGer BeLT

STeP 57: (See FIGure 56)

• Remove the attachment pin, if installed.

• Push the lift handle down to increase slack in the belt.

• Swing the lower idler arm over to the left side.

• Place the auger belt around the rear pulley and between the two pulleys on the idler arm. The "V" side of the belt must be seated in the grooves of the

V-pulleys.

CLuTCH/IDLer aSSeMBLY

MOUNTING

PLATE

FIGure 54 rIGHT SIDe VIew

IDLER

ARM

23

FIGure 56

REAR

PULLEY

LEFT SIDE

OF

TRACTOR

VIeweD FroM uNDerNeaTH

INSTaLLING THe aTTaCHMeNT PIN

STeP 58: (reFer BaCK To FIGure 54 oN PaGe 23)

• Lift the front of the snow blower to align the holes in the mounting plates and the side plates. From the left side of the tractor insert the attachment pin through the holes. Secure it with by reinstalling the 1/8" hairpin cotter (EE).

SeTTING THe auGer BeLT TeNSIoN

STeP 59: (See FIGure 57)

• Pull the tensioning chain until the end of the spring is pulled through the hole in the side of the Clutch/Idler assembly. Install a 1/8" hairpin cotter (EE) through the end of the spring, securing it on the outside of the

Clutch/Idler assembly.

IMPorTaNT: For correct belt tension, the 1/8" hairpin

cotter must attach to the end of the spring, not to the chain.

NoTe; To prevent the chain from dragging on the ground, loop the end of the chain though the pivot lock pin. Refer to figure 45 on page 20.

CLuTCH/IDLer aSSeMBLY aTTaCH reFLeCTorS To rear FeNDer

STeP 59: (See FIGure 58)

• If your tractor is not equipped with rear reflectors, assemble the supplied rear reflectors (KK) to the rear fender. Place the reflectors as close to the bottom of the fender and as far apart as the shape of the fender will allow.

1/8"

HAIRPIN

COTTER (EE)

END OF

SPRING

FIGure 57

LEFT SIDE

OF

TRACTOR

FLAT

PULLEY

VIeweD FroM uNDerNeaTH

REAR REFLECTORS (KK)

FIGure 58

CHeCKLIST

Before you operate your snow thrower, please review the following checklist to help ensure that you will obtain the best performance from your snow thrower.

1. All assembly instructions have been completed with all bolts and nuts properly tightened.

2. Check the engine belt and the auger belt. Make sure they are routed properly around pulleys and inside all belt keepers.

3. Check discharge chute for proper rotation.

4. Check operation of tilt control for upper chute.

5. Verify that the lift handle will lock into and release from the raised transport position. (Refer to the Service and

Adjustments section.)

6. Check skid shoe adjustment. (Refer to the Service and

Adjustments section.)

operating instructions begin on page 25.

24

oPeraTIoN

KNow Your SNow THrower

read this owner's manual and safety rules before operating your snow thrower.

Compare the illustration below with your snow thrower to familiarize yourself with the various controls and their locations.

LIFT RELEASE TRIGGER

LIFT HANDLE

CHUTE TILT HANDLE

CRANK ROD

UPPER CHUTE

LOWER CHUTE

SCRAPER PLATE

SPIRAL AUGERS, R.H. & L.H.

CHuTe TILT HaNDLe Pivots the Upper Chute up or down to control the angle and distance of discharge.

CraNK roD Rotates the Lower and Upper Chutes to

control the direction of discharge.

LIFT HaNDLe Used to lift or lower the snow thrower

to transport or operating position.

LIFT reLeaSe TrIGGer Releases the lock which

holds the snow thrower in the transport position

BeFore STarTING

• Use the end of assembly checklist to verify that all instructions have been properly completed.

• Make sure the skid shoes are adjusted to maintain adequate ground clearance between the snow thrower and the type of surface to be cleared. (Refer to the Service and Adjustments section.)

• Make sure the tractor engine has the correct oil for winter operation (SAE 5W-30). Refer to tractor owner's manual.

How To STarT Your SNow THrower

• The tractor should be sitting with the engine running at full throttle. Move the attachment clutch to the engaged position, starting the snow thrower before the tractor clutch is engaged.

How To SToP Your SNow THrower

• To stop the snow thrower, disengage the tractor's attachment clutch lever for manual clutches or the clutch switch for electric clutches. Refer to your tractor owner's manual.

SKID SHOE

uPPer aND Lower DISCHarGe CHuTe Controls

direction and height of snow discharge.

SCraPer PLaTe Replaceable plate that absorbs

wear and impact from contact with ground.

SKID SHoe Controls amount of clearance between

the scraper plate and the ground.

SPIraL auGer, r.H. & L.H. Feed snow to the

impeller fan at the center of the housing.

How To uSe Your SNow THrower

CauTIoN

: Never direct discharge towards bystanders or windows. Do not allow anyone in front of unit.

25

CoNTroLLING SNow DISCHarGe

• To control the direction snow is thrown, the discharge chute has 180 degrees of rotation. Turn the crank rod clockwise to rotate the chute to the right. Turn the crank rod counterclockwise to rotate the chute to the left.

• To control the distance snow is thrown, the upper section of the discharge chute pivots up and down.

Push forward on the chute tilt handle to pivot the chute down, decreasing the distance snow is thrown.

Pull back on the handle to pivot the chute up, increasing the distance snow is thrown.

raISING aND LowerING

• To raise, push down on the lift handle until the snow thrower locks in the raised transport position.

• To lower, push down slightly on the lift handle and pull the trigger. With the trigger pulled, slowly lower the snow thrower until it reaches the ground.

CauTIoN

: Do not operate the snow thrower without the rear weight attached to the tractor to provide extra traction and stability.

• In extremely deep snow, raise the snow thrower from the ground to remove the top layer and drive forward only until the tractors front tires reach the uncleared bottom layer of snow. Depress the tractor's clutchbrake pedal and allow the spiral auger to clear the snow. Reverse the tractor and lower the snow thrower to the ground. Drive the tractor forward until the snow again becomes too deep. Repeating this process into and out of drifts will eventually clear even the deepest of snow piles.

• If the snow thrower becomes clogged with snow or jammed with a foreign object, disengage the snow thrower immediately and shut off the tractor engine.

Unclog the snow thrower before resuming operation.

reMoVING SNow

Snow removal conditions vary greatly from light fluffy snowfall to wet heavy snow. Operating instructions must be flexible to fit the conditions encountered. The operator must adapt the lawn tractor and snow thrower to depth of snow, wind direction, temperature and surface conditions.

• Before beginning operation, thoroughly inspect the area of operation and remove all door mats, sleds, boards, wires and other foreign objects.

• The spiral auger speed is directly related to engine speed. For maximum snow removal and discharge, maintain high engine r.p.m. (full throttle). It is advisable to operate the lawn tractor at a slow ground speed

(1st gear) for safe and efficient snow removal.

• In deep, drifted or banked snow it will be necessary to use full throttle and a slow ground speed (1st gear).

Drive forward into the snow, depress the tractor's clutch-brake pedal and allow the spiral auger to clear the snow. Repeat this method until a path is cleared.

On the second pass, overlap the first enough to allow the snow thrower to handle the snow without repeated stopping and starting of forward motion.

DaNGer

: Shut off engine and disengage snow thrower before unclogging discharge chute. Unclog using a wooden stick, not your hands.

oPeraTING TIPS

• Discharge snow down wind whenever possible.

• To help prevent snow from sticking to the snow thrower, allow the snow thrower to reach outdoor temperature before using it. A light coat of wax may also be applied to the inside surface of the snow thrower housing and discharge chute.

• Use tire chains to improve traction.

• Use rear wheel weights to improve traction.

• Before the first snowfall, remove all stones, sticks and other objects which could become hidden by the snow.

Permanent obstacles should be marked for visibility.

• Overlap each pass slightly to assure complete snow removal.

MaINTeNaNCe

CuSToMer reSPoNSIBILITIeS

• Read and follow the maintenance schedule and the maintenance procedures listed in this section.

MAINTENANCE SCHEDULE

Fill in dates as you

complete regular service.

X

Bef ore each use ery season

Bef ore stor

Check for loose fasteners

Check scraper and shoes for wear X X

Cleaning X

Lubrication Section X age

LuBrICaTIoN

Oil all pivot points on the snow thrower.

• Oil the pivot points of the two idler arms on the clutch/ idler assembly.

• Apply penetrating oil to the control cables of the discharge chute.

• Apply a good grade of spray lubricant to the trigger assembly and the chute tilt control assembly.

26

Service Dates

CHeCK SCraPer aND SHoeS For wear

(Refer to figures 59 and 60 on page 27)

• The scraper plate and skid shoes on the bottom of the snow thrower are subject to wear. To prevent damage to the spiral auger housing, replace plate and shoes before wear is excessive.

CauTIoN

: Before servicing or adjusting the snow thrower, shut off the engine, remove the spark plug wire(s), set the parking brake and remove the key from the tractor ignition.

rePLaCING auGer BeLT

• Disengage the tractor's attachment clutch.

• Lower the snow thrower to the ground.

• Remove the attachment pin.

• Lock the snow thrower's lift handle in the down position to decrease belt tension.

• Release the spring tension from the auger belt idler arm on the bottom of the clutch/idler assembly.

• Remove the auger drive belt from the clutch/idler assembly and from the spiral auger housing.

• Install new belt over top of large auger drive pulley and under the two side idler pulleys. Twist the belt 1/4 turn to seat the "V" of the belt in the groove of each idler pulley. Refer to figure 55 on page 23.

• Assemble the belt onto the clutch/idler assembly.

SKID SHoe aDJuSTMeNT

• The skid shoes are mounted on each side of the spiral auger housing. They regulate the distance the scraper plate is raised above the plowing surface. When removing snow from a gravel driveway or and uneven surface, it is advisable to keep the scraper plate as high above the surface as possible to prevent possible damage to the spiral auger. On blacktop or concrete surface, keep the scraper plate as close to the surface as possible.

• Raise the snow thrower off the ground and place a block under each end of the scraper plate. Loosen the six hex nuts securing the skid shoes to the housing.

Adjust the skid shoes up or down and retighten the nuts securely. Adjust both skid shoes to the same height to keep the housing and the scraper plate level.

See figure 59.

SerVICe aND aDJuSTMeNTS

LIFT reLeaSe CaBLe aDJuSTMeNT

• If the lift rod does not lock the snow thrower securely in the transport position, loosen the upper hex nut on the lift bracket a few turns and tighten the lower hex nut. Refer to figure 48 on page 21.

• If the lift rod fails to unlock completely to lower the snow thrower, loosen the lower hex nut on the lift bracket a few turns and tighten the upper hex nut.

Refer to figure 48 on page 21.

CLuTCH DISeNGaGeMeNT aDJuSTMeNT

(For tractors with engagement rod clutches only.

Not for electric clutches or cable clutches)

If the spiral auger on the snow thrower does not stop when the attachment clutch lever on the tractor is disengaged, then adjustment is necessary. Proceed as follows. Refer back to figure 33 on page 16.

• Place the attachment clutch lever in the disengaged position.

• Remove the hairpin cotter from the engagement rod trunnion and lift the trunnion out of the hole in the idler arm.

• Screw the trunnion a few turns towards the front end of the rod.

• Replace the trunnion into the hole in the idler arm and secure it with the hairpin cotter.

Check the operation of the snow thrower. If the spiral augers still do not stop, repeat the above steps until the augers stop when the attachment clutch lever is placed in the disengaged position.

SPIraL auGerS

• The spiral augers are secured to the auger shaft with two shear bolts and nylock nuts. If you hit a foreign object or if ice jams the augers, the snow thrower is designed so that the bolts will shear.

• If the augers will not turn, check to see if the shear bolts have sheared. See figure 60. Two replacement shear bolts and nylock nuts have been provided with the snow thrower. For future use order part number

710-0890A shear bolt and number 47810 nylock nut.

FIGure 59

27

FIGure 60

SToraGe reCoMMeNDaTIoNS

• Lower the snow thrower to the ground.

• Remove the snow thrower from the tractor.

• Clean the snow thrower thoroughly. Wash off any salt deposit which may have dried on the thrower and housing.

• Any bare metal that has become exposed should be painted or coated with a light oil to prevent rust.

• Store in a dry place.

reMoVING THe SPIraL auGer HouSING

• Lower the snow thrower to the ground.

• Remove the attachment pin. See figure 54 on page

23.

• Lock the snow thrower's lift handle in the down position to decrease belt tension.

• Release the spring tension from the auger belt idler arm on the bottom of the clutch/idler assembly.

• Remove the auger drive belt from the clutch/idler assembly. See figure 56 on page 23.

• Pull the spiral auger housing assembly off of the tractor.

SToraGe

ParTS To reMoVe aT eND oF SeaSoN

• Remove the clutch/idler assembly. (The two hanger brackets and the two shoulder bolts may be left attached to the tractor frame.)

• Remove the drive belt from the engine pulley.

• If you replaced the engine pulley keeper on a manual attachment clutch tractor, reinstall the tractor's original engine pulley keeper. See figure 33 on page 16 or figure 39 on page 18.

• If you have a rod operated attachment clutch, remove the engagement rod from the tractor's clutch arm. See figure 29 on page 15.

• If a rear mounted attachment is to be used, remove the rear weight tray, leaving the bolts that you installed in the sides of the tractor draw bar. Retighten the bolts.

• If a front mounted attachment is to be used, remove the side plates from the tractor. Be sure to assemble bolts back into the empty holes in the tractor frame.

TrouBLeSHooTING

ProBLeM

Spiral augers don't turn

Clogged discharge chute

Snow thrower stalls tractor engine

Front wheels slide instead of steering

Snow thrower rides up over snow

CauSe

1. Upper or lower V belt too loose

2. Upper or lower V belt broken

3. Shear bolts are sheared.

1. Tractor ground speed too fast

2. Tractor throttle set too low

3. Snow too deep

4. Snow melts during contact with

the snow thrower

1. Object jammed in spiral auger

2. Hard or heavy snow

Not enough traction at front wheels

CorreCTIoN

1. Increase tension on V belt

2. Replace V belt

3. Replace shear bolts

1. Use lower tractor gear

2. Increase to full throttle

3. Raise the snow thrower

4. Allow snow thrower to cool to

outdoor temperature before using

1. Stop engine, disengage the snow

thrower clutch and clear the auger

2. Increase to full throttle and decrease ground speed

1. Increase scraper plate clearance

by lowering skid shoes

2. Pull down on lift handle to increase weight on front wheels

1. Tractor ground speed too fast 1. Reduce ground speed

2. Bottom snow is icy or hard packed 2. Lower the skid shoes so that front

of skid shoe is lower than the rear

28

NoTeS

29

ParTS

rePaIr ParTS For MoDeL LST42C 42" SNow THrower

30

rePaIr ParTS For MoDeL LST42C 42" SNow THrower

REF. PART QTY. DESCRIPTION

NO. NO.

1

2

3

4

5

6

7

05931

65701

71464

63579

63768

24773

25982

1 Housing, Bearing

1 Housing Assembly

1 Gear Assembly

1 Chute Crank Rod Assembly

1 Impeller Assembly

1 Scraper Plate

1 Shaft, Auger Gearbox

8 703-2735A 1 Bracket, Chute Crank

9 24816 1 Cover, Belt

10 705-5226 1 Chute Reinforcement

11 705-5269 1 Spiral Assembly, L.H. (not shown)

12 705-5270 1 Spiral Assembly, R.H.

13 43840

14 44950

15 44917

2

5

1

Hex Bolt, 5/16-18 x 1-1/4" Lg.

Carriage Bolt, 1/4-20 x 3/4"

Palnut, 3/8"

16 44326 4 Carriage Bolt, 5/16-18 x 1" Lg.

17 43080 10 Carriage Bolt, 5/16-18 x 3/4" Lg.

18 46703 8 Bolt, Self-Tap 5/16" x 3/4"

19 710-0890A 2 Bolt, Shear 5/16-18 x 1-1/2"

20 43088 11 Washer, 1/4"

21 43070

22 47189

2 Washer, 3/8"

5 Hex Nut, 1/4-20 Nylock

23 47810 29 Hex Nut, 5/16-18 Nylock

24 715-0114 2 Spiral Pin, 1/4" x 1-1/2" Lg.

25 750-0437 2 Bushing

26 731-1379A 1 Chute Adapter

27 43086 4 Lock Washer, 5/16"

28 736-0188 6 Washer, .76" x 1.49" x .06"

29 711-0469 4 Spacer, .75 ID x 1.25 OD x .5 L

30 43081 24 Washer, 5/16" Std. Wrt.

31 47615 2 Bearing, Flange

32 741-0309 1 Bearing, Ball

33 741-0475 2 Bushing, Plastic 3/8"

34 741-0493A 4 Bearing, Split, 3/4"

35 24279 2 Skid Shoe

36 48015 5 Washer, Nylon

37 784-5618 2 Housing, Bearing

REF. PART QTY.

NO. NO.

DESCRIPTION

38 24393

39 24281

40 49933

41 65367

42 65450

43 41576

44 44377

1 Bracket, Chute Crank

1 Bracket, Idler

2 Shoulder Bolt, Round Head

1 Hanger Bracket Assembly, L.H.

1 Hanger Bracket Assembly, R.H.

2 Hex Bolt, 3/8-16 x 1-3/4"

1 Hex Bolt, 3/8-24 x 1"

45 784-5594 1 Bracket, Cable

46 746-0929 1 Cable, Chute Control With Clip

47 711-0242 1 Spacer

48 746-0928 1 Cable, Chute Control

49 HA21362 4 Hex Nut, 3/8-16 Nylock

50 43038

51 43343

52 43350

53 24394

54 47572

2 Pin, Pivot Lock

2 Pin, Hair Cotter #4 (1/8")

4 Carriage Bolt, 3/8-16 x 1"

1 Bracket, Chute Anti-rotation

6 Hex Lock Nut, 3/8-16 Flanged

55 1643-60 1 Plastic Cap

56 64452 1 Hanger Bracket Assembly, R.H.

57 64451

58 47043

59 48106

60 24466

1

1

4

2

Hanger Bracket Assembly, L.H.

Keeper, Engine Pulley

Bolt, Shoulder

Bracket, Down Stop

61 736-0247 1 Washer,

62 47598 6 Hex Lock Nut, 1/4" Flanged

63 731-0921 1 Chute, Upper

64 731-1313C 1 Guide, Cable

65 47044 2 Pulley, V Type 4"

66 47026

67 43085

1 Pulley, V Type

1 Hex Bolt, 5/16-18 x 1-1/2"

68 710-0896 1 Screw, 1/4-14 x 5/8"

69 731-0851A 3 Chute Keeper

70 43661 6 Hex Bolt, 1/4-20 x 1"

71 731-1300C 1 Chute, Lower

72 25937 1 Center Brace, Gearbox

73 HA20185 1 #61 Woodruff Key

74 43182

40243

3

1

Hex Bolt, 5/16-18 x 3/4"

Owner's Manual

31

rePaIr ParTS For MoDeL LST42C 42" SNow THrower

63

62

33

58

11

62

32

58

65

65 58

57 61

60

36

67

32

rePaIr ParTS For MoDeL LST42C 42" SNow THrower

REF. PART QTY.

NO. NO.

DESCRIPTION

1 64637 1 Lift Shaft Assembly

2 710-0865 2 Hex Bolt, 1/2-13 x 1"

3 710-0367 2 Hex Bolt, 5/8-11 x 1-1/2"

4 711-0332 2 Pin, Bracket Lift

5 712-0261 2 Nut, Hex Lock 5/8-11 Thread

6 43262 6 Nut, Hex Lock 1/2-13

8 142

9 43093

5

1

Pin, Cotter 1/8" x 3/4"

Pin, Cotter 1/8" x 1-1/2"

10 R19171616 4 Washer, 17/32" x 1"

11 43350 6 Carriage Bolt, 3/8-16 x 1"

12 741-0192 2 Bearing, Flange With Flats

13 783-0380 2 Link, 15.80" Long

14 783-0381 2 Link, 11.75" Long

15 24476 2 Link, 4.88" Long

16 24311

17 47599

1

2

Rod, Spacer

Hex Bolt, 5/16-18 x 1" (Locking)

18 43086

19 24820

20 63773

21 48049

4 Lock Washer, 5/16"

1 Bracket, Lift

1 Assembly, Handle Lift Bracket

1 Rod, Index Lift

22 47369 1 Pin, Spring 3/16" x 1-3/4"

23 732-0306 1 Spring, Compression

24 R19131316 2 Washer, 13/32" x 13/16"

25 47788 2 Reflector, Rear

26 43080

27 43182

29 47368

30 46954

31 43343

32 25678

33 25679

34 49916

35 49912

1

2

1

1

1

1

1

1

1

Carriage Bolt, 5/16-18 x 3/4"

Hex Bolt, 5/16-18 x 3/4"

Pin, Spring 5/16" x 1-3/4"

Pin, Attachment

Pin, Haircotter #4 (1/8")

Plate, Side (R.H.)

Plate, Side (L.H.)

Tube, Lift Handle

Trigger and Lift Cable Assembly

REF. PART QTY.

NO. NO.

DESCRIPTION

36 43070 2 Washer, 3/8"

37 710-1233 1 Screw, Oval #10-24 x 1"

38 46446

39 47027

1

1

Grip, Handle

Tube, Crank Rod Support

40 741-0475 2 Bushing, 3/8" Plastic

41 703-2735A 1 Bracket, Chute Crank

42 720-0201A 1 Knob, Crank

43 44917 1 Palnut, 3/8"

45 63579 1 Assembly, Chute Crank Rod

46 784-5604A 1 Handle, Chute Tilt

47 720-04039 1 Knob

48 603-0302 1 Assembly, Chute Tilt Bracket

49 731-1313C 1 Guide, Cable

50 746-0928 1 Cable, Chute Control

51 746-0929 1 Cable, Chute Control with Clip

52 43064

53

43081

5 Nut, Hex Lock 5/16-18

2 Washer, 5/16"

54 24285

55 24284

56 43601

57 46584

1 Plate, Mounting (L.H.)

1 Plate, Mounting (R.H.)

1 Washer, 1.59" x 1.032" x .060"

1 Nut, Whizlock, 5/16-18

58 R19172410 8 Washer, 1/2"

59 726-0178 3 Tie, Nylon

60 47631

61 43003

6

6

Hex Bolt, 3/8-16 x 1" Self Tap

Lock Washer, 3/8"

62 47572

63 47810

64 43084

65 44326

66 44215

67 48106

68 43682

69 44695

6 Nut, Flanged Lock 3/8-16

8

2

2

2

2

2

2

Nut, Nylock Hex 5/16-18

Hex Bolt, 5/16-18 x 1-3/4"

Carriage Bolt, 5/16-18 x 1"

Carriage Bolt, 5/16-18 x 1-3/4"

Bolt, Shoulder

Carriage Bolt, 5/16-18 x 1-1/4"

Washer, Bowed

33

rePaIr ParTS For MoDeL LST42C 42" SNow THrower

34

REF. PART QTY.

NO. NO.

DESCRIPTION

1 43080 2 Carriage Bolt, 5/16-18 x 3/4"

2 43182 4 Hex Bolt, 5/16-18 x 3/4"

3 43083 2 Hex Nut, 5/16-18

4 43086 1 Lock Washer, 5/16"

5 43081 4 Washer, 5/16" Std. Wrt.

6 25727 1 Frame, Clutch and Pulley

7 63904 1 Idler Arm Assembly

8 24286 1 Spacer, Pivot

9 63762 1 Idler Bracket Assembly

10 43015 1 Hex Nut, 3/8-16

11 46981 1 Pulley, V Type 9"

12 43082 8 Nut, Hex Lock, 3/8-16

13 46982 1 Pulley, V Type 5-1/2"

14 738-0680 1 Shaft

15 750-0456 1 Spacer

16 750-0660 1 Spacer

17 43003 6 Lock Washer, 3/8"

18 714-0161 2 Key

19 741-0919 2 Bearing, Ball

20 08253B 1 Housing, Bearing

21 15296A 1 Housing, Open Bearing

22 14088B 1 Spacer, Spindle

23 44377 2 Hex Bolt, 3/8-24 x 1"

24 736-0247 2 Washer

25 43063 3 Hex Bolt, 5/16-18 x 1"

26 46989 1 Belt, V Type Drive (55")

48138 1 Belt, V Type Drive (56")

27 47846 1 Belt, V Type Auger

28 47044 1 Pulley, V Type 4"

29 47025 1 Hex Bolt, 5/16-18 x 3-1/2"

30 43432 1 Hex Bolt, 3/8-16 x 2-1/2"

31 43054 3 Hex Bolt, 3/8-16 x 2"

32 24571 1 Spacer

33 24472 1 Spacer, Pivot

34 43070 8 Washer, 3/8"

35 46959 1 Spring

36 46963 2 Chain

37 43055 1 Pin, Hair Cotter, 3/32"

38 23727 1 Spacer

39 43088 1 Washer, 1/4"

40 43343 2 Pin, Hair Cotter #4 (1/8")

41 47134 2 Pin, Hair Cotter 5/64"

42 711-0198 1 Trunnion

43 46948 1 Rod, Engagement

44 47620 1 Spring

45 47607 1 Spring, Torsion

46 23625 1 Spacer

47 43509 1 Hex Bolt, 3/8-16 x 2-3/4" Lg.

48 47605 1 Washer, Flat 3/8"

49 24558 1 Cable Bracket

50 49870 1 Hex Bolt, 1/4-20 x 2-1/2"

51 43178 2 Hex Nut, 1/4-20

52 43177 1 Lock Washer, 1/4"

53 48883 3 Pulley, Flat 3-5/8"

54 25728 2 Rear Pulley Frame Bracket

55 46938 1 Hex Bolt, 3/8-16 x 3-1/4"

56 25780 1 Spacer

57 47810 9 Hex Nut, 5/16-18 Nylock

SLoPe GuIDe

(Keep this sheet in a safe place for future reference.) use this guide to determine if a slope is safe for the operation of your tractor and snow thrower. refer also to the instructions in your vehicle owners manual.

35

E

P

G

E

R

E

E

G

E

S

N

E

R

P

E

E

D

E

O

G

N

the

fastest way to purchase parts www.speedepart.com

rePaIr ParTS

Agri-Fab, Inc.

809 South Hamilton

Sullivan, IL. 61951

217-728-8388 www.agri-fab.com

This document (or manual) is protected under the U.S. Copyright Laws and the copyright laws of foreign countries, pursuant to the Universal Copyright Convention and the Berne convention. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or recording, or by any information storage or retrieval system, without the express written permission of Agri-Fab, Inc. Unauthorized uses and/or reproductions of this manual will subject such unauthorized user to civil and criminal penalties as provided by the United

States Copyright Laws.

© 2003 Agri-Fab, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
