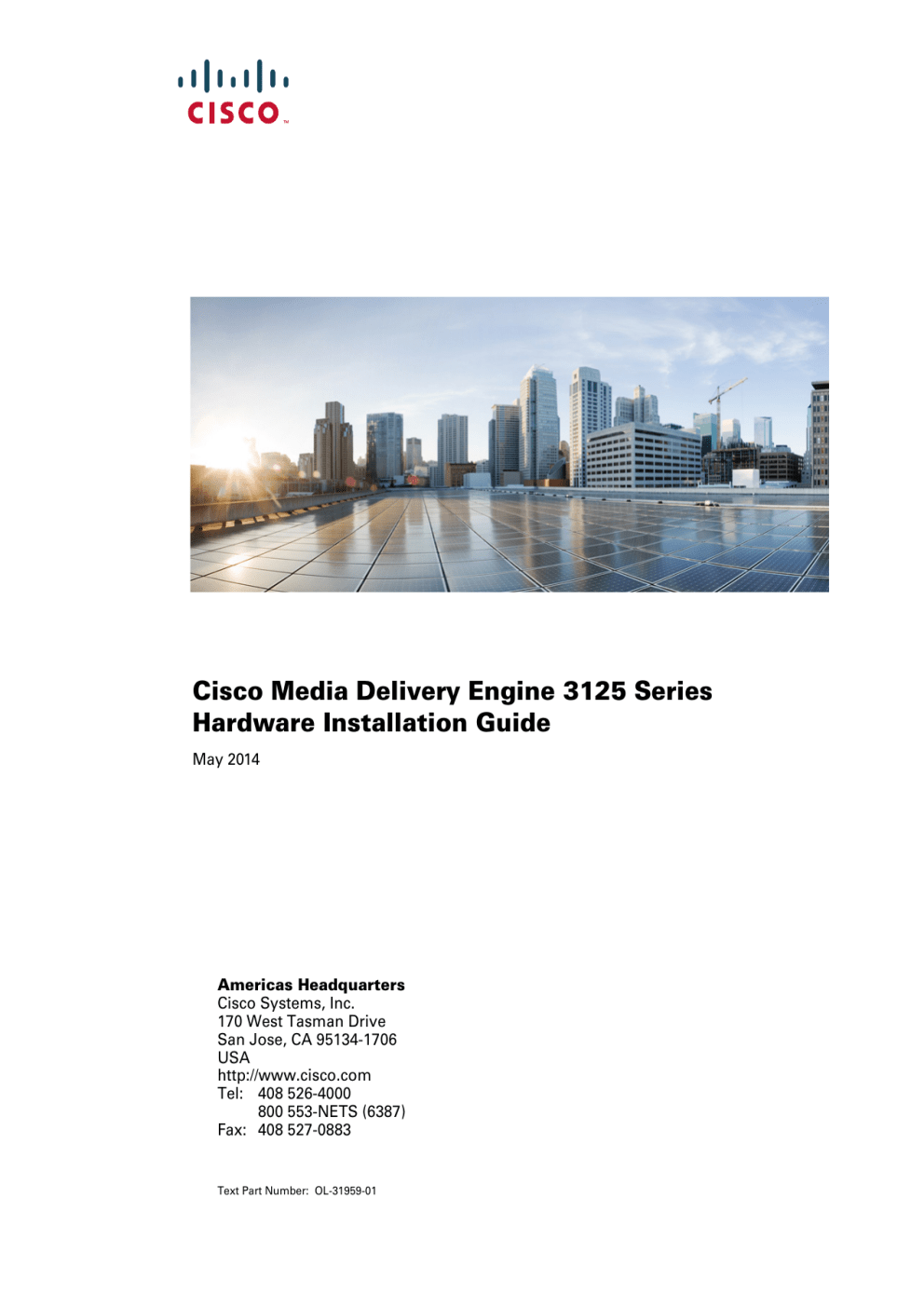

Cisco Media Delivery Engine 3125 Series
Hardware Installation Guide
May 2014
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: OL-31959-01
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required
to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be
determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this
URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display
output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in
illustrative content is unintentional and coincidental.
Cisco MDE 3125 Server Hardware Installation Guide
© 2011-2014 Cisco Systems, Inc. All rights reserved.
CONTENTS
Preface
1
Audience
1
Document Organization
1
Related Documentation
2
Document Conventions
2
Related Cisco ECDS Documentation
Related Cisco UCS Documentation
7
7
Obtaining Documentation and Submitting a Service Request
CHAPTER
1
Appliance Overview
8
1-1
Cisco MDE 3100 Chassis 1-1
Appliance Components 1-1
Appliance Front Panel 1-2
Appliance Rear Panel 1-4
Status LEDs 1-5
Front Panel LEDs 1-5
Rear Panel LEDs 1-6
Cisco MDE 3125 Chassis 1-8
Appliance Components 1-9
Status LEDs and Buttons 1-10
Front Panel LEDs 1-10
Rear Panel LEDs and Buttons 1-13
Internal Diagnostic LEDs 1-14
CHAPTER
1
Installing the Appliance
1-1
Installing the Cisco MDE 3100 1-1
Unpacking and Inspecting the Appliance 1-2
Preparing for Installation 1-3
Installation Guidelines 1-3
Rack Requirements 1-4
Required Equipment 1-4
Installing the Appliance Into a Rack 1-4
Connecting and Powering On the Appliance 1-7
Attach the Cables to the Appliance 1-8
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
iii
Contents
Configure CIMC Network Settings and Password 1-8
Configure CIMC Remote Access Settings 1-10
Configuring the ECDS Management (Primary) Interface
Configuring the Streaming Interface (SE only) 1-12
1-12
Installing the Cisco MDE 3125 1-13
Unpacking and Inspecting the Server 1-13
Preparing for Server Installation 1-14
Installation Guidelines 1-14
Rack Requirements 1-15
Equipment Requirements 1-15
Slide Rail Adjustment Range 1-16
Installing the Cisco MDE 3125 In a Rack 1-16
Initially Setting up the Server 1-19
Connecting and Powering On the Server (Standalone Mode)
Managing NIC Modes and NIC Redundancy Settings 1-21
Managing System BIOS and CIMC Firmware 1-22
Updating the BIOS and CIMC Firmware 1-22
Accessing the System BIOS 1-23
RAID 1-23
Configuring RAID in MDE 3125
Where to Go Next
CHAPTER
1
1-19
1-24
1-41
Operating and Maintaining the Appliance
Powering On the Appliance
1-1
1-1
Shutting Down and Powering Off the Appliance
1-2
Installing or Replacing Components 1-3
Required Equipment 1-3
Supported Hard Drives 1-4
Managing the Cisco MDE 3125 with up to Eight Disks
Installing or Replacing a Drive or Disk 1-5
Installing or Replacing Cisco MDE 3100 Disk Drives
Installing or Replacing Cisco MDE 3125 Disk Drives
1-4
1-5
1-6
Managing Power Supplies 1-7
Supported Power Supplies 1-7
Installing Power Supplies 1-8
Managing Spares 1-8
Disk Detail Examples
1-13
Cisco MDE 3125 Series Hardware Installation Guide
iv
OL-31959-01
Contents
Technical Specifications
1-1
Cisco MDE 3100 Specifications 1-1
Physical Specifications 1-1
Environmental Specifications 1-2
Power Specifications 1-2
Cisco MDE 3125 Specifications 1-3
Physical Specifications 1-3
Environmental Specifications 1-3
650W Power Supply Specifications
Cable and Power Cord Specifications
KVM Cable
1-4
1-1
1-1
Supported Power Cords and Plugs
AC Power Cord Illustrations
1-2
1-3
GLOSSARY
INDEX
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
v
Contents
Cisco MDE 3125 Series Hardware Installation Guide
vi
OL-31959-01
Preface
The following sections describe the contents of the Cisco MDE 3125 Series Hardware Installation Guide
and how to obtain additional documentation and service support:
•
Audience, page 1
•
Document Organization, page 1
•
Document Conventions, page 2
•
Related Cisco ECDS Documentation, page 7
•
Related Cisco UCS Documentation, page 7
•
Obtaining Documentation and Submitting a Service Request, page 8
Audience
To use this installation guide, you must be familiar with electronic circuitry and wiring practices and
preferably be a technician who is experienced with electronic and electromechanical equipment.
Document Organization
Table 1 describes how this guide is organized.
Table 1
Document Organization
Chapter
Description
Chapter 1, “Appliance
Overview”
Provides a brief overview of the Cisco Unified Computing System
(UCS) and the role that the Cisco MDE 3100 appliance plays in the
Cisco Unified Computing System environment.
Chapter 2, “Installing the
Appliance”
Describes how to install the appliance into a rack, how to cable and
power on the appliance, and how to connect to the service processor
and your network.
Chapter 3, “Operating and
Maintaining the Appliance”
Identifies the replaceable components of the appliance and describes
how to replace them.
Appendix A, “Technical
Specifications”
Lists physical, environmental, and power specifications.
Appendix B, “Cable and
Power Cord Specifications”
Lists KVM cable and power cord specifications.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
1
Related Documentation
For complete document support for the Cisco Media Delivery Engine appliances and the
Cisco Enterprise Content Delivery System, see the Documentation for the Enterprise Content Delivery
System (ECDS) document roadmap at the following link:
http://www.cisco.com/en/US/docs/video/ecds/documentation.html
Document Conventions
This document uses the following conventions for notes, cautions, and safety warnings. Notes and
Cautions contain important information that you should know.
Note
Means reader take note. Notes contain helpful suggestions or references to material that are not covered
in the publication.
Caution
Means reader be careful. You are capable of doing something that might result in equipment damage or
loss of data.
Safety warnings appear throughout this publication in procedures that, if performed incorrectly, can
cause physical injuries. A warning symbol precedes each warning statement.
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this
device. Statement 1071
SAVE THESE INSTRUCTIONS
Waarschuwing
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard
praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de
waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt
raadplegen.
BEWAAR DEZE INSTRUCTIES
Cisco MDE 3125 Series Hardware Installation Guide
2
OL-31959-01
Varoitus
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin
käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu
onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen
mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien
lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
Attention
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez
conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures
couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
Warnung
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen
kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und
den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder
Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
Avvertenza
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli
relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti.
Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le
traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
Advarsel
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du
begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med
elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten
av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne
enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
3
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de
lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos
perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de
prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.
GUARDE ESTAS INSTRUÇÕES
¡Advertencia!
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los
procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el
número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña
a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
Varning!
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.
Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och
känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av
varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna
anordning.
SPARA DESSA ANVISNINGAR
Cisco MDE 3125 Series Hardware Installation Guide
4
OL-31959-01
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões
corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os
circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o
número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de
segurança traduzidos que acompanham o dispositivo.
GUARDE ESTAS INSTRUÇÕES
Advarsel
VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for
legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de
involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til
undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de
oversatte advarsler, der fulgte med denne enhed.
GEM DISSE ANVISNINGER
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
5
Cisco MDE 3125 Series Hardware Installation Guide
6
OL-31959-01
Related Cisco ECDS Documentation
For complete document support for the Cisco Media Delivery Engine appliances and the
Cisco Enterprise Content Delivery System, see the Documentation for the Enterprise Content Delivery
System (ECDS) document roadmap at the following link:
http://www.cisco.com/en/US/docs/video/ecds/documentation.html
Related Cisco UCS Documentation
For more information about the Cisco UCS servers, see the following resources on Cisco.com:
•
Cisco UCS C220 Server Installation and Service Guide
•
Cisco UCS C-Series Rack Servers home page
•
Cisco UCS C220 M3 Rack Server home page
•
Interactive C220 M3 Rack-Mount Server presentation
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
7
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a
service request, and gathering additional information, see What’s New in Cisco Product Documentation
at: http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
Subscribe to What’s New in Cisco Product Documentation, which lists all new and revised
Cisco technical documentation, as an RSS feed and deliver content directly to your desktop using a
reader application. The RSS feeds are a free service.
Cisco MDE 3125 Series Hardware Installation Guide
8
OL-31959-01
CH A P T E R
1
Appliance Overview
The Cisco MDE 3100 appliance is a part of the Cisco Enterprise Content Distribution System (ECDS).
It is designed to serve in the following roles within ECDS:
•
Cisco ECDS Service Router
•
Cisco ECDS Service Engine
•
Cisco ECDS Service Engine and Content Acquirer
•
Cisco ECDS Manager (ECDSM) appliance
When used as a Cisco ECDS Service Engine, it is designed to be used in applications where there will
be 500 or more simultaneous connections to the appliance. When there will be fewer than 500 or more
simultaneous connections to the appliance, you should use the Cisco MDE 1100 appliance.
The following sections describe the Cisco MDE 3100 and Cisco MDE 3125 chassis:
•
Cisco MDE 3100 Chassis, page 1-1
•
Cisco MDE 3125 Chassis, page 1-8
Cisco MDE 3100 Chassis
•
Appliance Components, page 1-1
•
Appliance Front Panel, page 1-2
•
Appliance Rear Panel, page 1-4
•
Status LEDs, page 1-5
Appliance Components
Table 1-1 describes Cisco MDE 3100 appliance components and features.
Tip
See Appendix A, “Technical Specifications” for more physical, environmental, and power details.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
1
Chapter
.
Table 1-1
Hardware Features of the Appliance
Feature or
Component
Cisco MDE 3100 Appliance
Enclosure
Two rack unit (2RU) chassis.
Processors
Two 2.40GHz Xeon E5620 processors.
Memory
16 GB (four 4GB DDR3-1333MHz RDIMMs)
Storage
4000 GB (eight 500GB SATA 7.2K RPM SFF HDD)
4 GB internal drive for the recovery image
Network and
management I/O
The appliance provides these rear-panel connectors:
•
Primary Interfaces: two 10/100/1000 Gigabit Ethernet ports (RJ-45).
•
Streaming Interfaces: four 10/100/1000 Gigabit Ethernet ports (RJ-45)
•
One 10/100 Ethernet management port (RJ-45).
•
One DB9 serial connector.
•
One 15-pin video graphics array (VGA) connector.
•
Two USB 2.0 connectors.
The appliance also has one front-panel console connector (with supplied KVM
cable provides DB15 video, DB9 serial, and two USB 2.0 connectors).
Removable media One internal DVD-RW drive.
devices
Power
One power supply with a maximum output of 650 W. A second power supply can
be added.
Cooling
Three internal fans that force front-to-rear cooling; also one fan in each power
supply.
Appliance Front Panel
Figure 1-1 shows the external features of the front panel.
Cisco MDE 3125 Series Hardware Installation Guide
2
OL-31959-01
Chapter
Figure 1-1
Front Panel Features
5
6
4
9
10
A03-D300GA2
10k SAS
300GB
2
A03-D300GA2
10k SAS
300GB
A03-D300GA2
10k SAS
300GB
3
A03-D300GA2
10k SAS
300GB
7
CISCO MDE 3100
MEDIA DELIVERY
ENGINE
236618
1
8
1
Locator button/LED
2
Network activity LED
3
System fault LED
4
Power button/Power status LED
5
CPU fault LED
6
Memory fault LED
7
Power supply fault LED
8
Console connector (with supplied KVM
cable, provides DB15 video, DB9 serial, and
two USB 2.0 connectors)
9
DVD-RW drive (optional)
10 Hard drives
Figure 1-2 shows the physical drive slots and how they map to the show disks current command output.
For information about replacing a physical drive, see Installing or Replacing Components, page 3-3.
A03-D300GA2
10k SAS
300GB
Drive 4
Drive 5
Drive 3
Drive 6
CISCO MDE 3100
MEDIA DELIVERY
ENGINE
Drive 8
246920
Drive 7
Drive 2
A03-D300GA2
10k SAS
300GB
Drive 1
A03-D300GA2
10k SAS
300GB
Physical to logical drive mapping
A03-D300GA2
10k SAS
300GB
Figure 1-2
1
disk00: Normal
(h00 c00 i00 l00 ahci) 476937MB(465.8GB)
disk00/04: SYSFS
32765MB( 32.0GB) mounted at /local1
disk00/05: CDNFS
430350MB(420.3GB) mounted internally
System use:
13821MB( 13.5GB)
FREE:
0MB( 0.0GB)
2
disk01: Normal
(h01 c00 i00 l00 ahci) 476937MB(465.8GB)
disk01/04: SYSFS
32765MB( 32.0GB) mounted at /local1
disk01/05: CDNFS
430350MB(420.3GB) mounted internally
System use:
13821MB( 13.5GB)
FREE:
0MB( 0.0GB)
3
disk02: Normal
(h02 c00 i00 l00 ahci) 476937MB(465.8GB)
disk02/01: CDNFS
476929MB(465.8GB) mounted internally
System use:
7MB( 0.0GB)
FREE:
0MB( 0.0GB)
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
3
Chapter
4
disk03: Normal
(h03 c00 i00 l00 ahci) 476937MB(465.8GB)
disk03/01: CDNFS
476929MB(465.8GB) mounted internally
System use:
7MB( 0.0GB)
FREE:
0MB( 0.0GB)
5
disk04: Normal
(h06 c00 i00 l00 mptsas) 476937MB(465.8GB)
disk04/01: CDNFS
476929MB(465.8GB) mounted internally
System use:
7MB( 0.0GB)
FREE:
0MB( 0.0GB)
6
disk05: Normal
(h06 c00 i01 l00 mptsas) 476937MB(465.8GB)
disk05/01: CDNFS
476929MB(465.8GB) mounted internally
System use:
7MB( 0.0GB)
FREE:
0MB( 0.0GB)
7
disk06: Normal
(h06 c00 i02 l00 mptsas) 476937MB(465.8GB)
disk06/01: CDNFS
476929MB(465.8GB) mounted internally
System use:
7MB( 0.0GB)
FREE:
0MB( 0.0GB)
8
disk07: Normal
(h06 c00 i03 l00 mptsas) 476937MB(465.8GB)
disk07/01: CDNFS
476929MB(465.8GB) mounted internally
System use:
7MB( 0.0GB)
FREE:
0MB( 0.0GB)
Appliance Rear Panel
Figure 1-3 shows the external features of the rear panel.
Rear Panel Features
236620
Figure 1-3
1
2
3
4
5
6
7
1
Power supply (up to two)
2
USB 2.0 connectors (two)
3
Appliance management (CIMC) interface:
10/100 Ethernet management port (RJ45)
4
Video connector (DB15 VGA)
5
Serial console connector (DB9)
6
Primary Interface: two 10/100/1000 Gigabit
Ethernet ports
7
Streaming Interface: four 10/100/1000
Gigabit Ethernet ports
Figure 1-4 shows the port numbers as displayed by the Cisco ECDS software.
Cisco MDE 3125 Series Hardware Installation Guide
4
OL-31959-01
Chapter
Gigabit Ethernet Port Numbering
246919
Figure 1-4
GigabitEthernet 6/0 .... GigabitEthernet 3/0
GigabitEthernet 1/0
GigabitEthernet 2/0
Status LEDs
This section describes the locations and interpretations of LEDs on the appliance that can provide status
and troubleshooting information. This section includes the following topics:
•
Front Panel LEDs, page 1-5
•
Rear Panel LEDs, page 1-6
Front Panel LEDs
Figure 1-5 shows the names and locations of the front panel LEDs.
Figure 1-5
Front Panel LEDs
5
4
6
9
8
10
A03-D300GA2
10k SAS
300GB
A03-D300GA2
10k SAS
300GB
A03-D300GA2
10k SAS
300GB
2
A03-D300GA2
10k SAS
300GB
7
3
CISCO MDE 3100
MEDIA DELIVERY
ENGINE
236619
1
1
Locator LED/Locator button
2
Network activity LED
3
System fault LED
4
Power status LED/Power button
5
CPU fault LED
6
Memory fault LED
7
Power supply fault LED
8
DVD activity LED
9
Hard drive activity LED
10 Hard drive fault LED
Table 1-2 describes the possible states and interpretations for the LEDs that are shown in Figure 1-5.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
5
Chapter
Table 1-2
Front Panel LEDs
LED Name
State
Locator
Network activity
System fault
Power status
•
Off—The Locator LED is not in use.
•
Blue, flashing—The Locator LED button was pressed and the
Locator LED flashes on the front and rear panels to help you find
the appliance in a rack.
•
Off—The appliance is powered off or in standby power mode.
•
Green, blinking—The appliance is communicating with the
network in main power mode. The blink rate is faster as network
activity increases.
•
Green—The appliance is operating properly.
•
Amber, blinking—An event that requires a service action has been
detected. Investigate other LEDs and logs to isolate the problem.
•
Off—No AC power is present.
•
Amber—The appliance is in standby power mode.
•
Green—The appliance is in main power mode.
See the “Connecting and Powering On the Appliance” section on
page 2-7 for definitions of these power modes.
CPU fault
Memory fault
Power supply fault
DVD activity
Hard drive activity
Hard drive fault
•
Off—All CPUs are operating properly.
•
Amber—At least one CPU has failed.
•
Off—All DIMMs are operating properly.
•
Amber—At least one memory bank has a failed DIMM.
•
Off—All power supplies are operating properly.
•
Amber—At least one power supply has failed.
•
Off—The DVD drive is not in use.
•
Green, blinking—The DVD drive is reading or writing data.
•
Off—There is no hard drive in the hard drive sled.
•
Green—The hard drive is ready.
•
Green, blinking—The hard drive is reading or writing data.
•
Off—The hard drive is operating properly.
•
Amber—This hard drive has failed.
Rear Panel LEDs
Figure 1-6 shows the names and locations of the rear panel LEDs.
Cisco MDE 3125 Series Hardware Installation Guide
6
OL-31959-01
Chapter
Figure 1-6
Rear Panel LEDs
236621
1
2
3
4
5
6
1
Power supply fault LED
2
Rear Locator LED
3
10/100 Ethernet speed LED
4
10/100 Ethernet link status LED
5
10/100/1000 Gigabit Ethernet speed LED
6
10/100/1000 Gigabit Ethernet link status LED
Table 1-3 describes the possible states and interpretations for the LEDs that are shown in Figure 1-6.
Table 1-3
Rear Panel LEDs
LED Name
Power supply fault
State
•
Off—No AC power is present in any power supplies.
•
Green—This power supply is operating properly in main power
mode.
•
Green, blinking—This power supply is operating properly in
standby power mode.
•
Amber, blinking—There is no AC power present in this power
supply.
•
Amber and Green, blinking—This power supply has reached a
Warning over-temperature condition: 176 °F (80 °C). The power
supply auto-recovers from this condition when the temperature is
within specification again: 167 °F (75 °C)
•
Amber—This power supply has failed. This could be because the
power supply has reached a Critical Shutdown over-temperature
condition: 194 °F (90 °C). The power supply auto-recovers from
this condition when the temperature is within specification again:
167 °F (75 °C).
See the “Connecting and Powering On the Appliance” section on
page 2-7 for definitions of these power modes.
Locator
Note
•
Off—The Locator LED is not in use.
•
Blue, flashing—The Locator LED/button on the front panel was
pressed and the Locator LED flashes on the front and rear panels
to help you find the appliance in a rack.
The 10/100 Ethernet link status LED and the speed LED must be read in combination for the
following interpretations.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
7
Chapter
Table 1-3
Rear Panel LEDs (Continued)
LED Name
State
10/100 Ethernet speed
(left)
10/100 Ethernet link status
(right)
Note
•
Link status off + speed off—No link is present on this port.
•
Link status off + speed solid green—A half-duplex, 10-Mbps link
is present.
•
Link status amber + speed solid green—A half-duplex, 100-Mbps
link is present.
•
Link status off + speed blinking green—A full-duplex,
10-Mbps link is present.
•
Link status amber + speed blinking green—A full-duplex,
100-Mbps link is present.
The 10/100/1000 Gigabit Ethernet link status LED and the speed LED must be read in
combination for the following interpretations.
10/100/1000 Gigabit
Ethernet speed (left)
10/100/1000 Gigabit
Ethernet link status (right)
•
Link status off + speed off—No link is present on this port.
•
Link status off + speed solid green—A half-duplex, 10-Mbps link
is present.
•
Link status green + speed solid green—A half-duplex, 100-Mbps
link is present.
•
Link status amber + speed solid green—A half-duplex, 1000-Mbps
link is present.
•
Link status off + speed blinking green—A full-duplex,
10-Mbps link is present.
•
Link status green + speed blinking green—A full-duplex,
100-Mbps link is present.
•
Link status amber + speed blinking green—A full-duplex,
1000-Mbps link is present.
Cisco MDE 3125 Chassis
The Cisco MDE 3125 is the next generation UCS SL C220 M3 rack server for the Cisco ECDS system.
The Cisco MDE 3125 supports Cisco ECDS Software Release 2.5.3, 2.5.5, and 2.6.x. Use the following
part numbers when ordering:
•
MDE-3125-K9
•
MDE-3125-K9= (Spare, without the hard drives)
See the following sections:
•
Appliance Components, page 1-8
•
Status LEDs, page 1-5
Appliance Components
Figure 1-7 shows the UCS SL C220 M3 rack server.
Cisco MDE 3125 Series Hardware Installation Guide
8
OL-31959-01
Chapter
Figure 1-7
Cisco UCS C220 M3 Rack Server
Table 1-4 describes Cisco MDE 3125 appliance components and features.
Tip
See Appendix A, “Technical Specifications” for more physical, environmental, and power details.
.
Table 1-4
Cisco MDE 3125 Appliance Hardware Features
Feature or
Component
Cisco MDE 3125 Appliance
Enclosure
UCS C220 M3 SFF single rack unit (1RU)
Processors
2.4 GHz E5-2609
Memory
4 GB DDR3-1600MHz RDIMM
Storage (HDD)
4 or 8 500 GB SATA 7.2K RPM 2.5" HDD drives
RAID Controller
MegaRAID 9266-8i - 8 port internal RAID controller with IBBU09 and
UCS C-Series 1U battery cable
Optical
DVD/CD-ROM
Drive
None
Network and
management I/O
The appliance provides these rear-panel connectors:
•
One ethernet port for CIMC management
•
Two on-board GigaEthernet ports for data traffic, GigEthernet1/0, and
GigEthernet2/0
Removable media One internal DVD-RW drive.
devices
Power
One USC C-Series power supply with a maximum output of 650W
Cooling
Five internal fans that force front-to-rear cooling; also one fan in each power supply.
Status LEDs and Buttons
This section describes the location and meaning of LEDs and buttons and includes the following topics
•
Front Panel LEDs, page 1-10
•
Rear Panel LEDs and Buttons, page 1-12
•
Internal Diagnostic LEDs, page 1-13
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
9
Chapter
Front Panel LEDs
Figure 1-8 shows the front panel LEDs. Table 1-2 defines the LED states.
Front Panel LEDs
2
1
5
3
4
7
6
HDD4
Table 1-5
8
HDD5
9
HDD1
HDD6
HDD2
HDD7
HDD3
HDD8
1
Power button/Power status LED
6
Power supply status LED
2
Identification button/LED
7
Network link activity LED
3
System status LED
8
Hard drive fault LED
4
Fan status LED
9
Hard drive activity LED
5
Temperature status LED
331691
Figure 1-8
–
Front Panel LEDs, Definitions of States
LED Name
State
Power button/Power status LED
Identification
System status
•
Off—There is no AC power to the server.
•
Amber—The server is in standby power mode. Power is supplied only to the CIMC
and some motherboard functions.
•
Green—The server is in main power mode. Power is supplied to all server
components.
•
Off—The Identification LED is not in use.
•
Blue—The Identification LED is activated.
•
Green—The server is running in normal operating condition.
•
Green, blinking—The server is performing system initialization and memory check.
•
Amber, steady—The server is in a degraded operational state. For example:
– Power supply redundancy is lost.
– CPUs are mismatched.
– At least one CPU is faulty.
– At least one DIMM is faulty.
– At least one drive in a RAID configuration failed.
•
Amber, blinking—The server is in a critical fault state. For example:
– Boot failed.
– Fatal CPU and/or bus error is detected.
– Server is in over-temperature condition.
Cisco MDE 3125 Series Hardware Installation Guide
10
OL-31959-01
Chapter
Table 1-5
Front Panel LEDs, Definitions of States (Continued)
LED Name
Fan status
Temperature status
Power supply status
Network link activity
Hard drive fault
Hard drive activity
State
•
Green—All fan modules are operating properly.
•
Amber, steady—One fan module has failed.
•
Amber, blinking—Critical fault, two or more fan modules have failed.
•
Green—The server is operating at normal temperature.
•
Amber, steady—One or more temperature sensors have exceeded a warning
threshold.
•
Amber, blinking—One or more temperature sensors have exceeded a critical
threshold.
•
Green—All power supplies are operating normally.
•
Amber, steady—One or more power supplies are in a degraded operational state.
•
Amber, blinking—One or more power supplies are in a critical fault state.
•
Off—The Ethernet link is idle.
•
Green—One or more Ethernet LOM ports are link-active, but there is no activity.
•
Green, blinking—One or more Ethernet LOM ports are link-active, with activity.
•
Off—The hard drive is operating properly.
•
Amber—This hard drive has failed.
•
Amber, blinking—The device is rebuilding.
•
Off—There is no hard drive in the hard drive sled (no access, no fault).
•
Green—The hard drive is ready.
•
Green, blinking—The hard drive is reading or writing data.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
11
Chapter
Rear Panel LEDs and Buttons
Figure 1-6 shows the rear panel LEDs and buttons. Table 1-6 defines the LED states.
Figure 1-9
Rear Panel LEDs and Buttons
1
PSU2
331692
PSU1
2
Table 1-6
3
4
5
6
1
Power supply fault LED
5
1-Gb Ethernet link speed LED
2
Power supply AC OK LED
6
1-Gb Ethernet link status LED
3
1-Gb Ethernet dedicated management link
status LED
7
Rear Identification button/LED
4
1-Gb Ethernet dedicated management link
speed LED
7
–
Rear Panel LEDs, Definitions of States
LED Name
State
Power supply fault
Power supply AC OK
1-Gb Ethernet dedicated
management link speed
1-Gb Ethernet dedicated
management link status
•
Off—The power supply is operating normally.
•
Amber, blinking—An event warning threshold has been reached, but the power
supply continues to operate.
•
Amber, solid—A critical fault threshold has been reached, causing the power
supply to shut down (for example, a fan failure or an over-temperature condition).
•
Off—There is no AC power to the power supply.
•
Green, blinking—AC power OK, DC output not enabled.
•
Green, solid—AC power OK, DC outputs OK.
•
Off—link speed is 10 Mbps.
•
Amber—link speed is 100 Mbps.
•
Green—link speed is 1 Gbps.
•
Off—No link is present.
•
Green—Link is active.
•
Green, blinking—Traffic is present on the active link.
Cisco MDE 3125 Series Hardware Installation Guide
12
OL-31959-01
Chapter
Table 1-6
Rear Panel LEDs, Definitions of States (Continued)
LED Name
State
1-Gb Ethernet link speed
1-Gb Ethernet link status
Identification
•
Off—link speed is 10 Mbps.
•
Amber—link speed is 100 Mbps.
•
Green—link speed is 1 Gbps.
•
Off—No link is present.
•
Green—Link is active.
•
Green, blinking—Traffic is present on the active link.
•
Off—The Identification LED is not in use.
•
Blue—The Identification LED is activated.
Internal Diagnostic LEDs
The server has internal fault LEDs for fan modules and DIMMs. An LED lights amber to indicate a failed
component.
Note
Power must be connected to the server for these LEDs to be operate.
See Figure 1-10 for the locations of these internal LEDs.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
13
Chapter
Figure 1-10
Internal Diagnostic LED Locations
1
2
331693
FAN4
1
Fan module fault LEDs (one next to each fan 2
connector on the motherboard)
Table 1-7
Internal Diagnostic LEDs, Definition of States
LED Name
Internal diagnostic LEDs (all)
Tip
DIMM fault LEDs (one next to each DIMM
socket on the motherboard)
State
•
Off—Component is functioning normally.
•
Amber—Component has failed.
For complete information about the Cisco UCS C220 Server, see the Cisco UCS C220 Server Installation
and Service Guide on Cisco.com.
Cisco MDE 3125 Series Hardware Installation Guide
14
OL-31959-01
CH A P T E R
2
Installing the Appliance
This chapter describes how to install the appliance and includes the following sections:
Note
Warning
•
Installing the Cisco MDE 3100, page 2-1
•
Installing the Cisco MDE 3125, page 2-13
•
RAID, page 2-23
•
Where to Go Next, page 2-42
Before you install, operate, or service the system, see the Regulatory Compliance and Safety Information
for the Cisco MDE Appliances for important safety information.
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this device.
Statement 1071
Warning
Only trained and qualified personnel must be allowed to install, replace, or service this equipment.
Statement 1030
Installing the Cisco MDE 3100
•
Unpacking and Inspecting the Appliance, page 2-2
•
Preparing for Installation, page 2-3
•
Installing the Appliance Into a Rack, page 2-4
•
Connecting and Powering On the Appliance, page 2-7
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
1
Chapter
Unpacking and Inspecting the Appliance
Tip
Keep the shipping container in case the appliance requires shipping in the future.
Note
The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or
any items are missing, contact your customer service representative immediately.
To inspect the shipment:
Step 1
Remove the appliance from its cardboard container—save all packaging material.
Step 2
Compare the shipment to the equipment list provided by your customer service representative and
Figure 2-1. Verify that you have all items.
Step 3
Check for damage and report any discrepancies or damage to your customer service representative. Have
the following information ready:
•
Invoice number of shipper (see the packing slip)
•
Model and serial number of the damaged unit
•
Description of damage
•
Effect of damage on the installation
Cisco MDE 3125 Series Hardware Installation Guide
2
OL-31959-01
Chapter
Figure 2-1
Shipping Box Contents
A03-D300GA2
10k SAS
300GB
A03-D300GA2
10k SAS
300GB
s
oo i1e0
So sccD0 e0r
Dc is0iC1 S1
Cis CyC1 -s
EC vesr xCu
oxu CSe
ece U N
RN
A03-D300GA2
10k SAS
300GB
2
A03-D300GA2
10k SAS
300GB
1
CISCO MDE 3100
MEDIA DELIVERY
ENGINE
3
5
4
Do
cu Cis
me co
nta
tio
n
6
7
246828
8
1
Appliance
2
Recovery disc and License and Warranty Disk
3
Power cord (up to two)
4
Documentation pointer card, software license
agreement, limited warranty card
5
KVM cable
6
Console Cable
7
Network cable
8
Rail kit and cable management arm
Preparing for Installation
This section includes the following topics:
•
Installation Guidelines, page 2-3
•
Rack Requirements, page 2-4
•
Required Equipment, page 2-4
Installation Guidelines
When installing the appliance, follow these guidelines:
•
Plan your site configuration and prepare the site before installing the appliance.
•
Ensure that there is adequate space around the appliance to allow for servicing the appliance and for
adequate airflow. The airflow in this appliance is from front to back.
•
Ensure that the air-conditioning meets the thermal requirements listed in the “Technical
Specifications” appendix.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
3
Chapter
Warning
•
Ensure that the cabinet or rack meets the requirements listed in Rack Requirements, page 2-4.
•
Ensure that the site power meets the power requirements listed in the “Technical Specifications”
appendix. If available, you can use an uninterruptible power supply (UPS) to protect against power
failures.
•
Ensure that circuits are sized according to local and national codes. For North America, the power
supply requires a 15-A circuit.
The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device.
Statement 1019
Caution
Avoid UPS types that use ferroresonant technology. These UPS types can become unstable with systems
such as the Cisco MDE, which can have substantial current draw fluctuations from fluctuating data
traffic patterns.
Caution
To prevent loss of input power, ensure that the total maximum loads on the circuits supplying power to
the appliance are within the current ratings for the wiring and breakers.
Rack Requirements
This section provides the requirements for the standard open racks, assuming an external ambient air
temperature range of 32 to 95F (0 to 35C).
The rack must be of the following type:
•
Standard 19-inch (48.3-cm) wide, four-post EIA rack, with mounting posts that conform to English
universal hole spacing per section 1 of ANSI/EIA-310-D-1992.
•
The rack post holes can be square or round when you use the supplied slide rails.
•
The minimum vertical rack space per appliance must be two rack units (RUs), equal to 3.50 inches
(8.89 cm).
Required Equipment
The slide rails supplied by Cisco Systems do not require any tools for installation, but you might want
to use a tape measure and level to help level the slide rails during installation.
The slide rails include screws that you can optionally use to apply additional stability. These screws are
not required.
Installing the Appliance Into a Rack
This section describes how to install the appliance into a rack.
Caution
If the rack has wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.
Cisco MDE 3125 Series Hardware Installation Guide
4
OL-31959-01
Chapter
To install the slide rails and the appliance into a rack:
Step 1
Tip
Install the slide rails into the rack:
Use two people to help keep the slide rails and appliance level during installation. You can use a tape
measure and level or count the holes in the rack posts to ensure that the slide rails and appliance are level.
a.
Align the slide-rail assembly inside the rack posts with the length-adjustment bracket (item 4)
toward the rear of the rack (see Figure 2-2).
b.
Compress the length-adjustment bracket until the mounting pegs (item 6) and locking clips (item 5)
on the slide-rail assembly engage the desired rack holes on the front and rear rack posts.
c.
Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops
and lock in place.
Figure 2-2
Attaching a Slide-Rail Assembly
1
2
3
5
6
195968
4
Tip
Step 2
1
Front-left rack post
2
Rear-left rack post
3
Slide-rail assembly
4
Length-adjustment bracket
5
Locking clip (one on each end of assembly)
6
Mounting pegs (two on each end of assembly)
d.
Attach the second slide-rail assembly to the opposite side of the rack. Ensure that the two slide-rail
assemblies are level and at the same height with each other.
e.
Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops
and lock in place.
You can optionally use the #2 Phillips screws that come with the slide rails to increase stability after
installation. These screws can be installed on the front attachment bracket on each assembly, but are not
required.
Attach mounting brackets to the appliance:
a.
Set a mounting bracket (item 3) on the side of the appliance, aligning its keyed holes over the pegs
on the appliance (item 2). The plastic installation release clip (item 5) on the bracket should be
toward the appliance front. See Figure 2-3.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
5
Chapter
Tip
b.
Push the mounting bracket toward the appliance rear until the locking clip clicks over the appliance
peg.
c.
Attach the remaining mounting bracket to the opposite side of the appliance.
You can optionally use the #1 Phillips screws that come with the slide rails to increase stability after
installation. You can install two of these screws on each side of the appliance to more permanently attach
the mounting brackets to each side of the appliance, but they are not required.
Figure 2-3
Attaching Mounting Brackets to the Appliance
2
195955
1
3
Step 3
Caution
Step 4
Note
4
5
1
Rear of appliance
2
Mounting peg (four)
3
Mounting bracket
4
Removal release clip
5
Installation release clip
Insert the appliance into the slide rails:
This appliance weighs approximately 50 pounds (23 kilograms) when fully loaded with components. We
recommend that you use a minimum of two people when lifting the appliance. Attempting this procedure
alone could result in personal injury or equipment damage.
a.
Align the mounting brackets that are attached to the appliance sides with the front of the empty slide
rails.
b.
Push the appliance into the slide rails until it stops at the internal stops.
c.
Push the plastic installation release clip on each mounting bracket toward the appliance rear (see
item 4 in Figure 2-3), and then continue pushing the appliance into the rack until its front flanges
touch the rack posts.
d.
Close the front-flange latches to secure the appliance to the front rack posts.
Attach the (optional) cable management arm (CMA) to the rear of the slide rails:
The orientation in these instructions refers to a view from the front of the appliance.
a.
Slide the plastic clip on the right end of the CMA length-adjustment slider (item 2) into the rear of
the right slide rail (item 1) until it clips onto the plastic retaining flange inside the slide rail. See
Figure 2-4.
Cisco MDE 3125 Series Hardware Installation Guide
6
OL-31959-01
Chapter
b.
Expand the CMA length-adjustment slider (item 2) until its left end aligns with the rear of the left
slide-rail assembly (item 3).
c.
Slide the innermost CMA attachment clip (item 4) into the rear of the left slide rail (item 3) and clip
it onto the CMA flange that is on the mounting bracket that is attached to the appliance.
d.
Attach the two-hole slotted bracket (item 5) that is on the left end of the CMA length-adjustment
slider to the left slide rail. Fit the two-hole slotted bracket over the two pegs inside the slide rail.
e.
Attach the outermost CMA attachment clip (item 6) onto the CMA flange that is on the left slide rail.
Figure 2-4
Attaching the Cable Management Arm
6
2
1
5
4
195969
3
Step 5
1
Rear of right slide rail (plastic retaining flange 2
is inside the rail)
3
Rear of left slide rail assembly
4
Innermost CMA attachment clip
5
Two-hole slotted bracket on end of CMA
length-adjustment slider
6
Outermost CMA attachment clip
CMA length-adjustment slider
Continue with the “Connecting and Powering On the Appliance” section on page 2-7.
Connecting and Powering On the Appliance
This section describes how to power on the appliance and assign an IP address to the appliance
management port, which allows you to connect to the Cisco Integrated Management Controller (CIMC).
By following this procedure, you can stage your appliance for deployment, deploy the hardware, and
then remotely configure the ECDS first boot parameters.
See the Cisco ECDS 2.5 Quick Start Guide for information about configuring ECDS during first boot.
1.
Attach the Cables to the Appliance, page 2-8.
2.
Configure CIMC Network Settings and Password, page 2-8.
3.
Configure CIMC Remote Access Settings, page 2-10.
4.
Configuring the ECDS Management (Primary) Interface, page 2-12
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
7
Chapter
5.
Configuring the Streaming Interface (SE only), page 2-12
Attach the Cables to the Appliance
This section describes how to attach cables to your appliance.
Step 1
Attach a power cord to each power supply in your appliance, and then attach the power cord to a
grounded AC power outlet. See the “Power Specifications” section on page A-2 for power specifications.
Power is supplied to the service processor in standby power mode. You can verify power status by
looking at the Power Status LED on the front panel (see Figure 1-5):
•
Off—The appliance is not receiving power. Check the power cord connections and the power source
of the facility.
•
Amber—The appliance is in standby power mode. Power is supplied only to the service processor
and some motherboard functions.
•
Solid green—The appliance is in main power mode. Power is supplied to all appliance components.
Step 2
Connect to your network by using the 10/100 Ethernet management port (see Figure 1-3).
Step 3
Connect to appliance management console using one of the following methods:
•
The front panel KVM console connector using the supplied KVM cable. See the “KVM Cable”
section on page B-1 for details.
•
The rear panel VGA and USB ports.
Note
•
You cannot use the front panel console connector VGA and the rear panel VGA at the same time.
If you are connected to one VGA connector and you then connect a video device to the other
connector, the first VGA connector is disabled. You can then reactivate the first VGA connector
only by rebooting the appliance.
The rear panel serial connector (DB9) using a terminal emulation program (9600 baud, 8N1). If you
later enable the Serial-over-LAN feature in CIMC, you will no longer be able to access the console
through this connector.
Configure CIMC Network Settings and Password
Caution
DO NOT change the NIC mode or NIC redundancy settings. Changing these settings may cause severe
performance degradation.
Note
Disconnect any external USB devices (such as drives and keyboards) before powering on the appliance.
You appliance may not boot with USB devices connected to the external USB ports.
To configure CIMC network settings:
Step 1
Press and release the Power button to apply AC power and boot the appliance (see Figure 1-1).
Cisco MDE 3125 Series Hardware Installation Guide
8
OL-31959-01
Chapter
Step 2
Note
During bootup, press F8 when prompted to open the CIMC Configuration Utility. This utility allows you
to make changes to the network settings and to reset the default CIMC password. See Figure 2-5.
Although you can use DHCP on the devices management interface, we recommend using a static IP
address. To use DHCP, allow the appliance to boot and to obtain network settings from your DHCP
server. The IP and MAC addresses are displayed on the Cisco logo screen during subsequent boots.
Figure 2-5
Step 3
Step 4
Step 5
CIMC Configuration Utility
To define static network settings, enter values in the following fields:
•
DHCP Enabled—Remove the check mark from this box to use static settings.
•
CIMC IP—Enter the IP address for the appliance in this field.
•
Subnet Mask—Enter the subnet mask for the appliance in this field.
•
Gateway—Enter the gateway for the appliance in this field.
Change the default CIMC password:
a.
Use the Up/Down arrow keys to move the insertion point to Default password under Default User.
b.
Type the new password.
c.
Type the password again in the Reenter password field.
Press F10 to save your changes and reboot the appliance.
Note
Changes to the IP address take effect after approximately 30 seconds.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
9
Chapter
After the appliance has been assigned an IP address, you can use that address in a browser to access the
CIMC GUI management system.
Configure CIMC Remote Access Settings
Enabling the remote access settings allows you to open an SSH session to the CIMC interface and access
the device command line interface. You can also access the ECDS command line interface from the SSH
session by entering the connect host command. This will enable you to remotely perform the initial
configuration of your MDE.
Refer to the Cisco ECDS 2.5 Quick Start Guide for information about the initial configuration of ECDS.
To configure CIMC remote access settings:
Step 1
Access the CIMC GUI. Use the IP address you configured in the “Configure CIMC Network Settings
and Password” section on page 2-8.
https://<cimc_ip_address>
Step 2
Login to the CIMC GUI.
The default username for the appliance is admin.
The default password for the appliance is password (unless you changed it in the “Configure CIMC
Network Settings and Password” section on page 2-8).
Cisco MDE 3125 Series Hardware Installation Guide
10
OL-31959-01
Chapter
Step 3
On the Server tab, click Remote Presence.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
11
Chapter
Step 4
Note
Click the Serial over LAN tab.
Enabling Serial over LAN disables console access through the serial port on the rear of the appliance.
Step 5
Check the Enabled checkbox and choose 9600 bps from the Baud Rate list.
Step 6
Click Save Changes.
Configuring the ECDS Management (Primary) Interface
The Cisco MDE 3100 has 2 GigabitEthernet ports, GigabitEthernet 1/0 and GigabitEthernet 2/0, that can
be used for the ECDS management interface. You can configure the ECDS management interfaces in the
following ways:
•
Use a single interface as the management interface.
•
Configure the two GigabitEthernet ports as a portchannel interface.
See the Cisco ECDS 2.5 Quick Start Guide for information about configuring the streaming interface.
The Quick Start Guide shows you how to configure a single interface as the ECDS management
interface. You can later change this to a portchannel configuration.
Configuring the Streaming Interface (SE only)
The Cisco MDE 3100 has 4 Gigabit Ethernet ports, GigabitEthernet 3/0 through GigabitEthernet 6/0,
that can be used for the streaming interface. You can configure the streaming interface in the following
ways:
Note
•
Use a single interface for the streaming interface.
•
Configure the 4 GigabitEthernet ports as a portchannel interface. This is the recommended
configuration.
Sharing the management interface with the streaming interface is not recommended for the
Cisco MDE 3100.
See the Cisco ECDS 2.5 Quick Start Guide for information about configuring the streaming interface.
Cisco MDE 3125 Series Hardware Installation Guide
12
OL-31959-01
Chapter
Installing the Cisco MDE 3125
This section describes how to install the Cisco MDE 3125 UCS server:
Note
Warning
•
Unpacking and Inspecting the Server, page 2-13
•
Preparing for Installation, page 2-3
•
Installing the Appliance Into a Rack, page 2-4
•
Initially Setting up the Server, page 2-19
•
Managing System BIOS and CIMC Firmware, page 2-22
•
Updating the BIOS and CIMC Firmware, page 2-22
•
Configuring RAID in MDE 3125, page 2-24
Before you install, operate, or service a server, review the Regulatory Compliance and Safety
Information for Cisco UCS C-Series Servers for important safety information.
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this device.
Statement 1071
SAVE THESE INSTRUCTIONS.
Unpacking and Inspecting the Server
Caution
When handling internal server components, wear an ESD strap and handle modules by the carrier edges
only.
Tip
Keep the shipping container in case the server requires shipping in the future.
Note
The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or
any items are missing, contact your customer service representative immediately.
To inspect the shipment:
Step 1
Remove the server from its cardboard container and save all packaging material.
Step 2
Compare the shipment to the equipment list provided by your customer service representative and
Figure 2-1. Verify that you have all items.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
13
Chapter
Step 3
Check for damage and report any discrepancies or damage to your customer service representative. Have
the following information ready:
•
Invoice number of shipper (see the packing slip)
•
Model and serial number of the damaged unit
•
Description of damage
•
Effect of damage on the installation
Figure 2-6
Shipping Box Contents
1
2
3
4
e
co ri
is e
C -S
C
S
C
U
331685
s
1
Server
3
Documentation
2
Power cord (optional, up to two)
4
KVM cable
Preparing for Server Installation
This section provides information about preparing for server installation, and it includes the following
topics:
•
Installation Guidelines, page 2-3
•
Rack Requirements, page 2-4
•
Equipment Requirements, page 2-15
•
Slide Rail Adjustment Range, page 2-16
Installation Guidelines
Warning
To prevent the system from overheating, do not operate it in an area that exceeds the maximum
recommended ambient temperature of: 40° C (104° F).
Statement 1047
Cisco MDE 3125 Series Hardware Installation Guide
14
OL-31959-01
Chapter
Warning
The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device.
Statement 1019
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than: 250 V, 15 A.
Statement 1005
Warning
Installation of the equipment must comply with local and national electrical codes.
Statement 1074
When you are installing a server, use the following guidelines:
Caution
•
Plan your site configuration and prepare the site before installing the server. See the Cisco UCS Site
Preparation Guide for the recommended site planning tasks.
•
Ensure that there is adequate space around the server to allow for servicing the server and for
adequate airflow. The airflow in this server is from front to back.
•
Ensure that the air-conditioning meets the thermal requirements listed in the Server Specifications.
•
Ensure that the cabinet or rack meets the requirements listed in the “Rack Requirements” section on
page 2-4.
•
Ensure that the site power meets the power requirements listed in the Server Specifications. If
available, you can use an uninterruptible power supply (UPS) to protect against power failures.
Avoid UPS types that use ferroresonant technology. These UPS types can become unstable with systems
such as the Cisco UCS, which can have substantial current draw fluctuations from fluctuating data traffic
patterns.
Rack Requirements
This section provides the requirements for the standard open racks.
The rack must be of the following type:
•
A standard 19-in. (48.3-cm) wide, four-post EIA rack, with mounting posts that conform to English
universal hole spacing, per section 1 of ANSI/EIA-310-D-1992.
•
The rack post holes can be square .38-inch (9.6 mm), round .28-inch (7.1 mm), #12-24 UNC, or
#10-32 UNC when you use the supplied slide rails.
•
The minimum vertical rack space per server must be one RU, equal to 1.75 in. (44.45 mm).
Equipment Requirements
The slide rails supplied by Cisco Systems for this server do not require tools for installation. The inner
rails (mounting brackets) are pre-attached to the sides of the server.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
15
Chapter
Slide Rail Adjustment Range
The slide rails for this server have an adjustment range of 24 to 36 inches (610 to 914 mm).
Installing the Cisco MDE 3125 In a Rack
This section describes how to install the server in a rack.
Warning
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special
precautions to ensure that the system remains stable. The following guidelines are provided to ensure
your safety:
This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component
at the bottom of the rack.
If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
Statement 1006
To install the slide rails and the server into a rack:
Step 1
Open the front securing latch (see Figure 2-7). The end of the slide-rail assembly marked “FRONT” has
a spring-loaded securing latch that must be open before you can insert the mounting pegs into the
rack-post holes.
a.
On the rear side of the securing-latch assembly, hold open the clip marked “PULL.”
b.
Slide the spring-loaded securing latch away from the mounting pegs.
c.
Release the clip marked “PULL” to lock the securing latch in the open position.
Figure 2-7
Front Securing Latch
1
3
332061
2
1
Clip marked “PULL” on rear of assembly
2
Front mounting pegs
3
Spring-loaded securing latch on front of
assembly
Cisco MDE 3125 Series Hardware Installation Guide
16
OL-31959-01
Chapter
Step 2
Install the slide rails onto the rack:
a.
Position a slide-rail assembly inside the two left-side rack posts (see Figure 2-2).
Use the “FRONT” and “REAR” markings on the slide-rail assembly to orient the assembly correctly
with the front and rear rack posts.
b.
Note
Position the front mounting pegs so that they enter the desired front rack-post holes from the front.
The mounting pegs that protrude through the rack-post holes are designed to fit round or square holes,
or smaller #10-32 round holes when the mounting peg is compressed. If your rack has #10-32 rack-post
holes, align the mounting pegs with the holes and then compress the spring-loaded pegs to expose the
#10-32 inner peg.
c.
Expand the length-adjustment bracket until the rear mounting pegs protrude through the desired
holes in the rear rack post.
Use your finger to hold the rear securing latch open when you insert the rear mounting pegs to their
holes. When you release the latch, it wraps around the rack post and secures the slide-rail assembly.
Figure 2-8
Attaching a Slide-Rail Assembly
1
2
5
3
6
331689
4
Step 3
1
Front-left rack post
4
Length-adjustment bracket
2
Front mounting pegs
5
Rear mounting pegs
3
Slide-rail assembly
6
Rear securing latch
d.
Attach the second slide-rail assembly to the opposite side of the rack. Ensure that the two slide-rail
assemblies are level and at the same height with each other.
e.
Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops
and lock in place.
Insert the server into the slide rails:
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
17
Chapter
The inner rails are pre-attached to the sides of the server at the factory. You can order
replacement inner rails if these are damaged or lost (Cisco PID UCSC-RAIL1-I).
Note
Step 4
a.
Align the inner rails that are pre-attached to the server sides with the front ends of the empty slide
rails.
b.
Push the server into the slide rails until it stops at the internal stops.
c.
Push in the plastic release clip on each inner rail (labelled PUSH), and then continue pushing the
server into the rack until its front latches engage the rack posts.
Attach the (optional) cable management arm (CMA) to the rear of the slide rails:
The CMA is designed for mounting on either the right or left slide rails. These instructions
describe an installation to the rear of the right slide rails, as viewed from the rear of server.
Note
Slide the plastic clip on the inner CMA arm over the flange on the mounting bracket that attached
to the side of the server. See Figure 2-4.
a.
Whether you are mounting the CMA to the left or right slide rails, be sure to orient the engraved
marking, “UP” so that it is always on the upper side of the CMA. See Figure 2-4.
Note
b.
Slide the plastic clip on the outer CMA arm over the flange on the slide rail. See Figure 2-4.
c.
Attach the CMA retaining bracket to the left slide rail. Slide the plastic clip on the bracket over the
flange on the end of the left slide rail. See Figure 2-4.
Figure 2-9
Attaching the Cable Management Arm (Rear of Server Shown)
3
1
4
5
6
1
Flange on rear of outer left slide rail
5
Inner CMA arm attachment clip
2
CMA retaining bracket
6
“UP” orientation marking
3
Flange on rear of right mounting bracket
7
Outer CMA arm attachment clip
4
Flange on rear of outer right slide rail
331690
7
2
Cisco MDE 3125 Series Hardware Installation Guide
18
OL-31959-01
Chapter
Step 5
Continue with the “Initially Setting up the Server” section on page 2-19.
Initially Setting up the Server
This section includes the following topics:
•
Connecting and Powering On the Server (Standalone Mode), page 2-19
•
Managing NIC Modes and NIC Redundancy Settings, page 2-21
Connecting and Powering On the Server (Standalone Mode)
This section describes how to power on the server, assign an IP address, and connect to server
management when using the server in standalone mode.
Note
The server is shipped with a default NIC mode called Shared LOM, default NIC redundancy is
active-active, and DHCP is enabled. Shared LOM mode enables the two 1-Gb Ethernet ports to access
the Cisco Integrated Management Interface (CIMC). If you want to use the 1-Gb Ethernet dedicated
management port, or a port on a Cisco UCS P81E Virtual Interface Card (VIC) to access the CIMC, you
must first connect to the server and change the NIC mode as described in Step 3 of the following
procedure. In that step, you can also change the NIC redundancy and set static IP settings.
To initially set up the server:
Step 1
Attach a supplied power cord to each power supply in your server, and then attach the power cord to a
grounded AC power outlet. See the Power Specifications, page A-3 for power specifications.
Wait for approximately two minutes to let the server boot in standby power during the first bootup.
You can verify power status by looking at the Power Status LED (see Figure 1-1 on page 1-2):
•
Off—There is no AC power present in the server.
•
Amber—The server is in standby power mode. Power is supplied only to the CIMC and some
motherboard functions.
•
Green—The server is in main power mode. Power is supplied to all server components.
Note
Step 2
During bootup, the server beeps once for each USB device that is attached to the server. Even if
there are no external USB devices attached, there is a short beep for each virtual USB device
such as a virtual floppy drive, CD/DVD drive, keyboard, or mouse. A beep is also emitted if a
USB device is hot-plugged or hot-unplugged during BIOS power-on self test (POST), or while
you are accessing the BIOS Setup utility or the EFI shell.
Connect a USB keyboard and VGA monitor by using the supplied KVM cable connected to the KVM
connector on the front panel (see Figure 1-1 on page 1-2).
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
19
Chapter
Note
Step 3
Alternatively, you can use the VGA and USB ports on the rear panel. However, you cannot use
the front panel VGA and the rear panel VGA at the same time. If you are connected to one VGA
connector and you then connect a video device to the other connector, the first VGA connector
is disabled.
Set NIC mode, NIC redundancy, and choose whether to enable DHCP or set static network settings:
a.
Press the Power button to boot the server. Watch for the prompt to press F8.
b.
During bootup, press F8 when prompted to open the BIOS CIMC Configuration Utility.
c.
Set the NIC mode to your choice for which ports to use to access the CIMC for server management
(see Figure 1-3 on page 1-3 for port identification):
– Dedicated—The 1-Gb Ethernet management port is used to access the CIMC. You must select
NIC redundancy None and select IP settings.
– Shared LOM (default)—The two 1-Gb Ethernet ports are used to access the CIMC. This is the
factory default setting, along with Active-active NIC redundancy and DHCP enabled.
– Cisco Card—The ports on an installed Cisco UCS P81E VIC are used to access the CIMC. You
must select a NIC redundancy and IP setting.
Note
d.
The Cisco Card NIC mode is currently supported only with a Cisco UCS P81E VIC
(N2XX-ACPCI01) that is installed in PCIe slot 1. See also Special Considerations for Cisco
UCS P81E Virtual Interface Card (N2XX-ACPCI01), page 3-33.
Use this utility to change the NIC redundancy to your preference. This server has three possible NIC
redundancy settings:
– None—The Ethernet ports operate independently and do not fail over if there is a problem.
– Active-standby—If an active Ethernet port fails, traffic fails over to a standby port.
– Active-active—All Ethernet ports are utilized simultaneously.
e.
Choose whether to enable DHCP for dynamic network settings, or to enter static network settings.
Cisco MDE 3125 Series Hardware Installation Guide
20
OL-31959-01
Chapter
Note
f.
Note
g.
Note
Before you enable DHCP, your DHCP server must be preconfigured with the range of MAC
addresses for this server. The MAC address is printed on a label on the rear of the server. This
server has a range of six MAC addresses assigned to the CIMC. The MAC address printed on
the label is the beginning of the range of six contiguous MAC addresses.
(Optional) Use this utility to make VLAN settings, and to set a default CIMC user password.
Changes to the settings take effect after approximately 45 seconds. Refresh with F5 and wait
until the new settings appear before you reboot the server in the next step.
Press F10 to save your settings and reboot the server.
If you chose to enable DHCP, the dynamically assigned IP and MAC addresses are displayed on
the console screen during bootup.
Step 4
Connect to the CIMC for server management. Connect Ethernet cables from your LAN to the server,
using the ports that you selected by your NIC Mode setting in Step 3. The Active-active and
Active-passive NIC redundancy settings require you to connect to two ports.
Step 5
Use a browser and the IP address of the CIMC to connect to the CIMC Setup Utility. The IP address is
based upon the settings that you made in Step 3 (either a static address or the address assigned by your
DHCP server).
Note
The default user name for the server is admin. The default password is password.
To manage the server, see the Cisco UCS C-Series Rack-Mount Server Configuration Guide or the Cisco
UCS C-Series Rack-Mount Server CLI Configuration Guide for instructions on using those interfaces.
The links to these documents are in the C-Series documentation roadmap:
http://www.cisco.com/go/unifiedcomputing/c-series-doc
Managing NIC Modes and NIC Redundancy Settings
This server has the following NIC mode settings that you can choose from:
•
Dedicated—The 1-Gb Ethernet dedicated management port is used to access the CIMC. You must
select NIC redundancy None and select IP setting.
•
Shared LOM (default)—The two 1-Gb Ethernet ports are used to access the CIMC. This is the
factory default setting, along with Active-active NIC redundancy and DHCP enabled.
•
Cisco Card—The ports on an installed Cisco UCS P81E VIC are used to access the CIMC. You must
select a NIC redundancy and IP setting.
Note
The Cisco Card NIC mode is currently supported only with a Cisco UCS P81E VIC
(N2XX-ACPCI01) that is installed in PCIe slot 1. See also Special Considerations for Cisco
UCS P81E Virtual Interface Card (N2XX-ACPCI01), page 3-33.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
21
Chapter
This server has the following NIC redundancy settings that you can choose from:
•
None—The Ethernet ports operate independently and do not fail over if there is a problem.
•
Active-standby—If an active Ethernet port fails, traffic fails over to a standby port.
•
Active-active—All Ethernet ports are utilized simultaneously.
Managing System BIOS and CIMC Firmware
This section includes information about the system BIOS:
•
Updating the BIOS and CIMC Firmware, page 2-22
•
Accessing the System BIOS, page 2-23
Updating the BIOS and CIMC Firmware
Caution
When you upgrade the BIOS firmware, you must also upgrade the CIMC firmware to the same version
or the server will not boot. Do not power off the server until the BIOS and CIMC firmware are matching
or the server will not boot.
Cisco provides the Cisco Host Upgrade Utility to assist with simultaneously upgrading the BIOS, CIMC,
and other firmware to compatible levels.
The server uses firmware obtained from and certified by Cisco. Cisco provides release notes with each
firmware image. There are several methods for updating the firmware:
•
Recommended method for systems running firmware level 1.2 or later: Use the Cisco Host
Upgrade Utility to simultaneously upgrade the CIMC, BIOS, LOM, LSI storage controller, and
Cisco UCS P81E VIC firmware to compatible levels.
See the Cisco Host Upgrade Utility Quick Reference Guide for your firmware level at the
documentation roadmap link below.
Note
•
Your system firmware must be at minimum level 1.2 to use the Cisco Host Upgrade Utility. If
your firmware is prior to level 1.2, you must use the methods below to update the BIOS and
CIMC firmware individually.
You can upgrade the BIOS using the EFI interface, or upgrade from a Windows or Linux platform.
See the Cisco UCS C-Series Rack-Mount Server BIOS Upgrade Guide.
•
You can upgrade the CIMC and BIOS firmware by using the CIMC GUI interface.
See the Cisco UCS C-Series Rack-Mount Server Configuration Guide.
•
You can upgrade the CIMC and BIOS firmware by using the CIMC CLI interface.
See the Cisco UCS C-Series Rack-Mount Server CLI Configuration Guide.
For links to the documents listed above, see the documentation roadmap at the following URL:
http://www.cisco.com/go/unifiedcomputing/c-series-doc
Cisco MDE 3125 Series Hardware Installation Guide
22
OL-31959-01
Chapter
Accessing the System BIOS
To change the BIOS settings for your server:
Tip
Step 1
Detailed instructions are also printed on the BIOS screens.
Enter the BIOS setup utility by pressing the F2 key when prompted during bootup.
Note
The version and build of the current BIOS are displayed on the Main page of the utility.
Step 2
Use the arrow keys to select the BIOS menu page.
Step 3
Highlight the field to be modified by using the arrow keys.
Step 4
Press Enter to select the field that you want to change, and then modify the value in the field.
Step 5
Press the right arrow key until the Exit menu screen is displayed.
Step 6
Follow the instructions on the Exit menu screen to save your changes and exit the setup utility (or Press
F10). Exit without saving changes by pressing Esc.
RAID
RAID (Redundant Array of Independent Disks) is a data storage virtualization technology that combines
multiple disk drive components into a logical unit for the purposes of data redundancy and performance
improvement.
Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the
specific level of redundancy and performance required. The different schemes or architectures are named
by the word RAID followed by a number (e.g. RAID 0, RAID 1). Each scheme provides a different
balance between the key goals: reliability and availability, performance and capacity. RAID levels
greater than RAID 0 provide protection against unrecoverable (sector) read errors, as well as whole disk
failure.
RAID 0
RAID 0 comprises striping (but no parity or mirroring). This level provides no data redundancy nor fault
tolerance, but improves performance through parallelism of read and write operations across multiple
drives. RAID 0 has no error detection mechanism, so the failure of one disk causes the loss of all data
on the array.
RAID 1
RAID 1 comprises mirroring (without parity or striping). Data are written identically to two (or more)
drives, thereby producing a "mirrored set". The read request is serviced by any of the drives containing
the requested data. This can improve performance if data is read from the disk with the least seek latency
and rotational latency. Conversely, write performance can be degraded because all drives must be
updated; thus the write performance is determined by the slowest drive. The array continues to operate
as long as at least one drive is functioning.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
23
Chapter
RAID 5
A RAID 5 comprises block-level striping with distributed parity. Unlike in RAID 0 and RAID 1, parity
information is distributed among the drives. It requires that all drives but one be present to operate. Upon
failure of a single drive, subsequent reads can be calculated from the distributed parity such that no data
is lost. RAID 5 requires at least three disks.
Note
MDE Hardware [MDE-1125 and MDE-3125] only support Hardware RAID configuration. For
configuring Hardware RAID level [0,1,5], refer the section Configuring RAID in MDE 3125.
This section contains:
•
Configuring RAID in MDE 3125, page 2-24
Configuring RAID in MDE 3125
To configure RAID, refer the steps given below:
Step 1
Log in to the Cisco Integrated Management Controller (CIMC).
Figure 2-10
Step 2
CIMC page
Click the Launch KVM Console and Select Virtual Media in KVM Console Window.
Cisco MDE 3125 Series Hardware Installation Guide
24
OL-31959-01
Chapter
Figure 2-11
Step 3
KVM Console Window
Click the Power Cycle Server to reboot the server.
Figure 2-12
Power Cycle Server Page
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
25
Chapter
Step 4
After the server comes UP, wait for few minutes for the logs to appear.
Figure 2-13
Step 5
KVM Console Page
Press CTRL+H or CTRL+Y to enable BIOS for RAID configuration.
Figure 2-14
KVM Console Page
Cisco MDE 3125 Series Hardware Installation Guide
26
OL-31959-01
Chapter
Step 6
Click Start in the BIOS page and the Mega RAID BIOS config Utility appears.
Figure 2-15
Step 7
BIOS Page
Select the Configuration Wizard.
Figure 2-16
BIOS Config Utility Configuration Wizard
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
27
Chapter
Step 8
Select Clear Configuration tab to clear the existing configuration and click Next.
Figure 2-17
Step 9
BIOS Config Utility Configuration Wizard
Click Yes to clear the existing configuration.
Figure 2-18
BIOS Config Utility Confirm Page
Cisco MDE 3125 Series Hardware Installation Guide
28
OL-31959-01
Chapter
Step 10
Repeat Step 7.
Step 11
Select New Configuration and click Next.
Figure 2-19
BIOS Config Utility Configuration Wizard
Step 12
Repeat Step 9.
Step 13
Select Manual Configuration to manually create drive groups and virtual drives.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
29
Chapter
Figure 2-20
Step 14
Select the required disks from left side and click Add To Array.
Figure 2-21
Step 15
BIOS Config Utility Configuration Wizard
Drive Group Definition Page
After adding the disks, Click Accept DG and click Next.
Cisco MDE 3125 Series Hardware Installation Guide
30
OL-31959-01
Chapter
Figure 2-22
Step 16
Click Add to SPAN and click Next.
Figure 2-23
Step 17
Drive Group Definition Page
Span Definition Page
Select Required RAID configuration from the drop-down list and click Update Size. For example, we
can select the RAID 0, 1, and 5.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
31
Chapter
Figure 2-24
Step 18
After updating the size, check the size to confirm the total capacity of the storage. Click Accept.
Figure 2-25
Step 19
Virtual Drive Definition Page
Virtual Drive Definition Page
After completion of RAID configuration, Click Yes and click Next in the RAID configuration page.
Cisco MDE 3125 Series Hardware Installation Guide
32
OL-31959-01
Chapter
Figure 2-26
Step 20
Click Accept to save the configuration.
Figure 2-27
Step 21
RAID BIOS Config Utility Confirm Page
Preview Page
Click Yes to save the RAID configuration.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
33
Chapter
Figure 2-28
Step 22
Click Yes to initialize the RAID configuration.
Figure 2-29
Step 23
RAID BIOS Config Utility Confirm Page
RAID BIOS Config Utility Confirm Page
Click Home.
Cisco MDE 3125 Series Hardware Installation Guide
34
OL-31959-01
Chapter
Figure 2-30
Step 24
Click Exit to exit from the RAID BIOS Config Utility.
Figure 2-31
Step 25
Virtual Drive Page
Virtual Configuration Page
Click Yes for exit confirmation.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
35
Chapter
Figure 2-32
Step 26
Before rebooting, follow the Steps 27 and 28.
Figure 2-33
Step 27
Exit Confirmation Page
Reset Page
Click the Virtual Media and Click Add Image to browse the image that needs to be installed.
Cisco MDE 3125 Series Hardware Installation Guide
36
OL-31959-01
Chapter
Figure 2-34
Step 28
KVM Console Page
Check the Check box to map the image.
Figure 2-35
KVM Console Page
Step 29
Reboot the box by repeating the Step 3.
Step 30
After the box comes UP, the KVM Console page appears. Press F6.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
37
Chapter
Figure 2-36
Step 31
Check the configured RAID from the logs.
Figure 2-37
Step 32
KVM Console Page
KVM Console Page
Select Cisco Virtual CD/DVD and press Enter.
Cisco MDE 3125 Series Hardware Installation Guide
38
OL-31959-01
Chapter
Figure 2-38
Step 33
KVM Console Page
Log in to the CLI console using CIMC credentials. Select option 9 and erase the flash by entering 'yes'.
Check whether model number is detected correctly.
Figure 2-39
CLI Console
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
39
Chapter
Step 34
After erasing the flash, check whether flash have manufactured successfully. Check if cookies are
installed successfully and the date. Select option 5 and install the image by selecting option 1. Enter ‘yes’
for writing the flash.
Figure 2-40
Step 35
CLI Console
Check whether the flash is written successfully and correct image is displayed. Select option 7 and press
Enter for installing .bin image. Enter 'yes' to wipe out all the disks. This will take time to install the .bin
image after wiping out all the disks.
Cisco MDE 3125 Series Hardware Installation Guide
40
OL-31959-01
Chapter
Figure 2-41
Step 36
CLI Console
After installing the .bin image, check whether the image is successfully installed and reboot the box.
Figure 2-42
CLI Console
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
41
Chapter
Step 37
After rebooting, the login prompt will appear. Use default credentials to log in to the device.
Figure 2-43
CLI Console
Where to Go Next
Proceed to Chapter 3, “Operating and Maintaining the Appliance.”
Cisco MDE 3125 Series Hardware Installation Guide
42
OL-31959-01
CH A P T E R
3
Operating and Maintaining the Appliance
This chapter describes how to power on and power off the appliance and how to install or replace
hardware components, and includes the following sections:
•
Powering On the Appliance, page 3-1
•
Shutting Down and Powering Off the Appliance, page 3-2
•
Installing or Replacing Components, page 3-3
•
Managing Spares, page 3-8
Powering On the Appliance
Step 1
Step 2
Verify power status by looking at the Power Status LED on the front panel (see Figure 1-5):
•
Off—The appliance is not receiving power. Check the power cord connections and the power source
of the facility.
•
Amber—The appliance is in standby power mode. Power is supplied only to the service processor
and some motherboard functions.
•
Solid green—The appliance is in main power mode. Power is supplied to all appliance components.
If the Power Status LED is blinking green, press and release the Power button to put the appliance in
main power mode.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
1
Chapter
Shutting Down and Powering Off the Appliance
Tip
If you have ordered an appliance with power supply redundancy (at least two power supplies), you do
not have to power off the appliance to replace a power supply because they are hot-pluggable. The
appliance hard drives are also hot-pluggable.
The appliance can run in two power modes:
•
Main power mode—Power is supplied to all appliance components and any operating system on
your hard drives can run.
•
Standby power mode—Power is supplied only to the service processor and the cooling fans. It is
safe to power off the appliance from this mode.
You can invoke a graceful shutdown or an emergency shutdown (hard shutdown) by using either of the
following methods:
•
Remote shut down using the CIMC management interface. See the Cisco Media Delivery Engine
Administration Guide for information about remotely powering down the appliance.
•
Pressing the Power button on the appliance front panel.
To use the Power button to shut down your system:
Step 1
Check the color of the Power Status LED (see the “Front Panel LEDs” section on page 1-5).
•
Green LED
•
Amber LED
Green LED
A green LED indicates that the appliance is in main power mode and must be shut down before it can be
safely powered off. Go to Step 2.
Step 2
Caution
Invoke either a graceful shutdown or a hard shutdown:
To avoid data loss or damage to your operating system, you should always invoke a graceful shutdown.
•
Graceful shutdown—Press and release the Power button. The operating system will perform a
graceful shutdown and the appliance goes to standby mode, which is indicated by an amber Power
Status LED.
•
Hard shutdown—Press and hold the Power button for 4 seconds to force the main power off and
immediately enter standby mode.
Amber LED
An amber LED indicates that the appliance is already in standby mode and can be safely powered off.
Disconnect the power cords from the power supplies in your appliance to completely power off the
appliance.
Cisco MDE 3125 Series Hardware Installation Guide
2
OL-31959-01
Chapter
Installing or Replacing Components
Warning
Only trained and qualified personnel must be allowed to install, replace, or service this equipment.
Statement 1030
Warning
This unit might have more than one power cord. To reduce the risk of electric shock, disconnect the
two power supply cords before servicing the unit. Statement 14
Caution
Tip
When handling appliance components, wear an ESD strap to avoid damage.
You can press the Locator button on the front panel to turn on a flashing Locator LED on the appliance
front and rear panels. This button allows you to locate the specific appliance that you are servicing when
you go to the rear of the rack. See the “Status LEDs” section on page 1-5 for locations of the LEDs.
Before You Begin
The following situations indicated that a Cisco ECDS disk needs to be replaced:
•
The disk has failed on the UCS.
•
SMART detection has indicated that disk failure is imminent but no LED indications are present, so
it is unclear which disk should be replaced.
In either case, the disk must be marked as “bad” prior to removing it. When a new disk is installed, you
must then mark it as “good” and reboot the device for the system to recognize the new disk.
Troubleshooting Tip
If your system reports a newly installed disk as “Not Used,” make sure you have marked the new disk
“good” with the CLI after installing it.
See the following sections to manage your system according to the number of slots/disks you are using:
•
Required Equipment, page 3-3
•
Supported Hard Drives, page 3-4
•
Managing the Cisco MDE 3125 with up to Eight Disks, page 3-4
Required Equipment
The following items are used to perform the procedures in this chapter:
•
Number 1 Phillips-head screwdriver
•
Number 2 Phillips-head screwdriver
•
Needle-nose pliers
•
Electrostatic discharge (ESD) strap or other grounding equipment such as a grounded mat.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
3
Chapter
Supported Hard Drives
Table 3-1 lists supported Cisco MDE 3100 Series appliance hard drives.
Table 3-1
Cisco MDE 3100 Series Hard Drives
Supported Drive
Part Number
Number of
Disks
ECDS Software Release
MDE-HDD-1TBSATA
2 to 8
CDNFS
Storage
Space
Cisco MDE 3125
1 TB SATA 7.2K RPM 2.5” HDD
2.6.1
2 Disks—
1860.8GB
3 Disks—
2791.2GB
4 Disks—
3721.6GB
8 Disks—
7443.2GB
1 TB SATA 7.2K RPM 2.5” HDD
(Spare)
MDE-HDD-1TBSATA=
—
2.6.1
—
500GB SATA 7.2K RPM 2.5” HDD
MDE-HD2GC3-500GB
2 to 8
2.5.3(S5)
2 Disks—
929.4 GB
MDE-HD2GC3-500GB=
2.5.5 and later releases
3 Disks—
1384.1 GB
4 Disks—
1858.8 GB
8 Disks—
3717.6GB
Cisco MDE 3100
500GB SATA 7.2K RPM 3.5” HDD
MDE-HDDSTA-500GB=
2
All up to 2.5.3(S4)
840.5 GB
4
2.5.5 and later releases
1772,0 GB
Managing the Cisco MDE 3125 with up to Eight Disks
With the LSI MegaRAID 9266-8i 8-port internal controller, the hard disks are smaller and the optical
(DVD/CD-ROM) drive is removed. The Cisco MDE 3125 supports two Gbps with 5000 concurrent
connections and can hold up to eight 2.5-inch hard drives or solid state drives.
The drive-bay numbering is shown in Figure 3-1.
Cisco MDE 3125 Series Hardware Installation Guide
4
OL-31959-01
Chapter
Drive Numbering, Small Form Factor
HDD4
HDD5
HDD1
HDD6
HDD2
HDD7
HDD3
HDD8
331695
Figure 3-1
Observe these drive population guidelines for optimum performance:
•
When populating drives, add drives to the lowest-numbered bays first.
•
Keep an empty drive blanking tray in any unused bays to ensure proper air flow.
•
You can mix hard drives and SSDs in the same server (the LFF version of the server does not support
SSDs). However, You cannot configure a logical volume (virtual drive) that contains a mix of hard
drives and SSDs. That is, when you create a logical volume, it must contain all hard drives or all
SSDs.
Installing or Replacing a Drive or Disk
•
Installing or Replacing Cisco MDE 3100 Disk Drives, page 3-5
•
Installing or Replacing Cisco MDE 3125 Disk Drives, page 3-6
Installing or Replacing Cisco MDE 3100 Disk Drives
Step 1
Mark any damaged disk “bad” by entering the following command:
#disk mark <disk name> bad
Step 2
Step 3
Step 4
Remove the hard drive that you are replacing or remove a blank panel from an empty bay (see
Figure 3-2):
a.
Press the release button to expose the ejector lever.
b.
Pull the ejector lever toward you, and then pull the hard drive sled from the drive bay.
c.
If you are replacing an existing hard drive, remove the hard drive from the sled by removing the four
screws from the bottom of the sled.
Install a new hard drive:
a.
Place the hard drive in the sled with the connectors facing the rear.
b.
Install the four securing screws on the bottom of the sled.
c.
With the ejector lever still open, push the sled into the drive bay until you feel the drive stop against
the backplane.
d.
Press the ejector lever flat until the lock clicks into place.
Mark the new disk “good” by entering the following command:
#disk mark <disk name> good
Step 5
Reboot the MDE device. The new disk will be configured during the boot-up process. If the disk replaced
is in slot 1 or slot 2, the system will take some extra time to complete the RAID re-configuration process
automatically. Use the show disks raid-state command to check RAID status.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
5
Chapter
Removing and Replacing Hard Drives and SSDs
195919
Figure 3-2
3
2
1
3
3
3
1
Release button
3
Securing screws (four on sides of sled)
2
Ejector lever
—
Installing or Replacing Cisco MDE 3125 Disk Drives
Tip
You do not have to shut down or power off the server to replace hard drives or solid state drives
(SSDs) because they are hot-pluggable.
To replace or install a hot-pluggable hard drive:
Step 1
Step 2
Remove the drive that you are replacing or remove a blank drive tray from the bay:
a.
Press the release button on the face of the drive tray. See Figure 3-2.
b.
Grasp and open the ejector lever and then pull the drive tray out of the slot.
c.
If you are replacing an existing drive, remove the four drive-tray screws that secure the drive to the
tray and then lift the drive out of the tray.
Install a new drive:
a.
Place a new drive in the empty drive tray and install the four drive-tray screws.
b.
With the ejector lever on the drive tray open, insert the drive tray into the empty drive bay.
c.
Push the tray into the slot until it touches the backplane, then close the ejector lever to lock the drive
in place.
Cisco MDE 3125 Series Hardware Installation Guide
6
OL-31959-01
Chapter
Replacing Hard Drives
1
HDD4
2
HDD1
HDD6
HDD5
HDD2
HDD7
HDD3
HDD8
331697
Figure 3-3
3
3
3
3
1
Ejector lever
2
Release button
3
Drive tray securing screws (4)
–
Managing Power Supplies
•
Supported Power Supplies, page 3-7
•
Installing Power Supplies, page 3-8
Supported Power Supplies
Table 3-2 lists supported Cisco MDE 3100 appliance power supplies. For more information about power
supplies, see Appendix A, “Technical Specifications.”
Table 3-2
Note
Supported Power Supplies
Supported Power Supplies
Part Number
650W AC Power Supply (R2X0-PSU2-650W)
MDE-650WPS=
Do not mix power supply types in the server.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
7
Chapter
Installing Power Supplies
Note
The Cisco MDE 3100 Series has redundant power supplies. You do not have to completely power off the
appliance to replace power supplies because they are hot-pluggable.
To replace a power supply:
Step 1
Remove a power supply or a blank panel from an empty bay:
a.
Do one of the following:
– If your appliance has only one power supply, shut down and power off the appliance as
described in the “Shutting Down and Powering Off the Appliance” section on page 3-2.
– If your appliance has two power supplies, shut down the appliance as described in the “Shutting
Down and Powering Off the Appliance” section on page 3-2.
Remove the power cord from the power supply that you are replacing.
c.
Push the release lever toward the center of the power supply and pull on the power supply handle to
disengage it from the backplane (see Figure 3-4).
d.
Remove the power supply from the bay.
Install a new power supply:
a.
Insert the new power supply into the bay and push it in until the release lever clicks and locks.
b.
Replace the power cord to the new power supply.
c.
Press the Power button to return the appliance to main power mode.
Figure 3-4
Removing and Replacing a Power Supply
PSU2
2
1
195920
Step 2
b.
PSU1
1
Power supply handle
2
Release lever
Managing Spares
A spare unit is intended to recover content on Cisco ECDS hard disks when the Cisco MDE unit itself
is damaged but the hard disks are ok.
Cisco MDE 3125 Series Hardware Installation Guide
8
OL-31959-01
Chapter
Before You Return the Damaged Unit
Before returning the damaged unit:
1.
Remove your good hard disks from the damaged box and label them with the disk slot number shown
on the front panel of the Cisco MDE.
2.
Make a note of the Cisco ECDS software version that you are running on the damaged unit so that
you order the correct software version for your replacement unit.
After You Receive Your New Unit
When you receive your new box, verify the following on the newly shipped unit:
1.
Use the show device mode current command to verify that the device mode is “Service Engine”
(SE).
2.
Use the show version command to verify that the Cisco ECDS software version is the same as your
previous version.
3.
Insert the preserved hard disks into the corresponding slots of the spare unit.
Procedure
To replicate your CIMC settings, including networking and boot order, power on the Cisco MDE to
initiate bootup and then do the following in the Cisco Integrated Management Controller administration
interface:
Step 1
In the left navigation pane, choose the Server tab and click Remote Presence (Figure 5).
Step 2
Choose the Serial-over-LAN tab and click Enabled in the Serial over LAN Properties box.
Step 3
Choose 9600bps from the Baud Rate drop-down menu.
Step 4
Click Save Changes.
Figure 5
Manage Remote Presence Settings
Step 5
In the left navigation pane, click BIOS (Figure 6).
Step 6
In the BIOS Actions box, click Configure BIOS and choose the Advanced tab. The Configure BIOS
Parameters page is displayed.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
9
Chapter
Step 7
Scroll down to the Serial Configuration box and do the following:
a.
Set Console Redirection to Disabled from the drop-down menu.
b.
Set the Terminal Type to PC-ANSI from the drop-down menu.
c.
Click Save Changes.
Figure 6
Configure BIOS Parameters
Step 8
In the left navigation pane, click Power Policies (Figure 7).
Step 9
In the Power Policies Power Restore Policy box choose Power-On from the drop-down menu. Leave
the default settings in the Power Delay Type and Power Delay Value fields.
Cisco MDE 3125 Series Hardware Installation Guide
10
OL-31959-01
Chapter
Figure 7
Manage Power Policies
Step 10
In the left navigation pane, click Remote Presence (Figure 8).
Step 11
In the Remote Presence Actions box, click Launch KVM Console. Accept the security prompts to
launch the console.
Figure 8
Launch the KVM Console
Step 12
In the left navigation pane, click Summary (Figure 9).
Step 13
In the Server Summary Actions box, click Power Cycle Server and click OK.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
11
Chapter
Figure 9
Step 14
Power Cycle the Server
Log on to the Cisco MDE using the CIMC connect host command. The following message is displayed:
The software component on your flash device appears
to be different from what should be installed
Step 15
Enter the show disk details command to make sure all hard disk drives (HDDs) are operational and that
the Cisco Content Delivery Network file system (CDNFS) size is correct. See also the “Disk Detail
Examples” section on page 3-13.
Step 16
Enter the show hardware command to make sure the RAM size is correct and to verify that the Serial
Number matches the number in the CIMC.
Step 17
Restore your original configuration by manually retyping the saved configuration line by line or run the
setup program, which assists with initial configuration.
Step 18
Verify the current running configuration by using the show running-config command.
CDM# show running-config
Step 19
To sync the operating system (OS) with the USB, use the copy http install command to install upgrade
.bin software:
a.
Obtain the Cisco ECDS software upgrade .bin file (for example, ECDS-X.x.x.x-K9.bin)
b.
Copy this file onto an HTTP server that can be reached from the Cisco ECDS.
c.
Install .bin software using the following command:
copy http install <server-ip> <remote_file_dir> ECDS-X.x.x.x-K9.bin [port]
d.
Tip
Reload using the reload command.
After the reload, you should no longer receive the “...software component on your flash device
appears to be different from what should be installed” message.
Cisco MDE 3125 Series Hardware Installation Guide
12
OL-31959-01
Chapter
Step 20
(Optional) Verify that your expected contents exist on the new unit and that the system receives
distribution of new contents.
For more information about using the CIMC to remotely manage your Cisco MDE hardware, see the
Cisco Media Delivery Engine Administration Guide on Cisco.com.
Disk Detail Examples
Example 3-1
MDE 3125 Disk Detail
MDE-3125# show disk detail
disk00: Normal (h03 c02 i03 l00 - megaraid_sas) 475878MB(464.7GB)
disk00/04: SYSFS 32765MB( 32.0GB) mounted at /local1
disk00/05: CDNFS 429291MB(419.2GB) mounted internally
System use: 13821MB( 13.5GB)
FREE: 0MB( 0.0GB)
disk01: Normal (h03 c02 i02 l00 - megaraid_sas) 475878MB(464.7GB)
disk01/04: SYSFS 32765MB( 32.0GB) mounted at /local1
disk01/05: CDNFS 429291MB(419.2GB) mounted internally
System use: 13821MB( 13.5GB)
FREE: 0MB( 0.0GB)
disk02: Normal (h03 c02 i01 l00 - megaraid_sas) 475878MB(464.7GB)
disk02/01: CDNFS 475870MB(464.7GB) mounted internally
System use: 7MB( 0.0GB)
FREE: 0MB( 0.0GB)
disk03: Normal (h03 c02 i00 l00 - megaraid_sas) 475878MB(464.7GB)
disk03/01: CDNFS 475870MB(464.7GB) mounted internally
System use: 7MB( 0.0GB)
FREE: 0MB( 0.0GB)
disk04: Normal (h03 c02 i07 l00 - megaraid_sas) 475878MB(464.7GB)
disk04/01: CDNFS 475870MB(464.7GB) mounted internally
System use: 7MB( 0.0GB)
FREE: 0MB( 0.0GB)
disk05: Normal (h03 c02 i06 l00 - megaraid_sas) 475878MB(464.7GB)
disk05/01: CDNFS 475870MB(464.7GB) mounted internally
System use: 7MB( 0.0GB)
FREE: 0MB( 0.0GB)
disk06: Normal (h03 c02 i05 l00 - megaraid_sas) 475878MB(464.7GB)
disk06/01: CDNFS 475870MB(464.7GB) mounted internally
System use: 7MB( 0.0GB)
FREE: 0MB( 0.0GB)
disk07: Normal (h03 c02 i04 l00 - megaraid_sas) 475878MB(464.7GB)
disk07/01: CDNFS 475870MB(464.7GB) mounted internally
System use: 7MB( 0.0GB)
FREE: 0MB( 0.0GB)
Disk hot plugin is not supported. When a disk is taken out or damaged, the show alarm, show disk
raid-state, and show disk detail CLI report the missing or damaged disk. The platform does not recover
a disk when it is reinserted. In general good disks are only “reusable” after reload.
The following example shows CLI captures when disk01 is pulled out after proper bring up.
Example 3-2
Damaged or Missing Disk Detail
3125# show alarm
Critical Alarms:
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
13
Chapter
---------------None
Major Alarms:
------------None
Minor Alarms:
------------Alarm ID Module/Submodule Instance
-------------------- -------------------- ------------------------1 SoftRAID_Event sysmon md02
2 SoftRAID_Event sysmon md05
3125# # show disk raid
SYSFS : RAID-1
Status: Degraded
Partitions: disk00/04
NO-HOSTNAME# show disk
SYSFS 32.0GB 1.0%
CDNFS 3207.5GB 99.0%
NO-HOSTNAME#show disk detail
disk00: Normal (h02 c02 i03 l00 - megaraid_sas) 475878MB(464.7GB)
disk00/04: SYSFS 32765MB( 32.0GB) mounted at /local1
disk00/05: CDNFS 429291MB(419.2GB) mounted internally
System use: 13821MB( 13.5GB)
FREE: 0MB( 0.0GB)
disk01: Not present or not responding
Cisco MDE 3125 Series Hardware Installation Guide
14
OL-31959-01
A P P E N D I X
A
Technical Specifications
The following sections list the technical specifications for the Cisco MDE 3100 Series appliance:
Note
•
Cisco MDE 3100 Specifications, page A-1
•
Cisco MDE 3125 Specifications, page A-3
Specifications for cables and connectors are provided in Appendix B, “Cable and Power Cord
Specifications.”
Cisco MDE 3100 Specifications
•
Physical Specifications, page A-1
•
Environmental Specifications, page A-2
•
Power Specifications, page A-2
Physical Specifications
Table A-1 lists the physical specifications for the appliance.
Table A-1
Physical Specifications
Description
Specification
Height
3.45 in. (8.75 cm)
Width
17.39 in. (44.16 cm)
Depth
28.35 in. (72.00 cm)
Weight (loaded chassis)
50.70 lbs (23.00 kg)
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
1
Appendix
Environmental Specifications
Table A-2 lists the environmental specifications for the appliance.
Table A-2
Environmental Specifications
Description
Specification
Temperature, operating:
Derate 1°C for every 1000 ft (304 m) up to a
maximum altitude of 10,000 ft (3048 m).
50 to 95°F (10 to 35°C)
Temperature, nonoperating
within altitude: 0 to 40,000 feet (0 to 12,000
meters)
–40 to 149°F (–40 to 65°C)
Humidity (RH), noncondensing
5 to 93%
Altitude
0 to 10000 feet
Sound power level
65.5 dBA
Measure A-weighted per ISO7779 LwAd (dBA)
Operation at 73°F (23°C)
6.8 Bels
Sound power level
Measure A-weighted per ISO7779 LwAd (Bels)
Operation at 73°F (23°C)
Power Specifications
Table A-3 lists the specifications for each power supply (Cisco part number R2X0-PSU2-650W).
Table A-3
Power Supply Specifications
Description
Specification
AC-input voltage
115 to 230 VAC nominal
(Range: 90 to 264 VAC)
AC-input frequency
50 to 60 Hz nominal
(Range: 47 to 63 Hz)
Maximum AC-input current
10 Amps
Maximum output power for each power
supply
650 W (up to two power supplies can be installed)
Power supply output voltage
Main power: 12 VDC
Standby power: 5 VDC
Cisco MDE 3125 Series Hardware Installation Guide
2
OL-31959-01
Appendix
Cisco MDE 3125 Specifications
•
Physical Specifications, page A-3
•
Environmental Specifications, page A-3
•
650W Power Supply Specifications, page A-4
Physical Specifications
Table A-1 lists the physical specifications for the server.
Table A-4
Physical Specifications
Description
Specification
Height
1.7 in. (4.3 cm)
Width
16.9 in. (42.9 cm)
Depth
28.5 in. (72.4 cm)
Weight (fully loaded chassis)
35.6 lb. (16.1 Kg)
Environmental Specifications
Table A-2 lists the environmental specifications for the server.
Table A-5
Environmental Specifications
Description
Specification
Temperature, operating:
41 to 104°F (5 to 40°C)
Derate the maximum temperature by 1°C per every
305 meters of altitude above sea level.
Temperature, non-operating
–40 to 149°F (–40 to 65°C)
Humidity (RH), noncondensing
10 to 90%
Altitude, operating
0 to 10,000 feet
Altitude, non-operating
0 to 40,000 feet
Sound power level
5.4
Measure A-weighted per ISO7779 LwAd (Bels)
Operation at 73°F (23°C)
Sound pressure level
37
Measure A-weighted per ISO7779 LpAm (dBA)
Operation at 73°F (23°C)
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
3
Appendix
650W Power Supply Specifications
Tip
Obtain more specific power information for your exact server configuration by using the Cisco UCS
Power Calculator:
http://www.cisco.com/assets/cdc_content_elements/flash/dataCenter/cisco_ucs_power_calculator/
Note
Only the 650W power supply option is supported in this release. Do not mix power supply types in the
server. Some systems use 450W power supply options. All power supplies must be 650W.
Table A-3 lists the specifications for each 650W power supply (Cisco part number UCSC-PSU-650W).
Table A-6
Power Supply Specifications
Description
Specification
AC input voltage range
90 to 264 VAC (self-ranging, 180 to 264 VAC nominal)
AC input frequency
Range: 47 to 63 Hz (single phase, 50 to 60Hz nominal)
AC line input current (steady state)
7.6 A peak at 100 VAC
3.65 A peak at 208 VAC
Maximum output power for each power
supply
650 W
Power supply output voltage
Main power: 12 VDC
Standby power: 12 VDC
Cisco MDE 3125 Series Hardware Installation Guide
4
OL-31959-01
A P P E N D I X
B
Cable and Power Cord Specifications
This appendix provides cabling and port specifications for control devices and power connections and
includes the following sections:
•
KVM Cable, page B-1
•
Supported Power Cords and Plugs, page B-2
•
AC Power Cord Illustrations, page B-3
KVM Cable
The KVM cable provides a connection into the appliance, providing a DB9 serial connector, a VGA
connector for a monitor, and dual USB ports for a keyboard and mouse. With this cable, you can create
a direct connection to the operating system and the BIOS running on the appliance.
Table B-1 lists supported components.
Table B-1
Supported Components
Supported Components
Part Number
KVM cable
37-1016-01
Figure B-1
KVM Cable
4
2
3
192621
1
1
Connector to appliance
2
DB9 serial connector
3
VGA connection for a monitor
4
2-port USB connector for a mouse and keyboard
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
1
Appendix
Supported Power Cords and Plugs
Each power supply has a separate power cord. Standard power cords or jumper power cords are available
for connection to a power distribution unit that has IEC 60320 C19 outlet receptacles. The jumper power
cords, for use in racks, are available as an optional alternative to the standard power cords. For more
information, contact Cisco technical support.
The standard power cords have an IEC C19 connector on the end that plugs into the Power Distribution
Unit (PDU), which is located in the bottom slot at the rear of the chassis. The optional jumper power
cords have an IEC C19 connector on the end that plugs into the chassis’ PDU and an IEC C20 connector
on the end that plugs into an IEC C19 outlet receptacle.
Note
Only the approved power cords or jumper power cords provided with the appliance are supported.
Table B-2 lists the power cords for the appliance power supplies.
Table B-2
Power Cords for the Appliance
Length
Cable Type
Part Number
Description
Comment
CAB-N5K6A-NA
37-0910-01
N5000 AC Power Cable, 6A, 250V
North America
Feet
Meters
8.2
2.5
6.6
2.0
Figure B-12
CAB-AC-250V/13A
37-0104-01
N5000 AC Power Cable, 13A, 250V
North America
Figure B-11
CAB-9K12A-NA
CAB-C13-C14-JMPR
72-0770-01
72-4128-01
N5000 Power Cord, 125VAC 15A
NEMA 5-15 Plug
North America
8.2
2.5
N5000 AC Power Cable, 6A, 250V
Power strip style 2.2
0.7
Figure B-13
Figure B-14
SFS-250V-10A-AR
37-0095-01
N5000 AC Power Cable, 10A, 250V
Argentina
8.2
2.5
8.2
2.5
8.2
2.5
8.2
2.5
8.2
2.5
8.2
2.5
8.2
2.5
Figure B-2
CAB-9K10A-AU
72-0774-01
N5000 AC Power Cable, 10A, 250V
Australia
Figure B-3
SFS-250V-10A-CN
37-0343-01
N5000 AC Power Cable, 10A, 250V
China
Figure B-4
CAB-9K10A-EU
72-0771-01
N5000 AC Power Cable, 10A, 250V
Europe
Figure B-5
SFS-250V-10A-ID
37-0863-01
N5000 AC Power Cable, 10A, 250V
India
Figure B-6
SFS-250V-10A-IS
37-0344-01
N5000 AC Power Cable, 10A, 250V
Israel
Figure B-7
CAB-9K10A-IT
72-0772-01
N5000 AC Power Cable, 10A, 250V
Italy
Figure B-8
Cisco MDE 3125 Series Hardware Installation Guide
2
OL-31959-01
Appendix
Table B-2
Power Cords for the Appliance (Continued)
Length
Cable Type
Part Number
Description
Comment
CAB-9K10A-SW
37-0727-01
N5000 AC Power Cable, 10A, 250V
Switzerland
Feet
Meters
8.2
2.5
United Kingdom 8.2
2.5
Figure B-9
CAB-9K10A-UK
72-0773-01
N5000 AC Power Cable, 10A, 250V
Figure B-10
AC Power Cord Illustrations
This section includes the AC power cord illustrations. See Figure B-2 through Figure B-14.
Figure B-2
SFS-250V-10A-AR
2500 mm
Cordset rating: 10 A, 250/500 V MAX
Length: 8.2 ft
Plug:
EL 219
(IRAM 2073)
Figure B-3
186571
Connector:
EL 701
(IEC60320/C13)
CAB-9K10A-AU
Plug:
EL 206
A.S. 3112-2000)
Connector:
EL 701C
(IEC 60320/C15)
186581
Cordset rating: 10 A, 250 V/500V
Length: 2500mm
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
3
Appendix
SFS-250V-10A-CN
Plug:
EL 218
(CCEE GB2009)
Cordset rating 10A, 250V
(2500 mm)
Connector:
EL 701
(IEC60320/C13)
CAB-9K10A-EU
Plug:
M2511
Cordset rating: 10A/16 A, 250 V
Length: 8 ft 2 in. (2.5 m)
Connector:
VSCC15
Figure B-6
186576
Figure B-5
186573
Figure B-4
SFS-250V-10A-ID
OVE
Plug:
EL 208
Cordset rating 16A, 250V
(2500mm)
187490
Connector:
EL 701
Cisco MDE 3125 Series Hardware Installation Guide
4
OL-31959-01
Appendix
Figure B-7
SFS-250V-10A-IS
EL-212
16A
250V
Cordset rating 10A, 250V/500V MAX
(2500 mm)
Connector:
EL 701B
(IEC60320/C13)
Figure B-8
186574
Plug:
EL 212
(SI-32)
CAB-9K10A-IT
Connector
C15M
(EN60320/C15 )
186575
Plug:
I/3G
(CEI 23-16)
Cordset rating: 10 A, 250 V
Length: 8 ft 2 in. (2.5 m)
Figure B-9
CAB-9K10A-SW
Connector:
IEC 60320 C15
186578
Plug:
MP232-R
Cordset rating: 10 A, 250 V
Length: 8 ft. 2 in (2.5 m)
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
5
Appendix
Figure B-10
CAB-9K10A-UK
Plug:
EL 210
(BS 1363A) 13 AMP fuse
Figure B-11
Connector:
EL 701C
(EN 60320/C15)
186580
Cordset rating: 10 A, 250 V/500 V MAX
Length: 2500mm
CAB-AC-250V/13A
Connector:
EL 701
(IEC60320/C13)
Plug:
EL312MoldedTwistlock
(NEMA L6-20)
CAB-N5K6A-NA
Plug: NEMA 6-15P
Cordset rating: 10 A, 250 V
Length: 8.2 ft
Connector:
IEC60320/C13
186570
Figure B-12
186568
Cordset rating 13A, 250V
(6.6 feet) (79±2m)
Cisco MDE 3125 Series Hardware Installation Guide
6
OL-31959-01
Appendix
Figure B-13
CAB-9K12A-NA
Connector:
IEC60320/C15
Plug:
NEMA 5-15P
Figure B-14
192260
Cordset rating 13A, 125V
(8.2 feet) (2.5m)
CAB-C13-C14-JMPR, Jumper Power Cord
Plug:
SS10A
Connector:
HS10S
186569
Cordset rating 10A, 250V
(686mm)
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
7
Appendix
Cisco MDE 3125 Series Hardware Installation Guide
8
OL-31959-01
GLOSSARY
A
AAA
authentication, authorization, and accounting
ACL
access control list
ACPI
Advanced Configuration and Power Interface
API
application program interface
ARP
Address Resolution Protocol
AS
Autonomous System
AUP
acceptable use policy
B
BA
Behavior Aggregate
BGP
Border Gateway Protocol
BIOS
basic input/output system
C
CAR
Committed Access Rate
CD
Carrier Detect
CDNFS
CDS network file system; also pre-positioned file system
CDS
Content Delivery System
CDSM
Content Delivery System Manager
CIFS
Common Internet File System. A video standard that provides 352x288 pixels, or picture elements, of
video resolution.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
GL-1
Glossary
CIMC
Cisco Integrated Management Controller. CIMC is a separate management module that is built into the
appliance Cisco MDE appliance. It has its own network configuration and processor, which runs the
CIMC software separately from the ECDS software. This allows you to access and monitor the
appliance even when the ECDS software is not running. You can access CIMC through a web-based or
command-line interface (CLI). Use the CIMC to remotely control and manage your MDE appliance.
CLF
Common Log format
CLI
command-line interface
CLNS
Connectionless Network Service
CMA
cable management arm.
CMS
Centralized Management System
CoS
class of service
CSNP
Complete Sequence Number PDU
CSS
Content Services Switch
CTE
chunked transfer encoding
D
DC
domain controller
DHCP
Dynamic Host Configuration Protocol. DHCP is a network application protocol used by devices
(DHCP clients) to obtain configuration information for operation in an Internet Protocol network. This
protocol reduces system administration workload, allowing devices to be added to the network with
little or no manual intervention.
DHT
distributed hash table
DMP
Digital Media Player. DMPs are highly-reliable, IP-based endpoints that can play high-definition live
and on-demand video, motion graphics, web pages, and dynamic content on digital displays, usually
an LCD Professional Series display or any other directly attached television screen, monitor, or
projector (analog or digital, standard-definition or high-definition) that shows media to an audience.
There is an extra input connector for the Digital Media Player (DMP) on your Cisco TelePresence
device. See the Cisco Digital Media Players home page on Cisco.com.
DNS
Domain Name System. System used on the Internet for translating names of network nodes into
addresses.
DSCP
differentiated services code point. A field in the header of IP packets for packet classification purposes.
DSCP for TelePresence Calls field description: This parameter specifies the DSCP value for
Cisco TelePresence calls. This parameter is set to the default value unless a Cisco support engineer
instructs otherwise. This is a required field, if present on your system. Default: CS4(precedence 4)
DSCP (100000) and is selectable per device.
Cisco MDE 3125 Series Hardware Installation Guide
GL-2
OL-31959-01
Glossary
DSL
Digital Subscriber Line
DVI
DVI cables are used for direct digital connections between source video (namely, video cards) and LCD
monitors.
E
ECDSM
Cisco ECDS Manager administration GUI. for configuring and maintaining the Cisco MDE appliance.
ECN
Explicit Congestion Notification
EBGP
External Border Gateway Protocol
EIM
employee Internet management
ESIS
End System to Intermediate System
EULA
end user license agreement
EWS
Exchange Web Services. Managed API that provides an intuitive interface for developing client
applications that use Exchange Web Services. The EWS Managed API provides unified access to
Microsoft Exchange Server resources, while using Microsoft Office Outlook–compatible business
logic. The EWS Managed API communicates with the Exchange Client Access server by means of
EWS SOAP messages.
extranet
An extranet is a private network that uses Internet protocols and network connectivity. An extranet can
be viewed as part of a company's intranet that is extended to users outside the company, usually via the
Internet. It has also been described as a “state of mind” in which the Internet is perceived as a way to
do business with a selected set of other companies (business-to-business, B2B), in isolation from all
other Internet users. In contrast, business-to-consumer (B2C) models involve known servers of one or
more companies, communicating with previously unknown consumer users.
An extranet can be understood as an intranet mapped onto the public Internet or some other
transmission system not accessible to the general public, but managed by more than one company's
administrator(s). For example, military networks of different security levels may map onto a common
military radio transmission system that never connects to the Internet. Any private network mapped
onto a public one is a virtual private network (VPN), often using special security protocols.
F
FEC
forward error correction
FQDN
fully qualified domain name
FTP
File Transfer Protocol
full duplex mode
Transmission of data in two directions simultaneously.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
GL-3
Glossary
G
GMT
Greenwich Mean Time
GRE
generic routing encapsulation
GUI
graphical user interface
gzip
GNU zip. Software application used for file compression.
H
half duplex mode
Transmission of data in one direction at a time.
HD
High definition display.
HDMI
Document camera input and cable.
HTTP
Hypertext Transfer Protocol
HTTPS
Hypertext Transfer Protocol over Secure Socket Layer
I
IANA
Internet Assigned Numbers Authority
ICP
Internet Cache Protocol
ICAP
Internet Content Adaptation Protocol
ICMP
Internet Control Message Protocol
IDE
Integrated Drive Electronics
IDR
An IDR frame is a special kind of I frame used in MPEG-4 AVC encoding. IDR frames can be used to
create Advanced Video Coding (AVC) streams, which can be easily edited.
IFP
Internet Filtering Protocol
IIPC
Inter-process procedure
IPV6
Internet Protocol Version 6
IIS
Internet Information Services or Internet Information Server (Microsoft)
IMS
if-modified-since
IS-IS
Intermediate System-to-Intermediate System
ISO-IGRP
Intermediate System-to-Intermediate System Interior Gateway Routing Protocol
Cisco MDE 3125 Series Hardware Installation Guide
GL-4
OL-31959-01
Glossary
K
KVM
Keyboard, video, mouse.
L
LCD
Liquid crystal display. The LCD display is an accessory for the Cisco Digital Media Player (DMP) for
use in your digital signage network or your enterprise TV network. It is used for displaying video,
images, or computer data during a Cisco TelePresence meeting. See the Cisco LCD Professional Series
Displays home page on Cisco.com for more information.
See also DMP.
LCM
local/central management
LDAP
Lightweight Directory Access Protocol
LED
Light-emitting diode. Provides power, status, and troubleshooting information for the Cisco MDE
hardware.
LRU
least-recently-used
LSA
Link-state advertisement
LSDB
Link-state packet database
LSP
Link-state packet
LTRP
Long Term Reference Picture.
M
MAC
Media Access Control. A hardware address that uniquely identifies each node of a network.
MDE
Cisco Media Delivery Engine. The Cisco MDE appliance is a part of the Cisco Enterprise Content
Distribution System (ECDS).
MIB
Management Information Base
MOTD
message-of-the-day
MPLS
Multiprotocol Label Switching
MSFC
Multilayer Switch Feature Card
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
GL-5
Glossary
MTU
maximum transmission unit
MXE
Media eXperience Engine. The Cisco Media Experience Engine is a modular media processing system
that provides interoperability between Cisco TelePresence and video conferencing devices, extending
the reach of collaboration and communication within organizations. MXE provides 720p
interoperability with video conferencing.
N
NACK
negative acknowledgement
NAS
network attached storage; network access server
NAT
Network Address Translation
NET
Network Entity Title
NFS
Network File System
NIC
Network Information Center. Changing NIC mode or redundancy settings may cause severe
performance degradation.
NNTP
Network News Transport Protocol
NSAP
network service access point
NSSA
not-so-stubby-area
NTP
Network Time Protocol
NTSC
National Television Systems Committee
NVRAM
nonvolatile random-access memory
O
OSPF
Open Shortest Path First
P
PAC
proxy autoconfiguration
PAL
Phase Alternating Line
PAWS
Protection Against Wrapped Sequence
PBR
policy-based routing
PDC
primary domain controller
Cisco MDE 3125 Series Hardware Installation Guide
GL-6
OL-31959-01
Glossary
PEM
Privacy Enhanced Mail
PFC
Policy Feature Card
PGM
Pragmatic General Multicast
PHB
Per Hop Behavior
PID
process identifier
PKCS
Public Key Cryptography Standards
PPP
Point-to-Point Protocol
Q
QoS
Quality of Service
R
RADIUS
Remote Authentication Dial-In User Service
RBCP
Router Blade Configuration Protocol
RCP
Remote Copy Program
REA
remote execution agent
RIB
Routing Information Base
RPC
remote procedure call
RRM
Received Routing Message
RSA
Rivest, Shamir, Adelman
RSPF
OSPF reverse shortest path first
RSVP
Resource Reservation Protocol
RTP
Real-Time Transport Protocol
RTSP
Real-Time Streaming Protocol
S
SAN
Storage Area Network
SASL
Secure Authentication and Security Layer
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
GL-7
Glossary
SATA
Serial Advanced Technology Attachment
SCSI
Small Computer Systems Interface
SDP
Session Description Protocol
SE
Service Engine
SE-NM
Service Engine Network Module
SFTP
Secure File Transfer Protocol
SLA
service level agreement
SLIP
Serial Line Internet Protocol
SMART
Self Monitoring, Analysis, and Reporting Technology
SMB
Server Message Blocks (protocol)
SMTP
Simple Mail Transfer Protocol
SNMP
Simple Network Management Protocol. Network management protocol used almost exclusively in
TCP/IP networks as a means to monitor and control network devices, and to manage configurations,
statistics collection, performance, and security.
SOAP
Simple Object Access Protocol. XML-based protocol to let applications exchange information over
HTTP.
SPE
Synchronous Payload Envelope
SPF
Shortest Path First
SR
Service Router
SRAM
static random-access memory
SRHP
service routing host packet
SRM
Send Routing Message
SRP
Service Routing Protocol
SSCD
System Status Collection Daemon. The daemon gathers statistics about the system it is running on and
stores this information. Those statistics can then be used to find current performance bottlenecks
(performance analysis, for example) and predict future system load (capacity planning, for example).
SSH
Secure Shell
SSL
Secure Sockets Layer
SSN
Send Sequence Number
swfs
software file system
sysfs
system file system
Cisco MDE 3125 Series Hardware Installation Guide
GL-8
OL-31959-01
Glossary
syslog
System logging (syslog). Debugging logs that are collected from your system and used by Cisco
technical response to diagnose and resolve issues. These messages are not ordinarily seen by the user.
sysop
System Operation (sysop) Logs. Sysop messages describe system activity. Some messages can help you
identify and resolve system operation problems. These messages are available to the user from the
administration interface (GUI). See the “Managing Log Files” section of the troubleshooting chapter
for your CTS device.
T
TAC
Technical Assistance Center
TACACS+
Terminal Access Controller Access Control System Plus
TCP/IP
Transmission Control Protocol/Internet Protocol
TFTP
Trivial File Transfer Protocol. Simplified version of FTP that allows files to be transferred from one
computer to another over a network, usually without the use of client authentication (for example,
username and password).
ToS
Type of Service
TPS
transactions per second
TTL
Time-to-Live
U
UDI
unique device identifier
UDP
User Datagram Protocol
UNC
uniform naming convention
UNS
unified name space
UPS
Uninterruptible power supply that protects against power failures.
USB
Universal series bus. Port and cable.
UTC
Coordinated Universal Time
V
VBR
variable bit rate
VGA
Video graphics array. Port and cable.
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
GL-9
Glossary
virtual machine
A virtual machine (VM) is a software implementation of a machine (a computer, for example) that
executes programs like a physical machine does. A system virtual machine provides a complete system
platform which supports the execution of a complete operating system (OS).
VMware
VMware software provides a completely virtualized set of hardware to the guest operating system.
VMware software virtualizes the hardware for a video adapter, a network adapter, and hard disk
adapters. The host provides pass-through drivers for guest USB, serial, and parallel devices. In this way,
VMware virtual machines become highly portable between computers, because every host looks nearly
identical to the guest. In practice, a system administrator can pause operations on a virtual machine
guest, move or copy that guest to another physical computer, and there resume execution exactly at the
point of suspension. Alternately, for enterprise servers, a feature called VMotion allows the migration
of operational guest virtual machines between similar but separate hardware hosts sharing the same
storage. Each of these transitions is completely transparent to any users on the virtual machine at the
time it is being migrated.
VOD
video on demand
W
W3C
World Wide Web Consortium
WFQ
Weighted Fair Queueing
WMS 9
Windows Media Services 9 Series
WMT
Windows Media Technologies
WRED
Weighted Random Early Detection
X
XML
Extensible Markup Language
Cisco MDE 3125 Series Hardware Installation Guide
GL-10
OL-31959-01
INDEX
A
F
audience of book
features
i-vii
front panel
1-3
overview of hardware
B
rear panel
beeps for USB devices
1-4
firmware
2-19
updating CIMC
BIOS
using the setup utility
book organization
1-1
2-22
front panel
2-23
LEDs
i-vii
1-10
front panel, features
front panel LEDs
1-3
1-5
C
cable management arm installation
CIMC firmware, updating
2-6, 2-18
G
2-22
graceful shutdown
commands
disk mark
3-2
guidelines for site planning
3-5
show disks raid-state
conventions used in book
3-5
i-viii
H
hard drives, replacing
D
3-4
hardware features overview
default password
2-10
default username
2-10
DHCP, enabling
disk failure
1-1, 1-9
I
2-20
disk error
not used
2-3
initial power-on and setup (standalone)
2-19
installation
3-3
cable management arm
3-3
guidelines
2-6, 2-18
2-3
initial power-on and setup (standalone)
E
IP settings
emergency shutdown
NIC modes
3-2
environmental specifications
A-2, A-3
2-19
2-20
2-20
NIC redundancy
2-20
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
IN-1
Index
power cables
2-8, 2-19
O
preparing for installation
rack installation
2-3, 2-14
organization of book
2-16
rack requirements
2-4, 2-15
required equipment
2-4, 2-15
site preparation guidelines
slide rails
i-vii
2-14
P
packing list
2-5, 2-16
unpacking and inspection
IP settings, DHCP or static
2-2, 2-14
2-14
password
default
2-20
2-10
physical specifications
A-1, A-3
power
K
connecting power cords
KVM cable
emergency shutdown
B-1
L
LEDs
front panel
rear panel
1-5, 1-10
1-6, 1-12
M
3-2
main power mode
3-2
3-2
powering on
2-8
power status LED location
1-5, 1-10
power supply replacement
3-7
shutting down
3-2
specifications
A-2, A-4
standby power mode
main power mode
3-2
graceful shutdown
powering off
2-8, 2-19
3-2
supported power cords
3-2
B-2
power cords
maintenance
hard drives
jumper power cord (figure)
3-4
power supplies
shutting down
supported power cords (figure)
3-7
required equipment
3-3
3-2
MDE 1125 features
overview of hardware
motherboard beeps
B-7
1-9
2-19
power cords supported
powering off
3-2
powering on
2-8
power plugs
B-3
B-3
B-2
power supplies, replacing
3-7
preparing for server installation
2-14
N
R
NIC modes
2-21
NIC modes, setting
NIC redundancy
2-20
2-20, 2-21
rack installation
2-5, 2-16
rack requirements
2-4, 2-15
rear panel, features
rear panel LEDs
1-4
1-6, 1-12
Cisco MDE 3125 Series Hardware Installation Guide
IN-2
OL-31959-01
Index
related documentation
i-viii, i-xiii
required equipment
installation
2-4, 2-15
maintenance
3-3
S
setting NIC modes
2-20
setting NIC redundancy
shutting down
2-20
3-2
site planning guidelines
2-3
site preparation guidelines
slide rail installation
2-14
2-5, 2-16
specifications
environmental
physical
power
A-2, A-3
A-1, A-3
A-2, A-4
standby power mode
static IP, setting
3-2
2-20
U
UCS documentation
i-viii, i-xiii
unpacking the server
2-2, 2-14
username, default
2-10
Cisco MDE 3125 Series Hardware Installation Guide
OL-31959-01
IN-3
Index
Cisco MDE 3125 Series Hardware Installation Guide
IN-4
OL-31959-01
