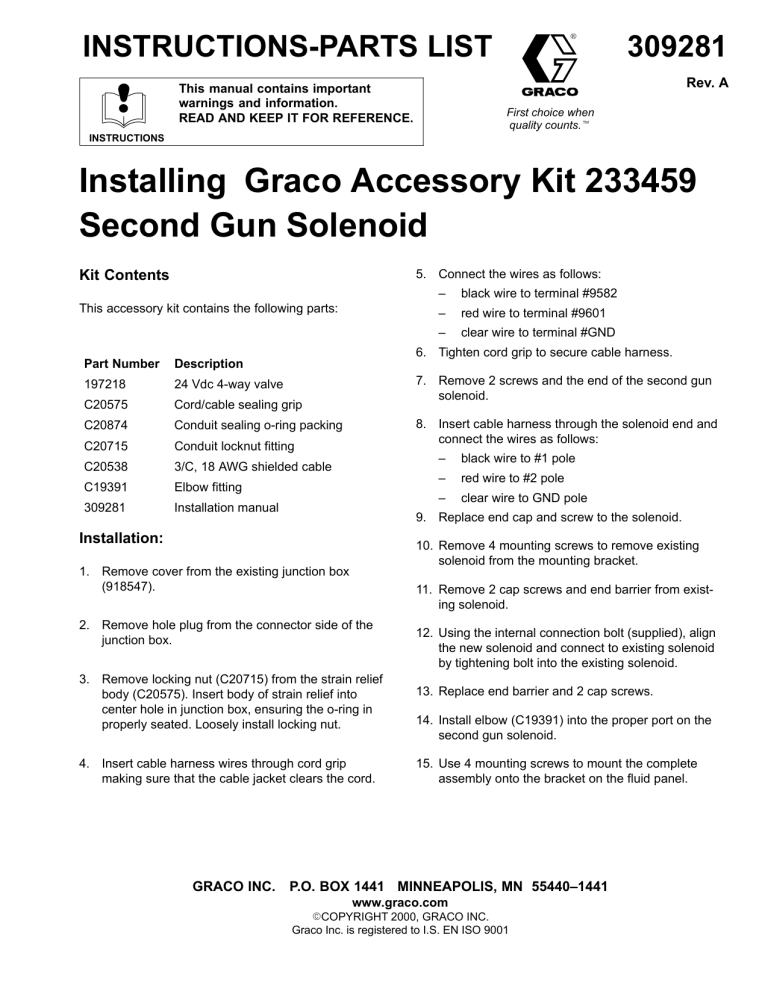

INSTRUCTIONS-PARTS LIST
309281
Rev. A
This manual contains important
warnings and information.
READ AND KEEP IT FOR REFERENCE.
First choice when
quality counts.t
INSTRUCTIONS
Installing Graco Accessory Kit 233459
Second Gun Solenoid
5. Connect the wires as follows:
Kit Contents
This accessory kit contains the following parts:
–
black wire to terminal #9582
–
red wire to terminal #9601
–
clear wire to terminal #GND
6. Tighten cord grip to secure cable harness.
Part Number
Description
197218
24 Vdc 4-way valve
C20575
Cord/cable sealing grip
C20874
Conduit sealing o-ring packing
C20715
Conduit locknut fitting
C20538
3/C, 18 AWG shielded cable
C19391
Elbow fitting
309281
Installation manual
7. Remove 2 screws and the end of the second gun
solenoid.
8. Insert cable harness through the solenoid end and
connect the wires as follows:
black wire to #1 pole
–
red wire to #2 pole
–
clear wire to GND pole
9. Replace end cap and screw to the solenoid.
Installation:
10. Remove 4 mounting screws to remove existing
solenoid from the mounting bracket.
1. Remove cover from the existing junction box
(918547).
11. Remove 2 cap screws and end barrier from existing solenoid.
2. Remove hole plug from the connector side of the
junction box.
3. Remove locking nut (C20715) from the strain relief
body (C20575). Insert body of strain relief into
center hole in junction box, ensuring the o-ring in
properly seated. Loosely install locking nut.
4. Insert cable harness wires through cord grip
making sure that the cable jacket clears the cord.
GRACO INC.
–
12. Using the internal connection bolt (supplied), align
the new solenoid and connect to existing solenoid
by tightening bolt into the existing solenoid.
13. Replace end barrier and 2 cap screws.
14. Install elbow (C19391) into the proper port on the
second gun solenoid.
15. Use 4 mounting screws to mount the complete
assembly onto the bracket on the fluid panel.
P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
www.graco.com
ECOPYRIGHT 2000, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
Symbols
Warning Symbol
Caution Symbol
WARNING
CAUTION
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
EQUIPMENT MISUSE HAZARD
INSTRUCTIONS
Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and
result in serious injury.
D This equipment is for professional use only.
D Read all instruction manuals, warnings, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are uncertain about usage, call the
distributor closest to you. See the Graco Phone Number on page 4 for information.
D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
D Check the equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure of the lowest rated system component. The
maximum working pressure of the fluid regulator is shown on the device. Other components
may have lower working pressure ratings.
D Route cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
D Do not use the cables to pull the equipment.
D Comply with all applicable local, state and national fire, electrical and other safety regulations.
2
309281
WARNING
FIRE, EXPLOSION, AND ELECTRIC SHOCK HAZARD
Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition
and result in fire or explosion and serious injury.
D Ground the equipment and the object being sprayed. The fluid plate is grounded through proper
connection of the two electrical cables
D If there is any static sparking or you feel an electric shock while using the equipment, stop dispensing immediately. Do not use the equipment until you have identified and corrected the
problem.
D Make sure all electrical work is performed by a qualified electrician only.
D Have any checks, installation, or service to electrical equipment performed by a qualified electrician only.
D Make sure all electrical equipment is installed and operated in compliance with applicable
codes.
D Do not install the gun solenoid accessory in a hazardous area, as defined in Article 500 of the
National Electrical Code (USA).
D Make sure power is disconnected when servicing and repairing equipment.
D Keep the dispensing area free of debris, including solvent, rags, and gasoline.
D Before operating the equipment, extinguish all open flames or pilot lights in the dispense area.
D Do not smoke in the dispensing area.
D Keep liquids away from the electrical components
D Turn off power to the PrecisionSwirl for SD module before disconnecting any cables connected
to the control assembly or fluid metering assembly.
D Disconnect electrical power at the main switch before servicing the equipment.
309281
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the
exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of
sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment
is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD
BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches,
hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making
any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–367–4023 Toll Free.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Offices Worldwide
GRACO INC.
P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
www.graco.com
PRINTED IN U.S.A. 309281 November 2000
