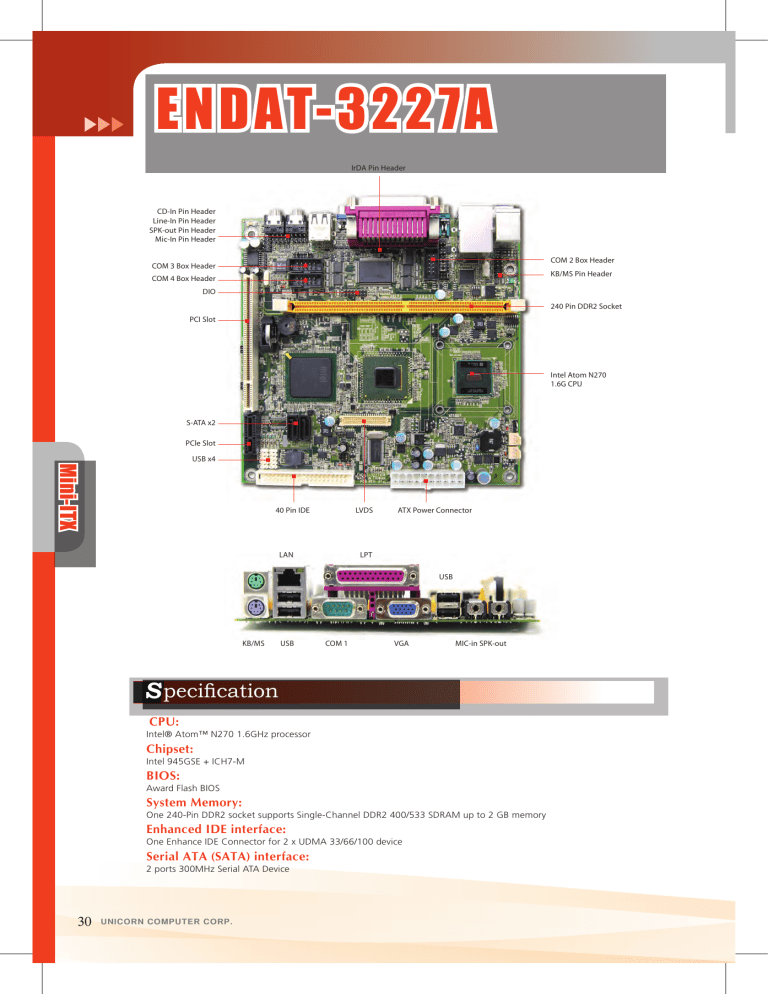

ENDAT-3227A
END AT- 32 2 7A
IrDA Pin Header
CD-In Pin Header
Line-In Pin Header
SPK-out Pin Header
Mic-In Pin Header
COM 2 Box Header
COM 3 Box Header
KB/MS Pin Header
COM 4 Box Header
DIO
240 Pin DDR2 Socket
PCI Slot
Intel Atom N270
1.6G CPU
S-ATA x2
PCle Slot
USB x4
Mini-ITX
40 Pin IDE
LVDS
LAN
ATX Power Connector
LPT
USB
KB/MS
USB
COM 1
VGA
MIC-in SPK-out
S pecification
CPU:
Intel® Atom™ N270 1.6GHz processor
Chipset:
Intel 945GSE + ICH7-M
BIOS:
Award Flash BIOS
System Memory:
One 240-Pin DDR2 socket supports Single-Channel DDR2 400/533 SDRAM up to 2 GB memory
Enhanced IDE interface:
One Enhance IDE Connector for 2 x UDMA 33/66/100 device
Serial ATA (SATA) interface:
2 ports 300MHz Serial ATA Device
30
UNICORN COMPUTER CORP.
Mini-ITX
CPU
x1
DVI
x1
x4
x1
x1
LVDS
UNICORN
x8
x2
SATA
Display Controller:
•Chipset: Integrated in 945GSE chip with DVMT3.0
•Dual view: CRT + LVDS (optional)
•Display Type:
• CRT
• 18/36 bit LVDS (optional)
Audio Controller:
•Chipset: INTEL ICH7-M w/ AC’97 2.2 compliant, Multi-Stream Direct Sound and Direct Sound 3D acceleration
•Speaker out with 1.2W amplifier
•Phone-jack: Speaker-Out, MIC-In
•Pin header: Speaker-Out, MIC-In, CD In and Line-In
High Speed Multi I/O:
•Chipset: FINTEK F81865
•Serial Ports: 4 high speed RS-232 ports (1 port via box header);
2nd COM could be as high speed 422/485 port (optional).
•All 4 serial ports support 16C550 UART and 16 byte FIFO, and with +5V, +12V power selector.
•Parallel Port:1 Bi-directional parallel port supports SPP/EPP/ECP mode
•USB Ports: 8 ports with 2.0 compliant ( 4 external / 4 internal )
•Keyboard / Mouse: Supports PS/2 keyboard and mouse with onboard connector and pin header
•Watch Dog Timer: SIO chip build in, programmable 1~255 seconds / minutes
Digital I/O:
4-bit input and 4-bit output bi-directional I/O ports (standard board support)
Network Interface:
•1 x REALTEK RTL8111B PCI-E Gigabit chip
•10/100/1000 Base-TX, Full duplex with RJ-45 connector
•Compliant with IEEE 802.3X
Power management:
ACPI Mode
Real Time Clock:
On chip RTC with external Li Battery back up
Expansion Slot:
One PICMG 1.0 compliant PCI slot supports up to 2 PCI expansions
One PCI-e x1 slot (optional)
Board Dimension:
Mini-ITX form factor, 170 x 170 mm (6.69” x 6.69”)
Power Types:
Standard ATX power input
Operating Temperature:
0 ~ 60°C
O rdering Information:
ENDAT-3227A:
ENDAT-3227A
ENDAT-3227A-L Supports CRT
Supports 18/36-bit LVDS
Spot light:
•Intel® Atom™ N270 1.6GHz fan-less CPU
•Dual Display (optional): LVDS +VGA
•PCI-Express x1 expansion (optional)
•Cost effective motherboard
31
