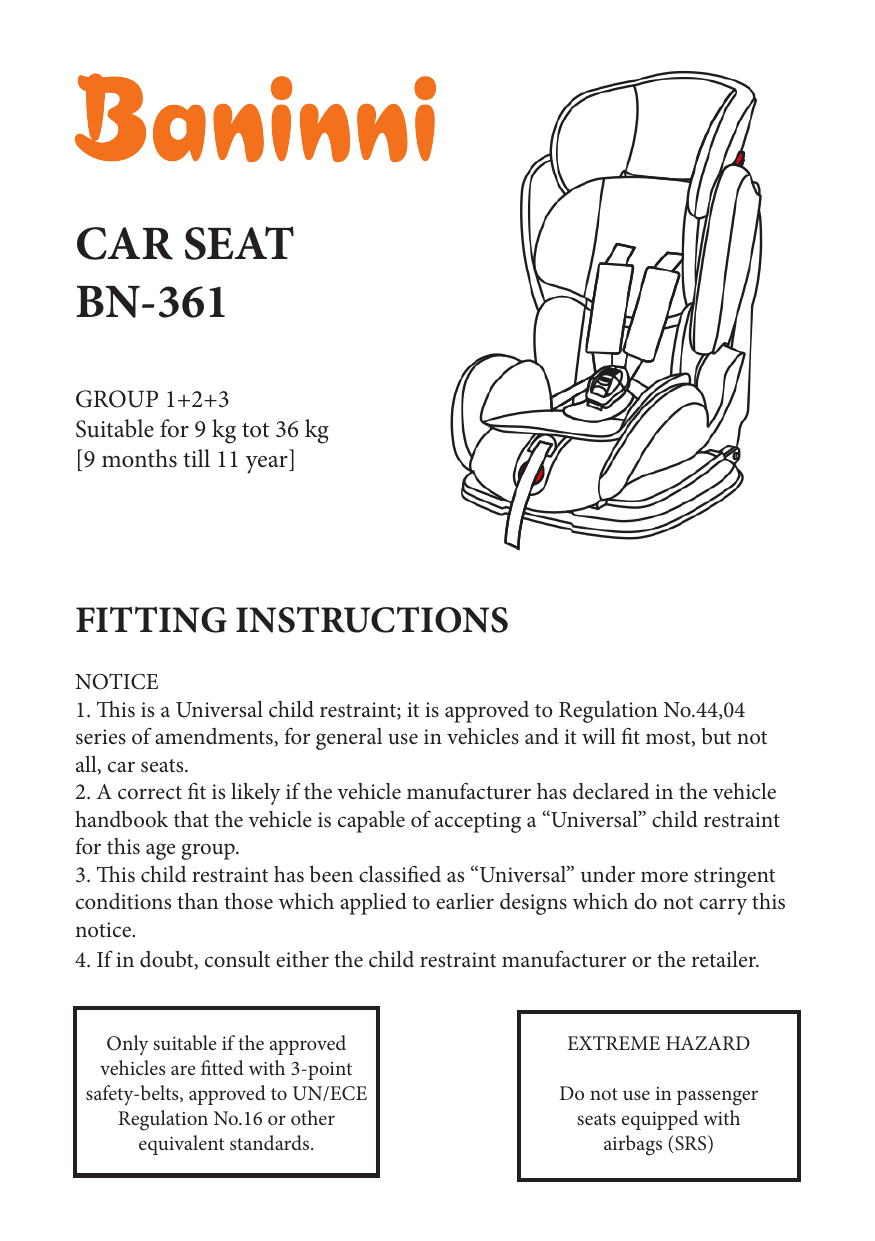

CAR SEAT BN-361

CAR SEAT
BN-361
GROUP 1+2+3
Suitable for 9 kg tot 36 kg
[9 months till 11 year]
FITTING INSTRUCTIONS
NOTICE
1. This is a Universal child restraint; it is approved to Regulation No.44,04
series of amendments, for general use in vehicles and it will fit most, but not
all, car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a “Universal” child restraint
for this age group.
3. This child restraint has been classified as “Universal” under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
4. If in doubt, consult either the child restraint manufacturer or the retailer.
Only suitable if the approved
vehicles are fitted with 3-point
safety-belts, approved to UN/ECE
Regulation No.16 or other
equivalent standards.
EXTREME HAZARD
Do not use in passenger
seats equipped with
airbags (SRS)
WAARSCHUWING
THESE INSTRUCTIONS ARE IMPORTANT. PLEASE READ CAREFULLY
AND RETAIN FOR FUTURE REFERENCE. DO NOT USE THIS CHILD SEAT IN
PASSENGER SEATS EQUIPPED WITH AIRBAGS.
1.This child seat can be used with the harness for children of 9 to 18kg
in weight (group 1).
2.This child seat can be used without the harness for children of 15 to 36kg
in weight (group 2,3).
3.This child seat can only be installed forward facing using a three-point lap and
diagonal seat belt.
4. Do not use this child seat in the home. It has not been designed for home use and
should only be used in your car.
5. This safest seating position for this child car seat is on the rear seat of a vehicle.
6. Never use the child seat without fastening it into the car.
7. It is dangerous to make any alteration or additions to the device without the approval
of the competent authority, and a danger of not following closely the installation
instructions provided by the child restraint manufacturer.
8. Do not leave your child unattended in the seat at any time.
9. The seat should be kept away from sunlight if the seat is not provided with a textile,
otherwise it may be too hot for the child’s skin.
10. In the event of an emergency it is important that the child can be released quickly.
This means that the buckle is not fully tamper proof and so your child must be taught
never to play with the buckle.
11. Any luggage or other objects liable to cause injuries in the event of a collision shall
be properly secured.
12. Periodically inspect the harness for wear , paying particular attention to attachment
points. stitching and adjusting devices.
13. The rigid items and plastic parts of a child restraint must be so located and installed
that they are not liable , during everyday use of the vehicle to become trapped by a
moveable seat or in a door of the vehicle.
14. Always make sure that any straps holding the seat restraint to the vehicle shall be
tight , any straps restraining the child should be adjusted to the child’s body, and check
that the straps shall not be twisted.
15. Ensuring that any lap straps is worn low down , so that the pelvis is firmly engaged,
shall be stressed.
16. The seat device should be changed when it has been subject to violent
stresses in an accident.
17.The instruction can be retrained on the child restraint for its life
18. Do not use any load bearing contact points other than those described in the
instructions and marked in the child restraint.
19. Store this child seat in a safe place when it is not being used. Avoid placing heavy
objects on top of it. Do not allow your child seat to come into contact with corrosive
substances e.g. battary acid.
20. The child restraint must not be used without the cover. The seat cover should not be
replaced with any other than the one recommended by the manufacturer, because the
cover constitutes an integral part of the restraint performance.
1
PARTS AND FITTINGS
Headrest
Backrest
Slot
Buckle
Belt guide hook
Harness straps
Chest pad
Adjuster (Under the
adjuster cover)
Position adjustment
button
Harness adjuster
strap
Belt guide hook
Comfort pad
Base
Adjuster cover
Headrest adjuster handle
Belt guide
Harness conector
Harness conector
Belt guide
Belt guide
THE TYPE OF APPROVED SEAT BELT YOU MUST HAVE
WARNING: THE CAR SEAT SHOULD NOT BE FITTED IN A PASSENGER SEAT
OF A CAR THAT HAS AN AIR BAG FITTED.(SRS)
Your child seat can only be installed forward
facing using a three-point lap and diagonal
seat belt in the front or rear passenger seats
of the car.
2
CORRECT SHOULDER STRAP HEIGHT
NO-Too low NO-Too high
YES - Correct
Always check that the shoulder straps are at the correct height for your child.
The child’s shoulders should always be below the slot for the harness.
REMOVING ALL STRAPS
REMOVING THE SAFETY HARNESS SHOULDER STRAPS
This child seat has four recline positions, position 1 to 4 . you can choose a suitable
position to make your child more comfortable.
Step1. Press the position adjustment button, meanwhile pull the positioning handle
under the front of the seat upwards and then pull or push the seat forwards or backwards. Adjust the child seat to the position 4.
Step2. Press the harness adjuster lever and release the harness adjuster strap.
Step3. Pull out the connecting shaft which connect the base and backrest together.
Step4. Slide both of the harness straps off the harness connector at the back of the
backrest and pull the webbing through the slots in the seat’s backrest and fabric
cover.
3
FASTENING THE SAFETY SEAT BUCKLE
Step1. Slot the two metal sections of the buckle connectors together.
Step2. Slot the two buckle connectors into the slot in the top of the buckle until they
“click” into place.
Step3. Always check the harness is correctly locked by pulling the shoulder straps
upwards. To release the harness, press the red button on the buckle downwards.
TIGHTENING THE HARNESS
Pull the shoulder straps upwards to remove the slack
from
the lap sections of the harness then pull the adjuster
strap
until the harness is fully tightened.
The harness should be adjusted as tightly as possible
without causing discomfort to your child.
A loose harness can be dangerous.
Check the harness adjuster and tighten each time the
child is placed in the seat.
SLACKENING THE HARNESS
The harness is slackened by pressing the adjuster
(under the adjuster cover) on the front of the seat.
Press down the adjuster as you grip the two shoulder
straps with your another hand. Pull the shoulder
straps
towards you to loosen the harness.
4
FITTING THE CAR SEAT WITH THE 3-POINT LAP&DIAGONAL SEAT BELT
Group 1 (9-18kg)
Step1. Place the child safety seat on the vehicle’s seat ensuring it is firmly press against
the car seat backrest.
Step2. Thread the seat belt through the gap between the base and backrest and fasten
the belt into the seat belt buckle with a noticeable “click”. Make sure that the diagonal
belt through two belt guides of the bottom base and the lap belt through the belt guide
of the upper base. Tighten the seat belt by pulling the diagonal belt upwards. Check the
webbing of the seat belt has not become twisted or tangled. Also check that the belt
buckle is correctly positioned.
Step3. Place your child into the child seat. Check the height of the shoulder straps on
the correct position and fasten the buckle.Check that the harness has not become
twisted and also check that the cover is not impeding the movement or fit of the harness in any way .
This child car seat has four recline positions . The child car seat can be reclined gently
using the reclining adjustment lever which allows for an infinite number
of positions. you can choose a suitable position to make your child more comfortable.
To disassemble the child seat, repeat the above prescribed procedures in reverse
order.
5
ADJUST THE HEADREST HEIGHT
15-25 kg
According to children’s different height, the headrest can be
adjusted up and down. Hold the headrest adjuster handle on
the back of the headrest and simultaneously raise or lower
the headrest to the desired height. The shoulder supports
automatically move with the headrest in the desired direction.
Make sure the headrest are at the correct suitable height for
your child. Check that the headrest is firmly locked in place by
gently pressing down on it.
FITTING THE CAR SEAT USING THE BELT LOCK
IMPORTANT: Before fitting the seat remove the shoulder straps, crotch strap
and lap strap.
Step1. the car seat backrest.
Step2. Place your child into the child seat.
Step3. Fasten the belt into the seat belt buckle with a noticeable “click”.Make sure that
the diagonal belt through the belt guide hook of the headrest and the lap belt through
two belt guides of the backrest.
Step4.Tighten the seat belt by pulling the diagonal belt upwards .Check the webbing of
the seat belt has not become twisted or tangled.Also check that the belt buckle is
correctly positioned. To disassemble the child seat, repeat the above prescribed
procedures in reverse order.
6
CARE AND MAINTENANCE
These instructions are important.Please read
carefully and retain for future reference.
Headrest cover and Backrest cover removal.
Important:
Firstly, remove the crotch pad and buckle of the child seat. Then the headrest cover can
now be removed. Firstly, remove two screws on the both side belt guides of the child
seat. then slide the backrest cover off. The covers can now be cleaned. The cover is a
safety feature. Never use the child seat without it.Don’t put your child’s safety at risk by
using other makes of replacement cover,could stop the child seat form protecting your
child as well as it should.
The cover is removable and washable at 30°, line dry only.
If you are in doult about using or fitting of this product or you require any replacement
parts,please contact our customer hotline.
CUSTOMER SERVICE
IF YOU EXPERIENCE A PROBLEM WITH THIS PRODUCT OR REQUIRE ASSISTANCE.
PLEASE CONTACT OUR LOCAL SALES AGENT OR CONTACT OUR CUSTOMER
SERVICE DEPARTMENT.
Voortstraat 12 -2490 Balen – Belgium
Tel: +32 14 412504
Fax: +32 14814481
[email protected]
www.baninni.com
