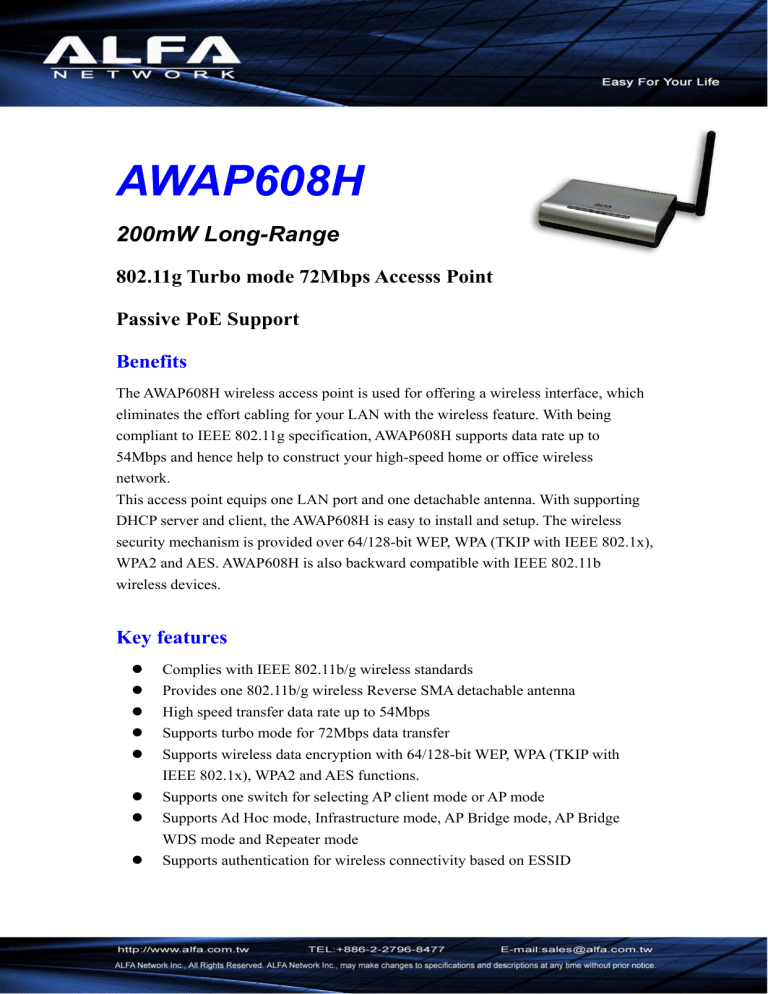

AWAP608H
200mW Long-Range
802.11g Turbo mode 72Mbps Accesss Point
Passive PoE Support
Benefits
The AWAP608H wireless access point is used for offering a wireless interface, which
eliminates the effort cabling for your LAN with the wireless feature. With being
compliant to IEEE 802.11g specification, AWAP608H supports data rate up to
54Mbps and hence help to construct your high-speed home or office wireless
network.
This access point equips one LAN port and one detachable antenna. With supporting
DHCP server and client, the AWAP608H is easy to install and setup. The wireless
security mechanism is provided over 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),
WPA2 and AES. AWAP608H is also backward compatible with IEEE 802.11b
wireless devices.
Key features
z
z
z
z
z
z
z
z
Complies with IEEE 802.11b/g wireless standards
Provides one 802.11b/g wireless Reverse SMA detachable antenna
High speed transfer data rate up to 54Mbps
Supports turbo mode for 72Mbps data transfer
Supports wireless data encryption with 64/128-bit WEP, WPA (TKIP with
IEEE 802.1x), WPA2 and AES functions.
Supports one switch for selecting AP client mode or AP mode
Supports Ad Hoc mode, Infrastructure mode, AP Bridge mode, AP Bridge
WDS mode and Repeater mode
Supports authentication for wireless connectivity based on ESSID
z
z
z
z
z
z
Provides MAC access control and hidden SSID function
WDS supported with WEP, TKIP and AES encryption
Channel : USA 11, Europe 13, Japan 14
Supports DHCP server
Supports firmware upgrade function via Web
Flash : 2MB, SDRAM : 8MB
SPECIFICATION:
Model Name
AWAP608H
Product Name
WLAN AP
Standard
802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT)
Data Transfer Rate
54Mbps(Wireless), 100Mbps(Ethernet)
Modulation Method
CCK (802.11b), OFDM (802.11g)
Frequency Band
2.4GHz – 2.497GHz ISM Band, DSSS
RF Output Power
24~23 dBm
Receiver Sensitivity
802.11b -80 [email protected]%, 802.11g -68 [email protected]%
Operation Range
30m ~ 100m
Antenna
External Antenna
LED
Power, LAN, Wireless
Security
64 bit/128 bit WEP, WPA, WPA2,
Power Consumption
12V DC Power Adapter
Operating Temperature
0 – 50° C ambient temperature
Storage Temperature
-20 ~ 70°C ambient temperature
Humidity
5 to 90% maximum (non-condensing)
Dimension
111*79*30 mm
