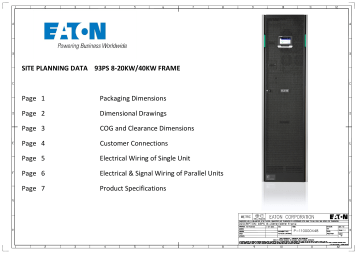

SITE PLANNING DATA 93PS 8-20KW/40KW FRAME
SITE PLANNING DATA 93PS 8-20KW/40KW FRAME
Page 1
Packaging Dimensions
Page 2
Dimensional Drawings
Page 3
COG and Clearance Dimensions
Page 4
Customer Connections
Page 5
Electrical Wiring of Single Unit
Page 6
Electrical & Signal Wiring of Parallel Units
Page 7
Product Specifications
Product Specifications
UPS Rating
Shipping
Dimensions
WXDXH
Approx. Weight
Shipping with
Batteries
Approx. Weight
Shipping without
Batteries
KVA
KW
MM
Kg
Kg
8-20
8-20
750X820X1975
530
214
Product Specifications
UPS Rating
KVA
KW
Max Heat Dissipation
at 100% Load
Cabinet
Dimensions
WXDXH
Shipping
Dimensions
WXDXH
Approx. Weight
Cabinet with
Batteries
Approx. Weight
Cabinet without
Batteries
Approx. Weight
Shipping with
Batteries
Approx. Weight
Shipping without
Batteries
Floor
Landing
Cooling
Air
KW
MM
MM
Kg
Kg
Kg
Kg
Kg/m²
m³/H
8
8
0.3
480X750X1750
750X820X1975
504
188
530
214
1478
3
10
10
0.4
480X750X1750
750X820X1975
504
188
530
214
1478
3
15
15
0.6
480X750X1750
750X820X1975
504
188
530
214
1478
3
20
20
0.9
480X750X1750
750X820X1975
504
188
530
214
1478
3
Clearances
From Top of cabinet
500 mm
From Front of cabinet
650 mm
From Back of cabinet
250 mm
Product Specifications
3P+Bolted N
Rectifier Input Breaker
(RIB)
UPS Rating
3P+Bolted N
Bypass Input Breaker (BIB)⁷
4P Inverter AC output Breaker
MOB
AC Input
AC Output
Maximum
Current
Nominal
Current
Nominal
Current at
400v Input
Maximum
Current at 15%
under voltage
Integrated
Bypass Fuse
Output
Current
Inverter
Auxiliary
Short Circuit
Switches
Current
KVA
KW
v
A
A
A
A
Type
v
A
A / 300ms
8
8
400
12
18
12
17
200FEE
400
12
10
10
400
15
22
15
21
200FEE
400
15
15
400
23
29
22
32
200FEE
20
20
400
30
38
29
42
200FEE
For Single Unit
Maintenance
Bypass Switch
(MBS)
Battery Breaker (BCB)
(Ratings at the end of discharge, 1.67VPC)
Rating
Separate
Common
Battery
Battery
Trip Device
Configration Configration (Shunt Trip)
(UPM Bttery) (UPSBattery)
Auxiliary
Switches
Rating
Rating
Auxiliary
Switches
Qty
A
A
Qty
Qty
VDC
A
A
72
2
500
NA
143
24
1
12
12 x N
1
15
72
2
500
NA
143
24
1
15
15 x N
1
400
22
72
2
500
NA
143
24
1
22
22 x N
1
400
29
72
2
500
NA
143
24
1
29
29 x N
1
Minimum recommended cable and fuse sizes
UPS RATING KW
Cable [mm²]
Rectifier Fuse [A]
Bypass Fuse [A]
PE Cable [mm²]
POS. & NEG. Line [mm²] Battery Fuse [A] EX BATT PE Cable [mm²]
8
4*2.5
16
16
1*6
1*35
160
1*16
10
4*4
20
20
1*6
1*35
160
1*16
15
4*10
32
32
1*10
1*35
160
1*16
20
4*10
50
40
1*10
1*35
160
1*16
VDC
For Parallel Units
Common Maintenance
Bypass Switch
(MBS)
