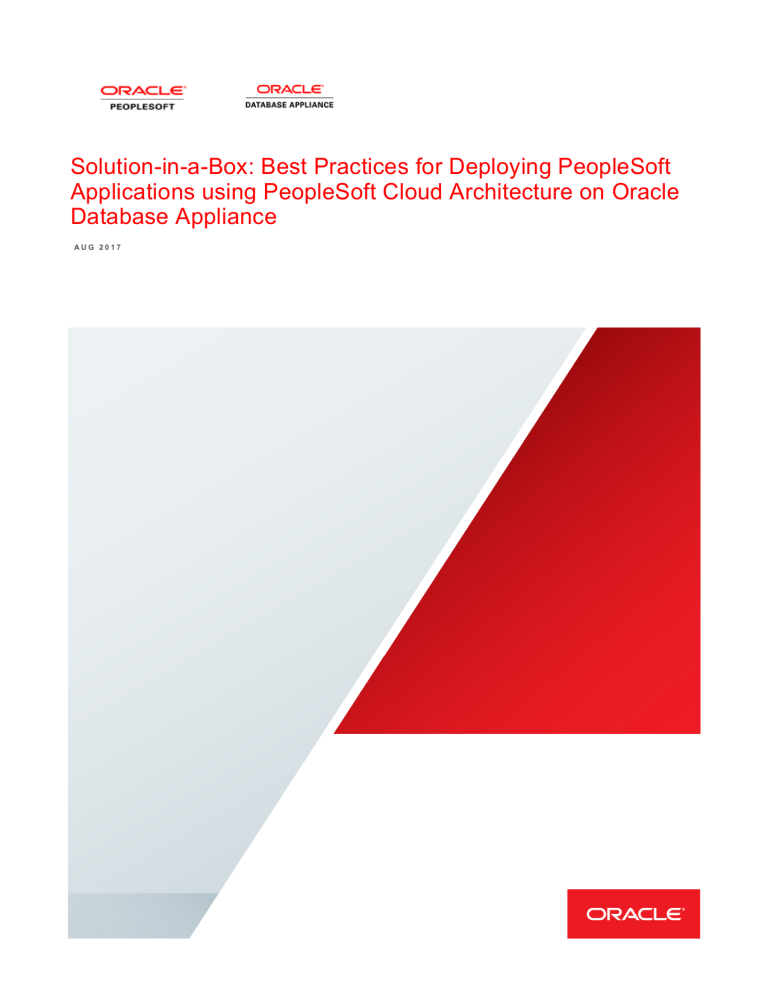

Solution-in-a-Box: Best Practices for Deploying PeopleSoft
Applications using PeopleSoft Cloud Architecture on Oracle
Database Appliance
AUG 2017
Disclaimer
The following is intended to outline our general product direction. It is intended for information
purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any
material, code, or functionality, and should not be relied upon in making purchasing decisions. The
development, release, and timing of any features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.
This material has not been submitted to any formal Oracle test and is published as is. It has not been
the subject of rigorous review. Oracle assumes no responsibility for its accuracy or completeness. The
use of this information or the implementation of any of these techniques is a customer responsibility
and depends on the customer's ability to evaluate and integrate them into the customer's operational
environment. While each item may have been reviewed by Oracle for accuracy in a specific situation,
there is no guarantee that the same or similar results will be obtained elsewhere. Customers
attempting to adapt these techniques to their own environments do so at their own risk.
Oracle may have patents or pending patent applications covering subject matter in this document. The
furnishing of this document does not give you any license to these patents.
1 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Introduction
4
Structure of This White Paper
4
Related Materials
5
Overview
6
Reviewing the ODA Virtualized Platform Deployment Architecture
6
Design - Planning Your Environment
8
Understanding PeopleSoft Cloud Architecture
8
Understanding PeopleSoft DPKs
9
Oracle PeopleSoft Deployment on Oracle Database Appliance
9
Deploying Oracle PeopleSoft Applications on Oracle Database Appliance Virtualized
Platform
10
Task 1: Setting Up the Oracle Database Appliance Virtualized Platform
10
Task 2: Downloading the Linux VM Template
11
Task 3: Importing the Linux VM Template
11
Task 4: Downloading the PeopleSoft DPKs
12
Task 5: Installing and Configuring the PeopleSoft DPKs
13
Task 6: Installing PeopleSoft Application Software on Oracle Database Appliance 13
Task 7: Creating PeopleSoft Application Database on Oracle Database Appliance 13
Task 8: Customizing the PeopleSoft VM Template
14
Task 9: Configuring PeopleSoft Application Server VMs on Oracle Database
Appliance
14
Task 10: Configuring PeopleSoft Process Scheduler on Oracle Database Appliance
15
2 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS ON ORACLE 12C MULTITENANT DATABASE
Task 11: Configuring PeopleSoft Pure Internet Architecture VMs on Oracle Database
Appliance
15
Task 12: Configuring Load Balancing for Application Server
16
Documentation Resources
3 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
17
Introduction
Oracle's PeopleSoft applications are designed to address the most complex business requirements
and provide comprehensive business and industry solutions, enabling organizations to increase
productivity, accelerate business performance and provide a lower cost of ownership.
Oracle Database Appliance (ODA) is an Oracle engineered system, consisting of hardware and
software, designed to simplify the deployment, maintenance and support of high availability Oracle
Database and Oracle E-Business Suite Application Tier solutions.
Oracle's PeopleSoft Cloud Architecture is a set of features and products that will enable PeopleSoft
customers to experience the benefits of software deployment on cloud - rapid provisioning (including
cloning), automated patching, and dynamic scaling to name a few - regardless of underlying
infrastructure. These capabilities will improve the deployment and lifecycle management of PeopleSoft
environments, regardless of whether customers are running in a public, private, or hybrid cloud, as well
as traditional on-premise installation.
This white paper is a practical guide for system architects or PeopleSoft Application DBAs planning a
PeopleSoft implementation on Oracle Database Appliance (ODA). This paper provides guidance for
using the Oracle Linux VM Templates and PeopleSoft deployment packages (DPKs) to reduce the
time required to install and deploy PeopleTools middle tier. The instructions and recommendations
provided in this document incorporate best practices for PeopleSoft applications and ODA. With some
customization, Oracle Linux VM Templates and PeopleSoft DPKs can be used to deploy PeopleSoft
applications on ODA in a high availability (HA) configuration. The information in this paper is applicable
to PeopleSoft PeopleTools 8.55 and later.
Structure of This White Paper
This white paper explains how you can accelerate the deployment of your PeopleSoft system on ODA.
Underpinning this solution are the Oracle Linux VM templates and PeopleSoft DPKs that are
developed and maintained by the Oracle Linux and PeopleSoft teams. The solution architecture takes
advantage of ODA Virtualized Platform and optimizes the use of onboard storage to take best
advantage of the resources and bandwidth available within the platform. By following the best
practices described in this document, you can decrease the cost of managing your PeopleSoft
application environment substantially, and start from a proven reference environment. This document
outlines the process of implementing and configuring a PeopleSoft system on an Oracle Real
4 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Application Cluster database, with PeopleSoft application servers and PeopleSoft Pure Internet
Architecture (PIA) servers running on different virtual machines (VMs).
Related Materials
This paper is not a general introduction to PeopleSoft applications, Oracle RAC Databases, or ODA.
You need to be familiar with the ODA documentation and, in particular, the ODA Virtualized Platform
documentation. Further information about ODA is available at:
Oracle Database Appliance Documentation
For an overview of the Oracle VM Templates for Linux see Oracle VM Templates for Linux.
The following documentation available on the PeopleSoft Online Help site discusses many of the
fundamental concepts that are related to PeopleSoft PeopleTools:
PeopleTools: Getting Started with PeopleTools
PeopleTools: System and Server Administration
5 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Overview
This section summarizes some of the key points of the Oracle Database Appliance Virtualized Platform Deployment
Architecture that will make it easier to understand the installation procedure in this paper.
Reviewing the ODA Virtualized Platform Deployment Architecture
Oracle Database Appliance Virtualized Platform is based on Oracle VM and it enables customers to quickly deploy
both database and application workloads in a single virtualized appliance platform. The virtualization feature of ODA
is leveraged for deploying the PeopleSoft system on ODA as a solution-in-a-box. ODA also provides the capabilities
to optionally configure a “shared VM repository” that enables high availability for PeopleSoft application VMs.
Figure 1 shows the system architecture for a PeopleSoft deployment on ODA. This illustrates an ODA
machine which is enabled as a virtualized platform running two nodes, and which is configured with an
Oracle RAC database.
Figure 1 : System architecture of a PeopleSoft deployment on ODA Virtualized Platform.
The system architecture includes these components (beginning at the bottom of the diagram):
» DOM0: Domain 0 is the administrative domain that resides on each ODA server node.
» ODA_BASE: ODA_BASE is a “privileged domain” within the ODA virtualized platform. This domain runs the
databases and is configured and sized to support database workloads. The size of the ODA_BASE domain is
determined by the required assignment of physical CPU cores and memory to this domain. The other application
workloads are isolated from this domain.
» APP VM: APP VMs are user domains or DomUs. These domains host middle-tier products, such as Oracle
WebLogic Server, or application-specific functionality. The APP VMs in the above system architecture diagram
host PeopleSoft PeopleTools, the PeopleSoft application server, and PeopleSoft Batch Server.
» PIA VM: The PIA VM is a user domain and hosts the PeopleSoft Pure Internet Architecture domain functionality,
which handles online user page requests and web services through the Integration Gateway.
The following diagram shows the logical flow of PeopleSoft application architecture components on ODA. The
diagram includes the typical components of PeopleSoft application architecture on ODA in a high availability
environment. The diagram includes components that are deployed on the ODA base and components on the guest
VMs. This diagram also shows a relationship between PIA servers deployed on ODA, a software load balancer, and
client browsers outside the ODA environment.
6 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Figure 2 : Logical architecture of a PeopleSoft deployment on ODA Virtualized platform
The components described on the Logical architecture shown in the diagram include the following:
» Load Balancer: Client used to connect to load balancer servers, and then route the request to PIA servers.
» PIA1 and PIA2: Two PIA servers based on Oracle WebLogic, which access the PeopleSoft application servers,
which use Oracle Tuxedo.
» APP Servers: The Oracle Tuxedo application servers are configured with weighted round robin load balancing
with failover and fallback.
» Batch Servers: The Process Schedulers support the PeopleSoft application environment.
» RAC SCAN Network: The batch server and application server accessing the Oracle RAC database using the
Oracle RAC SCAN network.
» RAC Nodes: The Oracle RAC nodes are configured as RAC clusters, and access the database storage.
The physical servers include the following software:
Dom0 Management Domain
» Oracle Appliance Kit (OAK) Version 12.1.2.10.0
» Oracle VM Server 3.2.11
ODA_BASE Virtual Machine
» Special privileged user domain for database instances
» Oracle Linux 6.8
» Oracle Real Application Clusters (RAC) 12c Release 1 Database
» Automatic Storage Management (ASM) 12c Release 1
» Oracle Grid Infrastructure 12c Release 1
Oracle Linux Virtual Machine
» Oracle Linux 6.6 64 bit
7 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Oracle PeopleSoft PeopleTools DPKs
» PeopleSoft PeopleTools 8.55.08 Application Server
» PeopleSoft PeopleTools 8.55.08 PeopleSoft Pure Internet Architecture (PIA)
» Oracle Tuxedo 12.1.3.0.0 RP037
» Oracle Database client 12.1.0.2
» Oracle WebLogic 12.1.3
Design - Planning Your Environment
For the planning and designing process, you need to understand your organization’s business process and
determine whether to deploy customized PeopleSoft VM templates on Oracle Database Appliance. Deploying
PeopleSoft DPKs with Oracle Linux VM templates on Oracle Database Appliance helps you to achieve the following:
» Simplify complex deployment processes to minimize errors and speed progress
» Increase agility to quickly scale up and down the infrastructure as required
» Reduce IT costs by speeding up deployments
» Enhance application availability and simplify disaster recovery
When planning your PeopleSoft deployment on Oracle Database Appliance Virtualized Platform you should take
into account many of the same considerations that are applicable to conventional environments. Following wellestablished standards reduces application ownership costs by implementing proven and well-documented
procedures.
An important part of the planning phase is identifying the additional configuration and customization tasks that are
needed for the Oracle Linux VM templates and PeopleSoft DPKs. Some examples of design considerations include:
» Security
» Networking
» Capacity Planning
» High Availability
» Load Balancing
» Disaster Recovery
» VM Configuration
» Application Configuration
Understanding PeopleSoft Cloud Architecture
Oracle's PeopleSoft Cloud Architecture is a set of features and products that will enable PeopleSoft customers to
experience the benefits of software deployment on cloud — rapid provisioning (including cloning), automated
patching, and dynamic scaling to name a few — regardless of underlying infrastructure. These capabilities will
improve the deployment and lifecycle management of PeopleSoft environments, regardless of whether customers
are running in a public, private, or hybrid cloud, as well as traditional on-premise installation.
This architecture is available starting with PeopleTools 8.55 and the introduction of the new Deployment Framework.
This new delivery mechanism provided for PeopleTools using Linux and Windows operating systems. PeopleSoft
People Tools 8.55 utilizes Deployment Packages, which contain all the software created by PeopleSoft as well as
the required components pre-installed and fully patched, along with a deployment and configuration automation
system.
8 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Understanding PeopleSoft DPKs
Beginning with PeopleSoft PeopleTools 8.55, you have the option to install and configure PeopleSoft instances
using PeopleSoft DPKs. DPKs allow fast deployment of PeopleSoft environments on both physical hardware (“bare
metal”) platforms and virtual platforms. DPKs enable users to skip the time-consuming manual steps associated with
the following processes:
» Gathering the necessary installation programs
» Installing third-party products such as Oracle Tuxedo and WebLogic and the latest patches (CPUs)
» Installing Application Home (PS_APP_HOME)
» Installing both PeopleTools and the PeopleTools patch binaries
» Configuring the PeopleSoft domains
Using the new DPK method to create a PeopleSoft PeopleTools middle-tier environment consisting of an Application
Server, a Process Scheduler, and a PeopleSoft Internet Architecture (PIA) domain typically takes less than an hour.
This process previously took days for each new environment created. The streamlined approach allows for dynamic
scaling and quick patching. Rapid creation of middle-tier components allows customers to optimize hardware
resources by creating middle-tier virtual machines (VMs) on demand. These VMs can be removed to free up
hardware resources when not in use, yet be quickly recreated as needed.
Note: Beginning with PeopleSoft PeopleTools 8.55, PeopleSoft PeopleTools updates are now delivered with DPKs;
PeopleSoft OVM templates will no longer be offered. One significant difference is that DPKs do not deliver an
operating system. Instead, DPKs offer an automated installation on supported operating systems that are
provisioned on a choice of infrastructure – bare metal, popular virtualization platforms such as OVM, VMware,
Hyper-V or IaaS providers. Using DPKs, you have the flexibility to customize the configuration to match the purpose
of the environment you need.
Oracle PeopleSoft Deployment on Oracle Database Appliance
Traditionally, a new installation and deployment of Oracle PeopleSoft applications involves a team of business
analysts, system architects, and database and system administrators, to jointly plan and prepare the deployment,
design the platform architecture, procure hardware and software, deploy the systems and customize the PeopleSoft
applications. Furthermore, features such as high availability (HA), load balancing, and so on, must be configured
across components to ensure their interoperability and compatibility. This process can be very time and resource
consuming. Use of Oracle’s pre-tested Linux VM Templates and PeopleSoft DPKs, with Oracle Database Appliance,
as part of your deployment strategy can substantially reduce the deployment effort.
Table 1 outlines the procedures involved in a typical deployment of a PeopleSoft environment on Oracle Database
Appliance Virtualized Platform.
Deployment Stage
Stage 1
Stage 2
Procedure
•
Set up Oracle Database Appliance Virtualized Platform
•
Set up Shared Repository on Oracle Database Appliance.
•
Download the Linux VM template
o
Import the Linux VM template in Oracle Database Appliance
9 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
•
o
Configure the template
o
Create and configure the VM
Download PeopleSoft PeopleTools DPKs
o
Install and configure DPKs on Linux VM
•
Set up the PeopleSoft Application Database
•
Save VM as a template and call it "PeopleSoft VM Template".
o
Customize the VM
o
Clean up the VM
•
Create and configure VMs from the customized template
•
Configure the PeopleSoft Application Server and Batch Server on Oracle
Database Appliance
Stage 3
Stage 4
•
Configure PeopleSoft Pure Internet Architecture on Oracle Database Appliance
•
Complete additional setup
•
Perform load testing
•
Set up Disaster Recovery site
•
Apply patches and maintenance packs
•
Maintain the VM template
Table 1: Typical PeopleSoft deployment procedures on Oracle Database Appliance Virtualized platform
Deploying Oracle PeopleSoft Applications on Oracle Database Appliance
Virtualized Platform
This section lists the necessary steps to deploy PeopleSoft DPK with Oracle Database 12c Release 1 on Oracle
Database Appliance 12.1.2.10 (or later).
Task 1: Setting Up the Oracle Database Appliance Virtualized Platform
Before the PeopleSoft DPK is deployed the Oracle Database Appliance Virtualized Platform setup must be
completed.
1. Follow the Oracle Database Appliance Virtualized Platform Setup instructions on the Oracle Database Appliance
Setup Poster to set up the ODA.
It is not necessary to deploy a database during the appliance setup. Clear the Create Initial Database check box
on the Database Information page of the Appliance Manager.
2. Calculate the space requirements for the PeopleSoft VM templates and VMs created using PeopleSoft DPKs
before the deployment.
Consider the space requirements for PeopleSoft application software such as PeopleSoft Human Capital
Management (HCM) or PeopleSoft Financial and Supply Chain Management (FSCM), or any other software
used, when calculating the total space requirement for PeopleSoft VM templates and VMs.
10 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Table 2 lists typical space requirements for PeopleSoft VM templates, but these requirements may vary based on
the deployment criteria for each environment.
TABLE 2: PEOPLESOFT TEMPLATE AND VM SPACE REQUIREMENTS
PeopleSoft Template and VMs
Typical Disk Space Requirements
Oracle PeopleSoft PeopleTools VM Template
50 GB
Oracle PeopleSoft PeopleTools APP VM (2VMs)
50 GB × 2 = 100 GB
Oracle PeopleSoft PeopleTools PIA VM (2VMs)
50 GB × 2 = 100 GB
Total Space Required
250 GB
3. Log in as the root user on node 1 and create a 300 GB shared repository, which will be used to host the VMs,
using the following commands:
# oakcli create repo psoftrepo –dg data –size 300
# oakcli show repo psoftrepo –node 0
# oakcli show repo psoftrepo –node 1
4. Download ODA RDBMS End use bundle.
The Oracle Database Appliance team releases RDBMS Clone Bundles for each ODA version. Download the
RDBMS patch bundle from My Oracle Support, unpack and deploy on ODA.
See Oracle Database Appliance – 12.1.2.10 and 2.x Supported ODA Versions and Known Issues, My Oracle
Support, My Oracle Support, Doc ID 888888.1.
Task 2: Downloading the Linux VM Template
The procedures described here use the Oracle Linux VM Template to build a PeopleSoft PeopleTools 8.55 VM
template using Peoplesoft DPKs. To obtain the Linux VM templates:
1. Log in to Oracle Software Delivery Cloud, https://edelivery.oracle.com.
2. For Filter Products by, select the option Linux/OVM/VMs.
3. Enter “Oracle VM Templates for Oracle Linux” in the Search by text box.
4. Select x86-64 from the Select Platform drop-down list.
5. Click Continue.
6. Verify that the check box for “Oracle VM Templates for Oracle Linux 6.0.0.0.0 for x86 64 bit” is selected, and
click Continue.
7. Read and accept the Oracle terms and restrictions, and then click Continue.
8. Download the Linux 6 update <X> template, where <X> is the update number.
For example, the Linux 6 update 6 VM Template was used during development of this paper.
9. Save the templates on ODA under /OVS/staging
Note: You can check the certification details on My Oracle Support, support.oracle.com under the Certification
tab.
Task 3: Importing the Linux VM Template
Import the Linux VM templates and create VMs, as follows:
11 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
1. Execute the following command from ODA_BASE:
# oakcli import vmtemplate OL6U6 –assembly
/OVS/staging/OVM_OL6U6_x86_64_PVM.ova –repo psoftrepo –node 0
2. Check the template with the following command:
# oakcli show vmtemplate
3. Execute the following command to set up the required network configuration:
# oakcli configure vmtemplate OL6U6 -network "['type=netfront,bridge=net1']"
4. Clone the VM from the LINUX VM template on Oracle Database Appliance Virtualized platform with the following
command:
# oakcli clone vm PSFT_PT_855_VM -vmtemplate OL6U6 -repo psoftrepo -node 0
5. Create the vdisk of size 50G:
# oakcli create vdisk PT_VDISK_1 -repo psoftrepo -size 50G -type local -sparse
6. Assign the vdisk to PSFT_PT_855_VM.
You can use the attached vdisk to store PeopleTools home (PS_HOME).
# oakcli modify vm PSFT_PT_855_VM -attachvdisk pt_vdisk_1
7. Start the PeopleSoft VM on Oracle Database Appliance with the following command:
# oakcli start vm PSFT_PT_855_VM
8. Provide the required input to configure the network stack and root password.
Table 3 lists the hostname used for configuring the PeopleSoft VM. Use the IP Address column in the table to
note the IPs in your environment.
TABLE 3: VM NAME AND IP DETAIL
VM Name
IP Address
Hostname
PSFT_PT_855_VM
xx.xxx.xx.xxx
ps-v1.us.oracle.com
9. To set up the environment:
» Format the newly added vdisk and mount it on /opt/oracle/psft
» Set up the firewall rules and SELINUX as per your requirement.
» Set up the yum repository to install custom packages and any other packages during the PeopleSoft setup.
For details, please review the software requirement section in PeopleSoft PeopleTools 8.55 Deployment
Packages Installation on the PeopleSoft Documentation Portal.
10.
Review the status of the setup steps.
Task 4: Downloading the PeopleSoft DPKs
The procedures described here use the Oracle PeopleSoft for PeopleSoft PeopleTools 8.55 DPKs. To obtain the
PeopleSoft DPKs:
1. Create a shared Oracle Automatic Storage Management Cluster File System (ACFS) mount point /cloudfs of
size 100G on ODA_BASE.
For creating an ACFS mount point, see ODA (Oracle Database Appliance): How to Setup ACFS Post Deploy, My
Oracle Support, Doc ID 1435019.1, for information.
2. Log in to My Oracle Support, https://support.oracle.com
3. Select the Patches & Update tab.
12 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
4. Select Product or Family (Advanced) under Patch Search, and provide the following details:
» Product: PeopleSoft Enterprise PT PeopleTools
» Release: PeopleTools 8.55
» Platform: Linux x86-64
5. Click Search.
6. Download the latest PeopleSoft PeopleTools DPKs and stage them under /cloudfs/DPK_INSTALL.
We used 8.55.08 Peoplesoft PeopleTools DPK for our setup.
Note: Review the installation guide. This file includes all the installation instructions you need before moving to
the next task in this documentation.
Task 5: Installing and Configuring the PeopleSoft DPKs
Download the PeopleSoft PeopleTools DPKs and install PeopleSoft PeopleTools, Oracle Tuxedo, Oracle Web
Logic, and Oracle database client, without setting up the mid-tier domains. We will create a gold VM template of
installed software.
1. Export the ACFS mount point to ps-v1.us.oracle.com as NFS mount point.
Export PS_APP_HOME in .bashrc on ps-v1.us.oracle.com as root user.
2. The downloaded PeopleSoft PeopleTools DPKs are in the format PEOPLETOOLS-<Operating_System><Release>-#ofn.zip. Unzip the first downloaded zip file, that is, PEOPLETOOLS-<Operating_System><Release>-1ofn.zip.
3. Change the directory to /cloudfs/DPK_INSTALL/setup folder and execute the following:
# ./psft-dpk-setup.ps1 -env_type midtier -deploy_only -deploy_type
There are many options available for installation and configuration of PeopleTools. For more information, see
the Deploying the PeopleSoft PeopleTools Deployment Packages section in PeopleSoft PeopleTools 8.55
Deployment Packages Installation on the PeopleSoft Documentation Portal.
Task 6: Installing PeopleSoft Application Software on Oracle Database Appliance
Before beginning the PeopleSoft application database setup, obtain and install the PeopleSoft applications on
ODA_BASE. For this setup, we downloaded PeopleSoft Human Capital Management (HCM) 9.2 installation
software zip files from the Oracle Software Delivery Cloud portal.
Execute the following steps to install PeopleSoft HCM 9.2 Application database on ODA:
1. Log in to the Oracle Software Delivery Cloud at edelivery.oracle.com.
2. Download PeopleSoft HCM and stage them on ODA_BASE node1 under /cloudfs.
3. Install PeopleSoft application files as an oracle user.
It is good to keep separate PS_APP_HOME directories for PeopleSoft HCM and FSCM. For example, install
PeopleSoft HCM under /cloudfs/psft/hcm92 and PeopleSoft FCSM under /cloudfs/psft/fsm92.
4. Export the PS_HOME mount point of ps-v1.us.oracle.com as an NFS mount pointing to ODA_BASE.
It is a good idea to use the same path for the PS_HOME mount point on ODA_BASE as was used on psv1.us.oracle.com. The oracle user should have read, write, and execute permission on PS_HOME. For more
details on using PeopleSoft mid-tier deployment, see PeopleTools: Mid Tier Deployment Best Practices, My
Oracle Support, Doc ID 1448479.1.
Task 7: Creating PeopleSoft Application Database on Oracle Database Appliance
13 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
On ODA, it is recommended to first create an empty Oracle RAC-enabled database using the Oracle Appliance
Manager command oakcli, and then use the PeopleSoft PeopleTools set to complete the installation of the
PeopleTools schemas, and application schemas. The PeopleTools setup scripts use file system path names in the
tablespace creation SQL statements. When instructed to edit these scripts, you will need to modify them to point to
correct paths.
See PeopleTools Installation for Oracle, My Oracle Support, Doc ID 2068525.1.
Since there is no existing PeopleSoft application database configured in the PeopleSoft PeopleTools DPK, you must
complete the setup for the PeopleSoft application database on ODA.
For more details on creating PeopleSoft Application Database on ODA, see Installing PeopleSoft Application
Software on Oracle Database Appliance section in Solution-in-a-box: Best practices for deploying PeopleSoft
Applications on Oracle Database Appliance.
Task 8: Customizing the PeopleSoft VM Template
The PeopleSoft VM template can be customized by making changes to the VM created from Oracle Linux VM
template and PeopleSoft PeopleTools DPKs. Create and configure these VMs: PS_APP_1, PS_APP_2, PS_PIA_1,
and PS_PIA_2 VMs. Change the template and VM name according to your current setup.
For details, see the section “Customizing the PeopleSoft VM Template” in the Solution-in-a-Box: Best practices for
deploying PeopleSoft Applications on Oracle Database Appliance Virtualized Platform.
Note: You need to specify vdisk location to include it in a template.
Task 9: Configuring PeopleSoft Application Server VMs on Oracle Database Appliance
The preceding tasks cloned the VMs from the gold template and configured the network stack. In this task we
configure PeopleSoft application server and batch server on PS_APP_1 and PS_APP_2 VMs.
Execute the following steps to create and set up the PeopleSoft application server domain on Oracle Database
Appliance:
1. Log in to PS_APP_1 and PS_APP_2 as psadm2 user to create application server domain HCMDOM for
PeopleSoft application database HCM92.
2. Set the environment variables.
For details, see the task Setting Environment Variables, in PeopleTools 8.55 Installation for Oracle, chapter
“Configuring the Application Server on UNIX.”
3. Edit /etc/tnsnames.ora and add entries for HCM92 and FSM92 pluggable databases.
4. Check the database connectivity.
5. Execute the following command:
# psadmin
6. To create PeopleSoft application server domain, provide required input when prompted.
Provide the correct values in the Quick-configure menu under the Settings column for DBNAME, UserId,
UserPwd, ConnectPswd, WSL Port, JSL Port, JRAD Port. Also, select features you want to enable or disable
under the Features column.
See the chapter “Configuring the Application Server on UNIX” in PeopleTools 8.55 Installation for Oracle.
7. Start PeopleSoft application server domain HCMDOM for HCM92 PeopleSoft application database using the
PSADMIN utility.
14 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Task 10: Configuring PeopleSoft Process Scheduler on Oracle Database Appliance
PeopleSoft Process Scheduler is a centralized tool that enables application developers, system administrators, and
application users to manage PeopleSoft batch processes.
A Master Scheduler enables load balancing of workloads by automatically routing requests to available Process
Scheduler servers, which ensures that you maintain optimal processing at all times. In addition, an active Master
Scheduler manages and controls all Process Scheduler server domains that are on the same PeopleSoft database.
You need to execute the following steps as psadm2 user.
Execute the following steps to create and set up PeopleSoft Process Scheduler domains on ODA:
1. Log in to PS_APP_1 as psadm2 user to create Master Process Scheduler domain HCMPRSCM for HCM92
PeopleSoft Application Database.
2. Set the environment variables.
See the task Setting Up Your Environment in PeopleTools 8.55 Installation for Oracle, chapter “Setting Up
Process Scheduler on UNIX.”
3. Check the database connectivity.
4. Execute following command to start the PSADMIN utility and create a PeopleSoft Process Scheduler domain:
# psadmin
5. Provide required input when prompted.
Provide the correct values in the Quick-configure menu under Settings column for DBNAME, PrcsServer,
UserId, UserPswd, ConnectPswd, Log/Output Dir, SQRBIN, DomainConnectPswd. Also, enable Master Process
Scheduler under Features column. You can enable or disable features under Features column.
6. Start the Process Scheduler domain HCMPRCSM for PeopleSoft HCM92 PeopleSoft application database
using the PSADMIN utility.
Provide the correct values in the Quick-configure menu under Settings column for DBNAME, PrcsServer, UserId,
UserPswd, ConnectPswd, Log/Output Dir, SQRBIN, DomainConnectPswd. Also, enable Master Process
Scheduler under Features column. You can enable or disable features under Features column.
See the chapter “Setting Up Process Scheduler on UNIX” in PeopleTools 8.55 Installation for Oracle.
7. Log in to PS_APP_2 as psadm2 user to create normal Process Schedulers HCMPRCS for HCM92 PeopleSoft
application databases, and execute steps 1 to 6.
For this step, do not enable the Master Scheduler option in the Quick-configure menu Features column.
Task 11: Configuring PeopleSoft Pure Internet Architecture VMs on Oracle Database Appliance
This section configures Oracle PeopleSoft Pure Internet Architecture (PIA) on PS_PIA_1 and PS_PIA_2 VMs.
The setup in this documentation uses a Single Server Domain configuration. If you want to create a multi-server
domain installation, refer to the Solution-in-a-Box: Best practices for deploying PeopleSoft Applications on Oracle
Database Appliance Virtualized Platform.
Execute the following steps to create and set up PIA Single Server domain on ODA:
1. Log in to PS_PIA_1 and PS_PIA_2 VM as a psadm2 user and create the HCMPIA PIA domain.
2. Change directory to $PS_HOME/setup/PsMpPIAInstall and execute following command:
# setup.sh –tempdir /tmp
3. Provide required input when prompted, as follows:
15 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
» Select Oracle Weblogic Server for installation type.
» Specify a domain name.
» Select Single Server Domain for the domain type.
See the chapter “Setting Up the PeopleSoft Pure Internet Architecture in Console Mode” section in PeopleTools
8.55 Installation on Oracle.
4. Start the PeopleSoft HCMPIA PIA domain using the PSADMIN utility.
Task 12: Configuring Load Balancing for Application Server
The application server can also be used in load balancing and failover configuration. We have two application
servers that are running on PS_APP_1 and PS_APP_2. We need to add failover and load balancing information in
PIA configuration files, as follows:
1. Log in to PS_PIA_1 and PS_PIA_2 as psadm2 user and enable load balancing for the HCMDOM APP domain.
2. Open the file $PIA_HOME/applications/peoplesoft/PORTAL.war/WEB-INF/psftdocs/ps/configuration.properties
for editing.
$PIA_HOME refers to the installation location for the PIA domain. Replace $PIA_HOME with the value for your
environment.
3. Add the following line in the file to enable weighted load balancing and failover on PS_PIA_1 and PS_PIA_2
VMs:
psserver=psapp-v1.us.oracle.com:9000#1,psapp-v2.us.oracle.com:9000#1
4. Ensure that all the participating PIA instances have the same session cookie name.
To change the cookie value, open the file
$PIA_HOME/webserv/$PIA_Domain_Name/applications/peoplesoft/PORTAL.war/WEB-INF/weblogic.xml for
editing and modify the value for <cookie-name>.
Replace $PIA_HOME and $PIA_Domain_Name with the values for your environment.
5. Restart the PIA Domain.
16 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Documentation Resources
PeopleTools 8.55 Installation on Oracle.
PeopleSoft Oracle Virtual Machine Templates Development and Customization Guide, My Oracle Support, Doc ID
1385319.1.
Oracle VM Templates for PeopleSoft White Paper, My Oracle Support, Doc ID 956177.1.
Oracle Database Appliance Documentation
Solution-in-a-box: Best practices for deploying PeopleSoft Applications on Oracle Database Appliance
Oracle PeopleSoft Red Paper: Information in this white paper was developed in conjunction with use of the
products specified and is limited in application to those specific hardware and software products and levels.
17 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Oracle Corporation, World Headquarters
Worldwide Inquiries
500 Oracle Parkway
Phone: +1.650.506.7000
Redwood Shores, CA 94065, USA
Fax: +1.650.506.7200
CONNECT WITH US
blogs.oracle.com/oracle
facebook.com/oracle
twitter.com/oracle
oracle.com
Copyright © 2017, Oracle and/or its affiliates. All rights reserved. This document is provided for information purposes only, and the
contents hereof are subject to change without notice. This document is not warranted to be error-free, nor subject to any other
warranties or conditions, whether expressed orally or implied in law, including implied warranties and conditions of merchantability or
fitness for a particular purpose. We specifically disclaim any liability with respect to this document, and no contractual obligations are
formed either directly or indirectly by this document. This document may not be reproduced or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without our prior written permission.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and
are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are
trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group.0115
SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD
ARCHITECTURE ON ORACLE DATABASE APPLIANCE
Aug 2017
Author: Paramdeep Saini, Mark Hoernemann, Sanjay Tripathi and Sanjay Singh
18 | SOLUTION-IN-A-BOX: BEST PRACTICES FOR DEPLOYING PEOPLESOFT APPLICATIONS USING PEOPLESOFT CLOUD ARCHITECTURE
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
