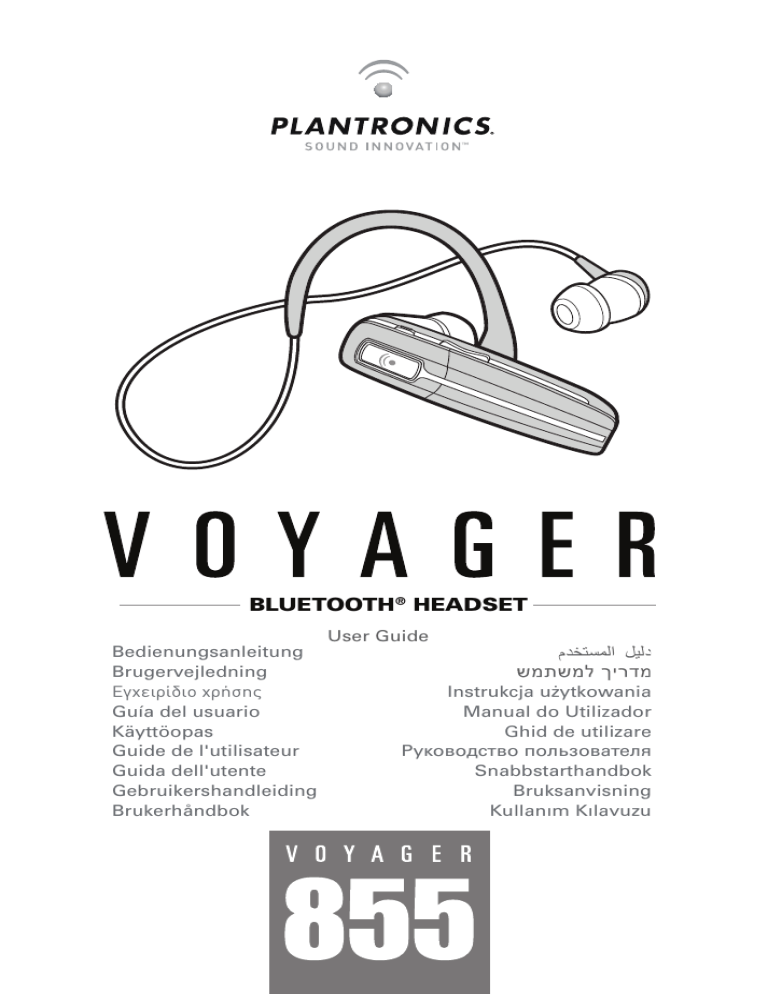

1 - Plantronics
BLUETOOTH® HEADSET
Bedienungsanleitung
Brugervejledning
¹Æã»Â²¸»¿ØƱúê
Guía del usuario
Käyttöopas
Guide de l'utilisateur
Guida dell'utente
Gebruikershandleiding
Brukerhåndbok
User Guide
a
)NSTRUKCJAĺU–YTKOWANIA
Manual do Utilizador
'HIDĺDEĺUTILIZARE
Руководство пользователя
Snabbstarthandbok
Bruksanvisning
+ULLANàMĺ+àLAVUZU
EN ENGLISH
TABLE OF CONTENTS
Welcome
3
What is Bluetooth?
3
Package Contents & Features
4
Charging
5
Pairing
6
Custom Fit
8
Headset Controls
12
Stereo Headset Controls
13
Indicators
15
Range
15
Hands-Free Features
16
Optional Accessories 17
Troubleshooting
18
Product Specifications
19
Technical Assistance
19
Plantronics Voyager 855
Thank you for choosing the Plantronics Voyager™ 855 headset. To get the
most from your new headset, we recommend that you take the following
steps:
1. Read this User Guide, including all the safety information at the end of this
guide, before you use your headset.
. If you need assistance, please do the following:
•
Follow the steps in the “Troubleshooting” section on page 18.
•
Contact the Plantronics Technical Assistance Center at
www.plantronics.com/support.
. Visit www.plantronics.com/productregistration to register your headset online
so we can provide you with the best possible service and technical support.
NOTE: If you are considering returning the product, please contact the Technical
Assistance Center first.
What is Bluetooth?
Bluetooth wireless technology provides a way for devices to communicate
with each other using short-range radio frequency instead of wires.
Any two Bluetooth devices can communicate as long as they both have
Bluetooth turned on, are within range and have been paired—a quick
“handshake” that connects the two devices.
Bluetooth range is up to 10 metres. Obstructions, such as walls or other
electronic devices, can cause interference or shorten the effective range.
For optimal performance, place your headset and phone on the same side
of your body.
Plantronics Voyager 855
EN ENGLISH
Welcome
EN ENGLISH
Package Contents & Features
1
5
2
4
6
3
1. Call control button (on/off)
. Mute microphone
(Pause/Play*)
. Volume up/down
(Track forward/back*)
7
. Extendable boom
5. Microphone port
6. Ear loop stabiliser
7. Stereo plug-in cable
8. Sound isolating ear bud
(small, medium and large)
8
9. AC Charger 100 – 240V
9
* Stereo mode only and requires
Bluetooth AVRCP (Audio Video
Remote Control Profile). See
“Stereo Headset Controls” on
page 13 for details.
Plantronics Voyager 855
Before you use your headset for the first time, charge it for at least 1 hour.
It takes approximately 3 hours to fully charge your headset.
1. Connect the charger cable to the headset.
. Plug the charger into a power outlet.
While your headset is charging the indicator glows red. When your
headset is fully charged, the indicator turns off.
WARNING: Do not use your headset while it is connected to the charger.
Check the charge level
When your headset is on, simultaneously press and hold the call control
button and the volume down button for about two seconds. The indicator
flashes red to show the charge level.
Battery Level
Red Flashes
More than 2/3 full
1
1/3 to 2/3 full
2
Less than 1/3 full
3
Plantronics Voyager 855
EN ENGLISH
Charging
EN ENGLISH
Pairing
Pairing is the process of introducing your headset to your phone. Before
using your headset for the first time, you must pair it with your Bluetooth
phone. Normally you only need to pair your headset with your phone once.
QuickPair™ Technology
Your new headset includes Plantronics QuickPair technology to simplify
the Bluetooth setup process. The first time you turn your headset on, your
headset automatically enters pairing mode for 10 minutes. Once paired
successfully, your headset stays on for instant use.
If not successfully paired after 10 minutes, your headset automatically
powers off. When you turn the headset on again, it automatically goes
into pairing mode until successfully paired with a Bluetooth phone.
To pair your headset for the first time:
1. Turn ON the Bluetooth feature on your phone.
3
2
4
1
TIP: For most phones, select Settings/Tools > Connections > Bluetooth > On.
See your phone’s user guide for more information.
. Press and hold the call control button to turn on your headset. (The indicator
flashes red/blue to show that the headset is on and in pairing mode.)
TIP: If you don’t see the red/blue flash, press and hold the call control
button to turn your headset off, and then press and hold the call control
button again until you see the red/blue flash.
. Use the commands on your phone to locate your headset.
TIP: For most phones, select Settings/Tools > Connections > Bluetooth >
Search > 8XXPlantronics. See your phone’s user guide for more information.
. When prompted for the passkey, enter 0000.
When pairing is successful, the red/blue indicator on your headset turns off.
Your headset is now connected and ready to use.
Plantronics Voyager 855
EN ENGLISH
Pairing
Subsequent Pairing
If you’ve already paired your headset with another device, follow these
steps:
1. Turn ON the Bluetooth feature on your phone.
TIP: For most phones, select Settings/Tools > Connections > Bluetooth >
On. See your phone’s user guide for more information.
. Turn the headset off by pressing and holding the call control button until the
indicator turns red and then turns off.
. Turn the headset back on by pressing and holding the call control button
until the indicator flashes red/blue. The headset remains in pairing mode for
3 minutes.
. Use the commands on your phone to locate your headset.
TIP: For most phones, select Settings/Tools > Connections >
Bluetooth > Search > 8XXPlantronics. See your phone’s user guide
for more information.
5. When prompted for the passkey, enter 0000.
When pairing is successful, the indicator on your headset turns off. Your
headset is now connected and ready to use.
Plantronics Voyager 855
EN ENGLISH
Custom Fit
The Plantronics Voyager 855 headset comes with three sizes of sound
isolating ear buds. We recommend that you try all three ear buds to find
the one that fits snugly in your ear. For added comfort and stability, you
can add the optional small or large ear loop stabiliser.
TIPS:
•
For optimum performance and a secure and comfortable fit, the headset should
sit snugly in your ear canal with the microphone pointing towards the corner of
your mouth.
•
If the ear bud is too big or too small, the headset may not stay in your ear or
you may have difficulty hearing.
Put on the headset
1. Hold the headset with the boom pointing directly at your cheekbone and the
ear bud placed comfortably in your ear canal.
. Gently twist the headset downward while pressing it into your ear canal.
TIP: For optimal voice clarity, point the boom towards the corner of your
mouth. The ear bud should be fully seated to the speaker post to ensure
secure attachment.
WARNING: Select an ear bud that can be comfortably inserted into the
ear canal. The ear bud should seal but not be forced down the ear canal.
If the ear bud becomes lodged in the ear canal, seek medical attention
immediately.
Plantronics Voyager 855
Choose an ear bud that fits
When the ear bud fits properly, it should be sealed in your ear so that you
feel a slight amount of resistance when you remove the headset from
your ear.
1. Remove the headset from your ear.
. Gently twist the ear bud while pulling it off the speaker post.
. Press a different ear bud onto the speaker post with the stem side of the ear
bud facing downward.
TIP: Try using different size ear buds on the headset and stereo plug-in
cable. Do not assume that you need the same size for both ears.
Plantronics Voyager 855
EN ENGLISH
Custom Fit
EN ENGLISH
Custom Fit
Use the stereo plug-in cable
You can use the stereo plug-in cable to listen to music in stereo.
1. Insert the ear loop tab on the stereo cable into the slot on the underside of the
headset until you feel it click into place.
TIP: You can attach the ear loop on either side of your headset, so that you can
wear the headset on your right or left ear.
. Drape the stereo plug-in cable across the back of your neck so that the headset
hangs over one shoulder and the stereo ear bud hangs over the other shoulder.
. Guide the loop behind your ear. Gently twist the headset downwards while
pressing it into your ear canal.
. Gently press the ear bud on the stereo cable inside your other ear canal.
TIP: To remove the stereo plug-in cable from your headset, gently pull
the ear loop straight out of its slot.
10
Plantronics Voyager 855
Use the optional ear loop stabiliSer
For increased stability, you can attach the optional small or large ear loop
stabiliser.
TIP: You can attach the ear loop stabiliser on either side of your headset,
so that you can wear the headset on your right or left ear.
1. Insert the ear loop tab into the slot on the underside of the headset until you
feel it click into place.
. Guide the loop behind your ear.
. Gently twist headset downward while pressing it into your ear.
TIP: To remove the ear loop stabiliser from your headset, gently pull the
ear loop straight out of its slot.
Plantronics Voyager 855
11
EN ENGLISH
Custom Fit
EN ENGLISH
Headset Controls
Action
Steps
Turn on the
headset
Press and hold the call control button until the indicator
glows blue.
Note: When your headset is in standby mode, the indicator is off.
To confirm that your headset is on, press any button or slide the
boom out. You should see a blue light flash or hear a tone.
Turn off the
headset
Press and hold the call control button until the indicator
glows red. When the power is off, the indicator stays off.
Answer a call
Press the call control button or slide the boom to the open
position.
End a call
Briefly press the call control button or slide the boom to
the closed position.
Make a call
The call automatically transfers to your headset after you
enter the number on your phone and press send.
Toggle mute
on/off
Press the mute button.
Turn off the
online indicator
Press and hold mute for 2 seconds while the headset is on.
Headset will flash blue 4 times. Repeat action to activate
online indicators. Headset will flash blue 2 times.
Adjust volume
During an active call, press the volume button:
Volume up
Volume down
WARNING: Do not use headphones/headsets at high volumes for an extended
period of time. Doing so can cause hearing loss. Always listen at moderate levels. See
www.plantronics.com/healthandsafety for more information on headsets and hearing.
12
Plantronics Voyager 855
Tips
•
If you’re wearing the headset, you hear ascending tones when the power turns
on and descending tones when the power turns off.
•
When you receive a call, your phone may ring before your headset rings. Wait
until you hear the ring in your headset to press the call control button and
answer the call.
•
To reject a call and send the caller to voice mail, press the call control button for
about 2 seconds.
•
If your phone supports voice-dialling, see “Hands-Free Features” on page 16
and the instructions that came with your phone.
•
When mute is on, a low tone plays every 60 seconds.
Stereo Headset Controls
For stereo listening, your Bluetooth device must support the Bluetooth
Advanced Audio Distribution Profile (A2DP) profile. The A2DP profile
defines how Bluetooth devices stream stereo quality audio from one
device to another. For example, music streamed from a mobile phone to a
wireless headset.
If your Bluetooth device also supports the Audio/Video Remote Control
Profile (AVRCP), you can use your headset to control music playback. For
example, you can use functions such as pause, play, next/previous track
and volume controls. If your device does not support the AVRCP profile,
then you must use the controls on your device to control music playback.
Plantronics Voyager 855
13
EN ENGLISH
Headset Controls
EN ENGLISH
Stereo Headset Controls
1. Check your Bluetooth device’s instruction manual to determine whether your
device supports the A2DP and AVRCP profiles.
. Pair your Bluetooth device with your headset. See “Pairing” on page 6 for
instructions.
. Open the music player on your Bluetooth device.
. Do any of the following:
Action
Steps
Play/Pause music
Press the mute button.
Adjust volume
Press the volume button up/down to adjust
the volume level.
Next track
Press and hold the volume up button for
about 2 seconds until you hear a tone
indicating that the track has changed.
To fast forward through tracks, press and
hold volume up.
Previous track
Press and hold the volume down button
for about 2 seconds until you hear a tone
indicating that the track has changed.
To fast rewind through tracks, press and
hold volume down.
Answering a call while listening Press the call control button or slide the
to music
boom to the open position.
Note: When you receive a call, the music
pauses and the phone rings in your headset.
When you end the call, the music resumes.
Reject a call while listening to
music
14
Press the call control button for 2 seconds.
Plantronics Voyager 855
EN ENGLISH
Indicators
Action
Light
Tone
Charging
Solid red
None
Fully charged
None
None
Low battery
3 red flashes every 10 seconds
3 high tones
every 10 seconds
Pairing
Flashes red and blue
1 low tone
Paired
Flashes blue
1 low tone
Turning on
Solid blue for 2 seconds
Ascending tones
Standby
None
None
Incoming call
3 blue flashes every 2 seconds
3 low tones every
2 seconds
Call in progress
1 blue flash every 2 seconds
None
Missed call
3 purple flashes every 10 seconds
None
Out of range
None
1 high tone
Back in range
None
1 low tone
Turning mute on
None
1 low-high tone
Mute is active
None
1 low tone every
60 seconds
Unmute
None
1 high-low tone
Turning off
Solid red for 4 seconds
Descending tones
NOTE: To turn off the online indicator, see “Headset Controls” on page 12.
Range
To maintain a connection, keep your headset within 10 metres of the
Bluetooth device. If there are obstacles between your headset and the
device you may experience interference. For optimal performance, place
your headset and phone on the same side of your body.
As you move out of range, audio quality degrades. When you are far enough
away to lose the connection, you hear a high tone in the headset. The
headset attempts to reconnect after 30 seconds. If you move back in range
later, you can manually reconnect by pressing the call control button.
NOTE: Audio quality is also dependent upon the device with which the headset is
paired.
Plantronics Voyager 855
15
EN ENGLISH
Hands-Free Features
If your phone and your wireless service provider both support hands-free
operation, you can use the following features:
Action
Steps
Redial the last number
you called
Double-click the call control button. You hear 2 low
tones after the second press.
Voice activated dialing
When the headset is on, press and hold the call
control button for about 2 seconds until you hear
1 low tone.
Reject a call
When your headset rings, press and hold the call
control button for about 2 seconds until you hear
1 long low tone.
Additional Features
Action
Steps
Transfer a call from your
headset to your phone
While a call is in progress, press and hold the call
control button until you hear a low tone.
Transfer a call from your
phone to your headset
While a call is in progress, quickly press and
release the call control button. You will then hear
a low tone.
Enable/Disable online
indicators
Press and hold mute for 2 seconds. Headset will
flash blue 4 times. Repeat action to activate online
indicators. Headset will flash blue 2 times.
Listen to music
•
Press the mute button to play or pause the
streaming music.
•
Press and hold the volume up button for about
2 seconds to go to the next track.
•
Press and hold the volume down button for
about 2 seconds to go to the previous track.
NOTES:
•
To listen to stereo music from your headset, your Bluetooth device must
support the A2DP Bluetooth profile.
•
To control music playback, your Bluetooth device must also support the AVRCP
Bluetooth profile.
•
When the online indicator is disabled, other indicators, such as low battery and
missed call, still function.
16
Plantronics Voyager 855
EN ENGLISH
Optional Accessories
Available for Purchase
76777-01
Vehicle power charger
76772-01
AC charger 100-240v
76774-01
Stereo plug-in cable
76775-01
Ear loop stabiliser (M/L)
77069-01
Ear loop stabiliser (S)
76776-01
Ear bud replacement pack
(S, M, L)
76016-01
USB charging cable
To order, please contact your Plantronics supplier or go to
www.plantronics.com/support.
Plantronics Voyager 855
17
EN ENGLISH
Troubleshooting
Problem
Solution
My headset does not Ensure that the headset is fully charged.
work with my phone. Make sure headset is paired with the phone you are trying to use.
Headset was not in discovery mode when mobile phone menu
selections were made. See “Pairing” on page 6.
Incorrect menu selections were made on your mobile phone. See
“Pairing” on page 6.
My phone did not
locate the headset.
Turn both your phone and headset off and on, and then repeat
the pairing process on page 6.
I could not enter my
passkey.
Turn both your phone and headset off and on, and then repeat
the pairing process on page 6.
I cannot hear caller/
dial tone.
The headset is not turned on. Press the call control button
for approximately 2 seconds until you hear a tone or see the
indicator glow blue.
Your headset is out of range. Move the headset closer to the phone
or Bluetooth device. See “Range” on page 15.
Your headset battery is drained. Charge your battery using the AC
charger. See “Charging” on page 5.
The listening volume is too low. Press the volume up button to
increase the sound you hear in the headset.
Make sure the ear bud fits properly. See “Custom Fit”
on page 9.
Audio quality is poor.
Make sure that you have a proper seal on the ear bud. See
“Custom Fit” on page 9.
I cannot hear music.
For stereo listening, your Bluetooth device must support the
Bluetooth Advanced Audio Distribution Profile (A2DP) profile.
The A2DP profile defines how Bluetooth devices stream stereo
quality audio from one device to another. For example, music
streamed from a mobile phone to a wireless headset.
Callers cannot
hear me.
Mute is turned on. Press the mute button.
Your headset is out of range. Move the headset closer to the
phone or Bluetooth device. See “Range” on page 15.
The ear buds do not
fit my ear.
Try a different size ear bud. See “Custom Fit” on page 9.
Remove the ear bud from your headset and then wash the ear
bud in warm soapy water. When the ear bud is completely dry,
put it back on your headset.
My headset falls out
of my ear.
Use the ear loop stabiliser for increased lateral support. See “Use
the optional ear loop stabiliser” on page 11.
Try a different size ear bud. For a proper fit, the ear bud should
create a seal. When the ear bud fits properly, you should feel a
slight amount of resistance when you remove the headset from
your ear. See page 9 for instructions on choosing an ear bud.
My ear bud needs to
be cleaned.
Remove the ear bud from the headset and wash it in warm soapy
water and rinse thoroughly. When the ear bud is completely dry,
put it back on your headset.
18
Plantronics Voyager 855
Talk time*
EN ENGLISH
Product Specifications
battery enables up to 7 hours
Stereo listening time* battery enables up to 6 hours
Standby time*
up to 160 hours
Range
up to 10 metres
Headset weight
11 grams
Headset weight with
stereo plug-in cable
15 grams
Battery type
Lithium ion
Charge time
3 hours for full charge
Version
Bluetooth 2.0 + EDR (Enhanced Data Rate)
Bluetooth profiles:
•
•
•
•
Headset profile (HSP) for talking on the phone.
Hands-free profile (HFP) for talking on the phone and
operating the phone.
Advanced Audio Distribution Profile (A2DP) for
receiving high-quality audio content.
Audio/Video Remote Control Profile (AVRCP) for
operating audio/video devices.
* Performance dependent on battery and may vary by device.
Technical Assistance
The Plantronics Technical Assistance Center (TAC) is ready to assist you.
Visit us on the web at www.plantronics.com/support. You can also call the
Technical Assistance Center for accessibility information: 0800 410 014 in UK
and 1600 551 896 in Republic of Ireland.
Plantronics Voyager 855
19
Plantronics Inc
345 Encinal Street
Santa Cruz, CA 95060 USA
Tel: (800) 544-4660
Plantronics Ltd
Wootton Bassett, UK
Tel: 0800 410014
Plantronics Ireland
Citywest Business Campus
Dublin 24
Office: +353 (0)1 4693725
Service ROI: 1800 551 896
www.plantronics.com
© 2007 Plantronics, Inc. All rights reserved. Plantronics, the logo design,
Plantronics Voyager, QuickPair, and Sound Innovation are trademarks or
registered trademarks of Plantronics, Inc. The Bluetooth® word mark and
logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Plantronics, Inc. is under license.
Patents U.S. 5,210,791; and Patents Pending.
76518-03 (07-07)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
