Toro 40" Tiller, Dingo Compact Utility Loader User manual

Toro 40

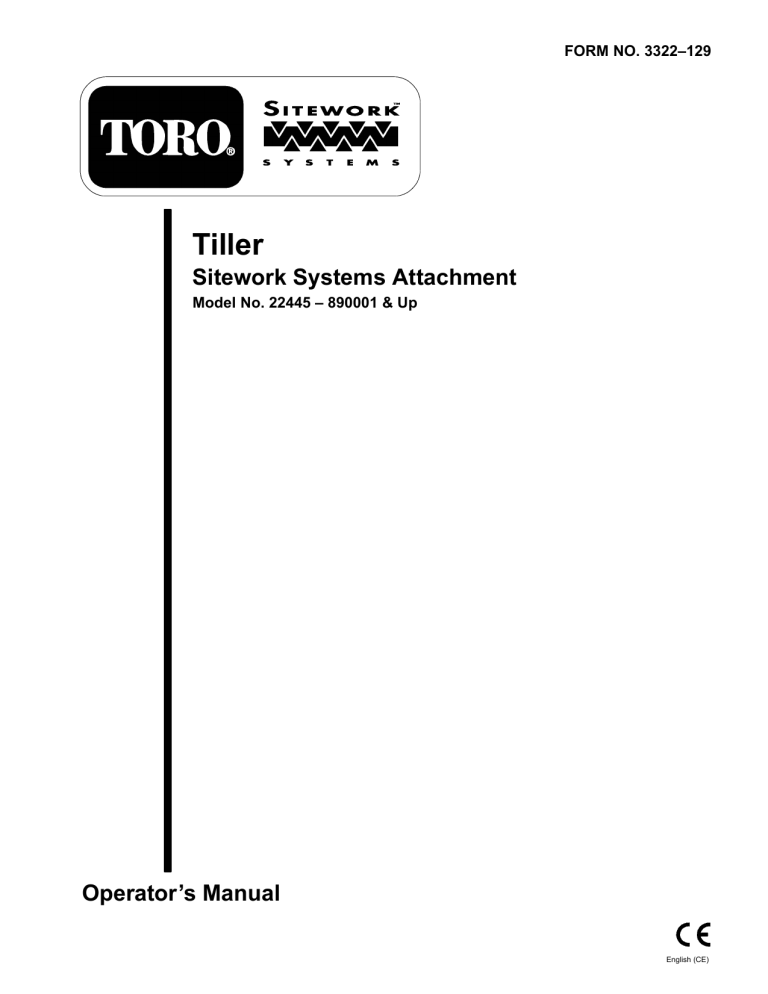

FORM NO. 3322–129
Tiller
Sitework Systems Attachment
Model No. 22445 – 890001 & Up
Operator’s Manual
English (CE)
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stability Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Tiller on the Traction Unit . . . . . . . .
Connecting the Hydraulic Hoses . . . . . . . . . . . . . .
Removing the Tiller from the Traction Unit . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for Tilling . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Interval Chart . . . . . . . . . . . . . . . . . . . . . .
Greasing and Lubrication . . . . . . . . . . . . . . . . . . . .
Adjusting Tiller Drive Chain Tension . . . . . . . . . .
Tiller Tine Replacement . . . . . . . . . . . . . . . . . . . . .
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The warning system in this manual identifies potential
hazards and has special safety messages that help you and
others avoid personal injury, even death. DANGER,
WARNING and CAUTION are signal words used to
identify the level of hazard. However, regardless of the
hazard, be extremely careful.
Page
2
2
3
3
4
4
4
4
5
5
5
6
6
6
6
7
7
8
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended precautions
are not followed.
WARNING signals a hazard that may cause serious injury
or death if the recommended precautions are not followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are not
followed.
Two other words are also used to highlight information.
“Important” calls attention to special mechanical
information and “Note” emphasizes general information
worthy of special attention.
The left and right side of the machine is determined by
sitting on the seat in the normal operator’s position.
Safety
Introduction
Improper use or maintenance by the operator or owner can
result in injury. To reduce the potential for injury, comply
with these safety instructions and those in the traction unit
operator’s manual. Always pay attention to the safety alert
symbol, which means CAUTION, WARNING, or
DANGER—“personal safety instruction.” Failure to
comply with the instruction may result in personal injury
or death.
We want you to be completely satisfied with your new
product, so feel free to contact your local Authorized
Service Dealer for help with service, genuine replacement
parts, or other information you may require.
Whenever you contact your Authorized Service Dealer or
the factory, always know the model and serial numbers of
your product. These numbers will help the Service Dealer
or Service Representative provide exact information about
your specific product. You will find the model and serial
number on a plate located on the product.
DANGER
POTENTIAL HAZARD
• Contact with rotating tines may cause injury.
For your convenience, write the product model and serial
numbers in the space below.
WHAT CAN HAPPEN
• Rotating tines can cut hands, feet or other body
parts.
HOW TO AVOID THE HAZARD
• Keep away from the rotating tines while
operating the tiller.
• Keep your hands, feet, and any other part of
your body or clothing away from rotating
parts.
• Before adjusting, cleaning, repairing and
inspecting the tiller, lower the tiller and loader
arms to the ground and stop the engine.
Remove the key.
Model No:
Serial No.
The Toro Company – 1999
8111 Lyndale Ave. South
Bloomington, MN 55420–1196
All Rights Reserved
2
Printed in the USA
WARNING
WARNING
POTENTIAL HAZARD
• There may be buried power, gas, and/or
telephone lines in the area needing tilling.
POTENTIAL HAZARD
• When the engine is off, attachments in the
raised position can gradually lower.
WHAT CAN HAPPEN
• Shock or explosion may occur.
WHAT CAN HAPPEN
• Someone nearby may be pinned or injured by
the attachment as it lowers.
HOW TO AVOID THE HAZARD
• Have the property or area to be tilled marked
for buried lines.
HOW TO AVOID THE HAZARD
• Always lower the loader arms before you shut
off the traction unit.
WARNING
Safety Decals
POTENTIAL HAZARD
• Tines can throw dirt, debris, and small rocks.
2
1
WHAT CAN HAPPEN
• The operator or bystander could be injured by
flying debris.
HOW TO AVOID THE HAZARD
• Run the tiller so that debris is thrown away
from the traction unit.
• Keep all bystanders away from the work area.
# 93–7321
3
Figure 1
1. Cutting hazard–foot
2. Cutting hazard–hand
3. Keep away from moving
parts
Specifications
Overall width
44.0 inches (112 cm)
Overall length
20.0 inches (51 cm)
Overall height
26.0 inches (66 cm)
Tilling width
40.0 inches (102 cm)
Tine diameter
19.0 inches (48 cm)
Tine speed (max)
245 rpm @ 3600 engine rpm (flow divider @ 9 o’clock position)
Tine speed (recommended)
225 rpm @ 3600 engine rpm (flow divider @ 10 o’clock position)
Tine thickness
.25 inches (.63 cm)
Tine width
2.5 inches (6.4 cm)
Number of tines
36
Shaft diameter
1.50 inches (3.8 cm)
Drive
Chain ANSI 60 reduction ratio 1.8:1
Hydraulic motor displacement
6.20 cu. in. (102 cc)
Weight
363 lbs (165 kg)
3
Stability Ratings
1. Position the tiller on a level surface with enough space
behind it to accommodate the traction unit.
To determine the degree of slope you can traverse with the
tiller installed on a traction unit, find the stability rating
for the hill position you want to travel in the table below,
then find the degree of slope for the same rating and hill
position in the Stability Data section of the traction unit
operator’s manual.
Orientation
2. Move pump control lever to slow (turtle) position.
3. Start the engine.
4. Slowly push the attachment tilt lever forward to tilt the
attachment mount plate forward.
5. Position mount plate into the upper lip of the
attachment receiver plate (Fig. 2).
Stability Rating
Front Uphill
C
Rear Uphill
1
2
C
m–4055
Side Uphill
Figure 2
B
1. Mount plate
2. Receiver plate
6. Raise the loader arms while tilting back the mount
plate at the same time.
Note: The tiller is rated for use without the counterweight.
If you use the counterweight with the tiller, the traction
unit will be less stable in the front and side uphill
positions.
IMPORTANT: The attachment should be raised
enough to clear the ground and the mount plate tilted
all the way back.
7. Stop the engine.
WARNING
8. Engage the quick attach pins (Fig. 3).
POTENTIAL HAZARD
• Exceeding the maximum slope can cause the
traction unit to tip.
1
WHAT CAN HAPPEN
• If the traction unit tips, you or bystanders could
be crushed.
HOW TO AVOID THE HAZARD
• Do not drive the the traction unit on a slope
steeper that the maximum slope.
m–4056
Installation
Figure 3
1. Quick attach pins (shown in engaged position)
Installing the Tiller on the
Traction Unit
Connecting the Hydraulic
Hoses
IMPORTANT: Before connecting any attachments to
the traction unit, ensure that the mount plates are free
of any dirt or debris.
1. Stop the engine.
4
2. Move the auxiliary hydraulic lever forward, backward,
and back to neutral to relieve hydraulic pressure at the
hydraulic couplers.
7. Start the engine, tilt the mount plate forward and back
the traction unit away from the tiller.
IMPORTANT: Ensure that all foreign matter is
cleaned from hydraulic couplers.
Operation
3. Remove protective covers from hydraulic couplers on
the traction unit. Connect covers together to prevent
contamination during operation.
Tips for Tilling
• Clean the area of trash, branches, and rocks before
tilling to prevent equipment damage.
4. Slide the collars back on the hydraulic couplers and
connect the attachment couplers to the traction unit
couplers.
• Always begin tilling with the slowest ground speed
possible. Increase speed if conditions permit.
5. Ensure that the connections are secure by pulling on
the hoses.
• Always use full throttle (maximum engine speed).
• Till in long, straight passes. Do not make turns while
the tiller is in the ground, as equipment damage may
result.
WARNING
POTENTIAL HAZARD
• Hydraulic fluid escaping under pressure can
penetrate skin and cause injury.
• Avoid excessive tilling of the soil, as finely tilled soil
will not absorb moisture easily and puddles of water or
run-off may occur.
WHAT CAN HAPPEN
• Fluid accidentally injected into the skin must be
surgically removed within a few hours by a
doctor familiar with this form of injury, or
gangrene may result.
• When tilling hard packed, very dry, or virgin soil, raise
the tiller so only the very top of the soil is penetrated.
On succeeding passes the depth may be lowered.
• Run the tiller so that the dirt is thrown away from you.
HOW TO AVOID THE HAZARD
• Keep body and hands away from pin hole leaks
or nozzles that eject high pressure hydraulic
fluid.
• Use cardboard or paper to find hydraulic leaks,
never use your hands.
• If a rock or other obstruction gets into the tiller tines,
reverse the rotation direction to dislodge it.
Removing the Tiller from the
Traction Unit
1. Start engine and lower the tiller to the ground or onto a
trailer.
2. Stop the engine.
3. Move the auxiliary hydraulic lever forward, backward,
and back to neutral to relieve hydraulic pressure at the
hydraulic couplers.
4. Disengage the quick attach pins by turning them to the
outside.
5. Slide the collars back on the hydraulic couplers and
disconnect them.
IMPORTANT: Connect the attachment hoses together
to prevent hydraulic system contamination during
storage.
6. Install the protective covers onto the hydraulic
couplers on the traction unit.
5
Maintenance
Service Interval Chart
Service Operation
Each
Use
5
Hours
Shaft bearing–lubricate
25
Storage
Hours Service
X
Chain tension–adjust and lubricate
initial
Notes
X
X
Tines–check
X
Replace as required
Tine bolts–check and tighten
X
Replace as required
Chipped surfaces–paint
X
CAUTION
POTENTIAL HAZARD
• If you leave the key in the ignition switch, someone could start the engine.
WHAT CAN HAPPEN
• Accidental starting of the engine could seriously injure you or other bystanders.
HOW TO AVOID THE HAZARD
• Remove the key from the ignition switch before you do any maintenance.
Greasing and Lubrication
Lubricant Type: Commercial chain lube.
Service Interval/Specification
1. Lower the loader arms and stop the engine. Remove
the key.
Grease the 2 tiller shaft fittings every 25 operating hours.
Grease immediately after every washing.
2. Remove the chain drive cover (Fig, 4).
3. Apply a commercial chain lube onto the chain spans.
Grease Type: General-purpose grease.
4. Install the chain drive cover.
How to Grease
Adjusting Tiller Drive Chain
Tension
1. Lower the loader arms and stop the engine. Remove
the key.
2. Clean the grease fittings with a rag.
4. Connect a grease gun to each fitting.
Adjust the tiller drive chain after the initial 5 hours of
operation and every 25 operating hours thereafter. There
should be 1/2–3/4 inch slack in the chain, measured
mid–way between the sprockets.
5. Pump grease into the fittings until grease begins to
ooze out of the bearings.
1. Lower the loader arms and stop the engine. Remove
the key.
6. Wipe up any excess grease.
2. Remove the chain drive cover (Fig, 4).
Lubricating Tiller Drive Chain
3. Loosen the 2 hydraulic motor, mount plate bolts
(Fig, 4).
Lubricate tiller drive chain after the initial 5 hours of
operation and every 25 operating hours thereafter.
4. Using the adjuster bolt, move the hydraulic motor
upward to tighten the chain (Fig, 4).
3. Scrape any paint off the front of the fittings.
6
Tines should be installed as illustrated in Figure 5 with 2
left hand tines and 2 right hand tines on each hub.
2
2
3
1
1
2
m–4414
Figure 5
1. Left hand tine
1
2. Right hand tine
The cutting edges of the tines should face toward the rear
of the tiller.
2
Torque the tine mounting bolts to 70 ±7 in–lb.
m–4372
Figure 4
1. Chain drive cover
2. Hydraulic motor, mount
plate bolt
Storage
3. Adjuster bolt
1. Before long term storage wash the tiller with mild
detergent and water to remove dirt and grime.
5. After proper chain tension is attained, tighten the
adjuster bolt and hydraulic motor mount plate bolts
(Fig, 4).
2. Check the condition of the drive chain. Adjust and
lubricate the chain.
Note: When proper adjustment can no longer be attained
from the adjuster bolt or repeated chain failures occur,
replace chain.
4. Check and tighten all bolts, nuts, and screws. Repair or
replace any part or tines that are damaged or worn.
6. Install the chain drive cover.
5. Paint all scratched or bare metal surfaces. Paint is
available from your Authorized Service Dealer.
Tiller Tine Replacement
6. Store the tiller in a clean, dry garage or storage area.
Cover the tiller to protect it and keep it clean.
3. Grease all fittings.
Check and replace tines when they become worn or dull.
Worn or dull tines will degrade the performance of the
tiller.
7
Troubleshooting
PROBLEM
Tiller does not operate.
POSSIBLE CAUSES
CORRECTIVE ACTION
1. Hydraulic coupler not
completely connected
1. Check and tighten all couplers.
2. Defective hydraulic coupler
2. Check couplers and replace
any that are defective.
3. An obstruction in a hydraulic
hose
3. Find and remove the
obstruction.
4. Auxiliary valve on the traction
unit is not opening.
4. Repair the valve.
5. An obstruction in the tiller
(e.g., rock or root)
5. Find and remove the
obstruction.
6. Broken drive chain
6. Repair or replace the chain.
7. Loose drive chain
7. Adjust the chain tension.
8. Defective hydraulic valve
8. Replace or repair the defective
valve.
9. Defective drive motor
9. Replace or repair the drive
motor.
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
