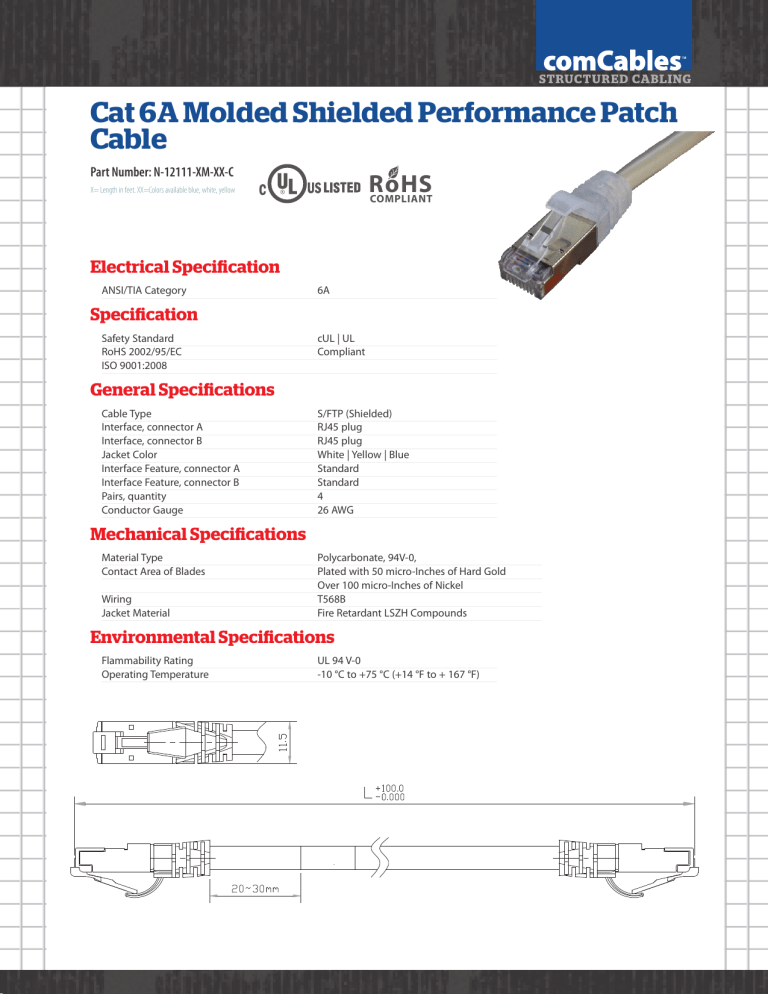

Cat 6A Molded Shielded Performance Patch
Cable
Part Number: N-12111-XM-XX-C
RoHS
COMPLIANT
X= Length in feet. XX=Colors available blue, white, yellow
Electrical Specification
ANSI/TIA Category 6A
Specification
Safety Standard cUL | UL
RoHS 2002/95/EC
Compliant
ISO 9001:2008
General Specifications
Cable Type Interface, connector A Interface, connector B Jacket Color Interface Feature, connector A Interface Feature, connector B Pairs, quantity Conductor Gauge
S/FTP (Shielded)
RJ45 plug
RJ45 plug
White | Yellow | Blue Standard
Standard
4
26 AWG
Mechanical Specifications
Material Type Contact Area of Blades Wiring
Jacket Material
Polycarbonate, 94V-0, Plated with 50 micro-Inches of Hard Gold Over 100 micro-Inches of Nickel
T568B
Fire Retardant LSZH Compounds
Environmental Specifications
Flammability Rating Operating Temperature UL 94 V-0
-10 °C to +75 °C (+14 °F to + 167 °F)
