How to Peer GXW410x with UCM61xx

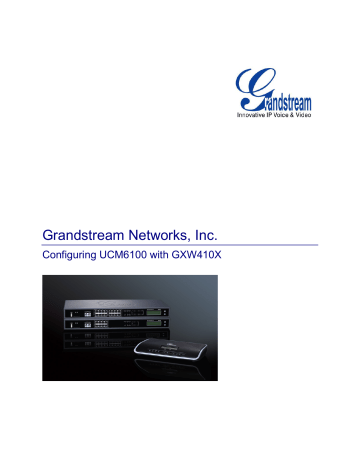

Grandstream Networks, Inc.

Configuring UCM6100 with GXW410X

Index

Table of Contents

OVERVIEW .................................................................................................. 3

CONNECT UCM6100 TO GXW410X USING PEER SIP TRUNK ............... 4

CREATE IVR ON UCM6100 .................................................................................................................. 4

CREATE PEER SIP TRUNK ON UCM6100 .......................................................................................... 5

CONFIGURE OUTBOUND RULE ON UCM6100 ................................................................................. 5

CONFIGURE INBOUND RULE ON UCM6100 ..................................................................................... 6

CONFIGURE FXO PORT ON GXW410X WHEN PEERED WITH UCM6100 ...................................... 7

REGISTER GXW410X ON UCM6100 AS AN EXTENSION ...................... 10

CREATE SIP EXTENSION ON UCM6100 .......................................................................................... 10

CONFIGURE GXW410X USER SETTING AS AN EXTENSION REGISTERED ON UCM6100 ........ 10

GXW410X CALL SETTINGS ..................................................................... 13

CONFIGURE UNCONDITIONAL CALL FORWARD ON GXW410X ................................................... 13

HOW TO DIAL ..................................................................................................................................... 13

CONFIGURING UCM6100 WITH GXW410X

Page 1 of 13

Table of Figures

Figure 1: Method 1 - Create IVR 7200 on the UCM6100 ............................................................................. 4

Figure 2: Method 1 - Create Peer SIP Trunk on the UCM6100 .................................................................... 5

Figure 3: Method 1 - Configure Outbound Rule on the UCM6100 ............................................................... 6

Figure 4: Method 1 - Configure Inbound Rule on UCM6100 ........................................................................ 7

Figure 5: Method 1 - Configure FXO Port on GXW410X: General Settings ................................................. 7

Figure 6: Method 1 - Configure FXO Port on the GXW410X: SIP Settings .................................................. 8

Figure 7: Method 1 - Configure FXO Port on the GXW410X: DTMF Method ............................................... 8

Figure 8: Method 1 - Configure FXO Port on the GXW410X: DTMF Payload Type ..................................... 8

Figure 9: Method 1 - Configure FXO Port on the GXW410X: FXO Termination ........................................... 8

Figure 10: Method 1 - Configure FXO Port on the GXW410X: Call Progress Tones ................................... 9

Figure 11: Method 1 - Configure FXO Port on the GXW410X: FXO Termination ......................................... 9

Figure 12: Method 2 – Create SIP Extension on UCM6100 ....................................................................... 10

Figure 13: Method 2 - GXW410X User Settings ......................................................................................... 11

Figure 14: Method 2 - GXW410X User Settings: General Settings ............................................................ 11

Figure 15: Method 2 - GXW410X SIP Settings ........................................................................................... 11

Figure 16: Method 2 - UCM6100: SIP Extension Status ............................................................................. 12

Figure 17: GXW410X - Call Forwarding ..................................................................................................... 13

This document is subject to change without notice. The latest electronic version of this document is available for download here: http://www.grandstream.com/support

Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.

CONFIGURING UCM6100 WITH GXW410X

Page 2 of 13

OVERVIEW

This document describes basic configuration to interconnect UCM6100 series and GXW410X. In this document, we are using GXW4104 as an example. The following methodology can be used for the

GXW4108 as well. This is typically applied to the scenario where users would like to add a GXW410X not only as a remote extension but also as an external PSTN trunk.

There are two ways to set up the UCM6100 series IP PBX with the GXW410X.

Method 1: Configure GXW410X as a SIP Peer Trunk.

Method 2: Register GXW410X on the UCM6100 directly as an extension.

--------------------------------------------------------------------------------------------------------------------------------------------

Warning:

1. When the UCM6100 series is interconnected with other GXW410X, it is NOT recommended to turn on "Allow Guest Calls" under the UCM6100 web GUI->PBX->SIP Settings->General.

Turning on this option will allow unauthenticated calls coming through the UCM6100 series.

Please be aware of the security concerns when using this option.

2. When using the IVR in UCM6100 series, please be aware that if "Dial Trunk" option is turned on in

IVR settings, the call into the IVR will be able to dial outbound call using UCM6100's trunk. The

IVR's permission level will be used when making outbound calls in this case. Please select proper permission level for the IVR to control the outbound calls allowed via "Dial Trunk".

--------------------------------------------------------------------------------------------------------------------------------------------

CONFIGURING UCM6100 WITH GXW410X

Page 3 of 13

CONNECT UCM6100 TO GXW410X USING PEER SIP TRUNK

CREATE IVR ON UCM6100

On the UCM6100 web GUI, create an IVR extension under PBX->Call Features->IVR

In IVR settings, if "Dial Other Extensions" is enabled, the calls dialing into the UCM6100 IVR will be able to reach the internal extensions registered to the UCM6100. Also, you can assign the "Key Pressing Event" to different destinations.

Figure 1: Method 1 - Create IVR 7200 on the UCM6100

CONFIGURING UCM6100 WITH GXW410X

Page 4 of 13

CREATE PEER SIP TRUNK ON UCM6100

On the UCM6100 web GUI, create a peer SIP trunk under PBX->Basic/Call Routes->VOIP Trunks. In this example, the GXW410X IP address is 192.168.40.137.

Figure 2: Method 1 - Create Peer SIP Trunk on the UCM6100

CONFIGURE OUTBOUND RULE ON UCM6100

On the UCM6100 web GUI, go to PBX->Basic/Call Routes->Outbound Routes to create a new outbound rule.

This would allow the extension on the UCM6100 to reach numbers in PSTN network via the peer SIP trunk we just configured.

CONFIGURING UCM6100 WITH GXW410X

Page 5 of 13

Figure 3: Method 1 - Configure Outbound Rule on the UCM6100

In this example pattern "91XXXXXXXXXX", 9 is the first dialing digit and it will be stripped off when the call goes out.

CONFIGURE INBOUND RULE ON UCM6100

On the UCM6100 web GUI, go to PBX->Basic/Call Routes->Inbound Rules to create a new inbound rule.

In this example, we create the DID as

20000

, which will be used in the GXW410X call forward setting.

CONFIGURING UCM6100 WITH GXW410X

Page 6 of 13

Figure 4: Method 1 - Configure Inbound Rule on UCM6100

The default destination is configured to IVR. Ensure to select the proper extension for the IVR.

CONFIGURE FXO PORT ON GXW410X WHEN PEERED WITH UCM6100

1. Connect the PSTN line to the GXW410X FXO port.

2. On the GXW410X web GUI, go to the Accounts->Account X-> General Settings page and enter the

IP address of the UCM6100 that you are peering with.

Figure 5: Method 1 - Configure FXO Port on GXW410X: General Settings

3. Please make sure the SIP Registration option under Accounts-> Account X-> SIP Settings is set to

No. In the following example, UCM6100 has IP address 192.168.40.207.

CONFIGURING UCM6100 WITH GXW410X

Page 7 of 13

Figure 6: Method 1 - Configure FXO Port on the GXW410X: SIP Settings

Figure 7: Method 1 - Configure FXO Port on the GXW410X: DTMF Method

Since we are going to use IVR when the call is forwarded to the UCM6100, UCM6100 will need to be able to detect the DTMF digits. Configure the GXW410X FXO port DTMF settings as below for the initial setup. This can be found under Settings-> Channel Settings.

Figure 8: Method 1 - Configure FXO Port on the GXW410X: DTMF Payload Type

Set the DTMF Payload Type to 101. This value can be found under Settings->Call Settings.

There are few changes to be made in FXO termination section. This feature can be found under FXO

Lines settings page.

Figure 9: Method 1 - Configure FXO Port on the GXW410X: FXO Termination

CONFIGURING UCM6100 WITH GXW410X

Page 8 of 13

• First we should confirm which method the PSTN line is using. If the PSTN line is using current disconnect (typical case in North America), then we should turn on "Enable Current Disconnect" and disable "Enable PSTN Disconnect Tone Detection". The default "Current Disconnect

Threshold" value is 100ms, but if you start experiencing call drop then you should raise this value by 100ms intervals.

• If the PSTN disconnects using the tones method, then turn on "Enable PSTN Disconnect Tone

Detection" and turn off the "Enable Current Disconnect" option.

Figure 10: Method 1 - Configure FXO Port on the GXW410X: Call Progress Tones

For PSTN tone detection, the tone disconnect method is widely used everywhere else in the world.

The North American busy tone value is "[email protected],[email protected],c=500/500" but these tones vary from country to country. You may look up for the settings for your country at www.3amsystems.com or download the information from http://www.itu.int/ITU-T/inr/forms/files/tones-0203.pdf

Figure 11: Method 1 - Configure FXO Port on the GXW410X: FXO Termination

• Set "Number of Rings" option to 1. If you happen to experience caller ID issue, you may set it to 2.

In the sample setup, it's set to 2.

• Set the "Wait for Dial-Tone" to "No".

• Set the "Stage Method (1/2)" to 1.

CONFIGURING UCM6100 WITH GXW410X

Page 9 of 13

REGISTER GXW410X ON UCM6100 AS AN EXTENSION

CREATE SIP EXTENSION ON UCM6100

To manually create new SIP user, go to UCM6100 web GUI->PBX->Basic/Call Routes->Extensions.

Click on "Create New User"->"Create New SIP Extension" and a new dialog window will show for users to fill in the extension information.

Figure 12: Method 2 – Create SIP Extension on UCM6100

CONFIGURE GXW410X USER SETTING AS AN EXTENSION REGISTERED ON UCM6100

Under GXW410X web GUI->Accounts->User Account, please enter the SIP Extension information created earlier in the UCM6100. In this example, extension 1002 is used in order to register GXW410X as an extension user on UCM6100.

CONFIGURING UCM6100 WITH GXW410X

Page 10 of 13

Figure 13: Method 2 - GXW410X User Settings

Under GXW410X web GUI, Accounts->Account X->General Settings, please fill in UCM6100 information as explained in method 1.

Figure 14: Method 2 - GXW410X User Settings: General Settings

Please make sure under SIP Settings tab, SIP Registration option is set to Yes, as it is required for

GXW410X to successfully register on UCM6100.

Figure 15: Method 2 - GXW410X SIP Settings

We can check UCM6100 SIP Extension Status to see if GXW410X has been successfully registered as an extension device. The green icon indicates that GXW410X is registered on UCM6100.

CONFIGURING UCM6100 WITH GXW410X

Page 11 of 13

Figure 16: Method 2 - UCM6100: SIP Extension Status

Now GXW410X is registered at UCM6100 as an extension device. Please refer to method 1 in the previous section to adjust FXO Port and DTMF settings on GXW410X.

CONFIGURING UCM6100 WITH GXW410X

Page 12 of 13

GXW410X CALL SETTINGS

CONFIGURE UNCONDITIONAL CALL FORWARD ON GXW410X

On the GXW410X web GUI, go to the Settings->Channel Settings page, configure "Unconditional Call

Forward to VOIP" to the DID number 20000. This is the same number configured in UCM6100 inbound route dial pattern. In this example, we will use the SIP server for profile 1 (p1).

Figure 17: GXW410X - Call Forwarding

HOW TO DIAL

Once the GXW410X and the UCM6100 are configured correctly, the inbound call and the outbound call will be working as described below.

• Outbound call:

The extension registered to the UCM6100 can dial prefix + PSTN number to reach outside numbers in

PSTN network, as defined in UCM6100 outbound route.

• Inbound call:

The user from outside network can dial into the PSTN line's number (connected to GXW410X). And then he/she will reach the IVR of the UCM6100. The IVR on UCM6100 would allow the user to further enter extension number or key pressing digit to reach the desired destination. The inbound call will go through the inbound route set up on the UCM6100.

CONFIGURING UCM6100 WITH GXW410X

Page 13 of 13
