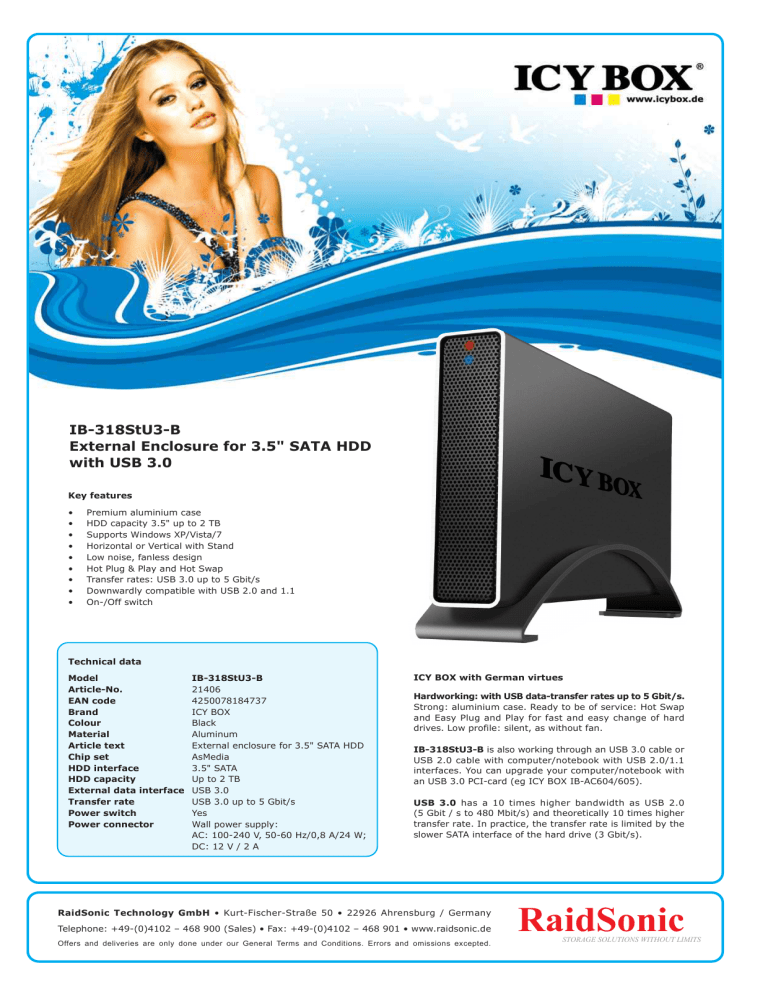

RaidSonic
IB-318StU3-B
External Enclosure for 3.5" SATA HDD
with USB 3.0
Key features
•
•
•
•
•
•
•
•
•
Premium aluminium case
HDD capacity 3.5" up to 2 TB
Supports Windows XP/Vista/7
Horizontal or Vertical with Stand
Low noise, fanless design
Hot Plug & Play and Hot Swap
Transfer rates: USB 3.0 up to 5 Gbit/s
Downwardly compatible with USB 2.0 and 1.1
On-/Off switch
Technical data
Model
Article-No.
EAN code
Brand
Colour
Material
Article text
Chip set
HDD interface
HDD capacity
External data interface
Transfer rate
Power switch
Power connector
IB-318StU3-B
21406
4250078184737
ICY BOX
Black
Aluminum
External enclosure for 3.5" SATA HDD
AsMedia
3.5" SATA
Up to 2 TB
USB 3.0
USB 3.0 up to 5 Gbit/s
Yes
Wall power supply:
AC: 100-240 V, 50-60 Hz/0,8 A/24 W;
DC: 12 V / 2 A
ICY BOX with German virtues
Hardworking: with USB data-transfer rates up to 5 Gbit/s.
Strong: aluminium case. Ready to be of service: Hot Swap
and Easy Plug and Play for fast and easy change of hard
drives. Low profile: silent, as without fan.
IB-318StU3-B is also working through an USB 3.0 cable or
USB 2.0 cable with computer/notebook with USB 2.0/1.1
interfaces. You can upgrade your computer/notebook with
an USB 3.0 PCI-card (eg ICY BOX IB-AC604/605).
USB 3.0 has a 10 times higher bandwidth as USB 2.0
(5 Gbit / s to 480 Mbit/s) and theoretically 10 times higher
transfer rate. In practice, the transfer rate is limited by the
slower SATA interface of the hard drive (3 Gbit/s).
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Frontside
Rearside
LED HDD access
LED Power
USB 3.0
Ventilation grille
Power supply
Power switch
Stand support
Downwards connection
USB 3.0 Host
USB 2.0 cable
USB 2.0 device
OK
USB 2.0 Host
USB 2.0 cable
USB 3.0 device
OK
Packing content:
USB 2.0 Host
USB 3.0 cable
USB 3.0 device
OK
USB 3.0 Host
USB 3.0 cable
USB 2.0 device
NG
1x IB-318StU3-B, 1x wall power supply,
1x USB 3.0 cable, 1x stand support, 1x manual
Logistical data
Packing unit:
Total weight:
Gross weight:
Net weight:
10 pcs/carton
10.0 kg
0.94 kg
0.41 kg
Dimension/Carton:
Dimension (with packing):
Dimension of article:
Country of Origin:
575x303x382 mm
290x175x115 mm
220x115x30 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
