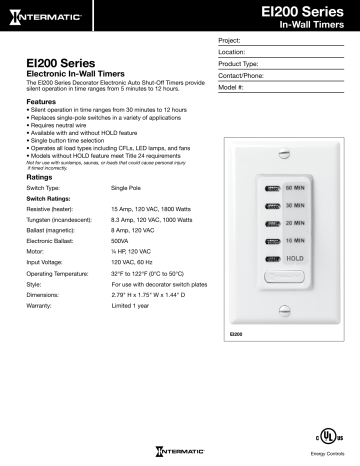

Intermatic EI200W Specification
EI200 Series
In-Wall Timers
Project:
Location:
EI200 Series
Product Type:
Electronic In-Wall Timers
The EI200 Series Decorator Electronic Auto Shut-Off Timers provide
silent operation in time ranges from 5 minutes to 12 hours.
Contact/Phone:
Model #:
Features
• Silent operation in time ranges from 30 minutes to 12 hours
• Replaces single-pole switches in a variety of applications
• Requires neutral wire
• Available with and without HOLD feature
• Single button time selection
• Operates all load types including CFLs, LED lamps, and fans
• Models without HOLD feature meet Title 24 requirements
Not for use with sunlamps, saunas, or loads that could cause personal injury
if timed incorrectly.
Ratings
Switch Type: Single Pole
Switch Ratings: Resistive (heater): 15 Amp, 120 VAC, 1800 Watts
Tungsten (incandescent): 8.3 Amp, 120 VAC, 1000 Watts Ballast (magnetic): 8 Amp, 120 VAC
Electronic Ballast:
500VA
Motor: ¼ HP, 120 VAC
Input Voltage: 120 VAC, 60 Hz
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Style: For use with decorator switch plates
Dimensions:
2.79" H x 1.75" W x 1.44" D
Warranty:
Limited 1 year
EI200
Energy Controls
EI200 Series
Model
Number
Time Range
Switch
Clock
Volts AC
Max
Wattage
Neutral
Required
Color
Hold
EI200
5/10/15/30 Minute
Single-Pole
120
1800
Yes
Ivory
Yes
EI200W
5/10/15/30 Minute
Single-Pole
120
1800
Yes
White
Yes
EI200LA
5/10/15/30 Minute
Single-Pole
120
1800
Yes
Light Almond
Yes
EI205
5/15/30/45/60 Minute
Single-Pole
120
1800
Yes
Ivory
No
EI205W
5/15/30/45/60 Minute
Single-Pole
120
1800
Yes
White
No
EI205LA
5/15/30/45/60 Minute
Single-Pole
120
1800
Yes
Light Almond
No
EI210
10/20/30/60 Minute
Single-Pole
120
1800
Yes
Ivory
Yes
EI210W
10/20/30/60 Minute
Single-Pole
120
1800
Yes
White
Yes
EI210LA
10/20/30/60 Minute
Single-Pole
120
1800
Yes
Light Almond
Yes
EI215
15/30/60 Minute, 2/4 Hour
Single-Pole
120
1800
Yes
Ivory
No
EI215W
15/30/60 Minute, 2/4 Hour
Single-Pole
120
1800
Yes
White
No
EI215LA
15/30/60 Minute, 2/4 Hour
Single-Pole
120
1800
Yes
Light Almond
No
EI220
1/2/4/8 Hour
Single-Pole
120
1800
Yes
Ivory
Yes
EI220W
1/2/4/8 Hour
Single-Pole
120
1800
Yes
White
Yes
EI220LA
1/2/4/8 Hour
Single-Pole
120
1800
Yes
Light Almond
Yes
EI230
2/4/8/12 Hour
Single-Pole
120
1800
Yes
Ivory
Yes
EI230W
2/4/8/12 Hour
Single-Pole
120
1800
Yes
White
Yes
EI230LA
2/4/8/12 Hour
Single-Pole
120
1800
Yes
Light Almond
Yes
EI235
15/30/45/60/120 Minute
Single-Pole
120
1800
Yes
Ivory
No
EI235W
15/30/45/60/120 Minute
Single-Pole
120
1800
Yes
White
No
EI235LA
15/30/45/60/120 Minute
Single-Pole
120
1800
Yes
Light Almond
No
Specification
The timer shall be supplied with an LED and single-button operation. The timer must fit a standard wall box and accept a
rectangular decorator wall plate. Timer contacts shall break current at the end of timed cycle. The timer shall be capable
of single-pole operation. Various user selectable timing ranges shall be available up to 12 hours, with or without “HOLD”
feature for constant ON. The timer shall be Intermatic model____________________________ (See Model Numbers Listed).
Diagrams
Neutral
Load
Red
Load
Green
Hot
Ground
Black
(Line)
White
(Neutral)
Installation Diagram
Energy Controls
www.intermatic.com
Ground
