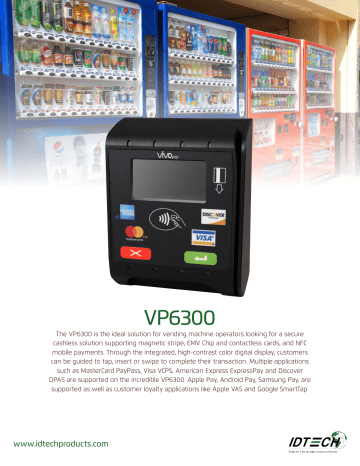

VP6300 - ID Tech
VP6300
The VP6300 is the ideal solution for vending machine operators looking for a secure
cashless solution supporting magnetic stripe, EMV Chip and contactless cards, and NFC
mobile payments. Through the integrated, high-contrast color digital display, customers
can be guided to tap, insert or swipe to complete their transaction. Multiple applications
such as MasterCard PayPass, Visa VCPS, American Express ExpressPay and Discover
DPAS are supported on the incredible VP6300. Apple Pay, Android Pay, Samsung Pay, are
supported as well as customer loyalty applications like Apple VAS and Google SmartTap.
www.idtechproducts.com
VP6300
GENERAL
ELECTRICAL
ENVIRONMENTAL
RELIABILITY
MECHANICAL
DISPLAY
FEATURES
©2017 International
Technologies & Systems
Corporation. ID TECH & ViVOpay
are registered trademarks of
Interfaces:
RS232, USB HID
IP54, IK10
Input Voltage:
Power Consumption:
7.5 to 45V
Less than 1A
Operating Temperature:
Storage Temperature:
-20°C to 70°C (-4°F to 158°F)
-30°C to 85°C (-22°F to 185°F)
Operating Life:
MSR: 1,000,000 swipes
EMV: 500,000 inserts
Dimension (L)x(W)x(H):
4.25 in (108 mm) X 3.46 in (85 mm) X 2.17 in
(55 mm)
LCD Color Display:
128x64
•
•
•
•
•
•
•
EMV L1 and L2 certified
PCI 5.X SRED certified
Windows & Android SDK available
TDES, AES, RSA, Master/Session
Interac, CUP, JCB, Felica, Telec/VCCI
Apple Pay, Apple VAS, Google SmartTap 2.1, Android PAY, Samsung Pay
2 SAM slots
UNITED STATES
SALES OFFICE
International Technologies &
Corporate Headquarters
Systems Corporation. VP6300
10721 Walker Street
Cypress, CA 90630
Phone: (714) 761-6368
Toll Free: (800) 984-1010
Fax: (714) 761-8880
[email protected]
and Value through Innovation
are trademarks of International
Technologies & Systems
Corporation. All specifications
subject to change without
notice. R10/17
www.idtechproducts.com
INTERNATIONAL SALES OFFICES
Asia
+866-3-326-5988 (Taiwan)
[email protected]
Europe, Middle East & Africa
+44 (0) 1925 269550
[email protected]
ISO 9001 Certified
ISO 14001 Certified
