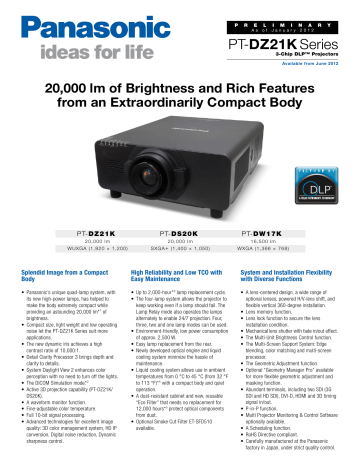

PT-DZ21K Series
P
R
E
L
I
M
I
N
A
As of January 2012
R
Y
PT-DZ21K Series
3-Chip DLP™ Projectors
Available from June 2012
20,000 lm of Brightness and Rich Features
from an Extraordinarily Compact Body
PT- DZ21K
20, 000 l m
WUXG A ( 1, 920 × 1, 200)
PT- D S 20K
2 0 , 0 0 0 lm
SXGA+ (1,400 × 1,050)
PT- D W17K
1 6 , 5 0 0 lm
WX G A ( 1 , 3 6 6 × 7 6 8 )
Splendid Image from a Compact
Body
High Reliability and Low TCO with
Easy Maintenance
System and Installation Flexibility
with Diverse Functions
• Panasonic’s unique quad-lamp system, with
its new high-power lamps, has helped to
make the body extremely compact while
providing an astounding 20,000 lm* 1 of
brightness.
• Compact size, light weight and low operating
noise let the PT-DZ21K Series suit more
applications.
• The new dynamic iris achieves a high
contrast ratio of 10,000:1.
• Detail Clarity Processor 3 brings depth and
clarity to details.
• System Daylight View 2 enhances color
perception with no need to turn off the lights.
• The DICOM Simulation mode.* 2
• Active 3D projection capability (PT-DZ21K/
DS20K).
• A waveform monitor function.
• Fine-adjustable color temperature.
• Full 10-bit signal processing.
• Advanced technologies for excellent image
quality: 3D color management system, HD IP
conversion, Digital noise reduction, Dynamic
sharpness control.
• Up to 2,000-hour* 3 lamp replacement cycle.
• The four-lamp system allows the projector to
keep working even if a lamp should fail. The
Lamp Relay mode also operates the lamps
alternately to enable 24/7 projection. Four,
three, two and one lamp modes can be used.
• Environment-friendly, low power consumption
of approx. 2,500 W.
• Easy lamp replacement from the rear.
• Newly developed optical engine and liquid
cooling system minimize the hassle of
maintenance.
• Liquid cooling system allows use in ambient
temperatures from 0 °C to 45 °C (from 32 °F
to 113 °F)* 4 with a compact body and quiet
operation.
• A dust-resistant cabinet and new, reusable
“Eco Filter” that needs no replacement for
12,000 hours* 5 protect optical components
from dust.
• Optional Smoke Cut Filter ET-SFD510
available.
• A lens-centered design, a wide range of
optional lenses, powered H/V-lens shift, and
flexible vertical 360-degree installation.
• Lens memory function.
• Lens lock function to secure the lens
installation condition.
• Mechanical lens shutter with fade in/out effect.
• The Multi-Unit Brightness Control function.
• The Multi-Screen Support System: Edge
blending, color matching and multi-screen
processor.
• The Geometric Adjustment function.
• Optional “Geometry Manager Pro” available
for more flexible geometric adjustment and
masking function.
• Abundant terminals, including two SDI (3G
SDI and HD SDI), DVI-D, HDMI and 3D timing
signal in/out.
• P-in-P function.
• Multi Projector Monitoring & Control Software
optionally available.
• A Scheduling function.
• RoHS Directive compliant.
• Carefully manufactured at the Panasonic
factory in Japan, under strict quality control.
P
Specifications (Tentative)
E
L
I
M
I
N
A
As of January 2012
R
Y
Model
Power supply
Power consumption
DLP™ chip
Panel size
Display method
Pixels
PT-DZ21K
Lens
Lamp
Screen size (diagonal)
Optional powered zoom/focus and fixed-focus lens
465 W UHM lamp × 4, replacement cycle of up to 2,000 hours*3
1.78 –15.24 m (70– 600 in),
1.78 –15.24 m (70– 600 in),
1.78 – 7.62 m (70–300 in) with the
1.78 – 7.62 m (70–300 in) with the
ET-D75LE5, 16:10 aspect ratio
ET-D75LE5, 4:3 aspect ratio
20,000 lm (four-lamp)
1.78 –15.24 m (70– 600 in),
1.78 – 7.62 m (70–300 in) with the
ET-D75LE5, 16:9 aspect ratio
16,500 lm (four-lamp)
90 %
10,000:1 (full on/off, with DYNAMIC IRIS set to “3”)
1,920 × 1,200 pixels
1,400 × 1,050 pixels
(Input signals that exceed this resolution will
be converted to 1,400 × 1,050 pixels.)
1,366 × 768 pixels
(Input signals that exceed this resolution will
be converted to 1,366 × 768 pixels.)
Brightness* 7
Center-to-corner uniformity* 7
Contrast* 7
Resolution
Scanning frequency SDI
SD-SDI
HD-SDI
Dual-link HD-SDI
3G-SDI
HDMI/DVI-D
RGB
YPBPR (YCBCR)
Video/YC
Vertical
Optical axis shift
Horizontal
Keystone correction range
Keystone correction range
with optional Geometry Manager Pro
Installation
Terminals
SDI 1 IN
SDI 2 IN
3D SYNC IN/OUT
3D SYNC OUT
DVI-D IN
HDMI IN
RGB 1 IN
RGB 2 IN
VIDEO IN
SERIAL IN
SERIAL OUT
REMOTE 1 IN
REMOTE 1 OUT
REMOTE 2 IN
LAN
Cabinet materials
Dimensions (W × H × D)
Weight* 11
Operating environment
Applicable software
Supplied accessories
PT-DS20K
R
SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
SMPTE ST 292 compliant, [YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i,
1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
SMPTE ST 372 compliant, [RGB 4:4:4 12-bit/10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, –
1080/24sF, 1080/30p, [X´Y´Z´ 4:4:4 12-bit] 2,048 × 1,080/24p, 2,048 × 1,080/24sF
SMPTE ST 424 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, [RGB 4:4:4 12-bit/10-bit]
1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
VGA (640 × 480) –WUXGA* 8 (1,920 × 1,200), compatible with non-interlaced signals only, dot clock: 25–162 MHz
f H : 15–100 kHz, f V : 24–120 Hz, dot clock: 20–162 MHz
f H : 15.75 kHz, f V : 60 Hz [480i (525i)]
f H : 37.50 kHz, f V : 50 Hz [720 (750)/50p]
f H : 27.00 kHz, f V : 24 Hz [1080/24p]
f H : 31.50 kHz, f V : 60 Hz [480p (525p)]
f H : 33.75 kHz, f V : 60 Hz [1035/60i]
f H : 27.00 kHz, f V : 48 Hz [1080/24sF]
f H : 15.63 kHz, f V : 50 Hz [576i (625i)]
f H : 33.75 kHz, f V : 60 Hz [1080 (1125)/60i]
f H : 33.75 kHz, f V : 30 Hz [1080/30p]
f H : 31.25 kHz, f V : 50 Hz [576p (625p)]
f H : 28.13 kHz, f V : 50 Hz [1080 (1125)/50i]
f H : 67.50 kHz, f V : 60 Hz [1080/60p]
f H : 45.00 kHz, f V : 60 Hz [720 (750)/60p]
f H : 28.13 kHz, f V : 25 Hz [1080/25p]
f H : 56.25 kHz, f V: 50 Hz [1080/50p]
f H : 15.75 kHz, f V : 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], f H : 15.63 kHz, f V : 50 Hz [PAL/PAL-N/SECAM]
±55 % (±44 % with the ET-D75LE6)
±50 % (±40 % with the ET-D75LE6)
±70% (±60% with the ET-D75LE6)
from center of screen (powered)
from center of screen (powered)
from center of screen (powered)
±20 % (±15 % with the ET-D75LE6)
±30 % (±20 % with the ET-D75LE6)
±30% (±20% with the ET-D75LE6)
from center of screen (powered)
from center of screen (powered)
from center of screen (powered)
Vertical: ±40°* 9 (±22° * 9 with the ET-D75LE5, ±28° with the ET-D75LE6), horizontal: ±15° * 9
Vertical: ±40° (±22° * 9 with the ET-D75LE5,
±28° with the ET-D75LE6)
Vertical: ±40°* 9 (±22° * 9 with the ET-D75LE5, ±28° with the ET-D75LE6), horizontal: ±40° * 9
–
Ceiling/floor, front/rear
BNC × 1 (3G/HD/SD-SDI)
BNC × 1 (HD/SD-SDI)
–
BNC × 1 (3D timing signal)
BNC × 1 (3D timing signal)
DVI-D 24-pin × 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI 19-pin × 1 (Deep Color, compatible with HDCP)
BNC × 5 (RGB/YP B P R /YC BC R /YC × 1)
D-Sub HD 15-pin (female) × 1 (RGB/YP B P R /YC BC R × 1)
BNC × 1 (composite video)
D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
D-sub 9-pin (male) × 1 for link control
M3 × 1 for wired remote control
M3 × 1 for link control (for wired remote control)
D-sub 9-pin (female) × 1 for external control (parallel)
RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
Molded plastic
620 × 291* 10 × 800 mm (24-7/16 × 11-15/32* 10 × 31-1/2 in) (optional lens not included)
Approximately 50 kg (110.2 lbs) or less (optional lens not included)
Operating temperature: 0 °C– 45 °C (32 °F–113 °F)*4, operating humidity: 20% –80% (no condensation)
Logo Transfer Software, Multi Projector Monitoring & Control Software,
Logo Transfer Software, Multi Projector
Geometry Manager Pro (optional)
Monitoring & Control Software
Power cord with secure lock, wireless/wired remote control unit, batteries (R6/LR6/AA type × 2)
Optional accessories
Zoom lens
ET-D75LE6
ET-D75LE10
ET-D75LE20
ET-D75LE30
ET-D75LE4
ET-D75LE8
Fixed-focus lens
ET-D75LE5
PT-DW17K
200–240 V AC, 50/60 Hz
2,500 W or less (0.5 W with STANDBY MODE set to ECO,*6 10 W with STANDBY MODE set to NORMAL . Both with fan stopped.)
24.4 mm (0.96˝ ) diagonal (16:10 aspect ratio) 24.1 mm (0.95˝ ) diagonal (4:3 aspect ratio)
21.6 mm (0.85˝ ) diagonal (16:9 aspect ratio)
DLP™ chip × 3, DLP™ projection system
DLP™ chip × 3, DLP™ projection system
DLP™ chip × 3, DLP™ projection system
2,304,000 (1,920 × 1,200) × 3,
1,470,000 (1,400 × 1,050) × 3,
1,049,088 (1,366 × 768) × 3,
total of 6,912,000 pixels
total of 4,410,000 pixels
total of 3,147,264 pixels
Ceiling mount bracket
ET-PKD510H (for high ceilings)
ET-PKD510S (for low ceilings)
Frame
ET-PFD510
Replacement lamp unit
ET-LAD510
ET-LAD510F (four pack)
Replacement filter unit
ET-EMF510
Smoke cut filter unit
ET-SFD510
Replacement smoke cut filter
ET-SRD510
Upgrade kit
ET-UK20
(Geometry Manager Pro included)
* 1 The PT-DW17K has 16,500 lm of brightness. *2 This product is not a medical instrument. Do not
use it for actual medical diagnosis. *3 The usage environment affects the lamp replacement cycle.
* 4 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when the HIGH ALTITUDE MODE
is set to ON (for altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level). When
used with the Smoke Cut Filter, the operating temperature range is 0 °C to 35 °C (32 °F to 95 °F).
* 5 The usage environment affects the duration of the filter. * 6 When the STANDBY MODE is set to ECO,
network functions such as power on over the LAN will not operate. Also, only certain commands can
be received for external control using the serial terminal. *7 Measurement, measuring conditions,
and method of notation all comply with ISO 21118 international standards. *8 WUXGA resolution
is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video TimingReduced Blanking). *9 Correction range is limited during simultaneous horizontal and vertical correction. 10 With legs at shortest position. *11 Average value. May differ depending on models.
For more information about Panasonic projectors, please visit:
Projector Global Web Site – panasonic.net/avc/projector
Facebook – www.facebook.com/panasonicprojector
YouTube – www.youtube.com/user/PanasonicProjector
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
DLP, DLP logo and DLP Medallion logo are trademarks or registered trademarks of Texas Instruments. The projection
distances and throw ratios given in this leaflet are for use only as guidelines. For more detailed information, please consult the dealer from whom you are purchasing the product. The PJLink trademark is an application trademark in Japan,
the United States, and other countries and regions or registered trademarks. All other trademarks are the property of
their respective trademark owners. Projection images simulated. © 2012 Panasonic Corporation. All rights reserved.
All information included here is valid as of January 2012.
PT-DZ21KPRE1 Printed in Japan.
