CONNECTING YOUR PROJECTOR
Left
7 Press Keystone+ or Keystone – to correct the distortion during a tilted
projection.
Apple® iOS Devices
Lightning® digital AV adapter
(not included)

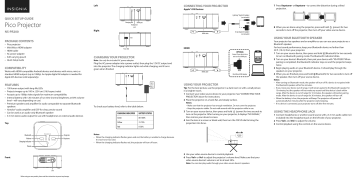

QUICK SETUP GUIDE
Pico Projector
Charging port
HDMI port
Headphone
jack
OR
Right
NS-PR200
HDMI cable
30-pin digital AV adapter
(not included)
8 When you are done using the projector, press and hold
(power) for two
seconds to turn off the projector, then turn off your video source device.
USING YOUR BLUETOOTH SPEAKER
PACKAGE CONTENTS
•
•
•
•
•
•
Pico projector
Mini/Micro HDMI adapter
HDMI cable
AC power adapter
Soft carrying pouch
Quick Setup Guide
HDMI
Focus dial
OPTIONAL
Connect if your device has a
mini or micro HDMI port.
CHARGING YOUR PROJECTOR
Note: Use only the included AC power adapter.
Plug the AC power adapter into a power outlet, then plug the 12V DC output end
into the projector. The charging indicator lights red while charging, and it turns
green when finished.
COMPATIBILITY
Works with HDMI-compatible Android devices and devices with micro, mini, or
standard HDMI outputs (up to 1080p). An Apple digital AV adapter is needed for
Apple iOS devices (sold separately).
HDMI cable
Mini/Micro HDMI adapter
FEATURES
USING YOUR PROJECTOR
•
•
•
•
Tip: For the best picture, use the projector in a dark room or with a small picture
in a brighter room.
1 Connect your video source device to your projector. See “CONNECTING YOUR
PROJECTOR” above for instructions.
2 Place the projector on a hard, flat, and steady surface.
•
•
•
•
100 lumen output with long-life LEDs
Projects images up to 100 in. (254 cm) (16:9 aspect ratio)
Accepts up to 1080p video signals for maximum compatibility
Internal battery with 120 minutes of run time (normal brightness at 50% volume
level—will vary depending on use)
Premium speakers and amplifier for audio comparable to separate Bluetooth
speakers
Yamaha® audio amplifier and DSP for clear, precise sound
Can be used as an audio-only Bluetooth speaker
3.5 mm stereo audio output for use with headphones or external audio devices
Top
Bluetooth
Projector
Volume
Charging indicator
Keystone
To check your battery level, refer to the table below:
CHARGING INDICATOR
BATTERY STATUS
Green
80-100%
Yellow
31-79%
Red
0-30%
Notes:
• When the charging indicator flashes green and red, the battery is unable to charge because
it is too hot or too cold.
• When the charging indicator flashes red, the projector will turn off soon.
Notes:
• Make sure that the projector has enough ventilation. Do not cover the projector.
• Keep the projector stable. Do not walk around with the projector while in use.
3 Turn on your source device, then press and hold
(power) for two seconds to
turn on the projector. After turning on your projector, it displays “NO SIGNAL,”
then mirrors your device’s screen.
4 Aim the lens at a screen or blank wall, then turn the FOCUS dial to bring the
projection into focus.
FOCUS
Power
5 Use your video source device to control playback.
6 Press Vol+ or Vol- to adjust the projector’s volume level. Make sure that your
video source device’s volume is set to at least 50%.
Front
Note: You can also play audio through your video source device’s speakers.
Lens
Before using your new product, please read these instructions to prevent any damage.
Your projector has speakers and an amplifier so you can use your projector as a
Bluetooth speaker.
For best sound performance, keep your Bluetooth device no farther than
33 ft. (10 m) from your projector.
1 Turn on your source device, then press and hold (Bluetooth) for two seconds
to turn on Bluetooth pairing mode. The Bluetooth indicator blinks.
2 Turn on your device’s Bluetooth, then pair your device with “NS-PR200.” When
pairing is completed, the Bluetooth indicator stays on and the projector beeps
twice.
3 Begin playing audio on your Bluetooth device. It should play through the
speakers on your projector.
4 When you are finished, press and hold (Bluetooth) for two seconds to turn off
the speaker, then turn off your source device.
Notes:
• After turning on Bluetooth mode, the speaker will turn off if a device is not paired with
the Bluetooth speaker within five minutes.
• If you move your device out of range, it will remain paired to the Bluetooth speaker for
10 minutes, but the speaker will not make any sound until the device is back within
range. After the device is out of range for 10 minutes, the speaker will reenter pairing
mode. After the device is out of range for 30 minutes, the speaker will turn off.
• When the battery is low, the projector will beep. The projector will power off
automatically five minutes after the projector starts beeping.
• If no device is connected, your projector turns off after five minutes.
USING THE HEADPHONE JACK
1 Connect headphones or another sound source with a 3.5 mm audio cable (not
included) into the headphone jack on the left side of your projector.
2 Press Vol+ and Vol- to adjust the volume.
3 Control playback using the controls on the source device.
IMPORTANT SAFETY INSTRUCTIONS
•
•
•
•
•
Do not drop the projector.
Do not store or use the projector in an extremely hot area, such as a parked car.
Do not disassemble or modify the projector.
Do not block the vents on the side or top of the projector.
Do not expose the projector to extreme vibrations. It may damage internal
components.
TROUBLESHOOTING
My device does not recognize the projector.
• If using an Android device, make sure that it is HDMI-compatible. Check with your
device’s manufacturer for more information.
• If using an Apple device, make sure that you have connected a digital AV adapter
(with HDMI output).
• Try another video mode. The maximum input resolution is 1080p.
• Disconnect and reconnect the HDMI cable from the source device.
• Turn the source device off and on, then try again.
The image blinks or changes color.
• Reset your projector or connected device.
• The screen may blink if your phone receives a text message or call while it is
connected.
The image dims or turns off.
• Turn off your source device’s screen timeout.
• Turn off your source device, then turn it back on.
• If your projector is not connected to a device, it turns off automatically.
Projector does not display image/video.
• If using a computer, make sure that your display option uses the projector.
• Make sure that your cable connections are correct and secure.
• Make sure that your projector and connected device are fully charged.
• Some apps may not support image projection.
• Check the documentation that came with your device to determine whether it can
display content through HDMI.
Projector does not play sound or is too quiet.
• Turn up the volume on your source device.
• Raise the volume level on your projector.
My device will not connect via Bluetooth
• Make sure that your projector and Bluetooth device are in pairing mode.
• Shorten the distance between your projector and your Bluetooth device.
• Turn your device off and then on. Re-pair your projector and your Bluetooth
device.
• Make sure that your projector is not paired to another Bluetooth device.
• Make sure that your Bluetooth device is not connected to any other device.
• Make sure that you have selected NS-PR200 on your Bluetooth device.
• Make sure that the nothing is connected to the headphone jack.
SPECIFICATIONS
Amplifier output
5W Peak
Display
DLP DMD
LED life
20,000 hours (maximum)
Brightness
100 ANSI lumens (maximum)
Focus
Manual focusing dial
Resolution
WVGA (854 × 480)
Picture ratio
16:9
Maximum screen size (diagonal) 100 in. (254 cm)
Maximum input resolution
Up to 1080p
Dimensions
5.6 × 5.6 × 2.6 in. (14.2 × 14.2 × 6.5 cm)
Weight
1.56 lbs. (708 g)
Operating temperature
32~104°F (0~40°C)
Humidity
0~80%
Charging time
4 hours (projector powered off)
Operating time
120 minutes (average)
AC ADAPTER INFORMATION:
Input: AC 100-240V, 50/60Hz, 1.5A
Output: DC 12V, 3.0A
Maximum Ambient Temperature: 40°C, Class II
UL Approved
File No. E303985
LEGAL NOTICES
ONE-YEAR LIMITED WARRANTY
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the FCC
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Warning: The unit must be used with the original accessories.
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
“This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RSS-Gen & RSS-247 statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
RSS-102 Statement:
This equipment complies with Industry Canada radiation exposure limits set forth
for an uncontrolled environment.
Cet équipement est conforme à l'exposition aux rayonnements Industry Canada
limites établies pour un environnement non contrôlé.
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 877-467-4289 (U.S. and Canada)
or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
V2 ENGLISH 17-0743
