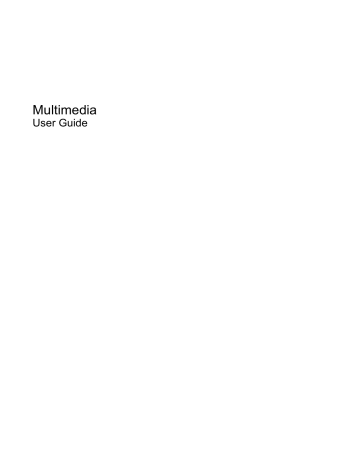

Multimedia

User Guide

© Copyright 2008 Hewlett-Packard

Development Company, L.P.

Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: July 2008

Document Part Number: 482363-001

Product notice

This user guide describes features that are common to most models. Some features may not be available on your computer.

iii

iv Product notice

Table of contents

1 Multimedia features

Identifying your multimedia components .............................................................................................. 2

Adjusting the volume ............................................................................................................................ 3

Creating or “burning” a CD or DVD ...................................................................................................... 4

2 Multimedia software

Accessing your preinstalled multimedia software ................................................................................. 6

Installing multimedia software from a disc ............................................................................................ 6

3 Audio

Connecting external audio devices ...................................................................................................... 8

Checking your audio functions ............................................................................................................. 8

4 Video

Using the external monitor port .......................................................................................................... 10

5 Webcam (select models only)

Webcam tips ....................................................................................................................................... 12

Adjusting webcam preferences .......................................................................................................... 12

Controlling the webcam focus (select models only) ........................................................................... 13

For more information .......................................................................................................................... 13

6 Troubleshooting

The optical disc tray does not open for removal of a CD or DVD ....................................................... 15

The computer does not detect the optical drive ................................................................................. 16

A new device driver is needed ........................................................................................................... 17

A disc does not play ........................................................................................................................... 18

A disc does not play automatically ..................................................................................................... 18

A DVD movie is not visible on an external display ............................................................................. 19

The process of burning a disc does not begin, or it stops before completion .................................... 19

Index ................................................................................................................................................................... 20

v

vi

1 Multimedia features

Your computer includes multimedia features that allow you to listen to music and view pictures. Your computer may include the following multimedia components:

Integrated stereo speakers for listening to music

Integrated microphone for recording your own audio

Integrated webcam that allows you to capture and share video

● Preinstalled multimedia software that allows you to play and manage your music, movies, and pictures

Hotkeys that provide fast access to multimedia tasks

NOTE:

Your computer may not include all of the components listed.

The following sections explain how to identify and use the multimedia components included with your computer.

1

Identifying your multimedia components

The following illustration and table describe the multimedia features of the computer.

NOTE:

Your computer may look slightly different from the illustration in this section.

Component

(1)

Webcam

(2)

(3)

Speakers (2)

Audio-out (headphone) jack

(4)

(5)

Internal microphone

Audio-in (microphone) jack

Description

Enables video calls, records audio and video, and captures still photographs.

Produce sound.

Connects optional powered stereo speakers, headphones, ear buds, or a headset.

WARNING!

To reduce the risk of personal injury, adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and

Environmental Notices.

NOTE:

When a device is connected to the headphone jack, the computer speakers are disabled.

Records sound.

Connects an optional computer headset microphone, stereo array microphone, or monaural microphone.

2 Chapter 1 Multimedia features

Adjusting the volume

You can adjust the volume using the following controls:

Computer volume hotkey—A combination of the fn key (1) and either the f9 (2), f11 (3), or f12 (4) function key:

To mute or restore volume, press fn+f9 .

To decrease volume, press fn+f11 .

To increase volume, press fn+f12 .

Windows® volume control:

a.

Click the Volume icon in the notification area, at the far right of the taskbar.

b.

Increase or decrease the volume by moving the slider up or down. Click the Mute icon to mute the volume.

– or –

a.

Right-click the Volume icon in the notification area, and then click Open Volume Mixer.

b.

In the Speakers column, you can increase or decrease the volume by moving the Volume slider up or down. You can also mute the volume by clicking the Mute icon.

If the Volume icon is not displayed in the notification area, follow these steps to add it:

a.

Right-click in the notification area, and then click Properties.

b.

Click the Notification Area tab.

Adjusting the volume 3

c.

Under System icons, select the Volume check box.

d.

Click OK.

Program volume control:

Volume can also be adjusted within some programs.

Creating or “burning” a CD or DVD

If your external optical drive is a CD-RW, DVD-RW, or DVD±RW optical drive, you can use software such as Windows Media Player to burn data and audio files, including MP3 and WAV music files. To burn video files to a CD or DVD, use MyDVD.

Observe the following guidelines when burning a CD or DVD:

Before burning a disc, save and close any open files and close all programs.

A CD-R or DVD-R is usually best for burning audio files because after the information is copied, it cannot be changed.

Because some home and car stereos will not play CD-RWs, use CD-Rs to burn music CDs.

A CD-RW or DVD-RW is generally best for burning data files or for testing audio or video recordings before you burn them to a CD or DVD that cannot be changed.

DVD players used in home systems usually do not support all DVD formats. Refer to the user guide that came with your DVD player for a list of supported formats.

● An MP3 file uses less space than other music file formats, and the process for creating an MP3 disc is the same as the process for creating a data file. MP3 files can be played only on MP3 players or on computers with MP3 software installed.

To burn a CD or DVD, follow these steps:

1.

Download or copy the source files into a folder on your hard drive.

2.

Insert a blank CD or DVD into the optical drive.

3.

Select Start > All Programs and the name of the software you want to use.

4.

Select the kind of CD or DVD you want to create—data, audio, or video.

5.

Right-click Start, click Explore, and navigate to the folder where the source files are stored.

6.

Open the folder, and then drag the files to the drive that contains the blank optical disc.

7.

Initiate the burning process as directed by the program you have selected.

For specific instructions, refer to the software manufacturer's instructions, which may be provided with the software, on disc, or on the manufacturer's Web site.

CAUTION:

Observe the copyright warning. It is a criminal offense, under applicable copyright laws, to make unauthorized copies of copyright-protected material, including computer programs, films, broadcasts, and sound recordings. Do not use this computer for such purposes.

4 Chapter 1 Multimedia features

2 Multimedia software

Your computer includes preinstalled multimedia software that allows you to play music and view pictures.

The following section provides details about how to access your preinstalled software.

5

Accessing your preinstalled multimedia software

To access your preinstalled multimedia software:

Select Start > All Programs, and then open the multimedia program you want to use.

NOTE:

Some programs may be located in subfolders.

Installing multimedia software from a disc

To install any multimedia software from a CD or DVD, follow these steps:

1.

Insert the disc into the optical drive.

2.

When the installation wizard opens, follow the on-screen instructions.

3.

Restart the computer if you are prompted to do so.

NOTE:

For details about using software included with the computer, refer to the software manufacturer’s instructions, which may be provided with the software, on disc, or on the manufacturer’s

Web site.

6 Chapter 2 Multimedia software

3 Audio

Your computer enables you to use a variety of audio features:

Play music using your computer speakers and/or connected external speakers

● Record sound using the internal microphone or connect an external microphone

Download music from the Internet

Create multimedia presentations using audio and images

Transmit sound and images with instant messaging programs

Stream radio programs (select models only) or receive FM radio signals

Create or “burn” audio CDs

7

Connecting external audio devices

To connect external devices such as external speakers, headphone, or a microphone, refer to the information provided with the device. For best results, remember the following tips:

Be sure that the device cable is securely connected to the correct jack on your computer. (Cable connectors are normally color-coded to match the corresponding jacks on the computer.)

● Be sure to install any drivers required by the external device.

NOTE:

A driver is a required program that acts like a translator between the device and the programs that use the device.

Checking your audio functions

To check the system sound on your computer, follow these steps:

1.

Select Start > Control Panel.

2.

Click Hardware and Sound.

3.

Click Sound.

4.

When the Sound window opens, click the Sounds tab. Under Program, select any sound event, such as a beep or alarm, and click the Test button.

You should hear sound through the speakers or through connected headphones.

To check the record functions of the computer, follow these steps:

1.

Select Start > All Programs > Accessories > Sound Recorder.

2.

Click Record and speak into the microphone. Save the file to your desktop.

3.

Open Windows Media Player and play back the sound.

NOTE:

For best results when recording, speak directly into the microphone and record sound in a setting free of background noise.

To confirm or change the audio settings on your computer, right-click the Sound icon on the taskbar, or select Start > Control Panel > Audio.

8 Chapter 3 Audio

4 Video

Your computer enables you to use a variety of video features:

Play games over the Internet

● Edit pictures and video to create presentations

Connect external video devices

9

Using the external monitor port

The external monitor port connects an external display device, such as an external monitor or a projector, to the computer.

To connect a display device, connect the device cable to the external monitor port.

NOTE:

If a properly connected external display device does not display an image, press fn+f4 to transfer the image to the device. Repeatedly pressing fn+f4 alternates the screen image between the computer display and the device.

10 Chapter 4 Video

5 Webcam (select models only)

Your computer may include an integrated webcam, located at the top of the display. With the preinstalled software, you can use the webcam to take a photo, record a video, or make an audio recording. You can preview the photo, video recording, or audio recording, and save it on your computer hard drive.

To access the webcam and webcam software, select Start > Programs > HP Webcam.

The webcam software enables you to experiment with the following features:

Video—Record and play back webcam video.

Audio—Record and play back audio.

Streaming video—Use with instant message software that supports UVC (Universal Video Class) cameras.

Snapshots—Take still photos.

HP Presto! Bizcard (select models only)—Use to transform business cards into a usable database of contact information.

11

Webcam tips

For optimum performance, observe the following guidelines while using the webcam:

Be sure that you have the latest version of an instant message program before starting a video conversation.

The webcam may not work properly across some network firewalls.

NOTE:

If you are having trouble viewing or sending multimedia files to someone on another LAN or outside your network firewall, temporarily disable the firewall, perform the task you want to perform, and then reenable the firewall. To permanently resolve the problem, reconfigure the firewall as necessary, and adjust the policies and settings of other intrusion detection systems. For additional information, contact your network administrator or IT department.

Whenever possible, place bright light sources behind the webcam and out of the picture area.

Adjusting webcam preferences

You can adjust webcam preferences, including the following:

Brightness—Controls the amount of light that is incorporated into the image. A higher brightness setting creates a brighter image; a lower brightness setting creates a darker image.

Contrast—Controls the difference between lighter and darker areas on the image. A higher contrast setting intensifies the image; a lower contrast setting maintains more of the original information’s dynamic range but leads to a flatter image.

Hue—Controls the aspect of color that distinguishes it from another color (what makes a color red, green, or blue). Hue is distinct from saturation, which measures the intensity of the hue.

Saturation—Controls the strength of color in the final image. A higher saturation setting creates a bolder image; a lower saturation setting creates a more subtle image.

Sharpness—Controls the definition of edges in an image. A higher sharpness setting creates a more defined image; a lower sharpness setting creates a softer image.

Gamma—Controls the contrast affecting the mid-level grays or midtones of an image. Adjusting the gamma of an image allows you to change the brightness values of the middle range of gray tones without dramatically altering the shadows and highlights. A lower gamma setting makes grays look black, and makes dark colors even darker.

Backlight Compensation—Compensates in cases where a subject with a large amount of background light would otherwise be obscured by blooming or silhouetting.

NightMode—Compensates for low light conditions.

Zoom (select models only)—Adjusts the zoom percentage for taking photos or recording videos.

Horizontal or vertical—Rotates the image horizontally or vertically.

50Hz or 60Hz—Adjusts the shutter speed to achieve a video recording that does not flicker.

Customizable preset profiles for multiple lighting conditions compensate for the following lighting conditions: incandescent, fluorescent, halogen, sunny, cloudy, night.

12 Chapter 5 Webcam (select models only)

Controlling the webcam focus (select models only)

You can control the webcam focus by selecting Start > All Programs > HP Webcam > HP Webcam

> Settings > Options.

The following focus options are available:

Normal—The default setting, appropriate for normal photography. This range extends from several feet in front of the lens to infinity.

Macro—The close-up setting, for taking photos and capturing video at a very close range (select models only).

NOTE:

The Bizcard reader (select models only) operates on the macro setting.

Auto—The automatic setting, in which the camera firmware dictates the field of focus, switching between normal and macro setting (select models only).

For more information

For details about using your webcam, select the Help menu in the software Help.

Controlling the webcam focus (select models only) 13

6 Troubleshooting

The following sections describe several common issues and resolutions.

14 Chapter 6 Troubleshooting

The optical disc tray does not open for removal of a CD or

DVD

1.

Insert the end of a paper clip (1) into the release access in the front bezel of the drive.

2.

Press in gently on the paper clip until the disc tray is released, and then pull out the tray (2) until it stops.

3.

Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.

NOTE:

If the tray is not fully accessible, tilt the disc carefully as you remove it.

4.

Close the disc tray and place the disc in a protective case.

The optical disc tray does not open for removal of a CD or DVD 15

The computer does not detect the optical drive

If Windows does not detect the optical drive, use Device Manager to troubleshoot the device and then update, uninstall, or roll back the device driver.

To check your device and drivers in Device Manager, follow these steps:

1.

Remove any discs from the optical drive.

2.

Select Start > Control Panel > System and Maintenance > Device Manager. If prompted by

User Account Control, click Continue.

3.

In the Device Manager window, click the plus sign (+) next to DVD/CD-ROM drives, unless a minus sign (-) is already showing. Look for an optical drive listing.

4.

Right-click the optical device listing to perform the following tasks:

Update the driver.

Disable the device.

Scan for hardware changes. Windows scans your system for installed hardware and installs any required default drivers.

Click Properties to see if the device is working properly.

Click Troubleshoot to fix problems.

Click the Driver tab to update, roll back, disable, or uninstall drivers for this device.

16 Chapter 6 Troubleshooting

A new device driver is needed

Obtaining Microsoft device drivers

Your computer is set to automatically check for and install Microsoft® device drivers when new devices are connected to your computer.

Obtaining HP device drivers

Follow these steps to obtain HP device drivers:

1.

Select Start > All Programs > HP > HP Update.

2.

On the HP Welcome screen, click Settings and select a time when the utility should check for software updates on the Web.

3.

Click Next to immediately check for HP software updates.

To use the HP Web site:

1.

Open your Internet browser and go to http://www.hp.com/support .

2.

Select your country or region.

3.

Click the option for software and driver downloads, and then type your computer model number in the product box.

4.

Press enter , and then follow the on-screen instructions.

A new device driver is needed 17

A disc does not play

Save your work and close all open programs before playing a CD or a DVD.

Log off the Internet before playing a CD or a DVD.

Be sure that you insert the disc properly.

Be sure that the disc is clean. If necessary, clean the disc with filtered water and a lint-free cloth.

Wipe from the center of the disc to the outer edge.

Check the disc for scratches. If you find scratches, treat the disc with an optical disc repair kit available at many electronics stores.

Disable Sleep mode before playing the disc.

Do not initiate Hibernation or Sleep while playing a disc. Otherwise, you may see a warning message asking if you want to continue. If this message is displayed, click No. After you click No, the computer may behave in either of the following ways:

Playback may resume.

– or –

The playback window in the multimedia program may close. To return to playing the disc, click the Play button in your multimedia program to restart the disc. In some cases, you may need to exit the program and then restart it.

● Increase system resources by turning off external devices connected to the computer.

A disc does not play automatically

1.

Click Start and type autoplay in the Start Search box.

As you type, search results are listed in the pane above the box.

2.

In the results pane, click Autoplay. If prompted by User Account Control, click Continue.

3.

Select the check box for Use AutoPlay for all media and devices, and then click Save.

A CD or DVD should now start automatically when it is inserted into the optical drive.

18 Chapter 6 Troubleshooting

A DVD movie is not visible on an external display

1.

If both the computer display and an external display are turned on, press fn+f4 one or more times to switch between the 2 displays.

2.

Configure the monitor settings to make the external display primary:

a.

Right-click on a blank area of the computer desktop, and select Personalize > Display

Settings.

b.

Specify a primary display and a secondary display.

NOTE:

When using both displays, the DVD image will not appear on any display designated as the secondary display.

To get information about a multimedia question not covered in this guide, select Start > Help and

Support.

The process of burning a disc does not begin, or it stops before completion

Be sure that all other programs are closed.

● Turn off Sleep mode and Hibernation.

Be sure that you are using the right kind of disc for your drive. See your user guides for more information about disc types.

● Be sure that the disc is inserted properly.

Select a slower write speed and try again.

● If you are copying a disc, save the information on the source disc to your hard drive before trying to burn the contents to a new disc, and then burn from your hard drive.

Reinstall the disc-burning device driver located in the DVD/CD-ROM drives category in Device

Manager.

A DVD movie is not visible on an external display 19

Index

A

audio devices, connecting

external 8

audio features 7

audio functions, checking 8

audio-in (microphone) jack 2 audio-out (headphone) jack 2

AutoPlay 18

B

button, volume mute 3

C

CD, creating or burning 4

checking audio functions 8

D

device drivers

HP drivers 17

Windows drivers 17

DVD, creating or burning 4

E

earbuds 2

external audio devices,

connecting 8

external monitor port 10

H

headphone (audio-out) jack 2 headphones 2

I

internal microphone 2

issues, resolving 14

J

jacks

audio-in (microphone) 2 audio-out (headphone) 2

20 Index

M

monitor, connecting 10

multimedia components,

identifying 2

multimedia software 5, 6

multimedia software, installing 6

mute button 3

P

ports

external monitor 10 projector, connecting 10

S

software

installing 6 multimedia 6

speakers 2

T

tips, webcam 12

troubleshooting

disc burning 19

disc play 18

DVD movie play 19

HP device drivers 17

optical disc tray 15

optical drive detection 16

Windows device drivers 17

V

video, using 9

volume hotkeys 3 volume mute button 3 volume, adjusting 3

W

webcam

adjusting preferences 12

identifying 2

tips 12

using 11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
