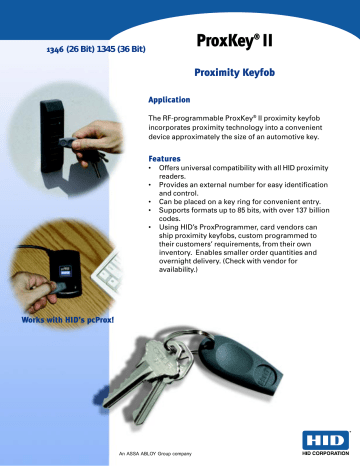

ProxKey® II
1346 (26 Bit) 1345 (36 Bit)
Proximity Keyfob
Application
The RF-programmable ProxKey® II proximity keyfob
incorporates proximity technology into a convenient
device approximately the size of an automotive key.
Features
•
•
•
•
•
Offers universal compatibility with all HID proximity
readers.
Provides an external number for easy identification
and control.
Can be placed on a key ring for convenient entry.
Supports formats up to 85 bits, with over 137 billion
codes.
Using HID’s ProxProgrammer, card vendors can
ship proximity keyfobs, custom programmed to
their customers’ requirements, from their own
inventory. Enables smaller order quantities and
overnight delivery. (Check with vendor for
availability.)
Works with HID’s pcProx!
An ASSA ABLOY Group company
ProxKey® II
Features
Specifications
Proven, Reliable Technology
Offers extremely consistent read range. Unaffected by body
shielding or variable environmental conditions, even when
close to keys and coins.
Typical Maximum* Read Range
MiniProx™ reader-up to 2" (5 cm)
ThinLine II® reader-up to 2" (5 cm)
ProxPoint® Plus reader-up to 1.5" (3.7 cm)
ProxPro® reader-up to 3" (7.5 cm)
MaxiProx® reader-up to 12" (28 cm)
Small and Convenient
Can be carried with keys in pocket or handbag.
*Dependent on local installation conditions.
Cross-reference
A cross-reference list correlating the external card number
and the programmed ID number is provided for easy system
administration.
Dimensions
1.9" x 0.9" x 0.345" max.
(4.83 x 2.29 x 0.88 cm)
Keyfob Construction
Ultrasonically welded, polycarbonate
shell
Security
Offers over 137 billion unique codes.
Long Life
Passive, no-battery design allows for an infinite number of
reads.
Operating Temperature
-50° to 160° F (-45° to 70° C)
Durability
Polycarbonate package is resistant to cracking and breaking.
Weight
0.26 oz. (7.4 gm)
Warranty
Warranted against defects in materials and workmanship for
life from date of shipment. See complete warranty policy for
details.
Part Number
Base Part No. 1346
Description
RF-programmable, 125 kHz, charcoal gray,
customer-specified ID Numbers.
Options
• External card numbering (inkjet or
laser engraving)
(Please see “How to Order Guide” for a
description of the options and associated
part numbers.)
LIT1346DS 1/02, supersedes 6/01
www.HIDCorp.com
Printed in the U.S.A.
Specifications subject to change without notice.
9292 Jeronimo Road
Irvine, CA 92618-1905 U.S.A.
(949) 598-1600 (800) 237-7769
FAX (949) 598-1690
©2001 HID Corporation
