ProxKey II Data Sheet

ProxKey II Data Sheet

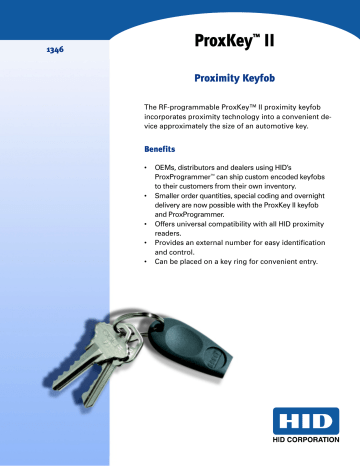

ProxKey™ II
1346
Proximity Keyfob
The RF-programmable ProxKey™ II proximity keyfob
incorporates proximity technology into a convenient device approximately the size of an automotive key.
Benefits
•
•
•
•
•
OEMs, distributors and dealers using HID’s
ProxProgrammer™ can ship custom encoded keyfobs
to their customers from their own inventory.
Smaller order quantities, special coding and overnight
delivery are now possible with the ProxKey II keyfob
and ProxProgrammer.
Offers universal compatibility with all HID proximity
readers.
Provides an external number for easy identification
and control.
Can be placed on a key ring for convenient entry.
ProxKey™ II
Features
Specifications
Proven, reliable technology
The read range is extremely consistent and is unaffected by
body shielding or variable environmental conditions, even
when close to keys and coins.
Typical maximum* read range
MiniProx™ reader-up to 2" (5 cm)
ThinLine II® reader-up to 2" (5 cm)
ProxPro® reader-up to 3" (7.5 cm)
NT MaxiProx® reader-up to 12" (28 cm)
Small and convenient
Can be carried with keys in pocket or handbag.
Cross-reference
A cross-reference list correlating the external card number
and the programmed ID number is provided for easy system
administration. External numbering matching the encoded
numbers is available.
Dimensions
1.9" x 0.9" x 0.345" max.
(4.83 x 2.29 x 0.88 cm)
Keyfob construction
Ultrasonically welded, polycarbonate
shell
Security
Offers over 137 billion unique codes.
Operating temperature
-50° to 160° F (-45° to 70° C)
Long life
Passive, no-battery design allows an infinite number of reads.
Weight
0.26 oz. (7.4 gm)
Durability
Polycarbonate package is resistant to cracking and breaking.
Base Part No.
1346
Warranty
Warranted against defects in materials and workmanship for
life from date of shipment (see complete warranty policy for
details).
Description
125 kHz, RF-programmable, charcoal
gray, customer-specified ID Numbers, key
ring included.
Options
• external card numbering
• custom graphics/ logo
(Please see “How to Order” guide for a
description of the options and associated
part numbers).
LIT1346DS 9/99, supersedes 12/97
*Depending on local installation conditions.
www.HIDCorp.com
Printed in the U.S.A.
Specifications subject to change without notice.
9292 Jeronimo Road
Irvine, CA 92618-1905 U.S.A.
(949) 598-1600 (800) 237-7769
FAX (949) 598-1690
©1999 HID Corporation
