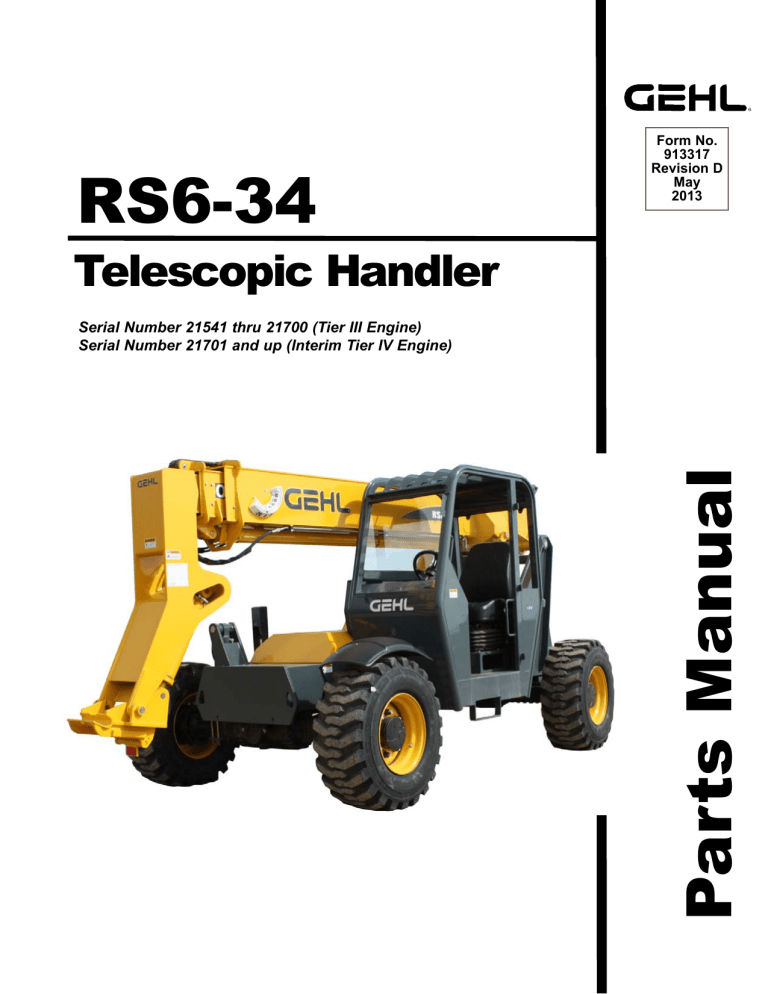

RS6-34 P a rts Manual

RS6-34 P a rts Manual

RS6-34

Telescopic Handler

Serial Number 21541 thru 21700 (Tier III Engine)

Serial Number 21701 and up (Interim Tier IV Engine)

Form No.

913317

Revision D

May

2013

Introduction

When ordering service parts, specify the correct part number, full description, quantity required, the machine model number, and serial number. For your safety, and continued proper operation, use only genuine Manitou service parts.

“Right” and “left” are determined from a position sitting on the seat inside the cab and facing forward.

Gehl Company reserves the right to make changes or improvements in the design or construction of any part of the machine without incurring the obligation to install such changes on previously delivered machines.

NOTE: This parts manual identifies both standard and

optional features for this model. Depending on the features of your machine, some of the items identified in the parts lists may, or may not, be included with your machine.

RS6-34 Telescopic Handler

The following icons shown on various pages provide important information or identify where additional information can be found.

Tilt

Cylinder parts are on page 247.

Identifies where additional pages for component parts, seals, and kits can be found.

Interior Cab

Options are on page 18.

Identifies where additional information can be found.

Refer to page

126 for the warning decal.

Alerts and directs user to investigate more information.

SERIAL NUMBER

Model

Engine Unit Number

RS6-34 J D 00 00000

Year (E=13, F=14, etc.)

Month

Serial number breaks are indicated as follows:

• (SN 999 and before) - indicates serial numbers up to and including 999.

• (SN 1000 - 2000) - indicates serial numbers from

1000 to 2000.

• (SN 999 and up) - indicates serial numbers including 999 and after.

NOTE: When ordering parts, be sure to identify the last five

digits of the machine's serial number.

HYDRAULIC AND ELECTRICAL SCHEMATICS

Hydraulic and electrical schematics can be found in the

Operator’s and Service Manuals for this machine; please refer to the information at the right for the correct manual.

NOTE:

Hydraulic bulkhead fitting.

Warning or

Important

Information

Important information to follow

Identifies missing, hidden parts, or adds informational comments.

A1

Seal Kit

Represents a port designation on hydraulic components (e.g., valves, cylinders, etc.)

Repair Kit

SOME ABBREVIATIONS LISTED IN THIS MANUAL

ASSY Assembly

AR

CFPD

EU

HYD

IN

As Required

Contact Factory Parts Department

European Union (standards)

Hydraulic

Inch(es)

INC/INCL

LN

MM/mm

NA

NPT

NSS

ORB

REF

SN

W/

W/O

Included or includes

Lock Nut

Millimeter

Not Applicable or Not Available

National Pipe Thread

Not Sold Separately

O-Ring Boss

Reference

Serial Number

With

Without

MANUALS

Operator's Manual: P/N 913323

RS6-34 Telescopic Handler Table of Contents

Page

INTRODUCTION

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

CAB

Cab and Covers (Standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Glass - Front and Rear Window Group (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Glass - Top and Left Window (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Instruments, Switches and Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Heater (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Steering Column and Shifter Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Cab Components - Tri-Function Controls (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Brake and Accelerator Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Cab Mounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

CHASSIS

Hydraulic Tank Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Fuel Tank Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Battery Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Hoods and Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Front and Rear Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

PERSONNEL WORK PLATFORM

Boom Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Chassis Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Radio Remote Transmitter and Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

ENGINE

External Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Radiator and Cooler Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Air Intake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Exhaust Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

TRANSMISSION

External Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Converter Housing Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Case and Plate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Torque Converter Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Gear Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Drive Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Charge Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Reverse Idler Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Forward and Reverse Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Third Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

(Transmission continued on next page.)

PRINTED IN U.S.A.

1

913317/DP0513

Table of Contents RS6-34 Telescopic Handler

Page

(Transmission continued)

First and Second Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Output Shaft Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Control Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Drive Plate Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Modulation Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

AXLE

External Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Front Axle - Steer Cylinder and Tie Rods Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Rear Axle - Steer Cylinder and Tie Rods Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Front Axle - Differential Housing Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Rear Axle - Differential Housing Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Front Axle - Brake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Rear Axle - Brake Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Front Axle - Outer End Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Front Axle - Differential Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Rear Axle - Outer End Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Rear Axle - Differential Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

BOOM

Outer Boom Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Intermediate Boom Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Inner Boom Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Dynattach Bracket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

HYDRAULIC SYSTEMS

Hydraulic Pump Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Steer Motor and Select Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Brake Valve Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Brake and Steering Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Main Hydraulic Valve and Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Main Hydraulic Valve - Dual Controls (Standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Main Valve with Tri-Function Control (Option) - Standard Hydraulics . . . . . . . . . . . . . . . . . . . . . . . .112

Main Valve with Tri-Function Control (Option) and Auxiliary Hydraulics . . . . . . . . . . . . . . . . . . . . . .114

Main Valve with Radio Remote (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Dual Controls - Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Dual Controls with only Auxiliary Hydraulics (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Dual Controls with only PWP (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Dual Controls with PWP and Auxiliary Hydraulics (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Dual Controls with Radio Remote (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Dual Controls with Radio Remote and Auxiliary Hydraulics (Option) . . . . . . . . . . . . . . . . . . . . . . . .128

Tri-Function Control (Option) with only PWP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Tri-Function Control (Option) with PWP and Auxiliary Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . .132

Tri-Function Control (Option) with Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Tri-Function Control (Option) with Radio Remote and Auxiliary Hydraulics . . . . . . . . . . . . . . . . . . .136

913317/DP0513

2

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Table of Contents

Page

(Hydraulic Systems continued.)

Frame Level Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Lift Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Tilt / Slave Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

Boom Extend Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Auxiliary Hydraulics Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

HYDRAULIC COMPONENTS

Hydraulic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

Joystick Relief - Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Main Hydraulic Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150

PWP Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Steer Select Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

Steer Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154

Brake Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

Pilot Apply Manifold - Tri-Function Controller (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156

Radio Remote (Option) Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Controller - Tilt/Frame Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158

Controller - Lift/Extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Controller - Tri-Function (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

Controller - Auxiliary Hydraulics (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164

Frame Level Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Lift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168

Slave Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

Tilt Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172

Boom-Extend Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Fork-Shift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

Rotating-Carriage Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

ATTACHMENTS

Carriage Forks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Standard Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180

Fork-Shift Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

Rotating Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184

Truss Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186

180º Swing Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188

Work Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190

Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192

DECALS

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

New Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

Decal Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195

INDEXES

Numeric Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200

Subject Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .208

PRINTED IN U.S.A.

3

913317/DP0513

Filters

All

RS6-34 Telescopic Handler

2

1

3

4

Hydraulic

Secondary Air

5

Primary Air

6

Engine

Oil

Fuel

Transmission

913317/DP0513

4

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

01

02

03

137498

137501

L97489

04 a 102173

Description Qty.

Req.

PRIMARY AIR FILTER (outer) . . . . 1

SECONDARY AIR FILTER (inner) . 1

HYDRAULIC FILTER. . . . . . . . . . . . 1

ENGINE OIL FILTER . . . . . . . . . . . . 1

Item

No.

05

06

Part

No.

211040

L99184

Description

Filters

All

Qty.

Req.

FUEL FILTER . . . . . . . . . . . . . . . . . 1

TRANSMISSION FILTER . . . . . . . . 1

a Use Dust Seal P/N 102742 as needed.

PRINTED IN U.S.A.

5

913317/DP0513

Cab

Cab and Covers (Standard)

INSTRUMENT PANEL

AND LOAD CHARTS

7

8

RS6-34 Telescopic Handler

9

10

Load Charts are listed on page 198.

13

4

11

UPPER SUPPORT

14

15

16 17

12

18

32

Instrument

Panel and switches are on page 16.

21

33

4

1

2

31

30

21

6

3

6

5

33

29

21

22

19

20

23

LOWER SUPPORT

21

14

17

16

15

18

913317/DP0513

4

28

27

26

25

24

SKID PLATE

6

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

12

13

14

15

16

17

18

19

04

05

06

07

08

09

10

11

Part

No.

103089

L69297

L66011

L50417

L52025

L50051

102692

102882

L63634

L63887

103022

103021

103675

L500057

L500055

102880

L50051

L500022

L500020

L500021

L52024

103023

Description Qty.

Req.

CAB WELDMENT (without glass) . . 1

PLATE, INCLMT MOUNT . . . . . . . . 1

INDICATOR/FRAME LEVEL . . . . . . 1

#8-32X1” SCREW . . . . . . . . . . . . . . 2

5/16”-18X3/4” BUTT. HD BOLT . . . . 4

1/4”-20 WHIZ LOCK NUT. . . . . . . AR

COVER, FUSE PANEL . . . . . . . . . . 1

PANEL, DASH . . . . . . . . . . . . . . . . . 1

LOAD CHART PLATE . . . . . . . . . . . 2

1/4”-20 U-BOLT . . . . . . . . . . . . . . . . 1

BULB SEAL, RIGHT WINDOW . . . . 1

GLASS, RIGHT HAND . . . . . . . . . . 1

SCREEN (option)

CLIP, WINDOW . . . . . . . . . . . . . . . . 2

SCREW, FLANGE . . . . . . . . . . . . . . 4

MOUNT, REAR GLASS UPPER . . . 2

1/4”-20 WHIZ NUT. . . . . . . . . . . . . . 3

WASHER, FLAT (BLACK) . . . . . . . . 3

BUSHING, NYLON . . . . . . . . . . . . . 3

GROMMET, 1/2”ID X 1/4”GROOVE 3

1/4”-20X1” BUTT. HD BOLT . . . . . . 3

GLASS, REAR. . . . . . . . . . . . . . . . . 1

--

--

--

Item

No.

Part

No.

20

21

22

23

24

25

26

103024

L50202

L50139

102881

654024

650486

103371

27

28

29

30

103370

102778

102769

101550

31 a

102728

32 a

102727

33 L63813

a

105835

L54002

L71305

Cab

Cab and Covers (Standard)

Description

Qty.

Req.

BULB SEAL, REAR WINDOW . . . . 1

1/4”-20X5/8” BUTTON HD . . . . . . AR

1/4” LOCK WASHER. . . . . . . . . . . . 2

MOUNT, REAR GLASS LOWER . . 1

5/16” LOCK WASHER. . . . . . . . . . . 2

5/16”-18X3/4” BOLT . . . . . . . . . . . . 2

HANGER BRACKET . . . . . . . . . . . . 1

SKID PLATE . . . . . . . . . . . . . . . . . . 1

MASTER CYLINDER COVER. . . . . 1

COVER, HYD. CONTROLLERS . . . 1

1/4”-20 SELF THREADING BOLT. . 4

PANEL, HEATER. . . . . . . . . . . . . . . 1

PANEL, DASH COVER . . . . . . . . . . 1

HOLE PLUG, 2-1/2” DIA. . . . . . . . AR

-- ITEMS NOT SHOWN--

HARNESS, CANOPY (kit) . . . . . . . . 1

TREAD STRIP, 6” WIDE (4 FT.) . . AR

PLUG (top of cab) . . . . . . . . . . . . . . 2

Use when not equipped with a heater.

PRINTED IN U.S.A.

7

913317/DP0513

Cab RS6-34 Telescopic Handler

Glass - Front and Rear Window Group (Option)

2

7

3

1

FRONT WINDOW HINGE

5

1

4

6

3

REAR WINDOW HINGE

1

6

5

4

8

2

9

12

11

10

913317/DP0513

19

18

14

17

13

16

16

15

16

14

20

8

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Cab

Glass - Front and Rear Window Group (Option)

Item

No.

05

06

07

08

09

01

02

03

04

10

11

12

13

14

Part

No.

L500038

651639

651640

L500042

L500021

651641

L500111

L500024

103023

103024

103022

103019

101727

L500025

Description Qty.

Req.

5/16”-18 ACORN NUT . . . . . . . . . AR

5/16”-18X1” BUTTON HD BOLT . . . 4

5/16”-18X3/4” BUTTON HD BOLT . 8

BUSHING, STEEL . . . . . . . . . . . . . . 4

GROMMET, 1/2”IDX1/4”GROOVE . 6

5/16” FLAT WASHER (BLACK). . . . 4

HINGE, FRONT WINDOW . . . . . . . 2

HINGE, PLASTIC (rear window) . . . 1

GLASS, REAR. . . . . . . . . . . . . . . . . 1

BULB SEAL, REAR GLASS . . . . . . 1

BULB SEAL, FRONT GLASS . . . . . 1

GLASS, FRONT . . . . . . . . . . . . . . . 1

HOLD OPEN, T-STYLE. . . . . . . . . . 1

PIN, QUICK DETACH . . . . . . . . . . . 4

a

--

--

--

Item

No.

Part

No.

15 a

104846

16 L500019

17

18

L500028

L500027

19 a

103029

20 a 102722

Description

Qty.

Req.

MOUNT, REAR WINDOW LATCH . 1

PIN, ROLL - 3/16”x1/2” . . . . . . . . . . 3

HOLD OPEN, L-STYLE. . . . . . . . . . 1

HOLD OPEN, L-STYLE. . . . . . . . . . 1

MOUNT, WIND. HOLD OPEN (RH) 1

MOUNT, WIND. HOLD OPEN (LH). 1

Use the parts listed below to fasten mount to frame:

650863 1/4” FLAT WASHER . . . . . . . . . . AR

654002 1/4” LOCK WASHER. . . . . . . . . . AR

L50202 1/4”-20X5/8” BUTTON HD BOLT AR

PRINTED IN U.S.A.

9

913317/DP0513

Cab RS6-34 Telescopic Handler

Wipers — Front and Top (with Enclosed Cab)

8

1

7

2

9

Late-Style

Wiper

Early-Style

Wiper

913317/DP0513

3

14

15

4

13

5

6

16

17

10

22

10

11

12

5

6

23

21

20

19

18

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Cab

Wipers — Front and Top (with Enclosed Cab)

15

16

17

18

19

10

11

12

13

14

20

03

04

05

06

07

08

09

Item

No.

01

02

Part

No.

50380577

50380576

50380682

50380579

50380583

L500706

L500700

102913

L500707

NSS

NSS

L500719

101717

L500711

L500696

L500718

L500001

139170

L500004

L500709

L500697

L500701

Description Qty.

Req.

WIPER BLADE, 16". . . . . . . . . . . . . 1

WIPER ARM, PANTOGRAPH . . . . . 1

Front Window

Top Window

PLATE, PANTO ARM MOUNT . . . . 1

PIN, PANTO ARM MOUNT . . . . . . . 1

M5, ACORN NUT . . . . . . . . . . . . . . 1

M8, ACORN NUT . . . . . . . . . . . . . . 1

WIPER BLADE, 16". . . . . . . . . . . . . 1

ADAPTER, PIN LOCK. . . . . . . . . . . 1

WIPER ARM, PANTOGRAPH . . . . . 1

Front window—see note a

Top window—see note b

PANTO ADAPTER PLATE . . . . . . . 1

WASHER, #10 WEATHERTITE . . . 1

SCREW, M5 16mm . . . . . . . . . . . . . 1

COVER WIPER MOTOR. . . . . . . . . 1

BOLT / 10-24x1.25 HEX GR5 . . . . . 1

WASHER/BLK NYLON . . . . . . . . . . 1

WASHER, #10 WEATHERTITE . . . 2

NUT/ACORN #10-24 BLK . . . . . . . . 1

RAIN SHIELD . . . . . . . . . . . . . . . . . 1

M18, NUT . . . . . . . . . . . . . . . . . . . . 1

GASKET, PANTO ADAPTER . . . . . 1

Item

No.

21

22

23

24

Part

No.

L500708

L500695

L500099

101495

--

--

--

--

Description

Qty.

Req.

TOWER SEAL, TRICO WIPER . . . . 1

WIPER MOTOR, TRICO . . . . . . . . . 1

ADAPTER/WET ARM . . . . . . . . . . . 1

BOTTLE, DUAL -PUMP WASHER . 1

103179

-- ITEMS NOT SHOWN --

(Windshield Wiper Harness)

HARNESS, TOP WIPER . . . . . . . . . 1

103180 HARNESS, FRONT WIPER . . . . . . 1

102925

(Windshield Washer System)

HARNESS, WASHER BOTTLE . . . 1

103013 TUBING, WASHER (15-1/2’) . . . . . . 1

a b

The early style front wiper arm is no longer available; it will be necessary to order part number

50380585 Wiper Arm Kit, which contains items 1-4.

The early style top wiper arm is no longer available; it will be necessary to order part number

50380683 Wiper Arm Kit, which contains items 1-4.

PRINTED IN U.S.A.

24

11

WASHER SYSTEM RESERVOIR

LOCATED OUTSIDE CAB

-

UNDER RIGHT SIDE WINDOW

913317/DP0513

Cab

Glass - Top and Left Window (Option)

RS6-34 Telescopic Handler

1

913317/DP0513

2

3

3

10

9

10

4

5

6

7

8

12

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Cab

Glass - Top and Left Window (Option)

Item

No.

Part

No.

01 a

103027

02 L500038

03

04

102711

L500021

05

06

07

L500042

651641

651639

Description Qty.

Req.

GLASS, TOP . . . . . . . . . . . . . . . . . . 1

5/16”-18 ACORN NUT . . . . . . . . . AR

WINDOW MOUNT. . . . . . . . . . . . . . 2

GROMMET, 1/2”IDX1/4”GROOVE . 4

BUSHING, STEEL . . . . . . . . . . . . . . 4

5/16” FLAT WASHER (BLACK). . . . 4

5/16”-18X1” BUTTON HD BOLT . . . 4

Item

No.

08

09

10

a

Part

No.

103025

103026

102712

Description

Qty.

Req.

GLASS, LEFT REAR. . . . . . . . . . . . 1

BULB SEAL, LEFT GLASS . . . . . . . 1

WINDOW MOUNT. . . . . . . . . . . . . . 2

Use P/N L500607 Adhesive Kit to attach top glass to cab.

PRINTED IN U.S.A.

13

913317/DP0513

Cab

Door (Option)

9

5

RS6-34 Telescopic Handler

1

2

8

7

6

15

3

11

8

7

14

12

10

22

21

32

20

19

18

17

9

8

7

6

5

4

16

913317/DP0513

14

PRINTED IN U.S.A.

08

09

10

11

12

14

15

16

01

02

03

04

05

06

07

Item

No.

--

Part

No.

103014

102874

102705

102680

102681

651638

651641

L500042

L500021

L500038

651643

650730

102901

L520005

102928

L500036

RS6-34 Telescopic Handler

17

18

19

650588

NSS

101719

Description Qty.

Req.

CAB DOOR . . . . . . . . . . . . . . . . . . 1

(includes items 1-10, 12 and 15)

WELDMENT, CAB DOOR FRAME . 1

BULB SEAL, DOOR FRAME . . . . . 1

GLASS, UPPER DOOR . . . . . . . . . 1

GLASS, LOWER DOOR . . . . . . . . . 1

5/16”-18X1-3/4” BUTTN HD BOLT . 5

5/16” FLAT WASHER (BLACK). . . . 5

BUSHING, STEEL . . . . . . . . . . . . . . 8

GROMMET, 1/2”IDX1/4”GROOVE . 8

5/16”-18 ACORN NUT (BLACK) . . . 7

5/16”-18X2” BUTTON HD BOLT . . . 3

3/8”X5” BOLT. . . . . . . . . . . . . . . . . . 3

WELDMENT, DOOR HINGE . . . . . . 3

3/8” NYLON INSERT NUT . . . . . . . 3

BUMPER, DOOR . . . . . . . . . . . . . . 1

HOLD OPEN/DOOR (SET) . . . . . . . 1

(includes item #18—mounts to cab)

1/4”-20x1-1/2” BOLT . . . . . . . . . . . . 1

HOLD OPEN/DOOR STUD. . . . . . . 1

(included with item #16, as a set)

GLASS MOUNT . . . . . . . . . . . . . . . 1

Item

No.

20

21

22

32

Part

No.

102948

101792

102886

651635

L50202

651636

L500022

L520003

L70069

101436

654028

654046

L50979

101746

--

Cab

Door (Option)

Description

Qty.

Req.

HANDLE, EXT. DOOR LOCKING . . 1

KEY ONLY . . . . . . . . . . . . . . . . . . . 1

LATCH RELEASE, INTERIOR . . . . 1

1/4-20X1-1/4” FLAT HD SCREW . . 2

1/4-20X5/8” BUTTON HD BOLT . . 1

M6-1X12 8.8 BOLT. . . . . . . . . . . . . 2

FLAT WASHER (BLACK) . . . . . . . . 1

1/4”-20 NYLON INSERT NUT . . . . 2

1/2” HOLE PLUG . . . . . . . . . . . . . . 2

STRIKER . . . . . . . . . . . . . . . . . . . . . 1

7/16” LOCK WASHER . . . . . . . . . . 1

7/16” FLAT WASHER . . . . . . . . . . . 1

7/16”-14 NUT . . . . . . . . . . . . . . . . . 1

COVER (included with #21) . . . . . . 1

L70069

-- ITEMS NOT SHOWN --

1/2” PLUG . . . . . . . . . . . . . . . . . . . . 1

(access hole for door handle)

PRINTED IN U.S.A.

15

913317/DP0513

Cab

Instruments, Switches and Fuses

RS6-34 Telescopic Handler

REFER TO

NOTE

ON FACING PAGE

34

1

2

3

4

5

6

7

8

9

10

F

-

N

-

R SHIFT MODULE

LOCATED NEXT TO FUSES

UNDER LOAD CHARTS

33

35

16

913317/DP0513

15

14 13

12

11

SWITCHES LOCATED

ON LOWER DASH

START

HORN

19

18

16

17

103104

DIODE PACK

LOCATED UNDER

TRANS

.

HOOD

37

36

IN

-

LINE DIODE

DIODE WIRE

(

PARK BRAKE SWITCH

)

DIODE WIRE

(

ALTERNATOR

)

25

24

23

FUSES AND RELAYS

LOCATED UNDER LOAD CHARTS

ON SIDE DASH

26

27

28

29

30

31

22

21

32

20

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Cab

Instruments, Switches and Fuses

Item

No.

Part

No.

01 c L63640

02 c

L66437

03 L71075

04

05

101278

L71086

06

07

08

09

10

L71074

L71082

L71084

L71077

L71691

11 a

NA

12 L71081

13

14

L71076

L71076

15

16

17

072340

L63610

102882

21

22

23

24

25

26

27

28

29

30

31

32

33

18

19

L41848

089069

089070

20 b 105835

50380751

272648

L70075

L70075

103099

103221

103221

103221

103099

103099

103100

103100

103100

103100

103104

34 101877

Description Qty.

Req.

GAUGE, FUEL . . . . . . . . . . . . . . . . 1

GAUGE, WATER TEMP. . . . . . . . . . 1

SWITCH, STEER MODE. . . . . . . . . 1

SWITCH, ENGINE FAULT. . . . . . . . 1

SWITCH, CLUTCH CUT OUT. . . . . 1

SWITCH, PARK BRAKE . . . . . . . . . 1

SWITCH, LIGHTS . . . . . . . . . . . . . . 1

SWITCH, TURN SIGNALS . . . . . . . 1

SWITCH, HAZARD LIGHTS . . . . . . 1

SWITCH, PWP . . . . . . . . . . . . . . . . 1

OPTIONAL SWITCH . . . . . . . . . . . . 1

SWITCH, ETHER . . . . . . . . . . . . . . 1

SWITCH, WIPER/WASHER . . . . . . 1

SWITCH, WIPER/WASHER . . . . . . 1

GAUGE, HOUR METER . . . . . . . . . 1

GAUGE, LIGHT CLUSTER . . . . . . . 1

PANEL, DASH . . . . . . . . . . . . . . . . . 1

(does not include switches or gauges)

SWITCH, PUSH BUTTON. . . . . . . . 2

SWITCH, IGNITION w/KEY. . . . . . . 1

KEY ONLY . . . . . . . . . . . . . . . . . . . 1

HARNESS, CANOPY (kit) . . . . . . . . 1

FUSE/RELAY COVER (not shown). 1

RELAY COVER (not shown) . . . . . . 1

CHANGE OVER RELAY . . . . . . . . 1

CHANGE OVER RELAY . . . . . . . . 1

FUSE, MINI 15 AMP . . . . . . . . . . . . 1

FUSE, MINI 25 AMP . . . . . . . . . . . . 1

FUSE, MINI 25 AMP . . . . . . . . . . . . 1

FUSE, MINI 25 AMP . . . . . . . . . . . . 1

FUSE, MINI 15 AMP . . . . . . . . . . . . 1

FUSE, MINI 15 AMP . . . . . . . . . . . . 1

MICRO RELAY, 20 AMP . . . . . . . . . 1

MICRO RELAY, 20 AMP . . . . . . . . . 1

MICRO RELAY, 20 AMP . . . . . . . . . 1

MICRO RELAY, 20 AMP . . . . . . . . . 1

DIODE PACK, 4 DIODES . . . . . . . . 1

(included with item 00—103265 wire harness below)

MODULE, F-N-R SHIFTER . . . . . . . 1

Item

No.

35

--

--

36

37

-d

--

a b c d

Part

No.

Description

Qty.

Req.

L60587 3 AMP./800PIV (in-line diode). . . . AR

Locations: Alternator - (purple wire);Park Brake

Switch Connector -(inside dash); Tail Light Harness

- (rear of machine inside wire loom between diode

pack and back-up alarm wires)

105960

105959

DIODE WIRE (park brake switch) . . 1

DIODE WIRE (alternator) . . . . . . . . 1

103265

-- ITEMS NOT SHOWN --

WIRE HARNESS, FRAME . . . . . . . 1

(includes the following diodes and fuse)

103104

L500225

105620

DIODE PACK, 4 DIODES. . . . . . . . 1

(located under chassis cover just in front of transmission)

60 AMP MAXI FUSE . . . . . . . . . . . 1

(located near engine starter)

210909 WIRE HARNESS, BRAKE RELAY . 1

(attaches to trans. press. switch)

420-35602 RELAY . . . . . . . . . . . . . . . . . . . . . . . 2

(included with 210909 harness)

L630004 GROUND STRAP . . . . . . . . . . . . . . 1

105580 TRI-FUNCTION WIRE HARNESS . 1

(when equipped with F3 option)

WIRE HARNESS, CANOPY (T3) . . 1

Use P/N L71088 Switch Hole Plug to cover hole when switches are not present.

Not all connections or terminals are shown in this illustration. The fuse and relay blocks as shown are located under the load chart panel on the side dash.

Back light kit #103227; for illuminating gauges.

If ordering 103265, also order kit P/N 211124.

NOTE: Switches shown in the illustration or listed

on this page are for reference purposes only.

FUSE AND RELAY REFERENCE

21 (Relay #2) - 40 AMP change-over relay - PARK BRAKE

22 (Relay #1) - 40 AMP change-over relay - IGNITION

23 (Fuse #2) - 15 AMP fuse - (IGNITION) - transmission, park brake, PWP, steer select, injector

24 (Fuse #4) - 25 AMP fuse - (IGNITION) - heater, gauges

25 (Fuse #6) - 25 AMP fuse - (IGNITION) - front wiper motor

26 (Fuse #5) - 25 AMP fuse - (IGNITION) - top wiper motor

27 (Fuse #3) - 15 AMP fuse - (IGNITION) - lights, ether, clutch cutout

28 (Fuse #1) - 15 AMP fuse - (BATTERY) - ignition switch, horn, brake lights, backup alarm

29 (Relay) - 20 AMP micro relay - top wiper

30 (Relay) - 20 AMP micro relay - lights

31 (Relay) - 20 AMP micro relay - bulb check

32 (Relay) - 20 AMP micro relay - front wiper

PRINTED IN U.S.A.

17

913317/DP0513

Cab

Heater (Option)

RS6-34 Telescopic Handler

1

12

13

2

2

15

12

14

16

3

4

5

6

7

11

10

9

8

18

17

913317/DP0513

18

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

06

07

08

02

03

04

05

Item

No.

01

Part

No.

102907

L63545

102944

102945

187841

136304

136305

L500163

Description Qty.

Req.

HEATER ASSEMBLY . . . . . . . . . . . 1

(Includes items 5-11; 13-18)

GRILL, DEFROSTER . . . . . . . . . . . 2

INSTRUMENT PANEL. . . . . . . . . . . 1

DECAL, HEAT CONTROL. . . . . . . . 1

CONTROL, TEMPERATURE . . . . . 1

(does not include knob)

KNOB. . . . . . . . . . . . . . . . . . . . . . . . 1

SWITCH, VARIABLE SPEED . . . . . 1

(includes knob)

VALVE, WATER . . . . . . . . . . . . . . . . 1

12

13

14

15

16

17

18

Item

No.

09

10

11

Part

No.

NSS

50380847

103033

L50202

136310

NSS

NSS

137503

NSS

NSS

Cab

Heater (Option)

Description

Qty.

Req.

HOSE, 5/8" - FORMED . . . . . . . . . . 1

HEATER CORE . . . . . . . . . . . . . . . . 1

BLOWER MOTOR. . . . . . . . . . . . . . 1

(does not include fan/cage)

1/4”-20X5/8” BUTTN HD BOLT . . . 10

RESISTOR BLOCK . . . . . . . . . . . . . 1

GROMMET 5/8" OD X 3/8" ID. . . . . 2

HOUSING . . . . . . . . . . . . . . . . . . . . 1

LOUVER . . . . . . . . . . . . . . . . . . . . . 1

HOSE, 5/8" - FORMED . . . . . . . . . . 1

GROMMET 1-3/8" OD X 1" ID . . . . 2

PRINTED IN U.S.A.

19

913317/DP0513

Cab

Steering Column and Shifter Group

RS6-34 Telescopic Handler

1

3

2

F

-

N

-

R SHIFT MODULE

LOCATED NEXT TO FUSES

UNDER LOAD CHARTS

913317/DP0513

10

4

5

7

6

8

9

T LS

P

L

R

STEER MOTOR

PORTS

20

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Cab

Steering Column and Shifter Group

Item

No.

01

02

03

04

05

06

Part

No.

103359

L41261

L69595

L50101

102783

L68772

L99425

Description Qty.

Req.

CAP, STEERING WHEEL . . . . . . . . 1

NUT, STEERING WHEEL . . . . . . . . 1

STEERING WHEEL . . . . . . . . . . . . 1

M5X.8X35mm HX SKTHD BOLT . . 2

COLUMN, STEERING. . . . . . . . . . . 1

F-N-R/1-2-3 SHIFTER (includes #7) 1

BOOT . . . . . . . . . . . . . . . . . . . . . . . 1

Item

No.

07

08

09

10

Part

No.

105236

651625

101882

101877

102649

Description

Qty.

Req.

CLAMP, SHIFTER(included w/ #6) . 1

3/8”-16X1-1/4” BUTTON HD BOLT . 4

MOTOR, STEER . . . . . . . . . . . . . . . 1

MODULE, F-N-R SHIFTER . . . . . . . 1

WIRE HARNESS, FNR SHIFTER. . 1

(not shown)

PRINTED IN U.S.A.

21

913317/DP0513

Cab

Seat

RS6-34 Telescopic Handler

1

2

4

5

3

3

2

6

4

11

5

8

9

3

4

5

10

8

9

7

2

5

3

4

4

5

6

3

2

3

12

13

913317/DP0513

22

SUSPENSION SEAT

(

OPTION

)

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

01

02

03

04

05

06

210170

L70634

650630

L50196

L50517

L70212

07 a L70201

08

09

654004

L50056

10 a 100071

Description Qty.

Req.

SEAT . . . . . . . . . . . . . . . . . . . . . . . . 1

SEAT BELT (includes tethers) . . . . . 1

7/16”-20X1” BOLT . . . . . . . . . . . . AR

7/16” FLAT WASHER . . . . . . . . . . AR

7/16”-20 NYLON INSERT NUT . . AR

BRACKET, TETHER . . . . . . . . . . . . 2

MOUNT, SEAT BELT . . . . . . . . . . . . 1

5/16” FLAT WASHER . . . . . . . . . . AR

5/6”-18 NYLON INSERT NUT . . . AR

SEAT RISER . . . . . . . . . . . . . . . . . . 1

Item

No.

Part

No.

11 L50823

12 b L68496

13 103195

14 b 210403

15 b

210405

16 b 210404

a b

Used for standard seat only. Not used with suspension seat option.

Used for suspension seat option only.

Cab

Seat

Description

Qty.

Req.

5/16”-18X1” BOLT . . . . . . . . . . . . AR

BELLOWS, SUSPENSION SEAT . . 1

(includes seat belt / tether bracket)

PEDESTAL / BOLT ON SEAT . . . . . 1

BELLOWS, SEAT (boot only) . . . . . 1

ADJUSTMENT KNOB . . . . . . . . . . . 1

SHOCK, SUSP. SEAT . . . . . . . . . . . 1

Suspension Seat

(Option)

PRINTED IN U.S.A.

14

23

15

16

913317/DP0513

Cab RS6-34 Telescopic Handler

Cab Components - Tri-Function Controls (Option)

Controller parts on are page 162.

3

2

1

4

5

9

10

11

8

12

5

5

6

7

Controller parts are on page 164.

913317/DP0513

24

PRINTED IN U.S.A.

03

04

05

06

07

RS6-34 Telescopic Handler Cab

Cab Components - Tri-Function Controls (Option)

Item

No.

01

02

Part

No.

L71346

104304

L50202

103582

L50051

104214

103264

Description Qty.

Req.

CONTROLLER, 4 BTN/W TRIG . . . 1

BEZEL, JOYSTICK . . . . . . . . . . . . . 1

(included with item 1)

1/4”-20X5/8” BTN HD BOLT. . . . . AR

JOYSTICK MOUNT. . . . . . . . . . . . . 1

1/4”-20 FLANGE LOCK NUT . . . . AR

SPACER, LEVEL CONTROLLER . . 2

CONTROLLER, LEVEL. . . . . . . . . . 1

Item

No.

08

09

10

11

12

--

Part

No.

104219

L52024

L52022

103708

L69756

Description

Qty.

Req.

1/4”-20X2-1/2” BTN HD BOLT. . . . . 2

1/4”-20X1” BTN HD BOLT. . . . . . . . 2

1/4”-20X5/8” BTN HD BOLT . . . . . . 2

BRACKET, ARM REST . . . . . . . . . . 1

PAD, ARM REST . . . . . . . . . . . . . . . 1

105580

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

PRINTED IN U.S.A.

25

913317/DP0513

Cab

Brake and Accelerator Pedals

RS6-34 Telescopic Handler

24

1

2

3

25

4

5

BRAKE PEDAL RETURN

SPRING

-

NOT SHOWN

9

8

12

7

6

10

11

20

19

18

17

16

11

13

14

15

14

13

12

22

23

22

21

Master

Cylinder parts are on page 155.

913317/DP0513

26

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Cab

Brake and Accelerator Pedals

Item

No.

01

02

03

04

Part

No.

L63230

650545

L50056

102785

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

102530

654009

L48179

102529

L50628

L10465

L44859

655006

L580005

L50072

102534

650533

654006

L520005

L50150

650630

Description Qty.

Req.

PAD, BRAKE PEDAL . . . . . . . . . . . 1

5/16”-18X1-1/4” BOLT . . . . . . . . . . . 2

5/16”-18 FLANGE NUT . . . . . . . . . . 2

BRAKE LEVER ASSEMBLY . . . . . . 1

(includes item 7)

BRAKE LINKAGE, WLDMNT . . . . . 1

1/2” FLAT WASHER . . . . . . . . . . . . 1

BRONZE BUSHING . . . . . . . . . . . . 2

(included with item 4)

PIN, BRAKE LEVER PIVOT . . . . . . 1

ROLL PIN, .19X1. . . . . . . . . . . . . . . 1

ZERK, GREASE 1/4”-28 . . . . . . . . . 1

PIN, CLEVIS 1/2”X27/64” . . . . . . . . 2

1/8”X1” COTTER PIN . . . . . . . . . . . 2

YOKE, CLEVIS 1/2”-13 . . . . . . . . . . 2

1/2”-13 NUT. . . . . . . . . . . . . . . . . . . 2

ROD, BRAKE VALVE . . . . . . . . . . . 1

3/8”-16X1-1/2” BOLT . . . . . . . . . . . . 6

3/8” FLAT WASHER . . . . . . . . . . . . 6

3/8”-16 NYLON INSERT NUT . . . . . 6

7/16” LOCK WASHER. . . . . . . . . . . 2

7/16”-20X1” BOLT . . . . . . . . . . . . . . 2

Item

No.

21

22

23

24

25

--

--

Part

No.

L63363

L63629

L62926

L68641

L52024

L50051

L98865

202583

L63420

L64664

L64663

Description

Qty.

Req.

VALVE, BRAKE MASTER CYL. . . . 2

BRACKET, THROTTLE RETRN . . . 2

SPRING, CABLE TENSION . . . . . . 1

PEDAL, ACCELERATOR . . . . . . . . 1

1/4”-20X1” BUTTON HD BOLT . . . 3

1/4”-20 FLANGE NUT . . . . . . . . . . 3

BOOT . . . . . . . . . . . . . . . . . . . . . . . 1

Clevis w/pin (1/4" x #10-24) . . . . . . 1

(included with item #24)

-- ITEMS NOT SHOWN--

(Throttle)

THROTTLE CABLE. . . . . . . . . . . . . 1

COUPLER . . . . . . . . . . . . . . . . . . . 1

THROTTLE ROD . . . . . . . . . . . . . . 1

Note: Refer to Engine Section for more information.

L561004

(Brake)

RETURN SPRING (brake lever) . . . 1

(attaches to item 4)

PRINTED IN U.S.A.

27

913317/DP0513

Cab

Cab Mounts

RS6-34 Telescopic Handler

1

2

3

4

5

6

7

2

4

7

2

4

4

2

7

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

Part

No.

102780

651151

102741

102781

101667

650491

Description Qty.

Req.

1”-8X3” GR8 BOLT . . . . . . . . . . . . . 1

1” SAE FLAT WASHER. . . . . . . . . . 7

RETAINER, CANOPY NUT . . . . . . . 1

1”-8 CLASS C LOCK NUT . . . . . . . 4

WASHER, CANOPY NUT . . . . . . . 1

3/8”-16X1-1/4” BOLT . . . . . . . . . . . . 2

Item

No.

07

Part

No.

102780

--

Cab

Cab Mounts

Description

Qty.

Req.

1”-8X3” GR8 BOLT . . . . . . . . . . . . . 3

L63813

-- ITEMS NOT SHOWN--

HOLE PLUG, 2-1/2” DIA . . . . . . . . . 1

(plugs hole in cab where side bolt attaches)

PRINTED IN U.S.A.

29

913317/DP0513

Chassis

Hydraulic Tank Group

12

11

13

10

8

15

17

16

14

9

1

RS6-34 Telescopic Handler

2

2

3

4

5

6

7

913317/DP0513

18

21

19

22 23

20

24

31

25

30

26

27

29

28

30

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

14

15

16

17

09

10

11

12

13

02

03

04

05

06

07

08

Item

No.

01

Part

No.

101879

50380450

L97489

650489

654006

L277944

L63406

L63215

L99163

L63756

103991

L520003

081379

650486

654004

L65142

L65144

Description Qty.

Req.

ASSEMBLY, IN-TANK FILTER. . . . . 1

(includes items 1-3)

SEAL KIT (three o-rings) . . . . . . . . . 1

HYDRAULIC FILTER ELEMENT. . . 1

CS 3/8”-16X 7/8” C5Z . . . . . . . . . . . 4

3/8” FLAT WASHER . . . . . . . . . . . . 4

ADAP., -20ORM -12JICM . . . . . . . . 1

HOSE, -12 A12/DS12 114” . . . . . . . 1

CAP ASSEMBLY, HYDRAULIC . . . . 1

(includes item 9)

GASKET, FILLER NECK . . . . . . . . . 2

MIRROR, CONVEX 6-1/2”X10”. . . . 1

BRACKET, MIRROR . . . . . . . . . . . . 1

1/4”-20 NYLON INSERT NUT . . . . . 1

5/16”x1/2” LOCK BOLT . . . . . . . . . . 4

5/16”-18x3/4” BOLT . . . . . . . . . . . . 10

5/16” FLAT WASHER . . . . . . . . . . 10

PLATE, HYDRAULIC TANK COVR. 1

GASKET, RUBBER . . . . . . . . . . . . . 1

Item

No.

18

Part

No.

50380516

19

20

21

22

23

24

650569

L520019

L446025

L49327

L61620

L441010

25

26

L63309

103315

27 a 103318

28

29

30

L68805

103368

054994

31 b 122778

a b

Chassis

Hydraulic Tank Group

Description

Qty.

Req.

HYDRAULIC TANK WELDMENT . . 1

(includes items 22 and 23)

1/2”-13X1-3/4” BOLT . . . . . . . . . . . . 4

1/2”-13 NYLON INSERT NUT . . . . . 4

PLUG, -8ORM SAE . . . . . . . . . . . . . 1

STRAINER, HYD. OIL . . . . . . . . . . . 1

1-1/2” THREADED PIPE . . . . . . . . . 1

ADAP., -24NPTM -24JICM . . . . . . . 1

HOSE, -24 A24/A24 35” . . . . . . . . . 1

HOSE, -4 A6/DS6 60” . . . . . . . . . . . 1

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -6 A6/DS8 70” . . . . . . . . . . . 1

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

ADAP., -6ORM -6JICM . . . . . . . . . AR

PLUG, -6ORM SAE . . . . . . . . . . . . . 1

Used on units equipped with PWP.

Used on units not equipped with PWP.

07

25

26

27 a

28

29

HYDRAULIC FILTER

HYDRAULIC TANK

HYDRAULIC TANK RETURN

HYDRAULIC TANK RETURN

HYDRAULIC TANK RETURN

HYDRAULIC TANK RETURN

HOSE LOCATOR

MAIN VALVE “OUT”

HYDRAULIC PUMP “IN”

JOYSTICK

PWP VALVE “T”

STEER MOTOR “T”

FLOW DIVIDER “T”

PRINTED IN U.S.A.

31

913317/DP0513

Chassis

Fuel Tank Group

2

5

4

RS6-34 Telescopic Handler

8

9

6

7

Air cleaner parts are shown on page 48.

1

10

11

913317/DP0513

12

32

14

13

15

13

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

05

06

07

08

09

01

02

210738

210722

04 a L61867

650387

L41854

136383

136443

L50056

650545

Description Qty.

Req.

FUEL TANK WELDMENT . . . . . . . . 1

CAP, FUEL (vented) . . . . . . . . . . . . 1

SENDER, FUEL LEVEL . . . . . . . . . 1

#10-32X1/2” RD MACH SCREW . . 5

GASKET, FUEL SENDER . . . . . . . . 1

AIR CLEANER ASSEMBLY. . . . . . . 1

CLAMP, AIR CLEANER MOUNT. . . 1

5/16”-18 WHIZ LOCK NUT . . . . . . . 2

5/16”-18X1-1/25” BOLT . . . . . . . . . . 2

Item

No.

10

11

12

13

14

15

Part

No.

L520019

650569

L446025

110227

L68619

102861

a Includes gasket; item #5

Chassis

Fuel Tank Group

Description

Qty.

Req.

1/2”-13 NYLON INSERT NUT . . . . . 4

1/2”-13X1-3/4” BOLT . . . . . . . . . . . . 4

PLUG, -8ORM SAE . . . . . . . . . . . . . 1

ADAP., -8ORM -6JICM 90º . . . . . . . 2

HOSE, -6 K6/XX 73” (Fuel Supply) . 1

HOSE, -4 K6/XX 73” (Fuel Return) . 1

PRINTED IN U.S.A.

33

913317/DP0513

Chassis

Battery Group

8

9

10

1

3

RS6-34 Telescopic Handler

2

4

5

6

7

913317/DP0513

34

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

Part

No.

L63334

L630004

L630001

L630003

L63248

Description Qty.

Req.

BAR, BATTERY HOLD-DOWN . . . . 1

GROUND STRAP, 14GA.X14” . . . . 1

CABLE, NEG. BATTERY . . . . . . . . . 1

BOOT, RUBBER . . . . . . . . . . . . . . . 1

CABLE, POS. BATTERY. . . . . . . . . 1

Item

No.

06

07

08

09

10

Part

No.

L41847

NSS

090666

L70146

653098

Chassis

Battery Group

Description

Qty.

Req.

HORN, 12V ELEC B2I. . . . . . . . . . . 1

BATTERY, 4DLT TYPE . . . . . . . . . . 1

3/8”-16 FLANGE NUT . . . . . . . . . . . 4

ROD, BATTERY HOLD DOWN. . . . 2

3/8”-16 WING NUT . . . . . . . . . . . . . 2

PRINTED IN U.S.A.

35

913317/DP0513

Chassis

Hoods and Covers

RS6-34 Telescopic Handler

9

6

8

4

5

4 2

3

3

18

11

17

12

1

2

8

1

2

3

19

MUFFLER GUARD

7

10

1

1

2

3

20

3

2

1

13

1

2

16

3

3

2

1

15

23

COUNTER

-

WEIGHT BOLTS

24

2

1

22

21

SKID PLATE

(

UNDER CAB

)

913317/DP0513

36

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

07

08

09

10

11

Part

No.

650486

654004

L530004

L52025

L68866

210452

103856

104222

L64673

650387

650648

L50056

L41847

Description Qty.

Req.

5/16”-18X3/4” BOLT . . . . . . . . . . . AR

5/16” FLAT WASHER . . . . . . . . . . AR

FASTENER RETAINED NUT . . . . AR

5/16”-18X3/4” BUTTON HEAD. . . AR

FRONT COVER. . . . . . . . . . . . . . . . 1

HOOD/TRANS COVER. . . . . . . . . . 1

ACCESS COVER . . . . . . . . . . . . . . 1

LATCH . . . . . . . . . . . . . . . . . . . . . . . 2

HANDLE, HOOD . . . . . . . . . . . . . . . 1

#10-32x1/2” MACH. SCREW . . . . . 2

#10-32 NUT . . . . . . . . . . . . . . . . . . . 2

5/16”-18 WHIZ NUT . . . . . . . . . . . AR

HORN, 12V . . . . . . . . . . . . . . . . . . . 1

Item

No.

12

13

15

16

17

18

19

20

21

22

23

24

Part

No.

650484

103199

210358

210369

210394

103270

L67756

L50442

103370

103371

L50519

L50333

Chassis

Hoods and Covers

Description

Qty.

Req.

5/16”-18X1/2” BOLT . . . . . . . . . . . . 1

HOOD, REAR . . . . . . . . . . . . . . . . . 1

COVER, RADIATOR . . . . . . . . . . . . 1

HOOD, REAR . . . . . . . . . . . . . . . . . 1

COVER, ENGINE . . . . . . . . . . . . . . 1

COVER, FUEL FILTER ACCESS . . 1

MUFFLER GUARD . . . . . . . . . . . . . 1

3/8”X1-1/4” BOLT . . . . . . . . . . . . . . 4

SKID PLATE . . . . . . . . . . . . . . . . . . 1

BRACKET . . . . . . . . . . . . . . . . . . . . 1

3/4” NYLON LOCK NUT . . . . . . . . . 4

3/4”X3” BOLT. . . . . . . . . . . . . . . . . . 5

PRINTED IN U.S.A.

37

913317/DP0513

Chassis

Front and Rear Lights

1

2

3

4

FRONT OF CAB

RS6-34 Telescopic Handler

913317/DP0513

REAR COVER

5

6

7

38

8

9

10

8

7

PRINTED IN U.S.A.

Item

No.

01

02

03

04

05

06

07

Part

No.

L70039

654006

L520005

101712

103199

L70200

650486

L50056

654004

L500339

08 L70701

09

10

L500606

L71595

100102

RS6-34 Telescopic Handler

Description Qty.

Req.

HEAD LIGHT . . . . . . . . . . . . . . . . . . 2

3/8” FLAT WASHER . . . . . . . . . . . . 2

3/8”-16 NYLON INSERT NUT . . . . . 2

GROMMET, 5/8” . . . . . . . . . . . . . . . 2

HOOD, REAR . . . . . . . . . . . . . . . . . 1

BACKUP ALARM. . . . . . . . . . . . . . . 1

5/16-18X3/4” BOLT . . . . . . . . . . . . . 2

5/16”-18 NUT. . . . . . . . . . . . . . . . . . 2

5/16” FLAT WASHER . . . . . . . . . . . 2

BEZEL, RUBBER . . . . . . . . . . . . . . 2

(included with item #08)

LIGHT, BRAKE/TURN . . . . . . . . . . . 2

(includes item #07 bezel) . . . . . . . . .

BEZEL, RUBBER . . . . . . . . . . . . . . 1

(included with item #10)

LIGHT, HALOGEN BACKUP . . . . . . 1

(includes item #09 bezel)

JUMPER WIRE, BACKUP LIGHT . 1

Item

No.

Part

No.

Chassis

Front and Rear Lights

Description

Qty.

Req.

--

--

-a

-b

--

102647

102572

103101

L500748

L500747

L60587

-- ITEMS NOT SHOWN --

WIRE HARNESS, REAR LIGHTS. . 1

HARNESS, LIGHT PACKAGE . . . . 1

(dash to rear lights - includes the following diodes:)

DIODE PACK (see below). . . . . . . 1

DIODE PACK (see below). . . . . . . 1

CLEAR COVER, DIODE PACK . . . 2

3 AMP./800PIV (in-line diode) . . . . . 2

(rear of machine inside the wire loom between diode pack (103101)and back-up alarm wires)

L63894

L70241

103192

TURN SIGNAL FLASHER. . . . . . . . 1

(located under dash through joystick access cover)

HARNESS, HEAD LIGHT . . . . . . . . 2

(dash to head lights)

GROMMET 13/16”. . . . . . . . . . . . . . 2

(under dash for head light harness) a b

Standard wire harness, used on units not equipped with turn signals.

Used with optional light package for units equipped with turn signals. Wire harness 102647 is not used when unit is equipped with turn signals.

NOTE: Refer to page 93 for the work lights and

wire harness associated with the boom.

L60587

IN

-

LINE DIODE

PRINTED IN U.S.A.

103101

DIODE PACK

LOCATED NEAR

REAR LIGHTS

L500748

DIODE PACK

LOCATED UNDER DASH

NEAR SWITCHES

39

L500747

DIODE PACK

CLEAR COVER

913317/DP0513

Personnel Work Platform

Boom Components

RS6-34 Telescopic Handler

2

1

3

4

(Attached to Personnel

Work Platform)

110 “

5

612”

Item

No.

--

Part

No.

L71729

01

02

03

102408

L71726

L71725

Description Qty.

Req.

REMOTE SWITCH W/CABLE. . . . . 1

(Includes item 1-3)

CABLE ASSEMBLY. . . . . . . . . . . . . 1

REMOTE STOP SWITCH . . . . . . . . 1

REMOTE SWITCH ENCLOSURE. . 1

Item

No.

04

05

Part

No.

L71750

L71732

Description

Qty.

Req.

REMOTE SWITCH POUCH . . . . . . 1

REMOTE SWITCH HARNESS . . . . 1

(Consists of two cables)

913317/DP0513

40

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Personnel Work Platform

Chassis Components

Located under tank/engine cover attached to inner frame

1

2

5

4

Located under dash in

Joystick Access Cover

3

Chain and Shackle

(Used to secure

Personnel Work Platform)

Item

No.

Part

No.

01

02

03

L71553

102321

104078

04 a L71752

05 a

L71751

Description Qty.

Req.

LEVEL SENSOR . . . . . . . . . . . . . . . 1

MANIFOLD, PWP JOYSTICK . . . . . 1

PWP CONTROL MODULE . . . . . . . 1

5/16” CHAIN SHACKLE . . . . . . . . . 1

5/16” CHAIN GR40 16 LINKS . . . . 1

Item

No.

--

--

Part

No.

L71691

104064

Description

Qty.

Req.

-- ITEMS NOT SHOWN --

PWP SWITCH (located on dash) . . 1

PWP WIRE HARNESS . . . . . . . . . . 1

(under dash) a Chain shackle and chain are used to secure the

Personnel Work Platform.

PRINTED IN U.S.A.

41

913317/DP0513

Personnel Work Platform RS6-34 Telescopic Handler

Radio Remote (Option) - Transmitter and Receiver - (Late Style)

13

2

4

NOTE:

Late-Style

Transmitter color is black

5

3

1

11

7

12

8

6

9

10

Item

No.

--

Part

No.

50380274

06

07

08

09

10

01 a

50220629

02 NSS

03

04

05

50220628

50220627

50220626

103476

103475

50220630

50380826

L50051

Description Qty.

Req.

RADIO REMOTE, SYSTEM . . . . . . 1

(Includes all items shown)

REMOTE TRANSMITTER. . . . . . . . 1

HOUSING . . . . . . . . . . . . . . . . . . . . 1

SWITCH, TOGGLE 2-POS.. . . . . . . 1

SWITCH, TOGGLE 3-POS.. . . . . . . 4

BUTTON, RADIO E-STOP . . . . . . . 1

SNAP RING, LANYARD . . . . . . . . . 1

LANYARD (wire cable) . . . . . . . . . . 1

RECEIVER, RADIO REMOTE . . . . 1

BRACKET, RECEIVER MOUNT . . . 1

1/4” WHIZNUT. . . . . . . . . . . . . . . . . 2

--

--

a

Item

No.

11

12

13

Part

No.

650426

L71553

50380825

Description

Qty.

Req.

1/4”X1-1/4” BOLT . . . . . . . . . . . . . . 2

LEVEL SENSOR . . . . . . . . . . . . . . . 1

DECAL, REMOTE TRANSMITTER. 1

(not included with item 1)

103099

50380836

-- ITEMS NOT SHOWN --

FUSE, MINI 15 AMP . . . . . . . . . . . . 1

HARNESS, RADIO REMOTE . . . . . 1

Requires programming; refer to Radio Remote

Operator’s Manual an Parts Manual (50960060), included with the Radio Remote Control at the time of purchase, for more information.

913317/DP0513

42

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Personnel Work Platform

Radio Remote (Option) - Transmitter and Receiver - (Early Style)

12

6

2

7

NOTE:

Early-Style

Transmitter color is yellow

4

5

3

1

10

11

Battery

13

8

9

Radio receiver mount bracket

Item

No.

--

Part

No.

103414

06

07

08

09

01 a

103479

02 103482

03

04

05

210867

104675

106965

NSS

50220061

103480

210777

10

11

103475

103476

Description Qty.

Req.

RADIO REMOTE, COMPLETE . . . . 1

(Includes all items shown)

REMOTE TRANSMITTER. . . . . . . . 1

SWITCH, TOGGLE 3 POS. MIL . . . 4

SWITCH, E-STOP (push-button). . . 1

LABEL (not shown-switch functions) 1

SPRING, TRIGGER. . . . . . . . . . . . . 1

AA BATTERY. . . . . . . . . . . . . . . . . . 4

COVER w/MAGNET & SCREWS . . 1

REMOTE RECEIVER . . . . . . . . . . . 1

ENCLOSURE / CIRCUIT BOARD. . 1

(includes wire harness)

LANYARD (wire cable) . . . . . . . . . . 1

SNAP RING, LANYARD . . . . . . . . . 1

PRINTED IN U.S.A.

43

Item

No.

12

13

--

--

a

Part

No.

102968

103994

650542

L50051

Description

(not included with item 1)

Qty.

Req.

DECAL, REMOTE TRANSMITTER. 1

BRACKET, RECEIVER MOUNT . . . 1

1/4”X1/2” BOLT . . . . . . . . . . . . . . . . 2

1/4” WHIZNUT. . . . . . . . . . . . . . . . . 2

103099

103424

-- ITEMS NOT SHOWN --

FUSE, MINI 15 AMP . . . . . . . . . . . . 1

HARNESS, RADIO REMOTE . . . . . 1

(Connects to existing PWP wire harness.)

Requires programming; refer to Radio Remote

Operator’s Manual an Parts Manual (913236), included with the Radio Remote Control at the time of purchase, for more information.

913317/DP0513

Engine

External Components

RS6-34 Telescopic Handler

18

19

17

1

2

3

5

20

4

15

14

08

09

913317/DP0513

10

11

12

13

07

6

44

25

23

24

22

26

21

FUEL

TRANSFER

PUMP

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

01

02

03

04

05

06

07

08

NSS

L41179

L68571

210484

L69166

103626

L68596

L68595

09

10

11

12

13

L50305

650695

L64124

L64197

L520007

14 b

L69718

15 b L68592

17 105850

18 b

L447005

19

20

L68604

105281

21

22

23

L64664

650648

L64663

L580009

650648

24

25

26

104340

104341

NSS

Description Qty.

Req.

ENGINE . . . . . . . . . . . . . . . . . . . . . . 1

RELAY, ENGINE STARTER . . . . . . 1

MOUNT, RELAY . . . . . . . . . . . . . . . 1

SENDER, WATER TEMP . . . . . . . . 1

FUEL LINE TUBE . . . . . . . . . . . . . . 1

SENDER, OIL PRESSURE . . . . . . . 1

ENGINE MOUNT (right) . . . . . . . . . 1

ENGINE MOUNT (left) . . . . . . . . . . 1

M16-2X35M BOLT GR8.8 . . . . . . . . 4

5/8”-11X3-1/2” BOLT . . . . . . . . . . . . 2

MOUNT, VIBRATION ISOLATOR . . 2

WASHER, ISOLATOR MOUNT. . . . 2

5/8”-11 NYLON INSERT NUT . . . . . 2

ADAP., M18 -6NPTF STR . . . . . . . . 1

SHUTOFF, MANUAL/WATER . . . . . 1

FAN BELT . . . . . . . . . . . . . . . . . . . . 1

ADAP., M18 10 BEAD STR . . . . . . . 1

BRACKET, ALTERNATOR. . . . . . . . 1

BRACKET, THROTTLE . . . . . . . . . 1

COUPLER, ROD TO CABLE . . . . . 1

#10-32 NUT . . . . . . . . . . . . . . . . . . 2

ROD, THROTTLE EXTEND . . . . . . 1

BALL JOINT #10-32 . . . . . . . . . . . . 1

#10-32 NUT . . . . . . . . . . . . . . . . . . 1

ADAP., 5MJ -2MP90 . . . . . . . . . . . . 1

ADAP., -6 PUSH-ON -5FEM JIC . . . 1

FUEL TRANSFER PUMP . . . . . . . . 1

Item

No.

--

--

--

--

-a

102926

L70629

--

--

--

a b

Part

No.

Engine

External Components

Description

Qty.

Req.

L65570

210126

-- ITEMS NOT SHOWN --

ENGINE BLOCK HEATER (opt.). . . 1

CORD, HEATER EXTENSION . . . . 1

L63420

(Throttle Cable)

CABLE, THROTTLE . . . . . . . . . . . . 1

L71081

L68619

102861

(Ether - Optional)

HARNESS, ETHER KIT . . . . . . . . . 1

(includes 21” BLU/WHT jumper wire)

ETHER KIT (optional) . . . . . . . . . . . 1

(includes: thermostat, atomizer, valve bracket, fitting, clamp and tubing—does not include ether canister)

SWITCH, ROCKER (ether) . . . . . . . 1

(located in dash panel)

(Fuel Line)

HOSE, 3/8” X 73” (supply). . . . . . . . 1

HOSE, 1/4” X 73” (return) . . . . . . . . 1

Thermostat is located on engine block; the switch is located on dash.

Used on units equipped with cab heater (option).

PRINTED IN U.S.A.

ETHER KIT

--

OPTIONAL

--

CLAMP

FITTING

ATOMIZER

THERMOSTAT

VALVE

-

BRACKET

TUBING

45

913317/DP0513

Engine

Radiator and Cooler Group

1

2

1

3

12

14

15

RS6-34 Telescopic Handler

6

7

8

Transmission

(Top Right Side)

5

9

10

11

16

17

3

12

13

18

19

913317/DP0513

20

12

19

21

1

24

25

26

22

Transmission

(Left Side)

23

46

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

10

11

12

13

Item

No.

06

07

08

09

01

02

03

05

Part

No.

Description Qty.

Req.

L76020

210347

650486

210477

104808

055005

L63406

210309

HOSE CLAMP . . . . . . . . . . . . . . . . . 4

HOSE, UPPER RADIATOR. . . . . . . 1

5/16”-18X3/4” BOLT . . . . . . . . . . . AR

MOUNT, TOP HOOD. . . . . . . . . . . . 1

RUBBER SEAL (not shown) . . . . . 1

ADAP., -12ORM -12JICM 90º . . . . . 1

HOSE -12 A12/DS12 114”. . . . . . . . 1

RADIATOR/OIL COOLER . . . . . . . . 1

(includes item #10)

102063

102262

RADIATOR CAP (10 LB.) . . . . . . . . 1

HOSE, OVERFLOW 42’ . . . . . . . . . 1

654004 5/16” FLAT WASHER . . . . . . . . . . AR

420-19671 VINYL CLAMP 3/8” HOSE . . . . . . . 2

Item

No.

19

20

21

22

23

14

15

16

17

18

24

25

26

Part

No.

L50056

210321

L50677

L69264

L70521

210329

650484

072587

L63399

210346

L40805

210148

090666

Engine

Radiator and Cooler Group

Description

Qty.

Req.

5/16” FLANGE LOCK WASHER . . . 6

FAN SHROUD . . . . . . . . . . . . . . . . . 1

M8X1.25X45MM BOLT . . . . . . . . . . 4

FAN, 20” . . . . . . . . . . . . . . . . . . . . . 1

SPACER, FAN (2”) . . . . . . . . . . . . . 1

FAN GUARD . . . . . . . . . . . . . . . . . . 2

5/16”-18X1/2” BOLT . . . . . . . . . . . AR

ADAP -12ORB - 12JICM ST . . . . . . 1

HOSE -12 DS12/A12 82” . . . . . . . . 1

HOSE, LOWER RADIATOR . . . . . . 1

VALVE, DRAIN COCK. . . . . . . . . . . 1

3/8”-16X2” STUD. . . . . . . . . . . . . . . 2

3/8”-16 FLANGE LOCK NUT . . . . . 2

08

22

HOSE LOCATOR

TRANSMISSION (top right side - near filter)

TRANSMISSION (left side - just under hyd. pump)

TRANSMISSION COOLER “UPPER”

TRANSMISSION COOLER “LOWER”

PRINTED IN U.S.A.

47

913317/DP0513

Engine

Air Intake Group

RS6-34 Telescopic Handler

Pre-cleaner

(Optional)

18

4

1

19

3

2

913317/DP0513

9

5

6

8

7

10

11

12

16

13

14

15

14

20

20

17

48

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

Part

No.

136383

02

03

04

05

06

07

08

09

137659

NSS

137498

137501

NSS

103088

L51781

L64863

Description Qty.

Req.

AIR CLEANER ASSEMBLY. . . . . . . 1

(Includes items 1-6; does not include item 10)

EJECTOR/DUST . . . . . . . . . . . . . . . 1

END CAP. . . . . . . . . . . . . . . . . . . . . 1

PRIMARY AIR FILTER . . . . . . . . . . 1

SECONDARY AIR FILTER . . . . . . . 1

HOUSING . . . . . . . . . . . . . . . . . . . . 1

REDUCER, 3.84’ TO 3.25” . . . . . . . 1

CLAMP, #72 SAE . . . . . . . . . . . . . . 1

CAP, AIR INLET (standard) . . . . . . . 1

Item

No.

14

15

16

17

18

10

11

12

13

19

20

Part

No.

136443

L50056

650545

183629

L51099

136686

L67657

L120041

101926

102974

L70467

Engine

Air Intake Group

Description

Qty.

Req.

CLAMP, AIR CLEANER MOUNT. . . 1

5/16”-18 WHIZ LOCK NUT . . . . . . . 2

5/16”-18X1-1/25” BOLT . . . . . . . . . . 2

GAUGE, AIR RESTRICTION . . . . . 1

CLAMP, #52 SAE . . . . . . . . . . . . . . 4

ELBOW, RUBBER 90º . . . . . . . . . . 1

ELBOW, METAL 3” OD 90º . . . . . . . 1

ELBOW, RUBBER 3” ID 90º . . . . . . 2

PRE-CLEANER (optional) . . . . . . . . 1

REDUCER, RUBBER 4”-3.25” . . . . 1

CLAMP, 3-1/2” T-BOLT . . . . . . . . . . 2

PRINTED IN U.S.A.

49

913317/DP0513

Engine

Exhaust Group

1

2

3

5

6

4

RS6-34 Telescopic Handler

07

08

09

10

16

Muffler Bracket

14

2

13

2

15

913317/DP0513

50

12

FRONT

5

11

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

06

07

08

09

01

02

03

04

05

Part

No.

210493

L520005

L60492

L64764

654006

650490

L99434

105214

L60492

Description Qty.

Req.

TAILPIPE . . . . . . . . . . . . . . . . . . . . . 1

3/8”-16 NYLON INSERT NUT . . . AR

3” MUFFLER CLAMP . . . . . . . . . . . 1

TAILPIPE HANGER. . . . . . . . . . . . . 1

3/8” FLAT WASHER . . . . . . . . . . . AR

3/8”-16X1” BOLT . . . . . . . . . . . . . AR

TURBO CLAMP. . . . . . . . . . . . . . . . 1

PIPE/ OUTLET EXHAUST . . . . . . . 1

3” MUFFLER CLAMP . . . . . . . . . . . 2

11

12

13

14

15

16

Item

No.

10

Part

No.

L64821

L68796

L50442

L67756

650579

L61021

L64572

L50705

Engine

Exhaust Group

Description

Qty.

Req.

MUFFLER/EXHAUST PURIFIER . . 1

MUFFLER (standard)

CATALYTIC MUFFLER (option)

3/8”-16X1-1/4” SELF TAP BOLT . . . 4

MUFFLER GUARD . . . . . . . . . . . . . 1

3/8”-16X1-3/4” BOLT . . . . . . . . . . . . 1

MUFFLER STRAP. . . . . . . . . . . . . . 1

MUFFLER BRACKET . . . . . . . . . . . 1

M12-1.75X30mm BOLT. . . . . . . . . . 2

PRINTED IN U.S.A.

51

913317/DP0513

Transmission

External Components

RIGHT

2

3

5

4

6

RS6-34 Telescopic Handler

8

14

13

1

9

10

11

15

16

17

18

13

19

12

25

15

16

17

14

22

21

20

20

21

24

23

20

21

20

21

23

LEFT

913317/DP0513

52

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Transmission

External Components Group

Item

No.

01

Part

No.

104425

02

03

04

05

L444070

L63406

054819

L99184

L66965

11

12

13

14

15

06 a

L50727

08 L50952

09 b

L50833

10 072587

075235

L63399

650695

L50704

L64124

16

17

18

L64197

L520007

L68533

Description Qty.

Req.

SWITCH, REVERSE PRESSURE . 1

(activates back-up alarm)

ADAP., -3ORM (not shown) . . . . . . 1

HOSE, -12 DS12/A12 114” . . . . . . . 1

ADAP., -10ORM -12JICM STR . . . . 1

FILTER, TRANSMISSION OIL . . . . 1

SENDER, TEMP 250 DEGREE . . . 1

M10X1.5X35mm . . . . . . . . . . . . . . . 2

M10X1.5X25mm . . . . . . . . . . . . . . 10

3/8”-24X2” GRADE 8 BOLT . . . . . . 8

ADAP., -12ORM -12JICM STR . . . . 1

ADAP., -12JICM -12JICFS 90º . . . . 1

HOSE, -12 DS12/A12 82” . . . . . . . . 1

5/8”-11X3-1/2” BOLT . . . . . . . . . . . . 2

M12-1.75X40mm BOLT. . . . . . . . . . 4

MOUNT, VIBRATION ISOLATOR . . 2

WASHER, ISOLATOR MOUNT. . . . 2

5/8”-11 NYLON INSERT NUT . . . . . 2

TRANS. MOUNT (right). . . . . . . . . . 1

Item

No.

19

20

b c d

Part

No.

L68531

L99182

21 c L50468

22 L68563

23 d

650965

654026

24

25

L68562

210356

--

a

Description

Qty.

Req.

TRANS MOUNT (left) . . . . . . . . . . . 1

UNIVERSAL JOINT . . . . . . . . . . . . . 4

(includes bolts)

3/8”-24X1-3/4” GR8 BOLT. . . . . . . 16

DRIVESHAFT, REAR . . . . . . . . . . . 1

3/8”-24X1-1/4” GR 8 BOLT . . . . . . . 8

3/8” LOCK WASHER. . . . . . . . . . . . 8

DRIVESHAFT, FRONT . . . . . . . . . . 1

TRANSMISSION, 1102 T12000 . . . 1

210909

--ITEMS NOT SHOWN--

WIRE HARNESS, BRAKE RELAY . 1

(attaches to item #1)

420-35602 RELAY . . . . . . . . . . . . . . . . . . . . . . . 2

(included with 210909 harness)

Used to fasten throttle bracket to transmission.

(Refer to Engine section for throttle bracket.)

Used to fasten flex plate to flywheel.

Used to fasten universal joint to transmission and axle yokes.

Used to fasten universal joint to driveshaft.

02

12

HOSE LOCATOR

TRANSMISSION (top right side - near filter)

TRANSMISSION (left side - just under hyd. pump)

TRANSMISSION COOLER “UPPER PORT”

TRANSMISSION COOLER “LOWER PORT”

PRINTED IN U.S.A.

53

913317/DP0513

Transmission

Converter Housing Group

RS6-34 Telescopic Handler

13

12

13

9

11

8

2

3

1

11

12

15

3

2

5

6

7

4

14

11

10

913317/DP0513

54

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

Part

No.

L99286

NSS

03

04

05

06

L99284

L99246

NSS

L99284

Description Qty.

Req.

HOUSING/CONVERTER . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 4

(includes item 3)

O-Ring/Plug . . . . . . . . . . . . . . . . . . . 4

(part of item 2)

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

(includes item 6)

O-Ring/Plug . . . . . . . . . . . . . . . . . . . 1

(part of item 5)

Item

No.

07

08

09

10

11

12

13

14

15

Part

No.

L99262

L99285

L99260

L99261

L99029

L99260

L99029

L98938

L99249

Transmission

Converter Housing Group

Description

Qty.

Req.

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

SCREW . . . . . . . . . . . . . . . . . . . . . . 6

SCREW . . . . . . . . . . . . . . . . . . . . . . 3

SCREW . . . . . . . . . . . . . . . . . . . . . . 1

WASHER/LOCK . . . . . . . . . . . . . . 10

SCREW . . . . . . . . . . . . . . . . . . . . . 13

WASHER/LOCK . . . . . . . . . . . . . . 13

GASKET/HSG. TO PLATE. . . . . . . . 1

PLUG/TEMP PICKUP . . . . . . . . . . . 1

PRINTED IN U.S.A.

55

913317/DP0513

Transmission

Case and Plate Group

RS6-34 Telescopic Handler

31

29

30

10

24

25

13

7

36

27

28

19

21

11

15

14

20

21

19

32

9

34

35

8

33

6

12

26

22

23

29

30

31

16

17

18

2

18

1

5

4

3

17

913317/DP0513

56

PRINTED IN U.S.A.

10

11

12

13

14

05

06

07

08

09

15

16

17

Item

No.

01

02

03

Part

No.

NSS

L94824

L99251

04 L99013

L99253

L98927

L98926

L98185

L98176

102949

L98935

L98932

L98226

L98218

L98217

L99246

NSS

RS6-34 Telescopic Handler

Description Qty.

Req.

CASE-TRANSMISSION . . . . . . . . . 1

BREATHER/AIR . . . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 2

(includes item 4)

O-RING/PLUG . . . . . . . . . . . . . . . . . 2

(part of item item 3)

PLUG/MAGNETIC DRAIN. . . . . . . . 1

PIN/DOWEL PLATE TO CASE . . . . 2

GASKET/PLATE TO CASE . . . . . . . 1

RING/TUBE SEAL. . . . . . . . . . . . . . 1

CLIP/OIL TUBE RETAINER . . . . . . 1

PLATE, SPACER . . . . . . . . . . . . . . . 1

SEAT/SAFETY VALVE . . . . . . . . . . 1

SNAP RING. . . . . . . . . . . . . . . . . . . 1

POPPET/SAFETY VALVE . . . . . . . . 1

SPRING . . . . . . . . . . . . . . . . . . . . . . 1

WASHER/POPPET . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 3

Part

No.

L99284

L99018

L99045

L99029

L98184

L99274

L99246

L99262

L99270

L98734

L98735

L99287

L99312

L99288

L99285

L99294

L99295

L99296

Item

No.

29

30

31

32

33

24

25

26

27

28

34

35

18

19

20

21

22

23

Transmission

Case and Plate Group

Description

Qty.

Req.

O-RING/PLUG . . . . . . . . . . . . . . . . . 3

SCREW . . . . . . . . . . . . . . . . . . . . . . 7

SCREW . . . . . . . . . . . . . . . . . . . . . . 2

WASHER/LOCK . . . . . . . . . . . . . . . 9

ASSY/TUBE & SCREEN . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

TUBE/TRANS DIPSTICK . . . . . . . . 1

TRANS DIPSTICK TUBE . . . . . . . . 1

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

SCREW . . . . . . . . . . . . . . . . . . . . . . 2

SCREW . . . . . . . . . . . . . . . . . . . . . . 1

WASHER/SEAL. . . . . . . . . . . . . . . . 1

WASHER/SCREW. . . . . . . . . . . . . . 1

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

57

913317/DP0513

Transmission

Torque Converter Group

RS6-34 Telescopic Handler

7

8

13

11

10

9

13

3

16

1

12

4

6

5

15

2

14

913317/DP0513

58

6

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

07

08

Part

No.

L98203

L98204

L98197

L98201

L98202

L98200

L98194

L500294

Description Qty.

Req.

ASSY/STATOR SUPPORT . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

BEARING/FRONT . . . . . . . . . . . . . . 1

RING/PISTON . . . . . . . . . . . . . . . . . 1

EXPANDER/RING . . . . . . . . . . . . . . 1

RING/SNAP . . . . . . . . . . . . . . . . . . . 2

SEAL/OIL CONV. HSG. . . . . . . . . . . 1

ASSY/TORQUE CONVERTER . . . . 1

Item

No.

13

14

15

16

09

10

11

12

Part

No.

L98189

L97525

L97526

L98199

L98191

L98205

L98198

L98196

Transmission

Torque Converter Group

Description

Qty.

Req.

PLUG/BORE . . . . . . . . . . . . . . . . . . 1

O-RING/BORE PLUG . . . . . . . . . . . 1

RING/RET. BORE PLUG. . . . . . . . . 1

IMPELLER/HUB GEAR . . . . . . . . . . 1

SNAP RING/IMPELLER HUB . . . . . 2

WASHER/HUB GEAR . . . . . . . . . . . 1

BEARING/TORQUE CONVERTER. 1

RING/OIL DISTRIBUTOR . . . . . . . . 1

PRINTED IN U.S.A.

59

913317/DP0513

Transmission

Gear Group

RS6-34 Telescopic Handler

15

10

9

3

1

2

11

12

13

5

4

6

16

14

7

8

913317/DP0513

60

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

04

05

06

07

Item

No.

01

Part

No.

NSS

02

03

L98253

L98254

NSS

L98253

L98254

L500407

Description Qty.

Req.

ASSY/REV. GEAR & BEARING . . . 1

(includes items 2 and 3)

BEARING/NEEDLE . . . . . . . . . . . . . 2

(part of item 1)

SPACER/CLUTCH GEAR . . . . . . . . 1

(part of item 1)

ASSY/FOR. GEAR & BEARING . . . 1

(includes items 5 and 6)

BEARING/NEEDLE . . . . . . . . . . . . . 2

(part of item 4)

SPACER/CLUTCH GEAR . . . . . . . . 1

(part of item 4)

ASY. 3RD CLUTCH GEAR . . . . . . . 1

(includes item 8)

11

12

13

14

15

16

Item

No.

08

Part

No.

L500408

09

10

L98968

L98253

L98276

L98253

L98277

L98284

L98955

L500409

Transmission

Gear Group

Description

Qty.

Req.

BEARING-3RD CLUTCH GEAR . . . 2

(part of item 7)

1st CLUTCH GEAR/BRG. ASSY . . . 1

(includes item 9)

BEARING/NEEDLE . . . . . . . . . . . . . 2

(part of item 9)

2nd CLUTCH GEAR/BRG. ASSY . . 1

(includes item 12)

BEARING/NEEDLE . . . . . . . . . . . . . 2

(part of item 11)

GEAR/THIRD DRIVEN - 18T . . . . . 1

GEAR/OUTPUT SHAFT - 40T . . . . 1

GEAR/REVERSE IDLER - 28T . . . . 1

GEAR/FIRST DRIVEN - 27T . . . . . . 1

PRINTED IN U.S.A.

61

913317/DP0513

Transmission

Drive Pump Group

RS6-34 Telescopic Handler

7

5

6

4

3

1

6

2

Item

No.

01

Part

No.

L98945

02 L98947

03 L98944

Description Qty.

Req.

IDLER/SHAFT & PIN. . . . . . . . . . . . 1

(includes item 2)

ROLL PIN . . . . . . . . . . . . . . . . . . . . 1

(part of item1)

GEAR/IDLER,PUMP DRIVE . . . . . . 1

Item

No.

04

05

06

07

Part

No.

L98943

L98211

L98942

L98212

Description

Qty.

Req.

BEARING/IDLER GEAR . . . . . . . . . 1

GEAR/DRIVE. . . . . . . . . . . . . . . . . . 1

WASHER/THRUST . . . . . . . . . . . . . 2

RING/SNAP . . . . . . . . . . . . . . . . . . . 1

913317/DP0513

62

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Transmission Charge Pump; not to be confused with the hydraulic system pump

11

7

8

9

10

12

Transmission

Charge Pump Group

1

15

14

13

16

17

6

5

4

3

2

Item

No.

01

02

03

04

05

06

07

Part

No.

L98220

L99184

L98953

L98950

L98951

L98224

L98949

08

09

10

L98215

L98216

L98214

Description Qty.

Req.

PUMP/T12000 CHARGE. . . . . . . . . 1

ASSY/ HYDRAULIC SPIN FILTER . 1

SLEEVE. . . . . . . . . . . . . . . . . . . . . . 1

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

SPRING . . . . . . . . . . . . . . . . . . . . . . 1

PIN/CLARK TRANS. . . . . . . . . . . . . 1

ASSY/BALL CHECK VALVE . . . . . . 1

(includes items 8 thru 11)

BALL . . . . . . . . . . . . . . . . . . . . . . . . 1

SPRING . . . . . . . . . . . . . . . . . . . . . . 1

PIN. . . . . . . . . . . . . . . . . . . . . . . . . . 1

Item

No.

11

12

13

14

15

16

17

Part

No.

L98948

L98219

L99025

L99023

L99020

L99027

L99029

-L98954

Description

Qty.

Req.

O-RING . . . . . . . . . . . . . . . . . . . . . . 1

GASKET/CHARGE PUMP . . . . . . . 1

SCREW . . . . . . . . . . . . . . . . . . . . . . 4

SCREW . . . . . . . . . . . . . . . . . . . . . . 1

WASHER/LOCK . . . . . . . . . . . . . . . 5

SCREW . . . . . . . . . . . . . . . . . . . . . . 1

WASHER/LOCK . . . . . . . . . . . . . . . 1

--ITEMS NOT SHOWN--

ASSY/FILTER MOUNT . . . . . . . . . . 1

(includes items 3-6)

PRINTED IN U.S.A.

63

913317/DP0513

Transmission

Reverse Idler Group

RS6-34 Telescopic Handler

9

5

7

6

8

4

3

2

1

913317/DP0513

64

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

Part

No.

L98229

L98228

L98231

L98230

Description Qty.

Req.

SHAFT IDLER & PILOT . . . . . . . . . 1

RING/SNAP . . . . . . . . . . . . . . . . . . . 1

BEARING/REV IDLR GEAR . . . . . . 1

WASHER/THRUST . . . . . . . . . . . . . 1

Item

No.

05

06

07

08

Part

No.

L98232

L99031

L99032

L98233

Transmission

Reverse Idler Group

Description

Qty.

Req.

END PLATE. . . . . . . . . . . . . . . . . . . 1

CAPSCREW . . . . . . . . . . . . . . . . . . 1

WASHER . . . . . . . . . . . . . . . . . . . . . 1

END PLATE. . . . . . . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

65

913317/DP0513

Transmission

Forward and Reverse Group

RS6-34 Telescopic Handler

17

16

17

19

20

19

21

15

14

13

12

11

11

5

10

17

5

16

17

9

8

6

7

1

8

9

17

7

17

18

16

6

22

19

19

20

17

3

17

16

10

12

13

14

15

913317/DP0513

4

2

66

PRINTED IN U.S.A.

06

07

08

09

10

11

RS6-34 Telescopic Handler Transmission

Forward and Reverse Group

Item

No.

01

02

03

04

05

Part

No.

L98248

L98251

L98252

L98250

L99278

L98246

L98247

L98238

L98237

L98244

L98961

Description Qty.

Req.

ASY/TURB SHFT DRUM & PLUG . 1

SLEEVE/OIL DISTRIBUTOR. . . . . . 1

SCREW . . . . . . . . . . . . . . . . . . . . . . 1

RING/PISTON . . . . . . . . . . . . . . . . . 3

ASY/PISTON . . . . . . . . . . . . . . . . . . 2

(includes items 6 and 7)

SEAL/OUTER PISTON . . . . . . . . . . 2

(part of item 5)

SEAL/INNER PISTON. . . . . . . . . . . 2

(part of item 5)

PLATE/END . . . . . . . . . . . . . . . . . . . 2

RING/SNAP . . . . . . . . . . . . . . . . . . . 2

PLATE/WEAR . . . . . . . . . . . . . . . . . 2

ASY/DISC SPRING Pkg 5. . . . . . . . 2

Item

No.

12

13

14

15

16

17

18

19

20

21

22

Part

No.

L98242

L98241

L98240

L98239

L98236

L98235

L98249

L98253

L98254

L98962

L98255

Description

Qty.

Req.

RETAINER. . . . . . . . . . . . . . . . . . . . 2

RETAINER/SNAP RING . . . . . . . . . 2

CLUTCH/OUTER FWD . . . . . . . . . 12

CLUTCH/INNER FWD. . . . . . . . . . 12

BEARING. . . . . . . . . . . . . . . . . . . . . 4

WASHER/THRUST . . . . . . . . . . . . . 8

BEARING/REAR . . . . . . . . . . . . . . . 1

BEARING/CLUTCH GEAR . . . . . . . 4

SPACER/CLUTCH GEAR . . . . . . . . 2

ASSY/REV. AND BRG. . . . . . . . . . . 1

(includes items 19 and 20)

ASSY/FOR. GEAR AND BRG. . . . . 1

(includes items 19 and 20)

PRINTED IN U.S.A.

67

913317/DP0513

Transmission

Third Shaft Group

RS6-34 Telescopic Handler

10

1

24

21

6

5

7

3

4

16

15

8

9

13

14

21

20

19

20

23

17

18

11

12

22

22

20

19

20

21

2

913317/DP0513

68

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

07

08

09

10

11

12

01

02

03

04

05

06

Part

No.

L500410

L500411

L500273

L500412

L98258

L98257

L98250

L99279

L98246

L98247

L98240

L98239

Description Qty.

Req.

ASY-3RD SHAFT, DRUM & PLUG . 1

BEARING-ROLLER . . . . . . . . . . . . . 1

ASSY/BEARING & SEAL . . . . . . . . 1

WASHER-BEARING SUPPORT . . . 1

SLEEVE/OIL DISTRIBUTOR. . . . . . 1

SCREW/SLEEVE LOCK . . . . . . . . . 1

RING/PISTON . . . . . . . . . . . . . . . . . 2

ASSY/CLTCH PISTON & BALL. . . . 1

SEAL/OUTER PISTON . . . . . . . . . . 1

SEAL/INNER PISTON. . . . . . . . . . . 1

CLUTCH/OUTER FWD . . . . . . . . . . 5

CLUTCH/INNER FWD. . . . . . . . . . . 5

Item

No.

18

19

20

21

22

13

14

15

16

17

23

24

Part

No.

L98238

L98237

L98244

L98961

L98242

L98241

L500413

L500414

L99696

L500408

L500407

L500408

Transmission

Third Shaft Group

Description

Qty.

Req.

PLATE/END . . . . . . . . . . . . . . . . . . . 1

RING/SNAP . . . . . . . . . . . . . . . . . . . 1

RING/SNAP . . . . . . . . . . . . . . . . . . . 1

ASY/DISC SPRG PKG 5. . . . . . . . . 1

RETAINER. . . . . . . . . . . . . . . . . . . . 1

RETAINER/SNAP RING . . . . . . . . . 1

BEARING-THRUST NEEDLE . . . . . 2

WASHER/CLTCH GEAR THRUST . 4

RING/SNAP . . . . . . . . . . . . . . . . . . . 3

BEARING-3RD CLUTCH GEAR . . . 2

ASY. 3RD CLUTCH GEAR . . . . . . . 1

GEAR-FIRST DRIVEN . . . . . . . . . . 1

PRINTED IN U.S.A.

69

913317/DP0513

Transmission

First and Second Shaft Group

RS6-34 Telescopic Handler

19

18

15

4

9

10

5

16

6

3

15

8

21

7

25

12

24

20

14

13

16

11

1

7

16

6

26

5

10

24

16

15

17

8

9

15

14

22

23

13

27

2

913317/DP0513

70

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Transmission

First and Second Shaft Group

Item

No.

10

11

12

13

14

15

05

06

07

08

09

01

02

03

04

Part

No.

L98274

L98275

L500273

L98250

L99038

L98246

L98247

L98238

L98237

L98244

L98961

L98967

L98242

L98241

L98236

Description Qty.

Req.

ASY-1ST 2ND SHAFT . . . . . . . . . . . 1

BEARING/REAR . . . . . . . . . . . . . . . 1

ASSY/BEARING & SEAL . . . . . . . . 1

RING/PISTON . . . . . . . . . . . . . . . . . 2

PISTON/CLUTCH & SEALS . . . . . . 2

SEAL/OUTER PISTON . . . . . . . . . . 2

SEAL/INNER PISTON. . . . . . . . . . . 2

PLATE/END . . . . . . . . . . . . . . . . . . . 2

RING/SNAP . . . . . . . . . . . . . . . . . . . 2

PLATE/WEAR . . . . . . . . . . . . . . . . . 2

ASSY/DISC SPRG PKG 5 . . . . . . . 1

SPRING/DISC ASSY PKG (7). . . . . 1

RETAINER. . . . . . . . . . . . . . . . . . . . 2

RETAINER/SNAP RING . . . . . . . . . 2

BEARING. . . . . . . . . . . . . . . . . . . . . 4

Item

No.

16

17

18

19

20

21

22

23

24

25

26

27

Part

No.

L98235

L98260

L98272

L98257

L98240

L98239

L98240

L98239

L98253

L98968

L98276

L98277

Description

Qty.

Req.

WASHER/THRUST . . . . . . . . . . . . . 8

RING/SNAP . . . . . . . . . . . . . . . . . . . 2

SLEEVE/OIL DISTRIBUTOR. . . . . . 1

SCREW/SLEEVE LOCK . . . . . . . . . 1

CLUTCH/OUTER FWD . . . . . . . . . 10

CLUTCH/INNER FWD. . . . . . . . . . 10

CLUTCH/OUTER FWD . . . . . . . . . . 5

CLUTCH/INNER FWD. . . . . . . . . . . 5

BEARING/CLUTCH GEAR . . . . . . . 4

1ST CLUTCH GEAR/BRG ASSY . . 1

(includes item 24)

2ND CLUTCH GEAR/BRG ASSY . . 1

(includes item 24)

GEAR/3RD DRIVEN . . . . . . . . . . . . 1

PRINTED IN U.S.A.

71

913317/DP0513

Transmission

Output Shaft Group

RS6-34 Telescopic Handler

9

8

6

4

5

3

2

6

7

6

2

3

5

4

6

1

Item

No.

01

02

03

04

05

Part

No.

L500274

L98282

L98281

L98268

L96053

Description Qty.

Req.

SHAFT/OUTPUT . . . . . . . . . . . . . . . 1

BEARING/SHAFT . . . . . . . . . . . . . . 2

SLEEVE/OIL SEAL . . . . . . . . . . . . . 2

O-RING/SLEEVE. . . . . . . . . . . . . . . 2

SEAL/OUTPUT SHAFT OIL . . . . . . 2

Item

No.

06

07

08

09

Part

No.

L98264

L98266

L98279

L98278

Description

Qty.

Req.

RING/SNAP . . . . . . . . . . . . . . . . . . . 4

RING/SNAP . . . . . . . . . . . . . . . . . . . 2

FLANGE/OUTPUT & PLUG ASSY . 1

PLUG/FLANGE . . . . . . . . . . . . . . . . 1

913317/DP0513

72

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Transmission

Control Group

5

4 3

2

1

10

12

11

9

8

7

6

03

04

05

Item

No.

01

Part

No.

102950

02 102951

06

102952

102953

102954

102955

Description Qty.

Req.

SOLENOID, W / DEUTSCH CON. . 4

(includes items 2 thru 5)

O-RING, 21.5 X 1.5MM . . . . . . . . . . 4

(included with item 1)

O-RING, 15.1 X 1.60MM . . . . . . . . . 4

(included with item 1)

O-RING, 14.1 X 1.60MM . . . . . . . . . 4

(included with item 1)

O-RING, 12.1 X 1.60MM . . . . . . . . . 4

(included with item 1)

PLUG, SOLENOID BORE . . . . . . . . 1

(includes items 7, 8 and 9)

Item

No.

07

Part

No.

102956

08

09

102952

102954

10

11

12

102957

106259

102959

Description

Qty.

Req.

O-RING, 18.0 X 2.20MM . . . . . . . . . 1

(included with item 6)

O-RING, 15.1 X 1.60MM . . . . . . . . . 1

(included with item 6)

O-RING, 12.1 X 1.60MM . . . . . . . . . 1

(included with item 6)

CLAMP, SOLENOID . . . . . . . . . . . . 6

CAPSCREW . . . . . . . . . . . . . . . . . 12

WASHER, PLAIN. . . . . . . . . . . . . . 12

PRINTED IN U.S.A.

73

913317/DP0513

Transmission

Drive Plate Group

RS6-34 Telescopic Handler

4

5

3

6

2

2

1

Item

No.

01

Part

No.

NSS

02 NSS

03 L98316

Description Qty.

Req.

ASSY/DRIVE PLATE. . . . . . . . . . . . 1

(included in item 6)

DRIVE PLATE . . . . . . . . . . . . . . . . . 2

(included in item 6)

RING/DRIVE PLATE BACKING . . . 1

Item

No.

04

05

06

Part

No.

L99785

L99030

L98317

Description

Qty.

Req.

SCREW/DRIVE PLATE MNTG . . . . 6

LOCKWASHER/DRIVEPLATE . . . . 6

KIT/DRIVE PLATE ASSY . . . . . . . . 1

(includes items 1 thru 5)

913317/DP0513

74

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Transmission

Modulation Valve Group

1

2

8

3

4

5

14

9

12

13

11

10

6

7

15

Item

No.

05

06

07

08

01

02

03

04

Part

No.

L98291

L98292

L98294

L98295

L98304

L98298

L98307

L98293

Description Qty.

Req.

HOUSING MODULATOR VALVE . . 1

O-RING . . . . . . . . . . . . . . . . . . . . . . 1

SPRING INNER. . . . . . . . . . . . . . . . 1

SPRING MIDDLE . . . . . . . . . . . . . . 1

SPRING OUTER . . . . . . . . . . . . . . . 1

SLEEVE-MODULATION VALVE . . . 1

O-RING . . . . . . . . . . . . . . . . . . . . . . 1

PIN STOP . . . . . . . . . . . . . . . . . . . . 1

Item

No.

09

10

11

12

13

14

15

Part

No.

L98303

L98958

L98300

L98302

L98301

L98956

L98957

Description

Qty.

Req.

SPOOL ACCUMULATOR . . . . . . . . 1

SPOOL . . . . . . . . . . . . . . . . . . . . . . 1

SPRING . . . . . . . . . . . . . . . . . . . . . . 1

RETAINER. . . . . . . . . . . . . . . . . . . . 1

SPACER . . . . . . . . . . . . . . . . . . . . . 1

PIN-UPPER . . . . . . . . . . . . . . . . . . . 1

PIN-LOWER . . . . . . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

75

913317/DP0513

Axle

External Components

2

3

LEFT

1

7

RS6-34 Telescopic Handler

4

Driveshafts are on page 52.

20

22

9

AXLE MODEL AND

SERIAL NUMBER PLATE

10

11

RIGHT

15

16

14

13

12

Front axle (shown)

19

18

17

913317/DP0513

76

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

Part

No.

NSS

L63222

NSS

L68875

NSS

L67504

02 a

L50253

03 a L99951

04 a

105857

07 a

102587

09 L50201

10

11

12

13

L50712

210569

L69734

L50084

Description Qty.

Req.

TIRE AND WHEEL ASY . . . . . . . . AR

VALVE STEM . . . . . . . . . . . . . . . . AR

TIRE, 15.00X19.5 12 PLY

WHEEL ONLY (for above tire) . . . AR

TIRE, 9.00R 20XMINE D2

WHEEL ONLY (for above tire) . . . AR

3/8”-16 BUTTON HD BOLT . . . . . . . 6

FENDER . . . . . . . . . . . . . . . . . . . . . 1

FENDER MOUNT . . . . . . . . . . . . . . 1

M12-1.5 NUT . . . . . . . . . . . . . . . . . . 4

M20-2.5 CLASS 10 LOCK NUT . . . 4

3/4”-10X9” GR8 BOLT . . . . . . . . . . . 8

FRAME LEVEL MNT (front axle). . . 1

M22-1.5 WHEEL NUT . . . . . . . . . AR

3/4”-10 GR8 LOCK NUT . . . . . . . . . 8

Item

No.

14

15

16

17

18

19

20

21

22 b

Part

No.

210572

651543

L500543

L500544

L98355

L500496

L500542

NA

102668

L68849

a b

Axle

External Components

Description

Qty.

Req.

PLATE, FRAME LEVEL. . . . . . . . . . 1

M20-2.50X130 C10.9 BOLT . . . . . . 4

THRUST BUSHING. . . . . . . . . . . . . 2

SUPPORT . . . . . . . . . . . . . . . . . . . . 2

GREASE FITTING. . . . . . . . . . . . . . 2

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 2

REDUCTION BUSING . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0

AXLE ASSEMBLY, 212

FRONT (with internal park brake) . . 1

REAR. . . . . . . . . . . . . . . . . . . . . . . . 1

Available only on the front axle: left side.

Axle assembly only—does not include any other items shown in the illustration.

PRINTED IN U.S.A.

77

913317/DP0513

Axle RS6-34 Telescopic Handler

Front Axle - Steer Cylinder and Tie Rods Group

RIGHT

1

2

3

LEFT

Item

No.

01

Part

No.

02

L500546

50220265

50220264

L500540

50220267

L500943

L500539

Description Qty.

Req.

ARTICULATED TIE ROD . . . . . . . . 1

(Right [Front Axle], Left [Rear Axle])

Note a and d

Note b and c

STEER CYLINDER . . . . . . . . . . . . . 1

Note c

Note d

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

Note c

Note d

STEER CYLINDER BOLT . . . . . . . 4

(not shown)

Item

No.

03

Part

No.

L500541

50220266

Description

Qty.

Req.

ARTICULATED TIE ROD . . . . . . . . 1

(Left [Front Axle], Right [Rear Axle])

Note a and c

Note b and d c d a b

L99969 Tie Rod Nut and Pin Kit

50220268 Tie Rod Nut

Axle SN R-ITA-73643 and up

Axle SN R-ITA-73642 and before

913317/DP0513

78

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Axle

Rear Axle - Steer Cylinder and Tie Rods Group

LEFT

1

2

3

RIGHT

Item

No.

01

Part

No.

02

L500546

50220265

50220264

L500540

50220267

L500943

L500539

Description Qty.

Req.

ARTICULATED TIE ROD . . . . . . . . 1

(Right [Front Axle], Left [Rear Axle])

Note a and d

Note b and c

STEER CYLINDER . . . . . . . . . . . . . 1

Note c

Note d

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

Note c

Note d

STEER CYLINDER BOLT . . . . . . . 4

(not shown)

Item

No.

03

Part

No.

L500541

50220266

Description

Qty.

Req.

ARTICULATED TIE ROD . . . . . . . . 1

(Left [Front Axle], Right [Rear Axle])

Note a and c

Note b and d a b c d

L99969 Tie Rod Nut and Pin Kit

50220268 Tie Rod Nut

Axle SN R-ITA-73643 and up

Axle SN R-ITA-73642 and before

PRINTED IN U.S.A.

79

913317/DP0513

Axle

Front Axle - Differential Housing Group

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

Part

No.

L98417

L500451

102573

104518

L500454

Description Qty.

Req.

O-RING . . . . . . . . . . . . . . . . . . . . . . 3

INTERMEDIATE COVER . . . . . . . . 1

HOUSING . . . . . . . . . . . . . . . . . . . . 1

COVER . . . . . . . . . . . . . . . . . . . . . . 1

VENT . . . . . . . . . . . . . . . . . . . . . . . . 1

Item

No.

06

07

08

09

Part

No.

NA

102575

102576

L98373

Description

Qty.

Req.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

MAGNETIC PLUG. . . . . . . . . . . . . . 1

SNAP RING. . . . . . . . . . . . . . . . . . . 1

913317/DP0513

80

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Axle

Rear Axle - Differential Housing Group

1

1

2

3

4

5

6

7

8

6

1

Item

No.

01

02

03

04

Part

No.

L98417

L500451

L500452

L500453

Description Qty.

Req.

O-RING . . . . . . . . . . . . . . . . . . . . . . 3

INTERMEDIATE COVER . . . . . . . . 1

HOUSING . . . . . . . . . . . . . . . . . . . . 1

COVER . . . . . . . . . . . . . . . . . . . . . . 1

Item

No.

05

06

07

08

Part

No.

L500454

L500455

L98318

102576

Description

Qty.

Req.

VENT . . . . . . . . . . . . . . . . . . . . . . . . 1

SEAL WASHER. . . . . . . . . . . . . . . . 2

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 1

MAGNETIC PLUG. . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

81

913317/DP0513

Axle

Front Axle - Brake Group

RS6-34 Telescopic Handler

1

2

4

5

23

22

25

26

10

3

6

7

8

9

11

12

13

19

18

14

15

16

24

21

20

17

Item

No.

07

08

09

10

11

12

13

14

01

02

03

04

05

06

Part

No.

102617

102618

102619

102620

102621

102622

102623

L98368

102624

102625

102626

102627

102628

L500527

Description Qty.

Req.

SPACER . . . . . . . . . . . . . . . . . . . . . 2

SPRING . . . . . . . . . . . . . . . . . . . . . . 4

PISTON . . . . . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 4

BACKUP RING . . . . . . . . . . . . . . . . 4

COVER . . . . . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

BACKUP RING . . . . . . . . . . . . . . . . 2

PISTON . . . . . . . . . . . . . . . . . . . . . . 2

INTERMEDIATE BRAKE DISC . . . . 2

SPRING . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTING BOLT . . . . . . . . . . . . . 6

BRAKE DISC. . . . . . . . . . . . . . . . . . 6

Item

No.

15

16

17

18

19

20

21

22

23

24

25

26

Part

No.

L500536

103390

103391

103392

102632

102633

102634

104655

L500496

102635

102636

102637

104621

104607

Description

Qty.

Req.

INTERMEDIATE BRAKE DISC . . . . 6

SPACER . . . . . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . . 4

ADJUSTING BOLT . . . . . . . . . . . . . 6

SPRING . . . . . . . . . . . . . . . . . . . . . . 6

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 4

LOCK WASHER . . . . . . . . . . . . . . . 4

BLEEDING BOLT . . . . . . . . . . . . . . 4

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 4

SHIM (2mm) . . . . . . . . . . . . . . . . . . 2

SHIM (3mm) . . . . . . . . . . . . . . . . . . 2

SHIM (5mm) . . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . . 4

SEAL WASHER. . . . . . . . . . . . . . . . 4

913317/DP0513

82

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Axle

Rear Axle - Brake Group

10

1

2

3

4

5

6

14

7

9

8

13

12

11

Item

No.

01

02

03

04

05

06

07

08

Part

No.

L500527

L500528

L500529

NSS

L500531

L500532

L500533

L500534

Description Qty.

Req.

BRAKE DISC. . . . . . . . . . . . . . . . . . 6

ADJUSTING BOLT . . . . . . . . . . . . . 6

SPRING . . . . . . . . . . . . . . . . . . . . . . 6

PISTON . . . . . . . . . . . . . . . . . . . . . . 2

SPRING . . . . . . . . . . . . . . . . . . . . . . 6

BACK-UP RING. . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

BACK-UP RING. . . . . . . . . . . . . . . . 2

Item

No.

09

10

11

12

13

14

Part

No.

L500535

L500536

104655

L500496

L500537

L500538

Description

Qty.

Req.

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

INTERMEDIATE BRAKE DISC . . . . 8

BLEEDING BOLT . . . . . . . . . . . . . . 2

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 2

DOWEL . . . . . . . . . . . . . . . . . . . . . . 2

PISTON . . . . . . . . . . . . . . . . . . . . . . 2

(includes items 3,4, 6-9)

PRINTED IN U.S.A.

83

913317/DP0513

Axle

Front Axle - Outer End Group

RS6-34 Telescopic Handler

33

27

29

34

20

21

22

27

28

8

5

3

4

5

6

1

2

FRONT

31

9

7

10

23

24

25

29

26

11

12

13

14

30, 31

35

36

15

37

38

39

36

32

24

23

40

16

30

41

42

43

17

18

19

44

45

46

47

FRONT AXLE

913317/DP0513

84

51

50

49

48

8

PRINTED IN U.S.A.

Part

No.

L500483

L500484

103394

102614

L500487

102615

103393

102575

102576

L500488

L98372

L98373

L98371

L500489

L500490

103395

NSS

105958

L500492

102587

102583

102893

L500496

L98355

103398

L500523

L500524

L500525

Item

No.

13

14

15

16

17

08

09

10

11

12

01

02

03

04

05

06

07

23

24

25

26

18

19

20

21

22

RS6-34 Telescopic Handler Axle

Front Axle - Outer End Group

Description Qty.

Req.

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . 24

STUD . . . . . . . . . . . . . . . . . . . . . . . . 8

WASHER . . . . . . . . . . . . . . . . . . . . 32

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 8

AXLE CASE. . . . . . . . . . . . . . . . . . . 2

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 4

MAGNET PLUG. . . . . . . . . . . . . . . . 2

REDUCTION BUSHING (set) . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 2

BALL BEARING. . . . . . . . . . . . . . . . 2

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

JOINT . . . . . . . . . . . . . . . . . . . . . . . 2

(included as part of item 18) . . . . . . 0

SEAL/DUST EXCLUDER . . . . . . . . 2

THRUST BUSHING. . . . . . . . . . . . . 2

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 5

WASHER . . . . . . . . . . . . . . . . . . . . . 8

STUD . . . . . . . . . . . . . . . . . . . . . . . . 8

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 4

GREASE FITTING. . . . . . . . . . . . . . 4

PIVOT PIN. . . . . . . . . . . . . . . . . . . . 2

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 2

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 2

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 2

31

43

44

45

46

47

38

39

40

41

42

48

49

32

33

34

35

36

37

Item

No.

27

28

29

30

50

51

Part

No.

NSS

103396

L500499

L500501

L500504

L500498

L500500

L500494

L500505

104604

102601

L500508

L98417

L500519

L500509

L500510

L500522

104600

104641

104642

103399

104504

103401

L500518

L500517

Description

Qty.

Req.

(not used on this axle) . . . . . . . . . . . 0

BUSHING . . . . . . . . . . . . . . . . . . . . 2

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 4

STEERING CASE . . . . . . . . . . . . . . 1

(includes item 19)

STEERING CASE . . . . . . . . . . . . . . 1

(includes item 19)

PIVOT PIN (set). . . . . . . . . . . . . . . . 2

BEARING. . . . . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . 12

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 2

BEARING. . . . . . . . . . . . . . . . . . . . . 4

WHEEL STUD . . . . . . . . . . . . . . . . 16

WHEEL HUB . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 2

RING GEAR . . . . . . . . . . . . . . . . . . 2

RING GEAR SUPPORT . . . . . . . . . 2

LOCKING PLATE . . . . . . . . . . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 8

PLANET GEAR . . . . . . . . . . . . . . . . 8

BEARING. . . . . . . . . . . . . . . . . . . . . 8

PLANET GEAR CARRIER . . . . . . . 2

COUNTERSUNK BOLT. . . . . . . . . . 4

PLANET GEAR CARRIER . . . . . . . 2

(includes items 41-48)

NUT . . . . . . . . . . . . . . . . . . . . . . . . 16

STUD . . . . . . . . . . . . . . . . . . . . . . . 16

PRINTED IN U.S.A.

85

913317/DP0513

Axle

Front Axle - Differential Group

RS6-34 Telescopic Handler

913317/DP0513

86

PRINTED IN U.S.A.

11

12

13

07

08

09

10

03

04

05

06

Item

No.

01

02

Part

No.

L500457

L500459

L500460

L500461

L98414

L500463

L98380

L500464

L500465

L500466

L500467

L500468

L500469

105266

103402

L500471

L500472

RS6-34 Telescopic Handler Axle

Front Axle - Differential Group

Description Qty.

Req.

O-RING . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

BEVEL GEAR SET . . . . . . . . . . . . . 1

TAPER ROLLER BEARING . . . . . . 2

RING NUT . . . . . . . . . . . . . . . . . . . . 2

CYLINDER BOLT . . . . . . . . . . . . . . 4

CYLINDER BOLT . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . 12

FRICTION WASHER . . . . . . . . . . . . 2

DIFFERENTIAL SIDE GEAR . . . . . .

Note a . . . . . . . . . . . . . . . . . . . . . . . 2

Note b (DIFF. SIDE GEAR KIT) . . . 1

PIN. . . . . . . . . . . . . . . . . . . . . . . . . . 4

SNAP RING. . . . . . . . . . . . . . . . . . . 4

FRICTION WASHER . . . . . . . . . . . . 4

Item

No.

14

15

16

17

18

19

20

22

23

24

a

Part

No.

L500473

105266

L500474

L500475

L98404

L98406

L500476

L500477

L500478

L98396

L98395

102863

L500480

L500481

Description

Qty.

Req.

DIFFERENTIAL PINION GEAR . . . .

Note a . . . . . . . . . . . . . . . . . . . . . . . 4

Note b (DIFF. SIDE GEAR KIT) . . . 1

DIFFERENTIAL CARRIER . . . . . . . 1

TAPER ROLLER BEARING . . . . . . 2

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SPACER . . . . . . . . . . . . . . . . . . . . . 1

RING NUT . . . . . . . . . . . . . . . . . . . . 1

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 1

FLANGE . . . . . . . . . . . . . . . . . . . . . 1

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 1

SNAP RING. . . . . . . . . . . . . . . . . . . 4

For axle SN I-ITA-728844 and before.

b For axle SN I-ITA-728845 and up; Differential Gear

Kit #105266 includes 2 of item #10 (L500469) and 4 of item #14 (L500473).

PRINTED IN U.S.A.

87

913317/DP0513

Axle

Rear Axle - Outer End Group

RS6-34 Telescopic Handler

FRONT

25

3

24

2

1

FRONT

4

45

44 48

1

2

13

12

20

19

13

21

18

16

15

14

15

16

17

8

47

49

19

7

6

21,26

27

28

9

29

5

30

31

28

43

10

22

11

32

33

46

34

35

36

50

37

38

41

42

40

39

25

26

913317/DP0513

REAR AXLE

88

PRINTED IN U.S.A.

12

13

14

15

16

17

06

07

07

09

10

11

RS6-34 Telescopic Handler Axle

Rear Axle - Outer End Group

Item

No.

01

02

03

04

05

Part

No.

L500483

L500484

L500485

L500486

L500488

18

19

20

21

22

24

25

L500489

L98371

L98372

L500490

L500491

L500492

L500493

L500494

L500495

L500496

L98355

L500497

L500498

L500499

L500500

L500501

105958

102576

L98318

Description Qty.

Req.

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 2

STEERING ADJUST BOLT . . . . . . . 2

AXLE CASE. . . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . 32

REDUCTION BUSHING . . . . . . . . . 2

(includes items 6-9, and 47)

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 2

BALL BEARING. . . . . . . . . . . . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

JOINT . . . . . . . . . . . . . . . . . . . . . . . 2

THRUST BUSHING. . . . . . . . . . . . . 2

(included with items 21 and 26)

OUTER RACE . . . . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . 20

COVER . . . . . . . . . . . . . . . . . . . . . . 2

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 4

GREASE FITTING. . . . . . . . . . . . . . 2

PIVOT PIN. . . . . . . . . . . . . . . . . . . . 2

(includes item 16)

PIVOT PIN. . . . . . . . . . . . . . . . . . . . 2

(includes items 16, 19 and 20)

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 2

ARTICULATION. . . . . . . . . . . . . . . . 2

STEERING CASE . . . . . . . . . . . . . . 1

(includes item 11)

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 2

MAGNETIC PLUG. . . . . . . . . . . . . . 2

PLUG . . . . . . . . . . . . . . . . . . . . . . . . 4

Item

No.

26

38

39

40

41

42

33

34

35

36

37

27

28

29

30

31

32

43

44

45

46

47

48

49

50

Part

No.

L500504

L500505

104604

L500507

L500508

L98417

L500509

L500510

104600

104641

104642

L69734

L500455

104504

L500516

L500517

L500518

L500519

104546

NSS

L500522

L98373

L500555

L500523

L500524

L500525

103401

Description

Qty.

Req.

STEERING CASE . . . . . . . . . . . . . . 1

(includes item 11)

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 2

BEARING. . . . . . . . . . . . . . . . . . . . . 4

WHEEL STUD . . . . . . . . . . . . . . . . 16

WHEEL HUB . . . . . . . . . . . . . . . . . . 2

O-RING . . . . . . . . . . . . . . . . . . . . . . 2

RING GEAR . . . . . . . . . . . . . . . . . . 2

RING GEAR SUPPORT . . . . . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 8

PLANET GEAR . . . . . . . . . . . . . . . . 8

BEARING. . . . . . . . . . . . . . . . . . . . . 8

WHEEL NUT . . . . . . . . . . . . . . . . . 16

SEAL WASHER. . . . . . . . . . . . . . . . 6

COUNTERSUNK BOLT. . . . . . . . . . 4

PLANET GEAR CARRIER . . . . . . . 2

STUD . . . . . . . . . . . . . . . . . . . . . . . 16

NUT . . . . . . . . . . . . . . . . . . . . . . . . 16

SNAP RING. . . . . . . . . . . . . . . . . . . 2

ADJUSTING BOLT (includes #45) . 4

NUT (included with item #44) . . . . . 4

LOCKING PLATE . . . . . . . . . . . . . . 2

SNAP RING. . . . . . . . . . . . . . . . . . . 2

SPACER . . . . . . . . . . . . . . . . . . . . . 2

SHIM - .15mm . . . . . . . . . . . . . . . . . 2

SHIM - .20mm . . . . . . . . . . . . . . . . . 2

SHIM - .50mm . . . . . . . . . . . . . . . . . 2

PLANET GEAR CARRIER . . . . . . . 2

(includes items 32-36, 40-41)

PRINTED IN U.S.A.

89

913317/DP0513

Axle

Rear Axle - Differential Group

RS6-34 Telescopic Handler

23

1

22

21

20

16

18

6

5

4

16

3

7

2

17

8

24

13

10

24

9

12

11

13

14

11

24

12

11

14

12

13

11

24

15

4

13

12

9

5

19

7

913317/DP0513

90

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Axle

Rear Axle - Differential Group

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

01

02

11

12

13

03

04

05

06

07

08

09

10

L500457

L98415

L500459

L500460

L500461

L98414

L500463

L98380

L500464

L500465

L500466

L500467

L500468

L500469

105266

L500470

L500471

L500472

O-RING . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

BEVEL GEAR SET . . . . . . . . . . . . . 1

TAPER ROLLER BEARING . . . . . . 2

RING NUT . . . . . . . . . . . . . . . . . . . . 2

CYLINDER BOLT . . . . . . . . . . . . . . 4

CYLINDER BOLT . . . . . . . . . . . . . . 2

BOLT . . . . . . . . . . . . . . . . . . . . . . . 12

FRICTION WASHER . . . . . . . . . . . . 2

DIFFERENTIAL SIDE GEAR . . . . . .

Note a . . . . . . . . . . . . . . . . . . . . . . . 2

Note b (DIFF. SIDE GEAR KIT) . . . 1

PIN W/CLIP (includes item 12) . . . . 4

SNAP RING. . . . . . . . . . . . . . . . . . . 4

FRICTION WASHER . . . . . . . . . . . . 4

14

15

16

17

18

19

20

21

22

23

24

a

L500473

105266

L500474

L500771

L98404

L98406

L500476

L500477

L500478

L98396

L98395

L98394

102863

L500480

L500481

DIFFERENTIAL PINION GEAR . . . .

Note a . . . . . . . . . . . . . . . . . . . . . . . 4

Note b (DIFF. SIDE GEAR KIT) . . . 1

DIFFERENTIAL CARRIER . . . . . . . 1

TAPER ROLLER BEARING . . . . . . 2

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SHIM . . . . . . . . . . . . . . . . . . . . . . . . 1

SPACER . . . . . . . . . . . . . . . . . . . . . 1

RING NUT . . . . . . . . . . . . . . . . . . . . 1

SEAL . . . . . . . . . . . . . . . . . . . . . . . . 1

COVERPLATE. . . . . . . . . . . . . . . . . 1

FLANGE . . . . . . . . . . . . . . . . . . . . . 1

NUT . . . . . . . . . . . . . . . . . . . . . . . . . 1

SNAP RING. . . . . . . . . . . . . . . . . . . 4

For axle SN I-ITA-728826 and before.

b For axle SN I-ITA-728827 and up; Differential Gear

Kit #105266 includes 2 of item #10 (L500469) and 4 of item #14 (L500473).

PRINTED IN U.S.A.

91

913317/DP0513

Boom

Outer Boom Section

34

10

FRONT

30 31

27

32

33

36

45

27

29 28

27

25

26

25

44

43

42

B

24

23

22

35

RS6-34 Telescopic Handler

1

2

3

4

5

8

9

10

6

7

12

11

21

13

14

15

913317/DP0513

92

20

19

18

17

16

15

REAR

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

12

13

14

15

16

07

08

09

10

11

17

18

19

20

21

01

02

03

04

05

06

22

23

24

25

Part

No.

L520004

L50878

L68358

L68348

L63099

L50462

L520019

L63694

650490

654026

L61708

L62715

650488

L68350

L70242

L65640

654004

L52048

L65638

L50491

L50380

654030

655001

L63169

L63173

L63131

L50226

L68006

L68003

Description Qty.

Req.

OUTER SECT. WELDMENT . . . . . . 1

5/16”-18 NUTSERT . . . . . . . . . . . . . 2

PLATE, BOOM ANGLE IND. . . . . . . 1

5/16” FLAT WASHER . . . . . . . . . . . 2

5/16”-18X1” BTNHD BOLT . . . . . . . 2

INCLINOMETER-ANGLE IND. . . . . 1

#8X5/8” RND HD MACH.SCREW. . 2

1/2”-20X1-1/4” BOLT . . . . . . . . . . . . 2

1/2” LOCK WASHER. . . . . . . . . . . . 2

PIN, COTTER 1/16”X3/4” . . . . . . . . 6

PIN, OUTER BOOM CLEVIS . . . . . 1

CLEVIS, OUTER BOOM . . . . . . . . . 1

REAR OUTER COVER . . . . . . . . . . 1

5/16”-18X1” SELF TAP SCREW . . . 4

BUSHING 2.5IDX2.75ODX4” . . . . . 2

LIFT CYL. PIVOT BUSHING. . . . . . 2

5/16”-18 NYLON INSERT NUT . . . . 4

5/16”-18X3” STUD. . . . . . . . . . . . . . 4

CUSHION TOP PLATE . . . . . . . . . . 2

.88 HOSE CUSHION SINGLE . . . . 4

PIN, PIVOT PIN. . . . . . . . . . . . . . . . 1

1/2”-13X5 BOLT . . . . . . . . . . . . . . . 1

1/2”-13 NYLON INSERT NUT . . . . . 1

EXT. CYL. BRACKET . . . . . . . . . . . 1

3/8”-16X1” BOLT . . . . . . . . . . . . . . . 2

3/8” LOCK WASHER. . . . . . . . . . . . 2

SLIDE PAD 5/8”X4”X6” . . . . . . . . . . 2

FLAT-BOLT LOCK . . . . . . . . . . . . . . 2

3/8”-16X3/4” BOLT . . . . . . . . . . . . . 6

Item

No.

Part

No.

26

27

28

29

30

31

650490

654026

L61709

L62733

650491

L64143

32

33

650533

L63167

34 a L63166

35 L50086

36 L71748

37 b

103333

38 b

L70040

39 b

654006

40 b

090666

41 b

650491

42

43

103330

103331

44

45

L50056

L51035

Boom

Outer Boom Section

Description

Qty.

Req.

3/8”-16X1” BOLT . . . . . . . . . . . . . . . 2

3/8” LOCK WASHER. . . . . . . . . . . 12

SLIDE PAD 5/8”X3”X4” . . . . . . . . . . 4

SHIM .06”X3”X4” . . . . . . . . . . . . . . . 2

3/8”-16X1-1/4” BOLT . . . . . . . . . . . . 4

SHIM 1/2”X3”X4” . . . . . . . . . . . . . . . 2

3/8”-16X1-1/2” BOLT . . . . . . . . . . . . 4

PIN, CLEVIS ADJUSTMENT. . . . . . 2

CLEVIS, CHAIN ADJUSTMENT . . . 2

3/4”-10 NUT. . . . . . . . . . . . . . . . . . . 4

TOP CLAMP PLATE . . . . . . . . . . . . 1

BRACKET, LIGHT MOUNT . . . . . . . 1

WORK LIGHT . . . . . . . . . . . . . . . . . 2

3/8” FLAT WASHER . . . . . . . . . . . . 4

3/8”-16 WHIZ LOCK NUT . . . . . . . . 4

3/8”-16X1-1/4” BOLT . . . . . . . . . . . . 2

CLAMP, BOOM HOSES . . . . . . . . AR

CLAMP, BOOM W/INSERT . . . . . AR

5/16” FLANGE LOCK NUT. . . . . . AR

5/16”X2” BOLT . . . . . . . . . . . . . . . AR

a b

00 b

L70462

--- ITEMS NOT SHOWN ---

WIRE HARNESS, WORK LIGHT . . 1

Refer to page 96 for boom chains.

When equipped with Optional Boom Work Lights.

(Refer to illustration below.)

38

B

39

40

Optional

Boom Work Lights

(mounts to front of boom; reference B on facing page)

41

39

37

PRINTED IN U.S.A.

93

40

913317/DP0513

Boom

Intermediate Boom Section

12

8

11

10

9

13

14

8

RS6-34 Telescopic Handler

2

1

3

5

4

FRONT

16

17

18

15

7

6

19

20

17

2

21

16

19

22

23

13

25

24

26

21

17

12

8

11

10

9

8

16

19

16

21

27

28

29

16

19

19

17

21

REAR

1

913317/DP0513

94

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

08

09

10

11

12

13

14

15

01

02

03

04

05

06

07

Part

No.

L68744

L63006

650484

L50207

L520004

L520005

651625

L68697

L63158

L63157

L63153

650493

L520005

L68695

650490

Description Qty.

Req.

INTERMEDIATE SECT WLDMNT. . 1

TRAY, INTERMEDIATE . . . . . . . . . . 1

5/16”-18X1/2” BOLT . . . . . . . . . . . . 1

CLAMP, VINYL .69 DBL . . . . . . . . . 1

5/16”X18 NYLON INSERT NUT . . . 1

3/8”-16 NYLON INSERT NUT . . . . . 2

3/8”-16X1-1/4” BOLT . . . . . . . . . . . . 2

WASHER, CHAIN SHEAVE . . . . . . 6

RING, BEARING-INNER . . . . . . . . . 3

BEARING, BOOM SHEAVE . . . . . . 3

SHEAVE, CHAIN . . . . . . . . . . . . . . . 3

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 2

3/8”-16 NYLON INSERT NUT . . . . . 2

PIN, FRONT SHEAVE. . . . . . . . . . . 1

3/8”-16X1” BOLT . . . . . . . . . . . . . . . 4

Item

No.

21

22

23

24

25

16

17

18

19

20

26

27

28

29

Part

No.

L62715

L62734

L62733

650488

654026

L61709

650533

654026

L68696

L63239

L61699

L61708

L62731

L62732

Boom

Intermediate Boom Section

Description

Qty.

Req.

FLAT-BOLT LOCK . . . . . . . . . . . . . 12

SHIM, .105”X3”X4” . . . . . . . . . . . . . 8

SHIM, .06”X3”X4” . . . . . . . . . . . . . . 2

3/8”-16X3/4” BOLT . . . . . . . . . . . . 28

3/8” LOCK WASHER. . . . . . . . . . . . 8

SLIDE PAD, 5/8”X3”X4”. . . . . . . . . 12

3/8”-16X1-1/2” BOLT . . . . . . . . . . . . 1

3/8” LOCK WASHER. . . . . . . . . . . . 1

PIN, REAR SHEAVE . . . . . . . . . . . . 1

SPACER, TRAY BRACKET. . . . . . . 1

SLIDE PAD, 2”X3” . . . . . . . . . . . . . . 1

SLIDE PAD, 5/8”X4”X6”. . . . . . . . . . 2

SHIM, .06”X4”X6” . . . . . . . . . . . . . . 2

SHIM, .105”X4”X6” . . . . . . . . . . . . . 2

NOTE: Refer to page 96 for boom chains.

PRINTED IN U.S.A.

95

913317/DP0513

Boom

Inner Boom Section

26

27

25

24 23

RS6-34 Telescopic Handler

5

6

3

28

29

1

2

7

8

9

12

13

14

10

11

7

REAR

15

16

17

19

18

4

21

20

9

10

7

11

9

22

FRONT

913317/DP0513

22

96

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

07

08

09

10

11

12

13

14

01

02

03

04

05

06

15 a L63156

16

17

655001

L63168

18 b L63156

19 L63166

L68762

L63005

L71748

L61699

103330

103331

650488

654026

L61709

L62734

L62715

L66783

L66782

L66780

Description Qty.

Req.

INNER BOOM WELDMENT . . . . . . 1

HOSE TRAY, INNER BOOM . . . . . . 1

TOP PLATE, HOSE CLAMP . . . . . . 1

SLIDE PAD 2”X3” . . . . . . . . . . . . . . 1

CLAMP, BOOM HOSES . . . . . . . . . 1

CLAMP, BOOM W/INSERT . . . . . . 1

3/8”-16X3/4” BOLT . . . . . . . . . . . . 17

3/8” LOCK WASHER. . . . . . . . . . . . 1

SLIDE PAD 5/8”X3”X4” . . . . . . . . . . 4

SHIM .105”X3”X4” . . . . . . . . . . . . . . 2

FLAT-BOLT LOCK . . . . . . . . . . . . . . 8

SHIM .105”X3”X8” . . . . . . . . . . . . . . 2

SHIM .06”X3”X8” . . . . . . . . . . . . . . . 2

SLIDE PAD 3”x8”. . . . . . . . . . . . . . . 2

CHAIN, BOOM LEAF . . . . . . . . . . . 2

PIN, COTTER 1/16”X3/4” . . . . . . . . 4

PIN, INNER BOOM CLEVIS . . . . . . 1

CHAIN, BOOM LEAF . . . . . . . . . . . 1

CLEVIS, CHAIN ADJUSTMENT . . . 1

Item

No.

24

25

26

27

28

20

21

22

23

29

Part

No.

L63167

L50086

L68003

L50877

L63716

L63715

L520005

651625

L50056

L51035

a b

Boom

Inner Boom Section

Description

Qty.

Req.

PIN, CLEVIS ADJUSTMENT. . . . . . 1

3/4”-10 NUT. . . . . . . . . . . . . . . . . . . 2

BUSHING . . . . . . . . . . . . . . . . . . . . 2

5/16”-18X2-1/4” STUD. . . . . . . . . . . 2

CUSHION, HOSE-TWIN .68 . . . . . . 2

PLATE, TWIN CUSHION TOP . . . . 1

3/8”-16 NYLON INSERT NUT . . . . . 2

3/8”-1-1/4” BOLT . . . . . . . . . . . . . . . 2

5/16” FLANGE LOCK NUT. . . . . . AR

5/16”X2” BOLT . . . . . . . . . . . . . . . AR

Attaches from the rear of the inner boom to the chain adjustment clevis’ located on the front of the outer boom section. (Refer to Outer Boom Section, item #34, chain adjustment clevis.)

Attaches from item #19 (chain adjustment clevis) to outer boom clevis. (Refer to Outer Boom Section, item #12, outer boom clevis.)

PRINTED IN U.S.A.

97

913317/DP0513

Boom

Dynattach® Bracket Assembly

RS6-34 Telescopic Handler

14

13

1

2

3

4

5

9

12

11

15

10

9

2

3

6

7

Tilt Cylinder

Tilt

Cylinder parts are on page 172.

913317/DP0513

98

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Boom

Dynattach® Bracket Assembly

Item

No.

Part

No.

01

02

03

04

05

06

07

09

10 a

NSS

11 a NSS

L98700

L520005

650493

L63274

L68003

L63272

L63018

L66456

Description Qty.

Req.

DYNATTACH WELDMENT . . . . . . . 1

3/8”-16 NYLON INSERT NUT . . . . . 3

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 3

PIN, TAPPED 1-1/2” DIA . . . . . . . . . 2

BUSHING . . . . . . . . . . . . . . . . . . . . 2

PIN, TILT CYL.(ROD END) . . . . . . . 1

BUSHING, TILT CYL (ROD END) . . 1

BUSHING, LOCK PIN . . . . . . . . . . . 2

PIN, DYNATTACH LOCK . . . . . . . . 1

DYNATTACH LOCK WLDMNT . . . . 1

Item

No.

12

13

14

15

--

a

Part

No.

L50646

L65097

L65098

L63957

Description

Qty.

Req.

3/16”X1-3/4” ROLL PIN . . . . . . . . . . 1

LOCK SPRING . . . . . . . . . . . . . . . . 1

SPRING MOUNT. . . . . . . . . . . . . . . 1

LOCK AND PIN ASSEMBLY . . . . . . 1

(includes items 10-11)

L66613

-- ITEMS NOT SHOWN --

DECAL, DYNATTACH UNLOCKED 1

(adheres to item #11)

Not sold separately; order item #15.

PRINTED IN U.S.A.

99

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Hydraulic Pump Group — (SN 21789 and up)

1

22

11

23

2

9

24

12

3

13

11

Hydraulic

Tank

4

12

5

6

Steer Motor

"LS" Port

7

8

Steer Motor

"P" Port

22

14

10

Main Valve

Front-Right port

Hydraulic

Pump parts are on page 148.

Flow Divider parts are on page 149.

Item

No.

Part

No.

09

10

11

12

13

14

15

01

02

03

L445014

L63309

L46865

04 a

50380843

05 651148

06

07

08

650495

100012

L63402

076143

055064

193709

102836

L63384

054994

102313

Description Qty.

Req.

ADAP., -20ORM -24JICM 90º . . . . . 1

HOSE, -24 A24/A24 35” . . . . . . . . . 1

GASKET, HYD PUMP . . . . . . . . . . . 1

HYDRAULIC PUMP, 47cc . . . . . . . 1

1/2” FLAT WASHER . . . . . . . . . . . . 2

1/2”-13X1-1/4” BOLT . . . . . . . . . . . . 2

90 MJ04-FJS04 . . . . . . . . . . . . . . . . 1

HOSE, -4 A4/A6 48" . . . . . . . . . . . . 1

TEE MJ08-FJS08-MJ08 . . . . . . . . . 1

ADAP., -12ORM -12JICM 45º . . . . . 1

HOSE, MP -12 X 23.5” . . . . . . . . . . 1

HOSE, -6 A8/DS6 19” . . . . . . . . . . . 1

HOSE, -6 A8/DS8 40” . . . . . . . . . . . 1

ADAP., -6ORM -6JICM STR. . . . . AR

FLOW DIVIDER. . . . . . . . . . . . . . . . 1

PWP Manifold

"P" Port

(Note c)

Joysticks

(Note b)

Front Axle

"PB" (left side)

Hydraulic

Tank Return

20

19

18

14

17

21

14

16

15

Item

No.

Part

No.

16

17

103368

103317

18 b 103318

19 c

L63381

20 L63406

21

22

079026

055005

23

24

088442

054626

a b c

Description

Qty.

Req.

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -6 A6/A6 28” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -4A6/A6 15” . . . . . . . . . . . . . 1

HOSE, -12 A12/DS12 114” . . . . . . . 1

ADAP., -6ORM -6JICM 45º . . . . . . . 1

90 MJ12-MAORB12 . . . . . . . . . . . . 2

90 MJ08-FJS08 . . . . . . . . . . . . . . . . 1

ST MJ08-MORB08 . . . . . . . . . . . . . 1

Before ordering, verify the pump on the machine matches with the one in the illustration.

Standard (units not equipped with PWP).

Option (units equipped with PWP).

913317/DP0513

100

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Hydraulic Pump Group — (SN 21788 and before)

1

5

6

10

2

11

12

3

Hydraulic

Tank

4

9

Steer Motor

"P" Port

7

13

Steer Motor

"LS" Port

8

10 14

10

Main Valve

Front-right port

Hydraulic

Pump parts are on page 148.

PWP Manifold

"P" Port

(Note c)

Joysticks

(Note b)

Front Axle

"PB" (left side)

Hydraulic

Tank Return

20

19

Item

No.

Part

No.

08

09

10

11

12

13

01

02

03

L445014

L63309

L46865

04 a

103130

05 651148

06

07

650495

137784

L69930

114742

055064

L68802

102836

L63384

Description Qty.

Req.

ADAP., -20ORM -24JICM 90º . . . . . 1

HOSE, -24 A24/A24 35” . . . . . . . . . 1

GASKET, HYD PUMP . . . . . . . . . . . 1

HYDRAULIC PUMP . . . . . . . . . . . . 1

1/2” FLAT WASHER . . . . . . . . . . . . 2

1/2”-13X1-1/4” BOLT . . . . . . . . . . . . 2

ADAP., -4ORM -6JICM 90º . . . . . . . 1

HOSE, -4 A6/A6 46” . . . . . . . . . . . . 1

ADAP., -8 RUN TEE . . . . . . . . . . . . 1

ADAP., -12ORM -12JICM 45º . . . . . 3

HOSE, -12 A12/A12 17” . . . . . . . . . 1

HOSE, -6 A8/DS6 19” . . . . . . . . . . . 1

HOSE, -6 A8/DS8 40” . . . . . . . . . . . 1

18

17

21

16

14

15

Flow Divider parts are on page 149.

Item

No.

Part

No.

14

15

16

054994

102313

103368

17 103317

18 b

103318

19 c L63381

20

21

L63406

079026

a b c

Description

Qty.

Req.

ADAP., -6ORM -6JICM STR. . . . . AR

FLOW DIVIDER. . . . . . . . . . . . . . . . 1

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -6 A6/A6 28” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -4A6/A6 15” . . . . . . . . . . . . . 1

HOSE, -12 A12/DS12 114” . . . . . . . 1

ADAP., -6ORM -6JICM 45º . . . . . . . 1

Before ordering, verify the pump on the machine matches with the one in the illustration.

Standard (units not equipped with PWP).

Option (units equipped with PWP).

PRINTED IN U.S.A.

101

913317/DP0513

Hydraulics

Steer Motor and Select Valve Group

RS6-34 Telescopic Handler

LEFT

17

T

16

P

L

R

1

LS

Steer Motor

2

3

Steer Motor parts are on page 154.

15

12

13

14

12

Steer Select Valve

6

P

A

B

9

11

10

RIGHT

Steer Select valve parts are on page 153.

5

7

T

6

913317/DP0513

102

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Steer Motor and Select Valve Group

Item

No.

01

02

03

05

06

07

09

Part

No.

101882

137784

L69930

L69747

651089

L520003

079026

103319

054994

Description Qty.

Req.

STEER MOTOR . . . . . . . . . . . . . . . 1

ADAP., -4ORM -6JICM 90º . . . . . . . 1

HOSE, -4 A6/A6 46” . . . . . . . . . . . . 1

VALVE, STEER SELECT . . . . . . . . 1

1/4”-20X3” BOLT . . . . . . . . . . . . . . 2

1/4”-20 NYLON INSERT NUT . . . . 2

ADAP., -6ORM -6JICM 45º . . . . . . . 2

HOSE, -6 A8/A6 22” . . . . . . . . . . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 2

Item

No.

10

11

12

13

14

15

16

17

Part

No.

L69936

L69936

L63383

L63387

L63384

L68805

L64524

054626

Description

Qty.

Req.

HOSE, -6 A8/DS6 100” . . . . . . . . . . 1

HOSE, -6 A8/DS6 100” . . . . . . . . . . 1

HOSE, -6 A6/DS8 52” . . . . . . . . . . . 1

HOSE, -6 A8/DS8 67” . . . . . . . . . . . 1

HOSE, -6 A8/DS8 40” . . . . . . . . . . . 1

HOSE, -6 A6/DS6 70” . . . . . . . . . . . 1

VALVE, CHECK, -8ORM . . . . . . . . 1

ADAP., -8ORM -8JICM STR . . . . . . 3

12

13

14

15

03

07

10

11

STEER MOTOR PORT “LS”

STEER SELECT VALVE PORT “T”

STEER SELECT VALVE PORT “B”

STEER SELECT VALVE PORT “A”

STEER MOTOR PORT “R”

STEER MOTOR PORT “L”

STEER MOTOR PORT “P”

STEER MOTOR PORT “T”

HOSE LOCATOR

HYDRAULIC PUMP

STEER CYLINDER, FRONT AXLE RIGHT SIDE

STEER CYLINDER, REAR AXLE RIGHT SIDE

STEER CYLINDER, REAR AXLE LEFT SIDE

STEER SELECT VALVE PORT “P”

STEER CYLINDER, FRONT AXLE LEFT SIDE

HYDRAULIC PUMP

HYDRAULIC TANK RETURN MANIFOLD

PRINTED IN U.S.A.

103

913317/DP0513

Hydraulics

Brake Valve Group

Located behind joystick access panel.

7

Master

Cylinder parts are on page 155.

2

4

3

5

4

6

5

1

3

9

RS6-34 Telescopic Handler

8

10

12

11

CLUTCH CUT

-

OUT

(

OPTION

)

13

14

6

BRAKE LIGHT

PRESSURE

SWITCH

9

1

Front Axle

Service Brake

(right side tee)

Rear Axle

Service Brake

(left side tee)

913317/DP0513

104

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

Description Qty.

Req.

01

02

03

04

05

06

07

08

101320

102840

L63651

HOSE, -4 A4/A4 45” . . . . . . . . . . . . 1

HOSE, -4 A4/A6 90” . . . . . . . . . . . . 1

HOSE, -4 A4/DM4 17” . . . . . . . . . . . 1

230-32694 ADAP., -4 SWIVEL TEE . . . . . . . . . 2

L62741 ADAP., HYDROMAX -4JICM STR. . 2

L63651

L63363

L63564

HOSE, -4 A4/DM4 17” . . . . . . . . . . . 1

VALVE, MASTER CYLINDER . . . . . 2

SWITCH, DIFF. PRESSURE . . . . . . 1

09

10

11

230-32195

104428

L70428

12 a 104428

ADAP., -4ORM -4JICM STR. . . . . AR

SWITCH, PRESSURE 150 PSI. . . . 1

MANIFOLD, BRAKE LINE. . . . . . . . 1

SWITCH, PRESSURE 150 PSI. . . . 1

Item

No.

13

14

Part

No.

095601

103320

--

--

a b

b

Hydraulics

Brake Valve Group

Description

Qty.

Req.

ADAP., -40RM -4JICM 90º . . . . . . . 3

HOSE, -4 A4/A6 40” . . . . . . . . . . . . 1

L66162

-- ITEMS NOT SHOWN--

WIRE, 16ga. 6” . . . . . . . . . . . . . . . . 1

(ground wire for item #8)

230-32364 PLUG, -4ORM SAE . . . . . . . . . . . . . 1

Used on units equipped with Clutch Cut-Out option.

Used on units not equipped with Clutch

Cut-Out option; the plug is used in place of pressure switch.

PRINTED IN U.S.A.

105

913317/DP0513

Hydraulics

Brake and Steering Circuit

RS6-34 Telescopic Handler

SERVICE BRAKE PORT

1

2

PARK BRAKE PORT

FRONT AXLE

7

4

6

5

2

1

3

23

18

22

5

FLOW

DIVIDER

PB

10

8

9

11

16

6

BRAKE

MANIFOLD

20

21

19

STEER MOTOR

PORT

L

STEER MOTOR

PORT

BRAKE MASTER

CYLINDER

TEE

BRAKE MASTER

CYLINDER

TEE

R

13

3

15

1

12

2

SERVICE BRAKE PORT

1

14

11

STEER SELECT

VALVE

LEFT

24

15

9

8

14

9

8

REAR AXLE

RIGHT

913317/DP0513

106

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

07

08

09

10

11

12

Part

No.

L66139

091039

095457

L69928

103320

103317

L69928

100011

088442

L63387

103319

102840

Description Qty.

Req.

ADAP., M14X1.5ORM -6JICM. . . . . 6

ADAP., -6JICFS -6JICM 90º . . . . . . 3

ADAP., -6 SWIVEL TEE . . . . . . . . . 3

HOSE, -4 A6/A6 25” . . . . . . . . . . . . 1

HOSE, -4 A6/A4 40” . . . . . . . . . . . . 1

HOSE, -6 A6/A6 28” . . . . . . . . . . . . 1

HOSE, -4 A6/A6 25” . . . . . . . . . . . . 1

ADAP., M18 ORM - 8JICM STR . . . 4

ADAP., -8JICFS -8JICM 90º . . . . . . 4

HOSE, -6 A8/DS8 67” . . . . . . . . . . . 1

HOSE, -6 A8/A6 22” . . . . . . . . . . . . 1

HOSE, -4 A4/A6 90” . . . . . . . . . . . . 1

Item

No.

13

14

15

16

18

19

20

21

22

23

24

Part

No.

L69928

L69936

L69936

L63383

L69747

L70428

110227

102837

095601

102668

L68849

Hydraulics

Brake and Steering Circuit

Description

Qty.

Req.

HOSE, -4 A6/A6 25” . . . . . . . . . . . . 1

HOSE, -6 A6/A8 100” . . . . . . . . . . . 1

HOSE, -6 A6/A8 100” . . . . . . . . . . . 1

HOSE, -6 A6/DS8 52” . . . . . . . . . . . 1

VALVE, STEER SELECT . . . . . . . . 1

MANIFOLD, BRAKE LINE. . . . . . . . 1

ADAP., -4ORM -4JICM STR. . . . . AR

HOSE, -4 A4/A4 52” . . . . . . . . . . . . 1

ADAP., -40RM -4JICM 90º . . . . . . . 1

AXLE, FRONT (w/ int. park brake) . 1

AXLE, REAR . . . . . . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

107

913317/DP0513

Hydraulics

Main Hydraulic Valve and Hoses

2

RS6-34 Telescopic Handler

1

Right Side

Bulkhead

3

1

Left Side

Bulkhead

22

21

20

19

14

18

6

7

17

13

26

15

16

9

8

28

4

5

6

7

30

29

30

LEVEL

LIFT

BOOM

TIL

T

29

12

A

B

23

Hydraulic

Main valve parts are on page 150.

7

10

11

1

Optional

Hydraulics

26

24

25

27

913317/DP0513

108

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Main Hydraulic Valve and Hoses

Item

No.

Part

No.

13

14

15

16

17

08

09

10

11

12

01 a

137542

02 L68814

03

04

L68814

L68816

05

06

L68815

076143

07 a 089099

L68817

L63407

650833

L520004

L68694

072587

L60253

L63407

L63407

L68807

Description Qty.

Req.

ADAP., BLKHEAD 90º -10JICM . . . 4

HOSE, -8 A10/DS10 15” . . . . . . . . . 1

HOSE, -8 A10/DS10 15” . . . . . . . . . 1

HOSE, -8 A10/DS8 14” . . . . . . . . . . 1

HOSE, -8 A10/DS8 17” . . . . . . . . . . 1

ADAP., -8JICFS -8JICM RUN T . . . 4

ADAP., -10ORM -8JICM . . . . . . . . . 4

HOSE, -6 A8/A8 26” . . . . . . . . . . . . 1

HOSE, -6 A8/A8 48” . . . . . . . . . . . . 1

5/16”-18X3” BOLT . . . . . . . . . . . . . . 3

5/16”-18 NYLON INSERT NUT . . . . 3

VALVE, MAIN CONTROL (V20) . . . 1

ADAP., -12ORM -12JICM STR . . . . 2

ADAP., -10ORM -6JICM STR . . . . . 2

HOSE, -6 A8/A8 48” . . . . . . . . . . . . 1

HOSE, -6 A8/A8 48” . . . . . . . . . . . . 1

HOSE, -6 A8/DS8 54” . . . . . . . . . . . 1

26

27

28

29

30

Item

No.

22

23

24

25

18

19

20

21

a

Part

No.

L68808

L68809

L68809

L63406

L63406

L68815

L68816

L68778

068938

NSS

072580

054994

091039

Description

Qty.

Req.

HOSE, -6 A8/DS8 48” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 136” . . . . . . . . . . 1

HOSE, -4 A6/DS6 136” . . . . . . . . . . 1

HOSE, -12 A12/DS12 114” . . . . . . . 1

HOSE, -12 A12/DS12 114” . . . . . . . 1

HOSE, -8 A10/DS8 17” . . . . . . . . . . 1

HOSE, -8 A10/DS8 14” . . . . . . . . . . 1

KIT, VALVE SECTION . . . . . . . . . . . 1

(includes item #27)

ADAP., -6ORM -6JICM 90º. . . . . . AR

BOLT KIT (included with item #25) . 1

ADAP., -10ORM -10JICM . . . . . . . . 2

ST MJ06-MORB06 . . . . . . . . . . . . . 2

90 MJ06-FJS06 . . . . . . . . . . . . . . . . 2

Add (2) to quantity when unit is equipped with optional hydraulics.

20

21

22

23

24

15

16

17

18

19

02

03

04

05

08

09

MAIN VALVE SECTION 3 PORT “A”

MAIN VALVE SECTION 3 PORT “B”

MAIN VALVE SECTION 4 PORT “B”

MAIN VALVE SECTION 4 PORT “A”

MAIN VALVE SECTION 4 PORT “B”

MAIN VALVE SECTION 4 PORT “A”

MAIN VALVE SECTION 2 PORT “A”

MAIN VALVE SECTION 2 PORT “B”

MAIN VALVE SECTION 2 PORT “B”

MAIN VALVE SECTION 2 PORT “A”

MAIN VALVE SECTION 1 PORT “B”

MAIN VALVE SECTION 1 PORT “A”

MAIN VALVE “IN”

MAIN VALVE “OUT”

OPTIONAL HYD. SECTION PORT “B”

OPTIONAL HYD. SECTION PORT “A”

HOSE LOCATOR

BULKHEAD FITTING TO (BOOM EXTEND)

BULKHEAD FITTING TO (BOOM RETRACT)

BULKHEAD FITTING TO (TILT CYL. RETRACT)

BULKHEAD FITTING TO (TILT CYL. EXTEND)

SLAVE CYLINDER (BOTTOM-RETRACT)

SLAVE CYLINDER (TOP-EXTEND)

LIFT CYLINDER (RIGHT) (OUTSIDE-EXTEND)

LIFT CYLINDER (RIGHT) (INSIDE-RETRACT)

LIFT CYLINDER (LEFT) (OUTSIDE-RETRACT)

LIFT CYLINDER (LEFT) (INSIDE-EXTEND)

LEVEL CYLINDER (OUTSIDE-RETRACT)

LEVEL CYLINDER (INSIDE-EXTEND)

FLOW DIVIDER PORT “EF”

HYDRAULIC TANK (FILTER COVER FITTING)

BULKHEAD FITTING TO (OPTION - RETRACT)

BULKHEAD FITTING TO (OPTION - EXTEND)

PRINTED IN U.S.A.

109

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Main Hydraulic Valve - Dual Controls (Standard)

1

RETRACT

4

7

HYDRAULIC

OPTION

EXTEND

TILT

LEVEL

LIFT

EXTEND

3

Controllers are on pages

158 - 164.

2

BOOM

IN

” (

R

)

BOOM

UP

”(

E

)

4

6

6

UP

LEVEL

LEFT

” (

E

)

TILT

BACK

”(

E

)

BOOM

DOWN

”(

R

)

BOOM

OUT

” (

E

)

9

6

5

BACK

DOWN

6

TILT

FORWARD

” (

R

)

LEVEL

RIGHT

” (

R

)

4

FORWARD

9

5

7

IN

OUT

RIGHT

LEFT

LEVEL

BOOM

(UP)

BOOM

(IN)

TILT (FOR

HYDRAULIC

WARD)

(LEFT)

OPTION

FRONT

(R) = retract

(E) = extend

Main Valve shown with

Auxiliary Hydraulics Option

913317/DP0513

110

8

8

LEVEL

BOOM

BOOM

(RIGHT)

(DOWN)

(OUT)

TILT (BACK)

HYDRAULIC

OPTION

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Main Hydraulic Valve - Dual Controls (Standard)

Item

No.

01

02

03

04

05

06

07

Part

No.

103264

103263

103262

054994

L68811

L68810

L68810

Description Qty.

Req.

CONTROLLER, AUX. HYD . . . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

CONTROLLER, TILT/LEVEL. . . . . . 1

ADAP., -6ORM -6JICM STR. . . . . AR

HOSE, -4 A6/A6 108” . . . . . . . . . . . 2

HOSE, -4 A6/A6 96” . . . . . . . . . . . . 4

HOSE, -4 A6/A6 96” . . . . . . . . . . . . 2

Item

No.

Part

No.

08 a L68694

09 L64275

a

Description

Qty.

Req.

MAIN VALVE . . . . . . . . . . . . . . . . . . 1

HOSE, -4 A6/A6 102” . . . . . . . . . . . 2

The illustration on the facing page shows the

(optional) auxiliary hydraulic work section with the main valve.

PRINTED IN U.S.A.

111

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Main Valve with Tri-Function Control (Option) - Standard Hydraulics

LEGEND

BOOM IN/OUT

BOOM UP/DOWN

FRAME LEVEL

10

11

3

4

T

P

7

12

FLOW DIVIDER

PORT “J”

2

3

8

3

7

7

8

7

1

3

2

P

T

5

6

1

4

Controllers are on pages

158 - 164.

3

7

9

7

HYDRAULIC

TANK MANIFOLD

4

13

P

3

A

15

T

10

17

16

B

14

4

6

3

4

913317/DP0513

112

3

14

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Main Valve with Tri-Function Control (Option) - Standard Hydraulics

Item

No.

01

02

03

04

05

06

07

08

09

10

Part

No.

L71346

103264

054994

068938

054820

091039

L68810

L69903

103315

102831

Description Qty.

Req.

CONTROLLER, TRI-FUNCTION. . . 1

CONTROLLER, FRAME LEVEL . . . 1

ADAP., -6ORM -6JICM STR . . . . . 14

ADAP., -6ORM -6JICM 90º . . . . . . . 9

ADAP., -6ORM -6JICM RUN TEE . . 1

ADAP., -6JICM -6JICFS 90º . . . . . . 2

HOSE, -6 A6/A6 96” . . . . . . . . . . . . 6

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 2

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 102” . . . . . . . . . . 2

Item

No.

11

12

13

14

15

16

17

--

--

Part

No.

072806

103318

L69904

102843

106898

L50741

L50051

Description

Qty.

Req.

ADAP., -6JICM -6JICFS RUN TEE . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 35” . . . . . . . . . . . 1

PILOT APPLY MANIFOLD. . . . . . . . 1

STUD, 1/4”X3-1/4”. . . . . . . . . . . . . . 2

NUT, 1/4”-20 WHIZ NUT . . . . . . . . . 2

105580

L62761

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

1/4” MALE ELEC. CONNECTOR . . 8

PRINTED IN U.S.A.

113

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Main Valve with Tri-Function Control (Option) with Auxiliary Hydraulics

LEGEND

BOOM IN/OUT

BOOM UP/DOWN

FRAME LEVEL

10

11

3

4

T

P

12

18

FLOW DIVIDER

PORT “J”

19

P

17

16

15

7

13

3

A

P

T

B

3

18

2

3

8

3

7

7

8

7

1

3

2

P

T

5

6

1

4

Controllers are on pages

158 - 164.

3

7

9

7

HYDRAULIC

TANK MANIFOLD

14

4

4

13

B

A

11

15

T

3 4

10

913317/DP0513

114

3

14

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Main Valve with Tri-Function Control (Option) with Auxiliary Hydraulics

Item

No.

01

02

03

04

05

06

07

08

09

10

11

12

Part

No.

L71346

103264

054994

068938

054820

091039

L68810

L69903

103315

102831

072806

103318

Description Qty.

Req.

CONTROLLER, TRI-FUNCTION. . . 1

CONTROLLER, FRAME LEVEL . . . 1

ADAP., -6ORM -6JICM STR . . . . . 19

ADAP., -6ORM -6JICM 90º . . . . . . 10

ADAP., -6ORM -6JICM RUN TEE . . 1

ADAP., -6JICM -6JICFS 90º . . . . . . 1

HOSE, -6 A6/A6 96” . . . . . . . . . . . . 6

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 2

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 102” . . . . . . . . . . 2

ADAP., -6JICM -6JICFS RUN TEE . 2

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

Item

No.

13

14

15

16

17

18

19

--

Part

No.

L69904

102843

106898

L50745

L50051

105593

L51762

Description

Qty.

Req.

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 2

HOSE, -4 A6/DS6 35” . . . . . . . . . . . 2

PILOT APPLY MANIFOLD. . . . . . . . 2

STUD, 1/4”X5-3/4”. . . . . . . . . . . . . . 2

NUT, 1/4”-20 WHIZ NUT . . . . . . . . . 2

HOSE, -4 A6/DS6 12” . . . . . . . . . . . 2

ADAP., -6ORM -6JICM B TEE . . . . 1

105580

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

PRINTED IN U.S.A.

115

913317/DP0513

Hydraulics

Main Valve with Radio Remote (Option)

RS6-34 Telescopic Handler

NOTE: Hose reference AA, BB, and CC attach to joysticks and manifolds.

Refer to “Hydraulic Controls - Radio Remote” section for more information.

AA

CC

2

3

BB

1

JS

E1

J1

T

P

5

4

INL

DN

EXT

RET

J2

Boom Out

J3

UP

J4

6

E2

5

E3

Radio Remote

Maniofold parts are on page 157.

E4

Boom Down

7

Boom In

1

8

Boom Up

TILT (FOR

BOOM

(IN)

WARD)

BOOM

(UP)

LEVEL

(LEFT)

9

9

8

Boom Down

Boom Out

Boom In

Boom Up

913317/DP0513

116

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Main Valve with Radio Remote (Option)

Item

No.

01

02

03

04

05

Part

No.

L68804

L69905

103505

137784

129124

Description Qty.

Req.

HOSE, -4 A6/DS6 26” . . . . . . . . . . . 4

HOSE, -4 A6/A6 130” . . . . . . . . . . . 2

HOSE, -4 H6/DS6 109” . . . . . . . . . . 1

ADAP., -4ORM -6JICM 90º . . . . . . . 6

ADAP., -4ORM -6JICM STR . . . . . . 5

Item

No.

06

07

08

09

Part

No.

103413

103425

L69902

L68810

Description

Qty.

Req.

MANIFOLD, RADIO REMOTE . . . . 1

MOUNT, RADIO REMOTE . . . . . . . 1

HOSE, -4 A6/H6 20” . . . . . . . . . . . . 4

HOSE, -4 A6/A6 96” . . . . . . . . . . . . 4

PRINTED IN U.S.A.

117

913317/DP0513

Hydraulics

Dual Controls - Standard

RS6-34 Telescopic Handler

HYDRAULIC

TANK

1

TILT

LEVEL

2

LIFT

EXTEND

T

P

3

Controllers are on pages

158 - 164.

3

T

4

5

P

6

5

5

5

7

Flow Divider parts are on page 149.

FRONT

FLOW DIVIDER

J

8

913317/DP0513

118

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

Part

No.

103262

103263

054994

072806

Description Qty.

Req.

CONTROLLER, TILT/LEVEL. . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 4

ADAP., -6 SWVL RUN TEE . . . . . AR

Item

No.

05

06

07

08

Part

No.

L69903

103315

102313

103318

Hydraulics

Dual Controls - Standard

Description

Qty.

Req.

HOSE, -4 A6/DS6 17”. . . . . . . . . . AR

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

PRINTED IN U.S.A.

119

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Dual Controls with only Auxiliary Hydraulics (Option)

TILT

LEVEL

1

LIFT

EXTEND

2

T

HYDRAULIC

OPTION

12

T

P

6

7

3

5

9

P

T

3

4

12

10

8

P

3

4

Controllers are on pages

158 - 164.

7

8

9

10

13

FLOW DIVIDER

J

HYDRAULIC

TANK

11

Flow Divider parts are on page 149.

913317/DP0513

120

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Dual Controls with only Auxiliary Hydraulics (Option)

Item

No.

01

02

03

04

05

06

07

Part

No.

103262

103263

054994

072806

091039

068938

L69904

Description Qty.

Req.

CONTROLLER, TILT/LEVEL. . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

ADAP., -6ORM -6JICM STR. . . . . AR

ADAP., -6 SWIVEL RUN TEE. . . . AR

ADAP., -6JICM -6JICFS 90º . . . . . AR

ADAP., -6ORM -6JICM 90º. . . . . . AR

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 1

Item

No.

08

09

10

11

12

13

Part

No.

L69903

L69904

L69903

103318

103264

102313

Description

Qty.

Req.

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

CONTROLLER, AUX. HYD . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

PRINTED IN U.S.A.

121

913317/DP0513

Hydraulics

Dual Controls with only PWP (Option)

RS6-34 Telescopic Handler

2

LIFT

EXTEND

HYDRAULIC

TANK

T

3

4

6

1

TILT

LEVEL

T

P

3

Controllers are on pages

158 - 164.

P

5

7

7

8

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

FLOW DIVIDER

9

J

12

11

10

J1

5 p

PWP VALVE

J2

8

913317/DP0513

122

PRINTED IN U.S.A.

01

02

03

04

05

06

07

RS6-34 Telescopic Handler Hydraulics

Dual Controls with only PWP (Option)

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

103262

103263

054994

072806

103318

103315

L69903

CONTROLLER, TILT/LEVEL. . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

ADAP., -6ORM -6JICM STR. . . . . AR

ADAP., -6 SWIVEL RUN TEE. . . . AR

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

08

09

10

11

12

103318

102313

102321

103318

L63381

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

MANIFOLD, PWP JOYSTICK . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

(to hydraulic tank)

HOSE, -4 A6/DS6 15” . . . . . . . . . . . 1

PRINTED IN U.S.A.

123

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Dual Controls with PWP and Auxiliary Hydraulics (Option)

Controllers are on pages

158 - 164.

TILT

LEVEL

1

LIFT

EXTEND

2

P

T

P

3

4

HYDRAULIC

OPTION

16

3

4

T

3

11

10

8

7

T

P

6

7

5

9

12

9

HYDRAULIC

TANK

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

13

FLOW DIVIDER

15

17

PWP VALVE

14 p

J1

11

J2

8

913317/DP0513

124

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Dual Controls with PWP and Auxiliary Hydraulics (Option)

Item

No.

01

02

03

04

05

06

07

08

09

Part

No.

103262

103263

054994

072806

091039

068938

L69904

103318

L69904

Description Qty.

Req.

CONTROLLER, TILT/LEVEL. . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

ADAP., -6ORM -6JICM STR. . . . . AR

ADAP., -6 SWIVEL RUN TEE. . . . AR

ADAP., -6JICM -6JICFS 90º . . . . . AR

ADAP., -6ORM -6JICM 90º. . . . . . AR

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 1

Item

No.

10

11

12

13

14

15

16

17

Part

No.

L69903

103318

103315

102313

102321

L63381

103264

103318

Description

Qty.

Req.

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

MANIFOLD, PWP JOYSTICK . . . . . 1

HOSE, -4 A6/A6 15” . . . . . . . . . . . . 1

CONTROLLER, AUX. HYD . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 1

(to hydraulic tank)

PRINTED IN U.S.A.

125

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Dual Controls with Radio Remote (Option)

TILT

LEVEL

1

2

LIFT

EXTEND

Controllers are on pages

158 - 164.

P

3

T

P

T

3

4

5

8

7

8

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

3

J

10

T

9

13

T

12

4

14

6

HYDRAULIC

TANK MANIFOLD

AA

JS

NOTE: Hose reference AA, BB, and CC attach to radio remote manifold.

Refer to the “Main Valve - Radio Remote” section for more information.

BB

T

913317/DP0513

126

CC

P

P

11

3

8

J1

J2

10

8

6

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Dual Controls with Radio Remote (Option)

Item

No.

01

02

03

04

05

06

07

Part

No.

103262

103263

054994

072806

103315

L69905

L69904

Description Qty.

Req.

CONTROLLER, TILT/LEVEL. . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 8

ADAP., -6 SWIVEL RUN TEE . . . . . 2

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 130” . . . . . . . . . . 2

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 1

Item

No.

08

09

10

11

12

13

14

Part

No.

103318

102321

068938

L63381

103368

102313

103505

Description

Qty.

Req.

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 3

MANIFOLD, PWP JOYSTICK . . . . . 1

ADAP., -6ORM -6JICM 90º . . . . . . . 2

HOSE, -4 A6/A6 15” . . . . . . . . . . . . 1

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

HOSE, -4 H6/DS6 109” . . . . . . . . . . 1

PRINTED IN U.S.A.

127

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Dual Controls with Radio Remote and Auxiliary Hydraulics (Option)

LIFT

EXTEND

2

1

TILT

LEVEL

P

T

8

P

Controllers are on pages

158 - 164.

8

5

3

7

T

3

4

9

11

8

T

P

6

8

8

16

11

15

3

J

12

6

T

14

T

13

4

3

P

3

11

J1

J2

10

6

11

10

HYDRAULIC

TANK MANIFOLD

AA

JS

NOTE: Hose reference AA, BB, and CC attach to radio remote manifold.

Refer to the “Main Valve - Radio Remote” section for more information.

913317/DP0513

128

BB

T

CC

P

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Dual Controls with Radio Remote and Auxiliary Hydraulics (Option)

Item

No.

01

02

03

04

05

06

07

08

09

Part

No.

103262

103263

054994

072806

103264

068938

091039

L69904

103315

Description Qty.

Req.

CONTROLLER, TILT/LEVEL. . . . . . 1

CONTROLLER, LIFT/EXTEND . . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 9

ADAP., -6 SWIVEL RUN TEE . . . . . 2

CONTROLLER, AUX. HYD . . . . . . . 1

ADAP., -6ORM -6JICM 90º . . . . . . . 3

ADAP., -6ORM -6JICFS 90º . . . . . . 1

HOSE, -4 A6/DS6 20” . . . . . . . . . . . 3

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

Item

No.

10

11

12

13

14

15

16

Part

No.

L69905

103318

L63381

103368

102321

102313

103505

Description

Qty.

Req.

HOSE, -4 A6/A6 130” . . . . . . . . . . . 2

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 3

HOSE, -4 A6/A6 15” . . . . . . . . . . . . 1

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

MANIFOLD, PWP JOYSTICK . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

HOSE, H6/DS6 109” . . . . . . . . . . . . 1

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

PRINTED IN U.S.A.

129

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Tri-Function Control (Option) with only PWP

1

10

10

4

T

3

P

2

4

PILOT APPLY VALVE

(REAR OF MACHINE)

P

13

10

T

3

12

T

3

P

8

Controllers are on pages

158 - 164.

9

3

4

9

P

T

5

7

6

J

T

15

9

T

4

J1

J2

9

P

14

3

11

9

HYDRAULIC TANK

RETURN MANIFOLD

913317/DP0513

130

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Tri-Function Control (Option) with only PWP

Item

No.

01

02

03

04

05

06

07

08

09

Part

No.

L71346

103264

054994

068938

054820

091039

103315

L69903

103318

Description Qty.

Req.

CONTROLLER, TRI-FUNCTION. . . 1

CONTROLLER, FRAME LEVEL . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 8

ADAP., -6ORM -6JICM 90º . . . . . . . 5

ADAP., -6ORM -6JICM RUN TEE . . 1

ADAP., -6JICM -6JICFS 90º . . . . . . 1

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 3

Item

No.

10

11

12

13

14

15

--

Part

No.

102831

L63381

102313

106898

102321

103368

Description

Qty.

Req.

HOSE, -4 A6/DS6 102” . . . . . . . . . . 2

HOSE, -4 A6/DS6 15” . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

PILOT APPLY MANIFOLD. . . . . . . . 1

MANIFOLD, PWP JOYSTICK . . . . . 1

HOSE, -6 A6/DS6 52”

105580

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

Pilot Apply valve parts are on page 156.

PRINTED IN U.S.A.

131

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Tri-Function Control (Option) with PWP and Auxiliary Hydraulics

1

4

10

10

P

T

2

T

3

8

Controllers are on pages

158 - 164.

3

P

9

4

9

P

T

5

6

7

15

P

13

16

16

10

PILOT APPLY VALVE

(REAR OF MACHINE)

T

913317/DP0513

HYDRAULIC TANK

RETURN MANIFOLD

12

T

J

3

17

9

T

3

J1

J2

14

P

3

11

9

4

9

132

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulics

Tri-Function Control (Option) with PWP and Auxiliary Hydraulics

Item

No.

01

02

03

04

05

06

07

08

09

10

Part

No.

L71346

103264

054994

068938

054820

091039

103315

L69903

103318

102831

Description Qty.

Req.

CONTROLLER, TRI-FUNCTION. . . 1

CONTROLLER, FRAME LEVEL . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 8

ADAP., -6ORM -6JICM 90º . . . . . . . 5

ADAP., -6ORM -6JICM RUN TEE . . 1

ADAP., -6JICM -6JICFS 90º . . . . . . 1

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 3

HOSE, -4 A6/DS6 102” . . . . . . . . . . 2

Item

No.

11

12

13

14

15

16

17

--

Part

No.

L63381

102313

106898

102321

L51762

105593

103368

Description

Qty.

Req.

HOSE, -4 A6/DS6 15” . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

PILOT APPLY MANIFOLD. . . . . . . . 1

MANIFOLD, PWP JOYSTICK . . . . . 1

ADAP., -6ORM -6JICM B TEE . . . . 1

HOSE, -4 A6/DS6 12” . . . . . . . . . . . 2

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

105580

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

Pilot Apply valve parts are on page 156.

PRINTED IN U.S.A.

133

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Tri-Function Control (Option) with Radio Remote

1

10

4

10

3

P

T

2

T

3

P

8

Controllers are on pages

158 - 164.

3

9

P

4

9

T

5

7

6

4

13

P

10

PILOT APPLY VALVE

(REAR OF MACHINE)

3

T

3

J

11

4

18

9

12

3

T

AA

BB

CC

JS

T

P

NOTE: Hose reference AA, BB, and CC attach to radio remote manifold.

Refer to the “Main Valve - Radio Remote” section for more information.

913317/DP0513

134

15

16

17

14

T

P

3

J1

J2

4

3

9

9

17

HYDRAULIC TANK

RETURN MANIFOLD

PRINTED IN U.S.A.

01

02

03

04

05

06

07

08

09

10

11

RS6-34 Telescopic Handler Hydraulics

Tri-Function Control (Option) with Radio Remote

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

L71346

103264

054994

068938

054820

091039

103315

L69903

103318

102831

L63381

CONTROLLER, TRI-FUNCTION. . . 1

CONTROLLER, FRAME LEVEL . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 7

ADAP., -6ORM -6JICM 90º . . . . . . . 4

ADAP., -6ORM -6JICM RUN TEE . . 1

ADAP., -6JICM -6JICFS 90º . . . . . . 1

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 3

HOSE, -4 A6/DS6 102” . . . . . . . . . . 2

HOSE, -4 A6/DS6 15” . . . . . . . . . . . 1

12

13

14

15

16

17

18

--

102313

106898

102321

103368

072806

L69905

103505

MANIFOLD, JOYSTICK RELIEF. . . 1

PILOT APPLY MANIFOLD. . . . . . . . 2

MANIFOLD, PWP JOYSTICK . . . . . 1

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

ADAP., -6JICM -6JICFS R TEE. . . . 1

HOSE, -4 A6/A6 130” . . . . . . . . . . . 2

HOSE, -4 H6/DS6 109” . . . . . . . . . . 1

105580

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

Pilot Apply valve parts are on page 156.

PRINTED IN U.S.A.

135

913317/DP0513

Hydraulics RS6-34 Telescopic Handler

Tri-Function Control (Option) with Radio Remote and Auxiliary Hydraulics

1

15

10

4

10

3

P

T

2

13

P

16

T

3

P

8

Controllers are on pages

158 - 164.

3

9

P

4

9

T

5

7

6

16

10

PILOT APPLY VALVE

(REAR OF MACHINE)

T

3

J

11

4

20

9

12

3

T

AA

BB

CC

JS

T

P

NOTE: Hose reference AA, BB, and CC attach to radio remote manifold.

Refer to the “Main Valve - Radio Remote” section for more information.

913317/DP0513

136

17

18

19

14

T

P

3

J1

J2

4

3

9

9

19

HYDRAULIC TANK

RETURN MANIFOLD

PRINTED IN U.S.A.

01

02

03

04

05

06

07

08

09

10

11

12

RS6-34 Telescopic Handler Hydraulics

Tri-Function Control (Option) with Radio Remote and Auxiliary Hydraulics

Item

No.

Part

No.

L71346

103264

054994

068938

054820

091039

103315

L69903

103318

102831

L63381

102313

Description Qty.

Req.

CONTROLLER, TRI-FUNCTION. . . 1

CONTROLLER, FRAME LEVEL . . . 1

ADAP., -6ORM -6JICM STR . . . . . . 7

ADAP., -6ORM -6JICM 90º . . . . . . . 4

ADAP., -6ORM -6JICM RUN TEE . . 1

ADAP., -6JICM -6JICFS 90º . . . . . . 1

HOSE, -4 A6/A6 60” . . . . . . . . . . . . 1

HOSE, -4 A6/DS6 17” . . . . . . . . . . . 1

HOSE, -4 A6/DS6 52” . . . . . . . . . . . 3

HOSE, -4 A6/DS6 102” . . . . . . . . . . 2

HOSE, -4 A6/DS6 15” . . . . . . . . . . . 1

MANIFOLD, JOYSTICK RELIEF. . . 1

Item

No.

13

14

15

16

17

18

19

20

--

Part

No.

106898

102321

L51762

105593

103368

072806

L69905

103505

Description

Qty.

Req.

PILOT APPLY MANIFOLD. . . . . . . . 2

MANIFOLD, PWP JOYSTICK . . . . . 1

ADAP., -6ORM -6JICM B TEE . . . . 1

HOSE, -4 A6/DS6 12” . . . . . . . . . . . 2

HOSE, -6 A6/DS6 52” . . . . . . . . . . . 1

ADAP., -6JICM -6JICFS R TEE. . . . 1

HOSE, -4 A6/A6 130” . . . . . . . . . . . 2

HOSE, -4 H6/DS6 109” . . . . . . . . . . 1

105580

-- ITEMS NOT SHOWN --

TRI-FUNCTION WIRE HARNESS . 1

Flow Divider parts are on page 149.

PWP valve parts are on page 152.

Pilot Apply valve parts are on page 156.

PRINTED IN U.S.A.

137

913317/DP0513

Hydraulics

Frame Level Circuit

Main valve parts are on page 150.

17

16

15

14

7

6

RS6-34 Telescopic Handler

3

1

2

4

5

6

7

Frame Level

Cylinder parts are on page 166.

8

11

12

10

9

FRONT

AXLE

13

Main Control

Valve (V20)

913317/DP0513

138

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

05

06

07

08

09

01

02

03

04

10

Part

No.

Note a

L64367

650731

L63276

L520005

L68794

L68809

650487

L63715

210447

Description Qty.

Req.

LEVEL CYLINDER . . . . . . . . . . . . . 1

BRONZE BEARING . . . . . . . . . . . . 1

3/8”-16X3-1/2” BOLT . . . . . . . . . . . . 1

PIN, CYLINDER (BASE END). . . . . 1

3/8”-16 NYLON INSERT NUT . . . . . 1

ADAP., W/ORIFICE -8ORM -6JICM 2

HOSE, -4 A6/DS6 136” . . . . . . . . . . 2

5/16”X1” BOLT. . . . . . . . . . . . . . . . . 2

PLATE . . . . . . . . . . . . . . . . . . . . . . . 1

PIVOT PIN (ROD END). . . . . . . . . . 1

Item

No.

11

12

13

14

15

16

17

Part

No.

L63016

210569

210572

L50712

654014

L50084

L60253

a Refer to page 166.

Hydraulics

Frame Level Circuit

Description

Qty.

Req.

BRONZE BEARING . . . . . . . . . . . . 1

FRAME LEVEL MOUNT . . . . . . . . . 1

PLATE, FRAME LEVEL. . . . . . . . . . 1

3/4”-10X9” GR8 BOLT . . . . . . . . . . . 4

3/4” FLAT WASHER . . . . . . . . . . . . 4

3/4”-10 STOVER NUT . . . . . . . . . . . 4

ADAP., -10ORM -6JICM . . . . . . . . . 2

PRINTED IN U.S.A.

139

913317/DP0513

Hydraulics

Lift Circuit

RS6-34 Telescopic Handler

2

Lift cylinder parts are on page 168.

1

3

4

RIGHT

12

EXTEND

11

FRAME

RETRACT

10

9

EXTEND

FRAME

2

5

RETRACT

4

8

3

Main

Valve

7

6

5

LEFT

LIFT

913317/DP0513

140

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

Part

No.

Note a

L68003

L63274

650493

L520005

076143

Description Qty.

Req.

LIFT CYLINDER . . . . . . . . . . . . . . . 2

BRONZE BUSHING . . . . . . . . . . . . 4

PIN, LIFT CYLINDER . . . . . . . . . . . 4

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 4

3/8”-16 NYLON INSERT NUT . . . . . 4

ADAP -8JICFS -8JICM RUN TEE . . 2

Item

No.

07

08

09

10

11

12

Part

No.

089099

L68807

L68808

L63407

L63407

054816

a Refer to page 168.

Hydraulics

Lift Circuit

Description

Qty.

Req.

ADAP -10ORM -8JICM STR . . . . . . 2

HOSE, -6 A8/DS8 54” . . . . . . . . . . . 1

HOSE, -6 A8/DS8 48” . . . . . . . . . . . 1

HOSE, -6 A8/A8 48” . . . . . . . . . . . . 1

HOSE, -6 A8/A8 48” . . . . . . . . . . . . 1

ADAP -8ORM -8JICM 90º . . . . . . . . 4

PRINTED IN U.S.A.

141

913317/DP0513

Hydraulics

Tilt / Slave Circuit

RS6-34 Telescopic Handler

2

1

3

Extend

12

14

21

Tilt

Cylinder

13

Retract

12

18

17

11

22

24

23

25

15

Slave

Cylinder

16

19

20

Extend

13

12

18

17

26

9

Right Bulkhead

14

6

11

12

10

13

7

8

Main Valve

4

5

TILT

15

13

Tilt cylinder parts are on page 172.

Slave cylinder parts are on page 170.

913317/DP0513

142

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

06

07

08

09

10

01

02

03

04

05

L68351

L68239

L68239

137542

L68815

L68816

076143

089099

L68817

L63407

16

17

18

19

11

12

13

14

15

054816

L520005

650493

L63272

L63018

Note a

L68003

L63273

Note a

20 b

L68374

Description Qty.

Req.

TUBE, TILT/AUX . . . . . . . . . . . . . . . 2

HOSE, -8 H10/DS10 54” . . . . . . . . . 1

HOSE, -8 H10/DS10 54” . . . . . . . . . 1

ADAP., -10JICM BLKHEAD 90º . . . 2

HOSE, -8 A10/DS8 17” . . . . . . . . . . 1

HOSE, -8 A10/DS8 14” . . . . . . . . . . 1

ADAP., -8JICFS -8JICM RUN TEE . 2

ADAP., -10ORM -8JICM . . . . . . . . . 2

HOSE, -6 A8/A8 26” . . . . . . . . . . . . 1

HOSE -6 A8/A8 48” . . . . . . . . . . . . . 1

ADAP., -8ORM -8JICM 90º . . . . . . . 3

3/8”-16 NYLON INSERT NUT . . . . . 4

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 4

PIN, CYLINDER (rod end). . . . . . . . 2

BUSHING BUSHING (rod end) . . . . 2

CYLINDER, SLAVE . . . . . . . . . . . . . 1

BUSHING (base end) . . . . . . . . . . . 2

PIN, CYLINDER BUSH. (base end) 2

CYLINDER, TILT . . . . . . . . . . . . . . . 1

HOSE, -6 A8/H10 322” . . . . . . . . . . 1

Item

No.

Part

No.

21 b

L68374

22 L520004

23

24

25

26

L50877

L63715

L68039

076880

Hydraulics

Tilt / Slave Circuit

Description

Qty.

Req.

HOSE, -6 A8/H10 322” . . . . . . . . . . 1

5/16”-18 NYLON INSERT NUT . . . . 8

5/16”-18X2-1/4” STUD. . . . . . . . . . . 8

PLATE, TWIN CUSHION. . . . . . . . . 8

5/8” DOUBLE TUBE CUSHION . . 16

ADAP., -8ORM -8JICM 45º . . . . . . . 1

--

--

--

L50207

650484

L520004

--- ITEMS NOT SHOWN ---

VINYL CLAMP . . . . . . . . . . . . . . . . . 2

5/16”-18X1/2” BOLT . . . . . . . . . . . . 2

5/16”-18 NYLON INSERT NUT . . . 2

a b

Refer to page 172 for the tilt cylinder.

Refer to page 170 for the slave cylinder.

Used with protective fabric sleeve PN L500784.

PRINTED IN U.S.A.

143

913317/DP0513

Hydraulics

Boom Extend Circuit

RS6-34 Telescopic Handler

3

5

19

18

17

1

2

3

4

5

6

12

12

2

11

7

9

8

10

Boom Extend cylinder parts are on page 174.

16

13

14

15

11

Main Valve

Boom

Extend/Retract

913317/DP0513

144

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

06

07

08

09

10

01

02

03

04

05

11

12

13

Part

No.

Note a

126862

L520005

L63273

650493

L68003

L68348

L68356

L50878

L520004

L68352

L68352

L68814

Description Qty.

Req.

CYLINDER, EXTEND . . . . . . . . . . . 1

ADAP., -8ORM -8JICM 90º LONG . 2

3/8”-16 NYLON INSERT NUT . . . . . 2

PIN, CYLINDER (base end) . . . . . . 1

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 2

BUSHING (base end) . . . . . . . . . . . 1

7/8” HOSE CUSHION, SINGLE . . . 4

CUSHION TOP PLATE . . . . . . . . . . 2

5/-16”-18X3” STUD . . . . . . . . . . . . . 4

5/16”-18 NYLON INSERT NUT . . . . 4

HOSE, -8 A8/DS10 73” . . . . . . . . . . 1

HOSE, -8 A8/DS10 73” . . . . . . . . . . 1

HOSE, -8 A10/DS10 15” . . . . . . . . . 1

Item

No.

14

15

16

17

18

19

Part

No.

L68814

072580

137542

L63694

650490

654026

L63018

L63272

a Refer to page 174.

Hydraulics

Boom Extend Circuit

Description

Qty.

Req.

HOSE, -8 A10/DS10 15” . . . . . . . . . 1

ADAP., -10ORM -10JICM . . . . . . . . 2

ADAP., -10JICM 90º BLKHEAD . . . 2

EXTEND CYL. BRACKET . . . . . . . . 1

3/8”-16X1” BOLT . . . . . . . . . . . . . . . 2

3/8” LOCK WASHER. . . . . . . . . . . . 2

BUSHING (rod end). . . . . . . . . . . . . 1

PIN, CYLINDER (rod end). . . . . . . . 1

PRINTED IN U.S.A.

145

913317/DP0513

Hydraulics

Auxiliary Hydraulics Circuit

RS6-34 Telescopic Handler

1

2

3

14

17

11

18

14

19

13

23

24

22

21

16

13

20

12

11

6

Auxiliary Hydraulics

Valve Section

5

9

10

7

8

Left Bulkhead

4

913317/DP0513

146

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

01

02

03

04

L68351

L68239

L68239

137542

05 a

L68778

06 089099

07

08

09

L68815

L68816

L520004

10

11

12

L50877

L63715

L68039

13 b

L68376

14 b

L68376-

16 L71748

Description Qty.

Req.

TUBE, TILT/AUX . . . . . . . . . . . . . . . 2

HOSE, -8 H10/DS10 54” . . . . . . . . . 1

HOSE, -8 H10/DS10 54” . . . . . . . . . 1

ADAP., -10JICM BLKHEAD 90º . . . 2

KIT, VALVE SECTION . . . . . . . . . . . 1

ADAP., -10ORM -8JICM . . . . . . . . . 2

HOSE, -8 A10/DS8 17” . . . . . . . . . . 1

HOSE, -8 A10/DS8 14” . . . . . . . . . . 1

5/16”-18 NYLON INSERT NUT . . . 10

5/16”-18X2-1/4” STUD. . . . . . . . . . . 8

PLATE, TWIN CUSHION. . . . . . . . . 8

5/8” DOUBLE TUBE CUSHION . . 16

HOSE, -6 A8/H10 352” . . . . . . . . . . 1

HOSE, -6 A8/H10 352” . . . . . . . . . . 1

TOP PLATE, HOSE CLAMP.. . . . . . 1

18

19

20

21

22

23

24

Item

No.

17

a b

Part

No.

650784

654024

L63716

054626

L65273

103330

103331

L50056

L51035

Hydraulics

Auxiliary Hydraulics Circuit

Description

Qty.

Req.

5/16”-18X2-3/4” BOLT . . . . . . . . . . . 2

5/16” LOCK WASHER . . . . . . . . . . 2

11/16” DOUBLE TUBE CUSHION. . 4

ADAP., -8ORM -8JICM STR . . . . . . 2

COUPLER SET . . . . . . . . . . . . . . . . 1

CLAMP, BOOM HOSES . . . . . . . . AR

CLAMP, BOOM W/INSERT . . . . . AR

5/16” FLANGE LOCK NUT. . . . . . AR

5/16”X2” BOLT . . . . . . . . . . . . . . . AR

Kit includes a single V20 valve section and tie bolt kit for five-section valve.

Used with protective fabric sleeve part number L500784.

PRINTED IN U.S.A.

147

913317/DP0513

Hydraulic Components

Hydraulic Pump

RS6-34 Telescopic Handler

1

2

3

2

4

Late Style - Cast Iron Body

(Originally installed on machines with SN 21789 and up)

Item

No.

01

02

Part

No.

50380843

L46865

Description Qty.

Req.

HYDRAULIC PUMP, 47CC . . . . . . . 1

(Cast Iron Body)

GASKET . . . . . . . . . . . . . . . . . . . . . 1

03

02

04

Item

No.

Early Style - Aluminum Body

(Originally installed on machines with SN 21788 and before)

Part

No.

Description

103130

L46865

L500368

Qty.

Req.

HYDRAULIC PUMP . . . . . . . . . . . . 1

(Aluminum Body) . . . . . . . . . . . . . . . .

GASKET . . . . . . . . . . . . . . . . . . . . . 1

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

(Items included are not shown.)

Before ordering, verify the pump on the machine matches with the one in the illustration.

Before ordering, verify the pump on the machine matches with the one in the illustration.

913317/DP0513

148

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Joystick Relief - Flow Divider

4

2

1

6

5

PARKING

BRAKE

VALVE

00

3

7

8

Item

No.

00

01

02

03

04

Part

No.

102313

103017

L99927

L99925

105087

NSS

05 L99908

06 L99910

L99911

Description Qty.

Req.

FLOW DIVIDER (complete) . . . . . . .1

PILOTED SPOOL LOGIC ELEM.. . .1

RELIEF VALVE . . . . . . . . . . . . . . . .1

SEAL KIT . . . . . . . . . . . . . . . . . . . .1

DEBRIS SCREEN . . . . . . . . . . . . . .1

NUT, SOLENOID VALVE . . . . . . . . .1

(included with item 5)

12 VDC WEATHER PACK COIL . . .1

(includes item 4)

SOLENOID VALVE . . . . . . . . . . . . .1

SEAL KIT . . . . . . . . . . . . . . . . . . . .1

--

--

--

Item

No.

07

08

Part

No.

P471997

L62840

102313

Description

Qty.

Req.

TEST PORT . . . . . . . . . . . . . . . . . . .3

CAP, DUST COVER (not shown) . .3

MANIFOLD, FLOW DIVIDER . . . . .1

(includes items 1-7)

L50217

L50139

654002

-- ITEMS NOT SHOWN --

(Mounting Hardware)

1/4”-20X3-1/2” BOLT . . . . . . . . . . . .2

1/4” LOCK WASHER . . . . . . . . . . . .2

1/4” FLAT WASHER . . . . . . . . . . . .2

NOTE: Items included in seal kits are not shown.

PRINTED IN U.S.A.

149

913317/DP0513

Hydraulic Components

Main Hydraulic Valve

RS6-34 Telescopic Handler

00

3

9

10

3

4

8

1

3

4

5

‘B’ PORT

2

IN

OUT

3

6

17

12

7

4

4

LIFT

14

16

14 15

LEVEL

‘A’ PORT

3 4

BOOM

19

6

14

11

TILT

21

1

12

14

9

13

4

18

21

Auxiliary Hydraulics

Work Section

14

SEAL KITS

913317/DP0513

150

20

PRINTED IN U.S.A.

01

02

03

04

RS6-34 Telescopic Handler Hydraulic Components

Main Hydraulic Valve

Item

No.

00

Part

No.

L68694

05

06

07

08

09

10

11

12

13

L98891

L500954

L500134

L500132

L500130

L98895

L500952

L500953

L500956

L98896

L98897

L98898

L98899

L500955

L500957

L500959

Description Qty.

Req.

MAIN VALVE-V20 (complete) . . . . . 1

(does not include items 19 and 20)

STUD KIT (tie bolts and nuts) . . . . . 1

INLET COVER. . . . . . . . . . . . . . . . . 1

HRO ACTUATOR “B” END . . . . . . . 4

NO RELIEF-NO ANTI-CAV.PLUG . . 4

SEAL KIT . . . . . . . . . . . . . . . . . . . . 1

WORK SECTION 1 (Level) . . . . . . . 1

(includes items 3, 4, 14 & 15)

NO RELIEF - ANTI-CAV PLUG. . . . 1

WORK SECTION 2 (Lift) . . . . . . . . . 1

(includes items 3, 4, 6, 14 & 15)

WORK SECTION 3 (Boom Ext.) . . . 1

(includes items 3, 4, 6, 14 & 15)

RELIEF CARTRIDGE . . . . . . . . . . . 2

SERVICE KIT (less seals) . . . . . . . . 2

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 2

WORK SECTION 4 (Tilt) . . . . . . . . . 1

(includes items 3, 9, 14 & 15)

OUTLET COVER. . . . . . . . . . . . . . . 1

PLUG SAE-12 . . . . . . . . . . . . . . . . . 1

PLUG SAE 12 (SOCKET HEAD) . . 1

Item

No.

14

15

16

17

18

19

20

21

--

Part

No.

L500135

L500961

654022

L500129

L96580

L500958

L500127

L98887

L98895

L500960

L500300

Description

Qty.

Req.

HRO ACTUATOR “A” END . . . . . . . 4

SCREW . . . . . . . . . . . . . . . . . . . . 32

LOCK WASHER . . . . . . . . . . . . . . 32

RELIEF CARTRIDGE (RP51-A) . . . 1

RELIEF SEAL KIT . . . . . . . . . . . . . 1

PLUG WITH TEST PLUG . . . . . . . . 1

SEAL KITS FOR WORK SECTIONS

SECTION SEAL KIT . . . . . . . . . . 1ea

(used with items 5-7 & 10)

SPOOL SEAL KIT . . . . . . . . . . . . 1ea

(used with items 3 & 14)

WORK SECTION (Aux. Hyd.) . . . . . 1

STUD ASSEMBLY KIT (Aux. Hyd.) . 1

(used with item 20)

DUST BOOT. . . . . . . . . . . . . . . . . AR

L68778

-- ITEMS NOT SHOWN --

KIT, VALVE SECTION (AUX.) . . . . . 1

(includes all items shown on facing page in the “Auxiliary Hydraulics

Work Section” group and item 20)

PRINTED IN U.S.A.

151

913317/DP0513

Hydraulic Components

PWP Valve

RS6-34 Telescopic Handler

00

1

2

3

4

5

01

02

03

Item

No.

00

Part

No.

102321

NSS

L99908

L99909

L99911

Description Qty.

Req.

MANIFOLD, PWP JOYSTICK . . . . . 1

(complete assembly)

NUT, SOLENOID VALVE. . . . . . . . . 2

(included with item 3 and 4)

12 VDC WEATHER PACK COIL . . . 2

SOLENOID VALVE . . . . . . . . . . . . . 1

SEAL KIT . . . . . . . . . . . . . . . . . . . . 1

(Items included are not shown.)

Item

No.

04

Part

No.

L99910

L99911

05 NSS

Description

Qty.

Req.

SOLENOID VALVE . . . . . . . . . . . . . 1

SEAL KIT . . . . . . . . . . . . . . . . . . . . 1

(Items included are not shown)

MANIFOLD . . . . . . . . . . . . . . . . . . . 1

913317/DP0513

152

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Steer Select Valve

3

1

2

4

5

6

Item

No.

01

Part

No.

L69747

02

03

210018

NSS

04 107000

Description Qty.

Req.

STEER SELECT VALVE.. . . . . . . . . 1

(Includes items 1-5)

WEATHER PAK VALVE. . . . . . . . . . 1

SHCS #10-24 x 1-3/4" . . . . . . . . . . . 4

(included with item #1)

SEAL KIT . . . . . . . . . . . . . . . . . . . . 1

(consists of the o-rings shown)

Item

No.

05

06

00

Part

No.

NSS

50380338

Description

Qty.

Req.

MANIFOLD . . . . . . . . . . . . . . . . . . . 1

WIRE HARNESS, JUMPER . . . . . . 2

L68711

-- ITEMS NOT SHOWN --

WIRE HARNESS . . . . . . . . . . . . . . 2

(Connects wire leads to frame wiring.)

PRINTED IN U.S.A.

153

913317/DP0513

Hydraulic Components

Steer Motor

RS6-34 Telescopic Handler

1

L

LS

T

2

P

R

Item

No.

01

Part

No.

101882

Description Qty.

Req.

STEERING CONTROL UNIT . . . . . 1

Item

No.

02

Part

No.

L500968

Description

Qty.

Req.

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

(Items included are not shown.)

NOTE: Field service is limited to seals replacement.

913317/DP0513

154

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Brake Valve

00

1

2

3

4

5

6

Ref.

No.

00

Part

No.

L63363

01

02

NSS

NSS

L98534

Description Qty.

Req.

BRAKE VALVE ASY. (complete) . . . .

(machine requires two brake valves)

BAIL WIRE. . . . . . . . . . . . . . . . . . . . 1

COVER . . . . . . . . . . . . . . . . . . . . . . 1

DIAPHRAGM GASKET . . . . . . . . . 1

Ref.

No.

03

04

05

06

Part

No.

NSS

NSS

L98536

NSS

Description

Qty.

Req.

BODY

TUBE SEAT (not shown) . . . . . . . . . 1

RUBBER BOOT . . . . . . . . . . . . . . . 1

PUSH ROD . . . . . . . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

155

913317/DP0513

Hydraulic Components RS6-34 Telescopic Handler

Pilot Apply Manifold - Tri-Function (Option)

6

7

1

8

B

T

2

5

4

9

3

Item

No.

Part

No.

01 a

106898

02

03

04

05

06

L500745

L99911

244655

240202

106893

NSS

106892

Description Qty.

Req.

PILOT APPLY MANIFOLD . . . . . . . .

a

(includes all items except item 9)

PRESSURE CONTROL . . . . . . . . . 2

SEAL KIT . . . . . . . . . . . . . . . . . . . . 2

CARTRIDGE, 3-WAY/2-POSITION . 2

SEAL KIT (for one cartridge) . . . . AR

SCHS M5-.08X10MM . . . . . . . . . . . 4

COIL NUT (included with item 7). . . 1

COIL, 12VDC. . . . . . . . . . . . . . . . . . 1

08

09

a

Item

No.

07

Part

No.

L500746

Description

L99924

L99917

211161

Units equipped with Auxiliary Hydraulics use

(2) 106898 Pilot Apply Manifolds.

Qty.

Req.

VALVE, 2-WAY . . . . . . . . . . . . . . . . 1

(includes item 5)

SEAL KIT, 2-WAY VALVE . . . . . . . . 1

PLUG -4 NWD STYLE . . . . . . . . . . 1

WIRE HARNESS, TILT CONTROL . 1

913317/DP0513

156

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Radio Remote Manifold — (Option)

6

1

NOTE: Before ordering,

verify the manifold on the machine matches with the one in the illustration.

Late-Style

Early-Style

8

7

3

4

9

3

2

10

5

07

08

09

Item

No.

06

Part

No.

50380273

10

50220634

50220635

104736

50220631

50220632

50220633

NSS

Description Qty.

Req.

COMPLETE VALVE. . . . . . . . . . . . . 1

(includes all items shown and listed)

2/4 WAY SOLENOID VALVE . . . . . . 1

SEAL KIT FOR VALVE . . . . . . . . . . 1

12 VDC COIL (WEATHERPAK). . . . 1

PROPORTIONAL PRESS. VALVE . 4

SEAL KIT (one per valve) . . . . . . . . 4

SCREWS, M4-0.7x12mm . . . . . . . . 8

(not shown)

MANIFOLD . . . . . . . . . . . . . . . . . . . 1

03

04

05

Item

No.

01

Part

No.

103413

02 103508

103511

103510

103509

103512

NSS

--

--

Description

Qty.

Req.

RADIO REMOTE MANIFOLD . . . . . 1

(includes all items shown and listed)

2/4 WAY SOLENOID VALVE . . . . . . 1

SEAL KIT FOR VALVE . . . . . . . . . . 1

12 VDC COIL (DIN CONN.) . . . . . . 5

PROPORTIONAL PRESS. VALVE . 4

SEAL KIT FOR VALVE . . . . . . . . . AR

MANIFOLD . . . . . . . . . . . . . . . . . . . 1

103514

103513

-- ITEMS NOT SHOWN --

SHUTTLE VALVE . . . . . . . . . . . . . . 4

SEAL KIT FOR VALVE . . . . . . . . . AR

PRINTED IN U.S.A.

157

913317/DP0513

Hydraulic Components

Controller - Tilt/Frame Level

RS6-34 Telescopic Handler

1

2

00

3

7

4

5

6

8

9

10

913317/DP0513

158

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Controller - Tilt/Frame Level

Item

No.

00

01

02

03

04

05

Part

No.

103262

103122

103112

103113

102674

103114

Description Qty.

Req.

HYD. CONTROLLER (complete) . . 1

KNOB. . . . . . . . . . . . . . . . . . . . . . . . 1

LEVER ROD (as shown) . . . . . . . . . 1

BOOT. . . . . . . . . . . . . . . . . . . . . . . . 1

LOCK GATE . . . . . . . . . . . . . . . . . . 1

SELECTOR DISC . . . . . . . . . . . . . . 1

Item

No.

Part

No.

06

07

08

09

103115

103116

103403

103404

10 a

103117

Description

Qty.

Req.

PIVOT/ BALL JOINT . . . . . . . . . . . . 1

PLATE / BOOT MOUNT . . . . . . . . . 1

METERING CURVE (as shown) . . . 4

RETURN SPRING. . . . . . . . . . . . . . 4

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

a Items included in seal kit are not shown.

PRINTED IN U.S.A.

159

913317/DP0513

Hydraulic Components

Controller - Lift/Extend

RS6-34 Telescopic Handler

1

2

00

3

6

4

5

8

7

9

913317/DP0513

160

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Controller - Lift/Extend

Item

No.

00

01

02

03

04

05

06

Part

No.

103263

103122

103112

103113

103114

103115

103116

Description Qty.

Req.

HYD. CONTROLLER (complete) . . 1

KNOB. . . . . . . . . . . . . . . . . . . . . . . . 1

LEVER ROD (as shown) . . . . . . . . . 1

BOOT. . . . . . . . . . . . . . . . . . . . . . . . 1

SELECTOR DISC . . . . . . . . . . . . . . 1

PIVOT/ BALL JOINT . . . . . . . . . . . . 1

PLATE /BOOT MOUNT . . . . . . . . . . 1

Item

No.

Part

No.

07

08

103403

103404

09 a

103117

a

Description

Qty.

Req.

METERING CURVE (as shown) . . . 4

RETURN SPRING. . . . . . . . . . . . . . 4

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

Items included in seal kit are not shown.

PRINTED IN U.S.A.

161

913317/DP0513

Hydraulic Components

Controller - Tri-Function (Option)

RS6-34 Telescopic Handler

913317/DP0513

00

1

2

4

3

5

3

6

162

12

7

9

8

10

11

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Controller - Tri-Function (Option)

Item

No.

00

01

02

03

04

05

06

Part

No.

L71346

L500371

L62761

L500688

L500656

L500689

L500652

Description Qty.

Req.

JOYSTICK 4BUTTN/TRIGGER . . . 1

HANDLE W/4 BUTTONS . . . . . . . . 1

WIRE CONNECTOR . . . . . . . . . . . . 8

NUT M10 UNI . . . . . . . . . . . . . . . . . 2

RUBBER BOOT . . . . . . . . . . . . . . . 1

SELECTOR DISC . . . . . . . . . . . . . . 1

UNIVERSAL JOINT . . . . . . . . . . . . . 1

Item

No.

Part

No.

07

08

09

10

L500692

L500690

L500691

NSS

11 a L500653

12 104304

Description

Qty.

Req.

SPINDLE GUIDE ASSEMBLY. . . . . 4

HPV SPINDLE 10mm . . . . . . . . . . . 4

PILOT SPRING PACK C094 . . . . . . 4

BODY ASSEMBLY. . . . . . . . . . . . . . 1

SEAL REPAIR KIT . . . . . . . . . . . . . 1

BEZEL, JOYSTICK . . . . . . . . . . . . . 1

a Items included in the seal kit are not shown.

PRINTED IN U.S.A.

163

913317/DP0513

Hydraulic Components

Controller - Auxiliary Hydraulics (Option)

RS6-34 Telescopic Handler

(Tri-Function - Level Valve)

00

3

2

5

4

1

6

913317/DP0513

164

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

(Tri-Function - Level Valve) Controller - Auxiliary Hydraulics

Item

No.

00

01

02

03

Part

No.

103264

103077

103084

103078

04 103403

Description Qty.

Req.

VALVE ASSEMBLY (complete).. . . . 1

LEVER ROD (as shown) . . . . . . . . . 1

BOOT (included with item #3) . . . . . 1

CONTROL KIT. . . . . . . . . . . . . . . . . 1

(includes item #2 Boot)

METERING CURVE (as shown) . . . 2

Item

No.

Part

No.

05 103404

06 a

103083

a

Description

Qty.

Req.

RETURN SPRING. . . . . . . . . . . . . . 2

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

Items included in seal kit are not shown.

PRINTED IN U.S.A.

165

913317/DP0513

Hydraulic Components

Frame Level Cylinder

00

RS6-34 Telescopic Handler

Cylinder

Part Number

Stamped Here

7

6

8

5

3

4

9

External

Threads

1

2

10

12

913317/DP0513

166

PRINTED IN U.S.A.

00

01

02

03

04

05

06

RS6-34 Telescopic Handler Hydraulic Components

Frame Level Cylinder

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

L63015

L98503

L63016

L98547

L99857

L98507

L98550

FRAME LEVEL CYL. (complete). . . 1

ROD. . . . . . . . . . . . . . . . . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

HEAD GLAND CAP. . . . . . . . . . . . . 1

5/16”-18x1/4” SET SCREW. . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

07

08

09

10

11

12

L99405

L64367

NSS

L98509

L70495

L97889

L98506

1-1/4”-12 UNF LOCKNUT . . . . . . . . 1

BUSHING 2.0X2.25X2.0” . . . . . . . . 1

TUBE WELDMENT . . . . . . . . . . . . . 1

OIL LINE TUBE ASSEMBLY . . . . . . 1

COUNTER-BALANCE VALVE. . . . . 2

SEAL KIT (CBV) . . . . . . . . . . . . . . . 1

CYLINDER SEAL KIT . . . . . . . . . . . 1

(Items included are not shown.)

PRINTED IN U.S.A.

167

913317/DP0513

Hydraulic Components

Lift Cylinder

00

RS6-34 Telescopic Handler

913317/DP0513

1

External

Threads

2

4

3

7

5

6

Cylinder

Part Number

Stamped Here

9

10

8

168

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Lift Cylinder

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

00 L63199 LIFT CYLINDER (complete) . . . . . . 2

Note: Quantities shown are for one cylinder.

01 L98518 ROD WELDMENT . . . . . . . . . . . . . . 1

02

03

04

L98520

L99857

L98522

HEAD GLAND CAP. . . . . . . . . . . . . 1

5/16”-18X1/4” SET SCREW . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

05 L98523 PISTON . . . . . . . . . . . . . . . . . . . . . . 1

06

07

08

09

10

L99405

NSS

L98519

L64175

L97889

L98521

1-1/4”-12 UNF LOCKNUT . . . . . . . . 1

TUBE WELDMENT . . . . . . . . . . . . . 1

OIL LINE TUBE ASSEMBLY . . . . . . 1

(includes nuts and ferrules)

COUNTER-BALANCE VALVE. . . . . 1

SEAL KIT (CBV) . . . . . . . . . . . . . . . 1

CYLINDER SEAL KIT . . . . . . . . . . . 1

(Items included are not shown.)

PRINTED IN U.S.A.

169

913317/DP0513

Hydraulic Components

Slave Cylinder

RS6-34 Telescopic Handler

00

1

2

7

6

Cylinder

Part Number

Stamped Here

8

10

9

913317/DP0513

170

5

4

3

External

Threads

PRINTED IN U.S.A.

00

01

02

03

04

05

RS6-34 Telescopic Handler Hydraulic Components

Slave Cylinder

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

L63014

L98524

L63018

L99857

L98513

L98528

SLAVE CYLINDER (complete) . . . . 1

ROD WELDMENT . . . . . . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

5/16”-18X1/4” SET SCREW . . . . . . 1

HEAD GLAND CAP. . . . . . . . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

06

07

08

09

10

L98516

L500668

L68003

NSS

L98527

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

1-1/8”-12 UN LOCKNUT . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

TUBE WELDMENT . . . . . . . . . . . . . 1

CYLINDER SEAL KIT . . . . . . . . . . . 1

(Items included are not shown.)

PRINTED IN U.S.A.

171

913317/DP0513

Hydraulic Components

Tilt Cylinder

RS6-34 Telescopic Handler

00

1

2

7

6

8

913317/DP0513

9

10

11

Cylinder

Part Number

Stamped Here

5

4

3

External

Threads

12

172

PRINTED IN U.S.A.

Item

No.

00

01

02

03

04

05

06

07

RS6-34 Telescopic Handler Hydraulic Components

Tilt Cylinder

Part

No.

L63013

L98545

L63018

L99857

L98547

L99866

L98550

L99405

Description Qty.

Req.

TILT CYLINDER (complete) . . . . . . 1

ROD WELDMENT . . . . . . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

5/16”-18X1/4” SET SCREW . . . . . . 1

HEAD GLAND CAP. . . . . . . . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

1-1/4”-12 UN LOCKNUT . . . . . . . . . 1

Item

No.

08

09

10

11

12

Part

No.

NSS

L68003

L70495

L97889

L98548

L98551

Description

Qty.

Req.

TUBE WELDMENT . . . . . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

COUNTER-BALANCE VALVE. . . . . 1

SEAL KIT (CBV)

CYLINDER SEAL KIT . . . . . . . . . . . 1

(Items included are not shown.)

HYDRAULIC LINE ASSEMBLY. . . . 1

PRINTED IN U.S.A.

173

913317/DP0513

Hydraulic Components

Boom-Extend Cylinder

RS6-34 Telescopic Handler

00

7

6

8

9

10

Cylinder

Part Number

Stamped Here

12

11

1

2

5

4

3

External

Threads

913317/DP0513

174

PRINTED IN U.S.A.

00

01

02

03

04

05

06

07

RS6-34 Telescopic Handler Hydraulic Components

Boom-Extend Cylinder

Item

No.

Part

No.

Description Qty.

Req.

Item

No.

Part

No.

Description

Qty.

Req.

L63012

L98511

L63018

L99857

L98513

L98515

L98516

L500668

EXTEND CYLINDER (complete). . . 1

ROD WELDMENT . . . . . . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

5/16”-18X1/4” SET SCREW . . . . . . 1

HEAD GLAND CAP. . . . . . . . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

1-1/8”-12 UN LOCKNUT . . . . . . . . . 1

08

09

10

11

12

L68003

NSS

L48868A

L96838

L98517

L98558

BUSHING . . . . . . . . . . . . . . . . . . . . 1

TUBE WELDMENT . . . . . . . . . . . . . 1

COUNTER-BALANCE VALVE. . . . . 1

SEAL KIT (CBV)

HYDRAULIC LINE ASSY. . . . . . . . . 1

CYLINDER SEAL KIT . . . . . . . . . . . 1

(Items included are not shown.)

PRINTED IN U.S.A.

175

913317/DP0513

Hydraulic Components

Fork-Shift Cylinder

RS6-34 Telescopic Handler

00

1

2

3

4

5

6

Item

No.

00

01

02

03

Part

No.

L68337

L500763

L500762

L500761

Description Qty.

Req.

FORK-SHIFT CYL. (complete) . . . . 1

ROD WELDMENT . . . . . . . . . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

Item

No.

04

05

06

Part

No.

L500367

NSS

L500370

Description

Qty.

Req.

3/4”-16 UNF LOCKNUT. . . . . . . . . . 1

TUBE WELDMENT . . . . . . . . . . . . . 1

SEAL KIT . . . . . . . . . . . . . . . . . . . . . 1

(Items included are not shown.)

913317/DP0513

176

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Hydraulic Components

Rotating-Carriage Cylinder

00

1

9

8

2

7

6

5

3

4

12

10

11

Item

No.

00

01

02

03

04

05

06

07

Part

No.

L63594

L99168

L63593

121554

L99857

121554

L99174

L99175

Description Qty.

Req.

ROTATE CYLINDER (complete) . . . 1

ROD WELDMENT . . . . . . . . . . . . . . 1

BUSHING . . . . . . . . . . . . . . . . . . . . 1

HEAD GLAND CAP. . . . . . . . . . . . . 1

5/16”-18X1/4” SET SCREW . . . . . . 1

HEAD GLAND . . . . . . . . . . . . . . . . . 1

SPACER, ROD . . . . . . . . . . . . . . . . 1

SUPPORT WASHER. . . . . . . . . . . . 1

Item

No.

06

09

10

11

12

Part

No.

121552

L500367

L64175

L97889

NSS

L99170

Description

Qty.

Req.

PISTON . . . . . . . . . . . . . . . . . . . . . . 1

3/4”-16 UN LOCKNUT. . . . . . . . . . . 1

COUNTER-BALANCE VALVE. . . . . 2

SEAL KIT (CBV)

TUBE WELDMENT . . . . . . . . . . . . . 1

CYLINDER SEAL KIT . . . . . . . . . . . 1

(Items included are not shown.)

PRINTED IN U.S.A.

177

913317/DP0513

Attachments

Carriage Forks

RS6-34 Telescopic Handler

2

3

4

5

6

Forks with 2”

Shaft Bore

1

48” Long

7

8

42” Long

9

913317/DP0513

60” Long

178

72” Long

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

Part

No.

01 L71350

02 a

L61001

03 L61017

04

05

06

L66406

L400929

L47263

Description Qty.

Req.

FORK, 42”X4”X2” (8,400 lbs.) . . . . . 2

FORK, 48”X2”X2” (4,200 lbs.) . . . . . 4

FORK, 48”X4”X2” (8,400 lbs.) . . . . . 2

FORK, 48”X4”X2-1/4” (12,000 lbs.). 2

FORK, 48”X5”X1-3/4” (8,500 lbs.). . 2

FORK, 48”X5”X2” (10,500 lbs.) . . . . 2

Item

No.

07

08

09

a

Part

No.

Attachments

Carriage Forks

Description

Qty.

Req.

L47265

L60961

L68331

FORK, 60”X5”X2” (10,500 lbs.) . . . . 2

FORK, 60”X6”X2-1/4” (12,500 lbs.). 2

FORK, 72”X5”X2” (10,500 lbs.) . . . . 2

Requires 2 sets (4 forks).

NOTE: Ratings are based on two forks with the

load at 24” on center, except for item 2, for which four forks are required.

WARNING

When ordering forks, select forks with a rating capacity that meets or exceeds the lifting capacity of the machine; failure to use the correct forks could result in injury or death.

For more information contact dealer (or manufacturer).

PRINTED IN U.S.A.

179

913317/DP0513

Attachments

Standard Carriage

RS6-34 Telescopic Handler

1

2

3

4

5

913317/DP0513

180

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

Part

No.

L99192

L99193

02

L63319

L63320

Description Qty.

Req.

CARRIAGE, WELDMENT . . . . . . . . 1

48” Carriage

66” Carriage

FORK SHAFT BAR . . . . . . . . . . . . . 1

48” Carriage (50-1/2”)

66” Carriage (68-1/2”)

Item

No.

03

04

05

Part

No.

L400425

L520005

650493

Attachments

Standard Carriage

Description

Qty.

Req.

WASHER, FORK SHAFT . . . . . . . . 2

3/8”-16 NYLON INSERT NUT . . . . . 2

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 2

PRINTED IN U.S.A.

181

913317/DP0513

Attachments

Fork-Shift Carriage

RS6-34 Telescopic Handler

17

15

19

20

18

16

15

13

2

11 9

12

10

9

8

1

5

4

6

7

3

2

913317/DP0513

182

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

07

08

09

Part

No.

L500215

L50519

L400425

L50333

L66919

L66931

650500

L66921

L66948

L63715

Description Qty.

Req.

FORK SHIFT CARR., WLDMNT . . . 1

3/4”-10 NYLON INSERT NUT . . . . . 3

FORK SHAFT WASHER . . . . . . . . . 1

3/4”-10X3” BOLT . . . . . . . . . . . . . . 1

FORK SHAFT, 50” . . . . . . . . . . . . . . 1

FORK SLIDE PLATE . . . . . . . . . . . . 2

3/4”-10X1-1/2” BOLT . . . . . . . . . . . . 1

FORK SLIDE COUPLER. . . . . . . . . 1

Used with 4” wide forks

Used with 5” wide forks

TWIN CUSHION TOP PLATE . . . . . 2

Item

No.

15

16

17

18

19

10

11

12

13

20

Part

No.

L50242

L63716

L520004

L65273

L66918

L68337

L50562

L63143

L66950

L66949

Attachments

Fork-Shift Carriage

Description

Qty.

Req.

5/16”-18X2-1/4” BOLT . . . . . . . . . . . 2

TWIN HOSE CUSHION. . . . . . . . . . 1

5/16”-18 NYLON INSERT NUT . . . . 2

QUICK COUPLER SET. . . . . . . . . . 1

CYLINDER MOUNT . . . . . . . . . . . . 2

FORK SHIFT CYLINDER . . . . . . . . 1

3/4”-10X4” BOLT . . . . . . . . . . . . . . . 2

ADAP -8ORM -6JICM W/.06 ORF . 2

HOSE -6 A6/A6 59” . . . . . . . . . . . . . 1

HOSE -6 A6/A6 56” . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

183

913317/DP0513

Attachments

Rotating Carriage

RS6-34 Telescopic Handler

19

20

1

4

3

5

10

11

12

18

21

13

10

11

17

16

12

9

13

15

14

8

7

2

3

4

6

5

913317/DP0513

184

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

03

04

05

06

07

08

09

10

Item

No.

01

Part

No.

L99225

L99224

02

L63319

L63320

650493

L400425

L520005

L50205

L61287

651625

654026

L61709

L65273

Description Qty.

Req.

ROTATE CARRIAGE, WELDMNT . 1

48” Carriage

66” Carriage

FORK SHAFT BAR . . . . . . . . . . . . . 1

48” Carriage (50-1/2” long)

66” Carriage (68-1/2” long)

3/8”-16X2-3/4” BOLT . . . . . . . . . . . . 2

RETAINER. . . . . . . . . . . . . . . . . . . . 2

3/8”-16 NYLON INSERT NUT . . . . . 2

2”-12 CASTELLATED NUT . . . . . . . 1

WASHER (not shown) . . . . . . . . . . 1

3/8”-16X1-1/4” BOLT” . . . . . . . . . . . 6

3/8” LOCK WASHER. . . . . . . . . . . . 6

SLIDE PAD 3”X4” . . . . . . . . . . . . . . 3

QUICK COUPLER SET. . . . . . . . . . 1

(includes both couplers)

Item

No.

11

Part

No.

L63143

12 L63344

13

14

L51968

L520005

15 a

L63968

16 650493

17 L63594

18 a

L63969

650650

L520019

19

20

21

NSS

L63952

L64367

Attachments

Rotating Carriage

Description

Qty.

Req.

ADAP., -8ORM -6JICM STR.. . . . . . 2

(with orifice)

HOSE, -6 A8/A6 20” . . . . . . . . . . . . 2

ADAP., -6ORM -6JICM 90º . . . . . . . 2

3/8”-16 NYLON INSERT NUT . . . . 1

BASE END PIVOT PIN . . . . . . . . . . 1

3/8”-16X2-3/4” BOLT . . . . . . . . . . AR

ROTATE CYLINDER . . . . . . . . . . . . 1

ROD END PIVOT PIN . . . . . . . . . . . 1

1/2”-13X3-1/2” BOLT . . . . . . . . . . . 1

1/2”-13 NYLON INSERT NUT . . . . 1

ROTATE PIN (welded to #20). . . . . 1

ROTATE, PLATE (incIudes #19) . . 1

BUSHING (not shown) . . . . . . . . . . 1

PRINTED IN U.S.A.

185

913317/DP0513

Attachments

Truss Booms

RS6-34 Telescopic Handler

25

26

24

8’ Truss Boom

1

2

5’ Truss Boom

23

22

21

913317/DP0513

19 18 17

16

20

7

6

Hydraulic Winch

With Brake

15

3

9

5

4

10

186

9

27

14

11

13

12

PRINTED IN U.S.A.

15

16

17

18

19

20 b

06

07

09

10

11 a

12

13

14

21

Item

No.

01

02

03

04

05

Part

No.

L99237

104835

L64294

114742

650706

L520003

054626

L65273

054816

L82358

100963

650569

L520019

089099

L400398

650733

100076

L520004

L65338

L66946

650492

RS6-34 Telescopic Handler

Description Qty.

Req.

8’ TRUSS BOOM WELDMENT . . . . 1

5’ TRUSS BOOM WELDMENT . . . . 1

HOSE -8 A8/A8 53” . . . . . . . . . . . . . 2

ADAP -8ORM -8JICM RUN TEE. . . 1

1/4-20”X2” BOLT . . . . . . . . . . . . . . . 2

1/4”-20 NYLON INSERT NUT . . . . 2

ADAP -8ORM -8JICM STR . . . . . . . 2

QUICK COUPLER SET. . . . . . . . . . 1

ADAP -8ORM -8JICM 90º . . . . . . . . 2

RELIEF VALVE . . . . . . . . . . . . . . . . 1

HYDRAULIC WINCH. . . . . . . . . . . . 1

1/2”-13X1-3/4” GR 8 BOLT . . . . . . . 6

1/2-13 NYLON INSERT NUT . . . . . 6

ADAP -10ORM -8JICM . . . . . . . . . . 2

HOSE -6 A8/A8 18.5” . . . . . . . . . . . 2

5/16”X2-1/2” BOLT . . . . . . . . . . . . . 2

PIN, TRUSS WINCH . . . . . . . . . . . . 1

5/16”-18 NYLON INSERT NUT . . . . 2

WINCH SHEAVE . . . . . . . . . . . . . . . 1

3/8”X60’ WINCH CABLE . . . . . . . . . 1

(Includes hook and swivel)

3/8”X2-1/2” BOLT . . . . . . . . . . . . . . 2

b c

Item

No.

22

23

24

25

26

27 c

00

a

Part

No.

Attachments

Truss Booms

Description

Used with 5’ truss booms after attachment serial number 11182. The winch on 5’ truss booms before attachment serial number 11183 have been discontinued; you must purchase a boom and a winch.

Used with 5’ truss booms with winch.

Not used on some attachments.

Qty.

Req.

654026

L60451

L61411

L50380

654030

088442

3/8” LOCK WASHER. . . . . . . . . . . . 2

WINCH BALL. . . . . . . . . . . . . . . . . . 1

PINTLE HOOK . . . . . . . . . . . . . . . . 1

1/2”-20X1-1/4” GR 8 BOLT . . . . . . . 4

1/2” LOCK WASHER. . . . . . . . . . . . 4

ADAP -8JICFS -8JICM 90º . . . . . . . 2

L500222

-- ITEMS NOT SHOWN --

ADAPTER PLATE. . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

187

913317/DP0513

Attachments

180º Swing Platform

RS6-34 Telescopic Handler

9

1

2

3

4

6

5

7

8

10

11

12

1

15

13

913317/DP0513

188

14

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

06

07

08

09

10

01

02

03

04

05

11

12

Part

No.

104478

104477

104476

104471

104469

104475

104474

104468

104472

103909

103906

103908

Description Qty.

Req.

VALVE ASSEMBLY . . . . . . . . . . . . . 1

PUMP ASSEMBLY . . . . . . . . . . . . . 1

HARDWARE KIT (pivot) . . . . . . . . . 1

HUB ASSEMBLY . . . . . . . . . . . . . . . 2

SHAFT AND KEY ASSEMBLY . . . . 1

THRUST PLATE . . . . . . . . . . . . . . . 2

BACK HALF (attachment) . . . . . . . . 1

ACTUATOR . . . . . . . . . . . . . . . . . . . 1

FRONT HALF . . . . . . . . . . . . . . . . . 1

BACK SIDE . . . . . . . . . . . . . . . . . . . 1

RIGHT DOOR . . . . . . . . . . . . . . . . . 1

FRONT SIDE . . . . . . . . . . . . . . . . . . 1

00

00

00

00

Item

No.

13

14

15

Part

No.

Attachments

180º Swing Platform

Description

Qty.

Req.

103907

104467

100883

LEFT DOOR . . . . . . . . . . . . . . . . . . 1

BASE . . . . . . . . . . . . . . . . . . . . . . . . 1

DECAL, PLATFORM RULES . . . . . 2

104470

103911

103910

101149

-- ITEMS NOT SHOWN --

HOSE KIT . . . . . . . . . . . . . . . . . . . . 1

PIN AND CHAIN KIT . . . . . . . . . . . . 1

HARDWARE KIT (platform bolts) . . 1

DECAL, FALL HAZARD . . . . . . . . . 2

PRINTED IN U.S.A.

189

913317/DP0513

Attachments

Work Platform - Early Style

RIGHT

2

4

RS6-34 Telescopic Handler

6

5

3

LEFT

1

Item

No.

01

02

03

04

05

06

Part

No.

103905

105603

105604

105605

105606

100883

Description Qty.

Req.

BASE . . . . . . . . . . . . . . . . . . . . . . . . 1

RIGHT DOOR . . . . . . . . . . . . . . . . . 1

LEFT DOOR . . . . . . . . . . . . . . . . . . 1

FRONT SIDE . . . . . . . . . . . . . . . . . . 1

BACK SIDE . . . . . . . . . . . . . . . . . . . 1

DECAL, PLATFORM RULES . . . . . 2

Item

No.

00

00

00

Part

No.

Description

Qty.

Req.

103911

101149

103910

-- ITEMS NOT SHOWN --

PIN AND CHAIN KIT . . . . . . . . . . . . 1

DECAL, FALL HAZARD . . . . . . . . . 2

HARDWARE KIT . . . . . . . . . . . . . . . 1

913317/DP0513

190

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Attachments

Work Platform - Later Style

4

LEFT

5

3

9

6

2

9

1

7

8

8

7

10

11

12

RIGHT

Item

No.

01

02

03

04

05

06

07

08

09

Part

No.

103905

103906

103907

103908

103909

100883

105845

076099

103911

Description Qty.

Req.

BASE (platform). . . . . . . . . . . . . . . . 1

PANEL, RIGHT DOOR . . . . . . . . . . 1

PANEL, LEFT DOOR . . . . . . . . . . . 1

PANEL, FRONT. . . . . . . . . . . . . . . . 1

PANEL, REAR . . . . . . . . . . . . . . . . . 1

DECAL, PLATFORM RULES . . . . . 2

PIN, FORK SECURE. . . . . . . . . . . . 2

(secures platform to forks)

HAIRPIN CLIP (9/64”) . . . . . . . . . . . 2

PIN, DOOR SAFETY. . . . . . . . . . . . 2

Item

No.

10

11

Part

No.

103910

210917

12

13

14

106917

101149

106927

13

14

Description

Qty.

Req.

HARDWARE KIT . . . . . . . . . . . . . . . 1

(includes six bolts and nuts)

PIN, GATE RETAINER . . . . . . . . . . 2

(secures doors to platform when front panel is removed)

PIN, HAIRPIN COTTER (1/8”) . . . . 2

DECAL, FALL HAZARD . . . . . . . . . 2

DECAL, DOOR SAFETY PIN . . . . . 2

PRINTED IN U.S.A.

191

913317/DP0513

Attachments

Bucket

1

RS6-34 Telescopic Handler

Item

No.

01

Part

No.

L500373

L68831

Description Qty.

Req.

1.3 CU. YD. BUCKET WELDMNT . 1

CUTTING EDGE 98” (weld on) . . . . 1

913317/DP0513

192

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Notes

PRINTED IN U.S.A.

193

913317/DP0513

Decals RS6-34 Telescopic Handler

General Information and Application Instructions

GENERAL INFORMATION

CAUTION

ALWAYS follow the safety precautions on decals. Replace decals if they are damaged, or if the unit is repainted. If repainting, be sure that all applicable decals are affixed in their proper locations.

NEW DECAL APPLICATION

Before applying the new decals, surfaces must be free from dirt, dust, grease and other foreign material. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth-out decal surface. To apply a die-cut decal, first remove the backing paper. Then, properly orient and position the decal onto the clean mounting surface. After the decal is firmly applied and smoothly pressed down, remove the front covering paper.

Decal location information is provided to assist in the proper selection and application of new decals, in the event original decals become damaged or the machine is repainted.

For correct replacement of decals, compare the location illustrations to your machine before starting to refinish the unit. Check off each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustration for replacement locations.

If there is a decal on a part that is to be replaced, be sure that a new decal is applied to the replaced part.

Paint Finish

Use this list to order paint for refinishing:

167788

167789

167754

167755

One Gallon Yellow

6 (12 oz. Spray Cans) Yellow

One Gallon Gun-Metal Gray

6 (12 oz. Spray Cans) Gun-Metal Gray

104916

104917

Decal Kits

RS6-34 Telescopic Handler w/o PWP

RS6-34 Telescopic Handler w/ PWP

L65927

L65348

L66042

Boom Attachment Decals

WARNING - PINCH POINT

WARNING - WINCH

WARNING - TRUSS BOOM TILT

913317/DP0513

194

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Decals

Frame and Boom

3

2

7

6

11

2

1

5

10

2

4

9

8

Item

No.

01

02

03

04

05

06

Part

No.

L70305

L65927

184069

137632

L65932

102026

Description Qty.

Req.

DANGER - HANDS OUT . . . . . . . AR

WARNING - PINCH POINT . . . . . AR

GEHL, 6-3/4” . . . . . . . . . . . . . . . . AR

HYDRAULIC OIL FILL . . . . . . . . . AR

WARNING - NO RIDERS . . . . . . . AR

GEHL, 2”. . . . . . . . . . . . . . . . . . . . AR

Item

No.

07

Part

No.

L65928

08

09

10

11

L66613

50301416

104872

L65942

Description

Qty.

Req.

DANGER - PERSONAL INJURY . AR

(units without PWP)

DYNATTACH UNLOCKED . . . . . . AR

DIESEL FUEL. . . . . . . . . . . . . . . . AR

RS6-34, RIGHT HAND . . . . . . . . . AR

HOT SURFACE . . . . . . . . . . . . . . AR

PRINTED IN U.S.A.

195

913317/DP0513

Decals

Frame and Boom

RS6-34 Telescopic Handler

9

8

9

6

2

2

5

2

18

11

16

12

13

14

10

7

4

17

3

1

2

913317/DP0513

196

PRINTED IN U.S.A.

RS6-34 Telescopic Handler

Item

No.

01

02

03

04

05

06

07

08

09

Part

No.

L70305

L65927

L65933

102027

L65937

184069

056859

L62583

L67718

L67719

L67720

L67721

L67722

L67723

Description Qty.

Req.

DANGER - HANDS OUT . . . . . . . AR

WARNING - PINCH POINT . . . . . AR

WARNING - JUMP START. . . . . . AR

GEHL, 5”. . . . . . . . . . . . . . . . . . . . AR

DYNATTACH DIAGRAM . . . . . . . AR

GEHL, 6-3/4” . . . . . . . . . . . . . . . . AR

ANTI-FREEZE . . . . . . . . . . . . . . . AR

HALF ZONE MARKER . . . . . . . . . . 5

NO. “0” EXTENSION MARKER . . . 1

NO. “1” EXTENSION MARKER . . . 1

NO. “2” EXTENSION MARKER . . . 1

NO. “3” EXTENSION MARKER . . . 1

NO. “4” EXTENSION MARKER . . . 1

NO. “5” EXTENSION MARKER . . . 1

Item

No.

10

11

12

13

14

Part

No.

072798

L65932

L63474

100359

L65928

16

17

18

103229

104871

184043

Decals

Frame and Boom

Description

Qty.

Req.

COOLANT UNDER PRESSURE. . . 1

WARNING - NO RIDERS . . . . . . . AR

BRAKE FLUID . . . . . . . . . . . . . . . AR

OPERATOR MANUAL WARNING. . 1

DANGER - PERSONAL INJURY . AR

(units without PWP)

LUBE CHART . . . . . . . . . . . . . . . . . 1

RS6-34 LEFT HAND . . . . . . . . . . . . 1

GEHL, 3.75". . . . . . . . . . . . . . . . . . . 1

PRINTED IN U.S.A.

197

913317/DP0513

Decals

Cab

1

3

12

6

7

8

9

10

RS6-34 Telescopic Handler

5

7

4

11

7

13

14

Dual Hydraulic Controllers (Standard)

Tri-function Hydraulic Controllers (Option)

02

03

04

05

06

Item

No.

01

Part

No.

L70306

L65930

L65926

L68295

140516

101506

07 104875

104876

104877

104878

104879

104880

DECAL LOCATIONS - OPERATOR STATION

Description Qty.

Req.

WARNING - TILT HAZARD . . . . . . . 1

/GENERAL OPERATOR

WARNING - MACHINE LEVEL . . . . 1

WARNING - CARRY LOAD LOW . . 1

F-N-R SHIFT . . . . . . . . . . . . . . . . . . 1

MADE IN U.S.A. . . . . . . . . . . . . . . . 1

WARNING - PARK BRAKE . . . . . . . 1

/SEAT BELT

-- LOAD CHARTS--

STANDARD CARRIAGE . . . . . . . . . 1

ROTATING CARRIAGE . . . . . . . . . 1

BUCKET LOAD CHART . . . . . . . . . 1

TRUSS BOOM LOAD CHART . . . . 1

WINCH LOAD CHART . . . . . . . . . . 1

PWP LOAD CHART . . . . . . . . . . . . 1

Item

No.

08

09

10

11

12

13

14

00

Part

No.

L63632

L63631

102718

102717

L70307

Description

Qty.

Req.

ATTACHMENT TILT/FRAME LVL . . 1

BOOM CONTROL . . . . . . . . . . . . . . 1

AUX. HYD. CONTROL (optional) . . 1

IGNITION/START/HORN. . . . . . . . . 1

DANGER-HIGH VOLTAGE . . . . . . . 1

/MOVING PARTS

-- OPTIONAL TRI-FUNCTION CONTROLLER --

104215 JOYSTICK CONTROL . . . . . . . . . . 1

L63311

L71378

SWAY CONTROL . . . . . . . . . . . . . . 1

VALVE ADJUSTMENT. . . . . . . . . . . 1

(not shown - attaches to pilot valve)

913317/DP0513

198

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Decals

PWP Equipped Units

5

1

6

2

3

1

4

Item

No.

01

02

Part

No.

L71554

L71555

03 L71700

DECAL LOCATIONS - PWP EQUIPPED UNITS

Description Qty.

Req.

WARNING - PERSONNEL LIFT. . AR

WARNING - WORK PLATFORM . AR

/RULES

PERSONNEL LIFT SAFETY . . . . AR

/RULES

Item

No.

04

05

06

Part

No.

104880

102969

103028

Description

Qty.

Req.

PWP LOAD CHART . . . . . . . . . . . AR

PWP SWITCH . . . . . . . . . . . . . . . AR

PWP SYSTEM . . . . . . . . . . . . . . . AR

PRINTED IN U.S.A.

199

913317/DP0513

Numerical Index RS6-34 Telescopic Handler

Page Item

No.

No.

15

11

198

29

39

189

190

191

17

105

196

189

190

191

187

107

100

23

187

39

100

101

100

17

17

196

17

196

191

100

100

100

101

100

100

101

47

119

121

123

125

49

195

196

47

5

127

21

31

103

154

21

11

15

9

15

17

22

24

06

05

04

00

00

13

04

01

13

15

06

06

11

08

07

10

17

10

21

21

23

19

19

07

15

10

08

09

24

14

14

22

10

10

11

07

13

09

13

18

06

04

10

04

13

10

01

01

01

09

11

19

13

20

34

Part

No.

101149

101149

101149

101278

101320

101436

101495

101506

101667

101712

100011

100012

100071

100076

100102

100359

100883

100883

100883

100963

054626

054994

054994

055005

055064

055064

056859

072340

072798

076099

076143

079026

079026

088442

089069

089070

101926

102026

102027

102063

102173

102262

102313

102313

102313

102313

102313

101717

101719

101727

101792

101877

101877

101879

101882

101882

101882

913317/DP0513

200

Part

No.

102831

102831

102831

102836

102836

102836

102837

102840

102840

102843

102769

102778

102780

102780

102781

102783

102785

102831

102831

102831

102649

102668

102668

102674

102680

102681

102692

102705

102711

102712

102717

102718

102722

102727

102728

102741

102886

102893

102901

102907

102913

102925

102926

102928

102944

102945

102948

102843

102861

102861

102863

102863

102874

102880

102881

102882

102882

Part

No.

Page Item

No.

No.

102617

102618

102619

102620

102621

102622

102623

102624

102625

102626

102627

102628

102632

102633

102634

102635

102636

102637

102647

102576

102576

102576

102576

102583

102587

102587

102601

102614

102615

102321

102321

102408

102529

102530

102534

102572

102573

102575

102575

102313

102313

102313

129

131

133

102313

102313

102313

102313

135

137

149

149

102313 100

102313 101

102313 101

102321

102321

102321

123

125

127

102321

102321

102321

102321

102321

129

131

133

135

137

77

85

85

85

85

80

81

85

89

85

27

39

80

80

85

152

41

40

27

27

82

82

82

39

82

82

82

82

82

82

82

82

82

82

82

82

82

82

82

07

20

37

04

06

08

08

09

24

21

15

00

03

07

08

00

02

01

08

05

14

14

14

14

14

15

15

10

14

09

15

12

12

12

12

00

08

15

24

24

24

00

12

13

19

20

21

06

07

09

10

11

01

02

03

04

05

Page Item

No.

No.

101

107

105

107

113

133

135

137

100

101

21

27

113

115

131

7

7

29

29

29

7

7

198

9

29

7

15

13

13

198

21

107

77

159

15

15

11

45

15

19

19

15

85

15

19

11

15

15

7

7

17

7

115

33

45

87

91

12

21

02

12

14

10

10

10

12

12

05

04

10

10

10

29

28

01

07

04

10

20

32

31

03

06

02

03

10

11

10

23

22

04

03

04

00

15

03

04

21

22

12

01

07

20

01

13

23

17

07

14

15

00

22

22

Page Item

No.

No.

19

165

165

165

165

13

13

13

199

9

9

7

9

7

9

9

7

15

149

7

73

43

199

49

11

73

73

73

73

73

57

73

73

73

73

73

161

159

161

159

161

17

39

17

17

159

159

42

43

17

17

17

49

7

17

17

17

11

01

03

06

02

08

09

01

06

19

11

19

09

20

10

00

01

12

11

10

12

00

05

19

05

09

06

07

10

10

01

02

03

08

04

02

03

03

05

04

32

00

00

33

02

06

00

29

30

31

07

01

23

27

28

Part

No.

103025

103026

103027

103028

103029

103033

103077

103078

103083

103084

103014

103017

103019

103021

103022

103022

103023

103023

103024

103024

102949

102950

102951

102952

102952

102953

102954

102954

102955

102956

102957

102959

102968

102969

102974

103013

103100

103101

103104

103104

103112

103112

103113

103113

103114

103114

103115

103088

103089

103099

103099

103099

103099

103099

103100

103100

103100

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Numerical Index

Page Item

No.

No.

123

125

127

129

161

129

159

111

119

121

119

121

123

125

127

17

17

17

196

111

11

39

23

37

39

161

101

101

148

11

161

159

161

159

161

159

115

119

123

125

127

165

25

17

37

113

129

129

131

133

135

137

111

113

115

121

125

02

02

02

02

00

01

00

02

02

02

01

01

01

01

01

24

25

26

16

03

00

13

13

05

01

04

04

01

05

07

06

10

09

01

09

06

06

12

05

00

07

00

18

09

09

05

02

02

02

02

01

02

02

12

16

Part

No.

103262

103262

103263

103263

103263

103263

103263

103263

103263

103263

103221

103221

103221

103229

103262

103262

103262

103262

103262

103262

103115

103116

103116

103117

103117

103122

103122

103130

103130

103130

103179

103180

103192

103195

103199

103199

103264

103264

103265

103270

103315

103315

103315

103315

103315

103315

103315

103264

103264

103264

103264

103264

103264

103264

103264

103264

103264

PRINTED IN U.S.A.

201

Part

No.

103480

103482

103505

103505

103505

103505

103505

103508

103509

103510

103413

103413

103414

103424

103425

103475

103475

103476

103476

103479

103392

103393

103394

103395

103396

103398

103399

103401

103401

103402

103403

103403

103403

103404

103404

103404

103905

103906

103906

103907

103907

103908

103908

103909

103909

103910

103910

103511

103512

103513

103514

103582

103626

103675

103708

103856

103905

Page Item

No.

No.

147

93

97

147

93

31

103

107

105

107

129

131

133

135

137

123

125

125

125

127

115

119

121

123

123

107

100

101

101

113

131

133

135

137

31

100

101

101

37

7

82

82

135

137

31

37

7

101

127

129

131

133

97

93

21

100

101

21

42

05

22

43

27

07

11

14

05

11

09

09

09

09

11

08

11

17

08

12

08

11

05

08

06

18

18

18

12

07

07

07

07

26

17

17

17

22

26

16

17

15

17

29

21

27

16

12

13

15

17

06

37

01

16

16

Part

No.

103318

103319

103319

103320

103320

103330

103330

103330

103331

103331

103318

103318

103318

103318

103318

103318

103318

103318

103318

103318

103315

103315

103315

103315

103315

103317

103317

103317

103317

103318

103318

103318

103318

103318

103318

103318

103318

103318

103331

103333

103359

103368

103368

103368

103368

103368

103368

103368

103368

103368

103368

103370

103370

103371

103371

103390

103391

Page Item

No.

No.

135

137

157

157

157

43

43

117

127

129

42

43

42

43

43

117

157

43

43

117

161

165

159

161

165

85

85

89

87

159

82

85

85

85

85

85

189

191

189

191

189

191

189

191

189

191

190

45

7

25

37

190

157

157

157

157

25

18

20

02

04

03

03

02

03

14

16

07

05

06

06

01

06

01

00

00

07

07

04

09

08

05

47

49

50

11

08

18

07

03

16

28

25

12

04

10

05

00

01

11

02

13

03

00

06

11

11

07

01

02

04

04

Page Item

No.

No.

85

89

85

89

82

189

85

89

80

89

189

189

189

189

189

189

189

189

189

189

163

25

53

105

105

41

41

25

198

37

191

189

190

191

31

43

198

198

198

198

198

187

9

196

195

198

199

82

83

43

157

47

82

85

89

85

89

44

34

36

28

26

01

48

39

04

44

09

07

06

03

02

14

08

05

00

04

12

02

01

10

12

00

03

06

13

08

10

00

00

09

11

09

07

07

07

07

07

02

15

17

10

07

04

22

11

04

08

06

25

45

35

46

36

Part

No.

104478

104504

104504

104518

104546

104600

104600

104604

104604

104607

104467

104468

104469

104470

104471

104472

104474

104475

104476

104477

103910

103911

103911

103911

103991

103994

104064

104078

104214

104215

104222

104304

104304

104425

104428

104428

104835

104846

104871

104872

104875

104876

104877

104878

104879

104880

104880

104621

104641

104641

104642

104642

104655

104655

104675

104736

104808

913317/DP0513

Numerical Index RS6-34 Telescopic Handler

Page Item

No.

No.

17

17

73

156

156

191

45

77

85

89

190

190

17

17

7

115

133

137

190

190

133

135

137

17

25

91

45

113

115

131

149

51

21

87

87

91

19

19

19

33

49

153

101

177

177

31

33

137

156

191

191

43

113

115

131

133

135

37

36

11

06

04

07

17

04

18

22

04

05

00

20

00

18

16

16

02

03

00

00

00

00

00

14

20

00

00

00

03

08

07

10

14

10

06

07

13

06

01

04

09

06

03

31

07

13

01

12

14

05

15

15

13

13

13

Part

No.

105845

105850

105857

105958

105958

105959

105960

106259

106892

106893

105593

105593

105593

105603

105604

105605

105606

105620

105835

105835

105087

105214

105236

105266

105266

105266

105266

105281

105580

105580

105580

105580

105580

105580

105580

105580

107000

114742

121552

121554

122778

136304

136305

136310

136383

136383

136443

106898

106898

106898

106898

106898

106898

106898

106917

106927

106965

913317/DP0513

Part

No.

210309

210321

210329

210346

210347

210356

210358

210369

210394

210403

167789

183629

184069

184069

187841

193709

202583

210018

210126

210170

136443

136686

137498

137498

137501

137501

137503

137542

137632

137659

137784

139170

140516

167754

167755

167788

210572

210738

210772

210777

210867

210909

210909

210917

211040

211161

240202

210404

210405

210447

210452

210477

210484

210493

210569

210569

210572

Page Item

No.

No.

53

37

37

37

23

47

47

47

47

47

100

27

153

45

23

194

49

195

196

19

11

198

194

194

194

19

109

195

49

101

49

49

49

5

49

5

17

53

191

5

156

77

33

33

43

43

156

45

51

139

77

139

23

23

139

37

47

25

15

16

17

14

09

15

19

23

02

11

25

02

00

01

00

13

03

06

05

16

05

00

00

00

16

01

04

02

07

10

15

04

01

05

02

00

00

11

05

09

14

01

02

04

03

03

04

01

12

11

13

16

15

10

06

05

202

Part

No.

Page Item

No.

No.

244655 156

272648 17

420-19671 47

420-35602 17

420-35602 53

50220061 43

50220264 78

50220264 79

50220265 78

50220265 79

50220266 78

50220266 79

50220267 78

50220267 79

50220626 42

50220627 42

50220628 42

50220629 42

50220630 42

50220631 157

50220632 157

50220633 157

50220634 157

50220635 157

50301416 195

50380273 157

50380274 42

50380338 153

50380450 31

50380516 31

50380576 11

50380577 11

50380579 11

50380583 11

50380585 11

50380682 11

650489

650495

650495

651148

651148

651151

651543

655001

655001

655006

L10465

50380683 11

50380751 17

50380825 42

50380826 42

50380836 42

50380843 100

50380843 148

50380847 19

650426 42

650484 37

29

77

93

97

27

31

100

101

100

101

27

01

03

04

02

06

02

18

02

09

07

07

09

06

03

01

08

09

09

03

02

02

05

04

02

02

01

01

03

03

20

13

00

00

07

02

15

10

16

12

04

06

06

05

05

10

04

01

10

11

12

20

12

09

Page Item

No.

No.

9

7

13

15

7

27

175

31

11

11

101

101

148

179

179

31

33

45

27

100

17

33

53

100

101

47

45

21

35

37

49

187

181

183

185

179

151

151

151

151

19

7

11

9

151

151

183

9

15

13

15

9

9

9

9

7

9

16

16

04

08

17

07

10

22

15

17

03

03

02

06

07

21

12

18

11

03

18

05

01

01

01

24

02

02

06

11

17

15

03

03

04

05

00

04

03

14

08

12

23

07

18

16

01

17

16

05

07

04

05

15

08

14

18

Part

No.

L446025

L446025

L447005

L44859

L46865

L46865

L46865

L46865

L47263

L47265

L48179

L48868A

L49327

L500001

L500004

L500019

L500020

L500021

L500021

L500021

L120041

L400398

L400425

L400425

L400425

L400929

L40805

L41179

L41261

L41847

L41847

L41848

L41854

L444070

L445014

L445014

L500021

L500022

L500024

L500025

L500027

L500028

L500036

L500042

L500042

L500042

L500057

L500099

L500111

L500127

L500129

L500130

L500132

L500134

L500135

L500163

L500215

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Numerical Index

Page Item

No.

No.

87

91

87

91

87

81

80

81

81

89

69

69

80

81

81

69

61

69

69

69

192

61

69

61

69

151

39

148

176

163

187

17

69

71

72

59

87

91

91

87

91

91

87

91

87

91

87

87

91

87

91

87

91

87

91

87

91

01

01

02

02

02

04

05

05

06

38

19

20

02

02

03

24

16

01

02

04

01

07

23

08

22

21

07

03

06

01

00

00

03

03

01

08

10

10

11

12

12

07

08

08

09

09

13

05

05

06

06

07

02

02

02

03

03

Part

No.

L500408

L500409

L500410

L500411

L500412

L500413

L500414

L500451

L500451

L500452

L500453

L500454

L500454

L500455

L500455

L500457

L500457

L500459

L500459

L500460

L500222

L500225

L500273

L500273

L500274

L500294

L500300

L500339

L500368

L500370

L500371

L500373

L500407

L500407

L500408

L500408

L500460

L500461

L500461

L500463

L500463

L500464

L500464

L500465

L500465

L500466

L500466

L500467

L500467

L500468

L500468

L500469

L500469

L500470

L500471

L500471

L500472

PRINTED IN U.S.A.

Page Item

No.

No.

85

89

89

77

82

89

89

85

89

89

85

89

85

89

85

85

89

89

89

85

91

87

91

85

89

87

91

87

91

87

91

87

91

87

91

87

87

91

89

89

85

89

85

89

85

89

85

89

85

89

85

89

83

85

89

89

85

34

13

14

19

23

09

10

19

11

12

10

05

14

06

15

02

02

03

04

05

23

24

24

01

01

17

17

18

18

23

13

14

14

15

15

16

17

17

27

29

38

30

30

21

31

26

35

18

29

19

33

20

12

23

15

17

32

Part

No.

L500484

L500484

L500485

L500486

L500487

L500488

L500488

L500489

L500489

L500490

L500490

L500491

L500492

L500492

L500493

L500494

L500494

L500495

L500496

L500496

L500472

L500473

L500473

L500474

L500474

L500475

L500476

L500476

L500477

L500477

L500478

L500478

L500480

L500480

L500481

L500481

L500483

L500483

L500496

L500496

L500496

L500497

L500498

L500498

L500499

L500499

L500500

L500500

L500501

L500501

L500504

L500504

L500505

L500505

L500507

L500508

L500508

203

Page Item

No.

No.

83

82

83

83

83

83

83

83

83

83

85

89

82

83

83

89

85

89

85

89

85

89

85

89

85

85

89

89

85

89

85

89

113

115

27

42

163

171

175

163

163

79

89

39

163

163

163

79

77

77

77

78

78

79

78

79

78

09

15

10

13

14

03

05

06

07

08

26

49

14

01

02

46

26

49

26

49

50

42

40

43

43

42

33

40

51

41

41

32

17

17

24

10

04

07

07

03

05

01

48

09

06

11

08

03

20

16

17

01

02

02

02

02

03

Part

No.

L500522

L500523

L500523

L500524

L500524

L500525

L500525

L500527

L500527

L500528

L500529

L500531

L500532

L500533

L500534

L500535

L500536

L500536

L500537

L500538

L500509

L500509

L50051

L50051

L50051

L50051

L500510

L500510

L500516

L500517

L500517

L500518

L500518

L500519

L500519

L500522

L500539

L500539

L500540

L500540

L500541

L500541

L500542

L500543

L500544

L500546

L500546

L500555

L500606

L500652

L500653

L500656

L500668

L500668

L500688

L500689

L500690

Page Item

No.

No.

151

151

151

154

21

151

151

151

151

151

91

78

79

151

151

39

39

176

176

176

11

11

11

156

156

11

11

11

11

11

163

163

11

11

11

11

49

27

37

7

27

53

113

115

53

49

27

27

99

47

53

51

77

19

185

95

45

13

20

15

02

04

02

11

08

12

17

16

02

02

06

07

00

00

03

02

01

12

14

10

02

07

20

05

08

21

18

09

07

22

13

19

06

08

24

03

00

00

06

16

16

08

14

13

09

12

16

14

16

09

12

06

04

09

Part

No.

L500747

L500748

L500761

L500762

L500763

L500771

L500943

L500943

L500952

L500953

L500954

L500955

L500956

L500957

L500958

L500959

L500960

L500961

L500968

L50101

L500691

L500692

L500695

L500696

L500697

L500700

L500701

L500706

L500707

L500708

L500709

L500711

L500718

L500719

L500745

L500746

L50201

L50202

L50205

L50207

L50305

L50628

L50646

L50677

L50704

L50705

L50727

L50741

L50745

L50952

L51099

L51781

L52024

L530004

L54002

L561004

L580005

913317/DP0513

Numerical Index RS6-34 Telescopic Handler

Page Item

No.

No.

105

163

149

27

35

95

93

95

95

97

196

93

95

97

95

185

93

95

97

33

31

95

97

93

95

179

179

179

51

187

45

187

51

51

17

39

175

99

93

93

95

167

143

145

171

173

97

175

173

171

167

139

35

17

35

97

95

05

02

07

23

03

29

29

18

17

10

08

24

16

11

28

09

28

21

09

04

23

26

04

23

27

08

02

03

14

24

23

23

03

09

35

00

02

07

21

13

11

02

15

18

02

02

15

00

00

00

00

11

04

00

02

02

02

Part

No.

L61709

L61709

L61709

L61709

L61867

L62583

L62715

L62715

L62715

L62731

L62732

L62733

L62733

L62734

L62734

L62741

L62761

L62840

L62926

L630001

L580009

L60451

L60492

L60492

L60587

L60587

L60961

L61001

L61017

L61021

L61411

L61620

L61699

L61699

L61708

L61708

L63016

L63018

L63018

L63018

L63018

L63018

L63018

L63099

L63131

L63153

L63156

L630003

L630004

L630004

L63005

L63006

L63012

L63013

L63014

L63015

L63016

913317/DP0513

Page Item

No.

No.

35

185

105

155

27

198

181

185

181

185

139

100

101

101

31

99

143

145

141

99

27

95

35

143

145

93

93

169

31

77

97

95

95

93

97

93

97

97

137

103

107

100

101

101

103

103

107

127

129

131

133

135

100

101

101

123

125

01

12

07

00

21

14

02

00

02

00

04

02

02

02

25

06

18

04

03

04

01

25

05

14

19

11

12

00

08

01

18

10

09

34

19

33

20

17

13

14

13

10

11

12

16

13

13

11

12

11

11

11

19

19

19

12

15

204

Part

No.

L63629

L63631

L63632

L63634

L63651

L63651

L63694

L63694

L63715

L63715

L63407

L63420

L63420

L63474

L63545

L63564

L63593

L63594

L63594

L63610

L63399

L63399

L63402

L63406

L63406

L63406

L63406

L63406

L63406

L63406

L63406

L63407

L63407

L63407

L63407

L63407

L63952

L63957

L63968

L63969

L64124

L64124

L64143

L64175

L64175

L64197

L64197

L63715

L63715

L63715

L63716

L63716

L63716

L63756

L63813

L63813

L63894

Part

No.

L63311

L63319

L63319

L63320

L63320

L63334

L63344

L63363

L63363

L63363

L63272

L63273

L63273

L63274

L63274

L63276

L63309

L63309

L63309

L63309

L63156

L63157

L63158

L63166

L63166

L63167

L63167

L63168

L63169

L63173

L63199

L63215

L63222

L63230

L63239

L63248

L63272

L63272

L63381

L63381

L63381

L63381

L63381

L63381

L63381

L63381

L63381

L63381

L63381

L63383

L63383

L63384

L63384

L63384

L63384

L63387

L63387

Page Item

No.

No.

105

145

93

139

143

27

198

198

7

105

105

177

177

185

17

143

27

45

196

19

109

109

109

141

141

109

109

31

47

53

47

53

100

100

101

101

53

93

169

177

45

185

99

185

185

45

53

97

31

29

7

39

147

183

97

147

183

06

17

22

09

24

22

09

08

08

03

08

02

00

17

16

10

00

00

12

02

09

15

16

10

11

21

22

07

08

02

22

12

08

20

20

20

15

31

09

10

12

20

15

15

18

11

16

24

10

00

33

00

11

09

25

18

11

Page Item

No.

No.

196

198

195

196

196

93

198

195

196

195

185

187

187

45

93

99

31

31

147

183

37

51

51

49

99

51

27

45

27

45

111

187

139

167

185

103

183

183

187

183

183

97

97

97

183

183

183

179

17

99

195

99

196

195

7

107

105

14

02

05

11

03

03

03

02

02

07

10

07

19

00

06

14

16

17

20

13

09

04

10

09

13

15

00

22

00

21

09

03

02

08

21

16

08

06

20

08

20

14

13

12

15

05

19

04

02

09

08

00

05

11

03

01

00

Part

No.

L65640

L65926

L65927

L65927

L65928

L65928

L65930

L65932

L65932

L65933

L65098

L65142

L65144

L65273

L65273

L65273

L65273

L65338

L65570

L65638

L64275

L64294

L64367

L64367

L64367

L64524

L64572

L64663

L64663

L64664

L64664

L64673

L64764

L64821

L64863

L65097

L66780

L66782

L66783

L66918

L66919

L66921

L66931

L66946

L66948

L66949

L66950

L65937

L65942

L66011

L66139

L66162

L66406

L66437

L66456

L66613

L66613

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Numerical Index

Page Item

No.

No.

93

143

147

145

145

179

176

183

145

93

143

143

147

147

198

175

93

97

99

93

141

143

145

171

173

196

196

196

37

51

53

77

49

196

196

196

45

33

45

27

109

53

45

45

45

45

111

147

23

53

53

53

145

93

143

143

147

01

01

01

11

12

09

00

16

07

20

02

03

02

03

04

08

16

22

05

15

02

17

06

08

09

09

09

09

19

12

05

01

16

09

09

09

19

14

00

24

12

22

03

15

08

07

08

14

12

19

18

24

08

19

20

21

13

Part

No.

L68331

L68337

L68337

L68348

L68348

L68350

L68351

L68351

L68352

L68352

L68003

L68003

L68003

L68003

L68006

L68239

L68239

L68239

L68239

L68295

L66965

L67504

L67657

L67718

L67719

L67720

L67721

L67722

L67723

L67756

L67756

L68003

L68003

L68003

L68003

L68003

L68563

L68571

L68592

L68595

L68596

L68604

L68619

L68619

L68641

L68694

L68694

L68356

L68358

L68374

L68374

L68376

L68376-

L68496

L68531

L68533

L68562

PRINTED IN U.S.A.

Part

No.

L68810

L68810

L68811

L68814

L68814

L68814

L68814

L68815

L68815

L68815

L68807

L68807

L68808

L68808

L68809

L68809

L68809

L68810

L68810

L68810

L68694

L68695

L68696

L68697

L68711

L68744

L68762

L68772

L68778

L68778

L68778

L68794

L68796

L68802

L68802

L68804

L68805

L68805

L68815

L68816

L68816

L68816

L68816

L68817

L68817

L68831

L68849

L68849

L68866

L68875

L69166

L69264

L69297

L69595

L69718

L69734

L69734

Page Item

No.

No.

145

145

109

109

143

115

117

111

109

109

109

139

111

111

113

109

141

109

141

109

101

101

117

103

31

109

147

151

139

51

151

95

95

95

153

95

97

21

21

45

77

89

37

77

45

47

7

109

143

192

107

77

147

109

109

143

147

13

14

05

23

05

07

09

05

02

03

20

07

06

07

07

17

08

18

09

19

11

11

01

15

28

25

05

00

06

10

00

14

24

08

00

01

01

06

03

14

12

37

05

01

05

17

02

08

09

01

24

22

07

04

24

06

08

205

Part

No.

Page Item

No.

No.

L70212

L70241

L70305

L70305

L70306

L70307

L70428

L70428

L70462

L70467

L70495

L69936

L69936

L69936

L70039

L70040

L70075

L70075

L70146

L70200

L70201

L69747

L69747

L69747

L69756

L69902

L69903

L69903

L69903

L69903

L69903

L69903

L69903

L69903

L69903

L69903

L69903

L69904

L69904

L69904

L69904

L69904

L69904

L69904

L69904

L69905

L69905

L69905

L69905

135

137

L69905 127

L69928 107

L69928 107

L69928

L69930

L69930

L69930

L69936

107

101

101

103

103

125

127

129

117

129

113

115

121

121

125

125

131

133

135

137

115

119

121

121

123

103

107

153

25

117

113

198

105

107

93

49

23

39

195

196

198

167

17

17

35

39

23

103

107

107

39

93

13

08

08

03

10

17

19

06

04

07

09

07

08

02

10

13

13

07

09

07

10

08

08

08

08

08

05

08

10

07

05

18

01

12

08

08

12

11

19

00

20

06

00

01

01

01

11

21

22

09

06

07

11

14

15

01

38

Page Item

No.

No.

41

199

40

40

40

41

199

199

39

17

137

163

25

179

198

113

115

131

133

135

45

17

17

17

7

17

17

17

17

17

173

47

45

23

39

17

59

59

167

169

173

72

151

175

31

5

177

41

41

47

187

57

40

147

93

97

40

00

03

03

02

00

01

01

02

10

10

01

00

01

01

00

01

01

01

01

01

00

07

08

05

00

03

13

14

09

12

10

18

00

02

08

06

10

11

11

09

10

05

16

10

03

03

10

05

04

01

10

02

05

16

36

03

04

Part

No.

L71553

L71554

L71555

L71595

L71691

L71691

L71700

L71725

L71726

L71729

L71346

L71346

L71346

L71346

L71346

L71346

L71346

L71346

L71350

L71378

L70495

L70521

L70629

L70634

L70701

L71074

L71075

L71076

L71076

L71077

L71081

L71081

L71082

L71084

L71086

L71305

L96053

L96580

L96838

L97489

L97489

L97525

L97526

L97889

L97889

L97889

L97889

L71732

L71748

L71748

L71748

L71750

L71751

L71752

L76020

L82358

L94824

913317/DP0513

Numerical Index RS6-34 Telescopic Handler

Page Item

No.

No.

65

65

67

71

67

57

65

65

65

65

57

57

63

63

63

62

62

63

63

63

59

59

59

59

59

59

59

59

59

59

57

57

57

59

59

59

67

69

71

67

69

71

67

69

71

71

71

69

71

67

69

71

71

67

69

71

67

05

08

17

16

16

13

02

01

04

03

15

14

12

01

06

05

07

10

08

09

04

05

01

02

14

16

03

15

12

06

09

22

08

09

13

07

13

18

14

12

17

23

14

11

20

22

13

13

08

15

12

21

15

09

14

09

08

Part

No.

L98226

L98228

L98229

L98230

L98231

L98232

L98233

L98235

L98235

L98236

L98211

L98212

L98214

L98215

L98216

L98217

L98218

L98219

L98220

L98224

L98176

L98184

L98185

L98189

L98191

L98194

L98196

L98197

L98198

L98199

L98200

L98201

L98202

L98203

L98204

L98205

L98239

L98240

L98240

L98240

L98240

L98241

L98241

L98241

L98242

L98242

L98242

L98236

L98237

L98237

L98237

L98238

L98238

L98238

L98239

L98239

L98239

913317/DP0513

Page Item

No.

No.

71

71

71

61

71

69

71

72

72

72

61

67

67

69

71

61

61

67

71

61

71

67

67

61

61

71

67

67

67

69

67

69

71

67

69

71

67

69

75

75

75

75

75

75

75

75

75

72

61

75

75

75

61

71

72

72

72

18

01

02

11

26

05

17

06

07

04

06

20

22

06

19

10

12

19

24

03

04

02

03

02

05

07

01

18

04

07

10

15

10

06

09

06

07

10

12

09

05

07

03

04

06

11

13

02

14

01

02

08

13

27

09

08

03

206

Part

No.

L98414

L98414

L98415

L98417

L98417

L98417

L98417

L98503

L98506

L98507

L98380

L98394

L98395

L98395

L98396

L98396

L98404

L98404

L98406

L98406

L98316

L98317

L98318

L98318

L98355

L98355

L98355

L98368

L98371

L98371

L98372

L98372

L98373

L98373

L98373

L98380

L98520

L98521

L98522

L98523

L98524

L98527

L98528

L98533

L98534

L98536

L98545

L98509

L98511

L98513

L98513

L98515

L98516

L98516

L98517

L98518

L98519

Part

No.

L98258

L98260

L98264

L98266

L98268

L98272

L98274

L98275

L98276

L98276

L98253

L98253

L98253

L98253

L98254

L98254

L98254

L98255

L98257

L98257

L98244

L98244

L98244

L98246

L98246

L98246

L98247

L98247

L98247

L98248

L98249

L98250

L98250

L98250

L98251

L98252

L98253

L98253

L98277

L98277

L98278

L98279

L98281

L98282

L98284

L98291

L98292

L98293

L98294

L98295

L98298

L98300

L98301

L98302

L98303

L98304

L98307

Page Item

No.

No.

85

89

167

167

167

87

91

91

80

81

91

87

91

87

91

91

91

87

91

87

89

80

85

89

87

89

82

85

89

85

74

74

81

89

77

85

171

171

155

155

155

169

169

169

169

171

173

171

175

175

169

169

167

175

171

175

175

39

31

01

12

05

02

02

02

01

01

19

17

17

17

17

04

21

20

20

19

07

09

12

47

04

16

08

13

07

11

03

06

07

25

18

24

10

05

02

02

05

02

10

04

05

01

01

06

06

11

01

08

10

01

04

04

05

Page Item

No.

No.

63

63

63

63

61

62

62

62

63

63

57

57

55

62

62

151

151

151

57

57

151

151

151

151

151

175

99

57

57

27

167

173

173

167

173

173

63

55

55

57

63

57

57

63

63

63

74

71

67

71

61

71

75

75

75

67

69

04

05

03

00

15

03

01

02

11

07

12

11

14

06

04

09

09

10

07

06

18

01

05

19

09

12

01

27

28

24

03

04

11

06

06

12

16

11

13

21

17

04

19

15

14

13

05

11

21

12

09

25

14

15

10

11

16

Part

No.

L98944

L98945

L98947

L98948

L98949

L98950

L98951

L98953

L98954

L98955

L98897

L98898

L98899

L98926

L98927

L98932

L98935

L98938

L98942

L98943

L98547

L98547

L98548

L98550

L98550

L98551

L98558

L98700

L98734

L98735

L98865

L98887

L98891

L98895

L98895

L98896

L99013

L99018

L99020

L99023

L99025

L99027

L99029

L99029

L99029

L99029

L99030

L98956

L98957

L98958

L98961

L98961

L98961

L98962

L98967

L98968

L98968

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Numerical Index

Page Item

No.

No.

57

67

69

55

55

55

55

55

57

57

57

55

57

57

55

185

185

187

55

57

5

53

63

181

181

177

177

177

177

53

65

65

71

57

31

177

177

167

169

173

21

51

69

74

173

149

57

57

57

57

57

57

55

57

55

57

23

05

08

03

06

12

10

07

25

26

24

15

03

05

09

00

01

01

04

16

06

04

02

01

01

12

05

06

07

20

06

07

05

20

09

01

03

21

04

05

05

07

06

07

06

07

31

33

34

35

30

18

08

32

01

29

Part

No.

L99260

L99261

L99262

L99262

L99270

L99274

L99278

L99279

L99284

L99284

L99224

L99225

L99237

L99246

L99246

L99246

L99249

L99251

L99253

L99260

L99031

L99032

L99038

L99045

L99163

L99168

L99169

L99170

L99171

L99174

L99175

L99182

L99184

L99184

L99184

L99192

L99193

L99284

L99285

L99285

L99286

L99287

L99288

L99294

L99295

L99296

L99312

L99405

L99405

L99405

L99425

L99434

L99696

L99785

L99866

L99908

Part

No.

L99908

L99909

L99910

L99910

L99911

L99911

L99911

L99911

L99917

L99924

L99925

L99927

L99951

L99969

P471997

Page Item

No.

No.

152

156

156

156

149

149

77

78

149

152

152

149

152

149

152

02

03

00

07

04

02

08

07

02

02

03

06

04

06

03

Part

No.

PRINTED IN U.S.A.

207

Page Item

No.

No.

Part

No.

Page Item

No.

No.

913317/DP0513

Subject Index RS6-34 Telescopic Handler

PAGE

A

Accelerator Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Access Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189

Air Cleaner Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33, 49

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 49

Arm Rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Attachment Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

Attachment Forks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Attachment, Rotating Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Attachment, Truss Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Auxiliary Hydraulic Work Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147, 151

Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Axle Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85, 89

Axle Steering Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78, 79

Axle Tie Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78, 79

Axle, Planet Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85, 89

B

Back-up Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Back-up Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Battery Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Belt, Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Bevel Gear Set, Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87, 91

Block Heater, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Blower Motor, Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Boom Extend Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Boom Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Bottle, Windshield Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Bracket, Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Bracket, Arm Rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Bracket, Light Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Bracket, Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Bracket, Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 45

Brake Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82, 83

Brake Lever Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Brake Line Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105, 107

Brake Master Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

Brake Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Brake Valve Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

C

Cab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Cable, Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Cable, Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

913317/DP0513

208

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Subject Index

PAGE

Cable, Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Canopy Wire Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 17

Cap, Fuel Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Cap, Hydraulic Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Cap, Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Cap, Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Carriage, Rotating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Carriage, Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181

Charge Pump, Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Coil, Weather Pack 12 VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149, 152, 157

Column, Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Control Module, PWP/WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Controller, Auxiliary Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111, 121, 125, 129, 165

Controller, Frame Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25, 113, 115, 131, 135, 137

Controller, Lift / Extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111, 119, 121, 123, 125, 127, 129, 161

Controller, Tilt / Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111, 119, 121, 123, 125, 127, 129, 159

Controller, Tri-Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113, 115, 131, 133, 135, 137, 163

Cooler, Hydraulic / Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Cutting Edge, Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192

Cylinder, Boom Extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Cylinder, Fork-Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176, 183

Cylinder, Frame Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Cylinder, Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Cylinder, Rotating-Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177, 185

Cylinder, Slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Cylinder, Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

D

Dash Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 17

Decal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189, 190, 191

Defroster Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87, 91

Differential Gear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87, 91

Diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 39

Diode Wire, Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Dipstick, Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Door Striker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Door, Cab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Driveshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

E

Engine Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Ether Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Exhaust Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

PRINTED IN U.S.A.

209

913317/DP0513

Subject Index RS6-34 Telescopic Handler

PAGE

F

Fan Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Fan Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Fan, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Fender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Filter, Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 49

Filter, Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Filter, Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Filter, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 31

Filter, Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 53

Flasher, Turn Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

F-N-R Shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

F-N-R Shifter Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 21

Forks, Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Fork-Shift Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Frame Level Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Frame Level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Frame Level Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77, 139

Fuel Fill Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Fuel Line Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Fuse Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Fuse, 60 AMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

G

Gauge, Air Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Gauge, Hour Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Gauge, Warning Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Gauge, Water Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Glass Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Glass, Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Glass, Left Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Glass, Lower Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Glass, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 9

Glass, Right-Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Glass, Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Glass, Upper Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Ground Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 35

Guard, Window Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

H

Handle, Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Handle, Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Head Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

913317/DP0513

210

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Subject Index

PAGE

Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Heater Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Heater Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Hinge, Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Hood, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Hood, Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Hood, Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Hood, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37, 39

Hood, Transmission Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Horn, 12 VDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35, 37

Hose Tray, Inner Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Hose Tray, Intermediate Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Hose, Fuel Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Hose, Fuel Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Hose, Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Hub, Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85, 89

Hydraulic / Transmission Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Hydraulic Controller, Auxiliary Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111, 121, 125, 129, 165

Hydraulic Controller, Frame Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25, 113, 115, 131, 135, 137

Hydraulic Controller, Lift / Extend . . . . . . . . . . . . . . . . . . . . . . .111, 119, 121, 123, 125, 127, 129, 161

Hydraulic Controller, Tilt / Level . . . . . . . . . . . . . . . . . . . . . . . . .111, 119, 121, 123, 125, 127, 129, 159

Hydraulic Controller, Tri-Function . . . . . . . . . . . . . . . . . . . . . . . . . . .113, 115, 131, 133, 135, 137, 163

Hydraulic Fill Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Hydraulic Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Hydraulic Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 31

Hydraulic Filter Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Hydraulic Main Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Hydraulic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101, 148

Hydraulic Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Hydraulic Valve, Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111, 151

I

Ignition / Start / Horn Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Inclinometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Inner Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Intermediate Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

J

Joystick Relief Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

K

Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 17

PRINTED IN U.S.A.

211

913317/DP0513

Subject Index RS6-34 Telescopic Handler

PAGE

L

Level Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Light, Halogen - Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Light, Brake / Turn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Linkage, Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

M

Main Valve, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109, 111, 151

Manifold, Brake Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105, 107

Manifold, Flow Divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Manifold, Joystick Relief . . . . . . . . . . . . . . . . . . . . . . . . .121, 123, 125, 127, 129, 131, 133, 135, 137

Manifold, Pilot Apply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113, 115, 131, 133, 135, 137

Manifold, PWP/WPS Joystick . . . . . . . . . . . . . . . . . . .41, 123, 125, 127, 129, 131, 133, 135, 137, 152

Manifold, Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117, 157

Master Cylinder, Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 105, 155

Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Module, F-N-R Shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 21

Mount, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Mount, Fender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Mount, Frame Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77, 139

Mount, Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 15

Mount, Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Mount, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Mount, Starter Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Mount, Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

O

Oil Filter, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

P

Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

Panel, Dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 17

Panel, Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Pedal, Accelerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Pilot Apply Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113, 115, 131, 133, 135, 137

Pintle Hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Pipe, Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Planet, Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85, 89

Platform, Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189, 191

Pre-Cleaner, Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Pump, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101, 148

PWP/WPS Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

PWP/WPS Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41, 199

PWP/WPS Wire Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

913317/DP0513

212

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Subject Index

PAGE

Q

Quick Coupler Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185, 187

R

Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Radiator Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Radiator Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Radiator Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Relay, Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Relay, Engine Starter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Remote Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Remote Stop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Resistor Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Return Spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 159, 161, 165

Rim, Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Ring Gear, Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Rod, Brake Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Rod, Throttle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 45

Rotating Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Rotating-Carriage Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177, 185

S

Screen, Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Seat Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Sender, Fuel Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Sender, Oil Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Sender, Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Sender, Water Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Sensor, Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Shifter, F-N-R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Shut-Off, Water Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Skid Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 37

Slave Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Spacer, Engine Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Spring, Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 159, 161, 165

Steer Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21, 103, 154

Steer Select Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

Steering Cylinder, Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78, 79

Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Stop Switch, Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Strainer, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Striker, Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Suspension Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Swing Platform, Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189

PRINTED IN U.S.A.

213

913317/DP0513

Subject Index RS6-34 Telescopic Handler

PAGE

Switch, 3-Position Toggle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Switch, Clutch Cut-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Differential Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Switch, Engine Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Ether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 45

Switch, Hazard Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Heater Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Switch, Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Ignition / Start / Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Park Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Switch, Pressure (Reverse) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Switch, Push Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, PWP/WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 41, 199

Switch, Steer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Turn Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Switch, Wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

T

Tail Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Test Port, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Throttle Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Throttle Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Tie Rod, Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78, 79

Tilt Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Transmission Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 53

Transmission Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Tri-Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Tri-Function Controller, Wire Harness . . . . . . . . . . . . . . . . . . . . . .17, 25, 113, 115, 131, 133, 135, 137

Truss Boom, Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Turn Signal Flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

U

Universal Joint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

V

Valve Stem, Wheel Rim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Valve, Brake Master Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 105

Valve, Steer Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103, 107

Valve, Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Valve, Radiator Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

913317/DP0513

214

PRINTED IN U.S.A.

RS6-34 Telescopic Handler Subject Index

PAGE

W

Washer Fluid Bottle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wheel Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85, 89

Wheel Nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77, 85, 89

Wheel Rim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Winch, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187

Window Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wiper Arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wiper Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wiper Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wire Harness, Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 17

Wire Harness, Ether Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Wire Harness, F-N-R Shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Wire Harness, Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Wire Harness, Front Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wire Harness, Head Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Wire Harness, Light Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Wire Harness, PWP/WPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Wire Harness, Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Wire Harness, Rear Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Wire Harness, Steer Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

Wire Harness, Top Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wire Harness, Tri-Function Controller . . . . . . . . . . . . . . . . . . . . . .17, 25, 113, 115, 131, 133, 135, 137

Wire Harness, Washer Bottle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wire Harness, Work Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Work Light, Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Work Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189, 190, 191

Work Section, Hydraulic Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

PRINTED IN U.S.A.

215

913317/DP0513

REFERENCE

METRIC BOLT TORQUE GUIDE

Use these torque values when tightening hardware—excluding: lock nuts, thread-forming, self-tapping, and metal screws—unless otherwise specified.

Grade 8.8

Grade 10.9

Grade 12.9

M5

M6

M8

M10

M12

M14

M16

M18

M20

M22

M24

M27

M30

Metric

Coarse-Pitch

Thread

All torque values are in Foot-Pounds and Newton Meters (Nm).

DIN 912, DIN 931, DIN 933, etc...

DIN 7984

8.8

10.9

12.9

8.8

10.9

4.1 (5.5)

7 (10)

18 ( 25)

33 (45)

6 (8)

10 (14)

26 (35)

48 (65)

64 (87) 81 (110)

100 (135) 133 (180)

155 (210) 203 (275)

207 (280) 302 (410)

7 (10)

13 (17)

31 (42)

59 (80)

108 (147)

170 (230)

258 (350)

354 (480)

4 (5)

6.3 (8.5)

15 (20)

30 (40)

51 (69)

81 (110)

125 (170)

181 (245)

5 (7)

9 (12)

22 (30)

44 (59)

74 (100)

118 (160)

184 (250)

254 (345)

302 (410) 420 (570)

406 (550) 575 (780)

509 (690) 251 (340)

686 (930) 339 (460)

361 (490)

487 (660)

524 (710) 738 (1000) 878 (1190) 435 (590) 620 (840)

767 (1040) 1092 (1480) 1305 (1770) 642 (870) 922 (1250)

1047 (1420) 1482 (2010) 1770 (2400) 885 (1200) 1254 (1700)

Metric

Fine-Pitch

Thread

M8X1.0

M10X1.0

M10X1.25

M12X1.25

M12X1.5

M14X1.5

M16X1.5

M18X1.5

M20X1.5

M22X1.5

M24X2.0

M27X2.0

M30X2.0

All torque values are in Foot-Pounds and Newton Meters (Nm).

DIN 912, DIN 931, DIN 933, etc...

DIN 7984

8.8

10.9

12.9

8.8

10.9

18 (25)

37 (50)

36 (49)

64 (87)

27 (37)

55 (75)

52 (71)

96 (130)

61 (83) 92 (125)

100 (135) 148 (200)

155 (210) 229 (310)

232 (315) 332 (450)

32 (43)

65 (88)

61 (83)

111 (150)

107 (145)

173 (235)

266 (360)

391 (530)

16 (22)

32 (43)

31 (42)

55 (75)

53 (72)

89 (120)

133 (180)

199 (270)

24 (32)

48 (65)

46 (62)

81 (110)

77 (105)

129 (175)

195 (265)

284 (385)

325 (440) 465 (630)

435 (590) 620 (840)

538 (730) 277 (375)

723 (980) 369 (500)

391 (530)

524 (710)

546 (740) 789 (1070) 922 (1250) 465 (630) 664 (900)

811 (1100) 1143 (1550) 1328 (1800) 679 (920) 959 (1300)

1106 (1500) 1586 (2150) 1844 (2500) 959 (1300) 1364 (1850)

913317/DP0513

216

PRINTED IN U.S.A.

REFERENCE

SAE BOLT TORQUE GUIDE

Use these torque values when tightening hardware—excluding: lock nuts, thread-forming, self-tapping, and metal screws—unless otherwise specified.

NOTE: All torque values are in foot-pounds (lb.-ft.), except those marked with asterisks (*), which

are in inch-pounds (lb.-in.). To convert lb.-ft. to Newton Meter (Nm)—metric—torque values, multiply the lb.-ft. value by 1.355, or for inch pounds, multiply the lb.-in. value by 0.113.

Unified

National

Thread

8-32

8-36

10-24

10-32

1/4-20

1/4-28

5/16-18

5/16/24

3/8-16

3/8-24

7/16-14

7/16-20

1/2-13

1/2-20

9/16-12

9/16-18

5/8-11

5/8-18

3/4-10

3/4-16

7/8-9

7/8-14

1-8

1-14

Grade 2

Dry

35

40

55

60

20

23

32

36

19*

20*

27*

31*

66*

76*

11

12

75

85

130

150

125

140

190

210

Oiled

35

40

55

60

15

17

24

27

14*

15*

21*

23*

50*

56*

9

9

75

85

130

150

125

140

190

210

Grade 5

Dry

75

90

110

120

30

35

50

55

9

10

17

19

30*

31*

43*

49*

150

180

260

300

430

470

640

710

Oiled

55

65

80

90

23

25

35

40

22*

23*

32*

36*

75*

86*

13

14

110

130

200

220

320

630

480

530

Grade 8

Dry

110

120

150

170

45

50

70

80

12

14

25

25

41*

43*

60*

68*

220

240

380

420

600

660

900

1000

Oiled

80

90

110

130

35

35

55

60

9

10

18

20

31*

32*

45*

51*

170

180

280

320

460

500

680

740

* Value shown is in pound-force inch (lb.-in.)—inch pounds.

PRINTED IN U.S.A.

217

913317/DP0513

Manitou Americas, Inc.

One Gehl Way

P. O. Box 179

West Bend, WI 53095-0179 U.S.A

www.gehl.com

913317/DP0513

© 2013 Manitou Americas, Inc. All rights reserved.

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
