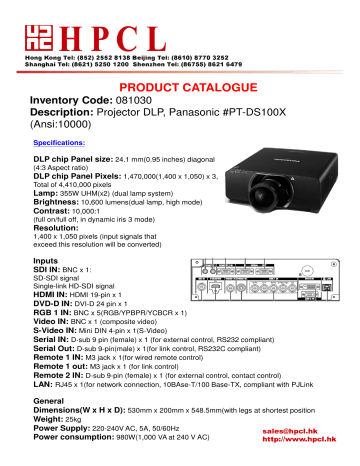

PRODUCT CATALOGUE
PRODUCT CATALOGUE
Inventory Code: 081030
Description: Projector DLP, Panasonic #PT-DS100X
(Ansi:10000)
Specifications:
DLP chip Panel size: 24.1 mm(0.95 inches) diagonal
(4:3 Aspect ratio)
DLP chip Panel Pixels: 1,470,000(1,400 x 1,050) x 3,
Total of 4,410,000 pixels
Lamp: 355W UHM(x2) (dual lamp system)
Brightness: 10,600 lumens(dual lamp, high mode)
Contrast: 10,000:1
(full on/full off, in dynamic iris 3 mode)
Resolution:
1,400 x 1,050 pixels (input signals that
exceed this resolution will be converted)
Inputs
SDI IN: BNC x 1:
SD-SDI signal
Single-link HD-SDI signal
HDMI IN: HDMI 19-pin x 1
DVD-D IN: DVI-D 24 pin x 1
RGB 1 IN: BNC x 5(RGB/YPBPR/YCBCR x 1)
Video IN: BNC x 1 (composite video)
S-Video IN: Mini DIN 4-pin x 1(S-Video)
Serial IN: D-sub 9 pin (female) x 1 (for external control, RS232 compliant)
Serial Out: D-sub 9-pin(male) x 1(for link control, RS232C compliant)
Remote 1 IN: M3 jack x 1(for wired remote control)
Remote 1 out: M3 jack x 1 (for link control)
Remote 2 IN: D-sub 9-pin (female) x 1 (for external control, contact control)
LAN: RJ45 x 1(for network connection, 10BAse-T/100 Base-TX, compliant with PJLink
General
Dimensions(W x H x D): 530mm x 200mm x 548.5mm(with legs at shortest position
Weight: 25kg
Power Supply: 220-240V AC, 5A, 50/60Hz
Power consumption: 980W(1,000 VA at 240 V AC)
