NEC 070305 SPEC_VT46

NEC 070305 SPEC_VT46

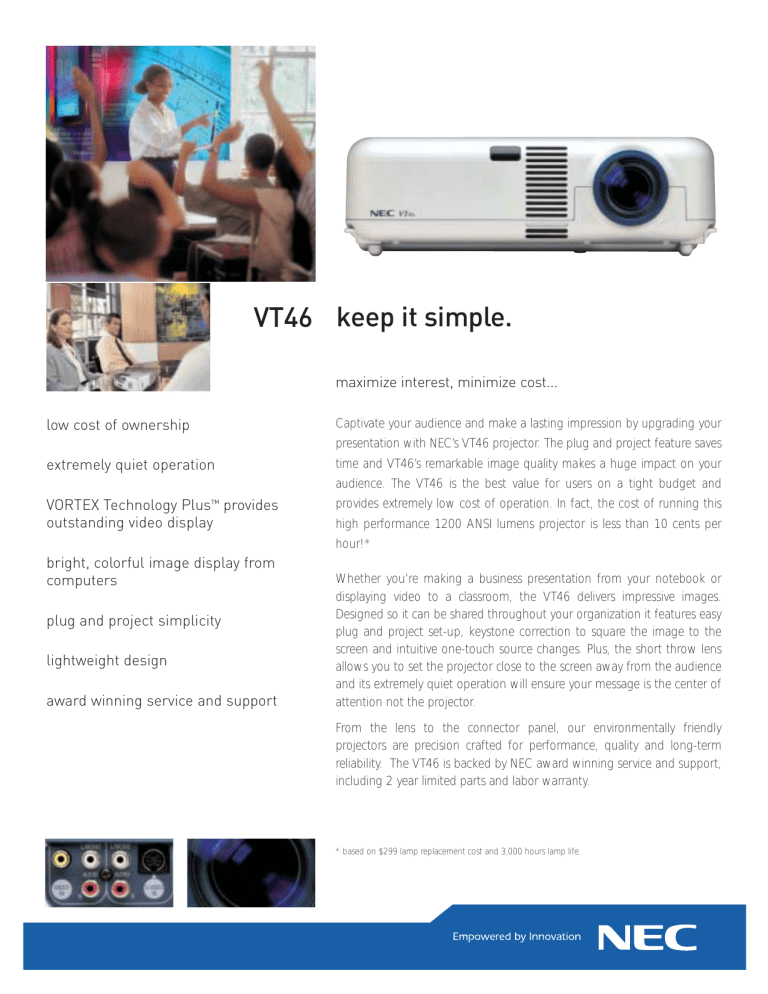

VT46 keep it simple.
maximize interest, minimize cost...
low cost of ownership
Captivate your audience and make a lasting impression by upgrading your
presentation with NEC’s VT46 projector. The plug and project feature saves
extremely quiet operation
time and VT46’s remarkable image quality makes a huge impact on your
audience. The VT46 is the best value for users on a tight budget and
VORTEX Technology Plus™ provides
outstanding video display
provides extremely low cost of operation. In fact, the cost of running this
high performance 1200 ANSI lumens projector is less than 10 cents per
hour!*
bright, colorful image display from
computers
plug and project simplicity
lightweight design
award winning service and support
Whether you’re making a business presentation from your notebook or
displaying video to a classroom, the VT46 delivers impressive images.
Designed so it can be shared throughout your organization it features easy
plug and project set-up, keystone correction to square the image to the
screen and intuitive one-touch source changes. Plus, the short throw lens
allows you to set the projector close to the screen away from the audience
and its extremely quiet operation will ensure your message is the center of
attention not the projector.
From the lens to the connector panel, our environmentally friendly
projectors are precision crafted for performance, quality and long-term
reliability. The VT46 is backed by NEC award winning service and support,
including 2 year limited parts and labor warranty.
* based on $299 lamp replacement cost and 3,000 hours lamp life.
Optical
VT46
LCD Panels
Native Resolution
Resolutions Supported
Light Output
Image Size
Projection Distance
Lamp
Lamp Life
Keystone Correction
Sync Range
9.7”
(245mm)
12.2”
(310mm)
0.7" x 3, p-Si TFT
SVGA (800 x 600 pixels)
VGA through UXGA with Advanced AccuBlend
1200 ANSI Lumens
21" to 300" diagonal
29" to 435"
160 watt NSH
3,000 hours
±30°
Horizontal 15-100 kHz
Vertical 50-120 Hz
Electrical
Inputs
Power Requirements
Power Consumption
Built-in Speaker
Audible Noise
3.5”
(89mm)
RGB
S-Video
Composite Video
Audio
Mini D-Sub 15-pin for computer or component video (optional cable)
NTSC, PAL, PAL-60, SECAM, NTSC 4.43, PAL-N, PAL-M
NTSC, PAL, PAL-60, SECAM, NTSC 4.43, PAL-N, PAL-M
(2 Pair) L/R RCA for video and S-Video
Stereo mini jack for computer
HDTV Compatible 1080i, 1080i/50Hz, 720p, 480p, 480i
100-120 v / 200-240 VAC, 50 / 60 Hz
220 W
1W monaural
32dB
Mechanical
Accessories
Installation Orientation
Dimensions
Weight
Regulations
Warranty
VT60ROLLER
VT60ATAPRO
TRAVELPRO200
LAMP
Product/Accessories
Order Code
TRAVELPRO200
Additional Features
ADA 505 Compliant
AutoSense
Intuitive Design
VORTEX
Technology Plus
Cabinet Key Lock
Image magnification
Accessories
Features monochrome menu display setting for color blind
users.
Projector automatically syncs with any computer signal and
features one touch image optimization
Designed to be used as a shared device - inputs and cables
are color coded, with direct access buttons on the projector
cabinet.
Provides uncompromising display of video and data. Improves
white level, color accuracy, dynamic range, and display of
varying levels of black in an image. Picture management
enables adjustment of RGB for display of personal color
preferences.
Restricts access to projector cabinet controls.
64 step image magnification with location control.
Carrying case and projector remote.
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
12.2" (W) X 9.7"(D) X 3.5" (H), 310mm X 230mm X 89mm
6.6 pounds, 2.9Kg
USA: UL1950, FCC Class B
Canada: CSA950 (C-UL)
Registered owners receive a 2-year limited parts and labor warranty. The lamp, when used under normal
operating conditions is warranted for 1000 hours or six months, whichever comes first.
VT60ATAPRO
VT60ROLLER
ADP-CV1
VT60CM
VT60REMOTE
VT60LP
LTSCREEN
SC200
Description
Leather rolling case for easy transport through airport. Bag contains compartments for projector,
laptop and accessories, stores in airplane overhead
Rugged case for shipment and airport check-in
Platinum, high impact plastic rolling case for projector, stores in airplane overhead
Component video adapter
Ceiling mount featuring security screws
Full featured remote
Replacement lamp
50" diagonal table top screen in compact carrying case
Security cable locks projector to table or cart
Optional Warranty Programs
INSTACAREEXT02
INSTACAREEXT03
VT46WAREXT01
Second year of InstaCare Service Program
Second and third years of InstaCare Service Program
3rd year of limited parts and labor warranty.
For more information, call (800) NEC-INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 500
Itasca, IL 60143-1248
NEC 070305
