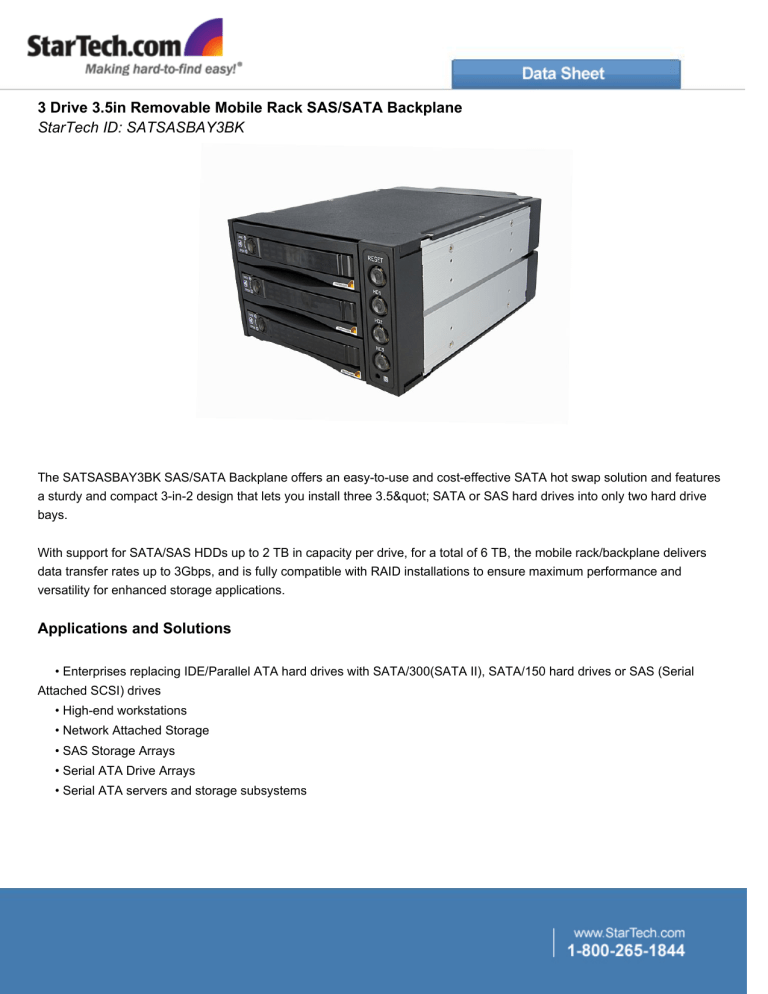

3 Drive 3.5in Removable Mobile Rack SAS/SATA Backplane

3 Drive 3.5in Removable Mobile Rack SAS/SATA Backplane
3 Drive 3.5in Removable Mobile Rack SAS/SATA Backplane
StarTech ID: SATSASBAY3BK
The SATSASBAY3BK SAS/SATA Backplane offers an easy-to-use and cost-effective SATA hot swap solution and features
a sturdy and compact 3-in-2 design that lets you install three 3.5" SATA or SAS hard drives into only two hard drive
bays.
With support for SATA/SAS HDDs up to 2 TB in capacity per drive, for a total of 6 TB, the mobile rack/backplane delivers
data transfer rates up to 3Gbps, and is fully compatible with RAID installations to ensure maximum performance and
versatility for enhanced storage applications.
Applications and Solutions
• Enterprises replacing IDE/Parallel ATA hard drives with SATA/300(SATA II), SATA/150 hard drives or SAS (Serial
Attached SCSI) drives
• High-end workstations
• Network Attached Storage
• SAS Storage Arrays
• Serial ATA Drive Arrays
• Serial ATA servers and storage subsystems
Features
• An aluminum and steel construction for maximum durability and heat dissipation
• Easy push button mechanism for opening hard drive carriers
• Equipped with an 80mm rear mounted ball-bearing fan to ensure all your hard drives remain cool
• Equipped with audible buzzer alarm that sounds when hard drive overheating occurs
• Fan sensor reset switch
• Flammability rating of UL 94 V-0
• High/Low fan speed controls
• Independent Hard Drive power switches enable you to shut off a single drive instead of powering off the PC
• Jumper controlled temperature alarm (55°C, 60°C "Default", 65°C)
• LEDs continuously report hard drive and fan activity
• No software or drivers required; OS independent
• Plug&Play and Hotswap compatible
• Supports RAID applications
• Supports SATAI/II (SATA 150 & SATA 300) and SAS
• Transfer rates up to 3Gbps; backwards compatible to 150MBps
Technical Specifications
• Color: Black
• Enclosure Type: Aluminum and Steel
• Enclosure Type: Plastic
• Product Height: 3.39 in [86 mm]
• Product Length: 7.95 in [202 mm]
• Fans: 1 - 80 mm
• Carton Quantity: 8
• Temperature Alarm: Yes
• Shipping (Package) Weight: 3.16 lb [1.43 kg]
• Product Weight: 2.67 lb [1.21 kg]
• Product Width: 5.75 in [146 mm]
• LED Indicators: 3 - Hard Drive Indicator (Green - Power, Orange/Red Blinking - Activity)
• LED Indicators: 1 - Over Heating Alarm (Flashing Red - Temperature Warring, Reset sensor and alarm)
• Number of Drives: 3
• Compatible Drives : 3.5" SAS
• Compatible Drives : 3.5" SATA
• Hot Swap Capability: Yes
• Host Connectors: 1 - 7 pin SATA DATA Female
• Host Connectors: 2 - 22 pin SATA DATA and Power Combo Male
• Host Connectors: 2 - 4 pin Power (LP4) Male
• Drive Connectors: 3 - 22 pin SATA DATA and Power Combo Female
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -15°C to 75°C (-59°F to 167°F)
• Humidity: 90% RH at 30°C
• Note: If using SFF-8484 SAS controller for SAS Hard Drives, use StarTech.com SAS cable SAS84S450
