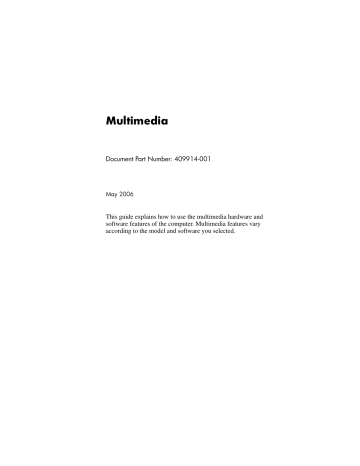

Multimedia

Document Part Number: 409914-001

May 2006

This guide explains how to use the multimedia hardware and software features of the computer. Multimedia features vary according to the model and software you selected.

Contents

1 Multimedia hardware

Using the optical drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Identifying the installed optical drive . . . . . . . . . . . . 1–1

Inserting an optical disc. . . . . . . . . . . . . . . . . . . . . . . 1–2

Removing an optical disc (with power). . . . . . . . . . . 1–3

Removing an optical disc (without power) . . . . . . . . 1–4

Using the audio features. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Using the audio-in (microphone) jack or internal microphone (select models only). . . . . . . . . . . . . . . . 1–7

Using the audio-out (headphone) jack. . . . . . . . . . . . 1–7

Adjusting the volume. . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Using the video features. . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Using the external monitor port. . . . . . . . . . . . . . . . . 1–9

Using the S-Video-out jack (select models only) . . 1–10

2 Multimedia software

Identifying preinstalled multimedia software . . . . . . . . . 2–2

Installing multimedia software from a CD

(select models only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Using multimedia software . . . . . . . . . . . . . . . . . . . . . . . 2–3

Protecting playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Protecting the CD or DVD write process. . . . . . . . . . . . . 2–4

Changing DVD region settings . . . . . . . . . . . . . . . . . . . . 2–5

Observing the copyright warning. . . . . . . . . . . . . . . . . . . 2–6

Multimedia ii

1

Multimedia hardware

Using the optical drive

The optical drive allows you to play, copy, and create CDs or

DVDs, depending on the type of installed drive and installed software.

Your computer may look slightly different from the illustrations in this section.

Identifying the installed optical drive

To view the type of optical drive installed in the computer:

»

Select Start > My Computer.

The type of optical drive installed in the computer is displayed under Devices with Removable Storage.

Multimedia 1–1

Multimedia hardware

Inserting an optical disc

1. Turn on the computer.

2. Press the release button 1 on the drive bezel to release the media tray.

3. Pull out the tray 2.

4. Hold the CD or DVD by the edges to avoid touching the flat surfaces, and position the disc over the tray spindle, with the label side up.

If the tray is not fully accessible, tilt the disc carefully to position it over the spindle.

5. Gently press the disc 3 down onto the tray spindle until the disc snaps into place.

1–2

6. Close the media tray.

After you insert a disc, a short pause is normal. If you have not selected a default media player, an AutoPlay dialog box opens. It prompts you to select how you want to use the media content.

Multimedia

Multimedia hardware

Removing an optical disc (with power)

If the computer is running on external or battery power:

1. Turn on the computer.

2. Press the release button 1 on the drive bezel to release the media tray, and then pull out the tray 2.

3. Remove the disc 3 from the tray by gently pressing down on the spindle while lifting the outer edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.

If the tray is not fully accessible, tilt the disc carefully as you remove it.

Multimedia

4. Close the media tray and place the disc in a protective case.

1–3

Multimedia hardware

Removing an optical disc (without power)

If external or battery power is not available:

1. Insert the end of a paper clip 1 into the release access in the front bezel of the drive.

2. Press in gently until the tray is released, and then pull out the tray 2.

3. Remove the disc 3 from the tray by gently pressing down on the spindle while lifting the outer edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.

If the tray is not fully accessible, tilt the disc carefully as you remove it.

1–4

4. Close the media tray and place the disc in a protective case.

Multimedia

Multimedia hardware

Using the audio features

The following illustrations and tables describe the audio features of the computer.

Refer to the illustration that most closely matches your computer.

Component

1

Volume mute button

2

Volume mute light

3

Volume down button

4

Volume up button

5

Internal microphone

Description

Mutes and restores speaker sound.

On: Speaker sound is off.

Decreases speaker volume.

Increases speaker volume.

Records sound.

(Continued)

Multimedia 1–5

Multimedia hardware

Component Description

6

Audio-out (headphone) jack Connects optional powered stereo speakers, headphones, ear buds, a headset, or television audio.

7

Audio-in (microphone) jack Connects an optional headset microphone or standalone microphone.

8

Speakers (2) Produce sound.

1–6

Component Description

1 Audio-out (headphone) jack Connects optional powered stereo speakers, headphones, ear buds, a headset, or television audio.

2 Audio-in (microphone) jack Connects an optional headset microphone or standalone microphone.

3 Speakers (2) Produce sound.

Multimedia

Multimedia hardware

Using the audio-in (microphone) jack or internal microphone (select models only)

The computer is equipped with a stereo (dual-channel) microphone jack that supports a stereo array and monaural microphone. Using sound recording software with an external stereo microphone allows for stereo recording and stereo playback.

When connecting a microphone to the microphone jack, use a microphone with a 3.5-mm plug.

Select models are also equipped with an internal monaural microphone.

When an external microphone is connected to the computer, the computer internal microphone is disabled.

Using the audio-out (headphone) jack

Å

WARNING: To reduce the risk of personal injury, adjust the volume before putting on headphones, ear buds, or a headset.

Ä

CAUTION: To prevent possible damage to an external device, do not plug a single sound channel (monaural) connector into the headphone jack.

In addition to connecting headphones, the headphone jack is used to connect the audio input function of an audio/video device such as a television or VCR.

When connecting a device to the headphone jack, use only a

3.5-mm stereo plug.

When a device is connected to the headphone jack, the internal speakers are disabled.

Multimedia 1–7

Multimedia hardware

Adjusting the volume

You can adjust the volume using the following controls:

Speaker volume buttons:

To mute or restore volume, press the volume mute button.

To decrease the volume, press the volume down button.

To increase the volume, press the volume up button.

Microsoft® Windows® volume control:

1. Click the Volume icon in the notification area, at the far right of the taskbar.

2. Increase or decrease the volume by moving the slider up or down. Select the Mute check box to mute the volume.

– or –

1. Double-click the Volume icon in the notification area.

2. In the Master Volume column, increase or decrease the volume by moving the Volume slider up or down. You can also adjust the balance or mute the volume.

If the Volume icon is not displayed in the notification area, follow these steps to place it there:

1. Select Start > Control Panel > Sounds, Speech, and

Audio Devices > Sounds and Audio Devices.

2. Click the Volume tab.

3. Select the Place volume icon in the taskbar check box.

4. Click Apply.

Program volume control:

Volume can be adjusted within some programs.

1–8 Multimedia

Multimedia hardware

Using the video features

The computer includes the following video features:

External monitor port that connects a television, monitor, or projector

S-Video-out jack (select models only) that connects a range of advanced video components

Using the external monitor port

The external monitor port connects an external display device, such as an external monitor or projector, to the computer.

To connect a display device, connect the device cable to the external monitor port.

If a properly connected external display device does not display an image, press

fn+f4

to transfer the image to the device.

Multimedia 1–9

Multimedia hardware

Using the S-Video-out jack

(select models only)

The 7-pin S-Video-out jack connects the computer to an optional

S-Video device such as a television, VCR, camcorder, overhead projector, or video capture card.

The computer can support one S-Video device connected to the

S-Video-out jack, while simultaneously supporting an image on the computer display or on any other supported external display.

To transmit video signals through the S-Video-out jack, you need an S-Video cable, available from most electronics retailers. If you are combining audio and video functions, such as playing a DVD movie on your computer and displaying it on your television, you also need a standard audio cable, available from most electronic retailers, to connect to the headphone jack.

1–10 Multimedia

Multimedia hardware

To connect a video device to the S-Video-out jack:

1. Plug one end of the S-Video cable into the S-Video-out jack on the computer.

2. Plug the other end of the cable into the video device, as instructed in the documentation included with the device.

3. Press

fn+f4

to switch the image between display devices connected to the computer.

If the S-Video-out jack on the computer is not accessible because the computer is docked into an optional docking device (select models only), connect the S-Video cable to the

S-Video-out jack on the docking device.

Multimedia 1–11

2

Multimedia software

The computer includes preinstalled multimedia software. Some models may be shipped with additional multimedia software on an optical disc.

Depending on the hardware and software included with the computer, the following multimedia tasks may be supported:

Playing digital media, including audio and video CDs, audio and video DVDs, and Internet radio

Creating or copying data CDs

Creating, editing, and burning audio CDs

Creating, editing, and burning a video or movie to a DVD or video CD

For details about using software included with the computer, refer to the software user guides. These guides may be provided on CD or as online Help files within the specific program. User guides may also be found on the software manufacturer’s Web site.

Multimedia 2–1

Multimedia software

Identifying preinstalled multimedia software

To view and access the preinstalled multimedia software on the computer:

»

Select Start > All Programs.

You can also reinstall multimedia software on the computer.

Select Start > All Programs > Software Setup.

Installing multimedia software from a CD (select models only)

To install multimedia software from a CD included with the computer:

1. Insert the multimedia software CD into the optical drive.

2. When the installation wizard opens, follow the installation instructions on the screen.

3. Restart the computer if prompted.

Repeat the installation procedure for all multimedia software on

CD that you want to install.

2–2 Multimedia

Multimedia software

Using multimedia software

To use the multimedia software installed on the computer:

1. Select Start > All Programs, and then open the multimedia program you want to use. For example, if you want to use

Windows Media Player to play an audio CD, select Windows

Media Player.

Some programs may be located in subfolders.

2. Insert the media disc, such as an audio CD, into the optical drive.

3. Follow the instructions on the screen.

– or –

1. Insert the media disc, such as an audio CD, into the optical drive.

An AutoPlay dialog box opens.

2. Click the multimedia task you want to perform from the list of tasks for each installed multimedia program.

The AutoPlay dialog box allows you to select a default multimedia program for the media disc. After you select a program from the list, click the Always do the selected

action box.

3. Click OK.

Multimedia 2–3

Multimedia software

Protecting playback

To prevent the loss of playback or playback quality:

Save your work and close all open programs before playing a

CD or a DVD.

Do not connect or disconnect hardware while playing a disc.

To prevent the loss of playback while the computer is in

Windows, do not initiate standby or hibernation while playing a disc. If standby or hibernation is initiated while a disc is in use, you may see the warning message “Putting the computer into hibernation or standby might stop the playback. Do you want to continue?” If this message is displayed, click No. After you click

No:

Playback may resume.

– or –

Playback may stop and the screen may clear. To return to playing the CD or DVD, press the power button and then restart the disc.

Protecting the CD or DVD write process

Ä

CAUTION: To prevent loss of information or damage to a disc:

Before writing to a disc, connect the computer to a reliable external power source. Do not write to a disc while the computer is running on battery power.

Before writing to a disc, close all open programs except the disc software you are using.

Do not copy directly from a source disc to a destination disc or from a network drive to a destination disc. Instead, copy from a source disc or network drive to your hard drive, and then copy from your hard drive to the destination disc.

Do not use the computer keyboard or move the computer while the computer is writing to a disc. The write process is sensitive to vibration.

2–4 Multimedia

Multimedia software

Changing DVD region settings

Most DVDs that contain copyrighted files also contain region codes. The region codes help protect copyrights internationally.

You can play a DVD containing a region code only if the region code on the DVD matches the region setting on your DVD drive.

If the region code on a DVD does not match the region setting on your drive, the following message is displayed when you insert the DVD: “Playback of content from this region is not permitted.”

To play the DVD, you must change the region setting on your

DVD drive. DVD region settings can be changed through the operating system or through some DVD players.

Ä

CAUTION: The region settings on your DVD drive can be changed only

5 times.

The region setting you select the fifth time becomes the permanent region setting on the DVD drive.

The number of allowable region changes remaining on the drive is displayed in the Changes remaining box on the DVD Region tab. The number in the box includes the fifth and permanent change.

Multimedia 2–5

Multimedia software

To change DVD settings through the operating system:

1. Select Start > My Computer.

2. Right-click in the window and select Properties > Hardware tab > Device Manager.

3. Click DVD/CD-ROM drives, right-click the DVD drive for which you want to change region settings, and then click

Properties.

4. Make the desired changes on the DVD Region tab.

5. Click OK.

Observing the copyright warning

It is a criminal offense, under applicable copyright laws, to make unauthorized copies of copyright-protected material, including computer programs, films, broadcasts, and sound recordings. Do not use this computer for such purposes.

2–6 Multimedia

© Copyright 2006 Hewlett-Packard Development Company, L.P.

Microsoft and Windows are U.S. registered trademarks of Microsoft

Corporation.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Multimedia

First Edition: May 2006

Document Part Number: 409914-001

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
