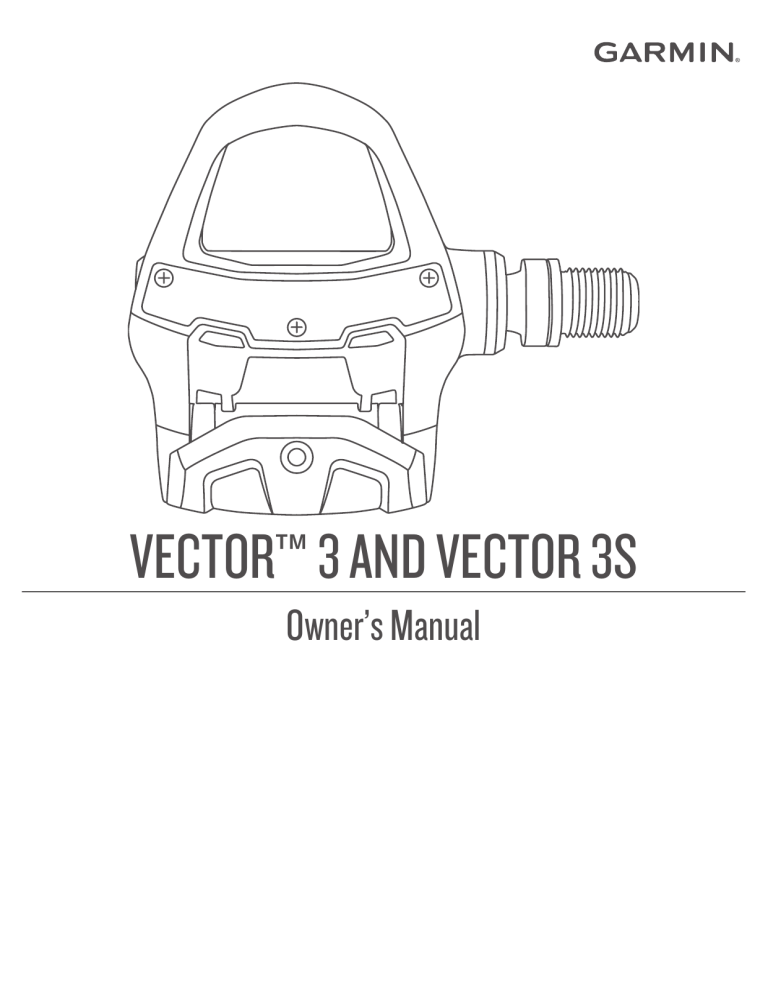

VECTOR™ 3 AND VECTOR 3S
Owner’s Manual
© 2017 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its
products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates
and supplemental information concerning the use of this product.
Garmin , the Garmin logo, ANT+ , Edge , fēnix , and Forerunner are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Connect™ and Vector™ are
trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
®
®
®
®
®
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Mac is a registered trademark of Apple Computer, Inc.
Training Stress Score™ (TSS), Intensity Factor™ (IF), and Normalized Power™ (NP) are trademarks of Peaksware, LLC. Windows is a registered trademark of Microsoft Corporation in the United
States and other countries. Other trademarks and trade names are those of their respective owners.
®
®
®
This product is ANT+ certified. Visit www.thisisant.com/directory for a list of compatible products and apps.
®
The FCC ID is located in the battery compartment. FCC ID: IPH-03220
M/N: A03220
Table of Contents
Introduction.....................................................................1
Thank You .................................................................................. 1
Getting Started ............................................................................ 1
Tools Needed ............................................................................. 1
Installing the Vector Components ............................................... 1
Installing the Shoe Cleats ........................................................... 1
About the Vector 3S System ....................................................... 2
Pairing Vector with Your Edge 1030 ........................................... 2
Your First Ride ............................................................................ 2
Training........................................................................... 2
Pedal-Based Power .................................................................... 2
Cycling Dynamics ....................................................................... 2
Vector Data ..................................................................... 3
Pairing Vector with the Garmin Connect Mobile App ................. 3
Sending Your Ride to Garmin Connect ...................................... 3
Customizing the Settings in the Garmin Connect Mobile App .... 3
Device Information......................................................... 4
Vector Device Care ..................................................................... 4
Maintenance Tips ....................................................................... 4
Vector Specifications .................................................................. 4
Battery Information ..................................................................... 4
Overhauling the Vector Pedals ................................................... 4
Vector Storage ............................................................................ 6
Other Compatible Devices............................................. 6
Edge 1000 Instructions ............................................................... 6
Edge 520 and Edge 820 Instructions ......................................... 6
Forerunner® 935 and fēnix® 5 Series Instructions .................... 6
Appendix ......................................................................... 6
Registering Your Vector System ................................................. 6
Upgrading Your Vector 3S to a Dual Sensing System ............... 6
Power Data Fields ...................................................................... 7
Troubleshooting .......................................................................... 8
Index................................................................................ 9
Table of Contents
i
Introduction
WARNING
Read all instructions carefully before installing and using the
Vector system. Improper use could result in serious injury.
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
4 Hand tighten the spindle.
5 Use the pedal wrench to tighten the spindle.
NOTE: For more information, go to www.garmin.com/manuals
/vector3 or www.support.garmin.com.
Thank You
Thank you for your Vector 3 or Vector 3S purchase. This manual
covers both Vector systems.
Vector was designed for cyclists, by cyclists, to provide an
outstanding experience of owning a precision power
measurement system for your bike.
Vector is simple, accurate, and easy to use.
Now it's time to put the power under your feet and get out there
and ride.
NOTE: Garmin recommends torque of 25 lbf-ft. (34 N-m).
6 Repeat steps 2 through 5 to install the left pedal.
NOTE: The left pedal spindle has a left-handed (reverse)
thread.
7 Move your bike chain to the largest chain ring and the
smallest cassette gear.
Rotate
the crank arm to check for clearance.
8
®
Getting Started
1 Install the Vector components (Installing the Vector
Components, page 1).
2 Install the shoe cleats (Installing the Shoe Cleats, page 1).
3 Pair the Vector system with your Edge device (Pairing
®
Vector with Your Edge 1030, page 2).
4 Go for a ride (Your First Ride, page 2).
5 View your history (Vector Data, page 3).
6 Send your history to your computer (Sending Your Ride to
Garmin Connect, page 3).
Tools Needed
•
•
•
•
15 mm pedal wrench
Bike grease
3 mm hex key
4 mm hex key
Installing the Vector Components
The installation steps for the Vector 3 and Vector 3S systems
are very similar. Procedures that are specific to the Vector 3S
system are noted.
NOTE: Garmin recommends 2 mm or more between the
pedal and the chain. If the pedal rubs the chain, you can add
one washer (included) between the spindle and the crank
arm to increase clearance. To maintain an equal q factor, you
can add one washer to the left pedal spindle. Do not use
more than one washer on each pedal.
Pedal Status LED
LED flashes indicate a system issue that requires your attention.
Error codes are cleared after the issue is resolved and you have
synced your Vector system with the Garmin Connect™ Mobile
app or your Edge device. The LED is located on the inboard of
the spindle À.
Preparing for the Installation
1 Remove the existing pedals.
2 Clean the threads, and remove old grease.
Installing the Pedals
This procedure is for the Vector 3 system. The Vector 3S system
installation is the same, but the power sensor components are in
the left pedal only. For more information, see About the Vector
3S System, page 2.
1 Install the right pedal first.
2 Apply a thin layer of grease on the pedal spindle threads.
LED Activity
Status
1 red flash
The Vector system is active and
working properly.
3 green flashes every 10
seconds
The pedal is searching for the other
pedal.
Alternating red and green
flashes
A software update is in progress.
20 green flashes
The software update was successful.
20 red flashes
The software update failed.
1 red flash every 10 seconds
The pedal batteries are low.
Installing the Shoe Cleats
3 Insert the spindle into the crank arm.
Introduction
NOTE: The left and right cleats are the same.
1 Apply a thin layer of grease on the cleat bolt threads.
2 Align the cleat À, washers Á, and bolts Â.
1
Entering the Crank Length
The crank length is often printed on the crank arm. This
procedure contains instructions for the Edge 1030. If you have
another compatible device, see Other Compatible Devices,
page 6, or see your owner's manual.
1 Rotate the pedals a few times in order to activate Vector.
> Sensors.
2 Select
3 Select your sensor.
4 Select Sensor Details > Crank Length.
5 Enter the crank length, and select .
3 Use a 4 mm hex key to loosely attach each bolt to the sole of
the shoe.
Adjust
the cleat to the shoe in your preferred position.
4
This can be adjusted after a trial ride.
5 Tighten the cleat firmly to the shoe.
NOTE: Garmin recommends torque of 4 to 6 lbf-ft. (5 to 8 Nm).
Adjusting the Release Tension
NOTICE
Do not overtighten the release tension screw on the bottom of
the pedal. The release tension should be adjusted equally for
both pedals.
Use a 3 mm hex key to adjust the release tension of each
pedal.
There is a window on the back of the pedal binding that
shows the allowable range.
About the Vector 3S System
The single-sensing Vector 3S measures forces on the left pedal
in order to approximate your total power. For information about
upgrading, see Upgrading Your Vector 3S to a Dual Sensing
System, page 6.
NOTE: The Vector 3S system does not support cycling
dynamics.
Pairing Vector with Your Edge 1030
Before you can view Vector data on the Edge device, you must
pair the devices.
Pairing is the connecting of ANT+ wireless sensors. This
procedure contains instructions for the Edge 1030. If you have
another compatible device, see Other Compatible Devices,
page 6, or go to www.garmin.com/manuals/vector3.
1 Bring the Edge device within range (3 m) of the sensor.
NOTE: Stay 10 m away from other ANT+ sensors while
pairing.
2 Turn on the Edge device.
> Sensors > Add Sensor > Power.
3 Select
4 Rotate the crank arm.
5 Select your sensor.
6 Select Add.
When the sensor is paired with your device, is solid. You
can customize a data field to display power data
(Customizing the Data Fields, page 2).
®
Customizing the Data Fields
This procedure contains instructions for the Edge 820, 1000,
and 1030 devices. If you have another compatible device, see
your owner's manual.
1 Hold a data field to change it.
2 Select a category.
3 Select a data field.
Training
Pedal-Based Power
Vector measures pedal-based power.
Vector measures the force you apply a few hundred times every
second. Vector also measures your cadence or rotational
pedaling speed. By measuring the force, the direction of force,
the rotation of the crank arm, and time, Vector can determine
power (watts). Because Vector independently measures left and
right leg power, it reports your left-right power balance.
NOTE: The Vector S system does not provide left-right power
balance.
Cycling Dynamics
Cycling dynamics metrics measure how you apply power
throughout the pedal stroke, and where you apply power on the
pedal, allowing you to understand your particular way of riding.
Understanding how and where you produce power allows you to
train more efficiently and evaluate your bike fit.
NOTE: You must have a dual sensing Vector system to use
cycling dynamics metrics.
For more information, go to www.garmin.com/cyclingdynamics.
Using Cycling Dynamics
Before you can use cycling dynamics, you must pair the Vector
power meter with your device (Pairing Vector with Your Edge
1030, page 2).
NOTE: Recording cycling dynamics uses additional device
memory.
1 Go for a ride.
2 Scroll to the cycling dynamics screen to view your power
phase data À, total power Á, and platform center offset Â.
Your First Ride
Before you ride with Vector for the first time, you must enter the
crank length. The Vector system automatically calibrates after
each ride. You must also enter the crank length when you move
Vector to another bike.
This procedure contains instructions for the Edge 1030 device. If
you have another compatible device, see Other Compatible
Devices, page 6, or go to www.garmin.com/manuals/vector3.
2
Training
• Use the USB cable that came with your Edge 1030 to send
ride data to your Garmin Connect account on your computer.
Garmin Connect
3 If necessary, hold a data field à to change it (Customizing
the Data Fields, page 2).
NOTE: The two data fields at the bottom of the screen can be
customized.
You can send the ride to the Garmin Connect Mobile app to
view additional cycling dynamics data (Sending Your Ride to
Garmin Connect, page 3).
You can connect with your friends on Garmin Connect. Garmin
Connect gives you the tools to track, analyze, share, and
encourage each other. Record the events of your active lifestyle
including runs, walks, rides, swims, hikes, triathlons, and more.
You can create your free Garmin Connect account when you
pair your device with your phone using the Garmin Connect
Mobile app, or you can go to garminconnect.com.
Store your activities: After you complete and save an activity
with your device, you can upload that activity to Garmin
Connect and keep it as long as you want.
Analyze your data: You can view more detailed information
about your activity, including time, distance, elevation, heart
rate, calories burned, cadence, an overhead map view, pace
and speed charts, and customizable reports.
NOTE: Some data requires an optional accessory such as a
heart rate monitor.
Power Phase Data
Power phase is the pedal stroke region (between the start crank
angle and the end crank angle) where you produce positive
power.
Platform Center Offset
Platform center offset is the location on the pedal platform where
you apply force.
Vector Data
Your ride data or history is recorded to your Edge device or
another compatible Garmin device. This section contains
instructions for the Edge 1030.
NOTE: History is not recorded while the timer is stopped or
paused.
When the device memory is full, a message appears. The
device does not automatically delete or overwrite your history.
You should upload your history to your Garmin Connect account
periodically to keep track of all your ride data.
Pairing Vector with the Garmin Connect
Mobile App
You can update Vector software and settings using the Garmin
Connect Mobile app.
NOTE: The left pedal receives the software update. The left
pedal sends the update to the right pedal.
1 From the app store on your smartphone, install and open the
Garmin Connect Mobile app.
2 Rotate the crank arm.
3 Select an option to add your device to your Garmin Connect
account:
• If this is the first device you have paired with the Garmin
Connect Mobile app, follow the on-screen instructions.
• If you have already paired another device with the Garmin
Connect Mobile app, from the settings menu, select
Garmin Devices > Add Device, and follow the on-screen
instructions.
Plan your training: You can choose a fitness goal and load one
of the day-by-day training plans.
Share your activities: You can connect with friends to follow
each other's activities or post links to your activities on your
favorite social networking sites.
Disconnecting the USB Cable
If your device is connected to your computer as a removable
drive or volume, you must safely disconnect your device from
your computer to avoid data loss. If your device is connected to
your Windows computer as a portable device, it is not
necessary to safely disconnect the device.
1 Complete an action:
• For Windows computers, select the Safely Remove
Hardware icon in the system tray, and select your device.
• For Apple computers, select the device, and select File >
Eject.
2 Disconnect the cable from your computer.
®
®
Customizing the Settings in the Garmin
Connect Mobile App
You can customize your crank length, scale factor, and cycling
dynamics settings in the Garmin Connect Mobile app.
• From the settings menu in the Garmin Connect Mobile app,
select Garmin Devices, and select your device.
• Sync your Vector system with the Garmin Connect Mobile
app to apply the changes (Pairing Vector with the Garmin
Connect Mobile App, page 3).
Sending Your Ride to Garmin Connect
This procedure contains instructions for the Edge 1030. If you
have another compatible device, see your owner's manual.
• Sync your Edge 1030 with the Garmin Connect mobile app
on your smartphone.
Vector Data
3
Device Information
Vector Device Care
NOTICE
Keep the components clean and free of debris.
Do not use a sharp object to clean the device.
Avoid chemical cleaners, solvents, and insect repellents that can
damage plastic components and finishes.
Do not submerge or pressure wash the components.
Do not store the device where prolonged exposure to extreme
temperatures can occur, because it can cause permanent
damage.
Replace components with Garmin parts only. See your Garmin
dealer or the Garmin website.
Battery Information
The Vector system monitors the battery level of both pedals and
sends status information to your Edge device. When you receive
a low battery warning, you have approximately 10–20 hours of
operation time remaining.
Replacing the Batteries
WARNING
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
NOTE: Garmin recommends replacing all of the batteries at the
same time. Do not mix the battery types.
1 Use a 4 mm hex key to remove the battery cover À.
Maintenance Tips
NOTICE
Some bike tools may scratch the finish of Vector components.
• Use wax paper or a towel between the tool and the hardware.
• After any bike adjustments, rotate the crank arm to check for
clearance.
• Keep Vector components clean.
• When moving Vector to another bike, clean the threads and
surfaces thoroughly.
• Go to www.garmin.com/manuals/vector3 for the latest
updates and information.
2 Remove the batteries.
3 Wait 5 to 10 seconds.
4 Insert the new batteries into the cover, observing polarity.
Vector Specifications
Battery type
User-replaceable LR44 or SR44, 1.5 V, 2 per
pedal
Battery life
Up to 120 hr. of riding time, with cycling
dynamics
Operating
temperature range
From -14° to 122°F (from -10° to 50°C)
SR44 batteries may perform better in cold
temperatures.
5 Replace the cover.
Wireless
frequencies/
protocols
ANT+ 2.4 GHz @ 3 dBm nominal
Bluetooth 2.4 GHz @ 3 dBm nominal
6 Use a 4 mm hex key to tighten the battery cover.
Water rating
IEC 60529 IPX7*
®
NOTE: Do not damage or lose the O-ring gasket.
The pedal LED flashes red once.
*The device withstands incidental exposure to water of up to 1 m
for up to 30 min. For more information, go to www.garmin.com
/waterrating.
Overhauling the Vector Pedals
You can disassemble and reassemble the pedal spindles to clean and grease the components.
NOTICE
Garmin recommends overhauling one pedal at a time taking care to keep track of the small screws and seals. You must obtain a 4
mm hex key, PH 00 screwdriver, 15 mm pedal wrench, 12 mm socket wrench with a 1/4 in. drive, and bike grease. Use care not to
damage any of the Vector components.
NOTE: If you have the Vector 3S system, this procedure applies to the left pedal only. Mechanical pedal maintenance applies to the
right pedal.
1 Use a 15 mm pedal wrench to remove the pedals.
NOTE: The left pedal spindle has a left-handed (reverse) thread.
2 Use a 4 mm hex key to remove the battery cover À.
4
Device Information
3 Set the battery cover and batteries Á aside.
4 Use a small Phillips screwdriver (PH 00) to remove the two screws  from inside the battery carriage Ã.
5 Remove the battery carriage.
6 While securely holding the wrench flats with a pedal wrench, use the 12 mm socket wrench to unscrew the spindle nut Ä.
NOTE: The right pedal has a black spindle nut and a reverse thread. The left pedal has a silver spindle nut. The left spindle has a
line on the wrench flats.
7 Slide the spindle Å out of the pedal body.
8 Remove the inner seal Æ and outer seal Ç from inside the pedal body.
NOTE: Both seals are cone shaped to fit the tapered spindle.
9 Remove all old grease from the components.
10 Insert the inner seal into the pedal body.
You should press it down so it is flush with the bearing.
11 Slide the outer seal on to the spindle.
12 Apply bike grease to the bearing inside the pedal body.
13 Apply a layer of bike grease to the spindle.
14 Insert the spindle into the pedal body.
If the outer seal moves, you should press it down so it is flush with the top of the spindle.
15 Replace the spindle nut.
16 While securely holding the wrench flats with a pedal wrench, use the 12 mm socket wrench to tighten the nut.
WARNING
Garmin recommends torque of 7 lbf-ft. (10 N-m). Failure to properly tighten the nut could cause the pedal to fall off during a ride,
which could result in property damage or serious bodily injury or death.
17 Replace the battery carriage and two screws.
18 Replace the batteries and cover.
NOTE: Do not damage or lose the O-ring gasket.
19 Use a 4 mm hex key to tighten the battery cover.
The pedal LED flashes red once.
Device Information
5
20 Install the pedals (Installing the Pedals, page 1).
Vector Storage
If you are transporting your bicycle or not using Vector for an
extended period of time, Garmin recommends removing Vector
and storing it in the product box.
Other Compatible Devices
Edge 1000 Instructions
Pairing Vector with the Edge 1000
1 Bring the Edge device within range (3 m) of the sensor.
NOTE: Stay 10 m away from other ANT+ sensors while
pairing.
2 Turn on the Edge device.
3 From the home screen, select > Sensors > Add Sensor >
Power.
4 Rotate the crank arm a few times.
5 Select your sensor.
When the sensor is paired with your Edge device, a message
appears, and the sensor status is Connected. You can
customize a data field to display Vector data.
Entering the Crank Length with the Edge 1000
The crank length is often printed on the crank arm.
1 Rotate the pedals a few times in order to activate Vector.
2 From the home screen, select > Sensors > > Sensor
Details > Crank Length.
3 Enter the crank length, and select .
Edge 520 and Edge 820 Instructions
Pairing Vector with the Edge 520 and Edge 820
This procedure contains instructions for the Edge 520 and Edge
820. For more information about compatible devices, go to
www.garmin.com/manuals/vector3.
1 Bring your compatible watch within range (3 m) of the sensor.
NOTE: Stay 10 m away from other ANT+ sensors while
pairing.
or Menu.
2 Select
3 Select Settings > Sensors > Add Sensor > Power.
4 Rotate the crank arm.
5 Select your sensor.
6 Select Add.
When the sensor is paired with your device, is solid. You
can customize a data field to display power data.
Entering the Crank Length with the Edge 520 and
Edge 820
The crank length is often printed on the crank arm.
Rotate the pedals a few times in order to activate Vector.
Select
or Menu.
Select Settings > Sensors > Power.
Select your sensor.
Select Sensor Details > Crank Length.
Enter the crank length, and select .
1
2
3
4
5
6
6
Forerunner 935 and fēnix 5 Series
Instructions
®
®
Pairing Vector with Your Forerunner 935 and fēnix 5
Series
This procedure contains instructions for the Forerunner 935 and
fēnix 5 Series watches. For more information about compatible
watches, go to www.garmin.com/manuals/vector3.
1 Bring your compatible watch within range (3 m) of the sensor.
NOTE: Stay 10 m away from other ANT+ sensors while
pairing.
or MENU.
2 Hold
3 Select Settings > Sensors & Accessories > Add New >
Power.
4 Rotate the crank arm.
5 Select your sensor.
After the sensor is paired with your device, the sensor status
changes from Searching to Connected. Sensor data appears
in the data page loop or a custom data field.
Entering the Crank Length with the Forerunner 935
and fēnix 5 Series
The crank length is often printed on the crank arm.
1 Rotate the pedals a few times in order to activate Vector.
or MENU.
2 Hold
3 Select Settings > Sensors & Accessories > Power.
4 Select your sensor.
5 Select Crank Length.
6 Enter the crank length, and select .
Appendix
Registering Your Vector System
Help us better support you by completing our online registration
today.
• Go to https://my.garmin.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Upgrading Your Vector 3S to a Dual Sensing
System
Before you install the new right pedal, the left pedal must be
paired and connected to a compatible Edge device or the
Garmin Connect Mobile app.
1 Review the Vector installation instructions (Installing the
Vector Components, page 1).
2 Remove the existing right pedal.
3 Install the new right pedal (Installing the Pedals, page 1).
4 Rotate the crank arm.
5 Select an option to connect the right pedal to the left pedal:
• From your compatible Edge device, select
> Sensors,
select your sensor, select Sensor Details > Pair Right
Power Sensor, and enter the sensor ID found on the
pedal.
• From the Garmin Connect Mobile app device settings,
enable the Right Pedal, and enter the sensor ID found on
the pedal.
Other Compatible Devices
Power Data Fields
NOTE: This list contains power data fields for the Edge 1030
device. If you have another compatible device, see your device
owner's manual.
NOTE: Data fields that display pedal smoothness, torque
effectiveness, and balance data are not supported by the Vector
S system.
Balance: The current left/right power balance.
Balance - 10s Avg.: The 10-second moving average of the left/
right power balance.
Balance - 30s Avg.: The 30-second moving average of the left/
right power balance.
Balance - 3s Avg.: The three-second moving average of the
left/right power balance.
Balance - Avg.: The average left/right power balance for the
current activity.
Balance - Lap: The average left/right power balance for the
current lap.
Cadence: Cycling. The number of revolutions of the crank arm.
Your device must be connected to a cadence accessory for
this data to appear.
Cadence - Avg.: Cycling. The average cadence for the current
activity.
Cadence Bars: A bar graph showing your cycling cadence
values for the current activity.
Cadence Graph: A line graph showing your cycling cadence
values for the current activity.
Cadence - Lap: Cycling. The average cadence for the current
lap.
PCO: The platform center offset. Platform center offset is the
location on the pedal platform where force is applied.
PCO - Avg.: The average platform center offset for the current
activity.
PCO - Lap: The average platform center offset for the current
lap.
Pedal Smoothness: The measurement of how evenly a rider is
applying force to the pedals throughout each pedal stroke.
Power: The current power output in watts. Your device must be
connected to a compatible power meter.
Power - %FTP: The current power output as a percentage of
functional threshold power.
Power - 10s Avg.: The 10-second moving average of power
output.
Power - 10s Avg. watts/kg: The 10-second moving average of
power output in watts per kilogram.
Power - 30s Avg.: The 30-second moving average of power
output.
Power - 30s Avg. watts/kg: The 30-second moving average of
power output in watts per kilogram.
Power - 3s Avg.: The 3-second moving average of power
output.
Power - 3s Avg. watts/kg: The 3-second moving average of
power output in watts per kilogram.
Power - Avg.: The average power output for the current activity.
Power Bars: A bar graph showing your power output.
Power Graph: A line graph showing your power output for the
current activity.
Power - IF: The Intensity Factor™ for the current activity.
Power - kJ: The accumulated work performed (power output) in
kilojoules.
Power - Lap: The average power output for the current lap.
Power - Lap Max.: The top power output for the current lap.
Appendix
Power - Last Lap: The average power output for the last
completed lap.
Power - Max.: The top power output for the current activity.
Power - NP: The Normalized Power™ for the current activity.
Power - NP Lap: The average Normalized Power for the current
lap.
Power - NP Last Lap: The average Normalized Power for the
last completed lap.
Power Phase - L.: The current power phase angle for the left
leg. Power phase is the pedal stroke region where positive
power is produced.
Power Phase - L. Avg.: The average power phase angle for the
left leg for the current activity.
Power Phase - L. Lap: The average power phase angle for the
left leg for the current lap.
Power Phase - L. Peak: The current power phase peak angle
for the left leg. Power phase peak is the angle range over
which the rider produces the peak portion of the driving force.
Power Phase - L. Peak Avg.: The average power phase peak
angle for the left leg for the current activity.
Power Phase - L. Peak Lap: The average power phase peak
angle for the left leg for the current lap.
Power Phase - R.: The current power phase angle for the right
leg. Power phase is the pedal stroke region where positive
power is produced.
Power Phase - R. Avg.: The average power phase angle for the
right leg for the current activity.
Power Phase - R. Lap: The average power phase angle for the
right leg for the current lap.
Power Phase - R. Peak: The current power phase peak angle
for the right leg. Power phase peak is the angle range over
which the rider produces the peak portion of the driving force.
Power Phase - R. Peak Avg.: The average power phase peak
angle for the right leg for the current activity.
Power Phase - R. Peak Lap: The average power phase peak
angle for the right leg for the current lap.
Power - TSS: The Training Stress Score™ for the current
activity.
Power - watts/kg: The amount of power output in watts per
kilogram.
Power - watts/kg Avg.: The average power output in watts per
kilogram.
Power - watts/kg Lap: The average power output in watts per
kilogram for the current lap.
Power Zone: The current range of power output (1 to 7) based
on your FTP or custom settings.
Target Power: The target power output during an activity.
Time in Zone: The time elapsed in each power zone.
Time Seated: The time spent seated while pedaling for the
current activity.
Time Seated Lap: The time spent seated while pedaling for the
current lap.
Time Standing: The time spent standing while pedaling for the
current activity.
Time Standing Lap: The time spent standing while pedaling for
the current lap.
Torque Effectiveness: The measurement of how efficiently a
rider is pedaling.
Trainer Resistance: The resistance force applied by an indoor
trainer.
7
Troubleshooting
Updating the Vector Software Using the Edge 520,
820, 1000, or 1030
Before you can update the software, you must pair your Edge
device to your Vector system.
NOTE: The left pedal receives the software update. The left
pedal sends the update to the right pedal.
1 Send your ride data to your Garmin Connect account.
Garmin Connect automatically looks for software updates
and sends them to your Edge device.
2 Bring your Edge device within range (3 m) of the sensor.
3 Rotate the crank arm a few times.
The Edge device prompts you to install any pending software
updates.
4 Follow the on-screen instructions.
Resetting the Vector Pedals
If the device stops responding, you may need to reset it by
disconnecting and reconnecting the battery cover. This does not
erase any of your data.
1 Use a 4 mm hex key to remove the battery cover À.
2 Replace the cover.
NOTE: Do not damage or lose the O-ring gasket.
3 Use a 4 mm hex key to tighten the battery cover.
The pedal LED flashes red once.
Performing a Static Torque Test
NOTICE
The static torque test is intended for advanced cyclists and
installation experts. This test is not required under normal
circumstances to achieve good results with the Vector system.
This test is available for compatible Edge devices.
Garmin recommends performing the static torque test a
minimum of three times and averaging the reported torque
values.
1 Go to www.support.garmin.com.
2 Enter your product name.
3 Enter "torque test" to view the FAQ topic.
Following repeated static torque tests, if the reported torque
value is consistently different than the expected value, you can
enter a scale factor for one or both pedals. The scale factor is
stored in the pedal and adjusts the power value that is
calculated on the pedal. The scale factor is sent to the Edge
device and stored on Edge device.
8
Appendix
Index
B
battery 1
life 4
replacing 4
C
calibrating 2, 6
cleaning the device 4
cleats 1
customizing the device 2
cycling dynamics 2
D
data
storing 3
transferring 3
data fields 2, 7
E
Edge 2, 6
F
fēnix 6
Forerunner 6
G
Garmin Connect 3
H
history 3
sending to computer 3
I
installing 1
M
maintenance 4
memory 3
P
pairing 1, 2, 6
smartphone 3
pedals 1, 2, 4
platform center offset 3
power 2
power (force), meters 2
power phase 3
product registration 6
R
registering the device 6
resetting the device 8
S
settings 3
smartphone, pairing 3
specifications 4
storing data 3
storing the device 6
T
tools 1
training 4
troubleshooting 8
U
upgrading 6
USB, disconnecting 3
Index
9
support.garmin.com
September 2017
190-02235-00_0A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
