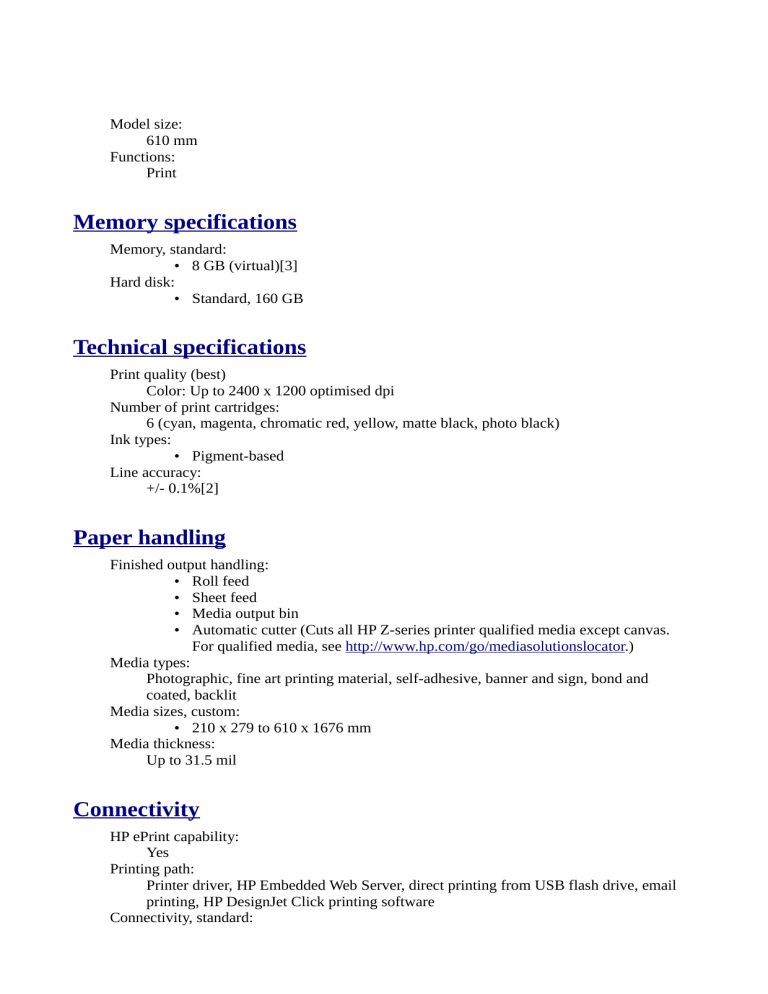

Model size:
610 mm
Functions:
Print
Memory specifications
Memory, standard:
• 8 GB (virtual)[3]
Hard disk:
• Standard, 160 GB
Technical specifications
Print quality (best)
Color: Up to 2400 x 1200 optimised dpi
Number of print cartridges:
6 (cyan, magenta, chromatic red, yellow, matte black, photo black)
Ink types:
• Pigment-based
Line accuracy:
+/- 0.1%[2]
Paper handling
Finished output handling:
• Roll feed
• Sheet feed
• Media output bin
• Automatic cutter (Cuts all HP Z-series printer qualified media except canvas.
For qualified media, see http://www.hp.com/go/mediasolutionslocator.)
Media types:
Photographic, fine art printing material, self-adhesive, banner and sign, bond and
coated, backlit
Media sizes, custom:
• 210 x 279 to 610 x 1676 mm
Media thickness:
Up to 31.5 mil
Connectivity
HP ePrint capability:
Yes
Printing path:
Printer driver, HP Embedded Web Server, direct printing from USB flash drive, email
printing, HP DesignJet Click printing software
Connectivity, standard:
• Gigabit Ethernet (1000Base-T)
• Hi-Speed USB 2.0 certified interface for direct printing from USB flash drive
• EIO Jetdirect accessory slot
Print languages:
Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2,
and HP-RTL
Power and operating requirements
Power consumption:
< 120 watts (printing); < 32 watts (ready); 1.5 watts (sleep); 0.1 watts (off)
Operating temperature range:
5 to 40ºC
Operating humidity range:
20 to 80% RH
Dimensions and weight
Minimum dimensions (W x D x H):
1260 x 690 x 1050 mm
Weight:
62 kg
What's included
Warranty:
One-year commercial hardware warranty
What's in the box:
HP DesignJet Z2600 PostScript Printer; Printheads; Introductory ink cartridges; Printer
stand and media bin; Spindle; Quick reference guide; Setup poster; Start-up software;
Power cord
Software included:
• Printer drivers
• HP DesignJet Click
• HP DesignJet Utility
• HP Printer Utility including HP Color Center
• HP Designjet Excel Accounting Tool
