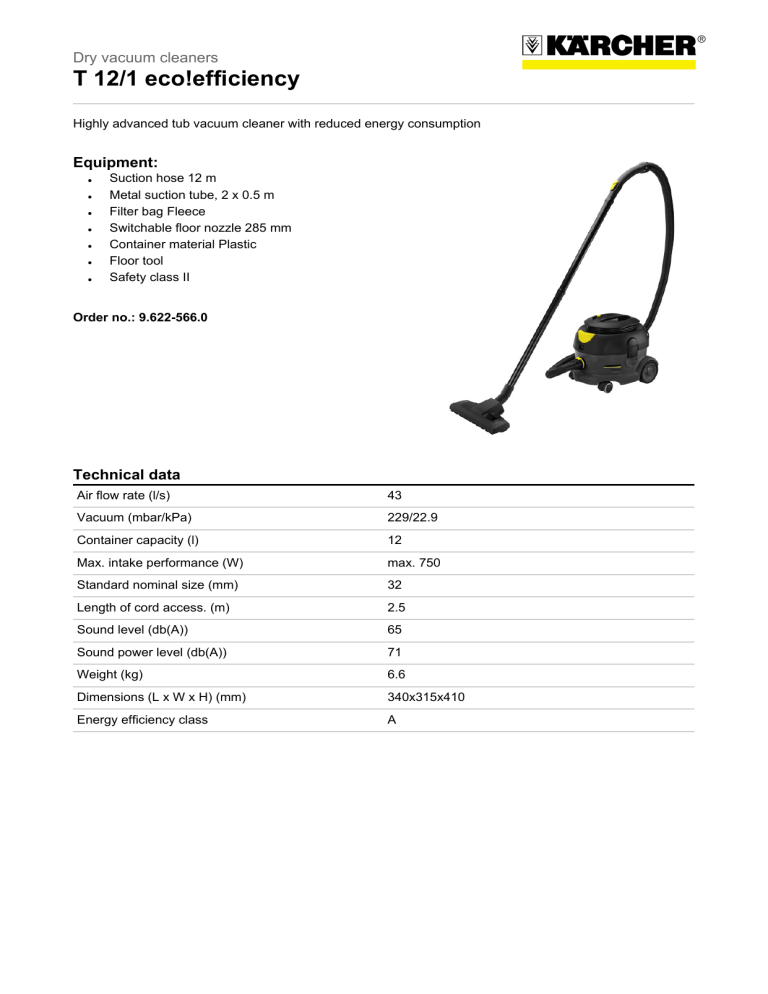

T 12/1 eco!efficiency

T 12/1 eco!efficiency
Dry vacuum cleaners
T 12/1 eco!efficiency
Highly advanced tub vacuum cleaner with reduced energy consumption
Equipment:
•
•
•
•
•
•
•
Suction hose 12 m
Metal suction tube, 2 x 0.5 m
Filter bag Fleece
Switchable floor nozzle 285 mm
Container material Plastic
Floor tool
Safety class II
Order no.: 9.622-566.0
Technical data
Air flow rate (l/s)
43
Vacuum (mbar/kPa)
229/22.9
Container capacity (l)
12
Max. intake performance (W)
max. 750
Standard nominal size (mm)
32
Length of cord access. (m)
2.5
Sound level (db(A))
65
Sound power level (db(A))
71
Weight (kg)
6.6
Dimensions (L x W x H) (mm)
340x315x410
Energy efficiency class
A
Details
Description
The highly advanced T 12/1 eco!efficiency offers dramatically reduced noise and energy consumption
compared to other tub vacs – without compromising daily cleaning performance. By using optimised air
flow channels, the T 12/1 eco!efficiency provides almost the same cleaning performance as the standard
machine, but with 40% less energy consumption and at only 56dB(A).
Accessories
Adapter (tube -> nozzle)
Adapter
From DN 32 to DN 35: Plastic adapter (electrically non-conductive). Suitable for
BV and T vacuum cleaners.
Order no. 6.902-083.0
All-purpose brushes
All-purpose brush, DN 32
All-purpose plastic brush Bristles: 120 x 45 mm. For all T and BV types.
Order no. 6.906-122.0
Combi-nozzles (dry)
Combination floor tool for parquet
Plastic combination floor tool for parquet (DN 32) with brush strips and two rollers,
suitable for all industrial T vacuum cleaners. Combination floor tool without
changeover function. 360 mm
Order no. 6.906-107.0
Combination floor tool (dry)
Plastic combination floor tool with changeover function (ID 32; 260 mm), with
stainless steel base plate.
Order no. 6.906-211.0
Combination floor tool
Plastic combination floor tool with plastic base plate and two rollers.
Order no. 6.906-812.0
Connecting sleeves
Adapter, DN 32/35, with internal thread
Electrically non-conductive adapter with internal thread. For connecting two
suction hoses without connectors. Suitable for DN 32 or DN 35.
Order no. 6.902-077.0
Crevice nozzles
Crevice nozzle
Plastic crevice tool (DN 32) for industrial dry vacuum cleaners for vacuuming in
crevices and corners.
Order no. 6.903-403.0
Electric brush
Brush-head ESB 34 - 230 V
ESB 34 with suction hose with integrated electric cabel and telescopic suction
tube.
Order no. 2.642-442.0
Electric brush – ESB 28
Electric brush with suction hose, power cord and telescopic suction tube. For
better dirt pick up from textiles. Also suitable for flexible and hard surfaces. For T
201 and T 12/1.
Order no. 2.641-815.0
Exhaust air filter
Standard exhaust filter
Standard exhaust filter and diffusor for reducing filtered air. Made of foam.
Order no. 6.414-802.0
Motor protection filter felt
Order no. 6.414-611.0
Extension hoses (Clip-system)
Extension hose, C 32, C 35 clip system
Electrically non-conductive standard extension hose for all C-32 and C-35 hoses
with clip system.
Order no. 6.906-237.0
Extension hose C 32-, C 35-Clip-system, el.
for all C-32 and C-35 hoses, electrically conductive.
Order no. 6.906-277.0
Fabric filter bag
Fabric filter bag
Cotton filter bags, washable up to 40°C, suitable for T7/1, T 10/1 and T 12/1
models.
Order no. 6.904-316.0
Fleece filter bags (3 ply)
Fleece filter bags
Extremely tear-resistant, 3-ply fleece filter bags, dust class M. Fleece filter bags
have 2 to 3 times the capacity of conventional paper filter bags. Standard for T
10/1 and T 12/1.
Order no. 6.904-315.0
Fleece filter bags
Fleece filter bag, 3-ply, tear-proof, dust class M, large-scale consumer unit.
Order no. 6.904-321.0
HEPA filter for dust class H
HEPA filter cassette
HEPA filter cassette (paper/plastic) - H 12 - increases filter capacity and improves
exhaust air. Optional (with Professional version as standard) filter instead of
exhaust filter cassette.
Order no. 6.414-801.0
Main filter baskets
Main filter basket with reinforced fleece
Plastic frames with reinforced fleece material, washably to 40°C.
Order no. 4.731-011.0
Permanent main filter basket
Main filter basket for T 15/1, T 12/1 and T 17/1 can be used as a main filter with
or without filter bag. Nylon-plastic frame, washable up to 40°C.
Order no. 5.731-640.0
Nozzle sets
Nozzle kit ID 32, for T vacuum cleaners with clip holder
Nozzle kit (DN 32) for all industrial dry vacuum cleaners, includes crevice tool,
upholstery tool, round brush and clip holder.
Order no. 2.860-143.0
Paper filter (2 ply)
Paper filter bags
10 paper filter bags dust class M. Suitable for all T 12/1 models.
Order no. 6.904-312.0
Paper filter bags, bulk consumer pack
Dust class M
Paper filter (2 ply)
Order no. 6.904-318.0
Plastic bend
Plastic bend, C-ID 32
Plastic with C-32 clip system.
Order no. 4.408-051.0
Plastic bend
Electrically conductive plastic bend (DN 32) with C-32 clip system, reduces static
buildup. Optional for BV 111, T 7/1, T 191, T 10/1, T 12/1, T 201/T201 + ESB 28.
Order no. 4.408-052.0
Comfort plastic bend, C-ID 32
Plastic bend (DN 32) with C-32 clip system with opening for adjusting the floor
tool for high-pile or extremely dense textile coverings.
Order no. 4.440-865.0
Radiator brushes
Radiator brush
Radiator brush is suitable for crevice tool 6.903-403.0
Order no. 6.903-404.0
Repair kits
Repair set, C 32
Repair set (C32) includes threaded hose adapters for industrial T vacuum
cleaners with clip system.
Order no. 2.639-739.0
Suction brushes
Suction brush
Rotatable suction brush (DN 32 plastic) with PA bristles, 70x45 mm. Only for BV
and T vacuum cleaners.
Order no. 6.903-887.0
Suction hoses (Clip-system)
Suction hose, (clip system), C 32
2.5 m suction hose with dry vacuum cleaner connection, clip connection (C 32).
Order no. 4.440-911.0
Suction hoses complete (Clip-system)
Suction hose, complete (clip system), C DN 32, 2.5 m
Improved quality: 2.5 m suction hose with dry vacuum cleaner connection, clip
connection and bend (C-DN 32).
Order no. 4.440-907.0
Suction tubes metal
Suction tube
Metal suction tube (DN 32, length 0.5 m) with black plastic coating, suitable as an
extension, e.g. vacuuming ceilings.
Order no. 6.906-618.0
Telescopic suction tube
Chromium-plated metal telescopic tube (DN 32, length: 0.61-1 m), suitable as an
extension, e.g. vacuuming ceilings.
Order no. 6.903-524.0
Suction tube
Metal
Order no. 6.903-850.0
Turbo nozzle
Turbo nozzle
Plastic turbo upholstery nozzle (DN 35/32, 160 mm) with reduction sleeve.
Order no. 2.860-113.0
Turbo nozzle, DN 32
Plastic turbo floor nozzle (DN 35/32, 270 mm) with reduction sleeve.
Order no. 2.860-114.0
Upholstery nozzles
Upholstery nozzle
Plastic upholstery tool (DN 32) with thread catcher, standard for T 201, T 201 +
ESB 28. Optional for T 7/1, T 191, T 10/1.
Order no. 6.903-402.0
