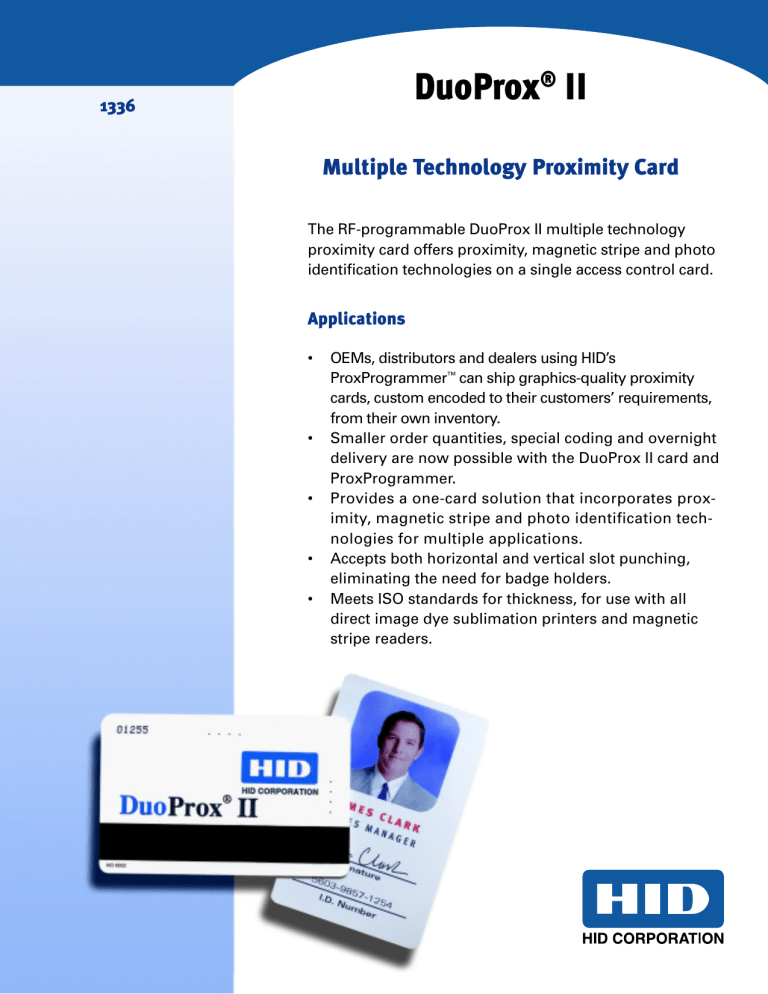

DuoProx® II
1336
Multiple Technology Proximity Card
The RF-programmable DuoProx II multiple technology
proximity card offers proximity, magnetic stripe and photo
identification technologies on a single access control card.
Applications
•
•
•
•
•
OEMs, distributors and dealers using HID’s
ProxProgrammer™ can ship graphics-quality proximity
cards, custom encoded to their customers’ requirements,
from their own inventory.
Smaller order quantities, special coding and overnight
delivery are now possible with the DuoProx II card and
ProxProgrammer.
Provides a one-card solution that incorporates proximity, magnetic stripe and photo identification technologies for multiple applications.
Accepts both horizontal and vertical slot punching,
eliminating the need for badge holders.
Meets ISO standards for thickness, for use with all
direct image dye sublimation printers and magnetic
stripe readers.
DuoProx® II
Features
Specifications
Proven, reliable technology
The read range is extremely consistent and is unaffected by
body shielding or variable environmental conditions, even
when close to keys and coins.
Typical maximum* read range
MiniProx™ reader-up to 5" (12.5 cm)
ThinLine II® reader-up to 5" (12.5 cm)
ProxPro® reader-up to 7" (17.5 cm)
MaxiProx® reader-up to 20" (50 cm)
Thin
Can be carried with credit cards in a wallet or purse.
Photo compatible
Can be directly printed with video image printers and vertically
or horizontally slot punched for easy use.
Cross-reference
A cross-reference list correlating the external card number
and the programmed ID number is provided for easy system
administration.
Dimensions
2.125" x 3.375" x 0.031" max.
(5.40 x 8.57 x 0.079 cm)
Card construction
Thin, flexible polyvinyl chloride (PVC)
laminate with an ABA standard, high
coercivity magnetic stripe rated 4000
Oersted.
Operating temperature
-50° to 160° F (-45° to 70° C)
Security
Offers over 137 billion unique codes.
Weight
0.24 oz. (6.8 gm)
Magnetic stripe
Ready to be encoded by customer.
Long life
Passive, no-battery design allows an infinite number of reads.
Durability
Strong, flexible and resistant to cracking and breaking.
Custom graphics
Custom multicolor graphics are available.
Warranty
The magstripe is warranted against defects in materials and
workmanship for 15 months from the date of shipment. The
Proximity card is warranted against defects in materials and
workmanship for 2 years from the date of shipment.
Part number
Base Part No.: 1336
Description
125 kHz, RF-programmable, customerspecified ID numbers, locations marked
for slot punch
Options
• external card numbering
• slot punch (horizontal or vertical)
• custom graphics
• a variety of magnetic stripes
*Depending on local installation conditions.
(Please see “How to Order” guide for a
description of the options and associated
part numbers).
LIT1336DS 4/00, supersedes 12/97
www.HIDCorp.com
Printed in the U.S.A.
Specifications subject to change without notice.
9292 Jeronimo Road
Irvine, CA 92618-1905 U.S.A.
(949) 598-1600 (800) 237-7769
FAX (949) 598-1690
©2000 HID Corporation
