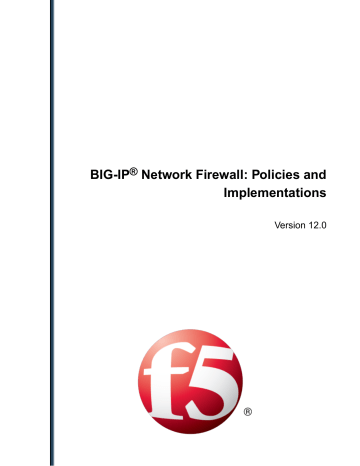

BIG-IP® Network Firewall: Policies and Implementations

BIG-IP® Network Firewall: Policies and Implementations

BIG-IP

®

Network Firewall: Policies and

Implementations

Version 12.0

Table of Contents

Table of Contents

Legal Notices..............................................................................................................................9

Legal notices......................................................................................................................9

About the Network Firewall......................................................................................................11

What is the BIG-IP Network Firewall?..............................................................................11

About firewall modes.............................................................................................11

Configuring the Network Firewall in ADC mode....................................................11

Configuring the Network Firewall to drop or reject traffic that is not specifically allowed.............................................................................................................12

Configuring the Network Firewall to globally drop or reject traffic.........................12

Firewall Rules and Rule Lists..................................................................................................13

About firewall rules...........................................................................................................13

Firewall actions......................................................................................................14

About Network Firewall contexts...........................................................................14

Creating a network firewall management port rule................................................16

About redundant and conflicting rules...................................................................18

About stale rules...................................................................................................20

About firewall rule lists.....................................................................................................21

Creating a network firewall rule list........................................................................21

Firewall Rule Addresses and Ports.........................................................................................27

About firewall rule addresses and ports...........................................................................27

About resolving DNS addresses in Network Firewall rules..............................................27

Creating a DNS resolver.......................................................................................28

Configuring the Network Firewall to use a DNS resolver......................................28

About address lists...........................................................................................................28

Creating an address list.........................................................................................28

About port lists.................................................................................................................29

Creating a port list.................................................................................................29

Network Firewall Schedules....................................................................................................31

About Network Firewall schedules...................................................................................31

Creating a schedule..............................................................................................31

About the Network Firewall Inline Rule Editor.......................................................................33

About the inline firewall rule editor...................................................................................33

Enabling the Network Firewall inline rule editor....................................................33

3

Table of Contents

Creating a rule with the inline editor......................................................................34

Editing a rule with the inline editor........................................................................36

Configuring BIG-IP Network Firewall Policies........................................................................39

About firewall policies.......................................................................................................39

Creating a Network Firewall policy........................................................................39

Setting a global firewall policy...............................................................................42

Configuring a route domain with a firewall policy..................................................43

Setting network firewall policies for a self IP address............................................43

Creating a virtual server with a firewall policy.......................................................43

Viewing enforced and staged policy rule logs..................................................................44

Viewing Network Firewall enforced policy events on the local BIG-IP system

.........................................................................................................................4 4

Viewing Network Firewall staged policy events on the local BIG-IP system ........45

IP Address Intelligence in the Network Firewall....................................................................47

About IP intelligence policies in the Network Firewall......................................................47

Downloading the IP address intelligence database...............................................48

IP address intelligence categories........................................................................48

About IP intelligence blacklist categories.........................................................................49

Creating a blacklist category.................................................................................50

About IP intelligence feed lists.........................................................................................50

Feed list settings and IP Intelligency policy...........................................................50

Creating a feed list................................................................................................51

Configuring a policy to check addresses against IP intelligence......................................52

Assigning a global IP Intelligence policy...............................................................53

Assigning an IP Intelligence policy to a virtual server...........................................53

Assigning an IP Intelligence policy to a route domain...........................................54

Deploying the BIG-IP Network Firewall in ADC Mode...........................................................55

About deploying the network firewall in ADC mode.........................................................55

Special IPv6 pool considerations with ADC mode...........................................................56

Configuring the Network Firewall in ADC mode...............................................................57

Creating a VLAN for the network firewall.........................................................................57

Configuring an LTM virtual server with a VLAN for Network Firewall....................58

Adding a firewall rule to deny ICMP.................................................................................58

Creating an address list...................................................................................................59

Denying access with firewall rules on the network virtual server.....................................59

Denying access with firewall rules on the application virtual server.................................60

Deploying the BIG-IP Network Firewall in Firewall Mode......................................................63

About Firewall mode in the Network Firewall...................................................................63

4

Table of Contents

Configuring the Network Firewall to drop or reject traffic that is not specifically allowed........................................................................................................................64

Creating a VLAN for the network firewall.........................................................................65

Configuring an LTM virtual server with a VLAN for Network Firewall....................65

Creating an address list...................................................................................................66

Allowing access from networks on an address list with a firewall rule.............................66

Allowing access from a network to a virtual server with a firewall rule............................67

Compiling and Deploying Network Firewall rules..................................................................69

About compiling and deploying rules in the Network Firewall..........................................69

Configuring manual or automatic policy compilation for firewall rules...................69

Configuring manual or automatic policy deployment for firewall rules...................70

About firewall policy compilation statistics.......................................................................71

Viewing compilation statistics for a firewall rule or policy......................................72

Viewing compilation statistics for all network firewall rules and policies................73

HTTP Protocol Security............................................................................................................75

Overview: Securing HTTP traffic......................................................................................75

Creating an HTTP virtual server to use with HTTP protocol security...............................75

Attaching an HTTP protocol security profile to a virtual server........................................76

Reviewing violation statistics for security profiles.............................................................76

Overview: Creating a custom HTTP security profile........................................................76

Creating a custom HTTP profile............................................................................77

Creating a security profile for HTTP traffic............................................................77

Configuring an HTTP virtual server with an HTTP security profile........................78

Reviewing violation statistics for security profiles..................................................79

Overview: Increasing HTTP traffic security......................................................................79

About RFC compliance and validation checks.................................................................79

Modifying HTTP protocol compliance checks.......................................................80

About evasion techniques checks....................................................................................80

Configuring HTTP protocol evasion techniques blocking policy............................81

About the types of HTTP request checks.........................................................................81

Configuring length checks for HTTP traffic............................................................81

Specifying which HTTP methods to allow.............................................................82

Including or excluding files by type in HTTP security profiles...............................83

Configuring a mandatory header for an HTTP security profile..............................83

Configuring the blocking response page for HTTP security profiles................................84

Overview: Configuring Local Protocol Security Event Logging........................................85

Creating a local Protocol Security Logging profile ...............................................85

Configuring a virtual server for Protocol Security event logging............................86

Viewing Protocol Security event logs locally on the BIG-IP system......................86

Disabling logging ..................................................................................................86

Implementation result.......................................................................................................87

Overview: Configuring Remote Protocol Security Event Logging....................................87

5

Table of Contents

About the configuration objects of remote protocol security event logging...........88

Creating a pool of remote logging servers............................................................89

Creating a remote high-speed log destination.......................................................89

Creating a formatted remote high-speed log destination......................................90

Creating a publisher .............................................................................................90

Creating a custom Protocol Security Logging profile ...........................................91

Configuring a virtual server for Protocol Security event logging............................92

Disabling logging ..................................................................................................92

Implementation result.......................................................................................................93

Preventing Attacks with Eviction Policies and Connection Limits......................................95

What are eviction policies and connection limits?............................................................95

Creating an eviction policy....................................................................................95

Limiting global connections and flows...................................................................97

Limiting connections and flows on a virtual server................................................97

Limiting connections and flows on a route domain................................................98

Setting Timers with Service Policies......................................................................................99

Creating and Applying Service Policies...........................................................................99

Introduction to service policies..............................................................................99

Local Logging with the Network Firewall.............................................................................103

Overview: Configuring local Network Firewall event logging..........................................103

Task summary................................................................................................................103

Creating a local Network Firewall Logging profile ..............................................103

Configuring a virtual server for Network Firewall event logging..........................105

Viewing Network Firewall event logs locally on the BIG-IP system.....................105

Creating a Network Firewall rule from a firewall log entry...................................105

Disabling logging ................................................................................................108

Implementation result.....................................................................................................109

Remote High-Speed Logging with the Network Firewall.....................................................111

Overview: Configuring remote high-speed Network Firewall event logging...................111

About the configuration objects of remote high-speed Network Firewall event logging............................................................................................................112

Creating a pool of remote logging servers..........................................................112

Creating a remote high-speed log destination.....................................................113

Creating a formatted remote high-speed log destination....................................113

Creating a publisher ...........................................................................................114

Creating a custom Network Firewall Logging profile ..........................................114

Configuring a virtual server for Network Firewall event logging..........................116

Disabling logging ................................................................................................116

Implementation result.....................................................................................................117

6

Table of Contents

SNMP Trap Configuration......................................................................................................119

Overview: BIG-IP SNMP agent configuration................................................................119

Specifying SNMP administrator contact information and system location information.....................................................................................................119

Configuring SNMP manager access to the SNMP agent on the BIG-IP system............................................................................................................119

Granting community access to v1 or v2c SNMP data.........................................120

Granting user access to v3 SNMP data..............................................................121

Overview: SNMP trap configuration...............................................................................121

Enabling traps for specific events........................................................................122

Setting v1 and v2c trap destinations...................................................................122

Setting v3 trap destinations.................................................................................122

Viewing pre-configured SNMP traps...................................................................123

Creating custom SNMP traps..............................................................................123

Overview: About troubleshooting SNMP traps...............................................................124

AFM-related traps and recommended actions....................................................124

ASM-related traps and recommended actions....................................................125

Application Visibility and Reporting-related traps and recommended actions....126

Authentication-related traps and recommended actions.....................................126

DoS-related traps and recommended actions.....................................................127

General traps and recommended actions...........................................................127

BIG-IP DNS-related traps and recommended actions........................................127

Hardware-related traps and recommended actions............................................130

High-availability system-related traps and recommended actions......................134

License-related traps and recommended actions...............................................135

LTM-related traps and recommended actions.....................................................136

Logging-related traps and recommended actions...............................................137

Network-related traps and recommended actions...............................................137

vCMP-related traps and recommended actions..................................................138

VIPRION-related traps and recommended actions.............................................138

About enterprise MIB files..............................................................................................138

Downloading enterprise and NET-SNMP MIBs to the SNMP manager..............139

Viewing objects in enterprise MIB files................................................................140

Viewing SNMP traps in F5-BIGIP-LOCAL-MIB.txt..............................................140

Collecting network firewall data using SNMP......................................................140

Collecting DoS attack data using SNMP.............................................................140

About enterprise MIB files..............................................................................................141

Downloading enterprise and NET-SNMP MIBs to the SNMP manager..............142

Viewing objects in enterprise MIB files................................................................142

Viewing SNMP traps in F5-BIGIP-COMMON-MIB.txt.........................................142

Viewing dynamic routing SNMP traps and associated OIDs...............................142

Monitoring BIG-IP system processes using SNMP.............................................143

Collecting BIG-IP system memory usage data using SNMP..............................143

7

Table of Contents

Collecting BIG-IP system data on HTTP requests using SNMP.........................143

Collecting BIG-IP system data on throughput rates using SNMP.......................144

Collecting BIG-IP system data on RAM cache using SNMP...............................145

Collecting BIG-IP system data on SSL transactions using SNMP......................146

Collecting BIG-IP system data on CPU usage based on a predefined polling interval............................................................................................................147

Collecting BIG-IP system data on CPU usage based on a custom polling interval............................................................................................................148

Collecting BIG-IP system performance data on new connections using

SNMP.............................................................................................................150

Collecting BIG-IP system performance data on active connections using

SNMP.............................................................................................................151

About the RMON MIB file...............................................................................................151

Logging Network Firewall Events to IPFIX Collectors.........................................................153

Overview: Configuring IPFIX logging for AFM...............................................................153

About the configuration objects of IPFIX logging for AFM...................................153

Assembling a pool of IPFIX collectors.................................................................153

Creating an IPFIX log destination........................................................................154

Creating a publisher ...........................................................................................155

Creating a custom Network Firewall Logging profile ..........................................155

Configuring an LTM virtual server for Network Firewall event logging with

IPFIX..............................................................................................................157

Implementation result.....................................................................................................157

IPFIX Templates for AFM Events...........................................................................................159

Overview: IPFIX Templates for AFM Events..................................................................159

About IPFIX Information Elements for AFM events........................................................159

IANA-defined IPFIX Information Elements..........................................................159

IPFIX enterprise Information Elements...............................................................159

About individual IPFIX templates for each event............................................................161

Network accept or deny.......................................................................................161

DoS device..........................................................................................................163

IP intelligence......................................................................................................164

Log Throttle.........................................................................................................165

8

Legal Notices

Legal notices

Publication Date

This document was published on May 18, 2017.

Publication Number

MAN-0439-05

Copyright

Copyright

©

2015-2016, F5 Networks, Inc. All rights reserved.

F5 Networks, Inc. (F5) believes the information it furnishes to be accurate and reliable. However, F5 assumes no responsibility for the use of this information, nor any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent, copyright, or other intellectual property right of F5 except as specifically described by applicable user licenses. F5 reserves the right to change specifications at any time without notice.

Trademarks

AAM, Access Policy Manager, Advanced Client Authentication, Advanced Firewall Manager, Advanced

Routing, AFM, APM, Application Acceleration Manager, Application Security Manager, AskF5, ASM,

BIG-IP, BIG-IP EDGE GATEWAY, BIG-IQ, Cloud Extender, Cloud Manager, CloudFucious, Clustered

Multiprocessing, CMP, COHESION, Data Manager, DDoS Frontline, DDoS SWAT, Defense.Net, defense.net

[DESIGN], DevCentral, DevCentral [DESIGN], DNS Express, DSC, DSI, Edge Client, Edge Gateway,

Edge Mobile, Edge Mobility, Edge Portal, ELEVATE, EM, ENGAGE, Enterprise Manager, F5, F5

[DESIGN], F5 Agility, F5 Certified [DESIGN], F5 Networks, F5 SalesXchange [DESIGN], F5 Synthesis, f5 Synthesis, F5 Synthesis [DESIGN], F5 TechXchange [DESIGN], Fast Application Proxy, Fast Cache,

FCINCO, Global Traffic Manager, GTM, GUARDIAN, iApps, IBR, iCall, iControl, iHealth, Intelligent

Browser Referencing, Intelligent Compression, IPv6 Gateway, iQuery, iRules, iRules OnDemand, iSession,

L7 Rate Shaping, LC, Link Controller, LineRate, LineRate Point, LineRate Precision, LineRate Systems

[DESIGN], Local Traffic Manager, LROS, LTM, Message Security Manager, MobileSafe, MSM,

OneConnect, Packet Velocity, PEM, Policy Enforcement Manager, Protocol Security Manager, PSM, Ready

Defense, Real Traffic Policy Builder, SalesXchange, ScaleN, SDAS (except in Japan), SDC, Signalling

Delivery Controller, Solutions for an application world, Software Designed Application Services, Silverline,

SSL Acceleration, SSL Everywhere, StrongBox, SuperVIP, SYN Check, SYNTHESIS, TCP Express, TDR,

TechXchange, TMOS, TotALL, TDR, TMOS, Traffic Management Operating System, Traffix, Traffix

[DESIGN], Transparent Data Reduction, UNITY, VAULT, vCMP, VE F5 [DESIGN], Versafe, Versafe

[DESIGN], VIPRION, Virtual Clustered Multiprocessing, WebSafe, and ZoneRunner, are trademarks or service marks of F5 Networks, Inc., in the U.S. and other countries, and may not be used without F5's express written consent.

All other product and company names herein may be trademarks of their respective owners.

Patents

This product may be protected by one or more patents indicated at:

https://f5.com/about-us/policies/patents

Legal Notices

Link Controller Availability

This product is not currently available in the United States.

Export Regulation Notice

This product may include cryptographic software. Under the Export Administration Act, the United States government may consider it a criminal offense to export this product from the United States.

RF Interference Warning

This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user, at his own expense, will be required to take whatever measures may be required to correct the interference.

Any modifications to this device, unless expressly approved by the manufacturer, can void the user's authority to operate this equipment under part 15 of the FCC rules.

Canadian Regulatory Compliance

This Class A digital apparatus complies with Canadian ICES-003.

Standards Compliance

This product conforms to the IEC, European Union, ANSI/UL and Canadian CSA standards applicable to

Information Technology products at the time of manufacture.

10

About the Network Firewall

What is the BIG-IP Network Firewall?

The BIG-IP

®

Network Firewall provides policy-based access control to and from address and port pairs, inside and outside of your network. Using a combination of contexts, the network firewall can apply rules in a number of different ways, including: at a global level, on a route domain, on a per-virtual server level, for a self IP address, or for the management port. Firewall rules are combined in firewall policies, which can contain multiple context and address pairs, and can be applied directly to any context except the management port. Rules for the management port context are defined inline, and do not require a separate policy.

By default, the Network Firewall is configured in

ADC mode

, a default allow configuration, in which all traffic is allowed through the firewall, and any traffic you want to block must be explicitly specified.

The system is configured in this mode by default so all traffic on your system continues to pass after you provision Advanced Firewall Manager

. You should create appropriate firewall rules to allow necessary traffic to pass before you switch Advanced Firewall Manager to Firewall mode. In

Firewall mode

, a default deny configuration, all traffic is blocked through the firewall, and any traffic you want to allow through the firewall must be explicitly specified.

About firewall modes

The BIG-IP

®

Network Firewall provides policy-based access control to and from address and port pairs, inside and outside of your network. By default, the network firewall is configured in ADC mode. This means it is a

default allow

configuration, in which all traffic is allowed to virtual servers and self IPs on the system, and any traffic you want to block must be explicitly specified. This applies only to the virtual server and self IP levels on the system.

Important: If a packet does not match any rule in any context on the firewall, the Global Reject or Global

Drop rule drops the packet (Global Drop) or drops the packet and sends the appropriate reject message

(Global Reject) even when the system is in a default allow configuration. In addition, the Global Drop or

Global Reject rule does not drop or reject traffic to the management port. Management port rules must be specifically configured and applied.

Configuring the Network Firewall in ADC mode

If you have changed the firewall setting to Firewall mode, you can configure the BIG-IP

®

Network Firewall back to ADC mode.

Note: The firewall is configured in ADC mode, by default.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

About the Network Firewall

2.

From the

Virtual Server & Self IP Contexts

list, select the default action

Accept

for the self IP and virtual server contexts.

3.

Click

Update

.

The virtual server and self IP contexts for the firewall are changed.

Configuring the Network Firewall to drop or reject traffic that is not specifically allowed

You can configure the BIG-IP

®

Network Firewall to drop or reject all traffic not explicitly allowed. In

Advanced Firewall Manager

, this is called

Firewall mode

, and this is also referred to as a

default deny

policy. Firewall mode applies a default deny policy to all self IPs and virtual servers.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

From the

Virtual Server & Self IP Contexts

list, select the default action for the self IP and virtual server contexts.

• Select

Drop

to silently drop all traffic to virtual servers and self IPs unless specifically allowed.

• Select

Reject

to drop all traffic to virtual servers and self IPs unless specifically allowed, and to send the appropriate reject message for the protocol.

3.

Click

Update

.

The default virtual server and self IP firewall context is changed.

Configuring the Network Firewall to globally drop or reject traffic

If traffic to or from the BIG-IP

®

Network Firewall does not match a rule, the global rule handles the traffic.

You can set the global rule to drop traffic or to reject traffic. The global rule rejects unmatched traffic by default.

Note: Management port traffic is not handled by the global rule. Management port rules must be explicitly defined for the management port context.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

From the

Global Context

list, select the default action for the global rule, when the traffic matches no other rule.

• Select

Drop

to drop traffic silently.

• Select

Reject

to drop traffic, and send the appropriate reject message for the protocol.

3.

Click

Update

.

The global firewall action is changed.

12

Firewall Rules and Rule Lists

About firewall rules

The BIG-IP

®

Network Firewall uses rules to specify traffic handling actions. Rules are collected in policies, which are applied at the global context, to a route domain, to a virtual server, or to a self IP address. Rules for the management port do not require a policy, but are defined directly in the management port context.

A rule includes:

Context

The category of object to which the rule applies. Rules can be global and apply to all addresses on the

BIG-IP system that match the rule, or they can be specific, applying only to a specific virtual server, self IP address, route domain, or the management port.

Rule or Rule List

Specifies whether the configuration applies to this specific rule, or to a group of rules.

Source Address

One or more addresses, geographic locations, or address lists to which the rule applies. The source address refers to the packet's source.

Source Port

The ports or lists of ports on the system to which the rule applies. The source port refers to the packet's source.

VLAN

Specifies VLANs to which the rule applies. The VLAN source refers to the packet's source.

Destination Address

One or more addresses, geographic locations, or address lists to which the rule applies. The destination address refers to the packet's destination.

Destination Port

The ports or lists of ports to which the rule applies. The destination port refers to the packet's destination.

iRule

Specifies an iRule that is applied to the rule. An iRule can be started when the firewall rule matches traffic.

iRule sampling

When you select an iRule to trigger in a firewall rule, you can select the how frequently the iRule is triggered, for sampling purposes. The value you configure is one out of n times the iRule is triggered.

For example, set this field to

5 to trigger the iRule one out of every five times the rule matches a flow.

Protocol

The protocol to which the rule applies. The firewall configuration allows you to select one specific protocol from a list of more than 250 protocols. The list is separated into a set of common protocols, and a longer set of other protocols. To apply a rule to more than one protocol, select

Any

.

Firewall Rules and Rule Lists

Schedule

Specifies a schedule for the firewall rule. You configure schedules to define days and times when the firewall rule is made active.

Action

Specifies the action (accept, accept decisively, drop, or reject) for the firewall rule.

Logging

Specifies whether logging is enabled or disabled for the firewall rule.

Firewall actions

These listed actions are available in a firewall rule.

Firewall actions are processed within a context. If traffic matches a firewall rule within a given context, that action is applied to the traffic, and the traffic is processed again at the next context.

Firewall action

Description

Accept

Drop

Reject

Allows packets with the specified source, destination, and protocol to pass through the current firewall context. Packets that match the rule, and are accepted

, traverse the system as if the firewall is not present.

Drops packets with the specified source, destination, and protocol. Dropping a packet is a silent action with no notification to the source or destination systems. Dropping the packet causes the connection to be retried until the retry threshold is reached.

Rejects packets with the specified source, destination, and protocol. Rejecting a packet is a more graceful way to deny a packet, as it sends a destination unreachable message to the sender. For example, if the protocol is TCP, a TCP RST message is sent. One benefit of using

Reject is that the sending application is notified, after only one attempt, that the connection cannot be established.

Accept

Decisively

Allows packets with the specified source, destination, and protocol to pass through the firewall.

Packets that match the rule, and are accepted decisively

, traverse the system as if the firewall is not present, and are not processed by rules in any further context after the accept decisively action applies. If you want a packet to be accepted in one context, and not to be processed in any remaining context or by the default firewall rules, specify the accept decisively action. For example, if you want to allow all packets from Network A to reach every server behind your firewall, you can specify a rule that accepts decisively at the global context, from that Network A, to any port and address. Then, you can specify that all traffic is blocked at a specific virtual server, using the virtual server context. Because traffic from

Network A is accepted decisively at the global context, that traffic still traverses the virtual server.

About Network Firewall contexts

With the BIG-IP

®

Network Firewall, you use a context to configure the level of specificity of a firewall policy. For example, you might make a global context rule to block ICMP ping messages, and you might make a virtual server context rule to allow only a specific network to access an application.

Context is processed in this order:

1.

Global

2.

Route domain

14

BIG-IP

®

Network Firewall: Policies and Implementations

3.

Virtual server/self IP

4.

Global drop or reject*

The firewall processes policies and rules in order, progressing from the global context, to the route domain context, and then to either the virtual server or self IP context. Management port rules are processed separately, and are not processed after previous rules. Rules can be viewed in one list, and viewed and reorganized separately within each context. You can enforce a firewall policy on any context except the management port. You can also stage a firewall policy in any context except management. Management port rules are configured as inline rules specific to the management port.

Important: You can configure the global drop or reject context. The global drop or reject context is the final context for all traffic, except Management port traffic. Note that even though it is a global context, it is not processed first, like the main global context, but last. If a packet matches no rule in any previous context, the global drop or reject rule rejects the traffic. The default global rule is global reject.

Notice: Management port traffic is not affected by the global drop or reject rule, or by global rules in general. Management port rules must be specifically configured and applied.

Figure 1: Firewall context processing hierarchy example

15

Firewall Rules and Rule Lists

Firewall context descriptions

When you create a firewall rule, you can select one of these listed contexts. Each context forms a list of rules. Contexts are processed in heirarchical order, and within each context, rules are processed in numerical order..

Firewall context

Global

Description

Global policy rules are collected in this firewall context. Global rules apply to all traffic that traverses the firewall, and global rules are checked first.

Route Domain Route domain policy rules are collected in this context. Route domain rules apply to a specific route domain defined on the server. Route domain policy rules are checked after global rules. If you have not configured a route domain, you can apply route domain rules to Route Domain 0, which is effectively the same as the global rule context; however, if you configure another route domain after this, Route Domain 0 is no longer usable as a global context.

Virtual Server Virtual server policy rules are collected in this context. Virtual server policy rules apply to the selected existing virtual server only. Virtual server rules are checked after route domain rules.

Self IP

Management

Port

Self IP policy rules apply to a specified self IP address on the device. Self IP policy rules are checked after route domain rules.

The management port context collects firewall rules that apply to the management port on the BIG-IP

® device. Management port rules are checked independently of other rules and are not processed in relation to other contexts.

Global Reject The Global Reject rule rejects all traffic that does not match any rule in a previous context, excluding Management Port traffic, which is processed independently.

Creating a network firewall management port rule

If you are going to specify address lists, user lists, or port lists with this rule, you must create these lists before creating the firewall rule, or add them after you save the rule.

Create a network firewall management port rule to manage access from an IP or web network address to the BIG-IP

® management port.

Note: You cannot add rules created with this task to a rule list at a later time. You must create rules for a rule list from within the rule list.

Important: You can only add management port rules as inline rules. For all other contexts, you must add rules to policies.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

In the Rules area, click

Add

to add a firewall rule to the list.

3.

From the

Context

list, select

Management Port

.

4.

In the

Name

and

Description

fields, type the name and an optional description.

5.

From the

State

list, select the rule state.

• Select

Enabled

to apply the firewall rule to the given context and addresses.

• Select

Disabled

to set the firewall rule to not apply at all.

16

BIG-IP

®

Network Firewall: Policies and Implementations

• Select

Scheduled

to apply the firewall rule according to the selected schedule.

6.

From the

Schedule

list, select the schedule for the firewall rule.

This schedule is applied when you set the firewall rule state as

Scheduled

.

7.

From the

Protocol

list, select the protocol to which the firewall rule applies.

• Select

Any

to apply the firewall rule to any protocol.

• Select the protocol name to apply the rule to a single protocol.

Important: ICMP is handled by the BIG-IP system at the global or route domain level. Because of this,

ICMP messages receive a response before they reach the virtual server context. You cannot create rule for ICMP or ICMPv6 on a self IP or virtual server context. You can apply a rule list to a self IP or virtual server that includes a rule for ICMP or ICMPv6; however, such a rule will be ignored. To apply firewall actions to the ICMP protocol, create a rule with the global or route domain context. ICMP rules are evaluated only for ICMP forwarding requests, and not for the IP addresses of the BIG-IP system itself.

8.

In the

Source

list, specify addresses and geolocated sources to which this rule applies.

• From the

Address/Region

list, select

Any

to have the rule apply to any packet source IP address or geographic location.

• From the

Address/Region

list, select

Specify

and click

Address

to specify one or more packet source IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• From the

Address/Region

list, select

Specify

and click

Address List

to select a predefined list of packet source addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• From the

Address/Region

list, select

Specify

and click

Address Range

to specify a contiguous range of packet source IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

• From the

Address/Region

list, select

Specify

and click

Country/Region

to identify the geographic origin of packet sources, and to apply rules based on selected geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected. After you select a geographic location, click

Add

to add it to the Source address list.

9.

From the Source

Port

list, select the type of packet source ports to which this rule applies.

• Select

Any

to have the rule apply to any packet source port.

• Select

Specify

and click

Port

to specify one or more packet source ports to which the rule applies.

When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet source port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet source ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

10.

From the Destination

Address/Region

list, select the type of packet destination address to which this rule applies.

• Select

Any

to have the rule apply to any IP packet destination address.

17

Firewall Rules and Rule Lists

• Select

Specify

and click

Address

to specify one or more packet destination addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses

FQDNs into the

Address

field, then click

Add

to add them to the address list.

• Select

Specify

and click

Address List

to select a predefined list of packet destination addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• Select

Specify

and click

Address Range

to specify a contiguous range of packet destination IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

11.

From the Destination

Port

list, select the type of packet destination ports to which this rule applies.

• Select

Any

to have the rule apply to any port inside the firewall.

• Select

Specify

and click

Port

to specify one or more packet destination ports to which the rule applies. When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet destination port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet destination ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

12.

From the

Action

list, select the firewall action for traffic originating from the specified source address on the specified protocol. Choose from one of the these actions:

Option Description

Accept

Drop

Reject

Accept

Decisively

Allows packets with the specified source, destination, and protocol to pass through the firewall. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

Drops packets with the specified source, destination, and protocol. Dropping a packet is a silent action with no notification to the source or destination systems.

Dropping the packet causes the connection to be retried until the retry threshold is reached.

Rejects packets with the specified source, destination, and protocol. When a packet is rejected the firewall sends a destination unreachable message to the sender.

Allows packets with the specified source, destination, and protocol to pass through the firewall, and does not require any further processing by any of the further firewalls. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

13.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

14.

Click

Finished

.

The list screen and the new item are displayed.

The new firewall rule is created.

About redundant and conflicting rules

When you create rules on the network firewall, it is possible that a rule can either overlap or conflict with an existing rule.

18

BIG-IP

®

Network Firewall: Policies and Implementations

Redundant rule

A rule which has address, user, region, or port information that completely overlaps with another rule, with the same action. In the case of a redundant rule, the rule can be removed with no net change in packet processing because of the overlap with a previous rule or rules.

Conflicting rule

A conflicting rule is a special case of a redundant rule, in which address, user, region or port information overlaps with another rule, but the rules have different actions, and thus conflict.

Tip: A rule might be called conflicting even if the result of each rule is the same. For example, a rule that applies to a specific IP address is considered in conflict with another rule that applies to the same

IP address, if one has an

Accept action and the other has an action of

Accept Decisively

, even though the two rules accept packets.

On a rule list page, redundant or conflicting rules are indicated in the

State

column with either

(Redundant) or

(Conflicting)

.

Viewing and removing redundant and conflicting rules

You must have staged or enforced rules configured on your system that are redundant or conflicting.

View and remove redundant or conflicting rules to simplify your configuration and ensure that your system takes the correct actions on packets.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

From the

Type

list, select whether you want to view

Enforced

or

Staged

policies.

Note: If you select to view Staged policies, you can not view management port rules, as they cannot be staged.

3.

View the firewall rule states in the

State

column.

Each rule is listed as Enabled, Disabled, or Scheduled. In addition, a rule can have one of the following states. View and adjust rules with these states, if necessary.

(Redundant)

The rule is enabled, disabled, or scheduled, and redundant. All the functionality of this rule is provided by a previous rule or rules. Hover over the

State

column to see why the rule is considered redundant, and possible solutions. Typically you can disable or delete a redundant rule with no net effect on the system.

(Conflicting)

The rule is enabled, disabled, or scheduled, and conflicting. All the match criteria of this rule is covered by another rule or rules, but this rule has a different action. Hover over the

State

column to see why the rule is considered conflicting, and possible solutions. Typically you should disable or delete a conflicting rule. Because the rule criteria is matched prior to the conflicting rule, there it typically no net change in processing. Note that the

Accept

and

Accept Decisively

actions are treated as conflicting by the system.

(Conflicting & Redundant)

The rule is enabled, disabled, or scheduled, and conflicting or redundant with the actions of more than one other rule. Typically you should disable or delete a conflicting and redundant rule.

4.

Resolve conflicting or redundant rules by editing, deleting, or disabling them. Click a rule name to edit, delete, or disable it, and complete the required action.

The firewall rule list is adjusted.

19

Firewall Rules and Rule Lists

About stale rules

On the rule list page, you can determine whether a rule is stale, infrequently used, or never used. A

stale

rule is one that has not been hit in a long time. In addition, a rule might never be hit, or might be hit infrequently.

Note: Use discretion when tuning rules, and delete rules only when you are sure they are no longer needed.

On the active rules page, or the page of rules for a policy, the

Count

column displays the number of times a rule has been hit. A count of

0 might indicate a rule that will never be hit, and can be removed without changing packet processing. A rule with a low count, when other rules have a high count, might indicate a rule that is stale, and no longer needed.

Use the

Latest Match

column to confirm rule status. A status of

Never

indicates the rule has never been matched, and might be irrelevant. A very long time since the last match indicates a rule that is likely no longer needed.

You can view stale rules from the stale rules reporting page. Go to

Security

>

Reporting

>

Network

>

Stale Rules

.

Viewing and removing unused or infrequently used rules

You must have staged or enforced rules configured on your system, and the system must be processing traffic, to determine whether rules or hit.

View and remove infrequently used or unused rules to reduce firewall processing and simplify your rules, rule lists, and policies.

Caution: Before you remove a rule that is infrequently hit, or never hit, make sure that doing so will not create a security issue. A rule might be hit infrequently, but might still be a required part of a security solution for a specific or rare attack.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

From the

Type

list, select whether you want to view

Enforced

or

Staged

policies.

Note: If you select to view Staged policies, you can not view management port rules, as they cannot be staged.

3.

View the rule hit count in the

Count

column.

The rule hit count shows how many total times a rule hit has occurred. A very low number indicates that the rule is infrequently hit. A count of

0 indicates the rule has never been hit.

4.

View the latest match date in the

Latest Match

column.

The latest match column lists the last time the rule was hit. An old date indicates that the rule has not been hit in a long time.

Never indicates that the rule has never been hit.

5.

Resolve infrequently hit rules by editing, deleting, or disabling them. Click a rule name to edit, delete, or disable it, and complete the required action.

The firewall rule list is adjusted.

20

BIG-IP

®

Network Firewall: Policies and Implementations

About firewall rule lists

The BIG-IP

®

Network Firewall uses rule lists to collect multiple rules. Rule lists function differently depending on how you create them with Advanced Firewall Manager

(AFM

).

If you create a rule list with Security > Network Firewall > Rule Lists > Create:

This type of rule list is defined with a name and optional description. Once you create a rule list of this type, you can create and add one or more individual firewall rules to it. You can only add firewall rules by creating them from within the rule list. This type of rule list cannot be used on its own, but must be selected in an Active Rules list, or in a Policy Rules list.

If you create a rule list with Security > Network Firewall > Active Rules > Add and select the Type as Rule List:

This type of rule list is defined with a name and optional description. You can specify a context (Global,

Route Domain, Virtual Server, or Self IP). However, you cannot add individual rules to this rule list.

Instead, you select a single rule list you have already created, or one of the predefined rule lists. This type of rule list is used to activate a rule list in the configuration.

If you create a rule list with Security > Network Firewall > Policies >

policy_name

> Add and select the Type as Rule List:

This type of rule list is defined with a name and optional description. You cannot specify a context as the context is determined by the policy. You cannot add individual rules to this rule list. Instead, you select a single rule list you have already created, or one of the predefined rule lists. This type of rule list is used to activate a rule list in a policy.

Creating a network firewall rule list

Create a network firewall rule list, to which you can add firewall rules.

1.

On the Main tab, click

Security

>

Network Firewall

>

Rule Lists

.

The Rule Lists screen opens.

2.

Click the

Create

button to create a new rule list.

3.

In the

Name

and

Description

fields, type the name and an optional description.

4.

Click

Finished

.

The empty firewall rule list is displayed.

Add firewall rules to the rule list to define source, destination, and firewall actions.

Adding a Network Firewall rule to a rule list

Before you add a firewall rule to a rule list, you must create a rule list.

Add a network firewall rule to a rule list so you can collect rules and apply them at once in a policy.

1.

On the Main tab, click

Security

>

Network Firewall

>

Rule Lists

.

The Rule Lists screen opens.

2.

From the list, click the name of a rule list you previously created.

The Rule List properties screen opens.

3.

In the Rules area, click

Add

to add a firewall rule to the list.

4.

In the

Name

and

Description

fields, type the name and an optional description.

21

Firewall Rules and Rule Lists

5.

From the

Order

list, set the order for the firewall rule.

You can specify that the rule be first or last in the rule list, or before or after a specific rule.

6.

From the

State

list, select the rule state.

• Select

Enabled

to apply the firewall rule to the given context and addresses.

• Select

Disabled

to set the firewall rule to not apply at all.

• Select

Scheduled

to apply the firewall rule according to the selected schedule.

7.

From the

Protocol

list, select the protocol to which the firewall rule applies.

• Select

Any

to apply the firewall rule to any protocol.

• Select the protocol name to apply the rule to a single protocol.

Important: ICMP is handled by the BIG-IP system at the global or route domain level. Because of this,

ICMP messages receive a response before they reach the virtual server context. You cannot create rule for ICMP or ICMPv6 on a self IP or virtual server context. You can apply a rule list to a self IP or virtual server that includes a rule for ICMP or ICMPv6; however, such a rule will be ignored. To apply firewall actions to the ICMP protocol, create a rule with the global or route domain context. ICMP rules are evaluated only for ICMP forwarding requests, and not for the IP addresses of the BIG-IP system itself.

8.

If you select ICMP or ICMPv6 as the rule protocol, add ICMP message types and codes in the fields that appear.

If you do not specify specific ICMP/ICMPv6 message types and codes, the rule applies to any ICMP or ICMPv6 message type.

• In the ICMP/ICMPv6 Message area, select an ICMP message type from the

Type

list, and select an

ICMP message code from the

Code

list.

• Click Add to add the message type and code to the firewall rule.

9.

From the

Schedule

list, select the schedule for the firewall rule.

This schedule is applied when you set the firewall rule state as

Scheduled

.

10.

In the

Source

list, specify addresses and geolocated sources to which this rule applies.

• From the

Address/Region

list, select

Any

to have the rule apply to any packet source IP address or geographic location.

• From the

Address/Region

list, select

Specify

and click

Address

to specify one or more packet source IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• From the

Address/Region

list, select

Specify

and click

Address List

to select a predefined list of packet source addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• From the

Address/Region

list, select

Specify

and click

Address Range

to specify a contiguous range of packet source IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

• From the

Address/Region

list, select

Specify

and click

Country/Region

to identify the geographic origin of packet sources, and to apply rules based on selected geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected. After you select a geographic location, click

Add

to add it to the Source address list.

11.

From the Source

Port

list, select the type of packet source ports to which this rule applies.

22

BIG-IP

®

Network Firewall: Policies and Implementations

• Select

Any

to have the rule apply to any packet source port.

• Select

Specify

and click

Port

to specify one or more packet source ports to which the rule applies.

When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet source port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet source ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

12.

From the Source

VLAN/Tunnel

list, select the VLAN on which this rule applies.

• Select

Any

to have the rule apply to traffic on any VLAN through which traffic enters the firewall.

• Select

Specify

to specify one or more VLANs on the firewall to which the rule applies. To use a

VLAN with this rule, move the VLAN from the

Available

list to the

Selected

list. Similarly, you can remove the VLAN from this rule, by moving the VLAN from the

Selected

list to the

Available

list.

13.

In the Destination area and from the

Address/Region

list, select the type of packet destination address to which this rule applies.

• Select

Any

to have the rule apply to any IP packet destination address.

• Select

Specify

and click

Address

to specify one or more packet destination IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• Select

Specify

and click

Address List

to select a predefined list of packet destination addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• Select

Specify

and click

Address Range

to specify a contiguous range of packet destination IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

• Select

Specify

and click

Country/Region

to identify the geographic packet destination, and to apply rules based on specific geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected.

After you select a geographic location, click

Add

to add it to the Destination address list.

14.

From the Destination

Port

list, select the type of packet destination ports to which this rule applies.

• Select

Any

to have the rule apply to any port inside the firewall.

• Select

Specify

and click

Port

to specify one or more packet destination ports to which the rule applies. When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet destination port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet destination ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

15.

Optionally, from the

iRule

list, select an iRule to start if the rule matches traffic.

16.

When you select an iRule to start in a firewall rule, you can enable iRule sampling, and select how frequently the iRule is started, for sampling purposes. The value you configure is one out of n times the iRule is triggered. For example, to trigger the iRule one out of every five times the rule matches a flow, select

Enabled

, then set this field to

5

.

23

Firewall Rules and Rule Lists

17.

From the

Action

list, select the firewall action for traffic originating from the specified source address on the specified protocol. Choose from one of the these actions:

Option Description

Accept

Drop

Reject

Accept

Decisively

Allows packets with the specified source, destination, and protocol to pass through the firewall. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

Drops packets with the specified source, destination, and protocol. Dropping a packet is a silent action with no notification to the source or destination systems.

Dropping the packet causes the connection to be retried until the retry threshold is reached.

Rejects packets with the specified source, destination, and protocol. When a packet is rejected the firewall sends a destination unreachable message to the sender.

Allows packets with the specified source, destination, and protocol to pass through the firewall, and does not require any further processing by any of the further firewalls. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

18.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

19.

Click

Finished

.

The list screen and the new item are displayed.

A new firewall rule is created, and appears in the Rules list.

Activating a rule list in a policy

The rule list is a container in which you can select and activate one of the rule lists that you created previously, or one of the predefined system rule lists, to apply a collection of rules at one time, to a policy.

1.

On the Main tab, click

Security

>

Network Firewall

>

Policies

.

The Policies screen opens.

2.

Click the name of a firewall policy to edit that policy.

The Firewall Policy screen opens.

3.

In the Rules area, click

Add

to add a firewall rule list to the policy.

4.

In the

Name

and

Description

fields, type the name and an optional description.

5.

From the

Order

list, set the order for the firewall rule.

You can specify that the rule be first or last in the rule list, or before or after a specific rule.

6.

From the

Type

list, select whether you are creating a standalone network firewall rule or creating the rule from a predefined rule list.

Note: If you create a firewall rule from a predefined rule list, only the Name, Description, Order, Rule

List, and State options apply, and you must select or create a rule list to include.

7.

From the

Rule List

setting, select a rule list to activate in the policy or configuration.

8.

From the

State

list, select the rule state.

• Select

Enabled

to apply the firewall rule to the given context and addresses.

• Select

Disabled

to set the firewall rule to not apply at all.

• Select

Scheduled

to apply the firewall rule according to the selected schedule.

24

BIG-IP

®

Network Firewall: Policies and Implementations

9.

Click

Finished

.

The list screen and the new item are displayed.

The firewall rule list you selected is activated.

25

Firewall Rule Addresses and Ports

About firewall rule addresses and ports

In a Network Firewall rule, you have several options for defining addresses and ports. You can use one or more of these options to configure the ports and addresses to which a firewall rule applies.

Note: You can use any combination of inline addresses, ports, address lists, and port lists in a firewall rule.

Any (address or port)

In both

Source

and

Destination

address and port fields, you can select

Any

. This specifies that the firewall rule applies to any address or port.

Fully qualified domain names

You can specify source or destination addresses as fully qualified domain names. To do this, you must create a DNS resolver cache, and configure the network firewall FQDN Resolver option.

Inline addresses

An inline address is an IP address that you add directly to the network firewall rule, in either the

Source

or

Destination Address

field. You can specify a single IP address, multiple IP addresses, a contiguous range of IP addresses, or you can identify addresses based on their geographic location. IP addresses can be either IPv4 or IPv6, depending on your network configuration.

Address lists

An address list is a preconfigured list of IP addresses that you add directly to the BIG-IP system. You can select this list of addresses to use in either the

Source

or

Destination Address

field. An address list can also contain other address lists, and geographic locations.

Inline ports

An inline port is a port that you add directly to the network firewall rule, in either the

Source

or

Destination Port

field. You can add a single port, or a contiguous port range.

Port lists

A port list is a preconfigured list of ports that you add directly to the BIG-IP system. You can select this list of ports to use in either the

Source

or

Destination Port

field. You can also add port lists to other port lists.

About resolving DNS addresses in Network Firewall rules

You can configure a DNS resolver on the BIG-IP

® system to resolve DNS queries and cache the responses, and provide the resolved DNS addresses to network firewall rules that use fully qualified domain names

(FQDNs). The next time the system receives a query for a response that exists in the cache, the system returns the response from the cache. The

resolver cache

contains messages, resource records, and the nameservers the system queries to resolve DNS queries.

Firewall Rule Addresses and Ports

After you specify a DNS resolver, you specify the DNS resolver in the Network Firewall options, to allow firewall rules to resolve and cache IP addresses from FQDNs.

Creating a DNS resolver

You configure a DNS resolver on the BIG-IP

® system to resolve DNS queries and cache the responses. The next time the system receives a query for a response that exists in the cache, the system returns the response from the cache.

1.

On the Main tab, click

Network

>

DNS Resolvers

>

DNS Resolver List

.

The DNS Resolver List screen opens.

2.

Click

Create

.

The New DNS Resolver screen opens.

3.

In the

Name

field, type a name for the resolver.

4.

Click

Finished

.

Configuring the Network Firewall to use a DNS resolver

You must configure a DNS resolver on the BIG-IP

® firewall options.

system before you select the DNS resolver in the

The global DNS resolver specifies a DNS resolver for the network firewall to use, when resolving fully qualified domain names (FQDNs) to IP addresses.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

In the FQDN Resolver area, from the

Global Context

list, select the DNS resolver.

3.

In the

Refresh Interval

field, specify how often the DNS resolver refreshes the IP addresses associated with fully qualified domain names, in minutes.

The default refresh interval is

60 minutes

.

4.

Click

Update

.

The DNS resolver is configured for firewall rules.

About address lists

An address list is simply a collection of addresses saved on the server, including fully qualified domain names, IP addresses, contiguous IP address ranges, geographic locations, and other (nested) address lists.

You can define one or more address lists, and you can select one or more address lists in a firewall rule.

Firewall address lists can be used in addition to inline addresses that are specified within a particular rule.

Creating an address list

Create an address list to apply to a firewall rule, in order to match IP addresses.

1.

On the Main tab, click

Security

>

Network Firewall

>

Address Lists

.

28

BIG-IP

®

Network Firewall: Policies and Implementations

The Address Lists screen opens.

2.

Click

Create

to create a new address list.

3.

In the

Name

and

Description

fields, type the name and an optional description.

4.

In the Addresses area, add and remove addresses.

• To add an IP address, type the address and press

Enter

.

• To add an IP address range, type the start and end IP addresses, separated by a dash, and press

Enter

.

• To add an existing address list, start typing the name of the address list. A list of items (address lists and geographic locations) will appear. Select the address list and press

Enter

.

• To add a geographic location, start typing the name of the geographic location. A list of items (address lists and geographic locations) will appear. Select the geographic location and press

Enter

.

• To remove an address, select the address in the Addresses list and click the

X

.

Address lists can contain FQDNs, IP addresses, IP address ranges, geographic locations, other address lists, or any combination of these.

5.

Click

Finished

.

The list screen and the new item are displayed.

About port lists

A

port list

is simply a collection of ports saved on the server. A port list can also contain other port lists.

You can define one or more port lists, and you can specify one or more port lists in a firewall rule. Firewall port lists can be used in addition to inline ports, specified within a particular firewall rule or policy.

Creating a port list

Create a port list to apply to a firewall rule, in order to match ports.

1.

On the Main tab, click

Security

>

Network Firewall

>

Port Lists

.

The Port Lists screen opens.

2.

Click

Create

to create a new port list.

3.

In the

Name

and

Description

fields, type the name and an optional description.

4.

In the Ports area, add and remove ports.

• To add a single port, type the port number and press the

Enter

key.

• To add a contiguous range of ports, type the first port number, a dash, and the last port number, then press the

Enter

key.

• To add an existing port list to the current port list, start typing the name of the port list. A list of port lists that match the typed input appear on a list in the field. Select the port list you want to add, then press the

Enter

key.

• To remove a port, port range, or port list, select the entryin the Ports area and click the small

X

to the right of the entry.

5.

Click

Finished

.

The list screen and the new item are displayed.

29

Network Firewall Schedules

About Network Firewall schedules

With a Network Firewall schedule, you can configure date ranges, days of the week, and time ranges for when a firewall rule is applied.

A schedule must be selected in a firewall rule or rule list, to apply to that firewall rule or rule list. The firewall rule or rule list must also be set to the Scheduled state.

When you configure a schedule for a rule list, the rules within the rule list can only be enabled when the rule list is enabled by the schedule. This means that even if the individual rules in a rule list have schedules, the rules are not enabled by their schedules unless the rule list is also enabled by the rule list schedule.

Warning: You can not specify a schedule for a rule if the system is configured for manual rule compilation or deployment. You also cannot configure the system for manual rule compilation or deployment if there are existing rules on the system that use schedules.

Creating a schedule

Create a schedule to define the times, dates, and days of the week for when a firewall rule is applied.

1.

On the Main tab, click

Security

>

Network Firewall

>

Schedules

.

The Schedules screen opens.

2.

Click

Create

to create a new firewall schedule.

3.

In the

Name

and

Description

fields, type the name and an optional description.

4.

In the

Date Range

area, define the range of dates over which the schedule applies.

• Select

Indefinite

to have the schedule apply immediately, and run indefinitely. This makes the schedule active until you change the date range, or delete the schedule.

• Select

Until

to have the schedule apply immediately, and define an end date and ending time. This makes the schedule active now, and disables it when the end date and ending time is reached. Click in the field to choose an end date from a dialog box, and set the ending time with the sliders.

• Select

After

to have the schedule apply after the specified date and starting time, and run indefinitely.

This makes the schedule active starting on the selected date and time, until you change the start date, or delete the schedule. Click in the field to choose a start date from a dialog box, and set the starting time with the sliders.

• Select

Between

to apply the schedule starting on the specified start date and starting time, and ending on the specified end date and ending time. Click in the fields to choose the start and end dates from a dialog box, and set the starting and ending time with the sliders.

5.

In the Time Range area, define the times over which the firewall rule applies.

• Select

All Day

to have the schedule apply all day, for every day specified in the date range.

• Select

Between

to apply the schedule starting at the specified time, and ending at the specified time each day. Select the start and end hours and minutes from the popup screen, or click

Now

to set the current time.

Network Firewall Schedules

Note: Specify the hours according to a 24-hour clock. For example, you can specify 3:00 PM with the setting

15

.

6.

In the Days Valid area, select the days of the week when the schedule is valid. Select check boxes for days of the week when the rule applies, and clear check boxes for days of the week when the schedule does not apply.

7.

Click

Finished

.

The list screen and the new item are displayed.

32

About the Network Firewall Inline Rule Editor

About the inline firewall rule editor

The BIG-IP

®

Network Firewall uses rules to specify traffic handling actions. The inline rule editor provides an alternative way to create and edit rules within a policy, on a single page. The advantage to this type of rule editing is that it provides a simpler and more direct overview of both a rule and the entire policy. You can edit an inline rule for any context. The inline rule editor is available only from the

Active Rules

page.

When using the inline rule editor, the information presented in a firewall rule is simplified to the following categories:

Name

You must specify a name for the rule. You can also specify an optional description.

State

You can enable, disable, or schedule a firewall rule. These states govern whether the rule takes an action, does not take an action, or takes an action only during specific days and times.

Source

A rule can include any number of sources, including IPv4 or IPv6 addresses, IPv4 or IPv6 address ranges, fully qualified domain names, geographic locations, VLANs, address lists, ports, port ranges, port lists, users, groups, user lists, and address lists.

Destination

A rule can include any number of destinations, including IPv4 or IPv6 addresses, IPv4 or IPv6 address ranges, FQDNs, geographic locations, VLANs, address lists, ports, port ranges, port lists, and address lists.

Actions

Specifies an action that applies when traffic matches the rule. The standard rule actions apply (Accept,

Drop, Reject, and Accept Decisively). In addition, you can set the rule to start an iRule when the firewall rule matches traffic, and apply timeouts from a service policy to traffic that matches the rule.

Logging

Specifies whether logging is enabled or disabled for the firewall rule.

Task list

Enabling the Network Firewall inline rule editor

Creating a rule with the inline editor

Editing a rule with the inline editor

Enabling the Network Firewall inline rule editor

Enable the inline rule editor to edit rules in place within policies.

Note: You can either edit rules with the inline editor or with the standard editor, but not both. You can switch back to the standard rule editor at any time.

About the Network Firewall Inline Rule Editor

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

Next to

Inline Rule Editor

, select

Enabled

.

3.

Click

Update

.

The inline firewall rule editor is enabled.

Creating a rule with the inline editor

The Network Firewall Inline Rule Editor option must be enabled to create a rule with the inline rule editor.

If you are going to specify address lists, port lists, custom iRules

®

, or service policies to use with this rule, you must create these before you edit the firewall rule, or add them at a later time.

Edit a Network Firewall policy rule to change course, destination, actions, order, or other items in a firewall rule.

Note: You cannot add rules (created with these steps) to a rule list at a later time. You must create rules for a rule list from within the rule list. Similarly, you cannot use the rules created in a policy to apply as inline rules in another context, though you can use rule lists in a policy rule.

1.

On the Main tab, click

Security

>

Network Firewall

>

Policies

.

The Policies screen opens.

2.

Click the name of the network firewall policy to which you want to add rules.

3.

Click

Add Rule

to add a firewall rule to the policy.

A blank rule appears at the first position in the policy.

4.

In the

Name

column, type the name and an optional description in the fields.

5.

In the

State

column, select the rule state.

• Select

Enabled

to apply the firewall rule or rule list to the addresses and ports specified.

• Select

Disabled

to set the firewall rule or rule list to not apply at all.

• Select

Scheduled

to apply the firewall rule or rule list according to the selected schedule.

6.

From the

Schedule

list, select the schedule for the firewall policy rule.

This schedule is applied when the firewall policy rule state is set to

Scheduled

.

Note: You cannot save a scheduled rule when the firewall compilation or deployment mode is manual.

7.

In the

Protocol

column, select the protocol to which the firewall rule applies.

• Select

Any

to apply the firewall rule to any protocol.

• Select the protocol name to apply the rule to a single protocol.

• Select

Other

and type the port number if the protocol is not listed.

Important: ICMP is handled by the BIG-IP system at the global or route domain level. Because of this,

ICMP messages receive a response before they reach the virtual server context. You cannot create rule for ICMP or ICMPv6 on a self IP or virtual server context. You can apply a rule list to a self IP or virtual server that includes a rule for ICMP or ICMPv6; however, such a rule will be ignored. To apply firewall actions to the ICMP protocol, create a rule with the global or route domain context. ICMP rules are evaluated only for ICMP forwarding requests, and not for the IP addresses of the BIG-IP system itself.

8.

In the

Source

field, begin typing to specify a source address.

34

BIG-IP

®

Network Firewall: Policies and Implementations

As you type, options will appear that match your input. Select the source option you want to use when it appears, or press Return. You can add more addresses by typing in the field labeled

add new source

.

A source address can be any of the following:

• Any address

• IPv4 or IPv6 address

• IPv4 or IPv6 address range

• FQDN

• Geographic location

• VLAN

• Address list

• Port

• Port range

• Port list

• Address list

9.

In the

Destination

field, begin typing to specify a destination address.

As you type, options will appear that match your input. Select the destination option you want to use when it appears, or press Return. You can add more addresses by typing in the field labeled

add new destination

.

A destination address can be any of the following:

• Any address

• IPv4 or IPv6 address

• IPv4 or IPv6 address range

• FQDN

• Geographic location

• VLAN

• Address list

• Port

• Port range

• Port list

• Address list

10.

Optionally, from the

iRule

list, select an iRule to start if the rule matches traffic.

11.

When you select an iRule to start in a firewall rule, you select how frequently the iRule is started, for sampling purposes. The value you configure is one out of n times the iRule is triggered. For example, to trigger the iRule one out of every five times the rule matches a flow, set this field to

5

. To trigger the rule every time the rule matches a flow, set this field to

1

.

12.

To apply custom timeouts to flows that match this rule, from the

Service Policy

field, specify a service policy.

13.

In the

Logging

column, check

Logging

to enable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

14.

Click

Commit Changes to System

.

The policy with the updated rule is displayed.

The new firewall rule is created and displayed on the firewall policy screen.

35

About the Network Firewall Inline Rule Editor

Editing a rule with the inline editor

The Network Firewall Inline Rule Editor option must be enabled to edit a rule with the inline rule editor.

If you are going to specify address lists, port lists, custom iRules

®

, or service policies to use with this rule, you must create these before you edit the firewall rule, or add them at a later time.

Edit a network firewall rule to change source or destination components, the rule action, iRules, rule order, and other settings.

1.

On the Main tab, click

Security

>

Network Firewall

>

Policies

.

The Policies screen opens.

2.

Click the name of the network firewall policy to which you want to add rules.

3.

To reorder a rule in a policy, click and hold anywhere in the rule row, and drag the rule to a new position within the list.

4.

To quickly enable or disable a rule in a policy, click the check box next to the rule ID and click the

Enable

or

Disable

button, then click

Commit Changes to System

.

5.

In the

Description

field, type or change the optional description.

6.

In the

State

column, select the rule state.

• Select

Enabled

to apply the firewall rule or rule list to the addresses and ports specified.

• Select

Disabled

to set the firewall rule or rule list to not apply at all.

• Select

Scheduled

to apply the firewall rule or rule list according to the selected schedule.

7.

From the

Schedule

list, select the schedule for the firewall policy rule.

This schedule is applied when the firewall policy rule state is set to

Scheduled

.

Note: You cannot save a scheduled rule when the firewall compilation or deployment mode is manual.

8.

In the

Protocol

column, select the protocol to which the firewall rule applies.

• Select

Any

to apply the firewall rule to any protocol.

• Select the protocol name to apply the rule to a single protocol.

• Select

Other

and type the port number if the protocol is not listed.

Important: ICMP is handled by the BIG-IP system at the global or route domain level. Because of this,

ICMP messages receive a response before they reach the virtual server context. You cannot create rule for ICMP or ICMPv6 on a self IP or virtual server context. You can apply a rule list to a self IP or virtual server that includes a rule for ICMP or ICMPv6; however, such a rule will be ignored. To apply firewall actions to the ICMP protocol, create a rule with the global or route domain context. ICMP rules are evaluated only for ICMP forwarding requests, and not for the IP addresses of the BIG-IP system itself.

9.

In the

Source

field, begin typing to specify a source address.

As you type, options will appear that match your input. Select the source option you want to use when it appears, or press Return. You can add more addresses by typing in the field labeled

add new source

.

A source address can be any of the following:

• Any address

• IPv4 or IPv6 address

• IPv4 or IPv6 address range

• FQDN

• Geographic location

• VLAN

36

BIG-IP

®

Network Firewall: Policies and Implementations

• Address list

• Port

• Port range

• Port list

• Address list

10.

In the

Destination

field, begin typing to specify a destination address.

As you type, options will appear that match your input. Select the destination option you want to use when it appears, or press Return. You can add more addresses by typing in the field labeled

add new destination

.

A destination address can be any of the following:

• Any address

• IPv4 or IPv6 address

• IPv4 or IPv6 address range

• FQDN

• Geographic location

• VLAN

• Address list

• Port

• Port range

• Port list

• Address list

11.

Optionally, from the

iRule

list, select an iRule to start if the rule matches traffic.

12.

When you select an iRule to start in a firewall rule, you select how frequently the iRule is started, for sampling purposes. The value you configure is one out of n times the iRule is triggered. For example, to trigger the iRule one out of every five times the rule matches a flow, set this field to

5

. To trigger the rule every time the rule matches a flow, set this field to

1

.

13.

To apply custom timeouts to flows that match this rule, from the

Service Policy

field, specify a service policy.

14.

In the

Logging

column, check

Logging

to enable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

15.

Click

Commit Changes to System

.

The policy with the updated rule is displayed.

The firewall rule is modified.

37

Configuring BIG-IP Network Firewall Policies

About firewall policies

The BIG-IP

®

Network Firewall policies combine one or more rules or rule lists, and apply them as a combined policy to one context. You can configure a context to use a specific firewall policy. However, firewall context precedence still applies, so policies applied at the global context still apply, even if they contradict rules applied at a lower precedence context. For example, global policies apply before virtual server policies.

Notice: Global firewall rules are included in an automatic policy called Global.

You can apply a Network Firewall policy as a staged policy, while enforcing an existing firewall policy, or no policy. A

staged policy

allows you to evaluate the effect a policy has on traffic by analyzing the system logs, without actually modifying traffic based on the firewall rules.

Task list

Creating a Network Firewall policy

Setting a global firewall policy

Configuring a route domain with a firewall policy

Setting network firewall policies for a self IP address

Creating a virtual server with a firewall policy

Creating a Network Firewall policy

Create a BIG-IP

®

Network Firewall policy to collect and apply one or more firewall rules or rule lists globally, to a virtual server, route domain, or self IP address.

1.

On the Main tab, click

Security

>

Network Firewall

>

Policies

.

The Policies screen opens.

2.

Click

Create

to create a new policy.

3.

Type a name and optional description for the firewall policy.

4.

Click

Finished

.

The Policies screen shows the new policy in the policy list.

Define firewall rules and rule lists for the policy to affect traffic.

Creating a Network Firewall policy rule

If you are going to specify address lists or port lists to use with this rule, you must create these lists before creating the firewall policy rule, or add them after you save the policy rule.

Create a Network Firewall policy rule to manage access from an IP or web network address to a specified network location, server, or address behind a BIG-IP

® system.

Configuring BIG-IP Network Firewall Policies

Note: You cannot add rules created with this task to a rule list at a later time. You must create rules for a rule list from within the rule list. Similarly, you cannot use the rules created in a policy to apply as inline rules in another context, though you can use rule lists in a policy rule.

1.

On the Main tab, click

Security

>

Network Firewall

>

Policies

.

The Policies screen opens.

2.

Click the name of the network firewall policy to which you want to add rules.

3.

In the Rules area, click

Add

to add a firewall rule to the list.

4.

In the

Name

and

Description

fields, type the name and an optional description.

5.

From the

Type

list, select whether you are creating a standalone network firewall policy rule or creating a rule list.

Note: If you create a firewall policy rule list, only the Name, Description, Order, Rule List, and

Stateoptions apply, and you must select or create a rule list to include.

6.

From the

State

list, select the rule state.

• Select

Enabled

to apply the firewall policy rule or rule list to the addresses and ports specified.

• Select

Disabled

to set the firewall policy rule or rule list to not apply at all.

• Select

Scheduled

to apply the firewall policy rule or rule list according to the selected schedule.

7.

From the

Schedule

list, select the schedule for the firewall policy rule.

This schedule is applied when the firewall policy rule state is set to

Scheduled

.

Note: You cannot save a scheduled rule when the firewall compilation or deployment mode is manual.

8.

From the

Protocol

list, select the protocol to which the firewall rule applies.

• Select

Any

to apply the firewall rule to any protocol.

• Select the protocol name to apply the rule to a single protocol.

Important: ICMP is handled by the BIG-IP system at the global or route domain level. Because of this,

ICMP messages receive a response before they reach the virtual server context. You cannot create rule for ICMP or ICMPv6 on a self IP or virtual server context. You can apply a rule list to a self IP or virtual server that includes a rule for ICMP or ICMPv6; however, such a rule will be ignored. To apply firewall actions to the ICMP protocol, create a rule with the global or route domain context. ICMP rules are evaluated only for ICMP forwarding requests, and not for the IP addresses of the BIG-IP system itself.

9.

In the

Source

list, specify addresses and geolocated sources to which this rule applies.

• From the

Address/Region

list, select

Any

to have the rule apply to any packet source IP address or geographic location.

• From the

Address/Region

list, select

Specify

and click

Address

to specify one or more packet source IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• From the

Address/Region

list, select

Specify

and click

Address List

to select a predefined list of packet source addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• From the

Address/Region

list, select

Specify

and click

Address Range

to specify a contiguous range of packet source IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

40

BIG-IP

®

Network Firewall: Policies and Implementations

• From the

Address/Region

list, select

Specify

and click

Country/Region

to identify the geographic origin of packet sources, and to apply rules based on selected geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected. After you select a geographic location, click

Add

to add it to the Source address list.

10.

From the Source

Port

list, select the type of packet source ports to which this rule applies.

• Select

Any

to have the rule apply to any packet source port.

• Select

Specify

and click

Port

to specify one or more packet source ports to which the rule applies.

When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet source port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet source ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

11.

From the Source

VLAN/Tunnel

list, select the VLAN on which this rule applies.

• Select

Any

to have the rule apply to traffic on any VLAN through which traffic enters the firewall.

• Select

Specify

to specify one or more VLANs on the firewall to which the rule applies. To use a

VLAN with this rule, move the VLAN from the

Available

list to the

Selected

list. Similarly, you can remove the VLAN from this rule, by moving the VLAN from the

Selected

list to the

Available

list.

12.

In the Destination area and from the

Address/Region

list, select the type of packet destination address to which this rule applies.

• Select

Any

to have the rule apply to any IP packet destination address.

• Select

Specify

and click

Address

to specify one or more packet destination IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• Select

Specify

and click

Address List

to select a predefined list of packet destination addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• Select

Specify

and click

Address Range

to specify a contiguous range of packet destination IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

• Select

Specify

and click

Country/Region

to identify the geographic packet destination, and to apply rules based on specific geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected.

After you select a geographic location, click

Add

to add it to the Destination address list.

13.

From the Destination

Port

list, select the type of packet destination ports to which this rule applies.

• Select

Any

to have the rule apply to any port inside the firewall.

• Select

Specify

and click

Port

to specify one or more packet destination ports to which the rule applies. When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet destination port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

41

Configuring BIG-IP Network Firewall Policies

• Select

Specify

and click

Port List

to select a predefined list of packet destination ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

14.

Optionally, from the

iRule

list, select an iRule to start if the rule matches traffic.

15.

When you select an iRule to start in a firewall rule, you can enable iRule sampling, and select how frequently the iRule is started, for sampling purposes. The value you configure is one out of n times the iRule is triggered. For example, to trigger the iRule one out of every five times the rule matches a flow, select

Enabled

, then set this field to

5

.

16.

From the

Action

list, select the firewall action for traffic originating from the specified source address on the specified protocol. Choose from one of the these actions:

Option Description

Accept

Drop

Reject

Accept

Decisively

Allows packets with the specified source, destination, and protocol to pass through the firewall. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

Drops packets with the specified source, destination, and protocol. Dropping a packet is a silent action with no notification to the source or destination systems.

Dropping the packet causes the connection to be retried until the retry threshold is reached.

Rejects packets with the specified source, destination, and protocol. When a packet is rejected the firewall sends a destination unreachable message to the sender.

Allows packets with the specified source, destination, and protocol to pass through the firewall, and does not require any further processing by any of the further firewalls. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

17.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

18.

Click

Finished

.

The list screen and the new item are displayed.

The new firewall policy rule is created.

Setting a global firewall policy

You can create a virtual server with a firewall policy, to provide policy-based network firewall actions at the virtual server.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

Under

Active Network Firewall Rules

, click the

Global

link.

The

Global Firewall Rules

screen opens.

3.

To enforce rules from a firewall policy in the selected context, in the Network Firewall area: from the

Enforcement

list, select

Enabled

and then select the firewall policy to enforce from the

Policy

list.

4.

To stage rules from a firewall policy in the selected context, in the Network Firewall area: from the

Staging

list, select

Enabled

and then select the firewall policy to stage from the

Policy

list.

The policy rules you selected are enforced at the global level. If you chose to stage policy rules, the results of those rules are logged, but not enforced.

42

BIG-IP

®

Network Firewall: Policies and Implementations

Configuring a route domain with a firewall policy

Before you can configure a route domain with a firewall policy, you need a pre-existing route domain.

Route domains are useful for multi-tenant configurations. You can set firewall policies for enforcement and staging on an existing route domain, and create a route domain on a BIG-IP

® system to segment (isolate) traffic on your network.

1.

On the Main tab, click

Network

>

Route Domains

.

The Route Domain List screen opens.

2.

Click the name of the route domain to show the route domain configuration.

3.

Click the Security tab.

4.

To enforce rules from a firewall policy on the route domain: in the Network Firewall area: from the

Enforcement

list, select

Enabled

and then select the firewall policy to enforce from the

Policy

list.

5.

To stage rules from a firewall policy on the route domain: in the Network Firewall area, from the

Staging

list, select

Enabled

and then select the firewall policy to stage from the

Policy

list.

6.

Click

Update

to save the changes to the route domain.

Setting network firewall policies for a self IP address

Ensure that you have created a self IP address.

You can enforce or stage a firewall policy at the self IP context. Stage a firewall policy to verify the results of the firewall policy in the logs without affecting traffic.

1.

On the Main tab, click

Network

>

Self IPs

.

2.

Click on the self IP address to which you want to add a network firewall policy.

3.

Click the

Security

tab.

4.

To enforce rules from a firewall policy on the self IP: in the Network Firewall area, from the

Enforcement

list, select

Enabled

and then select the firewall policy to enforce from the

Policy

list.

5.

To stage rules from a firewall policy on the self IP: in the Network Firewall area, from the

Staging

list, select

Enabled

and then select the firewall policy to stage from the

Policy

list.

6.

Click

Update

to save the changes to the self IP.

The selected self IP now enforces or stages rules according to your selections.

Creating a virtual server with a firewall policy

You can create a virtual server with a firewall policy, to provide policy-based network firewall actions at the virtual server.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the

Create

button.

The New Virtual Server screen opens.

3.

In the

Name

field, type a unique name for the virtual server.

4.

For the

Destination

setting, in the

Address

field, type the IP address you want to use for the virtual server.

43

Configuring BIG-IP Network Firewall Policies

The IP address you type must be available and not in the loopback network.

5.

In the

Service Port

field, type

* or select

* All Ports

from the list.

6.

Click

Finished

.

7.

Click the name of the virtual server you want to modify.

8.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

9.

To enforce rules from a firewall policy on the virtual server, in the Network Firewall area, from the

Enforcement

list, select

Enabled

, then select the firewall policy to enforce from the

Policy

list.

10.

To stage rules from a firewall policy on the virtual server, in the Network Firewall area, from the

Staging

list, select

Enabled

, then select the firewall policy to stage from the

Policy

list.

11.

Click

Update

to save the changes.

The policy rules you selected are enforced on the virtual server. If you chose to stage policy rules, the results of those rules are logged, but not enforced.

Viewing enforced and staged policy rule logs

With BIG-IP

®

Advanced Firewall Manager

, you can choose to enforce either inline firewall rules or a firewall policy for a specific context. You can also choose to stage policies for a specific context.

Staged policies

apply all of the specified firewall rules to the policy context, but do not enforce the firewall action.

Therefore, the result of a staged policy is informational only, and the result can be analyzed in the firewall logs.

A staged policy on a particular context might not behave the same after you change it to an enforcement policy. Because there can be multiple staged policies on different contexts, the staged policy results you see (in logs and stats) are actually the aggregate of all staged policies on all contexts. Thus, if you enforce a previously staged policy on one or more contexts, but other staged policies remain on other contexts that you do not enforce, the actual enforced results might differ from what you expected from viewing logs and statistics for staged rules.

Important: You must enable logging for a policy, if you want to view the results of staged or enforced rules in the logs.

Viewing Network Firewall enforced policy events on the local BIG-IP system

Ensure that the BIG-IP

® system is configured to log the types of events you want to view, and to store the log messages locally on the BIG-IP system.

When the BIG-IP system is configured to log events locally, you can view those events using the

Configuration utility.

1.

On the Main tab, click

Security

>

Event Logs

>

Network

>

Firewall

.

The Network Firewall event log displays.

2.

To search for enforced policy events, in the search field, type

Enforced

, then click

Search

.

3.

To narrow your search for enforced events, click

Custom Search

. Drag the

Enforced text from the

Policy Type

column to the custom search table. Narrow your search further by dragging other items from the log display, for example, from the

action

,

policy

, or

rule

columns. the event data that you want to search for from the Event Log table into the Custom Search table, and then click

Search

.

44

BIG-IP

®

Network Firewall: Policies and Implementations

Viewing Network Firewall staged policy events on the local BIG-IP system

Ensure that the BIG-IP

® system is configured to log the types of events you want to view, and to store the log messages locally on the BIG-IP system.

When the BIG-IP system is configured to log events locally, you can view those events using the

Configuration utility.

Important: You must enable logging for a policy, if you want to view the results of staged or enforced rules in the logs.

1.

On the Main tab, click

Security

>

Event Logs

>

Network

>

Firewall

.

The Network Firewall event log displays.

2.

To search for staged policy events, in the search field, type

Staged

, then click

Search

.

3.

To narrow your search for staged policy events, click

Custom Search

. Drag the

Staged text from the

Policy Type

column to the custom search table. Narrow your search further by dragging other items from the log display. For example, from the

action

,

policy

, or

rule

columns, you can drag event data that you want to search for from the Event Log table into the Custom Search table, and then click

Search

.

45

IP Address Intelligence in the Network Firewall

About IP intelligence policies in the Network Firewall

In the BIG-IP

®

Network Firewall, you can configure policies to validate traffic against an IP intelligence database. Such traffic can be handled automatically if it originates from known-bad or questionable IP addresses. In addition, you can configure policies to automatically query

feed lists

that specify blacklist and whitelist IP address entries, and assign default classes and blacklist or whitelist behaviors to those feed lists.

You can control the actions for each IP intelligence category by specifying such actions in a policy, and you can configure default action and default logging for each policy. Furthermore, you can configure logging and actions per category. You can apply IP Intelligence policies at the global context, to a virtual server, or on a route domain.

Figure 2: IP Intelligence Policy container and included elements

Task list

Downloading the IP address intelligence database

IP Address Intelligence in the Network Firewall

Downloading the IP address intelligence database

The requirements for using IP address intelligence are:

• The system must have an IP Intelligence license.

• The system must have an Internet connection either directly or through an HTTP proxy server.

• The system must have DNS configured (go to

System

>

Configuration

>

Device

>

DNS

).

Important: IP address intelligence is enabled by default if you have a license for it. You only need to enable it if it was previously disabled.

To enable IP address intelligence on the BIG-IP

® system, you enable auto-update to download the IP intelligence database to the system.

1.

Log in to the command line for the BIG-IP

® system.

2.

To determine whether IP intelligence auto-update is enabled, type the following command: tmsh list sys db iprep.autoupdate

If the value of the iprep.autoupdate

variable is disable

, IP intelligence is not enabled. If it is enable

, your task is complete. No further steps are necessary.

3.

If disabled, at the prompt, type tmsh modify sys db iprep.autoupdate value enable

The system downloads the IP intelligence database and stores it in the binary file,

/var/IpRep/F5IpRep.dat

. It is updated every 5 minutes.

4.

If the BIG-IP system is behind a firewall, make sure that the BIG-IP system has external access to vector.brightcloud.com

using port

443

.

That is the IP Intelligence server from which the system gets IP Intelligence information.

5.

(Optional) If the BIG-IP system connects to the Internet using a forward proxy server, set these system database variables.

a) Type tmsh modify sys db proxy.host value

hostname

to specify the host name of the proxy server.

b) Type tmsh modify sys db proxy.port value

port_number

to specify the port number of the proxy server.

c) Type tmsh modify sys db proxy.username value

username

to specify the user name to log in to the proxy server.

d) Type tmsh modify sys db proxy.password value

password

to specify the password to log in to the proxy server.

The IP address intelligence feature remains enabled unless you disable it with the command tmsh modify sys db iprep.autoupdate value disable

.

You can create iRules

® to instruct the system how to handle traffic from IP addresses with questionable reputations, or use Application Security Manager

™ to configure IP address intelligence blocking. You can configure IP intelligence for Advanced Firewall Manager by assigning IP intelligence policies to the global, route domain, or virtual server context.

IP address intelligence categories

Along with the IP address, the IP intelligence database stores the category that explains the reason that the

IP address is considered untrustworthy.

48

BIG-IP

®

Network Firewall: Policies and Implementations

Category Name Description

Additional

Application Denial of Service

Botnets

IP addresses that are added from additional categories not more explicitly defined.

IP addresses involved in application DoS Attacks, or anomalous traffic detection.

IP addresses of computers that are infected with malicious software (Botnet Command and Control channels, and infected zombie machines) and are controlled as a group by a Bot master, and are now part of a botnet. Hackers can exploit botnets to send spam messages, launch various attacks, or cause target systems to behave in other unpredictable ways.

IP addresses and networks that are used by cloud providers.

Cloud Provider

Networks

Denial-of-Service

Illegal Web Sites

IP addresses that have launched denial-of-service (DoS) attacks, distributed denial-of-service (DDoS) attacks, anomalous SYN flood attacks, or anomalous traffic detection. These attacks are usually requests for legitimate services, but occur at such a fast rate that targeted systems cannot respond quickly enough and become bogged down or unable to service legitimate clients.

IP addresses that contain criminally obscene or potentially criminal internet copyright and intellectual property violations.

Infected Sources

Phishing Proxies

Active IP addresses that issue HTTP requests with a low reputation index score, or that are known malicious web sites offering or distributing malware, shell code, rootkits, worms, or viruses.

IP addresses that host phishing sites, and other kinds of fraud activities, such as ad click fraud or gaming fraud.

Proxy

Scanners

Spam Sources

Web Attacks

Windows Exploits

IP addresses that are associated with web proxies that shield the originator's IP address

(such as proxy and anonymization services). This category also includes TOR anonymizer addresses.

IP addresses that are involved in reconnaissance, such as probes, host scan, domain scan, and password brute force, typically to identify vulnerabilities for later exploits.

IP addresses tunneling spam messages through proxy, anomalous SMTP activities and forum spam activities.

IP addresses involved in cross site scripting, iFrame injection, SQL injection, cross domain injection, or domain password brute force.

Active IP addresses that have exercised various exploits against Windows resources by offering or distributing malware, shell code, rootkits, worms, or viruses using browsers, programs, downloaded files, scripts, or operating system vulnerabilities.

About IP intelligence blacklist categories

Blacklist categories

are categories you can use to differentiate between types of blacklisted URLs. You can specify up to 62 blacklist categories, including 13 that are predefined on the system. A blacklist category definition consists only of a name and description. You can specify actions and logging options for each blacklist category you create, and for predefined categories, in an IP Intelligence policy. The 13 predefined blacklist categories are automatically available for selection in an IP Intelligence policy.

49

IP Address Intelligence in the Network Firewall

Creating a blacklist category

You can create a blacklist category to configure policy-based responses to specific types of addresses. Then you can specify an address as belonging to a blacklist category so you can see the types of categories that are triggered in the logs, and so you can provide unique responses on a per-category basis.

1.

On the Main tab, click

Security

>

Network Firewall

>

IP Intelligence

>

Blacklist Categories

.

The Blacklist Categories screen opens.

2.

Click

Create

to create a new IP Intelligence blacklist category.

3.

In the

Name

field, type a name for the blacklist category.

4.

In the

Description

field, type a description for the blacklist category.

5.

Click

Finished

.

The list screen and the new item are displayed.

About IP intelligence feed lists

A

feed list

retrieves blacklists and whitelists from specified URLs. You can use a feed list to dynamically update blacklists and whitelists.

A feed list can retrieve multiple feeds from FTP, HTTP, or HTTPS addresses. You can specify whether a feed is a blacklist or whitelist, and the default category for the feed list. You can also configure a polling interval.

After a blacklist or whitelist is defined in a feed list, you add the feed list to an IP Intelligence policy. The list is then used by the policy to retrieve feeds and dynamically adjust the blacklist and whitelist policy.

Feed list settings and IP Intelligency policy

Feed lists dynamically define IP addresses that have been blacklisted or whitelisted. The IP Intelligence policy uses feed lists to dynamically filter traffic.

A feed list defines the feeds that dynamically update the IP address intelligence database for your systems.

Feed list setting

URL

List Type

Blacklist Category

Poll Interval

Username

Password

Description

.

Select

FTP

,

HTTP

, or

HTTPS

, then specify the URL for the feed. Feeds are typically text files. An example for a local file might be http://172.10.1.23/feed.txt

Whitelist

or

Blacklist

. Specifies the default classification for all URLs in the feed for which a category is not specified.

Specifies a default category for the list. This is the default blacklist category for all blacklist URLs in the feed for which a category is not specified. On the BIG-IP

® system, you can specify a total of 62 categories; however, 9 categories are used by the IP Intelligence database.

Specifies how often the feed URL is polled for new feeds.

The user name to access the feed list file, if required.

The password to access the feed list file, if required.

50

BIG-IP

®

Network Firewall: Policies and Implementations

Feed list setting

Feed URLs

Description

In this area you can add, replace, or delete feed URLs from the feed list.

A feed is a simple comma-separated value (CSV) file. The file contains four comma-separated values per line.

Position

1

Value

IP Address

Definition

The IP address to be blacklisted or whitelisted. This is the only field that is required in each entry in the file. All other entries are optional.

Important: If you append a route domain with a percentage sign and the route domain number, the route domain is not used.

2

3

4

Network Mask

Whitelist/Blacklist

Category

(Optional) The network mask for the IP address as a CIDR (such as,

24 for

255.255.255.0

). This field is optional.

(Optional) Identifies whether the

IP address is a whitelist or blacklist address. You can type wl

, bl

, whitelist

, or blacklist

, with any capitalization. Leave this field blank to retain the default specified for the feed.

(Optional) Type the category name for the entry. Leave this field blank to take the default specified for the feed.

In this feed list file example, only the first entry specifies a value for every field. The third and fourth entries,

10.10.0.12 and 10.0.0.12, will be set to blacklist or whitelist entries depending on the setting for the feed.

10.10.0.12 is specified with a category of botnets

; however, if the default setting for the feed is a whitelist, this is ignored. When an IP address has both a blacklist and a whitelist entry from the configuration, the whitelist entry takes precedence.

10.0.0.2,32,bl,spam_sources

10.0.0.3,,wl,

10.10.0.12,,botnets

10.0.0.12,,,

10.0.0.13,,bl,

Creating a feed list

You can add whitelist and blacklist IP addresses to your configuration automatically by setting up feeds and capturing them with a feed list.

1.

On the Main tab, click

Security

>

Network Firewall

>

IP Intelligence

>

Feed Lists

.

51

IP Address Intelligence in the Network Firewall

The Feed Lists screen opens.

2.

Click

Create

to create a new IP Intelligence feed list.

3.

In the

Name

field, type a name for the feed list.

4.

Configure Feed URLs with an HTTP, HTTPS, or FTP URL, the list type, the blacklist category, and the polling interval. Specify a user name and password, if required to access the feed list.

A feed URL includes the actual URL to the text file, and information about the defaults for that file.

Within the feed file, however, any URL can be configured to be a whitelist or blacklist entry, and assigned to a blacklist category.

5.

Click the

Add

button to add a feed URL to the feed list.

6.

Click

Finished

.

The list screen and the new item are displayed.

Configuring a policy to check addresses against IP intelligence

You can verify IP addresses against the preconfigured IP Intelligence database, and against IPs from your own feed lists, by creating an IP Intelligence policy.

1.

On the Main tab, click

Security

>

Network Firewall

>

IP Intelligence

>

Policies

.

The IP Intelligence Policies screen opens.

2.

Click

Create

to create a new IP Intelligence policy.

3.

In the

Name

field, type a name for the IP intelligence policy.

4.

To add feed lists to the policy, click the name of an

Available

feed list, and then add it to the

Selected

list.

5.

Set the default action for the policy to Accept or Drop.

• Select

Accept

to allow packets from uncategorized addresses on the feed list.

• Select

Drop

to drop packets from uncategorized addresses on the feed list.

The default action applies to addresses that are not assigned a blacklist category in the feed list. The IP

Intelligence feature uses the action specified in a feed list entry, when available.

6.

Set the default log actions.

Log Black List Category Matches

logs IP addresses that match blacklist categories.

Log White List Overrides

logs only whitelist matches that override blacklist matches.

• Select both

Log Black List Category Matches

and

Log White List Overrides

to log all black list matches, and all whitelist matches that override blacklist matches.

Note: Whitelist matches always override blacklist matches.

7.

To configure matching actions and logging for custom blacklist categories, add Blacklist Categories in the Blacklist Matching Policy area. Select a category from the list of predefined and user-defined blacklist categories, and set the default action and default logging action for the category, then click

Add

to add the blacklist category to the policy.

Note: The default action for a blacklist category is always Reject.

8.

In the Blacklist Matching Policy area, for each category, you can select a default action.

• Select

Use Policy Default

to use the default action.

52

BIG-IP

®

Network Firewall: Policies and Implementations

• Select

Accept

to allow packets from sources of the specified type, as identified by the IP address intelligence database.

• Select

Drop

to drop packets from sources of the specified type, as identified by the IP address intelligence database.

9.

In the Blacklist Matching Policy area, you can set the log action for each blacklist category. You can set log actions for

Log Blacklist Category Matches

, and for

Log Whitelist Overrides

.

Use Policy Default

uses the default log action you configure for the policy.

Yes

logs the item for the selected category.

No

does not log the item for the selected category.

Note: Whitelist matches always override blacklist matches.

10.

Click

Add

to add a customized category to the policy. You can also replace a policy selected from the list, by clicking

Replace

.

11.

To remove a customized category from the policy, select the category in the Blacklist Matching Policy area and click

Delete

.

12.

Click

Finished

.

The list screen and the new item are displayed.

Assigning a global IP Intelligence policy

You can assign an IP Intelligence policy globally, to apply blacklist and whitelist matching actions and logging to all traffic.

1.

On the Main tab, click

Security

>

Network Firewall

>

IP Intelligence

>

Policies

.

The IP Intelligence Policies screen opens.

2.

From the

Global Policy

list, select the IP Intelligence policy to apply to all traffic on the BIG-IP system.

3.

Click

Update

.

The list screen and the updated item are displayed.

The specified IP Intelligence policy is applied to all traffic.

Assigning an IP Intelligence policy to a virtual server

You can assign an IP Intelligence policy to a virtual server, to apply blacklist and whitelist matching actions and logging to traffic on that virtual server only.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

From the

Security

menu, choose

Policies

.

4.

Next to

IP Intelligence

, select

Enabled

, then select the IP intelligence policy to apply to traffic on the virtual server.

5.

Click

Update

.

The list screen and the updated item are displayed.

The specified IP Intelligence policy is applied to traffic on the selected virtual server.

53

IP Address Intelligence in the Network Firewall

Assigning an IP Intelligence policy to a route domain

You can assign an IP Intelligence policy to a route domain, to apply blacklist and whitelist matching actions and logging to route domain traffic.

1.

On the Main tab, click

Network

>

Route Domains

.

The Route Domain List screen opens.

2.

In the Name column, click the name of the relevant route domain.

3.

From the

IP Intelligence Policy

list, select an IP Intelligence policy to enforce on this route domain.

4.

Click

Update

.

The system displays the list of route domains on the BIG-IP system.

The specified IP Intelligence policy is applied to traffic on the route domain.

54

Deploying the BIG-IP Network Firewall in ADC Mode

About deploying the network firewall in ADC mode

The BIG-IP

®

Network Firewall provides policy-based access control to and from address and port pairs inside and outside of your network. By default, the network firewall is configured in ADC mode, which is a default allow configuration, in which all traffic is allowed through the firewall, and any traffic you want to block must be explicitly specified.

To understand this firewall scenario, imagine that your prerequisite system load-balances all traffic from the Internet to several internal servers. The internal servers are:

Device and location

Externally accessible FTP server

Application virtual server

Server on internal network

Server on internal network

IP address

70.168.15.104

192.168.15.101

10.10.1.10

10.10.1.11

Traffic type

FTP

HTTP, FTP

HTTP, HTTPS

HTTP, HTTPS

The system does not have a separate route domain configured, however you can use Route Domain 0, which is essentially the same as a global rule.

In order for traffic from the internal application virtual server to reach the external network virtual server, you must create a VLAN and enable both internal and external virtual servers on it. In this scenario, these

VLANs are specified:

VLAN

net_ext net_int

Configuration

Enabled on 70.168.15.0/24, 192.168.15.101

Includes pool members 10.10.1.10, 10.10.1.11

In addition, in this firewall configuration, there are three external networks that must be firewalled:

Network

60.63.10.0/24

85.34.12.0/24

48.64.32.0/24

Policy

Allow all access

Deny all access

Allow FTP, deny HTTP and HTTPS

To set up this scenario, you configure addresses, ports, and firewall rules specific to these networks, ports, and addresses. You will also configure a firewall rule that denies all ICMP traffic, to prevent pinging of network devices.

Figure 3: Firewall in ADC mode configuration scenario

Deploying the BIG-IP Network Firewall in ADC Mode

Special IPv6 pool considerations with ADC mode

In a standard configuration, IPv6 pools work with either ADC mode or Firewall mode without any issues.

However, in the specific ADC mode configuration where a Deny All policy is added after any specific

Allow rules are configured, IPv6 pools cannot be reached.

If you choose to add a rule to deny all traffic after more specific rules, you must add a preceding rule with the following parameters.

• State:

Enabled

• Protocol:

ICMPv6 (58)

• Type:

Neighbor Advertisement (136)

• Source Address: any affected pool members

• Destination Address: the BIG-IP address, or

Any

• Action:

Accept

• All other values can be left at their defaults, except the rule name.

56

BIG-IP

®

Network Firewall: Policies and Implementations

Such a rule allows ICMPv6 pools to function, when a rule that denies all traffic is added at the end of the rule list in an ADC mode configuration.

Task list

Configuring the Network Firewall in ADC mode

If you have changed the firewall setting to Firewall mode, you can configure the BIG-IP

®

Network Firewall back to ADC mode.

Note: The firewall is configured in ADC mode, by default.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

From the

Virtual Server & Self IP Contexts

list, select the default action

Accept

for the self IP and virtual server contexts.

3.

Click

Update

.

The virtual server and self IP contexts for the firewall are changed.

Creating a VLAN for the network firewall

Create a VLAN with tagged interfaces, so that each of the specified interfaces can process traffic destined for that VLAN.

1.

On the Main tab, click

Network

>

VLANs

.

The VLAN List screen opens.

2.

Click

Create

.

The New VLAN screen opens.

3.

In the

Name

field, type a unique name for the VLAN.

For purposes of this implementation, name the VLAN net_ext

.

4.

For the

Interfaces

setting: a) From the

Interface

list, select an interface number.

b) From the

Tagging

list, select

Tagged

.

c) Click

Add

.

5.

If you want the system to verify that the return route to an initial packet is the same VLAN from which the packet originated, select the

Source Check

check box.

6.

From the

Configuration

list, select

Advanced

.

7.

In the

MTU

field, retain the default number of bytes (

1500

).

8.

If you want to base redundant-system failover on VLAN-related events, select the

Fail-safe

check box.

9.

From the

Auto Last Hop

list, select a value.

10.

From the

CMP Hash

list, select a value.

11.

To enable the

DAG Round Robin

setting, select the check box.

12.

Click

Finished

.

57

Deploying the BIG-IP Network Firewall in ADC Mode

The screen refreshes, and displays the new VLAN in the list.

The new VLAN appears in the VLAN list.

Enable the new VLAN on both the network virtual server and the application virtual server.

Configuring an LTM virtual server with a VLAN for Network Firewall

For this implementation, at least two virtual servers and one at least one VLAN are assumed, though your configuration might be different.

You enable two virtual servers on the same VLAN to allow traffic from hosts on one virtual server to reach or pass through the other. In the Network Firewall, if you are using multiple virtual servers to allow or deny traffic to and from specific hosts behind different virtual servers, you must enable those virtual servers on the same VLAN.

Tip: By default, the virtual server is set to share traffic on All VLANs and Tunnels. This configuration will work for your VLANs, but in the firewall context specifying or limiting VLANs that can share traffic provides greater security.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

From the

VLAN and Tunnel Traffic

list, select

Enabled on

. Then, for the

VLANs and Tunnels

setting, move the VLAN or VLANs on which you want to allow the virtual servers to share traffic from the

Available

list to the

Selected

list.

4.

Click

Update

to save the changes.

5.

Repeat this task for all virtual servers that must share traffic over the VLAN.

The virtual servers on which you enabled the same VLAN can now pass traffic.

Adding a firewall rule to deny ICMP

Use this task to create a firewall rule at the Global context, that denies ICMP packets globally.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

In the Rules area, click

Add

to add a firewall rule to the list.

3.

From the

Context

list, select the

Global

context.

4.

In the

Name

field, type

deny_icmp

.

5.

From the

Type

list, select

Rule

.

6.

From the

State

list, select

Enabled

.

7.

From the Protocol list, select

ICMP

.

8.

In the

ICMP Message

area, from the

Type

list, select

Any

, and click the

Add

button.

Tip: You can optionally deny only ICMP ping requests, by selecting

Echo (8) from the Type list, and clicking Add.

9.

Leave the

Source

area configured to allow

Any

address, port, and VLAN.

58

BIG-IP

®

Network Firewall: Policies and Implementations

10.

Leave the

Destination

area configured to allow

Any

address or port.

11.

From the

Action

list, select

Drop

or

Reject

.

These options either drop ICMP packets from any source and port to any port and address, or send a reject message and reset the the connection.

12.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

13.

Click

Finished

.

The list screen and the new item are displayed.

A new firewall rule is created, and appears in the firewall rule list. This firewall rule denies all access to and from all sources and destinations on the ICMP protocol.

Creating an address list

Use this procedure to specify the address list to apply to allow access to specific source addresses.

1.

On the Main tab, click

Security

>

Network Firewall

>

Address Lists

.

The Address Lists screen opens.

2.

Click

Create

to create a new address list.

3.

In the name field, type

ADDR_LIST1

.

4.

In the Addresses area, add the following addresses:

48.63.32.0/24 and

60.63.10.0/24

. Click

Add

after you type each address.

5.

Click

Finished

.

The list screen and the new item are displayed.

Denying access with firewall rules on the network virtual server

The firewall rules in this example apply in the virtual server context. For purposes of this example, the external network-facing virtual server has an IP address of

70.168.15.0/24

. The network virtual server is configured with a pool that includes a publically accessible FTP server at

70.168.15.104

, and an application virtual server at

192.168.15.101

.

Use this task to create a firewall rule that allows all traffic from the networks on the address list

ADDR_LIST1, and another firewall rule that denies all traffic. This serves the purpose of allowing all traffic from the networks that are allowed access, and denying all other traffic.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

In the Rules area, click

Add

to add a firewall rule to the list.

3.

Select the

Virtual Server

context, then select the external network virtual server (in this example,

70.168.15.0/24

).

4.

In the

Name

field, type allow_addr_list

.

5.

From the

Type

list, select

Rule

.

6.

From the

State

list, select

Enabled

.

7.

From the Protocol list, select

Any

.

59

Deploying the BIG-IP Network Firewall in ADC Mode

8.

In the

Source

area, from the

Address

list, select

List

.

9.

From the

Source Available

list, select

ADDR_LIST1

, then click the

<<

button to move

ADDR_LIST1 to the

Selected

list.

10.

Leave the

Destination

area configured with the default

Any

/

Any

settings.

11.

From the

Action

list, select

Accept

.

This allows packets from any source on the address list to any destination and port on any protocol on the DMZ network.

12.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

13.

Click the

Repeat

button.

The rule is saved, and a new rule creation page opens, with the same information, so you can create a similar rule.

14.

In the

Name

field, type deny_all

.

15.

In the

Source

area, in the

Address

list, select

Any

.

16.

Leave the

Destination

area configured to deny access to

Any

address or port.

17.

From the

Action

list, select

Reject

.

This creates a deny all rule for the virtual server.

18.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

19.

Click

Finished

.

The list screen and the new item are displayed.

20.

From the

Context

list, select

Virtual Server

.

21.

From the

Virtual Server

list, select the network virtual server.

22.

Click the

Filter

button.

The list screen opens, and all firewall rules that apply to the virtual server are displayed.

Denying access with firewall rules on the application virtual server

The firewall rules in this example apply in the virtual server context. For purposes of this example, the application virtual server on the internal network has an IP address of

192.168.15.101

, and is configured to load balance traffic to servers

10.10.1.10

and

10.10.1.11

on ports

80 and

443

.

Use this task to create a firewall rule that denies all traffic from the network

48.64.32.0/24 to the internal application servers behind the virtual server

192.168.15.101

.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

In the Rules area, click

Add

to add a firewall rule to the list.

3.

Select the

Virtual Server

context, then select the application virtual server (in this example,

192.168.15.101

).

4.

In the

Name

field, type deny_network_48

5.

From the

Type

list, select

Rule

.

6.

From the

State

list, select

Enabled

.

7.

From the

Schedule

list, select

None

.

8.

From the Protocol list, select

Any

.

60

BIG-IP

®

Network Firewall: Policies and Implementations

9.

In the

Source

area, from the

Address

list, select

Specify

.

10.

In the address field, type

48.64.32.0/24

.

11.

Leave the

Destination

area configured to deny access to

Any

address or port.

12.

From the

Action

list, select

Drop

or

Reject

.

This drops packets from the

48.64.32.0

network to any source.

13.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

14.

Click

Finished

.

The list screen and the new item are displayed.

15.

From the

Context

list, select

Virtual Server

.

16.

From the

Virtual Server

list, select the application virtual server.

17.

Click the

Filter

button.

The firewall rules are created, and are displayed on the rules list screen for the application virtual server.

61

Deploying the BIG-IP Network Firewall in Firewall Mode

About Firewall mode in the Network Firewall

The BIG-IP

®

Advanced Firewall Manager

(AFM

) provides policy-based access control to and from address and port pairs, inside and outside of your network. In this scenario, the network firewall is configured in

Firewall mode

, a default deny configuration, in which all traffic is blocked through the firewall, and any traffic you want to allow must be explicitly specified.

To understand this firewall scenario, imagine that your prerequisite system load-balances all traffic from the Internet to several internal servers. The internal servers are:

Device and location

Server on DMZ network

Server on internal network

Server on internal network

IP address

70.168.15.104

10.10.1.10

10.10.1.11

Traffic type

FTP

HTTP, HTTPS

HTTP, HTTPS

In order for traffic from the internal application virtual server to reach the external network virtual server, you must create a VLAN and enable both internal and external virtual servers on it. In this scenario, these

VLANs are specified:

VLAN

net_ext net_int

Configuration

Enabled on 70.168.15.0/24, 192.168.15.101

Includes pool members 10.10.1.10, 10.10.1.11

In addition, in this firewall configuration, there are three external networks that must be firewalled:

Network

60.63.10.0/24

85.34.12.0/24

48.64.32.0/24

Policy

Allow all access

Deny all access

Allow FTP, deny HTTP and HTTPS

To set up this scenario, you configure addresses, ports, and firewall rules specific to these networks, ports, and addresses.

Figure 4: Firewall configuration scenario

Deploying the BIG-IP Network Firewall in Firewall Mode

Task list

Configuring the Network Firewall to drop or reject traffic that is not specifically allowed

You can configure the BIG-IP

®

Network Firewall to drop or reject all traffic not explicitly allowed. In

Advanced Firewall Manager

, this is called

Firewall mode

, and this is also referred to as a

default deny

policy. Firewall mode applies a default deny policy to all self IPs and virtual servers.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

From the

Virtual Server & Self IP Contexts

list, select the default action for the self IP and virtual server contexts.

64

BIG-IP

®

Network Firewall: Policies and Implementations

• Select

Drop

to silently drop all traffic to virtual servers and self IPs unless specifically allowed.

• Select

Reject

to drop all traffic to virtual servers and self IPs unless specifically allowed, and to send the appropriate reject message for the protocol.

3.

Click

Update

.

The default virtual server and self IP firewall context is changed.

Creating a VLAN for the network firewall

Create a VLAN with tagged interfaces, so that each of the specified interfaces can process traffic destined for that VLAN.

1.

On the Main tab, click

Network

>

VLANs

.

The VLAN List screen opens.

2.

Click

Create

.

The New VLAN screen opens.

3.

In the

Name

field, type a unique name for the VLAN.

For purposes of this implementation, name the VLAN net_ext

.

4.

For the

Interfaces

setting: a) From the

Interface

list, select an interface number.

b) From the

Tagging

list, select

Tagged

.

c) Click

Add

.

5.

If you want the system to verify that the return route to an initial packet is the same VLAN from which the packet originated, select the

Source Check

check box.

6.

From the

Configuration

list, select

Advanced

.

7.

In the

MTU

field, retain the default number of bytes (

1500

).

8.

If you want to base redundant-system failover on VLAN-related events, select the

Fail-safe

check box.

9.

From the

Auto Last Hop

list, select a value.

10.

From the

CMP Hash

list, select a value.

11.

To enable the

DAG Round Robin

setting, select the check box.

12.

Click

Finished

.

The screen refreshes, and displays the new VLAN in the list.

The new VLAN appears in the VLAN list.

Enable the new VLAN on both the network virtual server and the application virtual server.

Configuring an LTM virtual server with a VLAN for Network Firewall

For this implementation, at least two virtual servers and one at least one VLAN are assumed, though your configuration might be different.

You enable two virtual servers on the same VLAN to allow traffic from hosts on one virtual server to reach or pass through the other. In the Network Firewall, if you are using multiple virtual servers to allow or deny traffic to and from specific hosts behind different virtual servers, you must enable those virtual servers on the same VLAN.

65

Deploying the BIG-IP Network Firewall in Firewall Mode

Tip: By default, the virtual server is set to share traffic on All VLANs and Tunnels. This configuration will work for your VLANs, but in the firewall context specifying or limiting VLANs that can share traffic provides greater security.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

From the

VLAN and Tunnel Traffic

list, select

Enabled on

. Then, for the

VLANs and Tunnels

setting, move the VLAN or VLANs on which you want to allow the virtual servers to share traffic from the

Available

list to the

Selected

list.

4.

Click

Update

to save the changes.

5.

Repeat this task for all virtual servers that must share traffic over the VLAN.

The virtual servers on which you enabled the same VLAN can now pass traffic.

Creating an address list

Use this procedure to specify the address list to apply to allow access to specific source addresses.

1.

On the Main tab, click

Security

>

Network Firewall

>

Address Lists

.

The Address Lists screen opens.

2.

Click

Create

to create a new address list.

3.

In the name field, type

ADDR_LIST1

.

4.

In the Addresses area, add the following addresses:

48.63.32.0/24 and

60.63.10.0/24

. Click

Add

after you type each address.

5.

Click

Finished

.

The list screen and the new item are displayed.

Allowing access from networks on an address list with a firewall rule

The firewall rules in this example apply in the virtual server context. For purposes of this example, the external network-facing virtual server is named ex_VS and has an IP address of

70.168.15.0/24

.

Create a firewall rule that allows traffic from the networks on

ADDR_LIST1 to the DMZ network, which includes an FTP server that is publicly addressed, and two internal servers on a second virtual server.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

In the Rules area, click

Add

to add a firewall rule to the list.

3.

From the

Context

list, select

Virtual Server

, and then select the external virtual server (in the example,

ex_VS

).

4.

In the

Name

field, type allow_addr_list

.

5.

From the

Type

list, select

Rule

.

6.

From the

State

list, select

Enabled

.

7.

From the

Protocol

list, select

Any

.

66

BIG-IP

®

Network Firewall: Policies and Implementations

8.

In the Source area, from the

Address

list, select

Specify

, and click

Address List

.

9.

From the list, select

/Common/ADDR_LIST1

, then click

Add

to add

ADDR_LIST1

to the list.

10.

Leave the

Destination

area configured with the default

Any

/

Any

settings.

11.

From the

Action

list, select

Accept

.

This allows packets from any source on the address list to any destination and port on any protocol on the DMZ network.

12.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

13.

Click

Finished

.

The list screen and the new item are displayed.

A new firewall rule is created, and appears in the firewall rule list.

Allowing access from a network to a virtual server with a firewall rule

The firewall rules in this example apply in the virtual server context. For purposes of this example, the application virtual server is behind the network virtual server with an IP address of

192.168.15.101

and configured for traffic on ports 80 and 443.

Use this procedure to create a firewall rule that allows traffic from a specific external network to the HTTP and HTTPS servers behind an application virtual server.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

In the Rules area, click

Add

to add a firewall rule to the list.

3.

In the Context field, select

Virtual Server

, and select the application virtual server (in the example,

192.168.15.101

.

4.

In the

Name

field, type allow_app_vs

.

5.

From the

Type

list, select

Rule

.

6.

From the

State

list, select

Enabled

.

7.

From the Protocol list, select

Any

.

8.

In the

Source

area, from the

Address

list, select

Specify

.

9.

In the address field, type

60.63.10.0/24

, then click the

Add

button.

10.

Leave the

Destination

area configured with the default

Any

/

Any

settings.

11.

From the

Action

list, select

Accept

.

This allows packets from the specified source to any destination and port on any protocol on the internal virtual server. You could specify HTTP and HTTPS protocols, and the internal server addresses, but since these are the only addresses and protocols behind the virtual server, that level of granularity is not necessary.

12.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

13.

Click

Finished

.

The list screen and the new item are displayed.

A new firewall rule is created, and appears in the firewall rule list.

67

Compiling and Deploying Network Firewall rules

About compiling and deploying rules in the Network Firewall

The BIG-IP

®

Advanced Firewall Manager

(AFM

) allows you to compile and deploy rules either manually or automatically. Rules are compiled and deployed automatically by default. However, in a large configuration with many rulesets there can a large number of micro rules created by the compilation process, even when only a small number of rules are added or edited. For such configurations, it might be advantageous to compile all collected rule changes at once, manually. Once rules are compiled, they can be deployed manually or automatically. Deploying manually allows greater control over the rollout of configuration changes.

These options provide a more efficient approach to managing large firewall rule sets. When manual rule compilation, manual rule deployment, or both are enabled, the AFM user interface provides feedback about the compilation and deployment status of the current ruleset.

Task list

Configuring manual or automatic policy compilation for firewall rules

Configuring manual or automatic policy deployment for firewall rules

Configuring manual or automatic policy compilation for firewall rules

Set the compilation mode to Manual if you want to collect several rule changes, and then compile them all at one time, or if you want to delay the rule compilation process to another time.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

From the

Firewall Compilation Mode

list, select the compilation mode for the firewall ruleset.

• Select

Automatic

to compile the firewall ruleset whenever a change is made to any firewall item that is used in the firewall ruleset.

• Select

Manual

to delay compilation of the firewall ruleset, collect all firewall rule changes, and apply the entire set of changes manually at another time.

3.

From the

Log Configuration Changes

list specify the logging option for firewall ruleset compilation and deployment configuration changes.

• Select

Automatic

to specify that configuration changes are logged only if

Firewall Compilation

Mode

or

Firewall Deployment Mode

is set to

Manual

.

• Select

On

to specify that policy configuration changes are always logged.

• Select

Off

to specify that policy configuration changes are not logged.

4.

Select the log publisher to which to log policy configuration changes.

This field appears only if you specify the

Log Configuration Changes

setting as

Automatic or

On

.

5.

Click

Update

.

The firewall policy compilation mode is configured.

Compiling and Deploying Network Firewall rules

Compiling firewall rules manually

When you have configured the firewall in manual compilation mode, you must manually compile firewall rules after your configuration changes are complete.

1.

Look at the status area for Advanced Firewall Manager. If the status shows

Firewall: Pending Rules

Compilation

, the rules are ready to be manually compiled.

2.

Click the

Firewall: Pending Rules Compilation

link. Alternatively, you can click

Security

>

Event

Logs

>

Network

>

Policy Status

.

The Policy Status screen appears, showing the firewall status, an overview of the most recent compilation, and a list of recent configuration changes. If the policy requires compilation, the

Firewall Policy Status

is

Pending Rules Compilation

.

3.

Click

Compile

.

The system compiles the collected changes.

After the ruleset is compiled, review the compilation statistics for

Compilation Start Time

,

Compilation

End Time

, and

Last Successful Compilation Time

. The status in the

Configuration Change Event

column also shows

Compile Success

after a successful compilation.

If you set the

Firewall Deployment Mode

to automatically deploy after a configuration change, the policies are deployed. If you set the

Firewall Deployment Mode

to manual, you must now deploy the policies.

Configuring manual or automatic policy deployment for firewall rules

Set the deployment mode to Manual if you want to compile rule changes without putting them into effect until a certain time.

Warning: You can not configure firewall schedules if the firewall deployment mode is manual.

1.

On the Main tab, click

Security

>

Options

>

Network Firewall

.

The Firewall Options screen opens.

2.

From the

Firewall Deployment Mode

list, select the deployment mode for firewall ruleset changes.

• Select

Automatic

to deploy the firewall ruleset whenever a change is compiled, either manually or automatically.

• Select

Manual

to delay deployment of the firewall ruleset, collect all compiled firewall ruleset changes, and deploy the entire set of changes manually at another time.

3.

From the

Log Configuration Changes

list specify the logging option for firewall ruleset compilation and deployment configuration changes.

• Select

Automatic

to specify that configuration changes are logged only if

Firewall Compilation

Mode

or

Firewall Deployment Mode

is set to

Manual

.

• Select

On

to specify that policy configuration changes are always logged.

• Select

Off

to specify that policy configuration changes are not logged.

4.

Select the log publisher to which to log policy configuration changes.

This field appears only if you specify the

Log Configuration Changes

setting as

Automatic or

On

.

70

BIG-IP

®

Network Firewall: Policies and Implementations

5.

Click

Update

.

The firewall deployment mode is configured.

Deploying firewall rules manually

When you have configured the firewall in manual deployment mode, you must manually deploy firewall rules after the rules are compiled.

1.

Look at the status area for the Advanced Firewall Manager. If the status shows

Firewall: Pending Rules

Deployment

, the rules are ready to be manually deployed.

2.

Click the

Firewall: Pending Rules Deployment

link. Alternatively, you can click

Security

>

Event

Logs

>

Network

>

Policy Status

.

The Policy Status screen appears, showing the firewall status, an overview of the most recent compilation, and a list of the most recent configuration changes. If the policy is compiled, and requires deployment, the

Firewall Policy Status

is

Pending Rules Deployment

.

3.

Click

Deploy

.

The system deploys the collected changes.

4.

Next to the

Policy Status

setting, select

Advanced

to review additional policy compilation and deployment statistics.

These statistics include the compilation and deployment mode,

Deployment Start Time

,

Deployment

End Time

,

Number of Micro Rules

, the

Active BLOB

, and whether the active BLOB is MD5 verified.

After the ruleset is deployed, the status in the

Configuration Change Event

column also shows

Deploy

Success

after a successful deployment.

About firewall policy compilation statistics

When firewall rules are recompiled, whether automatically with a rule change, or manually with a manual compile event, the rule list or policy requires some server resources to compile. With large rule sets and deployments, even minor rule changes can cause very large recompilation events. You can view the resources used for policy compilation, either for the entire firewall or by context.

Compiler statistics are displayed on a context for several items.

Activation Time

Displays the time at which firewall policies or rule lists were last activated on this context.

Compilation Duration

Displays the amount of time required to compile the rule sets or policies at the last activation.

Compilation Size

Displays the file size of the compiled rule sets or policies, after the last activation.

Maximum Transient Memory

Displays the maximum memory used to compile the rule sets or policies during the last activation.

Compiler statistics are displayed for several items when displayed for the entire firewall.

71

Compiling and Deploying Network Firewall rules

Firewall Compilation Mode

Displays whether the firewall is configured to compile ruleset changes manually or automatically.

Firewall Deployment Mode

Displays whether the firewall is configured to deploy ruleset changes manually or automatically.

Firewall Policy Status

Displays whether the firewall ruleset is

Consistent

(all rules are currently compiled and deployed),

Pending Rules Compilation

(some rules have been changed, and the ruleset is not compiled), or

Pending

Rules Deployment

(the ruleset is compiled, but not deployed).

Compilation Start Time

Displays the time at which the most recent firewall ruleset compilation event last started.

Compilation End Time

Displays the time at which at which the most recent firewall ruleset compilation event last completed.

Last Successful Compilation Time

Displays the time at which the last successful compilation occurred.

Deployment Start Time

Displays the most recent deployment start time.

Deployment End Time

Displays the most recent deployment end time.

Number of Micro Rules

Displays the number of micro rules compiled in the most recent ruleset compilation event.

Active BLOB

Displays the internal name for the active group of rules to be compiled.

BLOB MD5 Verified

Displays whether the BLOB MD5 is verified.

Viewing compilation statistics for a firewall rule or policy

You can view the most recent compilation statistics for a rule list or policy on the global context, or on a route domain, self IP, or virtual server context.

1.

On the Main tab, click

Security

>

Network Firewall

>

Active Rules

.

The Active Rules screen opens.

2.

From the

Context

list, select

All

.

3.

Click on the name of the context for which you want to view statistics.

For example, the global context is always called

Global

. A virtual server or self IP has the name you assigned when you created it; for example, vs_http_134 or self_lb_11

. A route domain is identified with a number; for example,

0

.

4.

View statistics for rule compilation.

• In the global context, from the

Policy Settings

list, select

Advanced

.

• In a route domain, self IP, or virtual server context, click the Security tab. Then, from the

Policy

Settings

list, select

Advanced

.

Statistics are displayed for the most recent rule list and policy compilation on the selected context.

72

BIG-IP

®

Network Firewall: Policies and Implementations

Viewing compilation statistics for all network firewall rules and policies

You can view the most recent compilation statistics for the network firewall.

1.

Click

Security

>

Event Logs

>

Network

>

Policy Status

.

The Policy Status screen appears, showing the firewall status, an overview of the most recent compilation, and a list of recent configuration changes.

2.

Next to the

Policy Status

setting, select

Advanced

to review additional policy compilation and deployment statistics.

These statistics include the compilation and deployment mode,

Deployment Start Time

,

Deployment

End Time

,

Number of Micro Rules

, the

Active BLOB

, and whether the active BLOB is MD5 verified.

Compilation and deployment statistics are displayed for all network firewall policies.

73

HTTP Protocol Security

Overview: Securing HTTP traffic

You can secure HTTP traffic by using a default configuration or by customizing the configuration. You can adjust the following security checks in an HTTP security profile:

• HTTP protocol compliance validation

• Evasion technique detection

• Length checking to help avoid buffer overflow attacks

• HTTP method validation

• Inclusion or exclusion of certain files by type

• Mandatory header enforcement

You can also specify how you want the system to respond when it encounters a violation. If the system detects a violation and you enabled the Block flag, instead of forwarding the request, the system can either send a blocking response page or redirect the client to a different location.

Creating an HTTP virtual server to use with HTTP protocol security

When you enable protocol security for an HTTP virtual server, the system scans any incoming HTTP traffic for vulnerabilities before the traffic reaches the HTTP servers.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the

Create

button.

The New Virtual Server screen opens.

3.

In the

Name

field, type a unique name for the virtual server.

4.

In the

Destination Address

field, type the IP address in CIDR format.

The supported format is address/prefix, where the prefix length is in bits. For example, an IPv4 address/prefix is

10.0.0.1

or

10.0.0.0/24

, and an IPv6 address/prefix is ffe1::0020/64 or

2001:ed8:77b5:2:10:10:100:42/64

. When you use an IPv4 address without specifying a prefix, the BIG-IP

® system automatically uses a

/32 prefix.

Note: The IP address you type must be available and not in the loopback network.

5.

In the

Service Port

field, type

80

(for HTTP) or

443

(for HTTPS), or select

HTTP

or

HTTPS

from the list.

6.

In the Configuration area, for the

HTTP Profile

setting, select the default profile, http

.

7.

From the

Source Address Translation

list, select

Auto Map

.

8.

For the

Default Pool

setting, either select an existing pool from the list, or click the Create (+) button and create a new pool.

9.

Click

Finished

.

HTTP Protocol Security

The HTTP virtual server appears in the Virtual Servers list.

Attaching an HTTP protocol security profile to a virtual server

The easiest method for adding HTTP protocol security to your HTTP virtual server is to use the system default profile. You do this by configuring a virtual server with the

HTTP profile

http

, and then associating the default HTTP protocol security profile http_security with the virtual server.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

In the

Name

column, click the virtual server you previously created.

The Properties screen for the virtual server opens.

3.

From the

Security

menu, choose

Policies

.

4.

From the

Protocol Security

list, select

Enabled

.

5.

From the

Profile

list, select http_security

.

This configures the virtual server with the default HTTP protocol security profile.

6.

Click

Update

.

You now have a virtual server configured so that HTTP protocol checks are performed on the traffic that the HTTP virtual server receives.

Reviewing violation statistics for security profiles

You can view statistics and transaction information for each security profile that triggers security violations.

1.

On the Main tab, click

Security

>

Event Logs

>

Protocol

and click

HTTP

,

FTP

,

SMTP

, or

DNS

.

The appropriate statistics screen opens listing all violations for that protocol, with the number of occurrences.

2.

Type a Support ID, if you have one, to filter the violations and view one in particular.

3.

Click a violation's hyperlink to see details about the requests causing the violation.

On the Statistics screen, in the left column, you can review information regarding the traffic volume for each security profile configured.

Overview: Creating a custom HTTP security profile

This implementation describes how to set up the BIG-IP

® system to perform security checks on your HTTP virtual server traffic customized to the needs of your environment. Custom configuration of HTTP security and traffic management requires creating an HTTP security profile, and fine tuning this profile so it protects

HTTP traffic the way you want. Once you have all HTTP settings specified, you create a virtual server, attach the custom HTTP security profile, and add a default pool to handle the HTTP traffic.

Task summary

Creating a custom HTTP profile

76

BIG-IP

®

Network Firewall: Policies and Implementations

Creating a security profile for HTTP traffic

Configuring an HTTP virtual server with an HTTP security profile

Reviewing violation statistics for security profiles

Creating a custom HTTP profile

An HTTP profile defines the way that you want the BIG-IP

® system to manage HTTP traffic.

Note: Other HTTP profile types (HTTP Compression and Web Acceleration) enable you to configure compression and cache settings, as required. Use of these profile types is optional.

1.

On the Main tab, click

Local Traffic

>

Profiles

>

Services

>

HTTP

.

The HTTP profile list screen opens.

2.

Click

Create

.

The New HTTP Profile screen opens.

3.

In the

Name

field, type a unique name for the profile.

4.

From the

Parent Profile

list, select

http

.

5.

Select the

Custom

check box.

6.

Modify the settings, as required.

7.

Click

Finished

.

The custom HTTP profile now appears in the HTTP profile list screen.

Creating a security profile for HTTP traffic

Before performing this procedure, verify that you have installed and provisioned BIG-IP

®

Manager

(AFM) on the BIG-IP system.

Advanced Firewall

An

HTTP security profile

specifies security checks that apply to HTTP traffic, and that you want the BIG-IP

® system to enforce. In the security profile, you can also configure remote logging and trusted XFF headers.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

Click the

Create

button.

The New HTTP Security Profile screen opens.

3.

In the

Profile Name

field, type a unique name for the profile.

4.

If you want the system to trust XFF (X-Forwarded-For) headers in the requests: a) Select the

Trust XFF Header

check box.

Select this option if the BIG-IP system is deployed behind an internal or other trusted proxy. Then, the system uses the IP address that initiated the connection to the proxy instead of the internal proxy’s

IP address.

The screen refreshes and provides an additional setting.

b) In the

New Custom XFF Header

field, type the header that you want the system to trust, then click

Add

.

You can add up to five custom XFF headers.

5.

If you want the security profile to be case-sensitive, leave the

Profile is case sensitive

check box selected.

Otherwise, clear the check box.

77

HTTP Protocol Security

Note: You cannot change this setting after you create the security profile.

6.

Modify the blocking policy settings by clicking

HTTP Protocol Checks

and

Request Checks

, selecting the appropriate options, and enabling the

Block

or

Alarm

options as needed.

Note: If you do not enable either Alarm or Block for a protocol check, the system does not perform the corresponding security verification.

Alarm

: The system logs any requests that trigger the security profile violation.

Block

: The system blocks any requests that trigger the security profile violation.

Alarm

and

Block

: The system both logs and blocks any requests that trigger the security profile violation.

7.

Click

Blocking Page

if you want to configure the blocking response page.

8.

Click

Create

.

The screen refreshes, and you see the new security profile in the list.

The BIG-IP

® system automatically assigns this service profile to HTTP traffic that a designated virtual server receives.

Configuring an HTTP virtual server with an HTTP security profile

You can configure a local traffic virtual server and a default pool for your network's HTTP servers. When the virtual server receives HTTP traffic, an HTTP security profile can scan for security vulnerabilities, and load balance traffic that passes the scan.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the

Create

button.

The New Virtual Server screen opens.

3.

In the

Name

field, type a unique name for the virtual server.

4.

In the

Destination Address

field, type an address, as appropriate for your network.

The supported format is address/prefix, where the prefix length is in bits. For example, an IPv4 address/prefix is

10.0.0.1

or

10.0.0.0/24

, and an IPv6 address/prefix is ffe1::0020/64 or

2001:ed8:77b5:2:10:10:100:42/64

. When you use an IPv4 address without specifying a prefix, the BIG-IP

® system automatically uses a

/32 prefix.

5.

In the

Service Port

field, type

443 or select

HTTPS

from the list.

6.

From the

HTTP Profile

list, select the http profile .

7.

From the

Source Address Translation

list, select

Auto Map

.

8.

In the Resources area of the screen, for the

Default Pool

setting, click the

Create (+)

button.

The New Pool screen opens.

9.

In the

Name

field, type a unique name for the pool.

10.

In the Resources area, for the

New Members

setting, select the type of new member you are adding, then type the information in the appropriate fields, and click

Add

to add as many pool members as you need.

11.

Click

Finished

to create the pool.

The screen refreshes, and reopens the New Virtual Server screen. The new pool name appears in the

Default Pool

list.

12.

Click

Finished

to create the virtual server.

The screen refreshes, and you see the new virtual server in the list.

78

BIG-IP

®

Network Firewall: Policies and Implementations

13.

In the Name column, click the name of the relevant virtual server.

This displays the properties of the virtual server.

14.

From the

Security

menu, choose

Policies

.

15.

From the

Protocol Security

list, select

Enabled

.

16.

From the

Protocol Security Profile

list, select your custom HTTP security profile.

17.

Click

Update

to save the changes.

Reviewing violation statistics for security profiles

You can view statistics and transaction information for each security profile that triggers security violations.

1.

On the Main tab, click

Security

>

Event Logs

>

Protocol

and click

HTTP

,

FTP

,

SMTP

, or

DNS

.

The appropriate statistics screen opens listing all violations for that protocol, with the number of occurrences.

2.

Type a Support ID, if you have one, to filter the violations and view one in particular.

3.

Click a violation's hyperlink to see details about the requests causing the violation.

On the Statistics screen, in the left column, you can review information regarding the traffic volume for each security profile configured.

Overview: Increasing HTTP traffic security

The HTTP security profile consists of many different security checks for the various components of HTTP traffic. This implementation shows you how to fine-tune your HTTP security profile as required by your environment. The custom checks are described under the assumption that you have already created a custom

HTTP security profile but have no other prerequisite or special order. You need configure only the custom checks that you are interested in.

You can achieve a greater level of security when you configure the system to perform the following checks:

• HTTP Protocol Checks that are related to RFC compliance and actions to take resulting from a violation

• Request Checks, such as length, allowable HTTP request methods, inclusion or exclusion of file types, and custom headers that must occur in every request

• Blocking Page configuration which describes the page to display in the event of a blocked request when a violation is encountered

About RFC compliance and validation checks

When the BIG-IP

® system receives an HTTP request from a client, the first validation check that the system performs is to ensure that it is RFC protocol compliant. If the request passes the compliance checks, the system applies the security profile to the request. So that your system fully validates RFC compliance, keep the following HTTP Protocol Checks enabled (they are enabled by default):

Several Content-Length headers

: This security check fails when the incoming request contains more than one content-length header.

Null in request

: This security check fails when the incoming request contains a null character.

79

HTTP Protocol Security

Unparsable request content

: This security check fails when the Advanced Firewall Manager

™ is unable to parse the incoming request.

Modifying HTTP protocol compliance checks

F5 Networks

® recommends that you retain the default properties for the HTTP protocol security checks.

This task allows you to take additional precautions such as enabling the Block flag for the HTTP Protocol

Checks setting, even if you enable only the Alarm flag for the other security checks. When you do this, the system blocks all requests that are not compliant with HTTP protocol standards, and performs additional security checks only on valid HTTP traffic.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

In the HTTP Security Profiles area, in the Profile Name column, click the name of the security profile that you are modifying.

The HTTP Profile Properties screen opens.

3.

On the HTTP Protocol Checks tab, for the

HTTP Protocol Checks

setting, select the check boxes for the protocol checks that you want the system to validate.

4.

Select

Alarm

or

Block

to indicate how you want the system to respond to a triggered violation.

The default setting is

Alarm

.

Alarm

: The system logs any requests that trigger the violation.

Block

: The system blocks any requests that trigger the violation.

Alarm

and

Block

: The system both logs and blocks any requests that trigger the violation.

5.

Click

Update

to retain changes.

The BIG-IP

® system is now enabled for compliance checks on all valid HTTP traffic.

About evasion techniques checks

Advanced Firewall Manager

™ can examine HTTP requests for methods of application attack that are designed to avoid detection. When found, these coding methods, called

evasion techniques

, trigger the Evasion technique detected violation. By creating HTTP security profiles, you can detect evasion techniques, such as:

• Directory traversal, for example, a/b/../c turns into a/c

• Multiple decoding passes

• Multiple backslash characters in a URI, for example,

\\servername

• Bare byte decoding (higher than ASCII-127) in a URI

• Apache whitespace characters

(0x09, 0x0b, or 0x0c)

• Bad unescape

By default, the system logs requests that contain evasion techniques. You can also block requests that include evasion techniques.

80

BIG-IP

®

Network Firewall: Policies and Implementations

Configuring HTTP protocol evasion techniques blocking policy

You can use HTTP security profiles to detect, log, alarm, and block evasion techniques detected in HTTP traffic.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

In the HTTP Security Profiles area, in the Profile Name column, click the name of the security profile that you are modifying.

The HTTP Profile Properties screen opens.

3.

On the HTTP Protocol Checks tab, for the

Evasion Techniques Checks

setting, select or clear the

Alarm

or

Block

check boxes, as required.

Option Description

Alarm

Block

Alarm and Block

The system logs any requests that trigger the violation. This is the default setting.

The system blocks any requests that trigger the violation.

The system both logs and blocks any requests that trigger the violation.

4.

Click

Update

to retain changes.

About the types of HTTP request checks

By creating HTTP security profiles, you can perform several types of checks on HTTP requests to ensure that the requests are well-formed and protocol-compliant.

Length checks

Specify valid maximum lengths for request components to help prevent buffer overflow attacks.

Method checks

Specify which HTTP methods the system allows in requests.

File type checks

Specify which file types users can or cannot access.

Mandatory headers

Specify custom headers that must occur in every request.

Null in request

This security check fails when the incoming request contains a null character.

Unparsable request content

This security check fails when the system is unable to parse the incoming request.

Configuring length checks for HTTP traffic

Before performing this procedure, verify that you have installed and provisioned BIG-IP

®

Manager

(AFM) on the BIG-IP system.

Advanced Firewall

81

HTTP Protocol Security

You can specify valid maximum lengths for request components in HTTP security profiles to prevent buffer overflow attacks. You can set maximum lengths for URLs, query strings, POST data, and the entire request.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

In the Profile Name column, click the name of the security profile for which you want to configure length checking.

The Profile Properties screen opens.

3.

Click the Request Checks tab.

4.

For each option of the

Length Checks

setting, specify

Any

to allow any length or click

Length

and specify the maximum length you want to allow.

5.

Select

Alarm

or

Block

, to indicate how you want the system to respond to a triggered violation.

The default setting is

Alarm

.

Alarm

: The system logs any requests that trigger the violation.

Block

: The system blocks any requests that trigger the violation.

Alarm

and

Block

: The system both logs and blocks any requests that trigger the violation.

6.

For the

Request Length Exceeds Defined Buffer Size

setting, select or clear

Alarm

and

Block

, as needed.

Alarm

: The system logs any requests that are longer than allowed by the

long_request_buffer_size

internal parameter (the default is 10,000,000 bytes).

Block

The system blocks any requests that are longer than allowed by the

long_request_buffer_size

internal parameter (the default is 10,000,000 bytes).

Alarm

and

Block

The system both logs and blocks any requests that trigger the violation.

7.

Click

Update

to retain changes.

Specifying which HTTP methods to allow

Before performing this procedure, verify that you have installed and provisioned BIG-IP

®

Manager

(AFM) on the BIG-IP system.

Advanced Firewall

The HTTP security profile accepts certain HTTP methods by default. The default allowed methods are

GET, HEAD, and POST. The system treats any incoming HTTP request that includes an HTTP method other than the allowed methods as a violating request. Later, you can decide how to handle each violation.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

In the Profile Name column, click the name of the security profile for which you want to modify allowable

HTTP methods.

The Profile Properties screen opens.

3.

Click the Request Checks tab.

4.

For the

Methods

setting, specify which HTTP methods to allow:

The default allowed methods are GET, HEAD, and POST.

• From the

Available

list, select the methods you want to allow in a request and move them to the

Allowed

list.

• To add a new method to the

Available

list: type the name in the

Method

field, click

Add

to add it to the list, and move it to the

Allowed

list.

5.

Select

Alarm

or

Block

, to indicate how you want the system to respond to a triggered violation.

The default setting is

Alarm

.

82

BIG-IP

®

Network Firewall: Policies and Implementations

Alarm

: The system logs any requests that trigger the violation.

Block

: The system blocks any requests that trigger the violation.

Alarm

and

Block

: The system both logs and blocks any requests that trigger the violation.

6.

Click

Update

to retain changes.

Including or excluding files by type in HTTP security profiles

Before performing this procedure, verify that you have installed and provisioned BIG-IP

®

Manager

(AFM) on the BIG-IP system.

Advanced Firewall

By default, an HTTP security profile permits all file types in a request. For tighter security, you can create a list that specifies either all file types you want to allow, or a list specifying all the file types you do not want allowed.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

In the Profile Name column, click the name of the security profile you want to update.

The Profile Properties screen opens.

3.

Click the Request Checks tab.

4.

For the

File Types

setting, specify whether you want to create a list of allowed or disallowed file types, and which files you want in the list.

• To create a list of file types that are permitted in requests, select

Define Allowed

.

• To create a list of file types not permitted, select

Define Disallowed

.

• Select file types from the

Available

list, and move them to the

Allowed

or

Disallowed

list.

• To add a new file type, type the name in the

File Type

field, click

Add

to add it to the

Available

list, and then move it to the

Allowed

or

Disallowed

list.

Important: If the profile is case-sensitive, the file types are case-sensitive. For example, jsp and JSP will be treated as separate file types.

5.

Select

Alarm

or

Block

, to indicate how you want the system to respond to a triggered violation.

The default setting is

Alarm

.

Alarm

: The system logs any requests that trigger the violation.

Block

: The system blocks any requests that trigger the violation.

Alarm

and

Block

: The system both logs and blocks any requests that trigger the violation.

The page you configure is displayed every time one of the security checks set to

Block

is violated.

Configuring a mandatory header for an HTTP security profile

Before performing this procedure, verify that you have installed and provisioned BIG-IP

®

Manager

(AFM) on the BIG-IP system.

Advanced Firewall

When the BIG-IP

® system is managing an application that uses custom headers that must occur in every request, you can specify mandatory HTTP headers in the security profile. The system verifies that all requests contain those headers. If a request does not contain the mandatory header, the system issues the Mandatory

HTTP header is missing violation, and takes the action that you configure: Alarm, Block, or both.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

83

HTTP Protocol Security

The Security Profiles: HTTP screen opens.

2.

In the Profile Name column, click the name of the security profile for which you want to configure a

Mandatory Header alarm.

The Profile Properties screen opens.

3.

Click the Request Checks tab.

4.

For the

Mandatory Headers

setting, specify the header that must be in the request: a) In the

Header

field, type the name of the mandatory header, and click the

Add

button to add it to the

Available

list.

b) Move the new mandatory header from the

Available

list to the

Mandatory

list.

c) Select or clear the

Alarm

or

Block

check boxes as required.

Option

Alarm

Block

Alarm and Block

Description

The system logs any responses that trigger the

Mandatory HTTP header is missing

violation. This is the default setting.

The system blocks any requests that trigger the

Mandatory HTTP header is missing

violation.

The system both logs and blocks any requests that trigger the

Mandatory

HTTP header is missing

violation.

5.

Click

Update

to retain changes.

All HTTP requests are checked for the mandatory headers you have selected.

Configuring the blocking response page for HTTP security profiles

If your HTTP security profile is set up to block requests that violate one or more of the security checks, the system displays a page, called the blocking response page, on the client's screen. The default blocking response page states that the request was rejected, and provides a support ID. You can also configure the system to redirect the client to a specific web site instead of displaying the blocking response page.

1.

On the Main tab, click

Security

>

Protocol Security

>

Security Profiles

>

HTTP

.

The Security Profiles: HTTP screen opens.

2.

In the Profile Name column, click the name of the security profile for which you want to configure a blocking page.

The Profile Properties screen opens.

3.

Click the Blocking Page tab.

4.

For the

Response Type

setting, select one of the options:

Default Response

: Specifies that the system returns the system-supplied blocking response page.

Though you cannot edit the HTML code on the default blocking page, you can copy it into a custom response and edit it.

Custom Response

: Specifies that the system returns a response page that you design or upload.

Redirect URL

: Specifies that the system redirects the client to the specified URL.

SOAP Fault

: Specifies that the system displays a blocking page in standard SOAP fault message format. Though you cannot edit the SOAP fault code, you can copy it into a custom response and edit it.

The settings on the screen change depending on the selection that you make for the Response Type setting.

84

BIG-IP

®

Network Firewall: Policies and Implementations

5.

If you selected the

Custom Response

option, you can either create a new response or upload an HTML file.

• To create a custom response, make the changes you want to the default responses for the

Response

Header

and

Response Body

settings using HTTP syntax for the content, and click

Upload

.

• To upload an HTML file for the response body, navigate to an existing HTML response page, and click

Upload

.

6.

If you selected

Redirect URL

, type the full path of the web page to which the system should redirect the client in the

Redirect URL

field.

7.

Click

Update

to retain changes.

The system displays the response page when a violation occurs on any of the security checks set to

Block

.

Overview: Configuring Local Protocol Security Event Logging

You can configure the BIG-IP

® system to log detailed information about protocol security events and store those logs locally.

Important: The BIG-IP Advanced Firewall Manager

(AFM) must be licensed and provisioned and DNS

Services must be licensed before you can configure Protocol Security event logging.

Creating a local Protocol Security Logging profile

Configuring a virtual server for Protocol Security event logging

Viewing Protocol Security event logs locally on the BIG-IP system

Disabling logging

Creating a local Protocol Security Logging profile

Create a custom Logging profile to log BIG-IP system network firewall events locally on the BIG-IP system.

1.

On the Main tab, click

Security

>

Event Logs

>

Logging Profiles

.

The Logging Profiles list screen opens.

2.

Click

Create

.

The New Logging Profile screen opens.

3.

In the

Profile Name

field, type a unique name for the profile.

4.

Select the

Protocol Security

check box, to enable the BIG-IP

®

SMTP protocol request events.

system to log HTTP, FTP, DNS, and

5.

In the HTTP, FTP, and SMTP Security area, from the

Publisher

list, select

local-db-publisher

.

6.

In the DNS Security area, from the

Publisher

list, select

local-db-publisher

.

7.

Select the

Log Dropped Requests

check box, to enable the BIG-IP system to log dropped DNS requests.

8.

Select the

Log Filtered Dropped Requests

check box, to enable the BIG-IP system to log DNS requests dropped due to DNS query/header-opcode filtering.

Note: The system does not log DNS requests that are dropped due to errors in the way the system processes DNS packets.

85

HTTP Protocol Security

9.

Select the

Log Malformed Requests

check box, to enable the BIG-IP system to log malformed DNS requests.

10.

Select the

Log Rejected Requests

check box, to enable the BIG-IP system to log rejected DNS requests.

11.

Select the

Log Malicious Requests

check box, to enable the BIG-IP system to log malicious DNS requests.

12.

Click

Finished

.

Assign this custom protocol security Logging profile to a virtual server.

Configuring a virtual server for Protocol Security event logging

Ensure that at least one Log Publisher exists on the BIG-IP

® system.

Assign a custom Protocol Security Logging profile to a virtual server when you want the BIG-IP system to log Protocol Security events on the traffic the virtual server processes.

Note: This task applies only to systems provisioned at a minimum level (or higher) for Local Traffic (LTM).

You can check the provisioning level on the System > Resource Provisioning screen.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Enabled

. Then, for the

Profile

setting, move the profiles that log specific events to specific locations from the

Available

list to the

Selected

list.

5.

Click

Update

to save the changes.

Viewing Protocol Security event logs locally on the BIG-IP system

Ensure that the BIG-IP

® system is configured to log the types of events you want to view, and to store the log messages locally on the BIG-IP system.

When the BIG-IP system is configured to log events locally, you can view those events using the

Configuration utility.

1.

On the Main tab, click

Security

>

Event Logs

>

Protocol

>

DNS

.

The Protocol Security event log displays.

2.

To search for specific events, click

Custom Search

. Drag the event data that you want to search for from the Event Log table into the Custom Search table, and then click

Search

.

Disabling logging

Disable Network Firewall, Protocol Security, or DoS Protection event logging when you no longer want the BIG-IP

® system to log specific events on the traffic handled by specific resources.

Note: You can disable and re-enable logging for a specific resource based on your network administration needs.

86

BIG-IP

®

Network Firewall: Policies and Implementations

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Disabled

.

5.

Click

Update

to save the changes.

The BIG-IP system does not log the events specified in this profile for the resources to which this profile is assigned.

Implementation result

You now have an implementation in which the BIG-IP

® locally.

system logs specific Protocol Security events

Overview: Configuring Remote Protocol Security Event Logging

You can configure the BIG-IP

® system to log information about BIG-IP system Protocol Security events and send the log messages to remote high-speed log servers.

Important: The Advanced Firewall Manager

(AFM

) must be licensed and provisioned before you can configure Protocol Security event logging.

This illustration shows the association of the configuration objects for remote high-speed logging.

Figure 5: Association of remote high-speed logging configuration objects

87

HTTP Protocol Security

Task summary

Perform these tasks to configure Protocol Security event logging on the BIG-IP

® system.

Note: Enabling remote high-speed logging impacts BIG-IP system performance.

Creating a pool of remote logging servers

Creating a remote high-speed log destination

Creating a formatted remote high-speed log destination

Creating a publisher

Creating a custom Protocol Security Logging profile

Configuring a virtual server for Protocol Security event logging

Disabling logging

About the configuration objects of remote protocol security event logging

When configuring remote high-speed logging of Protocol Security events, it is helpful to understand the objects you need to create and why, as described here:

Object

Pool of remote log servers

Destination (unformatted)

Destination (formatted)

Publisher

DNS Logging profile

LTM

® virtual server

Reason Applies to

Create a pool of remote log servers to which the BIG-IP

® system can send log messages.

Creating a pool of remote logging servers.

Create a log destination of Remote

High-Speed Log type that specifies a pool of remote log servers.

Creating a remote high-speed log destination.

If your remote log servers are the

ArcSight, Splunk, IPFIX, or

Remote Syslog type, create an additional log destination to format the logs in the required format and forward the logs to a remote high-speed log destination.

Creating a formatted remote high-speed log destination.

Create a log publisher to send logs to a set of specified log destinations.

Creating a publisher.

Create a custom DNS Logging profile to define the data you want the BIG-IP system to include in the DNS logs and associate a log publisher with the profile.

Creating a custom Protocol

Security Logging profile.

Associate a custom DNS profile with a virtual server to define how the BIG-IP system logs the DNS traffic that the virtual server processes.

Configuring a virtual server for

Protocol Security event logging.

88

BIG-IP

®

Network Firewall: Policies and Implementations

Creating a pool of remote logging servers

Before creating a pool of log servers, gather the IP addresses of the servers that you want to include in the pool. Ensure that the remote log servers are configured to listen to and receive log messages from the

BIG-IP

® system.

Create a pool of remote log servers to which the BIG-IP system can send log messages.

1.

On the Main tab, click the applicable path.

DNS

>

Delivery

>

Load Balancing

>

Pools

Local Traffic

>

Pools

The Pool List screen opens.

2.

Click

Create

.

The New Pool screen opens.

3.

In the

Name

field, type a unique name for the pool.

4.

Using the

New Members

setting, add the IP address for each remote logging server that you want to include in the pool: a) Type an IP address in the

Address

field, or select a node address from the

Node List

.

b) Type a service number in the

Service Port

field, or select a service name from the list.

Note: Typical remote logging servers require port

514

.

c) Click

Add

.

5.

Click

Finished

.

Creating a remote high-speed log destination

Before creating a remote high-speed log destination, ensure that at least one pool of remote log servers exists on the BIG-IP

® system.

Create a log destination of the

Remote High-Speed Log

type to specify that log messages are sent to a pool of remote log servers.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Destinations

.

The Log Destinations screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this destination.

4.

From the

Type

list, select

Remote High-Speed Log

.

Important: If you use log servers such as Remote Syslog, Splunk, or ArcSight, which require data be sent to the servers in a specific format, you must create an additional log destination of the required type, and associate it with a log destination of the Remote High-Speed Log type. With this configuration, the BIG-IP system can send data to the servers in the required format.

The BIG-IP system is configured to send an unformatted string of text to the log servers.

5.

From the

Pool Name

list, select the pool of remote log servers to which you want the BIG-IP system to send log messages.

6.

From the

Protocol

list, select the protocol used by the high-speed logging pool members.

89

HTTP Protocol Security

7.

Click

Finished

.

Creating a formatted remote high-speed log destination

Ensure that at least one remote high-speed log destination exists on the BIG-IP

® system.

Create a formatted logging destination to specify that log messages are sent to a pool of remote log servers, such as Remote Syslog, Splunk, or ArcSight servers.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Destinations

.

The Log Destinations screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this destination.

4.

From the

Type

list, select a formatted logging destination, such as

IPFIX

,

Remote Syslog

,

Splunk

, or

ArcSight

.

Important: ArcSight formatting is only available for logs coming from Advanced Firewall Manager

(AFM

), Application Security Manager

Policy Manager

®

(APM

®

(ASM

), and the Secure Web Gateway component of Access

). IPFIX is not available for Secure Web Gateway. Remote Syslog formatting is the only type supported for logs coming from APM. The Splunk format is a predefined format of key value pairs.

The BIG-IP system is configured to send a formatted string of text to the log servers.

5.

If you selected

Remote Syslog

, from the

Syslog Format

list, select a format for the logs, and then from the

High-Speed Log Destination

list, select the destination that points to a pool of remote Syslog servers to which you want the BIG-IP system to send log messages.

Important: For logs coming from Access Policy Manager

®

(APM

®

), only the BSD Syslog format is supported.

6.

If you selected

Splunk

or

IPFIX

, from the

Forward To

list, select the destination that points to a pool of high-speed log servers to which you want the BIG-IP system to send log messages.

7.

Click

Finished

.

Creating a publisher

Ensure that at least one destination associated with a pool of remote log servers exists on the BIG-IP

® system.

Create a publisher to specify where the BIG-IP system sends log messages for specific resources.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Publishers

.

The Log Publishers screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this publisher.

4.

For the

Destinations

setting, select a destination from the

Available

list, and click

<<

to move the destination to the

Selected

list.

Note: If you are using a formatted destination, select the destination that matches your log servers, such as Remote Syslog, Splunk, or ArcSight.

90

BIG-IP

®

Network Firewall: Policies and Implementations

5.

Click

Finished

.

Creating a custom Protocol Security Logging profile

Create a logging profile to log Protocol Security events for the traffic handled by the virtual server to which the profile is assigned.

Note: You can configure logging profiles for HTTP and DNS security events on Advanced Firewall

Manager

, and FTP and SMTP security events on Application Security Manager

.

1.

On the Main tab, click

Security

>

Event Logs

>

Logging Profiles

.

The Logging Profiles list screen opens.

2.

Click

Create

.

The New Logging Profile screen opens.

3.

Select the

Protocol Security

check box, to enable the BIG-IP

®

SMTP protocol request events.

system to log HTTP, FTP, DNS, and

4.

In the HTTP, FTP, and SMTP Security area, from the

Publisher

list, select the publisher that the BIG-IP system uses to log HTTP, FTP, and SMTP Security events.

5.

In the DNS Security area, from the

Publisher

list, select the publisher that the BIG-IP system uses to log DNS Security events.

6.

Select the

Log Dropped Requests

check box, to enable the BIG-IP system to log dropped DNS requests.

7.

Select the

Log Filtered Dropped Requests

check box, to enable the BIG-IP system to log DNS requests dropped due to DNS query/header-opcode filtering.

Note: The system does not log DNS requests that are dropped due to errors in the way the system processes DNS packets.

8.

Select the

Log Malformed Requests

check box, to enable the BIG-IP system to log malformed DNS requests.

9.

Select the

Log Rejected Requests

check box, to enable the BIG-IP system to log rejected DNS requests.

10.

Select the

Log Malicious Requests

check box, to enable the BIG-IP system to log malicious DNS requests.

11.

From the

Storage Format

list, select how the BIG-IP system formats the log. Your choices are:

Option Description

None

Specifies the default format type in which the BIG-IP system logs messages to a remote Syslog server, for example:

"management_ip_address","bigip_hostname","context_type",

"context_name","src_ip","dest_ip","src_port",

"dest_port","vlan","protocol","route_domain",

"acl_rule_name","action","drop_reason

Field-List

This option allows you to:

• Select from a list, the fields to be included in the log.

• Specify the order the fields display in the log.

• Specify the delimiter that separates the content in the log. The default delimiter is the comma character.

User-Defined

This option allows you to:

• Select from a list, the fields to be included in the log.

91

HTTP Protocol Security

Option Description

• Cut and paste, in a string of text, the order the fields display in the log.

12.

Click

Finished

.

Assign this custom Protocol Security Logging profile to a virtual server.

Configuring a virtual server for Protocol Security event logging

Ensure that at least one Log Publisher exists on the BIG-IP

® system.

Assign a custom Protocol Security Logging profile to a virtual server when you want the BIG-IP system to log Protocol Security events on the traffic the virtual server processes.

Note: This task applies only to systems provisioned at a minimum level (or higher) for Local Traffic (LTM).

You can check the provisioning level on the System > Resource Provisioning screen.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Enabled

. Then, for the

Profile

setting, move the profiles that log specific events to specific locations from the

Available

list to the

Selected

list.

5.

Click

Update

to save the changes.

Disabling logging

Disable Network Firewall, Protocol Security, or DoS Protection event logging when you no longer want the BIG-IP

® system to log specific events on the traffic handled by specific resources.

Note: You can disable and re-enable logging for a specific resource based on your network administration needs.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Disabled

.

5.

Click

Update

to save the changes.

The BIG-IP system does not log the events specified in this profile for the resources to which this profile is assigned.

92

BIG-IP

®

Network Firewall: Policies and Implementations

Implementation result

You now have an implementation in which the BIG-IP

® sends the logs to a specific location.

system logs specific Protocol Security events and

93

Preventing Attacks with Eviction Policies and Connection

Limits

What are eviction policies and connection limits?

An

eviction policy

provides the system with guidelines for how aggressively it discards flows from the flow table. You can customize the eviction policy to prevent flow table attacks, where a large number of slow flows are used to negatively impact system resources. You can also set how the system responds to such flow problems in an eviction policy, and attach such eviction policies globally, to route domains, and to virtual servers, to protect the system, applications, and network segments with a high level of customization.

A

connection limit

provides a hard limit to the number of connections allowed on a virtual server or on a route domain. If you set such a limit, all connection attempts that exceed this limit are not allowed.

Task list

Creating an eviction policy

Limiting global connections and flows

Limiting connections and flows on a virtual server

Limiting connections and flows on a route domain

Creating an eviction policy

You can create eviction policies to control the granularity and aggressiveness with which the system discards flows.

1.

On the Main tab, click

System

>

Configuration

>

Local Traffic

>

Eviction Policies

.

2.

Click

Create

.

The

New Eviction Policy

screen opens.

3.

In the

Name

field, type a name for the eviction policy.

4.

In the

Trigger

fields, type a high and low water mark for the eviction policy.

This measure specifies the percentage of the quota, for this context, before flow eviction starts (high water mark) and ends (low water mark).

5.

Enable

Slow Flow Monitoring

to monitor flows that are considered slow by the system, and specify the slow flow threshold in bytes per second.

This combination of settings monitors the system for flows that fall below the slow flow threshold for more than 30 seconds.

6.

In the

Grace Period

field you can set a grace period, in seconds, between the detection of slow flows that meet the threshold requirement, and purging of slow flows according to the

Slow Flow Throttling

settings.

7.

In the Slow Flow Throttling area, set the slow flow throttling options.

Option Description

Disabled

Slow flows are monitored, but not removed from the system when the threshold requirement is met for 30 seconds.

Preventing Attacks with Eviction Policies and Connection Limits

Option

Absolute

Percent

Description

Slow flows are removed from the system when the threshold requirement is met for 30 seconds. Setting an absolute limit removes all slow flows beyond the specified absolute number of flows.

Slow flows are removed from the system when the threshold requirement is met for 30 seconds. Setting a percentage limit removes that percentage of slow flows that exceed the specified monitoring setting, so the default value of 100% removes all slow flows that exceed the slow flow threshold, after the grace period.

8.

In the Algorithms area, configure the strategies that the eviction policy uses to remove flows by moving algorithms from the

Available

list to the

Selected

list, and configuring applicable settings for the algorithms.

9.

Click

Finished

.

The eviction policy appears in the Eviction Policy List.

To use an eviction policy, associate it with a virtual server or a route domain.

Eviction policy strategy algorithms

This table lists the BIG-IP

® eviction policy algorithms and associated configuration information.

In an eviction policy, you specify one or more algorithms, or any combination of algorithms, to determine how traffic flows are dropped when the eviction policy threshold limits are reached. Selected algorithms are processed at the same time as a combined strategy, not in a specific order, so the combination of algorithms determines the final strategy used to remove flows. This strategy biases or weights the final algorithm toward the outcomes you have selected, though these choices are not absolute.

Important: You must specify at least one algorithm to use to determine how traffic is dropped with an eviction policy, otherwise flows are removed at random when the eviction policy threshold is reached.

Algorithm

Bias Idle

Bias Oldest

Bias Bytes

Low Priority Route Domains

Low Priority Virtual Servers

Description

Biases flow removal toward the existing flows that have been idle, with no payload bytes, for the longest.

Biases flow removal toward the oldest existing flows.

Biases flow removal toward the flows with the fewest bytes. When this algorithm is selected, add a value to the field

Minimum Time Delay

in the Strategy

Configuration area. This value determines the period of time for which a flow is allowed to exist, at a minimum, before it is subject to removal through the

Bias Bytes algorithm.

Biases flow removal toward flows on low priority route domains. When this algorithm is selected, use the

Low Priority Route Domains

setting in the

Strategy Configuration

area to move low priority route domains from the

Available

list to the

Selected

list.

Biases flow removal toward flows on low priority virtual servers. When this algorithm is selected, use the

Low Priority Virtual Servers

setting in the

Strategy Configuration

area to move low priority

96

BIG-IP

®

Network Firewall: Policies and Implementations

Algorithm

Low Priority Countries

Low Priority Ports and Protocols

Description

virtual servers from the

Available

list to the

Selected

list.

Biases flow removal toward flows from lower priority countries. When this algorithm is selected, in the

Low Priority Countries

setting in the

Strategy Configuration

area, select low priority countries from the list and click

Add

to add them to the low priority list.

Biases flow removal toward flows on low priority ports and protocols. When this algorithm is selected, use the

Low Priority Ports and Protocols

setting in the

Strategy Configuration

area to add ports, protocols, and combinations to the low priority ports and protocols list (you must also specify a name).

Limiting global connections and flows

You must first create an eviction policy before you can assign one globally. The system includes a global eviction policy, by default.

Assign global connection limits and an eviction policy to prevent possible attacks or overflows on system flows.

1.

On the Main tab, click

System

>

Configuration

>

Local Traffic

>

General

.

The Local Traffic General settings screen opens.

2.

From the

Eviction Policy

list, select the eviction policy to apply globally.

Note: Note that the global context requires an eviction policy. If you do not apply a custom eviction policy, the system default policy, default-eviction-policy is applied and selected in this field.

3.

Click

Update

to apply the changes.

The eviction policy is applied to the context.

Limiting connections and flows on a virtual server

You must first create an eviction policy before you can assign one to a virtual server.

Assign connection limits and an eviction policy to a virtual server to enact granular control over possible attacks or overflows on system flows.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

From the

Configuration

list, select

Advanced

.

4.

In the

Connection Limit

field, type a number that specifies the maximum number of concurrent open connections.

5.

From the

Eviction Policy

list, select an eviction policy to apply to the virtual server.

6.

Click

Update

to apply the changes.

The eviction policy is applied to the context.

97

Preventing Attacks with Eviction Policies and Connection Limits

Limiting connections and flows on a route domain

Before performing this task, confirm that you have a configured route domain, or use the common route domain

0

. You must add VLANs to a route domain for the route domain to effect traffic.

Assign connection limits and an eviction policy to a route domain to enact granular control over possible attacks or overflows on system flows.

1.

On the Main tab, click

Network

>

Route Domains

.

The Route Domain List screen opens.

2.

In the Name column, click the name of the relevant route domain.

3.

In the

Connection Limit

field, type the maximum number of concurrent connections allowed for the route domain. Setting this to

0 turns off connection limits. The default is

0

.

4.

From the

Eviction Policy

list, select an eviction policy to apply to this route domain.

5.

Click

Update

.

The system displays the list of route domains on the BIG-IP system.

The route domain now applies the connection limit and eviction policy to flows and connections.

98

Setting Timers with Service Policies

Creating and Applying Service Policies

Introduction to service policies

A

service policy

collects flow timer and flow timeout features in a policy that can be applied to different contexts.

Service policies serve two purposes:

• To apply a custom FIN timeout that differs from the system FIN timeout to flows on a specific context and in a specific policy.

• To apply a custom idle timeout that differs from the system timeout on a specific context and in a specific policy.

A service policy can be applied on a route domain, self IP, or in a firewall rule.

Creating a timer policy

Create a timer policy to set custom timeouts for self IPs, route domains, firewall rules, or firewall rule lists.

1.

Click

Network

>

Service Policies

>

Timer Policies

.

2.

Click

Create

.

The New Timer Policy screen opens.

3.

Type a name for the timer policy.

4.

Type an optional description for the timer policy.

5.

To save the timer policy and add timer rules, click

Create & Add Rule

.

The New Rule screen opens.

6.

Type a name for the rule.

7.

From the

Protocol

list, select a protocol.

8.

From the

Idle Timeout

list, select the timeout option for the selected protocol.

• Select

Specify...

to specify the timeout for this protocol, in seconds.

• Select

Immediate

to immediately apply this timeout to the protocol.

• Select

Indefinite

to specify that this protocol never times out.

• Select

Unspecified

to specify no timeout for the protocol. When this is selected, the default timeout for the protocol is used.

9.

Click

Finished

to save the timer policy rule.

The timer policy is now configured to apply to traffic with this protocol type.

Select the timer policy in a service policy, and apply the service policy to a self IP, route domain, firewall rule, or firewall rule list.

Setting Timers with Service Policies

Creating a service policy

Create a service policy to apply custom timer policies to self IPs, route domains, firewall rules, or firewall rule lists.

1.

Click

Network

>

Service Policies

.

2.

Click

Create

.

The New Service Policy screen opens.

3.

Type a name for the service policy.

4.

Type an optional description for the service policy.

5.

To enable a timer policy in the service policy, in the Timer Policy area, click

Enabled

.

6.

From the list, select a timer policy to use in the service policy. The Timer Policy Rules area shows the timer policy rules for the selected timer policy.

7.

Click

Finished

to save the service policy and return to the service policies list screen.

The selected self IP now enforces or stages rules according to your selections.

Applying a service policy to a firewall rule

Apply a service policy to a firewall rule to apply custom timers to traffic matched by the firewall rule.

1.

Click

Security

>

Network Firewall

>

Active Rules

.

2.

Select the service policy.

Option Description

With the Inline Rules Editor

With the standard rules editor

If you are using the inline rules editor, click in a rule to edit it, and select a service policy in the Action column.

If you are using the standard rule editor, click a rule name and select a service policy from the

Service Policy

list.

3.

Update the rule, or commit your changes.

4.

Compile and deploy the changes, if you compile and deploy manually.

When the rule is compiled and deployed, the timeouts defined in the service policy are applied to the rule.

Applying a service policy to a virtual server

Apply a service policy to a virtual server to use a timer policy.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the

Create

button.

The New Virtual Server screen opens.

3.

In the

Name

field, type a unique name for the virtual server.

4.

In the

Destination Address

field, type the IP address in CIDR format.

The supported format is address/prefix, where the prefix length is in bits. For example, an IPv4 address/prefix is

10.0.0.1

or

10.0.0.0/24

, and an IPv6 address/prefix is ffe1::0020/64 or

2001:ed8:77b5:2:10:10:100:42/64

. When you use an IPv4 address without specifying a prefix, the BIG-IP

® system automatically uses a

/32 prefix.

100

BIG-IP

®

Network Firewall: Policies and Implementations

5.

In the

Service Port

field, type a port number or select a service name from the

Service Port

list.

6.

From the

Service policy

list, select the service policy.

7.

Configure any other settings as needed.

8.

Click

Finished

.

The service policy is now associated with the virtual server, and the timer policy is applied to sessions on the virtual server.

Applying a service policy to a route domain

Apply a service policy to a route domain to apply custom timers to traffic that uses the route domain.

1.

On the Main tab, click

Network

>

Route Domains

.

The Route Domain List screen opens.

2.

In the Name column, click the name of the relevant route domain.

3.

Click the route domain to which you will apply the service policy.

4.

From the

Service Policy

list, select the service policy to apply to the route domain.

5.

Click

Update

Traffic on the route domainthat matches the rules defined in the service policy now uses the timeouts defined in the timer policy.

Applying a service policy to a self IP

Apply a service policy to a self IP to apply custom timers to traffic that uses the self IP address.

1.

On the Main tab, click

Network

>

Self IPs

.

2.

In the Name column, click the self IP address that you want to modify.

The properties of the self IP address display.

3.

Click the self IP to which you will apply the service policy.

4.

From the

Service Policy

list, select the service policy to apply to the self IP.

5.

Click

Update

Traffic on the self IP that matches the rules defined in the service policy now uses the timeouts defined in the timer policy.

101

Local Logging with the Network Firewall

Overview: Configuring local Network Firewall event logging

You can configure the BIG-IP

® system to log detailed information about BIG-IP system Network Firewall events and store those logs on the BIG-IP system.

Important: The BIG-IP system Advanced Firewall Manager

(AFM

) must be licensed and provisioned before you can configure Network Firewall event logging.

Task summary

Perform these tasks to configure logging of AFM processes on the BIG-IP

® system.

Note: Enabling logging impacts BIG-IP system performance.

Task summary

Perform these tasks to configure Network Firewall logging locally on the BIG-IP

® system.

Note: Enabling logging and storing the logs locally impacts BIG-IP system performance.

Creating a local Network Firewall Logging profile

Configuring a virtual server for Network Firewall event logging

Viewing Network Firewall event logs locally on the BIG-IP system

Creating a Network Firewall rule from a firewall log entry

Disabling logging

Creating a local Network Firewall Logging profile

Create a custom Logging profile to log BIG-IP

® system Network Firewall events locally on the BIG-IP system.

1.

On the Main tab, click

Security

>

Event Logs

>

Logging Profiles

.

The Logging Profiles list screen opens.

2.

Click

Create

.

The New Logging Profile screen opens.

3.

In the

Profile Name

field, type a unique name for the profile.

4.

Select the

Network Firewall

check box.

5.

In the Network Firewall area, from the

Publisher

list, select

local-db-publisher

.

6.

Set an

Aggregate Rate Limit

to define a rate limit for all combined network firewall log messages per second. Beyond this rate limit, log messages are not logged.

Local Logging with the Network Firewall

7.

For the

Log Rule Matches

setting, select how the BIG-IP system logs packets that match ACL rules.

You can select any or all of the options. When an option is selected, you can configure a rate limit for log messages of that type.

Option Description

Option

Enables or disables logging of packets that match ACL rules configured with:

Accept

action=Accept

Drop

Reject

action=Drop action=Reject

8.

Select the

Log IP Errors

check box, to enable logging of IP error packets. When enabled, you can configure a rate limit for log messages of this type.

9.

Select the

Log TCP Errors

check box, to enable logging of TCP error packets. When enabled, you can configure a rate limit for log messages of this type.

10.

Select the

Log TCP Events

check box, to enable logging of open and close of TCP sessions. When enabled, you can configure a rate limit for log messages of this type.

11.

Enable the

Log Translation Fields

setting to log both the original IP address and the NAT-translated

IP address for Network Firewall log events.

12.

Enable the

Always Log Region

setting to log the geographic location when a geolocation event causes a network firewall event.

13.

From the

Storage Format

list, select how the BIG-IP system formats the log. Your choices are:

Option Description

None

Specifies the default format type in which the BIG-IP system logs messages to a remote Syslog server, for example:

"management_ip_address","bigip_hostname","context_type",

"context_name","src_ip","dest_ip","src_port",

"dest_port","vlan","protocol","route_domain",

"acl_rule_name","action","drop_reason

Field-List

This option allows you to:

• Select from a list, the fields to be included in the log.

• Specify the order the fields display in the log.

• Specify the delimiter that separates the content in the log. The default delimiter is the comma character.

User-Defined

This option allows you to:

• Select from a list, the fields to be included in the log.

• Cut and paste, in a string of text, the order the fields display in the log.

14.

In the IP Intelligence area, from the

Publisher

list, select

local-db-publisher

.

Note: The IP Address Intelligence feature must be enabled and licensed.

15.

Set an

Aggregate Rate Limit

to define a rate limit for all combined IP Intelligence log messages per second. Beyond this rate limit, log messages are not logged.

16.

Enable the

Log Translation Fields

setting to log both the original IP address and the NAT-translated

IP address for IP Intelligence log events.

17.

In the Traffic Statistics area, from the

Publisher

list, select

local-db-publisher

.

18.

Enable the

Active Flows

setting to log the number of active flows each second.

104

BIG-IP

®

Network Firewall: Policies and Implementations

19.

Enable the

Reaped Flows

to log the number of reaped flows, or connections that are not established because of system resource usage levels.

20.

Enable the

Missed Flows

setting to log the number of packets that were dropped because of a flow table miss. A flow table miss occurs when a TCP non-SYN packet does not match an existing flow.

21.

Enable the

SYN Cookie (Per Session Challenge)

setting to log the number of SYN cookie challenges generated each second.

22.

Enable the

SYN Cookie (White-listed Clients)

setting to log the number of SYN cookie clients whitelisted each second.

23.

Click

Finished

.

Assign this custom Network Firewall Logging profile to a virtual server.

Configuring a virtual server for Network Firewall event logging

Ensure that at least one log publisher exists on the BIG-IP

® system.

Assign a custom Network Firewall Logging profile to a virtual server when you want the BIG-IP system to log Network Firewall events on the traffic that the virtual server processes.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Enabled

. Then, for the

Profile

setting, move the profiles that log specific events to specific locations from the

Available

list to the

Selected

list.

Note: If you do not have a custom profile configured, select the predefined logging profile global-network to log Advanced Firewall Manager

™ events. Note that to log global, self IP, and route domain contexts, you must enable a Publisher in the global-network profile.

5.

Click

Update

to save the changes.

Viewing Network Firewall event logs locally on the BIG-IP system

Ensure that the BIG-IP

® system is configured to log the types of events you want to view, and to store the log messages locally on the BIG-IP system.

When the BIG-IP system is configured to log events locally, you can view those events using the

Configuration utility.

1.

On the Main tab, click

Security

>

Event Logs

>

Network

>

Firewall

.

The Network Firewall event log displays.

2.

To search for specific events, click

Custom Search

. Drag the event data that you want to search for from the Event Log table into the Custom Search table, and then click

Search

.

Creating a Network Firewall rule from a firewall log entry

You must be logging Network Firewall traffic to create a rule from the Network Firewall logs.

105

Local Logging with the Network Firewall

You can create a rule from the local log, from an enforced or staged rule or policy. You might use this to change the action taken on specific traffic that is matched by a more general rule. You can also use this to replicate a rule and change some parameter, such as the source or destination ports. Note that the rule you create from a log entry already has some information specified, such as source and destination address and ports, protocol, and VLAN. You can change any of this information as required.

1.

On the Main tab, click

Security

>

Event Logs

>

Network

>

Firewall

.

The Network Firewall event log displays.

2.

Select the search parameters to show the preferred log results, then click

Search

.

3.

Select a log entry, and click

Create Rule

.

4.

From the

Context

list, select the context for the firewall rule.

For a firewall rule in a rule list, the context is predefined and cannot be changed.

5.

In the

Name

and

Description

fields, type the name and an optional description.

6.

From the

Type

list, select whether you are creating a standalone network firewall rule or creating the rule from a predefined rule list.

Note: If you create a firewall rule from a predefined rule list, only the Name, Description, Order, Rule

List, and State options apply, and you must select or create a rule list to include.

7.

From the

State

list, select the rule state.

• Select

Enabled

to apply the firewall rule to the given context and addresses.

• Select

Disabled

to set the firewall rule to not apply at all.

• Select

Scheduled

to apply the firewall rule according to the selected schedule.

8.

From the

Schedule

list, select the schedule for the firewall rule.

This schedule is applied when you set the firewall rule state as

Scheduled

.

9.

From the

Protocol

list, select the protocol to which the firewall rule applies.

• Select

Any

to apply the firewall rule to any protocol.

• Select the protocol name to apply the rule to a single protocol.

Important: ICMP is handled by the BIG-IP system at the global or route domain level. Because of this,

ICMP messages receive a response before they reach the virtual server context. You cannot create rule for ICMP or ICMPv6 on a self IP or virtual server context. You can apply a rule list to a self IP or virtual server that includes a rule for ICMP or ICMPv6; however, such a rule will be ignored. To apply firewall actions to the ICMP protocol, create a rule with the global or route domain context. ICMP rules are evaluated only for ICMP forwarding requests, and not for the IP addresses of the BIG-IP system itself.

10.

In the

Source

list, specify users and groups to which this rule applies.

• From the

User

list, select

Any

to have the rule apply to any user.

• From the

User

list, select

Specify

and click

User

,

Group

, or

User List

to specify a user, group, or user list packet source to which the rule applies. When selected, you can type a user or group name in the format domain\user_name or domain\group_name

. You can specify a user list by selecting it from the list. Click

Add

to add a selected user, group, or user list to the packet source list.

11.

In the

Source

list, specify addresses and geolocated sources to which this rule applies.

• From the

Address/Region

list, select

Any

to have the rule apply to any packet source IP address or geographic location.

• From the

Address/Region

list, select

Specify

and click

Address

to specify one or more packet source IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When

106

BIG-IP

®

Network Firewall: Policies and Implementations

selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• From the

Address/Region

list, select

Specify

and click

Address List

to select a predefined list of packet source addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• From the

Address/Region

list, select

Specify

and click

Address Range

to specify a contiguous range of packet source IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

• From the

Address/Region

list, select

Specify

and click

Country/Region

to identify the geographic origin of packet sources, and to apply rules based on selected geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected. After you select a geographic location, click

Add

to add it to the Source address list.

12.

From the Source

Port

list, select the type of packet source ports to which this rule applies.

• Select

Any

to have the rule apply to any packet source port.

• Select

Specify

and click

Port

to specify one or more packet source ports to which the rule applies.

When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet source port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet source ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

13.

From the Source

VLAN/Tunnel

list, select the VLAN on which this rule applies.

• Select

Any

to have the rule apply to traffic on any VLAN through which traffic enters the firewall.

• Select

Specify

to specify one or more VLANs on the firewall to which the rule applies. To use a

VLAN with this rule, move the VLAN from the

Available

list to the

Selected

list. Similarly, you can remove the VLAN from this rule, by moving the VLAN from the

Selected

list to the

Available

list.

14.

In the Destination area and from the

Address/Region

list, select the type of packet destination address to which this rule applies.

• Select

Any

to have the rule apply to any IP packet destination address.

• Select

Specify

and click

Address

to specify one or more packet destination IP addresses or fully qualified domain names (FQDNs) to which the rule applies. When selected, you can type single IP addresses or FQDNs into the

Address

field, then click

Add

to add them to the address list.

• Select

Specify

and click

Address List

to select a predefined list of packet destination addresses to which the rule applies. To use an address list with this rule, select the address list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

• Select

Specify

and click

Address Range

to specify a contiguous range of packet destination IP addresses to which the rule applies. When selected, you can type a start and end IP address in the fields, then click

Add

to add the IP address range to the address list.

• Select

Specify

and click

Country/Region

to identify the geographic packet destination, and to apply rules based on specific geographic locations. When selected, a field appears in which you can select a country. For many countries, an extra field appears after you select the country, in which you can select a state or province. If you do not select a specific state or province, the entire country is selected.

After you select a geographic location, click

Add

to add it to the Destination address list.

15.

From the Destination

Port

list, select the type of packet destination ports to which this rule applies.

107

Local Logging with the Network Firewall

• Select

Any

to have the rule apply to any port inside the firewall.

• Select

Specify

and click

Port

to specify one or more packet destination ports to which the rule applies. When selected, you can type single port numbers into the

Port

field, then click

Add

to add them to the port list.

• Select

Specify

and click

Port Range

to specify a list of contiguous packet destination port numbers to which the rule applies. When selected, you can type the start and end ports into the fields, then click

Add

to add the ports to the port list.

• Select

Specify

and click

Port List

to select a predefined list of packet destination ports to which the rule applies. To use a port list with this rule, select the port list and click the

Add

button. Similarly, to remove the list from this rule, select the list and click the

Delete

button.

16.

Optionally, from the

iRule

list, select an iRule to start if the rule matches traffic.

17.

When you select an iRule to start in a firewall rule, you can enable iRule sampling, and select how frequently the iRule is started, for sampling purposes. The value you configure is one out of n times the iRule is triggered. For example, to trigger the iRule one out of every five times the rule matches a flow, select

Enabled

, then set this field to

5

.

18.

From the

Action

list, select the firewall action for traffic originating from the specified source address on the specified protocol. Choose from one of the these actions:

Option Description

Accept

Drop

Reject

Accept

Decisively

Allows packets with the specified source, destination, and protocol to pass through the firewall. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

Drops packets with the specified source, destination, and protocol. Dropping a packet is a silent action with no notification to the source or destination systems.

Dropping the packet causes the connection to be retried until the retry threshold is reached.

Rejects packets with the specified source, destination, and protocol. When a packet is rejected the firewall sends a destination unreachable message to the sender.

Allows packets with the specified source, destination, and protocol to pass through the firewall, and does not require any further processing by any of the further firewalls. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

19.

From the

Logging

list, enable or disable logging for the firewall rule.

A logging profile must be enabled to capture logging info for the firewall rule.

20.

Click

Finished

.

The list screen and the new item are displayed.

The new firewall policy rule is created from the log entry.

Disabling logging

Disable Network Firewall, Protocol Security, or DoS Protection event logging when you no longer want the BIG-IP

® system to log specific events on the traffic handled by specific resources.

Note: You can disable and re-enable logging for a specific resource based on your network administration needs.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

108

BIG-IP

®

Network Firewall: Policies and Implementations

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Disabled

.

5.

Click

Update

to save the changes.

The BIG-IP system does not log the events specified in this profile for the resources to which this profile is assigned.

Implementation result

You now have an implementation in which the BIG-IP

® system logs specific Network Firewall events and stores the logs in a local database on the BIG-IP system.

109

Remote High-Speed Logging with the Network Firewall

Overview: Configuring remote high-speed Network Firewall event logging

You can configure the BIG-IP

® system to log information about the BIG-IP system Network Firewall events and send the log messages to remote high-speed log servers.

Important: The BIG-IP system Advanced Firewall Manager

(AFM

) must be licensed and provisioned before you can configure Network Firewall event logging.

This illustration shows the association of the configuration objects for remote high-speed logging.

Figure 6: Association of remote high-speed logging configuration objects

Task summary

Perform these tasks to configure remote high-speed network firewall logging on the BIG-IP

® system.

Note: Enabling remote high-speed logging impacts BIG-IP system performance.

Creating a pool of remote logging servers

Creating a remote high-speed log destination

Creating a formatted remote high-speed log destination

Creating a publisher

Creating a custom Network Firewall Logging profile

Configuring a virtual server for Network Firewall event logging

Disabling logging

Remote High-Speed Logging with the Network Firewall

About the configuration objects of remote high-speed Network Firewall event logging

When configuring remote high-speed logging of Network Firewall events, it is helpful to understand the objects you need to create and why, as described here:

Object

Pool of remote log servers

Destination (unformatted)

Destination (formatted)

Publisher

DNS Logging profile

LTM

® virtual server

Reason Applies to

Create a pool of remote log servers to which the BIG-IP

® system can send log messages.

Creating a pool of remote logging servers.

Create a log destination of Remote

High-Speed Log type that specifies a pool of remote log servers.

Creating a remote high-speed log destination.

If your remote log servers are the

ArcSight, Splunk, IPFIX, or

Remote Syslog type, create an additional log destination to format the logs in the required format and forward the logs to a remote high-speed log destination.

Creating a formatted remote high-speed log destination.

Create a log publisher to send logs to a set of specified log destinations.

Creating a publisher.

Create a custom DNS Logging profile to define the data you want the BIG-IP system to include in the DNS logs and associate a log publisher with the profile.

Creating a custom Network

Firewall Logging profile.

Associate a custom DNS profile with a virtual server to define how the BIG-IP system logs the DNS traffic that the virtual server processes.

Creating a virtual server for

Network Firewall evemt logging.

Creating a pool of remote logging servers

Before creating a pool of log servers, gather the IP addresses of the servers that you want to include in the pool. Ensure that the remote log servers are configured to listen to and receive log messages from the

BIG-IP

® system.

Create a pool of remote log servers to which the BIG-IP system can send log messages.

1.

On the Main tab, click the applicable path.

DNS

>

Delivery

>

Load Balancing

>

Pools

Local Traffic

>

Pools

The Pool List screen opens.

2.

Click

Create

.

The New Pool screen opens.

3.

In the

Name

field, type a unique name for the pool.

112

BIG-IP

®

Network Firewall: Policies and Implementations

4.

Using the

New Members

setting, add the IP address for each remote logging server that you want to include in the pool: a) Type an IP address in the

Address

field, or select a node address from the

Node List

.

b) Type a service number in the

Service Port

field, or select a service name from the list.

Note: Typical remote logging servers require port

514

.

c) Click

Add

.

5.

Click

Finished

.

Creating a remote high-speed log destination

Before creating a remote high-speed log destination, ensure that at least one pool of remote log servers exists on the BIG-IP

® system.

Create a log destination of the

Remote High-Speed Log

type to specify that log messages are sent to a pool of remote log servers.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Destinations

.

The Log Destinations screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this destination.

4.

From the

Type

list, select

Remote High-Speed Log

.

Important: If you use log servers such as Remote Syslog, Splunk, or ArcSight, which require data be sent to the servers in a specific format, you must create an additional log destination of the required type, and associate it with a log destination of the Remote High-Speed Log type. With this configuration, the BIG-IP system can send data to the servers in the required format.

The BIG-IP system is configured to send an unformatted string of text to the log servers.

5.

From the

Pool Name

list, select the pool of remote log servers to which you want the BIG-IP system to send log messages.

6.

From the

Protocol

list, select the protocol used by the high-speed logging pool members.

7.

Click

Finished

.

Creating a formatted remote high-speed log destination

Ensure that at least one remote high-speed log destination exists on the BIG-IP

® system.

Create a formatted logging destination to specify that log messages are sent to a pool of remote log servers, such as Remote Syslog, Splunk, or ArcSight servers.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Destinations

.

The Log Destinations screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this destination.

4.

From the

Type

list, select a formatted logging destination, such as

IPFIX

,

Remote Syslog

,

Splunk

, or

ArcSight

.

113

Remote High-Speed Logging with the Network Firewall

Important: ArcSight formatting is only available for logs coming from Advanced Firewall Manager

(AFM

), Application Security Manager

Policy Manager

®

(APM

®

(ASM

), and the Secure Web Gateway component of Access

). IPFIX is not available for Secure Web Gateway. Remote Syslog formatting is the only type supported for logs coming from APM. The Splunk format is a predefined format of key value pairs.

The BIG-IP system is configured to send a formatted string of text to the log servers.

5.

If you selected

Remote Syslog

, from the

Syslog Format

list, select a format for the logs, and then from the

High-Speed Log Destination

list, select the destination that points to a pool of remote Syslog servers to which you want the BIG-IP system to send log messages.

Important: For logs coming from Access Policy Manager

®

(APM

®

), only the BSD Syslog format is supported.

6.

If you selected

Splunk

or

IPFIX

, from the

Forward To

list, select the destination that points to a pool of high-speed log servers to which you want the BIG-IP system to send log messages.

7.

Click

Finished

.

Creating a publisher

Ensure that at least one destination associated with a pool of remote log servers exists on the BIG-IP

® system.

Create a publisher to specify where the BIG-IP system sends log messages for specific resources.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Publishers

.

The Log Publishers screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this publisher.

4.

For the

Destinations

setting, select a destination from the

Available

list, and click

<<

to move the destination to the

Selected

list.

Note: If you are using a formatted destination, select the destination that matches your log servers, such as Remote Syslog, Splunk, or ArcSight.

5.

Click

Finished

.

Creating a custom Network Firewall Logging profile

Create a custom Logging profile to log messages about BIG-IP

® system Network Firewall events.

1.

On the Main tab, click

Security

>

Event Logs

>

Logging Profiles

.

The Logging Profiles list screen opens.

2.

Click

Create

.

The New Logging Profile screen opens.

3.

In the

Name

field, type a unique name for the profile.

4.

Select the

Network Firewall

check box.

5.

In the Network Firewall area, from the

Publisher

list, select the publisher the BIG-IP system uses to log Network Firewall events.

114

BIG-IP

®

Network Firewall: Policies and Implementations

6.

Set an

Aggregate Rate Limit

to define a rate limit for all combined network firewall log messages per second. Beyond this rate limit, log messages are not logged.

7.

For the

Log Rule Matches

setting, select how the BIG-IP system logs packets that match ACL rules.

You can select any or all of the options. When an option is selected, you can configure a rate limit for log messages of that type.

Option Description

Option

Enables or disables logging of packets that match ACL rules configured with:

Accept

action=Accept

Drop

Reject

action=Drop action=Reject

8.

Select the

Log IP Errors

check box, to enable logging of IP error packets. When enabled, you can configure a rate limit for log messages of this type.

9.

Select the

Log TCP Errors

check box, to enable logging of TCP error packets. When enabled, you can configure a rate limit for log messages of this type.

10.

Select the

Log TCP Events

check box, to enable logging of open and close of TCP sessions. When enabled, you can configure a rate limit for log messages of this type.

11.

Enable the

Log Translation Fields

setting to log both the original IP address and the NAT-translated

IP address for Network Firewall log events.

12.

Enable the

Log Geolocation IP Address

setting to specify that when a geolocation event causes a network firewall action, the associated IP address is logged.

13.

From the

Storage Format

list, select how the BIG-IP system formats the log. Your choices are:

Option Description

None

Specifies the default format type in which the BIG-IP system logs messages to a remote Syslog server, for example:

"management_ip_address","bigip_hostname","context_type",

"context_name","src_ip","dest_ip","src_port",

"dest_port","vlan","protocol","route_domain",

"acl_rule_name","action","drop_reason

Field-List

This option allows you to:

• Select from a list, the fields to be included in the log.

• Specify the order the fields display in the log.

• Specify the delimiter that separates the content in the log. The default delimiter is the comma character.

User-Defined

This option allows you to:

• Select from a list, the fields to be included in the log.

• Cut and paste, in a string of text, the order the fields display in the log.

14.

In the IP Intelligence area, from the

Publisher

list, select the publisher that the BIG-IP system uses to log source IP addresses, which are identified and configured for logging by an IP Intelligence policy.

Note: The IP Address Intelligence feature must be enabled and licensed.

15.

Set an

Aggregate Rate Limit

to define a rate limit for all combined IP Intelligence log messages per second. Beyond this rate limit, log messages are not logged.

115

Remote High-Speed Logging with the Network Firewall

16.

Enable the

Log Translation Fields

setting to log both the original IP address and the NAT-translated

IP address for IP Intelligence log events.

17.

In the Traffic Statistics area, from the

Publisher

list, select the publisher that the BIG-IP system uses to log traffic statistics.

18.

Enable the

Active Flows

setting to log the number of active flows each second.

19.

Enable the

Reaped Flows

to log the number of reaped flows, or connections that are not established because of system resource usage levels.

20.

Enable the

Missed Flows

setting to log the number of packets that were dropped because of a flow table miss. A flow table miss occurs when a TCP non-SYN packet does not match an existing flow.

21.

Enable the

SYN Cookie (Per Session Challenge)

setting to log the number of SYN cookie challenges generated each second.

22.

Enable the

SYN Cookie (White-listed Clients)

setting to log the number of SYN cookie clients whitelisted each second.

23.

Click

Finished

.

Assign this custom network firewall Logging profile to a virtual server.

Configuring a virtual server for Network Firewall event logging

Ensure that at least one log publisher exists on the BIG-IP

® system.

Assign a custom Network Firewall Logging profile to a virtual server when you want the BIG-IP system to log Network Firewall events on the traffic that the virtual server processes.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Enabled

. Then, for the

Profile

setting, move the profiles that log specific events to specific locations from the

Available

list to the

Selected

list.

Note: If you do not have a custom profile configured, select the predefined logging profile global-network to log Advanced Firewall Manager

™ events. Note that to log global, self IP, and route domain contexts, you must enable a Publisher in the global-network profile.

5.

Click

Update

to save the changes.

Disabling logging

Disable Network Firewall, Protocol Security, or DoS Protection event logging when you no longer want the BIG-IP

® system to log specific events on the traffic handled by specific resources.

Note: You can disable and re-enable logging for a specific resource based on your network administration needs.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

116

BIG-IP

®

Network Firewall: Policies and Implementations

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Disabled

.

5.

Click

Update

to save the changes.

The BIG-IP system does not log the events specified in this profile for the resources to which this profile is assigned.

Implementation result

You now have an implementation in which the BIG-IP

® sends the logs to a remote log server.

system logs specific Network Firewall events and

117

SNMP Trap Configuration

Overview: BIG-IP SNMP agent configuration

You can use the industry-standard SNMP protocol to manage BIG-IP

® devices on a network. To do this, you must configure the SNMP agent on the BIG-IP system. The primary tasks in configuring the SNMP agent are configuring client access to the SNMP agent, and controlling access to SNMP data.

Task summary

Perform these tasks to configure SNMP on the BIG-IP system.

Specifying SNMP administrator contact information and system location information

Configuring SNMP manager access to the SNMP agent on the BIG-IP system

Granting community access to v1 or v2c SNMP data

Granting user access to v3 SNMP data

Specifying SNMP administrator contact information and system location information

Specify contact information for the SNMP administrator, as well as the physical location of the BIG-IP system running an SNMP agent.

1.

On the Main tab, click

System

>

SNMP

>

Agent

>

Configuration

.

2.

In the Global Setup area, in the

Contact Information

field, type contact information for the SNMP administrator for this BIG-IP system.

The contact information is a MIB-II simple string variable. The contact information usually includes both a user name and an email address.

3.

In the

Machine Location

field, type the location of the system, such as

Network Closet 1

.

The machine location is a MIB-II simple string variable.

4.

Click

Update

.

Configuring SNMP manager access to the SNMP agent on the BIG-IP system

Gather the IP addresses of the SNMP managers that you want to have access to the SNMP agent on this

BIG-IP

® system.

Configure the SNMP agent on the BIG-IP system to allow a client running the SNMP manager to access the SNMP agent for the purpose of remotely managing the BIG-IP system.

1.

On the Main tab, click

System

>

SNMP

>

Agent

>

Configuration

.

2.

In the

Client Allow List

area, for the

Type

setting, select either

Host

or

Network

, depending on whether the IP address you specify is a host system or a subnet.

Note: By default, SNMP is enabled only for the BIG-IP system loopback interface (127.0.0.1).

SNMP Trap Configuration

3.

In the

Address

field, type either an IP address or network address from which the SNMP agent can accept requests.

4.

If you selected

Network

in step 2, type the netmask in the

Mask

field.

5.

Click

Add

.

6.

Click

Update

.

The BIG-IP system now contains a list of IP addresses for SNMP managers from which SNMP requests are accepted.

Granting community access to v1 or v2c SNMP data

To better control access to SNMP data, you can assign an access level to an SNMP v1 or v2c community.

Note: SNMPv1 does not support Counter64 OIDs, which are used for accessing most statistics. Therefore, for SNMPv1 clients, an snmp walk command skips any OIDs of type Counter64. F5 Networks recommends that you use only clients that support SNMPv2 or higher.

1.

On the Main tab, click

System

>

SNMP

>

Agent

>

Access (v1, v2c)

.

2.

Click

Create

.

3.

From the

Type

list, select either

IPv4

or

IPv6

.

4.

In the

Community

field, type the name of the SNMP community for which you are assigning an access level.

5.

From the

Source

list, select

All

, or select

Select

and type the source IP address in the field that displays.

6.

In the

OID

field, type the OID for the top-most node of the SNMP tree to which the access applies.

7.

From the

Access

list, select an access level, either

Read Only

or

Read/Write

.

Note: When you set the access level of a community or user to read/write, and an individual data object has a read-only access type, access to the object remains read-only. In short, the access level or type that is the most secure takes precedence when there is a conflict.

8.

Click

Finished

.

The BIG-IP system updates the snmpd.conf

file, assigning only a single access setting to the community as shown in this sample snmpd.conf

file.

Example snmpd.conf file

In the following sample code from an snmpd.conf

file, string rocommunity public default identifies a community named public that has the default read-only access-level. This access-level prevents any allowed SNMP manager in community public from modifying a data object, even if the object has an access type of read/write. The string rwcommunity public1 identifies a community named public1 as having a read/write access-level. This access-level allows any allowed SNMP manager in community public1 to modify a data object under the tree node

.1.3.6.1.4.1.3375.2.2.10.1

(ltmVirtualServ) on the local host

127.0.0.1

, if that data object has an access type of read/write.

rocommunity public default rwcommunity public1 127.0.0.1

.1.3.6.1.4.1.3375.2.2.10.1

120

BIG-IP

®

Network Firewall: Policies and Implementations

Granting user access to v3 SNMP data

To better control access to SNMP data, you can assign an access level to an SNMP v3 user.

1.

On the Main tab, click

System

>

SNMP

>

Agent

>

Access (v3)

.

2.

Click

Create

.

3.

In the

User Name

field, type the name of the user for which you are assigning an access level.

4.

In the Authentication area, from the

Type

list, select a type of authentication to use, and then type and confirm the user’s password.

5.

In the Privacy area, from the

Protocol

list, select a privacy protocol, and either type and confirm the user’s password, or select the

Use Authentication Password

check box.

6.

In the

OID

field, type the OID for the top-most node of the SNMP tree to which the access applies.

7.

From the

Access

list, select an access level, either

Read Only

or

Read/Write

.

Note: When you set the access level of a community or user to read/write, and an individual data object has a read-only access type, access to the object remains read-only. In short, the access level or type that is the most secure takes precedence when there is a conflict.

8.

Click

Finished

.

The BIG-IP system updates the snmpd.conf

file, assigning only a single access setting to the user.

Overview: SNMP trap configuration

SNMP

traps

are definitions of unsolicited notification messages that the BIG-IP

® alert system and the SNMP agent send to the SNMP manager when certain events occur on the BIG-IP system. Configuring SNMP traps on a BIG-IP system means configuring how the BIG-IP system handles traps, as well as setting the destination to which the notifications are sent.

The BIG-IP system stores SNMP traps in two specific files:

/etc/alertd/alert.conf

Contains default SNMP traps.

Important: Do not add or remove traps from the

/etc/alertd/alert.conf

file.

/config/user_alert.conf

Contains user-defined SNMP traps.

Task summary

Perform these tasks to configure SNMP traps for certain events and set trap destinations.

Enabling traps for specific events

Setting v1 and v2c trap destinations

Setting v3 trap destinations

Viewing pre-configured SNMP traps

Creating custom SNMP traps

121

SNMP Trap Configuration

Enabling traps for specific events

You can configure the SNMP agent on the BIG-IP

® system to send, or refrain from sending, notifications to the traps destinations.

1.

On the Main tab, click

System

>

SNMP

>

Traps

>

Configuration

.

2.

To send traps when an administrator starts or stops the SNMP agent, verify that the

Enabled

check box for the

Agent Start/Stop

setting is selected.

3.

To send notifications when authentication warnings occur, select the

Enabled

check box for the

Agent

Authentication

setting.

4.

To send notifications when certain warnings occur, verify that the

Enabled

check box for the

Device

setting is selected.

5.

Click

Update

.

The BIG-IP system automatically updates the alert.conf

file.

Setting v1 and v2c trap destinations

Specify the IP address of the SNMP manager in order for the BIG-IP

® system to send notifications.

1.

On the Main tab, click

System

>

SNMP

>

Traps

>

Destination

.

2.

Click

Create

.

3.

For the

Version

setting, select either v1 or v2c

.

4.

In the

Community

field, type the community name for the SNMP agent running on the BIG-IP system.

5.

In the

Destination

field, type the IP address of the SNMP manager.

6.

In the

Port

field, type the port number on the SNMP manager that is assigned to receive the traps.

7.

Click

Finished

.

Setting v3 trap destinations

Specify the destination SNMP manager to which the BIG-IP

® system sends notifications.

1.

On the Main tab, click

System

>

SNMP

>

Traps

>

Destination

.

2.

Click

Create

.

3.

For the

Version

setting, select v3

.

4.

In the

Destination

field, type the IP address of the SNMP manager.

5.

In the

Port

field, type the port number on the SNMP manager that is assigned to receive the traps.

6.

From the

Security Level

list, select the level of security at which you want SNMP messages processed.

Option

Auth, No Privacy

Auth and Privacy

Description

Process SNMP messages using authentication but without encryption. When you use this value, you must also provide values for the

Security Name

,

Authentication Protocol

, and

Authentication Password

settings.

Process SNMP messages using authentication and encryption. When you use this value, you must also provide values for the

Security Name

,

Authentication Protocol

,

Authentication Password

,

Privacy Protocol

, and

Privacy Password

settings.

122

BIG-IP

®

Network Firewall: Policies and Implementations

7.

In the

Security Name

field, type the user name the system uses to handle SNMP v3 traps.

8.

In the

Engine ID

field, type an administratively unique identifier for an SNMP engine. (This setting is optional.) You can find the engine ID in the

/config/net-snmp/snmpd.conf

file on the BIG-IP system. Please note that this ID is identified in the file as the value of the oldEngineID token.

9.

From the

Authentication Protocol

list, select the algorithm the system uses to authenticate SNMP v3 traps.

When you set this value, you must also enter a value in the

Authentication Password

field.

10.

In the

Authentication Password

field, type the password the system uses to handle an SNMP v3 trap.

When you set this value, you must also select a value from the

Authentication Protocol

list.

Note: The authentication password must be at least 8 characters long.

11.

If you selected

Auth and Privacy

from the

Security Level

list, from the

Privacy Protocol

list, select the algorithm the system uses to encrypt SNMP v3 traps. When you set this value, you must also enter a value in the

Privacy Password

field.

12.

If you selected

Auth and Privacy

from the

Security Level

list, in the

Privacy Password

field, type the password the system uses to handle an encrypted SNMP v3 trap. When you set this value, you must also select a value from the

Privacy Protocol

list.

Note: The authentication password must be at least 8 characters long.

13.

Click

Finished

.

Viewing pre-configured SNMP traps

Verify that your user account grants you access to the advanced shell.

Pre-configured traps are stored in the

/etc/alertd/alert.conf

file. View these SNMP traps to understand the data that the SNMP manager can use.

Use this command to view the SNMP traps that are pre-configured on the BIG-IP

® system: cat

/etc/alertd/alert.conf

.

Creating custom SNMP traps

Verify that your user account grants you access to tmsh.

Create custom SNMP traps that alert the SNMP manager to specific SNMP events that occur on the network when the pre-configured traps do not meet all of your needs.

1.

Log in to the command line.

2.

Create a backup copy of the file

/config/user_alert.conf

, by typing this command: cp

/config/user_alert.conf

backup_file_name

For example, type: cp /config/user_alert.conf /config/user_alert.conf.backup

3.

With a text editor, open the file

/config/user_alert.conf

.

4.

Add a new SNMP trap.

123

SNMP Trap Configuration

The required format is: alert

alert_name

"

matched message

" {

} snmptrap OID=".1.3.6.1.4.1.3375.2.4.0.

XXX

"

alert_name

represents a descriptive name. The

alert_name

or

matched_message

value cannot match the corresponding value in any of the SNMP traps defined in the

/etc/alertd/alert.conf

or

/config/user_alert.conf

file.

matched_message

represents the text that matches the Syslog message that triggers the custom trap. You can specify either a portion of the Syslog message text or use a regular expression. Do not include the Syslog prefix information, such as the date stamp and process ID, in the match string.

• The

XXX

portion of the OID value represents a number that is unique to this OID. Specify any OID that meets all of these criteria:

• Is in standard OID format and within the range

.1.3.6.1.4.1.3375.2.4.0.300

through

.1.3.6.1.4.1.3375.2.4.0.999

.

• Is in a numeric range that can be processed by your trap receiving tool.

• Does not exist in the MIB file

/usr/share/snmp/mibs/F5-BIGIP-COMMON-MIB.txt

.

• Is not used in another custom trap.

As an example, to create a custom SNMP trap that is triggered whenever the system logs switchboard failsafe status changes, add the following trap definition to

/config/user_alert.conf

.

alert SWITCHBOARD_FAILSAFE_STATUS "Switchboard Failsafe (.*)" { snmptrap OID=".1.3.6.1.4.1.3375.2.4.0.500"

}

This trap definition causes the system to log the following message to the file

/var/log/ltm

, when switchboard failsafe is enabled:

Sep 23 11:51:40 bigip1.askf5.com lacpd[27753]:

01160016:6: Switchboard Failsafe enabled

.

5.

Save the file.

6.

Close the text editor.

7.

Restart the alertd daemon by typing this command: bigstart restart alertd

If the alertd daemon fails to start, examine the newly-added trap entry to ensure that the format is correct.

Overview: About troubleshooting SNMP traps

When the BIG-IP

® alert system and the SNMP agent send traps to the SNMP manager, you can respond to the alert using the recommended actions for each SNMP trap.

AFM-related traps and recommended actions

This table provides information about the AFM

-related notifications that an SNMP manager can receive.

124

BIG-IP

®

Network Firewall: Policies and Implementations

Trap name

BIGIP_TMM_TMMERR_DOS_ATTACK_START

(.1.3.6.1.4.1.3375.2.4.0.133)

BIGIP_TMM_TMMERR_DOS_ATTACK_STOP

(.1.3.6.1.4.1.3375.2.4.0.134)

Description

BIGIP_DOSPROTECT_DOSPROTECT_AGGRREAPEROID

(.1.3.6.1.4.1.3375.2.4.0.22)

The flow sweeper started or stopped.

Recommended action

The start of a possible DoS attack was registered.

Determine your response to this type of DoS attack, if required.

The end of a possible DoS attack was detected.

None, informational.

None, informational.

ASM-related traps and recommended actions

This table provides information about the ASM

-related notifications that an SNMP manager can receive.

Trap name

bigipAsmRequestBlocked

(.1.3.6.1.4.1.3375.2.4.0.38) bigipAsmRequestViolation

(.1.3.6.1.4.1.3375.2.4.0.39) bigipAsmFtpRequestBlocked

(.1.3.6.1.4.1.3375.2.4.0.79) bigipAsmFtpRequestViolation

(.1.3.6.1.4.1.3375.2.4.0.80) bigipAsmSmtpRequestBlocked

(.1.3.6.1.4.1.3375.2.4.0.85) bigipAsmSmtpRequestViolation

(.1.3.6.1.4.1.3375.2.4.0.86) bigipAsmDosAttackDetected

(.1.3.6.1.4.1.3375.2.4.0.91)

Description Recommended action

The BIG-IP

® system blocked an HTTP request because the request contained at least one violation to the active security policy.

Check the HTTP request to determine the cause of the violation.

The BIG-IP system issued an alert because an HTTP request violated the active security policy.

Check the HTTP request to determine the cause of the violation.

The BIG-IP system blocked an

FTP request because the request contained at least one violation to the active security policy.

Check the FTP request to determine the cause of the violation.

The BIG-IP system issued an alert because an FTP request violated the active security policy.

Check the FTP request to determine the cause of the violation.

The BIG-IP system blocked an

SMTP request because the request contained at least one violation to the active security policy.

Check the SMTP request to determine the cause of the violation.

The BIG-IP system issued an alert because an SMTP request violated the active security policy.

Check the SMTP request to determine the cause of the violation.

The BIG-IP system detected a denial-of-service (DoS) attack.

Determine the availability of the application by checking the response time of the site.

Check the BIG-IP ASM logs:

125

SNMP Trap Configuration

Trap name Description Recommended action

• Identify the source IP of the attack and observe other violations from the same source.

Determine if the source IP is attacking other resources.

Consider blocking the source IP in the ACL.

• Identify the URL that is under attack. Consider disabling the

URL, if the attack is not mitigated quickly.

bigipAsmBruteForceAttackDetected

(.1.3.6.1.4.1.3375.2.4.0.92)

The BIG-IP system detected a brute force attack.

Check the BIG-IP ASM logs:

• Identify the source IP of the attack and observe other violations from the same source.

Determine if the source IP is attacking other resources.

Consider blocking the source IP in the ACL.

• Identify the user name that is under attack. Consider contacting the user and locking their account.

Application Visibility and Reporting-related traps and recommended actions

This table provides information about the Application Visibility and Reporting (AVR) notifications that an

SNMP manager can receive.

Trap name

bigipAvrAlertsMetricSnmp

(.1.3.6.1.4.1.3375.2.4.0.105) bigipAvrAlertsMetricSmtp

(.1.3.6.1.4.1.3375.2.4.0.106)

Description

A BIG-IP system AVR SNMP metric changed.

A BIG-IP system AVR SMTP metric changed.

Recommended action

Information only, no action required.

Information only, no action required.

Authentication-related traps and recommended actions

This table provides information about the authentication-related notifications that an SNMP manager can receive.

Trap Name

bigipTamdAlert

(.1.3.6.1.4.1.3375.2.4.0.21) bigipAuthFailed

(.1.3.6.1.4.1.3375.2.4.0.27)

Description Recommended Action

More than 60 authentication attempts have failed within one second, for a given virtual server.

Investigate for a possible intruder.

A login attempt failed.

Check the user name and password.

126

BIG-IP

®

Network Firewall: Policies and Implementations

DoS-related traps and recommended actions

This table provides information about the denial-of-service (DoS)-related notifications that an SNMP manager can receive.

Trap name Description Recommended action

bigipAggrReaperStateChange

(.1.3.6.1.4.1.3375.2.4.0.22)

The state of the aggressive reaper has changed, indicating that the

BIG-IP

® system is moving to a distress mode.

bigipDosAttackStart

(.1.3.6.1.4.1.3375.2.4.0.133)

Use the default denial-of-service

(DoS) settings. You can also add rate filters to survive the attack.

The BIG-IP system detected a DoS attack start.

Check the attack name in the notification to determine the kind of attack that is detected.

bigipDosAttackStop

(.1.3.6.1.4.1.3375.2.4.0.134)

The BIG-IP system detected a DoS attack stop.

Information only, no action required.

General traps and recommended actions

This table provides information about the general notifications that an SNMP manager can receive.

Trap name

bigipDiskPartitionWarn

(.1.3.6.1.4.1.3375.2.4.0.25) bigipDiskPartitionGrowth

(.1.3.6.1.4.1.3375.2.4.0.26) bigipUpdatePriority

(.1.3.6.1.4.1.3375.2.4.0.153) bigipUpdateServer

(.1.3.6.1.4.1.3375.2.4.0.154) bigipUpdateError

(.1.3.6.1.4.1.3375.2.4.0.155) bigipAgentStart

(.1.3.6.1.4.1.3375.2.4.0.1) bigipAgentShutdown

(.1.3.6.1.4.1.3375.2.4.0.2) bigipAgentRestart

(.1.3.6.1.4.1.3375.2.4.0.3)

Description Recommended action

Free space on the disk partition is less than the specified limit. By default, the limit is 30% of total disk space.

Increase the available disk space.

The disk partition use exceeds the specified growth limit. By default, the limit is 5% of total disk space.

Increase the available disk space.

There is a high priority software update available.

Download and install the software update.

Unable to connect to the F5

® running update checks.

server Verify the server connection settings.

There was an error checking for updates.

Investigate the error.

The SNMP agent on the BIG-IP system has been started.

For your information only. No action required.

The SNMP agent on the BIG-IP system is in the process of being shut down.

For your information only. No action required.

The SNMP agent on the BIG-IP system has been restarted.

This trap is for future use only.

BIG-IP DNS-related traps and recommended actions

This table provides information about the DNS-related notifications that an SNMP manager can receive.

127

SNMP Trap Configuration

Trap name

bigipGtmBoxAvail

(.1.3.6.1.4.1.3375.2.4.0.77) bigipGtmBoxNotAvail

(.1.3.6.1.4.1.3375.2.4.0.78) bigipGtmBig3dSslCertExpired

(.1.3.6.1.4.1.3375.2.4.0.81) bigipGtmBig3dSslCertWillExpire

(.1.3.6.1.4.1.3375.2.4.0.82) bigipGtmSslCertExpired

(.1.3.6.1.4.1.3375.2.4.0.83) bigipGtmSslCertWillExpire

(.1.3.6.1.4.1.3375.2.4.0.84) bigipGtmPoolAvail

(.1.3.6.1.4.1.3375.2.4.0.40) bigipGtmPoolNotAvail

(.1.3.6.1.4.1.3375.2.4.0.41) bigipGtmPoolDisabled

(.1.3.6.1.4.1.3375.2.4.0.42) bigipGtmPoolEnabled

(.1.3.6.1.4.1.3375.2.4.0.43) bigipGtmLinkAvail

(.1.3.6.1.4.1.3375.2.4.0.44) bigipGtmLinkNotAvail

(.1.3.6.1.4.1.3375.2.4.0.45) bigipGtmLinkDisabled

(.1.3.6.1.4.1.3375.2.4.0.46) bigipGtmLinkEnabled

(.1.3.6.1.4.1.3375.2.4.0.47) bigipGtmWideIpAvail

(.1.3.6.1.4.1.3375.2.4.0.48) bigipGtmWideIpNotAvail

(.1.3.6.1.4.1.3375.2.4.0.49) bigipGtmWideIpDisabled

(.1.3.6.1.4.1.3375.2.4.0.50) bigipGtmWideIpEnabled

(.1.3.6.1.4.1.3375.2.4.0.51)

Description Recommended action

The BIG-IP

®

UP.

system has come Information only, no action required.

The BIG-IP system has gone

DOWN.

Information only, no action required.

The certificate

/config/big3d/client.crt

has expired.

Replace the certificate.

The certificate

/config/big3d/client.crt

will expire soon.

Replace the certificate.

The certificate

/config/gtm/server.crt

has expired.

Replace the certificate.

Replace the certificate.

The certificate

/config/gtm/server.crt

will expire soon.

A global traffic management pool is available.

A global traffic management pool is not available.

A global traffic management pool is disabled.

A global traffic management pool is enabled.

A global traffic management link is available.

A global traffic management link is not available.

A global traffic management link is disabled.

Information only, no action required.

Information only, no action required.

Check the status of the pool.

Information only, no action required.

Information only, no action required.

Check the status of the link, as well as the relevant detailed log message.

Check the status of the link.

A global traffic management link is enabled.

A global traffic management wide IP is available.

A global traffic management wide IP is unavailable.

A global traffic management wide IP is disabled.

A global traffic management wide IP is enabled.

Information only, no action required.

Information only, no action required.

Check the status of the wide IP, as well as the relevant detailed log message.

Check the status of the wide IP.

Information only, no action required.

128

BIG-IP

®

Network Firewall: Policies and Implementations

Trap name

bigipGtmPoolMbrAvail

(.1.3.6.1.4.1.3375.2.4.0.52) bigipGtmPoolMbrNotAvail

(.1.3.6.1.4.1.3375.2.4.0.53) bigipGtmPoolMbrDisabled

(.1.3.6.1.4.1.3375.2.4.0.54) bigipGtmPoolMbrEnabled

(.1.3.6.1.4.1.3375.2.4.0.55) bigipGtmServerAvail

(.1.3.6.1.4.1.3375.2.4.0.56) bigipGtmServerNotAvail

(.1.3.6.1.4.1.3375.2.4.0.57) bigipGtmServerDisabled

(.1.3.6.1.4.1.3375.2.4.0.58) bigipGtmServerEnabled

(.1.3.6.1.4.1.3375.2.4.0.59) bigipGtmVsAvail (.1.3.6.1.4.1.3375.2.4.0.60) bigipGtmVsNotAvail

(.1.3.6.1.4.1.3375.2.4.0.61)

Description

A global traffic management pool member is available.

A global traffic management pool member is not available.

A global traffic management pool member is disabled.

A global traffic management pool member is enabled.

A global traffic management server is available.

A global traffic management server is unavailable.

A global traffic management server is disabled.

A global traffic management server is enabled.

A global traffic management virtual server is available.

A global traffic management virtual server is unavailable.

Recommended action

Information only, no action required.

Check the status of the pool member, as well as the relevant detailed log message.

Check the status of the pool member.

Information only, no action required.

Information only, no action required.

Check the status of the server, as well as the relevant detailed log message.

Check the status of the server.

Information only, no action required.

Information only, no action required.

Check the status of the virtual server, as well as the relevant detailed log message.

bigipGtmVsDisabled

(.1.3.6.1.4.1.3375.2.4.0.62) bigipGtmVsEnabled

(.1.3.6.1.4.1.3375.2.4.0.63)

A global traffic management virtual server is disabled.

A global traffic management virtual server is enabled.

bigipGtmDcAvail (.1.3.6.1.4.1.3375.2.4.0.64) A global traffic management data center is available.

bigipGtmDcNotAvail

(.1.3.6.1.4.1.3375.2.4.0.65) bigipGtmDcDisabled

(.1.3.6.1.4.1.3375.2.4.0.66) bigipGtmDcEnabled

(.1.3.6.1.4.1.3375.2.4.0.67) bigipGtmAppObjAvail

(.1.3.6.1.4.1.3375.2.4.0.69) bigipGtmAppObjNotAvail

(.1.3.6.1.4.1.3375.2.4.0.70)

Check the status of the virtual server.

Information only, no action required.

Information only, no action required.

A global traffic management data center is unavailable.

A global traffic management data center is disabled.

A global traffic management data center is enabled.

Check the status of the data center, as well as the relevant detailed log message.

Check the status of the data center.

Information only, no action required.

A global traffic management application object is available.

Information only, no action required.

A global traffic management application object is unavailable.

Check the status of the application object, as well

129

SNMP Trap Configuration

Trap name

bigipGtmAppAvail

(.1.3.6.1.4.1.3375.2.4.0.71) bigipGtmAppNotAvail

(.1.3.6.1.4.1.3375.2.4.0.72) bigipGtmJoinedGroup

(.1.3.6.1.4.1.3375.2.4.0.73) bigipGtmLeftGroup

(.1.3.6.1.4.1.3375.2.4.0.74)

Description

A global traffic management application is available.

A global traffic management application is unavailable.

Recommended action

as the relevant detailed log message.

Information only, no action required.

Check the status of the application, as well as the relevant detailed log message.

Information only, no action required.

The BIG-IP system joined a global traffic management synchronization group.

The BIG-IP system left a global traffic management synchronization group.

Information only, no action required.

A generation of a DNSSEC key expired.

Information only, no action required.

bigipGtmKeyGenerationExpiration

(.1.3.6.1.4.1.3375.2.4.0.95) bigipGtmKeyGenerationRollover

(.1.3.6.1.4.1.3375.2.4.0.94) bigipGtmProberPoolDisabled

(.1.3.6.1.4.1.3375.2.4.0.99) bigipGtmProberPoolEnabled

(.1.3.6.1.4.1.3375.2.4.0.100)

A generation of a DNSSEC key rolled over.

Information only, no action required.

A global traffic management prober pool is disabled.

A global traffic management prober pool is enabled.

Check the status of the prober pool.

Information only, no action required.

bigipGtmProberPoolStatusChange

(.1.3.6.1.4.1.3375.2.4.0.97) bigipGtmProberPoolStatusChangeReason

(.1.3.6.1.4.1.3375.2.4.0.98)

The status of a global traffic management prober pool has changed.

Check the status of the prober pool.

The reason the status of a global traffic management prober pool has changed.

The action required is based on the reason given.

A global traffic management prober pool member is disabled.

Check the status of the prober pool member.

bigipGtmProberPoolMbrDisabled

(.1.3.6.1.4.1.3375.2.4.0.103) bigipGtmProberPoolMbrEnabled

(.1.3.6.1.4.1.3375.2.4.0.104) bigipGtmProberPoolMbrStatusChange

(.1.3.6.1.4.1.3375.2.4.0.101)

A global traffic management prober pool member is enabled.

Information only, no action required.

The status of a global traffic management prober pool member has changed.

Check the status of the prober pool member.

bigipGtmProberPoolMbrStatusChangeReason

(.1.3.6.1.4.1.3375.2.4.0.102)

The reason the status of a global traffic management prober pool member has changed.

The action required is based on the reason given.

Hardware-related traps and recommended actions

This table provides information about hardware-related notifications that an SNMP manager can receive.

If you receive any of these alerts, contact F5

®

Networks technical support.

130

BIG-IP

®

Network Firewall: Policies and Implementations

Trap name and Associated OID

bigipAomCpuTempTooHigh

(.1.3.6.1.4.1.3375.2.4.0.93)

Description Recommended action

The AOM is reporting that the air temperature near the

CPU is too high.

Check the input and output air temperatures. Run an iHealth

® report and troubleshoot based on the results.

If the condition persists, contact F5

Networks technical support.

A blade lost power.

Contact F5 Networks technical support.

bigipBladeNoPower

(.1.3.6.1.4.1.3375.2.4.0.88) bigipBladeTempHigh

(.1.3.6.1.4.1.3375.2.4.0.87) bigipBladeOffline

(.1.3.6.1.4.1.3375.2.4.0.90) bigipChmandAlertFanTrayBad

(.1.3.6.1.4.1.3375.2.4.0.121) bigipCpuTempHigh bigipCpuFanSpeedLow

(.1.3.6.1.4.1.3375.2.4.0.5) bigipCpuFanSpeedBad

(.1.3.6.1.4.1.3375.2.4.0.6) bigipSystemCheckAlertFanSpeedLow

(.1.3.6.1.4.1.3375.2.4.0.115) bigipSystemCheckAlertVoltageHigh

(.1.3.6.1.4.1.3375.2.4.0.114)

The temperature of a blade is too high.

A blade has failed.

This trap might be spurious. If the condition persists, contact F5 Networks technical support.

Remove the blade. Contact F5 Networks technical support.

A fan tray in a chassis is bad or was removed.

Replace the fan tray. If the condition persists, contact F5 Networks technical support.

The CPU temperature is too high.

Check the input and output air temperatures. Run an iHealth report and troubleshoot based on the results. If the condition persists, contact F5 Networks technical support.

The CPU fan speed is too low.

Check the CPU temperature. If the CPU temperature is normal, the condition is not critical. If the condition persists, contact F5 Networks technical support.

The CPU fan is not receiving a signal.

Check the CPU temperature. If the CPU temperature is normal, the condition is not critical. If the condition persists, contact F5 Networks technical support.

The system fan speed is too low.

This condition is critical. Replace the fan tray. These appliances do not have fan trays: 1600, 3600, 3900, EM4000,

2000, 4000. If the condition persists, contact F5 Networks technical support.

The system voltage is too high.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

bigipSystemCheckAlertVoltageLow

(.1.3.6.1.4.1.3375.2.4.0.123)

The system voltage is too low.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

131

SNMP Trap Configuration

Trap name and Associated OID Description

bigipSystemCheckAlertMilliVoltageHigh

(.1.3.6.1.4.1.3375.2.4.0.124)

The system milli-voltage is too high.

Recommended action

Review additional error messages in the log files. Unplug the system. Contact F5

Networks technical support.

Note: This alert does not happen for standby power.

bigipSystemCheckAlertMilliVoltageLow

(.1.3.6.1.4.1.3375.2.4.0.127)

The system milli-voltage is too low.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

bigipSystemCheckAlertTempHigh

(.1.3.6.1.4.1.3375.2.4.0.113) bigipSystemCheckAlertCurrentHigh

(.1.3.6.1.4.1.3375.2.4.0.125) bigipSystemCheckAlertCurrentLow

(.1.3.6.1.4.1.3375.2.4.0.128) bigipSystemCheckAlertPowerHigh

(.1.3.6.1.4.1.3375.2.4.0.126) bigipSystemCheckAlertPowerLow

(.1.3.6.1.4.1.3375.2.4.0.129) bigipChassisTempHigh

(.1.3.6.1.4.1.3375.2.4.0.7) bigipChassisFanBad

(.1.3.6.1.4.1.3375.2.4.0.8)

The system temperature is too high.

Check the system and air temperatures.

If the condition persists, contact F5

Networks technical support.

The system current is too high.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

The system current is too low.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

The system power is too high.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

The system power is too low.

Review additional error messages in the log files. Unplug the system. Contact

F5 Networks technical support.

Note: This alert does not happen for standby power.

The temperature of the chassis is too high.

Contact F5 Networks technical support.

The chassis fan is not operating properly.

Replace the fan tray. If the condition persists, contact F5 Networks technical support.

132

BIG-IP

®

Network Firewall: Policies and Implementations

Trap name and Associated OID

bigipChassisPowerSupplyBad

(.1.3.6.1.4.1.3375.2.4.0.9) bigipLibhalBladePoweredOff

(.1.3.6.1.4.1.3375.2.4.0.119) bigipLibhalSensorAlarmCritical

(.1.3.6.1.4.1.3375.2.4.0.120) bigipLibhalDiskBayRemoved

(.1.3.6.1.4.1.3375.2.4.0.118) bigipLibhalSsdLogicalDiskRemoved

(.1.3.6.1.4.1.3375.2.4.0.117) bigipLibhalSsdPhysicalDiskRemoved

(.1.3.6.1.4.1.3375.2.4.0.116) bigipRaidDiskFailure

(.1.3.6.1.4.1.3375.2.4.0.96) bigipSsdMwiNearThreshold

(.1.3.6.1.4.1.3375.2.4.0.111) bigipSsdMwiReachedThreshold

(.1.3.6.1.4.1.3375.2.4.0.112) bigipNetLinkDown

(.1.3.6.1.4.1.3375.2.4.0.24) bigipExternalLinkChange

(.1.3.6.1.4.1.3375.2.4.0.37) bigipPsPowerOn

(.1.3.6.1.4.1.3375.2.4.0.147)

Description

The chassis power supply is not functioning properly.

Recommended action

Verify that the power supply is plugged in. In the case of a dual-power-supply system, verify that both power supplies are plugged in. Contact F5 Networks technical support.

Contact F5 Networks technical support.

A blade is powered off.

The hardware sensor on a blade indicates a critical alarm.

Review any additional error messages that your receive, and troubleshoot accordingly. If the condition persists, contact F5 Networks technical support.

A disk sled was removed from a bay.

Information only, no action required.

An SSD logical disk was removed from the

BIG-IP

® system.

Information only, no action required.

An SSD physical disk was removed from the

BIG-IP system.

Information only, no action required.

An disk in a RAID disk array failed.

On www.askf5.com

, see

SOL10856:

Overview of hard drive mirroring

. If the problem persists, contact F5 Networks technical support.

Contact F5 Networks technical support.

An SSD disk is reaching a known wear threshold.

An SSD disk is worn out.

If this is the first alert, the disk might continue to operate for a short time.

Contact F5 Networks technical support.

An interface link is down.

This alert applies to L1 and L2, which are internal links within the device connecting the CPU and Switch subsystems. These links should never be down. If this occurs, the condition is serious. Contact F5 Networks technical support.

The status of an external interface link has changed to either

UP, DOWN, or

UNPOPULATED.

This occurs when network cables are added or removed, and the network is reconfigured. Determine whether the link should be down or up, and then take the appropriate action.

The power supply for the BIG-IP system was powered on.

Information only, no action required, unless this trap is unexpected. In that case, verify that the power supply is working and that system has not rebooted.

133

SNMP Trap Configuration

Trap name and Associated OID

bigipPsPowerOff

(.1.3.6.1.4.1.3375.2.4.0.148) bigipPsAbsent

(.1.3.6.1.4.1.3375.2.4.0.149) bigipSystemShutdown

(.1.3.6.1.4.1.3375.2.4.0.151) bigipFipsDeviceError

(.1.3.6.1.4.1.3375.2.4.0.152)

Description Recommended action

The power supply for the BIG-IP system was powered off.

Information only, no action required, unless power off was unexpected. In that case, verify that the power supply is working and that system has not rebooted.

The power supply for the BIG-IP system cannot be detected.

Information only, no action required when the BIG-IP device is operating with one power supply. For BIG-IP devices with two power supplies installed, verify that both power supplies are functioning correctly and evaluate symptoms.

The BIG-IP system has shut down.

Information only, no action required when the shut down was expected.

Otherwise, investigate the cause of the unexpected reboot.

Contact F5 Networks technical support.

The FIPS card in the

BIG-IP system has encountered a problem.

High-availability system-related traps and recommended actions

This table provides information about the high-availability system-related notifications that an SNMP manager can receive.

Trap name

bigipStandby

(.1.3.6.1.4.1.3375.2.4.0.14) bigipStandByFail

(.1.3.6.1.4.1.3375.2.4.0.75) bigipActive

(.1.3.6.1.4.1.3375.2.4.0.15) bigipActiveActive

(.1.3.6.1.4.1.3375.2.4.0.16) bigipFeatureFailed

(.1.3.6.1.4.1.3375.2.4.0.17) bigipFeatureOnline

(.1.3.6.1.4.1.3375.2.4.0.18) bigipTrafficGroupStandby

(.1.3.6.1.4.1.3375.2.4.0.141)

Description

The BIG-IP

® system has switched to standby mode.

Recommended action

Review the log files in the

/var/log directory and then search for core files in the

/var/core directory. If you find a core file, or find text similar to fault at location xxxx stack trace:

, contact F5

®

Networks technical support.

In failover condition, this standby system cannot become active.

The BIG-IP system has switched to active mode.

Investigate failover condition on the standby system.

Information only, no action required.

The BIG-IP system is in active-active mode.

A high-availability feature has failed.

Information only, no action required.

View high-availability processes and their current status.

A high-availability feature is responding.

View high-availability processes and their current status.

The status of a traffic group has changed to stand by.

Information only, no action required. To determine the reason for the failover, review the LTM

® log

/var/log/ltm and search

134

BIG-IP

®

Network Firewall: Policies and Implementations

Trap name

bigipTrafficGroupDeactivate

(.1.3.6.1.4.1.3375.2.4.0.145) bigipTrafficGroupActivate

(.1.3.6.1.4.1.3375.2.4.0.146)

Description

bigipTrafficGroupActive

(.1.3.6.1.4.1.3375.2.4.0.142) bigipTrafficGroupOffline

(.1.3.6.1.4.1.3375.2.4.0.143)

The status of a traffic group has changed to active.

Information only, no action required. To determine the reason for the failover, review the LTM log

/var/log/ltm and search for keywords active or standby. Additionally, you can run the tmsh command tmsh show sys ha-status to view the failover conditions.

The status of a traffic group has changed to offline.

Information only, no action required.

bigipTrafficGroupForcedOffline

(.1.3.6.1.4.1.3375.2.4.0.144)

The status of a traffic group has changed to forced offline.

Information only, no action required.

A traffic group was deactivated.

A traffic group was activated.

Recommended action

for keywords active or standby.

Additionally, you can run the tmsh command tmsh show sys ha-status to view the failover conditions.

Information only, no action required. To determine the reason for the deactivation, review the LTM log

/var/log/ltm and search for the keyword deactivate.

Information only, no action required. To determine the reason for the deactivation, review the LTM log

/var/log/ltm and search for the keyword activate.

License-related traps and recommended actions

This table provides information about the license-related notifications that an SNMP manager can receive.

Trap name

bigipLicenseFailed

(.1.3.6.1.4.1.3375.2.4.0.19) bigipLicenseExpired

(.1.3.6.1.4.1.3375.2.4.0.20)

Description Recommended action

Validation of a BIG-IP

® system license has failed, or the dossier has errors.

Occurs only when first licensing the system or adding a module key

(such as HTTP compression) to an existing system. If using automatic licensing, verify connectivity to the outside world, fix the dossier if needed, and try again.

The BIG-IP license has expired.

Call F5

® support.

Networks technical bigipDnsRequestRateLimiterEngaged

(.1.3.6.1.4.1.3375.2.4.0.139)

The BIG-IP DNS Services license is rate-limited and the system has reached the rate limit.

Call F5 Networks technical support to upgrade your license.

bigipGtmRequestRateLimiterEngaged

(.1.3.6.1.4.1.3375.2.4.0.140)

The BIG-IP DNS license is rate-limited and the system has reached the rate limit.

Call F5 Networks technical support to upgrade your license.

bigipCompLimitExceeded

(.1.3.6.1.4.1.3375.2.4.0.35)

The compression license limit is exceeded.

Purchase additional compression licensing from F5 Networks.

135

SNMP Trap Configuration

Trap name

bigipSslLimitExceeded

(.1.3.6.1.4.1.3375.2.4.0.36)

Description

The SSL license limit is exceeded, either for transactions per second (TPS) or for megabits per second

(MPS).

Recommended action

Purchase additional SSL licensing from F5 Networks.

LTM-related traps and recommended actions

This table provides information about the LTM

®

-related notifications that an SNMP manager can receive.

Trap name Description Recommended action

bigipUnsolicitedRepliesExceededThreshold

(.1.3.6.1.4.1.3375.2.4.0.122)

The BIG-IP

® system DNS cache received unsolicited query replies exceeding the configured threshold.

Check the BIG-IP system logs to determine if the system is experiencing a distributed denial-of-service

(DDoS) attack.

bigipNodeRate (.1.3.6.1.4.1.3375.2.4.0.130) A local traffic management node has received connections exceeding the configured rate-limit.

Consider provisioning more resources on the BIG-IP system for this virtual server.

bigipNodeDown (.1.3.6.1.4.1.3375.2.4.0.12) A BIG-IP system health monitor has marked a node as down.

Check the node and the cable connection.

bigipNodeUp (.1.3.6.1.4.1.3375.2.4.0.13) bigipMemberRate

(.1.3.6.1.4.1.3375.2.4.0.131) bigipVirtualRate

(.1.3.6.1.4.1.3375.2.4.0.132) bigipLtmVsAvail

(.1.3.6.1.4.1.3375.2.4.0.135) bigipLtmVsUnavail

(.1.3.6.1.4.1.3375.2.4.0.136) bigipLtmVsEnabled

(.1.3.6.1.4.1.3375.2.4.0.137) bigipLtmVsDisabled

(.1.3.6.1.4.1.3375.2.4.0.138) bigipServiceDown

(.1.3.6.1.4.1.3375.2.4.0.10)

A BIG-IP system health monitor has marked a node as up.

Information, no action required.

A local traffic management pool member has received connections exceeding the configured rate-limit.

Consider provisioning more resources on the BIG-IP system for this virtual server.

A local traffic management virtual server has received connections exceeding the configured rate-limit.

Consider provisioning more resources on the BIG-IP system for this virtual server.

A local traffic management virtual server is available to receive connections.

Information only, no action required.

A local traffic management virtual server is not available to receive connections.

Check the virtual server.

A local traffic management virtual server is enabled.

Information only, no action required.

A local traffic management virtual server is disabled.

Information only, no action required.

A BIG-IP system health monitor has detected a service on a node to be stopped and thus marked the node as down.

Restart the service on the node.

136

BIG-IP

®

Network Firewall: Policies and Implementations

Trap name Description Recommended action

bigipServiceUp (.1.3.6.1.4.1.3375.2.4.0.11) A BIG-IP system health monitor has detected a service on a node to be running and has therefore marked the node as up.

Information only, no action required.

bigipPacketRejected

(.1.3.6.1.4.1.3375.2.4.0.34)

The BIG-IP system has rejected some packets.

Check the detailed message within this trap and act accordingly.

bigipInetPortExhaustion

(.1.3.6.1.4.1.3375.2.4.0.76)

The TMM has run out of source ports and cannot open new communications channels with other machines.

Either increase the number of addresses available for

SNAT automapping or

SNAT pools, or lower the idle timeout value if the value is excessively high.

Logging-related traps and recommended actions

This table provides information about the logging-related notifications that an SNMP manager can receive.

Trap name Description Recommended action

bigipLogEmerg

(.1.3.6.1.4.1.3375.2.4.0.29)

The BIG-IP

® system is unusable. This notification occurs when the system logs a message with the log level

LOG_EMERG.

Check the detailed message within this trap and within the

/var/log files to determine which process has the emergency. Then act accordingly.

bigipLogAlert

(.1.3.6.1.4.1.3375.2.4.0.30)

The BIG-IP system requires immediate action to function properly.

This notification occurs when the system logs a message with the log level LOG_ALERT.

Check the detailed message within this trap and within the

/var/log files to determine which process has the alert situation. Then act accordingly.

bigipLogCrit

(.1.3.6.1.4.1.3375.2.4.0.31)

The BIG-IP system is in critical condition. This notification occurs when the system logs a message with the log level LOG_CRIT.

Check the detailed message within this trap and within the

/var/log files to determine which process has the critical situation. Then act accordingly.

bigipLogErr

(.1.3.6.1.4.1.3375.2.4.0.32)

The BIG-IP system has some error conditions. This notification occurs when the system logs a message with the log level LOG_ERR.

Check the detailed message within this trap and within the

/var/log files to determine which processes have the error conditions. Then act accordingly.

bigipLogWarning

(.1.3.6.1.4.1.3375.2.4.0.33)

The BIG-IP system is experiencing some warning conditions. This notification occurs when the system logs a message with the log level

LOG_WARNING.

Check the detailed message within this trap and within the

/var/log files to determine which processes have the warning conditions. Then act accordingly.

Network-related traps and recommended actions

This table provides information about the network-related notifications that an SNMP manager can receive.

137

SNMP Trap Configuration

Trap name Description

bigipARPConflict

(.1.3.6.1.4.1.3375.2.4.0.23)

The BIG-IP

® system has detected an ARP advertisement for any of its own ARP-enabled addresses. This can occur for a virtual server address or a self IP address.

Recommended action

Check IP addresses and routes.

vCMP-related traps and recommended actions

This table provides information about the virtual clustered multiprocessing (vCMP

®

)-related notifications that an SNMP manager can receive.

Trap name

bigipVcmpAlertsVcmpPowerOn

(.1.3.6.1.4.1.3375.2.4.0.107) bigipVcmpAlertsVcmpPowerOff

(.1.3.6.1.4.1.3375.2.4.0.108) bigipVcmpAlertsVcmpHBLost

(.1.3.6.1.4.1.3375.2.4.0.109)

Description

The BIG-IP

® system powered on a vCMP guest from a suspended or powered-off state.

The BIG-IP system powered off a vCMP guest.

The BIG-IP system cannot detect a heartbeat from a vCMP guest.

bigipVcmpAlertsVcmpHBDetected

(.1.3.6.1.4.1.3375.2.4.0.110)

The BIG-IP system detected a heartbeat from a new or returning vCMP guest.

Recommended action

Information only, no action required.

Information only, no action required.

Check the guest and restart, if necessary.

Information only, no action required.

VIPRION-related traps and recommended actions

This table provides information about the VIPRION

®

-related notifications that an SNMP manager can receive.

Trap name

bigipClusterdNoResponse

(.1.3.6.1.4.1.3375.2.4.0.89) bigipClusterPrimaryChanged

(.1.3.6.1.4.1.3375.2.4.0.150)

Description

The cluster daemon failed to respond for 10 seconds or more.

The primary cluster has changed.

Recommended action

Start the cluster daemon.

Information only, no action required.

About enterprise MIB files

The enterprise MIB files contain F5

®

Networks specific information. All OIDS for the BIG-IP

® system data are contained in the F5 enterprise MIB files, including all interface statistics (

1.3.6.1.4.1.3375.2.1.2.4

(

sysNetwork.sysInterfaces

)). These enterprise MIB files reside on the BIG-IP system:

F5-BIGIP-COMMON-MIB.txt

Contains information that the SNMP manager can use to help manage F5-specific notifications (SNMP traps) that all other BIG-IP MIB files reference.

138

BIG-IP

®

Network Firewall: Policies and Implementations

F5-BIGIP-SYSTEM-MIB.txt

Contains information that the SNMP manager can use to help manage BIG-IP system objects, such as global statistic data, network information, and platform information.

F5-BIGIP-LOCAL-MIB.txt

Contains information that the SNMP manager can use to help manage BIG-IP local traffic objects, such as virtual servers, pools, nodes, profiles, health monitors, iRules

®

, and SNATs. Also contains information on AFM

™ objects, such as firewall rules and DoS vectors.

F5-BIGIP-GLOBAL-MIB.txt

Contains information that the SNMP manager can use to help manage global traffic objects, such as wide IPs, virtual servers, pools, links, servers, and data centers.

F5-BIGIP-APM-MIB.txt

Contains information that the SNMP manager can use to help manage access policy objects, such as profiles, statistics, lease pools, and ACLs.

F5-BIGIP-WAM-MIB.txt

Contains information that the SNMP manager can use to help manage traffic acceleration objects, such as applications, profiles, and statistics.

Task summary

Perform these tasks when working with MIB files.

Downloading enterprise and NET-SNMP MIBs to the SNMP manager

Viewing objects in enterprise MIB files

Viewing SNMP traps in F5-BIGIP-LOCAL-MIB.txt

Collecting network firewall data using SNMP

Collecting DoS attack data using SNMP

Downloading enterprise and NET-SNMP MIBs to the SNMP manager

Viewing objects in enterprise MIB files

Viewing SNMP traps in F5-BIGIP-COMMON-MIB.txt

Viewing dynamic routing SNMP traps and associated OIDs

Monitoring BIG-IP system processes using SNMP

Collecting BIG-IP system memory usage data using SNMP

Collecting BIG-IP system data on HTTP requests using SNMP

Collecting BIG-IP system data on throughput rates using SNMP

Collecting BIG-IP system data on RAM cache using SNMP

Collecting BIG-IP system data on SSL transactions using SNMP

Collecting BIG-IP system data on CPU usage based on a predefined polling interval

Collecting BIG-IP system data on CPU usage based on a custom polling interval

Collecting BIG-IP system performance data on new connections using SNMP

Collecting BIG-IP system performance data on active connections using SNMP

Downloading enterprise and NET-SNMP MIBs to the SNMP manager

View the set of standard SNMP MIB files that you can download to the SNMP manager, by listing the contents of the BIG-IP

® system directory

/usr/share/snmp/mibs

.

Download compressed files that contain the enterprise and NET-SNMP MIBs.

1.

Click the

About

tab.

2.

Click

Downloads

.

139

SNMP Trap Configuration

3.

Click

Download F5 MIBs (mibs_f5.tar.gz)

or

Download NET-SNMP MIBs (mibs_netsnmp.tar.gz)

.

4.

Follow the instructions on the screen to complete the download.

Viewing objects in enterprise MIB files

You must have the

Administrator user role assigned to your user account.

View information about a BIG-IP system object by listing the contents of an enterprise MIB file.

1.

Access a console window on the BIG-IP system.

2.

At the command prompt, list the contents of the directory

/usr/share/snmp/mibs

.

3.

View available objects in the relevant MIB file.

Viewing SNMP traps in F5-BIGIP-LOCAL-MIB.txt

Verify that you have the

Administrator user role assigned to your user account.

When an F5-specific trap sends a notification to the SNMP manager, the SNMP manager receives a text message describing the event or problem that has occurred. You can identify the traps specified in the

F5-BIGIP-LOCAL-MIB.txt file by viewing the file.

1.

Access a console window on the BIG-IP system.

2.

At the command prompt, list the contents of the directory

/usr/share/snmp/mibs

.

3.

View the F5-BIGIP-LOCAL-MIB.txt file.

Look for objects with the prefix

ltmFw

for firewall rules, and

ltmDos

for DoS attacks.

Collecting network firewall data using SNMP

You can use SNMP commands to collect firewall rule data.

Write an SNMP command to gather data on firewall rules, contexts, and rule hits.

For example, this SNMP command collects data on firewall rules memory usage, where public is the community name and you are logged in to the BIG-IP system: snmpwalk -c public localhost ltmFwRuleStat

The SNMP manager now queries the system about firewall rules.

Collecting DoS attack data using SNMP

You can use SNMP commands to gather DoS attack data.

Write an SNMP command to gather DoS attack data from the BIG-IP system.

For example, this SNMP command collects DoS attack data, where public is the community name and you are logged in locally to the BIG-IP

® system: snmpwalk -c public localhost ltmDosAttackDataStat

140

BIG-IP

®

Network Firewall: Policies and Implementations

The SNMP manager displays a list of all the DoS attack types and hits on those attack types.

About enterprise MIB files

The enterprise MIB files contain F5

®

Networks specific information. All OIDS for the BIG-IP

® system data are contained in the F5 enterprise MIB files, including all interface statistics (

1.3.6.1.4.1.3375.2.1.2.4

(

sysNetwork.sysInterfaces

)). These enterprise MIB files reside on the BIG-IP system:

F5-BIGIP-COMMON-MIB.txt

Contains information that the SNMP manager can use to help manage F5-specific notifications (SNMP traps) that all other BIG-IP MIB files reference.

F5-BIGIP-SYSTEM-MIB.txt

Contains information that the SNMP manager can use to help manage BIG-IP system objects, such as global statistic data, network information, and platform information.

F5-BIGIP-LOCAL-MIB.txt

Contains information that the SNMP manager can use to help manage BIG-IP local traffic objects, such as virtual servers, pools, nodes, profiles, health monitors, iRules

®

, and SNATs. Also contains information on AFM

™ objects, such as firewall rules and DoS vectors.

F5-BIGIP-GLOBAL-MIB.txt

Contains information that the SNMP manager can use to help manage global traffic objects, such as wide IPs, virtual servers, pools, links, servers, and data centers.

F5-BIGIP-APM-MIB.txt

Contains information that the SNMP manager can use to help manage access policy objects, such as profiles, statistics, lease pools, and ACLs.

F5-BIGIP-WAM-MIB.txt

Contains information that the SNMP manager can use to help manage traffic acceleration objects, such as applications, profiles, and statistics.

Task summary

Perform these tasks when working with MIB files.

Downloading enterprise and NET-SNMP MIBs to the SNMP manager

Viewing objects in enterprise MIB files

Viewing SNMP traps in F5-BIGIP-LOCAL-MIB.txt

Collecting network firewall data using SNMP

Collecting DoS attack data using SNMP

Downloading enterprise and NET-SNMP MIBs to the SNMP manager

Viewing objects in enterprise MIB files

Viewing SNMP traps in F5-BIGIP-COMMON-MIB.txt

Viewing dynamic routing SNMP traps and associated OIDs

Monitoring BIG-IP system processes using SNMP

Collecting BIG-IP system memory usage data using SNMP

Collecting BIG-IP system data on HTTP requests using SNMP

Collecting BIG-IP system data on throughput rates using SNMP

Collecting BIG-IP system data on RAM cache using SNMP

Collecting BIG-IP system data on SSL transactions using SNMP

Collecting BIG-IP system data on CPU usage based on a predefined polling interval

141

SNMP Trap Configuration

Collecting BIG-IP system data on CPU usage based on a custom polling interval

Collecting BIG-IP system performance data on new connections using SNMP

Collecting BIG-IP system performance data on active connections using SNMP

Downloading enterprise and NET-SNMP MIBs to the SNMP manager

View the set of standard SNMP MIB files that you can download to the SNMP manager, by listing the contents of the BIG-IP

® system directory

/usr/share/snmp/mibs

.

Download compressed files that contain the enterprise and NET-SNMP MIBs.

1.

Click the

About

tab.

2.

Click

Downloads

.

3.

Click

Download F5 MIBs (mibs_f5.tar.gz)

or

Download NET-SNMP MIBs (mibs_netsnmp.tar.gz)

.

4.

Follow the instructions on the screen to complete the download.

Viewing objects in enterprise MIB files

You must have the

Administrator user role assigned to your user account.

View information about a BIG-IP system object by listing the contents of an enterprise MIB file.

1.

Access a console window on the BIG-IP system.

2.

At the command prompt, list the contents of the directory

/usr/share/snmp/mibs

.

3.

View available objects in the relevant MIB file.

Viewing SNMP traps in F5-BIGIP-COMMON-MIB.txt

Verify that you have the

Administrator user role assigned to your user account.

When an F5-specific trap sends a notification to the SNMP manager, the SNMP manager receives a text message describing the event or problem that has occurred. You can identify the traps specified in the

F5-BIGIP-COMMON-MIB.txt file by viewing the file.

1.

Access a console window on the BIG-IP system.

2.

At the command prompt, list the contents of the directory

/usr/share/snmp/mibs

.

3.

View the F5-BIGIP-COMMON-MIB.txt file. Look for object names with the designation

NOTIFICATION-TYPE.

Viewing dynamic routing SNMP traps and associated OIDs

Verify that you have the

Administrator user role assigned to your user account.

When you want to set up your network management systems to watch for problems with dynamic routing, you can view SNMP MIB files to discover the SNMP traps that the dynamic routing protocols send, and to find the OIDs that are associated with those traps.

1.

Access a console window on the BIG-IP system.

142

BIG-IP

®

Network Firewall: Policies and Implementations

2.

At the command prompt, list the contents of the directory

/usr/share/snmp/mibs

.

3.

View the following dynamic routing MIB files:

• BGP4-MIB.txt

• ISIS-MIB.txt

• OSPF6-MIB.txt

• OSPF-MIB.txt

• OSPF-TRAP-MIB.txt

• RIPv2-MIB.txt

Monitoring BIG-IP system processes using SNMP

Ensure that your SNMP manager is running either SNMP v2c or SNMP v3, because all BIG-IP

® system statistics are defined by 64-bit counters, and only SNMP v2c and SNMP v3 support 64-bit counters. Ensure that you have downloaded the F-5 Networks enterprise and NET-SNMP MIBs to the SNMP manager.

You can monitor a specific process on the BIG-IP system using SNMP. To do this you can use the

HOST-RESOURCES

MIB and write a script to monitor the process.

Write a script to monitor a BIG-IP system process using the

HOST-RESOURCES

MIB.

For example, this command determines the number of TMM processes currently running on the system: snmpwalk -v2c -c public localhost hrSWRunName | egrep

"\"tmm(.[0-9]+)?\""

| wc -l

The script can now query the BIG-IP system about the status of processes.

Collecting BIG-IP system memory usage data using SNMP

You can use an SNMP command with OIDs to gather data on the number of bytes of memory currently being used on the BIG-IP

® system.

Note: To interpret data on memory use, you do not need to perform a calculation on the collected data.

Write an SNMP command to gather data on the number of bytes of memory currently being used on the BIG-IP system.

For example, this SNMP command collects data on current memory usage, where public is the community name and bigip is the host name of the BIG-IP system: snmpget -c public bigip sysGlobalStat.sysStatMemoryUsed.0

The SNMP manager can now query the BIG-IP system about CPU and memory usage.

Collecting BIG-IP system data on HTTP requests using SNMP

You can use SNMP commands with an OID to gather and interpret data on the number of current HTTP requests on the BIG-IP

® system. The following table shows the required OIDs for polling data on HTTP requests.

143

SNMP Trap Configuration

Performance

Graph

Graph Metrics Required SNMP OIDs

HTTP

Requests

HTTP Requests sysStatHttpRequests (.1.3.6.1.4.1.3375.2.1.1.2.1.56)

The following table shows the required calculations for interpreting metrics on HTTP requests.

Required calculations for HTTP requests Performance

Graph

Graph Metric

HTTP

Requests

HTTP Requests <DeltaStatHttpRequests> / <interval>

1.

For each OID, perform two separate polls, at an interval of your choice. For example, poll OID sysStatHttpRequests (.1.3.6.1.4.1.3375.2.1.1.2.1.56) twice, at a 10-second interval.

This results in two values,

<sysStatHttpRequests1> and

<sysStatHttpRequests2>

.

2.

Calculate the delta of the two poll values. For example:

<DeltaStatHttpRequests> = <sysStatHttpRequests2> - <sysStatHttpRequests1>

3.

Perform the calculation on the OID deltas. The value for

interval

is 10. For example, to calculate the value of the HTTP Requests graph metric:

(<DeltaStatHttpRequests>) / <interval>

Collecting BIG-IP system data on throughput rates using SNMP

You can use SNMP commands with various OIDs to gather and interpret data on the throughput rate on the

BIG-IP

® system. The following table shows the individual OIDs that you must poll, retrieving two separate poll values for each OID.

Performance

Graph

Graph Metrics Required SNMP OIDs

Throughput

(summary graph)

Client-side

Throughput

(detailed graph)

Client Bits

Client Bits

Server Bits

Server Bits

Client Bits In

Client Bits Out sysStatClientBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.3) sysStatClientBytesOut (.1.3.6.1.4.1.3375.2.1.1.2.1.5) sysStatServerBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.10) sysStatServerBytesOut (.1.3.6.1.4.1.3375.2.1.1.2.1.12) sysStatClientBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.3) sysStatClientBytesOut (.1.3.6.1.4.1.3375.2.1.1.2.1.5)

Server-side

Throughput

(detailed graph)

Server Bits In

Server Bits Out sysStatServerBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.10) sysStatServerBytesOut (.1.3.6.1.4.1.3375.2.1.1.2.1.12)

HTTP

Compression

Rate

Compression sysHttpCompressionStatPrecompressBytes (.1.3.6.1.4.1.3375.2.1.1.2.22.2)

144

BIG-IP

®

Network Firewall: Policies and Implementations

Performance

Graph

Graph Metrics

(detailed graph)

Required SNMP OIDs

The following table shows the required calculations for interpreting metrics on throughput rates.

Performance

Graph

Graph Metrics Required calculations for throughput rates

Throughput

(summary graph)

Client Bits

Server Bits

Compression

( (<DeltaStatClientBytesIn> + <DeltasysStatClientBytesOut> )*8 / <interval>

( (<DeltaStatServerBytesIn> + <DeltaServersslStatServerBytesOut> )*8 / <interval>

( <DeltaHttpStatPrecompressBytes>)*8 / <interval>

Throughput

(detailed graph)

Client Bits In

Client Bits Out

Server Bits In

Server Bits Out

Compression

( <DeltaStatClientBytesIn>)*8 / <interval>

( <DeltaStatClientBytesOut>*8) / <interval>

( <DeltaStatServerBytesIn >*8) / <interval>

( <DeltaStatServerBytesOut>*8) / <interval>

( <DeltaHttpStatPrecompressBytes>*8) / <interval>

1.

For each OID, perform two separate polls, at an interval of your choice. For example, poll OID sysStatServerBytesIn (.1.3.6.1.4.1.3375.2.1.1.2.1.10) twice, at a 10-second interval.

This results in two values,

<sysStatServerBytesIn1> and

<sysStatServerBytesIn2>

.

2.

Calculate the delta of the two poll values. For example, for the Server Bits In graphic metric, perform this calculation:

<DeltaStatServerBytesIn> = <sysStatServerBytesIn2> - <sysStatServerBytesIn1>

3.

Perform the calculation on the OID deltas. For this calculation, it is the average per second in the last

<interval>

. The value for

interval

is 10. For example, to calculate the value of the Server Bits In graph metric:

(<DeltaStatServerBytesIn>) / <interval>

Collecting BIG-IP system data on RAM cache using SNMP

You can use an SNMP command with various OIDs to gather and interpret data on RAM cache use. The following table shows the required OIDs for polling for data on RAM Cache use.

Performance

Graph

Graph Metric

RAM Cache

Utilization

Hit Rate

CPU Cache

Utilization

Byte Rate

RAM Cache

Utilization

Eviction Rate

Required SNMP OIDs

sysWebAccelerationStatCacheHits (.1.3.6.1.4.1.3375.2.1.1.2.23.2) sysWebAccelerationStatCacheMisses (.1.3.6.1.4.1.3375.2.1.1.2.23.3) sysWebAccelerationStatCacheHitBytes (.1.3.6.1.4.1.3375.2.1.1.2.23.5) sysWebAccelerationStatCacheMissBytes (.1.3.6.1.4.1.3375.2.1.1.2.23.6) sysWebAccelerationStatCacheEvictions (.1.3.6.1.4.1.3375.2.1.1.2.23.10), sysWebAccelerationStatCacheHits (.1.3.6.1.4.1.3375.2.1.1.2.23.2) sysWebAccelerationStatCacheMisses (.1.3.6.1.4.1.3375.2.1.1.2.23.3)

The following table shows the required calculations for interpreting metrics on RAM Cache use.

145

SNMP Trap Configuration

Performance

Graph

Graph Metric

Hit Rate RAM cache

Utilization

RAM cache

Utilization

RAM cache

Utilization

Byte Rate

Eviction Rate

Required SNMP OIDs

<sysWebAccelerationStatCacheHits1>) / (<sysWebAccelerationStatCacheHits1> +

<sysWebAccelerationStatCacheMisses1>) / *100

<sysWebAccelerationStatCacheHitBytes1) /

(<sysWebAccelerationStatCacheHitBytes1> +

<sysWebAccelerationStatCacheMissBytes1>) / *100

<sysWebAccelerationStatCacheEvictions1>) / (<sysWebAccelerationStatCacheHits1> +

<sysWebAccelerationStatCacheMisses1>) / *100

1.

For each OID, poll for data. For example, poll OID sysWebAccelerationStatCacheHits(.1.3.6.1.4.1.3375.2.1.1.2.23.2)

. This results in a value

<sysWebAccelerationStatCacheHits>

.

2.

Poll OID sysWebAccelerationStatCacheHits(.1.3.6.1.4.1.3375.2.1.1.2.23.2)

. This results in a value

<sysWebAccelerationStatCacheMisses>

.

3.

Perform the calculation using the OID data. For example, to calculate the value of the Hit Rate graphic metric:

<sysWebAccelerationStatCacheHits> / <sysWebAccelerationStatCacheHits1> + <>)

*100).

Collecting BIG-IP system data on SSL transactions using SNMP

You can use SNMP commands with an OID to gather and interpret data on SSL performance. The following table shows the individual OIDS that you must use to poll for SSL transactions using SNMP.

Performance

Graph

Graph Metrics Required SNMP OIDs

SSL TPS

SSL TPS

SSL TPS

SSL TPS sysClientsslStatToNativeConns (.1.3.6.1.4.1.3375.2.1.1.2.9.6) sysClientsslStatTotCompatConns (.1.3.6.1.4.1.3375.2.1.1.2.9.9)

SSL TPS

SSL TPS

SSL TPS

SSL TPS sysServersslStatTotNativeConns (.1.3.6.1.4.1.3375.2.1.1.2.10.6) sysServersslStatTotCompatConns (.1.3.6.1.4.1.3375.2.1.1.2.10.9)

The following table shows the required calculations for interpreting metrics on SSL transactions using

SNMP.

Required calculations for SSL TPS Performance

Graph

Graph Metric

SSL TPS SSL TPS <DeltaClientsslStatClientTotConns>) / (<interval>

1.

For each OID, poll for data. For example, poll OID sysClientsslStatToNativeConns

(.1.3.6.1.4.1.3375.2.1.1.2.23.2) and sysClientsslStatTotCompatConns

(.1.3.6.1.4.1.3375.2.1.1.2.9.9)

.

2.

Add the two values together. This results in the value sysClientsslStartTotConns1

.

3.

Poll the two OIDs again, within ten seconds of the previous polls.

4.

Again, add the two values together. This results in the value sysClientsslStatToComms2

.

146

BIG-IP

®

Network Firewall: Policies and Implementations

5.

Calculate the delta of the two sums:

<DeltaClientsslStatTotConns> = <sysClientsslStatTotConns2> -

<sysClientsslStatTotConns1>.

6.

Perform the calculation on the OID deltas. The value for interval is 10. For example, to calculate the value of the SSL transactions using SNMP:

(<DeltaClientsslStatClientTotConns>) / <interval>

Collecting BIG-IP system data on CPU usage based on a predefined polling interval

For the CPU[0-n] and Global Host CPU Usage graph metrics, you can instruct the BIG-IP

® system to gather and collect CPU usage data automatically, based on a predifined polling interval. Use the sysMultiHostCpu and sysGlobalHostCpu MIBs.

The following table shows the required OIDs for automatic collection of CPU[0-n] graphic metrics.

Performance

Graph

Graph Metric

CPU Usage CPU[0-n]

CPU Usage

CPU Usage

CPU[0-n]

CPU[0-n]

Required SNMP OIDs

5-second Polling Interval

sysMultiHostCpuUser5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.12) sysMultiHostCpuNice5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.13) sysMultiHostCpuSystem5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.14) sysMultiHostCpuIdle5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.15) sysMultiHostCpuIrq5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.16) sysMultiHostCpuSoftirq5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.17) sysMultiHostCpuIowait5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.18) sysMultiHostCpuUsageRatio5s (.1.3.6.1.4.1.3375.2.1.7.5.2.1.19) sysMultiHostCpuUsageRatio (.1.3.6.1.4.1.3375.2.1.7.5.2.1.11)

1-minute Polling Interval

sysMultiHostCpuUser1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.20) sysMultiHostCpuNice1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.21) sysMultiHostCpuSystem1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.22) sysMultiHostCpuIdle1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.23) sysMultiHostCpuIrq1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.24) sysMultiHostCpuSoftirq1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.25) sysMultiHostCpuIowait1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.26) sysMultiHostCpuUsageRatio1m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.26)

5-minute Polling Interval

sysMultiHostCpuUse5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.28) sysMultiHostCpuNice5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.29) sysMultiHostCpuSystem5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.30) sysMultiHostCpuIdle5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.31) sysMultiHostCpuIrq5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.32) sysMultiHostCpuSoftirq5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.33) sysMultiHostCpuIowait5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.34) sysMultiHostCpuUsageRatio5m (.1.3.6.1.4.1.3375.2.1.7.5.2.1.35)

147

SNMP Trap Configuration

The following table shows the required OIDs for automatic collection of Global Host CPU Usage graph metrics.

Performance

Graph

Graph Metric

CPU Usage

CPU Usage

CPU Usage

Required SNMP OIDs

Global Host CPU

Usage

5-second Polling Interval

sysGlobalHostCpuUser5s (.1.3.6.1.4.1.3375.2.1.1.2.20.14) sysGlobalHostCpuNice5s (.1.3.6.1.4.1.3375.2.1.1.2.20.15) sysGlobalHostCpuSystem5s (.1.3.6.1.4.1.3375.2.1.1.2.20.16) sysGlobalHostCpuIdle5s (.1.3.6.1.4.1.3375.2.1.1.2.20.17) sysGlobalHostCpuIrq5s (.1.3.6.1.4.1.3375.2.1.1.2.20.18) sysGlobalHostCpuSoftirq5s (.1.3.6.1.4.1.3375.2.1.1.2.20.19) sysGlobalHostCpuIowait5s (.1.3.6.1.4.1.3375.2.1.1.2.20.20) sysGlobalHostCpuUsageRatio5s (.1.3.6.1.4.1.3375.2.1.1.2.20.21) sysGlobalHostCpuUsageRatio (.1.3.6.1.4.1.3375.2.1.1.2.20.13)

Global Host CPU

Usage

1-minute Polling Interval

sysGlobalHostCpuUser1m (.1.3.6.1.4.1.3375.2.1.1.2.20.22) sysGlobalHostCpuNice1m (.1.3.6.1.4.1.3375.2.1.1.2.20.23) sysGlobalHostCpuSystem1m (.1.3.6.1.4.1.3375.2.1.1.2.20.24) sysGlobalHostCpuIdle1m (.1.3.6.1.4.1.3375.2.1.1.2.20.25) sysGlobalHostCpuIrq1m (.1.3.6.1.4.1.3375.2.1.1.2.20.26) sysGlobalHostCpuSoftirq1m (.1.3.6.1.4.1.3375.2.1.1.2.20.27) sysGlobalHostCpuIowait1m (.1.3.6.1.4.1.3375.2.1.1.2.20.28) sysGlobalHostCpuUsageRatio1m (.1.3.6.1.4.1.3375.2.1.1.2.20.29)

Global Host CPU

Usage

5-minute Polling Interval

sysGlobalHostCpuUse5m (.1.3.6.1.4.1.3375.2.1.1.2.20.30) sysGlobalHostCpuNice5m (.1.3.6.1.4.1.3375.2.1.1.2.20.31) sysGlobalHostCpuSystem5m (.1.3.6.1.4.1.3375.2.1.1.2.20.32) sysGlobalHostCpuIdle5m (.1.3.6.1.4.1.3375.2.1.1.2.20.33)) sysGlobalHostCpuIrq5m (.1.3.6.1.4.1.3375.2.1.1.2.20.34) sysGlobalHostCpuSoftirq5m (.1.3.6.1.4.1.3375.2.1.1.2.20.35) sysGlobalHostCpuIowait5m (.1.3.6.1.4.1.3375.2.1.1.2.20.36) sysGlobalHostCpuUsageRatio5m (.1.3.6.1.4.1.3375.2.1.1.2.20.37)

Collecting BIG-IP system data on CPU usage based on a custom polling interval

For the CPU[0-n], Global Host CPU, and TMM CPU Usage graph metrics, an alternative to instructing the

BIG-IP

® system to collect CPU usage data automatically, is to do it maually, based on a custom polling interval. For the CPU[0-n] and Global Host CPU graph metrics, use the sysMultiHostCpu and sysGlobalHostCpu MIBs. For the TMM CPU Usage graphic metric, use the sysStatTm MIB.

The following table shows the required SNMP OIDs for collecting CPU data manually.

Required SNMP OIDs Performance

Graph

Graph Metric

CPU Usage CPU[0-n] sysMultiHostCpuUser (.1.3.6.1.4.1.3375.2.1.7.5.2.1.4) sysMultiHostCpuNice (.1.3.6.1.4.1.3375.2.1.7.5.2.1.5) sysMultiHostCpuSystem (.1.3.6.1.4.1.3375.2.1.7.5.2.1.6) sysMultiHostCpuIdle (.1.3.6.1.4.1.3375.2.1.7.5.2.1.7) sysMultiHostCpuIrq (.1.3.6.1.4.1.3375.2.1.7.5.2.1.8) sysMultiHostCpuSoftirq (.1.3.6.1.4.1.3375.2.1.7.5.2.1.9) sysMultiHostCpuIowait (.1.3.6.1.4.1.3375.2.1.7.5.2.1.10)

148

BIG-IP

®

Network Firewall: Policies and Implementations

Performance

Graph

Graph Metric

CPU Usage TMM[0-m]

Required SNMP OIDs

CPU Usage

CPU Usage

CPU Usage

Global Host

CPU Usage

Global TMM

CPU Usage

TMM CPU

Usage sysTmmStatTmUsageRatio5s (.1.3.6.1.4.1.3375.2.1.8.2.3.1.37.[tmm_id]) sysTmmStatTmUsageRatio1m (.1.3.6.1.4.1.3375.2.1.8.2.3.1.38.[tmm_id]) sysTmmStatTmUsageRatio5m (.1.3.6.1.4.1.3375.2.1.8.2.3.1.39.[tmm_id]) sysGlobalHostCpuCount (.1.3.6.1.4.1.3375.2.1.1.2.20.4) sysGlobalHostActiveCpu (.1.3.6.1.4.1.3375.2.1.1.2.20.5) sysGlobalHostCpuUser (.1.3.6.1.4.1.3375.2.1.1.2.20.6) sysGlobalHostCpuNice (.1.3.6.1.4.1.3375.2.1.1.2.20.7) sysGlobalHostCpuSystem (.1.3.6.1.4.1.3375.2.1.1.2.20.8) sysGlobalHostCpuIdle (.1.3.6.1.4.1.3375.2.1.1.2.20.9) sysGlobalHostCpuIrq (.1.3.6.1.4.1.3375.2.1.1.2.20.10) sysGlobalHostCpuSoftirq (.1.3.6.1.4.1.3375.2.1.1.2.20.11) sysGlobalHostCpuIowait (.1.3.6.1.4.1.3375.2.1.1.2.20.12) sysGlobalTmmStatTmUsageRatio5s (.1.3.6.1.4.1.3375.2.1.1.2.21.34) sysGlobalTmmStatTmUsageRatio1m (.1.3.6.1.4.1.3375.2.1.1.2.21.35) sysGlobalTmmStatTmUsageRatio5m (.1.3.6.1.4.1.3375.2.1.1.2.21.36) sysStatTmTotalCycles (.1.3.6.1.4.1.3375.2.1.1.2.1.41) sysStatTmIdleCycles (.1.3.6.1.4.1.3375.2.1.1.2.1.42) sysStatTmSleepCycles (.1.3.6.1.4.1.3375.2.1.1.2.1.43)

The following table shows the formulas for calculating metrics on CPU use.

Performance

Graph

Graph Metric

CPU Usage

CPU Usage

Required calculations for CPU use

CPU[0-n] (<DeltaCpuUsers>) + (<DeltaCpuNice> + <DeltaCpuSystem> /

(<DeltaCpuUsers>) + <DeltaCpuNice> + <DeltaCpuIdle> +

<DeltaCpuSystem> + <DeltaCpulrq> + <DeltaCpuSoftirq> +

<DeltaCpulowait>) *100

Global Host CPU

Usage

(<DeltaCpuUsers> + <DeltaCpuNice> + <DeltaCpuSystem>) /

(<DeltaCpuUsers> + <DeltaCpuNice> + <DeltaCpuIdle> +

<DeltaCpuSystem> + <DeltaCpuIrq> + <DeltaCpuSoftirq> +

<DeltaCpuIowait>) *100

1.

Poll the OID sysMultiHostCpuUser (.1.3.6.1.4.1.3375.2.1.7.5.2.1.4) twice, at a 10-second interval. This results in two values, sysMultiHostCpuUser1and and sysMultiHostCpuUser2

.

2.

Calculate the delta of the two poll values. For example:

<DeltaCpuUser> = <sysMultiHostCpuUser2> - <sysMultiHostCpuUser1>.

3.

Repeat steps 1 and 2 for each OID pertaining to the

CPU[0-n]

graph metric.

4.

Repeat steps 1 and 2 again, using the OIDs from the MIBs

sysStatTm

and

sysGlobalHostCpu

.

5.

Calculate the values of the graphic metrics using the formulas in the table above.

149

SNMP Trap Configuration

Collecting BIG-IP system performance data on new connections using SNMP

You can use SNMP commands with various OIDs to gather and interpret data on the number of new connections on the BIG-IP

® system. The following table shows the required OIDs for the Performance graphs in the Configuration utility.

Performance

Graph

Graph Metrics Required SNMP OIDs

New

Connections

Summary

Client Accepts

Server Connects sysTcpStatAccepts (.1.3.6.1.4.1.3375.2.1.1.2.12.6) sysStatServerTotConns (.1.3.6.1.4.1.3375.2.1.1.2.1.14)

Total New

Connections

Client Accepts

Server Connects sysStatClientTotConns(.1.3.6.1.4.1.3375.2.1.1.2.1.7) sysStatServerTotConns (.1.3.6.1.4.1.3375.2.1.1.2.1.14)

New Client

SSL Profile

Connections

New

Accepts/

Connects

SSL Client

SSL Server sysClientsslStatTotNativeConns (.1.3.6.1.4.1.3375.2.1.1.2.9.6), sysClientsslStatTotCompatConns (.1.3.6.1.4.1.3375.2.1.1.2.9.9) sysServersslStatTotNativeConns(.1.3.6.1.4.1.3375.2.1.1.2.10.6), sysServersslStatTotCompatConns (.1.3.6.1.4.1.3375.2.1.1.2.10.9)

Client Accepts

Server Connects sysTcpStatAccepts (.1.3.6.1.4.1.3375.2.1.1.2.12.6) sysTcpStatConnects (.1.3.6.1.4.1.3375.2.1.1.2.12.8)

The following table shows the required calculations for interpreting metrics on new connections.

Performance

Graph

Graph Metrics

New

Connections

Summary

Client Accepts

Server Connects

Total New

Connections

Client Connects

Server Connects

New Client

SSL Profile

Connections

SSL Client

SSL Server

New

Accepts/

Connects

Client Accepts

Server Connects

Required SNMP OIDs

<DeltaTcpStatAccept> / <interval>

<DeltaStatServerTotConns> / <interval>

<DeltaStatClientTotConns> / <interval>

<DeltaStatServerTotConns> / <interval>

( <DeltaClientsslStatTotNativeConns> + <DeltaClientsslStatTotCompatConns>) / <interval>

(<DeltaServersslStatTotNativeConns> + <DeltaServersslStatTotCompatConns>) / <interval>

<DeltaTcpStatAccepts> / <interval>

<DeltaTcpStatConnects> / <interval>

1.

For each OID, perform two separate polls, at an interval of your choice.

For example, for the client accepts metric, poll OID sysTcpStatAccepts

(.1.3.6.1.4.1.3375.2.1.1.2.12.6) twice, at a 10-second interval. This results in two values,

<sysTcpStatAccepts1> and

<sysTcpStatAccepts2>

.

2.

Calculate the delta of the two poll values.

For example, for the client accepts metric, perform this calculation:

<DeltaTcpStatAccepts> = <sysTcpStatAccepts2> - <sysTcpStatAccepts1>

150

BIG-IP

®

Network Firewall: Policies and Implementations

3.

Perform a calculation on the OID deltas. The value for

interval

is the polling interval. For example, to calculate the value of the client accepts metric:

<DeltaTcpStatAccepts> / <interval>

Collecting BIG-IP system performance data on active connections using SNMP

Write an SNMP command with the various OIDs shown in the table to gather and interpret data on the number of active connections on the BIG-IP

® system.

Note: To interpret data on active connections, you do not need to perform any calculations on the collected data.

Performance

Graph

Graph Metrics

Active Connections

Summary

Connections

Active Connections

Detailed

Client

Server

SSL Client

SSL Server

Required SNMP OIDs

sysStatClientCurConns (.1.3.6.1.4.1.3375.2.1.1.2.1.8) sysStatClientCurConns (.1.3.6.1.4.1.3375.2.1.1.2.1.8) sysStatServerCurConns (.1.3.6.1.4.1.3375.2.1.1.2.1.15) sysClientsslStatCurConns (.1.3.6.1.4.1.3375.2.1.1.2.9.2) sysServersslStatCurConns (.1.3.6.1.4.1.3375.2.1.1.2.10.2)

About the RMON MIB file

The BIG-IP

® system provides the remote network monitoring (RMON) MIB file, RMON-MIB.txt. This file contains remote network monitoring information. The implementation of RMON on the BIG-IP system differs slightly from the standard RMON implementation, in the following ways:

• The BIG-IP system implementation of RMON supports only these four of the nine RMON groups: statistics, history, alarms, and events.

• The RMON-MIB.txt file monitors the BIG-IP system interfaces (that is, sysIfIndex), and not the standard

Linux interfaces.

• For hardware reasons, the packet-length-specific statistics in the RMON statistics group offer combined transmission and receiving statistics only. This behavior differs from the behavior described in the definitions of the corresponding OIDs.

151

Logging Network Firewall Events to IPFIX Collectors

Overview: Configuring IPFIX logging for AFM

You can configure the BIG-IP

® system to log information about Advanced Firewall Manager processes and send the log messages to remote IPFIX collectors.

(AFM

)

The BIG-IP system supports logging of AFM events over the IPFIX protocol. IPFIX logs are raw, binary-encoded strings with their fields and field lengths defined by IPFIX templates.

IPFIX collectors

are external devices that can receive IPFIX templates and use them to interpret IPFIX logs.

Task summary

Perform these tasks to configure IPFIX logging of AFM processes on the BIG-IP

® system.

Note: Enabling IPFIX logging impacts BIG-IP system performance.

Assembling a pool of IPFIX collectors

Creating an IPFIX log destination

Creating a publisher

Creating a custom Network Firewall Logging profile

Configuring an LTM virtual server for Network Firewall event logging with IPFIX

About the configuration objects of IPFIX logging for AFM

The configuration process involves creating and connecting the following configuration objects:

Object

Pool of IPFIX collectors

Destination

Publisher

Reason Applies to

Create a pool of IPFIX collectors to which the BIG-IP system can send IPFIX log messages.

Assembling a pool of IPFIX collectors.

Create a log destination to format the logs in IPFIX templates, and forward the logs to the IPFIX collectors.

Creating an IPFIX log destination.

Create a log publisher to send logs to a set of specified log destinations.

Creating a publisher.

Assembling a pool of IPFIX collectors

Before creating a pool of IPFIX collectors, gather the IP addresses of the collectors that you want to include in the pool. Ensure that the remote IPFIX collectors are configured to listen to and receive log messages from the BIG-IP

® system.

Logging Network Firewall Events to IPFIX Collectors

These are the steps for creating a pool of IPFIX collectors. The BIG-IP system can send IPFIX log messages to this pool.

1.

On the Main tab, click

Local Traffic

>

Pools

.

The Pool List screen opens.

2.

Click

Create

.

The New Pool screen opens.

3.

In the

Name

field, type a unique name for the pool.

4.

Using the

New Members

setting, add the IP address for each IPFIX collector that you want to include in the pool: a) Type the collector's IP address in the

Address

field, or select a node address from the

Node List

.

b) Type a port number in the

Service Port

field.

By default, IPFIX collectors listen on UDP or TCP port

4739 and Netflow V9 devices listen on port

2055

, though the port is configurable at each collector.

c) Click

Add

.

5.

Click

Finished

.

Creating an IPFIX log destination

A log destination of the

IPFIX

type specifies that log messages are sent to a pool of IPFIX collectors. Use these steps to create a log destination for IPFIX collectors.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Destinations

.

The Log Destinations screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this destination.

4.

From the

Type

list, select

IPFIX

.

5.

From the

Protocol

list, select

IPFIX

or

Netflow V9

, depending on the type of collectors you have in the pool.

6.

From the

Pool Name

list, select an LTM

® pool of IPFIX collectors.

7.

From the

Transport Profile

list, select

TCP

,

UDP

, or any customized profile derived from TCP or

UDP.

8.

The

Template Retransmit Interval

is the time between transmissions of IPFIX templates to the pool of collectors. The BIG-IP system only retransmits its templates if the

Transport Profile

is a

UDP

profile.

An

IPFIX template

defines the field types and byte lengths of the binary IPFIX log messages. The logging destination sends the template for a given log type (for example, NAT44 logs or customized logs from an iRule) before sending any of those logs, so that the IPFIX collector can read the logs of that type. The logging destination assigns a template ID to each template, and places the template ID into each log that uses that template.

The log destination periodically retransmits all of its IPFIX templates over a UDP connection. The retransmissions are helpful for UDP connections, which are lossy.

9.

The

Template Delete Delay

is the time that the BIG-IP device should pause between deleting an obsolete template and re-using its template ID. This feature is helpful for systems that can create custom IPFIX templates with iRules.

10.

The

Server SSL Profile

applies Secure Socket Layer (SSL) or Transport Layer Security (TLS) to TCP connections. You can only choose an SSL profile if the

Transport Profile

is a

TCP

profile. Choose an

SSL profile that is appropriate for the IPFIX collectors' SSL/TLS configuration.

154

BIG-IP

®

Network Firewall: Policies and Implementations

SSL or TLS requires extra processing and therefore slows the connection, so we only recommend this for sites where the connections to the IPFIX collectors have a potential security risk.

11.

Click

Finished

.

Creating a publisher

A publisher specifies where the BIG-IP

® system sends log messages for IPFIX logs.

1.

On the Main tab, click

System

>

Logs

>

Configuration

>

Log Publishers

.

The Log Publishers screen opens.

2.

Click

Create

.

3.

In the

Name

field, type a unique, identifiable name for this publisher.

4.

Use the Log Destinations area to select an existing IPFIX destination (perhaps along with other destinations for your logs): click any destination name in the

Available

list, and click

<<

to move it to the

Selected

list.

Important: If you configure a log publisher to use multiple logging destinations, then, by default, all logging destinations must be available in order to log to each destination. Unless all logging destinations are available, no logging will occur. If you want to log to the available logging destinations when one or more destinations become unavailable, you must set the logpublisher.atomic

db variable to false

.

5.

Click

Finished

.

Creating a custom Network Firewall Logging profile

Create a custom Logging profile to log messages about BIG-IP

® system Network Firewall events.

1.

On the Main tab, click

Security

>

Event Logs

>

Logging Profiles

.

The Logging Profiles list screen opens.

2.

Click

Create

.

The New Logging Profile screen opens.

3.

In the

Name

field, type a unique name for the profile.

4.

Select the

Network Firewall

check box.

5.

In the Network Firewall area, from the

Publisher

list, select the IPFIX publisher the BIG-IP system uses to log Network Firewall events.

6.

Set an

Aggregate Rate Limit

to define a rate limit for all combined network firewall log messages per second. Beyond this rate limit, log messages are not logged.

7.

For the

Log Rule Matches

setting, select how the BIG-IP system logs packets that match ACL rules.

You can select any or all of the options. When an option is selected, you can configure a rate limit for log messages of that type.

Option Description

Option

Enables or disables logging of packets that match ACL rules configured with:

Accept

action=Accept

Drop

action=Drop

155

Logging Network Firewall Events to IPFIX Collectors

Option

Reject

Description

action=Reject

8.

Select the

Log IP Errors

check box, to enable logging of IP error packets. When enabled, you can configure a rate limit for log messages of this type.

9.

Select the

Log TCP Errors

check box, to enable logging of TCP error packets. When enabled, you can configure a rate limit for log messages of this type.

10.

Select the

Log TCP Events

check box, to enable logging of open and close of TCP sessions. When enabled, you can configure a rate limit for log messages of this type.

11.

Enable the

Log Translation Fields

setting to log both the original IP address and the NAT-translated

IP address for Network Firewall log events.

12.

Enable the

Log Geolocation IP Address

setting to specify that when a geolocation event causes a network firewall action, the associated IP address is logged.

13.

From the

Storage Format

list, select how the BIG-IP system formats the log. Your choices are:

Option Description

None

Specifies the default format type in which the BIG-IP system logs messages to a remote Syslog server, for example:

"management_ip_address","bigip_hostname","context_type",

"context_name","src_ip","dest_ip","src_port",

"dest_port","vlan","protocol","route_domain",

"acl_rule_name","action","drop_reason

Field-List

This option allows you to:

• Select from a list, the fields to be included in the log.

• Specify the order the fields display in the log.

• Specify the delimiter that separates the content in the log. The default delimiter is the comma character.

User-Defined

This option allows you to:

• Select from a list, the fields to be included in the log.

• Cut and paste, in a string of text, the order the fields display in the log.

14.

In the IP Intelligence area, from the

Publisher

list, select the publisher that the BIG-IP system uses to log source IP addresses, which are identified and configured for logging by an IP Intelligence policy.

Note: The IP Address Intelligence feature must be enabled and licensed.

15.

Set an

Aggregate Rate Limit

to define a rate limit for all combined IP Intelligence log messages per second. Beyond this rate limit, log messages are not logged.

16.

Enable the

Log Translation Fields

setting to log both the original IP address and the NAT-translated

IP address for IP Intelligence log events.

17.

In the Traffic Statistics area, from the

Publisher

list, select the publisher that the BIG-IP system uses to log traffic statistics.

18.

Enable the

Active Flows

setting to log the number of active flows each second.

19.

Enable the

Reaped Flows

to log the number of reaped flows, or connections that are not established because of system resource usage levels.

20.

Enable the

Missed Flows

setting to log the number of packets that were dropped because of a flow table miss. A flow table miss occurs when a TCP non-SYN packet does not match an existing flow.

156

BIG-IP

®

Network Firewall: Policies and Implementations

21.

Enable the

SYN Cookie (Per Session Challenge)

setting to log the number of SYN cookie challenges generated each second.

22.

Enable the

SYN Cookie (White-listed Clients)

setting to log the number of SYN cookie clients whitelisted each second.

23.

Click

Finished

.

Assign this custom network firewall Logging profile to a virtual server.

Configuring an LTM virtual server for Network Firewall event logging with IPFIX

Ensure that at least one log publisher exists on the BIG-IP

® system.

Assign a custom Network Firewall Logging profile to a virtual server when you want the BIG-IP system to log Network Firewall events to IPFIX collectors on the traffic that the virtual server processes.

Note: This task applies only to LTM

®

-provisioned systems.

1.

On the Main tab, click

Local Traffic

>

Virtual Servers

.

The Virtual Server List screen opens.

2.

Click the name of the virtual server you want to modify.

3.

On the menu bar, click

Security

>

Policies

.

The screen displays firewall rule settings.

4.

From the

Log Profile

list, select

Enabled

. Then, for the

Profile

setting, move the profiles that log specific events to IPFIX collectors from the

Available

list to the

Selected

list.

Note: To log global, self IP, and route domain contexts, you must enable a Publisher in the

global-network profile.

5.

Click

Update

to save the changes.

Implementation result

Now you have an implementation in which the BIG-IP

® system logs messages about AFM

™ events and sends the log messages to a pool of IPFIX collectors.

Note: Network firewall events are logged only for rules or policies for which logging is enabled.

157

IPFIX Templates for AFM Events

Overview: IPFIX Templates for AFM Events

The IP Flow Information Export (IPFIX) Protocol is a logging mechanism for IP events. This appendix defines the IPFIX Information Elements (IEs) and Templates used to log F5’s Application Firewall Manager

(AFM) events. An

IE

is the smallest form of useful information in an IPFIX log message, such as an IP address or a timestamp for the event. An

IPFIX template

is an ordered collection of specific IEs used to record one IP event, such as the acceptance of a network packet.

About IPFIX Information Elements for AFM events

Information Elements (IEs) are individual fields in an IPFIX template. An IPFIX template describes a single

Advanced Firewall Manager

(AFM

) event.

IANA-defined IPFIX Information Elements

IANA maintains a list of standard IPFIX Information Elements (IEs), each with a unique Element Identifier.

The F5

®

AFM

IPFIX implementation uses a subset of these IEs to publish AFM events. This subset is summarized in the table.

Information Element (IE)

destinationIPv4Address destinationIPv6Address destinationTransportPort ingressVRFID observationTimeMilliseconds protocolIdentifier sourceIPv4Address sourceIPv6Address sourceTransportPort

ID

323

4

8

27

7

12

28

11

234

Size (Bytes)

8

1

4

16

2

2

4

4

16

IPFIX enterprise Information Elements

IPFIX provides for enterprises to define their own Information Elements. F5

® non-standard IEs for AFM

™ events: currently uses the following

IPFIX Templates for AFM Events

Information Element (IE)

aclPolicyName aclPolicyType aclRuleName action attackType bigipHostName bigipMgmtIPv4Address bigipMgmtIPv6Address contextName contextType destinationFqdn destinationGeo deviceProduct deviceVendor deviceVersion dosAttackEvent dosAttackId dosAttackName dosPacketsDropped dosPacketsReceived dropReason errdefsMsgNo flowId ipfixMsgNo ipintelligencePolicyName ipintelligenceThreatName logMsgDrops logMsgName logprofileName messageSeverity msgName partitionName saTransPool saTransType sourceFqdn sourceGeo

160

ID

12276 - 20

12276 - 21

12276 - 23

12276 - 22

12276 - 40

12276 - 4

12276 - 3

12276 - 16

12276 - 45

12276 - 42

12276 - 96

12276 - 97

12276 - 95

12276 - 1

12276 - 14

12276 - 2

12276 - 37

12276 - 36

12276 - 98

12276 - 44

12276 - 26

12276 - 25

12276 - 38

12276 - 39

12276 - 46

12276 - 10

12276 - 5

12276 - 6

12276 - 9

12276 - 24

12276 - 99

12276 - 43

12276 - 12

12276 - 11

12276 - 13

12276 - 41

Size (Bytes)

Variable

Variable

4

Variable

Variable

1

Variable

Variable

4

4

4

Variable

8

4

Variable

4

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

Variable

4

16

BIG-IP

®

Network Firewall: Policies and Implementations

Information Element (IE)

sourceUser transDestinationIPv4Address transDestinationIPv6Address transDestinationPort transIpProtocol transRouteDomain transSourceIPv4Address transSourceIPv6Address transSourcePort transVlanName vlanName

ID

12276 - 93

12276 - 31

12276 - 32

12276 - 33

12276 - 27

12276 - 35

12276 - 28

12276 - 29

12276 - 30

12276 - 34

12276 - 15

4

4

2

1

Size (Bytes)

Variable

4

16

16

2

Variable

Variable

Note: IPFIX, unlike NetFlow v9, supports variable-length IEs, where the length is encoded within the field in the Data Record. NetFlow v9 collectors (and their variants) cannot correctly process variable-length

IEs, so they are omitted from logs sent to those collector types.

About individual IPFIX templates for each event

F5

® uses IPFIX templates to publish AFM

™ events.

Network accept or deny

This IPFIX template is used whenever a network packet is accepted or denied by an AFM

™ firewall.

Information Element (IE) ID Notes

aclPolicyName aclPolicyType aclRuleName action bigipHostName bigipMgmtIPv4Address bigipMgmtIPv6Address contextName contextType observationTimeMilliseconds destinationFqdn

12276 - 26

12276 - 25

12276 - 38

12276 - 39

12276 - 10

12276 - 5

12276 - 6

12276 - 9

12276 - 24

323

12276 - 99

Size

(Bytes)

Variable

Variable

Variable

Variable

Variable

4

16

Variable

Variable

8

Variable

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

161

IPFIX Templates for AFM Events

Information Element (IE)

destinationGeo destinationIPv4Address destinationIPv6Address destinationTransportPort deviceProduct deviceVendor deviceVersion dropReason msgName errdefsMsgNo flowId ipfixMsgNo protocolIdentifier messageSeverity partitionName ingressVRFID saTransPool saTransType sourceFqdn sourceGeo sourceIPv4Address sourceIPv6Address sourceTransportPort sourceUser transDestinationIPv4Address transDestinationIPv6Address transDestinationPort transIpProtocol transRouteDomain transSourceIPv4Address transSourceIPv6Address transSourcePort transVlanName vlanName

ID

12276 - 37

12276 - 36

12276 - 98

12276 - 44

8

27

7

12276 - 93

12276 - 31

12276 - 32

12276 - 33

12276 - 27

12276 - 35

12276 - 28

12276 - 29

12276 - 30

12276 - 34

12276 - 15

12276 - 43

12

28

11

12276 - 12

12276 - 11

12276 - 13

12276 - 40

12276 - 14

12276 - 4

12276 - 3

12276 - 16

4

12276 - 1

12276 - 2

234

4

4

2

1

2

Variable

4

16

Variable

4

Variable

Variable

Variable

Variable

4

16

16

2

Variable

Variable

1

1

8

4

Variable

Variable

Variable

4

Size

(Bytes)

Variable

4

16

2

Variable

Variable

Notes

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

162

BIG-IP

®

Network Firewall: Policies and Implementations

DoS device

Information Element (IE)

action bigipHostName bigipMgmtIPv4Address bigipMgmtIPv6Address contextName observationTimeMilliseconds destinationIPv4Address destinationIPv6Address destinationTransportPort deviceProduct deviceVendor deviceVersion dosAttackEvent dosAttackId dosAttackName dosPacketsDropped dosPacketsReceived msgName errdefsMsgNo flowId ipfixMsgNo messageSeverity partitionName ingressVRFID sourceIPv4Address sourceIPv6Address sourceTransportPort vlanName

ID

12276 - 22

12276 - 14

12276 - 4

12276 - 3

12276 - 16

12276 - 1

12276 - 2

234

8

27

7

12276 - 15

12276 - 39

12276 - 10

12276 - 5

12276 - 6

12276 - 9

323

12

28

11

12276 - 12

12276 - 11

12276 - 13

12276 - 41

12276 - 20

12276 - 21

12276 - 23

4

1

4

8

Variable

4

4

Variable

Variable

4

4

16

2

Variable

4

16

2

Variable

Variable

Variable

Variable

4

Size

(Bytes)

Variable

Variable

4

16

Variable

8

Notes

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

163

IPFIX Templates for AFM Events

IP intelligence

Information Element (IE)

action attackType bigipHostName bigipMgmtIPv4Address bigipMgmtIPv6Address contextName contextType observationTimeMilliseconds destinationIPv4Address destinationIPv6Address destinationTransportPort deviceProduct deviceVendor deviceVersion msgName errdefsMsgNo flowId ipfixMsgNo ipintelligencePolicyName ipintelligenceThreatName protocolIdentifier messageSeverity partitionName ingressVRFID saTransPool saTransType sourceIPv4Address sourceIPv6Address sourceTransportPort transDestinationIPv4Address transDestinationIPv6Address transDestinationPort transIpProtocol

ID

12276 - 3

12276 - 16

12276 - 45

12276 - 42

4

12276 - 1

12276 - 2

234

12276 - 37

12276 - 36

8

27

7

12276 - 31

12276 - 32

12276 - 33

12276 - 27

12276 - 39

12276 - 46

12276 - 10

12276 - 5

12276 - 6

12276 - 9

12276 - 24

323

12

28

11

12276 - 12

12276 - 11

12276 - 13

12276 - 14

12276 - 4

16

2

1

2

4

4

16

Variable

4

Variable

Variable

8

4

Variable

4

1

1

Variable

Variable

Variable

8

4

16

2

Variable

Variable

Variable

Size

(Bytes)

Variable

Variable

Variable

4

16

Variable

Notes

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

164

BIG-IP

®

Network Firewall: Policies and Implementations

Information Element (IE)

transRouteDomain transSourceIPv4Address transSourceIPv6Address transSourcePort transVlanName vlanName

ID

12276 - 35

12276 - 28

12276 - 29

12276 - 30

12276 - 34

12276 - 15

4

4

Size

(Bytes)

16

2

Variable

Variable

Notes

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

Log Throttle

Information Element (IE)

bigipHostName bigipMgmtIPv4Address bigipMgmtIPv6Address observationTimeMilliseconds deviceProduct deviceVendor deviceVersion msgName errdefsMsgNo ipfixMsgNo messageSeverity contextType contextName logprofileName logMsgName logMsgDrops

ID

12276 - 10

12276 - 5

12276 - 6

323

12276 - 12

12276 - 11

12276 - 13

12276 - 14

12276 - 4

12276 - 16

12276 - 1

12276 - 24

12276 - 9

12276 - 95

12276 - 97

12276 - 96

Size

(Bytes)

4

4

1

Variable

Variable

Variable

Variable

4

Variable

4

16

8

Variable

Variable

Variable

Variable

Notes

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

This IE is omitted for NetFlow v9.

165

Index

A

access control, and SNMP data

120

access levels, assigning

119–121

actions firewall rule

14

active connections data, collecting using SNMP commands

151

ADC mode

11

and IPv6 pools

56

network firewall configuration

55

setting for firewall

11

,

57

adding a firewall rule in a list

21

addresses lists

28

address list

AFM creating

28

,

59

,

66

IANA IPFIX IEs for

159

IPFIX template for DoS device events

163

IPFIX template for IP intelligence events

164

IPFIX template for log throttle events

165

IPFIX template for network session

161

AFM-related SNMP traps, defined

124

algorithms for eviction policy

96

allowing access with a firewall rule

67

application virtual server denying access with firewall rules

60

ASM-related SNMP traps, defined

125

authentication-related SNMP traps, defined

126

automatic compilation of firewall rules

69

automatic deployment of firewall rules

70

AVR-related SNMP traps, defined

126

B

BIG-IP DNS-related SNMP traps, defined

127

BIG-IP system information

119

BIG-IP system processes, monitoring using SNMP

143

blacklist categories

49

blacklist category defining

50

blocking response page configuring in HTTP profile

84

C

checking IP address reputation for a route domain

54

globally

53

with an IP intelligence policy

52

client access, allowing

119

collectors for IPFIX

153

compilation statistics viewing for firewall

73

compiling rules manually

70

manual or automatic

69

conflicting rules

18

resolving

19

viewing

19

connection limits about

95

connections collecting data about active

151

collecting data about HTTP

143

collecting data about new

150

collecting data about RAM

145

collecting data about SSL

146

collecting data about throughput

144

context

14

for network firewall rule

16

CPU usage collecting based on a custom polling interval

148

collecting based on a predefined polling interval

147

creating a firewall policy

39

creating a firewall rule to deny ICMP packets

58

creating a firewall rule list

21

creating a list of addresses

28

,

59

,

66

creating a list of ports

29

creating a network firewall rule

16

creating a rule from a log entry

105

creating a rule in a firewall policy

39

creating a rule list in a policy

24

creating a rule with the inline editor

34

creating a schedule

31

custom profiles and Network Firewall Logging

103

,

114

,

155

and Protocol Security logging

91

and Protocol Security Logging

85

D

default access levels, modifying

119

default deny policy

12

,

64

denying access with a firewall rule

66

with firewall rules

59

denying all access with a firewall rule

60

deploying rules manually

71

manual or automatic

70

destinations for IPFIX logging

154

for logging

90

,

113

Index

167

Index

destinations (continued) for remote high-speed logging

89

,

113

destination SNMP managers, specifying

122

DNS cache and DNS resolver

27

DNS resolver configuring for network firewall

28

creating

28

DNS resulver and DNS cache

27

DoS attack data, collecting using SNMP commands

140

DoS-related SNMP traps, defined

127

dropping traffic by default

12

,

64

dynamic routing, and viewing SNMP traps

142

E

editing a rule with the inline editor

36

editing rules with inline editor

33

enterprise MIB files and SNMP

138

,

141

and viewing objects

140

,

142

downloading

139

,

142

evasion techniques checks

80

event logs viewing

86

,

105

viewing enforced events

44

viewing staged events

45

events setting SNMP traps

122

eviction policies about

95

eviction policy algorithms

96

assigning globally

97

creating

95

F

F5-BIGIP-COMMON-MIB.txt, and viewing SNMP traps

142

F5-BIGIP-LOCAL-MIB.txt, and viewing SNMP traps

140

feed list defining

51

feed lists

50

feed list settings

50

firewall configuring firewall mode

12

,

64

dropping traffic not explicitly allowed

12

,

64

dropping traffic that matches no rule

12

rejecting traffic not explicitly allowed

12

,

64

rejecting traffic that matches no rule

12

setting ADC mode

11

,

57

firewall contexts

16

firewall data, collecting using SNMP commands

140

firewall mode setting for firewall

12

,

64

Firewall mode

11

network firewall configuration

63

firewall policies

39

firewall policies (continued) enforcing

39

evaluating

39

resources to compile

71

staging

39

firewall policy adding to a virtual server

42–43

creating

39

defining

39

viewing compilation statistics

72

firewall policy rule creating

39

creating with inline rule editor

34

editing with inline rule editor

36

firewall rule adding to a rule list

21

allow access to an address list

66

allow access to a single network

67

creating for management port

16

creating from a log entry

105

creating in a policy

39

creating with inline rule editor

34

denying access to specific servers

59

denying ICMP packets

58

editing with inline rule editor

36

resolving conflicting

19

resolving infrequently used

20

resolving never used

20

resolving redundant

19

viewing conflicting

19

viewing infrequently used

20

viewing never used

20

viewing redundant

19

firewall rule list creating

21

firewall rules actions

14

conflicting

18

context ordering

14

flows denying access to specific networks

60

overlapping

18

redundant

18

unused or infrequently used rules

20

preventing overflow attacks on a route domain

98

preventing overflow attacks on a virtual server

97

flow table overflows preventing globally

97

FQDNs about resolving in firewall rules

27

configuring DNS resolver

28

fully qualified domain names configuring DNS resolver

28

G

general SNMP traps, defined

127

global actions allowing traffic

11

dropping traffic

11

rejecting traffic

11

168

Index

global context assigning IP intelligence policy

53

viewing compilation statistics

72

global drop rule

12

global eviction policy assigning

97

global reject rule

12

H

hardware-related SNMP traps, defined

130

high-availability system-related SNMP traps, defined

134

high-speed logging and server pools

89

,

112

HOST-RESOURCES MIB, using in a script

143

HTTP and evasion techniques checks

80

configuring request checks

81

HTTP profiles attaching security profile

76

configuring mandatory headers

83

configuring the blocking response page

84

creating

77

HTTP protocol validation checking, importance

79

HTTP rates data, collecting using SNMP commands

143

HTTP request checks allowing or disallowing files by type

83

configuring length checks

81

specifying HTTP methods to allow

82

HTTP RFC compliance ensuring in HTTP traffic

79

HTTP security fine-tuning profile settings

79

increasing

79

HTTP security profiles allowing files by type

83

configuring length checks

81

creating

76

disallowing files by type

83

fine-tuning

79

specifying allowable methods

82

HTTP traffic blocking evasion techniques

81

configuring protocol compliance checks

80

creating security profile

77

securing

75

I

infrequently used rules resolving

20

viewing

20

inline rule editor enabling

33

interfaces tagging

57

,

65

IP address checking reputation

52

IP address intelligence assigning globally

53

assigning to a route domain

54

IP address intelligence (continued) assigning to a virtual server

53

categories

48

checking IP reputation

52

creating a blacklist category

50

creating a feed list

51

downloading the database

48

enabling

48

feed lists

50

IPFIX

AFM template overview

159

and server pools

153

template for accept or deny through AFM firewall session

161

template for DoS device events

163

template for IP intelligence events

164

template for log throttle events

165

IPFIX collectors and destinations for log messages

154

and publishers for log messages

155

IPFIX logging and AFM

153

configuring

153

creating a destination

154

overview

153

IP intelligence

47

IP intelligence database

48

IP intelligence policy creating

52

iprep.autoupdate command

48

L

license-related SNMP traps, defined

135

lists of addresses

27

lists of ports

27

log entry using to create a firewall rule

105

logging and destinations

89–90

,

113

,

154

and network firewall

103

,

111

and Network Firewall profiles

103

,

114

,

155

and pools

89

,

112

,

153

and protocol security

85

and Protocol Security

87

and Protocol Security profiles

85

,

91

and publishers

90

,

114

,

155

Logging profile and network firewalls

58

,

65

,

105

,

116

and Protocol Security events

86

,

92

and the network firewall

157

Logging profiles, disabling

86

,

92

,

108

,

116

logging-related SNMP traps, defined

137

LTM-related SNMP traps, defined

136

M

manual compilation of firewall rules

69–70

manual deployment of firewall rules

70–71

memory usage data, collecting using SNMP commands

143

169

Index

MIB files about enterprise

138

,

141

about RMON

151

and viewing enterprise objects

140

,

142

N

name resolution using the BIG-IP system

28

NET-SNMP MIB files, downloading

139

,

142

network firewall about address lists

28

about inline rule editing

33

about modes

11

about rule lists

21

about rules

13

ADC mode and IPv6 pools

56

and logging

44

compiler statistics

71

compiling rules

69

context

14

deploying in ADC mode

55

deploying in Firewall mode

63

IP Intelligence

50

policy compilation

71

port lists

29

viewing compilation statistics

73

Network Firewall about

11

about policies

39

addresses

27

blacklist categories

49

blacklists

47

enabling a VLAN on a virtual server

58

,

65

feed lists

47

IP intelligence

47

IP Intelligence

49

policy rule precedence

39

ports

27

schedules

31

whitelists

47

network firewall logging overview of local

103

Network Firewall logging disabling

86

,

92

,

108

,

116

Network Firewall Logging customizing profiles

103

,

114

,

155

network firewall logging, configuring of high-speed remote

112

network firewall logging, overview of high-speed remote

111

Network Firewall Logging profile, assigning to virtual server

105

,

116

,

157

network firewall policy and self IP addresses

43

network-related SNMP traps, defined

137

network virtual server denying access with firewall rules

59

new connections data, collecting using SNMP commands

150

notifications, sending

122

P

ping preventing with a firewall rule

58

policy logging enforced policies

44

staged policies

44

pools for high-speed logging

89

,

112

for IPFIX

153

port list creating

29

port lists

29

profiles and disabling Network Firewall logging

86

,

92

,

108

,

116

creating for HTTP

77

creating for HTTP security

76

creating for Network Firewall Logging

103

,

114

,

155

creating for Protocol Security logging

91

creating for Protocol Security Logging

85

customizing settings for HTTP

81–84

HTTP security, attaching

76

protocol security configuring for HTTP traffic

75

Protocol Security viewing event logs locally

86

protocol security logging overview of local

85

Protocol Security logging configuring

88

customizing profiles

91

overview

87

Protocol Security Logging customizing profiles

85

Protocol Security Logging profile, assigning to virtual server

86

,

92

publishers and logging

155

creating for logging

90

,

114

R

RAM cache data, collecting using SNMP commands

145

redundant rules

18

resolving

19

viewing

19

rejecting traffic by default

12

,

64

remote servers and destinations for log messages

89–90

,

113

for high-speed logging

89

,

112

request checks configuring for HTTP protocol

81

requests, accepting

119

resolver DNS cache about

27

resolving DNS addresses in network firewall rules

28

resolving FQDNs with DNS resolver

27

resolving rule conflicts

19

resolving rule redundancy

19

170

Index

RFC compliance ensuring in HTTP traffic

79

RMON MIB file, and SNMP

151

route domain assigning IP intelligence policy

54

route domains adding an eviction policy

98

configuring for firewall policy

43

controlling flows

98

limiting flows

98

setting a firewall policy

43

viewing compilation statistics

72

rule compilation mode automatic

69

manual

69

rule deployment mode automatic

69

manual

69

rule list activating in a policy

24

viewing compilation statistics

72

rule lists

21

rules

13

conflicting

18

editing inline

33

redundant

18

stale

20

S

schedule creating

31

scheduling firewall rules

31

security profiles creating for HTTP

77

viewing statistics

76

,

79

self IP addresses enforcing a firewall policy

43

setting firewall policies

43

staging a firewall policy

43

self IPs viewing compilation statistics

72

servers and destinations for log messages

89–90

,

113

,

154

and publishers for IPFIX logs

155

and publishers for log messages

90

,

114

for high-speed logging

89

,

112

service policy applying to firewall rule

100

applying to route domain

101

applying to self IP

101

creating

100

definition

99

setting ADC mode

11

,

57

setting firewall mode

12

,

64

setting the compilation mode

69

setting the deployment mode

70

setting the global drop or reject rule

12

SNMP and enterprise MIB files

138

,

141

SNMP (continued) and monitoring BIG-IP system processes

143

and the RMON MIB file

151

SNMP access levels, assigning

119

SNMP agent configuration overview of

119

SNMP agents, allowing access to

119

SNMP alerts, sending

121

SNMP commands collecting active connections data

151

collecting DoS attack data

140

collecting firewall rule data

140

collecting HTTP rates data

143

collecting memory usage data

143

collecting network firewall data

140

collecting new connections data

150

collecting RAM cache data

145

collecting SSL transactions

146

collecting throughput rates data

144

SNMP data controlling access to

121

SNMP data, and controlling access

120

SNMP events, setting traps

122

SNMP manager, and downloading MIB files

139

,

142

SNMP notifications, sending

122

SNMP protocol, managing

119

SNMP traps about troubleshooting

124

and dynamic routing

142

creating

123

defined

121

enabling

122

table of advanced firewall manager-related

124

table of application security management-related

125

table of authentication-related

126

table of AVR-related

126

table of DoS-related

127

table of general

127

table of global traffic management-related

127

table of hardware-related

130

table of high-availability system-related

134

table of license-related

135

table of local traffic management-related

136

table of logging-related

137

table of network-related

137

table of vCMP-related

138
