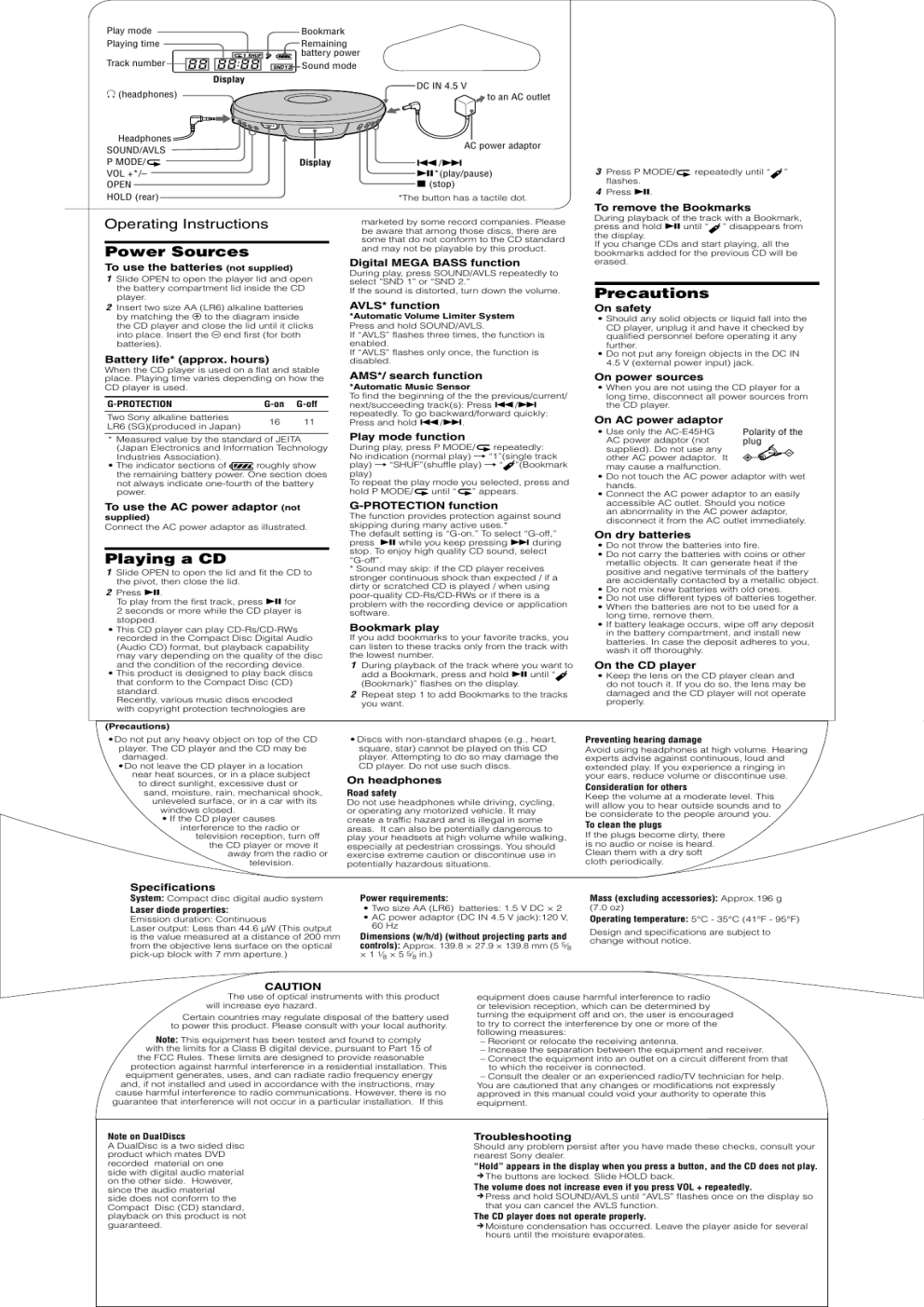

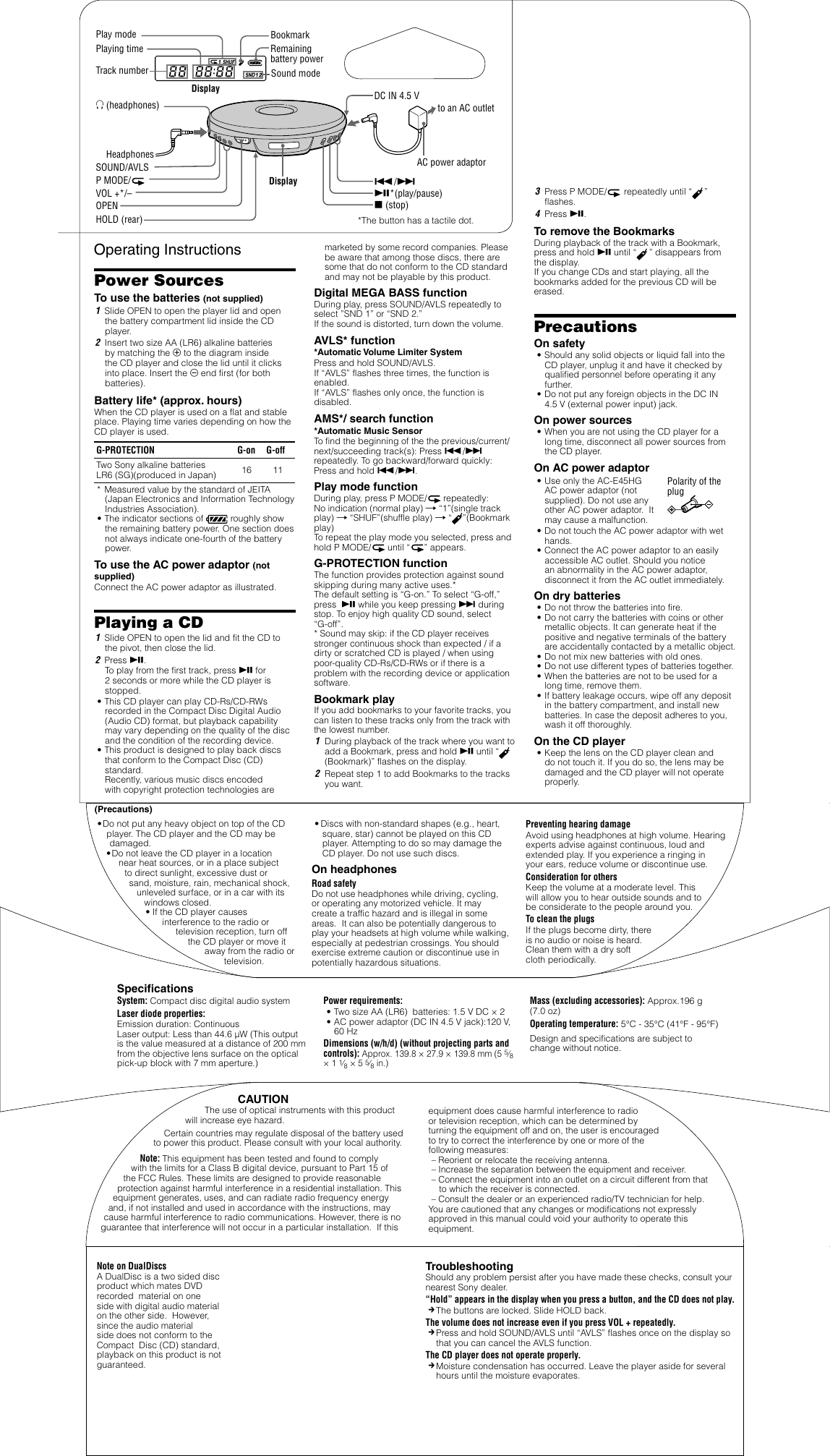

Sony D-EJ010 User manual

Play mode
Playing time
Bookmark
Remaining
battery power
Sound mode
Track number
Display
DC IN 4.5 V
 (headphones)
to an AC outlet
Headphones
SOUND/AVLS
P MODE/
VOL +*/–
OPEN
HOLD (rear)
AC power adaptor
Display
*The button has a tactile dot.
Operating Instructions
marketed by some record companies. Please
be aware that among those discs, there are
some that do not conform to the CD standard
and may not be playable by this product.
Power Sources
Digital MEGA BASS function
To use the batteries (not supplied)
1 Slide OPEN to open the player lid and open
the battery compartment lid inside the CD
player.
2 Insert two size AA (LR6) alkaline batteries
by matching the  to the diagram inside
the CD player and close the lid until it clicks
into place. Insert the  end first (for both
batteries).
Battery life* (approx. hours)
When the CD player is used on a flat and stable
place. Playing time varies depending on how the
CD player is used.
G-PROTECTION
Two Sony alkaline batteries
LR6 (SG)(produced in Japan)
/
*(play/pause)
 (stop)
G-on
G-off
16
11
* Measured value by the standard of JEITA
(Japan Electronics and Information Technology
Industries Association).
• The indicator sections of
roughly show
the remaining battery power. One section does
not always indicate one-fourth of the battery
power.
To use the AC power adaptor (not
supplied)
Connect the AC power adaptor as illustrated.
Playing a CD
1 Slide OPEN to open the lid and fit the CD to
the pivot, then close the lid.
2 Press .
To play from the first track, press  for
2 seconds or more while the CD player is
stopped.
• This CD player can play CD-Rs/CD-RWs
recorded in the Compact Disc Digital Audio
(Audio CD) format, but playback capability
may vary depending on the quality of the disc
and the condition of the recording device.
• This product is designed to play back discs
that conform to the Compact Disc (CD)
standard.
Recently, various music discs encoded
with copyright protection technologies are
During play, press SOUND/AVLS repeatedly to
select ”SND 1” or “SND 2.”
If the sound is distorted, turn down the volume.
AVLS* function
*Automatic Volume Limiter System
Press and hold SOUND/AVLS.
If “AVLS” flashes three times, the function is
enabled.
If “AVLS” flashes only once, the function is
disabled.
AMS*/ search function
*Automatic Music Sensor
To find the beginning of the the previous/current/
next/succeeding track(s): Press /
repeatedly. To go backward/forward quickly:
Press and hold /.
Play mode function
During play, press P MODE/
repeatedly:
No indication (normal play)  “1”(single track
play)  “SHUF”(shuffle play)  “ ”(Bookmark
play)
To repeat the play mode you selected, press and
hold P MODE/
until “
” appears.
G-PROTECTION function
The function provides protection against sound
skipping during many active uses.*
The default setting is “G-on.” To select “G-off,”
press  while you keep pressing  during
stop. To enjoy high quality CD sound, select
“G-off”.
* Sound may skip: if the CD player receives
stronger continuous shock than expected / if a
dirty or scratched CD is played / when using
poor-quality CD-Rs/CD-RWs or if there is a
problem with the recording device or application
software.
Bookmark play
If you add bookmarks to your favorite tracks, you
can listen to these tracks only from the track with
the lowest number.
1 During playback of the track where you want to
add a Bookmark, press and hold  until “
(Bookmark)” flashes on the display.
2 Repeat step 1 to add Bookmarks to the tracks
you want.
3 Press P MODE/
flashes.
4 Press .
repeatedly until “
”
To remove the Bookmarks
During playback of the track with a Bookmark,
press and hold  until “ ” disappears from
the display.
If you change CDs and start playing, all the
bookmarks added for the previous CD will be
erased.
Precautions
On safety
• Should any solid objects or liquid fall into the
CD player, unplug it and have it checked by
qualified personnel before operating it any
further.
• Do not put any foreign objects in the DC IN
4.5 V (external power input) jack.
On power sources
• When you are not using the CD player for a
long time, disconnect all power sources from
the CD player.
On AC power adaptor
• Use only the AC-E45HG
Polarity of the
AC power adaptor (not
plug
supplied). Do not use any
other AC power adaptor. It
may cause a malfunction.
• Do not touch the AC power adaptor with wet
hands.
• Connect the AC power adaptor to an easily
accessible AC outlet. Should you notice
an abnormality in the AC power adaptor,
disconnect it from the AC outlet immediately.
On dry batteries
• Do not throw the batteries into fire.
• Do not carry the batteries with coins or other
metallic objects. It can generate heat if the
positive and negative terminals of the battery
are accidentally contacted by a metallic object.
• Do not mix new batteries with old ones.
• Do not use different types of batteries together.
• When the batteries are not to be used for a
long time, remove them.
• If battery leakage occurs, wipe off any deposit
in the battery compartment, and install new
batteries. In case the deposit adheres to you,
wash it off thoroughly.
On the CD player
• Keep the lens on the CD player clean and
do not touch it. If you do so, the lens may be
damaged and the CD player will not operate
properly.
(Precautions)
• Do not put any heavy object on top of the CD
player. The CD player and the CD may be
damaged.
• Do not leave the CD player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
sand, moisture, rain, mechanical shock,
unleveled surface, or in a car with its
windows closed.
• If the CD player causes
interference to the radio or
television reception, turn off
the CD player or move it
away from the radio or
television.
Specifications
System: Compact disc digital audio system
Laser diode properties:
Emission duration: Continuous
Laser output: Less than 44.6 µW (This output
is the value measured at a distance of 200 mm
from the objective lens surface on the optical
pick-up block with 7 mm aperture.)
• Discs with non-standard shapes (e.g., heart,
square, star) cannot be played on this CD
player. Attempting to do so may damage the
CD player. Do not use such discs.
On headphones
Do not use headphones while driving, cycling,
or operating any motorized vehicle. It may
create a traffic hazard and is illegal in some
areas. It can also be potentially dangerous to
play your headsets at high volume while walking,
especially at pedestrian crossings. You should
exercise extreme caution or discontinue use in
potentially hazardous situations.
Power requirements:
• Two size AA (LR6) batteries: 1.5 V DC × 2
• AC power adaptor (DC IN 4.5 V jack):120 V,
60 Hz
Dimensions (w/h/d) (without projecting parts and
controls): Approx. 139.8 × 27.9 × 139.8 mm (5 5⁄8
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate to the people around you.
To clean the plugs
If the plugs become dirty, there
is no audio or noise is heard.
Clean them with a dry soft
cloth periodically.
Mass (excluding accessories): Approx.196 g
(7.0 oz)
Operating temperature: 5°C - 35°C (41°F - 95°F)
Design and specifications are subject to
change without notice.
× 1 1⁄8 × 5 5⁄8 in.)
CAUTION
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
A DualDisc is a two sided disc
product which mates DVD
recorded material on one
side with digital audio material
on the other side. However,
since the audio material
side does not conform to the
Compact Disc (CD) standard,
playback on this product is not
guaranteed.
Avoid using headphones at high volume. Hearing
experts advise against continuous, loud and
extended play. If you experience a ringing in
your ears, reduce volume or discontinue use.
Consideration for others
Road safety
The use of optical instruments with this product
will increase eye hazard.
Certain countries may regulate disposal of the battery used
to power this product. Please consult with your local authority.
Note on DualDiscs
Preventing hearing damage
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
Troubleshooting
Should any problem persist after you have made these checks, consult your
nearest Sony dealer.
“Hold” appears in the display when you press a button, and the CD does not play.
 The buttons are locked. Slide HOLD back.
The volume does not increase even if you press VOL + repeatedly.
 Press and hold SOUND/AVLS until “AVLS” flashes once on the display so
that you can cancel the AVLS function.
The CD player does not operate properly.
 Moisture condensation has occurred. Leave the player aside for several
hours until the moisture evaporates.
