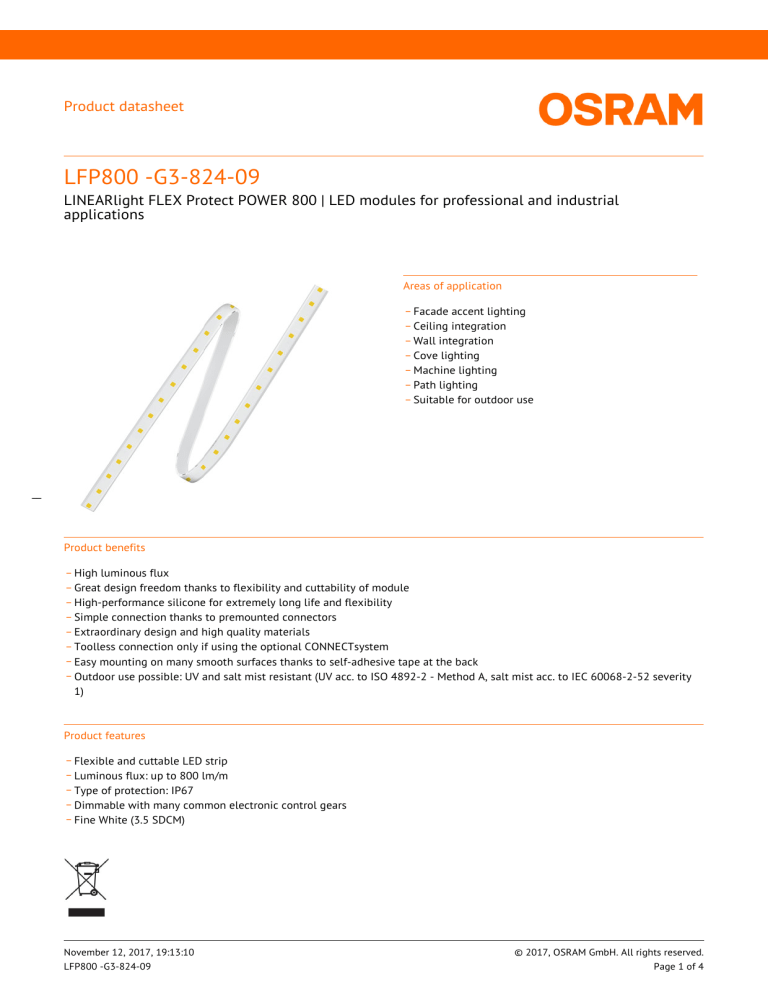

Product datasheet
LFP800 -G3-824-09
LINEARlight FLEX Protect POWER 800 | LED modules for professional and industrial
applications
Areas of application
_ Facade accent lighting
_ Ceiling integration
_ Wall integration
_ Cove lighting
_ Machine lighting
_ Path lighting
_ Suitable for outdoor use
__
Product benefits
_ High luminous flux
_ Great design freedom thanks to flexibility and cuttability of module
_ High-performance silicone for extremely long life and flexibility
_ Simple connection thanks to premounted connectors
_ Extraordinary design and high quality materials
_ Toolless connection only if using the optional CONNECTsystem
_ Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
_ Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity
1)
Product features
_ Flexible and cuttable LED strip
_ Luminous flux: up to 800 lm/m
_ Type of protection: IP67
_ Dimmable with many common electronic control gears
_ Fine White (3.5 SDCM)
November 12, 2017, 19:13:10
LFP800 -G3-824-09
© 2017, OSRAM GmbH. All rights reserved.
Page 1 of 4
Product datasheet
Technical data
Electrical data
Nominal voltage
24.0 V
Nominal current
3.15 A
Rated wattage
68.04 W
Nominal wattage
68.04 W
Nominal wattage per meter
7.6 W
Reverse Voltage
25 V
Type of current
DC
Input voltage range
23…24 V
Photometrical data
__
Color temperature
2400 K
Color rendering index Ra
>80
Light color (designation)
Warm White
Light color LED
White
Luminous flux per meter
800 lm
Luminous flux
7200 lm
Luminous efficacy
106 lm/W
Light technical data
Beam angle
120 °
LED module information
Number of LEDs per module
630
Number of LEDs per meter
70
Dimensions & weight
Length
9000 mm
Length – smallest unit
100.0 mm
Width
11.1 mm
Height
3.7 mm
Product weight
523.00 g
Colors & materials
Cover material
Silicone
Body material
Silicone
November 12, 2017, 19:13:10
LFP800 -G3-824-09
© 2017, OSRAM GmbH. All rights reserved.
Page 2 of 4
Product datasheet
Temperatures & operating conditions
Temperature range in operation
-20…70 °C
Lifespan
Lifespan
50000 h 1)
1) L70/B50 at T 40 °C
c
Additional product data
Product remark
Modules perfectly matched to OSRAM OPTOTRONIC
LED drivers (see relevant table)/For current
photometric data and important safety, installation
and application information, see www.osram.com/ledsystems/All the technical parameters apply to the
entire module. In view of the complex manufacturing
process for light emitting diodes, the typical values
given above for the technical LED parameters are
merely statistical values that do not necessarily
correspond to the actual technical parameters of an
individual product; individual products may vary from
the typical values
Capabilities
__
Dimmable
Yes
Lowest bending radius
50 mm
With end piece
Yes
With connection set
Yes
Self-adhesive
Yes
Certificates & standards
Type of protection
IP67
Energy efficiency class
A+
Standards
UL/CE; ENEC 10 VDE
1)
1) Applicable on smallest operable unit
Logistical data
Temperature range at storage
-40…85 °C
Equipment / Accessories
_ Simplified connection with optional matching CONNECTsystem
_ Quick installation with optional SLIM TRACK System
_ Perfectly matched to OPTOTRONIC 24 V electronic control gears
November 12, 2017, 19:13:10
LFP800 -G3-824-09
© 2017, OSRAM GmbH. All rights reserved.
Page 3 of 4
Product datasheet
Download Data
File
Brochures
Light is freedom of design (EN)
Certificates
VDE-ENEC Certificate
Certificates
EAC Certificate
Certificates
VDE Certificate LFP800-G3
Certificates
ENEC10_VDE Certificate
Declarations of conformity
Certificate of compliance LFP G3
Declarations of conformity
EU Declaration of conformity LFP G3
Declarations of conformity
Manufacturer declaration LFP G3
Eulumdat
Eulumdat LFP800-G3-824
IES data
IES LFP800-G3-824
__
Logistical Data
Product code
Product description
Packaging unit (Pieces/Unit)
Dimensions (length x width x
height)
Volume
Gross weight
4052899481565
LFP800 -G3-824-09
Shipping carton box
8
365 mm x 286 mm x 366 mm
38.21 dm³
8402.00 g
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or
more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.
