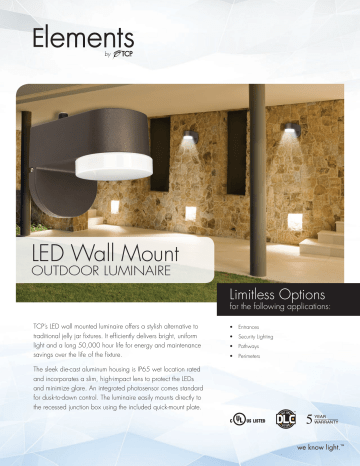

LED Wall Mount Outdoor Luminaire

LED Wall Mount Outdoor Luminaire
LED Wall Mount
OUTDOOR LUMINAIRE
Limitless Options
for the following applications:
TCP’s LED wall mounted luminaire offers a stylish alternative to
traditional jelly jar fixtures. It efficiently delivers bright, uniform
light and a long 50,000 hour life for energy and maintenance
savings over the life of the fixture.
•Entrances
• Security Lighting
•Pathways
•Perimeters
The sleek die-cast aluminum housing is IP65 wet location rated
and incorporates a slim, high-impact lens to protect the LEDs
and minimize glare. An integrated photosensor comes standard
for dusk-to-dawn control. The luminaire easily mounts directly to
the recessed junction box using the included quick-mount plate.
we know light.™
LED Wall Mount - Outdoor Luminaire
Features/Benefits
Up to 83% less energy than
traditional metal halide
Instant energy savings and potential
rebate eligibility
Long 50,000 hour rated life
Minimizes replacements and labor costs
Integrated 120-277V photosensor
Comes standard; provides
dusk-to-dawn control
Mercury free
Great for all environments
Die-cast aluminum housing with
high-impact polycarbonate lens
Protects LEDs; minimizes glare; optional
lens styles available to update fixture
design to meet aesthetic needs
UL approved for wet locations
Suitable for outdoor installation
Surface mount
Easy installation and retrofit application
Specifications
Input Line Voltage
120-277 / 347 VAC
Input Line Frequency (Hz)
50/60HZ
Lumens / Wattage
1400L (12W)
Lumens per Watt (LPW)
116 LPW
Color Temperature (CCT)
5000K
Dimming
n/a
Controls
Integrated 120-277V photosensor
(standard)
Rated Life
>50,000 hours
Operating Temperature
--40°C to 40°C
CRI
70+
Power Factor
>0.9
THD
<20%
Warranty
Five year limited warranty against defects in manufacturing
Replacement Comparison
Type
Wattage
Energy Savings (%)
TCP 1400L
LED Wall Pack
12W
–
50W Metal Halide
70W
83%
TCP® | 325 Campus Dr. | Aurora, Ohio 44202 | P: 800-324-1496 | tcpi.com
To view our DLC qualified products, please consult the DLC Qualified
Products List at www.designlights.org/qpl.
LED Wall Mount - Outdoor Luminaire
LED TECHNICAL DATA
Item Number
Applications
TCP's LED Wall Mount lights deliver bright, uniform light, long
Type
Notes
life, energy savings and low maintenance. The long 50,000
hour rated life significantly decreases maintenance labor and
material costs over the life of the fixture. Applications include
entrances, pathways, perimeters and security lighting.
Construction
• Heavy duty die-cast aluminum housing
• Durable UV stabilized powder coat finish
• Mounts to standard junction box
• Unique quick mount design for easy installation
• Stylish alternative to traditional jelly jar fixtures
Listings
Installation
Electrical
cULus Listed – wet location rated
RoHS Compliant
DLC v4.2 Standard
Surface mounted
• Integrated 120-277V photosensor for dusk-to-dawn control
Before installation, please consult your
local ordinances and building codes
for compliance
• System rated for long 50,000 hour rated life
Warranty
• cULus wet location rated
Five year limited warranty against defects in manufacturing
• 4kV surge suppression comes standard
Lumen Maintenance
Optics
Lumen Maintenance Factor (LMF)
• Durable frosted polycarbonate lens
• Glare-free light distribution
36,000
hours1
50,000
hours1
100,000
hours2
Reported
L 70 (hours)1
95.10%
93.32%
87.24%
>84,000
IESNA TM-21-11 projected value based on 6X IESNA LM-80-08 total test duration of 14,000 hours.
2
IESNA TM-21-11 calculated value exceeds 6X IESNA LM-80-08 total test duration of 14,000 hours.
1
Catalog Ordering Matrix
TCP
WMF
BRAND
PRODUCT ID
TCP
WMF – LED Wall Mount Flat
Example: TCPWMFU1450KBRZPC
14
VOLTAGE
U – 120-277V
3 – 347V*
PC
LUMENS PACKAGE (Power)
CCT
12
14 – 1400 Lumens (12W)
50K – 5000K
Other*
COLOR
CONTROLS
BRZ – Bronze
Other*
PC – Photocell
* Special Order – consult manufacturer for minimum ordering quantity and lead times.
Performance Data
Item#
Wattage1
Lumens2
LPW
CRI
CCT (K)
DISTRIBUTION TYPE
B
U
G
TCPWMFU1450KBRZPC
12
1400
116
70+
5000K
Type II - Very Short
1
2
1
Actual wattage may vary by +/- 10%.
1
2
Approximate lumen output. Actual performance may vary based on CCT, options selected and end user application.
For the most up-to-date specs and warranty information,
please visit www.tcpi.com
TCP® | 325 Campus Dr. | Aurora, Ohio 44202 | P: 800-324-1496 | tcpi.com
LED Wall Mount - Outdoor Luminaire
LED TECHNICAL DATA
Dimensions
7.3"
[186mm]
5.4"
[135mm]
5.9"
[150mm]
Weight
2.4 lbs (1.1 kgs)
Photometric Report
Based on photometric data for
TCP Item # TCPWMFU1450KBRZPC
471
Polar Graph
353
2
236
118
1
Maximum Candela = 471.22 Located At Horizontal Angle = 0, Vertical Angle = 0
# 1 - Vertical Plane Through Horizontal Angles (0 - 180) (Through Max. Cd.)
# 2 - Horizontal Cone Through Vertical Angle (0) (Through Max. Cd.)
325 Campus Dr. | Aurora, Ohio 44202 | P: 800-324-1496 | tcpi.com
©TCP OCT 2017/WF52762
we know light.™
