HP s7540 CRT Monitor

HP s7540 CRT Monitor

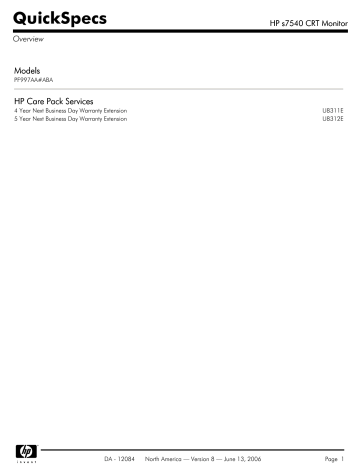

QuickSpecs
HP s7540 CRT Monitor
Overview
Models
PF997AA#ABA
HP Care Pack Services
4 Year Next Business Day Warranty Extension
5 Year Next Business Day Warranty Extension
DA - 12084
U8311E
U8312E
North America — Version 8 — June 13, 2006
Page 1
QuickSpecs
HP s7540 CRT Monitor
Technical Specifications
Tube Type
Picture Tube Size
(diagonal)
Viewable Image Area
(diagonal)
Trio Dot Pitch
Horizontal Dot Pitch
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Maximum Pre-set
Resolution
Preferred Flicker Free
Resolution
Preset Graphic Modes
NOTE: All modes are
non-interlaced unless
specified otherwise.
User-Modes
Anti-Glare/Anti-Static
Asset Control
Plug and Play
Icon Based On-Screen
Display Controls
User Controls
Color, Conventional FST, Multi-frequency
17 inches (43.18 cm)
16 inches (40.64 cm)
0.28 mm
0.24 mm
30 to 70 kHz
50 to 160 Hz
1280 x 1024 @ 60 Hz
1024 x 768 @ 85 Hz
1280 x 1024 @ 60 Hz
1152 x 864 @ 75 Hz
1024 x 768 @ 85 Hz and 75 Hz
800 x 600 @ 85 Hz and 75 Hz
720 x 400 @ 70 Hz
640 x 480 @ 85 Hz, 75 Hz and 60 Hz
Yes, 8 modes
Yes
Yes, supported
Yes
Yes
Brightness, Contrast
Size and Positioning
Pincushion (barrel)
Trapezoid
Tilt (rotation)
Selectable Color
temperature
Parallelogram
Pincushion Balance
Moiré
Degauss
Factory Reset/Recall
Current Display Mode
DA - 12084
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
North America — Version 8 — June 13, 2006
Page 2
QuickSpecs
HP s7540 CRT Monitor
Technical Specifications
Approvals/
Certifications
Maximum Pixel Clock
Speed
Power Supply
Maximum Power Rating
Typical Power
Consumption
Low Power Sleep Mode
Signal Cable
Dimensions (H x W x D)
Weight
Environmental
Compatibility
Options
Software
Warranty
UL/CSA/CUL Approval
ISO9241-3, -7, -8 VDT
Guidelines Approval
MPR-II Compliant
TCO 03
FCC Approval
Microsoft® WHQL
Microsoft
Certified
Energy Star Compliant
CE
110 MHz
Yes
Yes
Yes, select models
Yes, select models
Yes
Yes
No
Yes
Universal; 100 to 240 V, 50 ± 3Hz and 60 ± 3Hz
≤ 75 watts
64 watts
< 3 watts
15-pin miniature D-sub, attached, 4.9 ft (1.5 m)
16.2 x 16.2 x 17.0 in (41 x 41 x 43 cm)
Unpacked
20.9 x 18 x 18.6 in (53 x 45.8 x 47.2 cm)
Packaged
31 lbs (14 kg)
Unpacked
38 lbs (17 kg)
Packaged
Temperature – Operating 50° to 95° F (10° to 35° C)
(non-condensing)
20% to 80%
Humidity – Operating
(non-condensing)
Altitude – Operating, over 0 to 10,000 ft (0 to 3,048 m)
the entire operating
temperature range
Non-operating, 0 to 30,000 ft (0 to 9,144 m)
Altitude – Non-operating
over the entire nonoperating temperature
range
Recommended for use with HP products.
HP CRT Multimedia Base–integrated power supply, volume control, speakers, headphone, and
microphone jacks; optional; part number PM552AA. See product QuickSpecs for more information.
HP Display LiteSaver feature lets you schedule Sleep mode at preset times to help protect the display
against phosphor burn, drastically lower power consumption and energy costs, and extend the lifespan
of the monitor.
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement
options may include second business day on-site service, or next business day direct replacement, at HP's
sole discretion. With direct replacement, HP will ship a replacement display product directly to you.
Using the prepaid shipping labels provided, return your failed display to HP in the same packaging as
the replacement. Certain restrictions and exclusions apply. For details see your product warranty or
contact HP Customer Support.
DA - 12084
North America — Version 8 — June 13, 2006
Page 3
QuickSpecs
HP s7540 CRT Monitor
Technical Specifications
©2006 Hewlett-Packard Development Company, L.P.
Microsoft is a trademark or registered trademark of Microsoft Corporation in the U.S. and other countries.
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance
may vary either higher or lower.
The information in this document is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 12084
North America — Version 8 — June 13, 2006
Page 4
