Overview
The next generation of the HP ProLiant ML370 (expandable tower chassis) and the new HP ProLiant DL370 (4U rack optimized
chassis) deliver Industry-leading management tools, leading performance, expandability, flexibility and the latest energy efficient
technologies. These servers are well-suited for deployment in growing businesses, remote office sites, or datacenters and have been
designed to bring you (our customer) the utmost confidence to run your business.

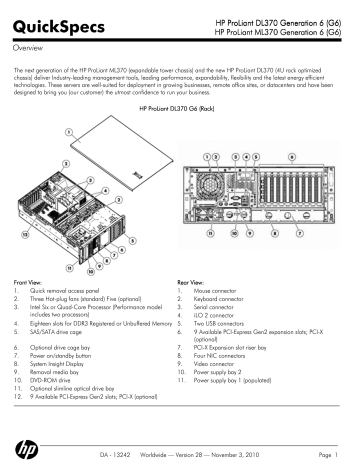

HP ProLiant DL370 G6 (Rack)
Front View:
1.
Quick removal access panel
2.
Three Hot-plug fans (standard) Five (optional)
3.
Intel Six or Quad-Core Processor (Performance model
includes two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory
5.
SAS/SATA drive cage
6.
7.
8.
9.
10.
11.
12.
Optional drive cage bay
Power on/standby button
System Insight Display
Removal media bay
DVD-ROM drive
Optional slimline optical drive bay
9 Available PCI-Express Gen2 slots; PCI-X (optional)
DA - 13242
Rear View:
1.
Mouse connector
2.
Keyboard connector
3.
Serial connector
4.
iLO 2 connector
5.
Two USB connectors
6.
9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
7.
PCI-X Expansion slot riser bay
8.
Four NIC connectors
9.
Video connector
10. Power supply bay 2
11. Power supply bay 1 (populated)
Worldwide — Version 28 — November 3, 2010
Page 1
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Overview
HP ProLiant ML370 G6 (Tower)
Front View:
1.
9 Available PCI-Express Gen2 slots; PCI-X (optional)
2.
Quick removal access panel - Tool-less access to all system
components for easy in rack serviceability
3.
Three Hot-plug fans (standard) Five (optional)
4.
Intel Six or Quad-Core Processor (Performance model
includes two processors)
5.
Power on/standby button
6.
Optional drive cage bay
7.
SAS/SATA drive cage
8.
System Insight Display for quick and easy server diagnostics
9.
Optional slimline optical drive bay
10. DVD-ROM drive
11. Removal media bay
12. Eighteen slots for DDR3 Registered or Unbuffered Memory
Rear View:
1.
PCI-X Expansion slot riser bay
2.
Four NIC connectors
3.
4.
Video connector
Power supply bay 2
5.
6.
7.
8.
9.
10.
11.
Power supply bay 1 (populated)
Mouse connector
Keyboard connector
Serial connector
iLO 2 connector
Two USB connectors
9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
What's New
Intel® Xeon® processor 5600 series-the next generation of intelligent server processors - offering significant performance (up
to 40% over single-core processors), security (TXT Ready - Note: TXT will function only with the Intel® Xeon® processor 5600
series) and power regulation (Low Voltage DIMMs) enhancements
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 and 8GB (1x8GB) Dual Rank x4 PC3L-10600R-9 (DDR3-1333) Registered
CAS-9 Low Voltage DIMMs (Note: These DIMMs operate at a lower voltage and only with the Intel® Xeon® processor 5600
series)
HP 450GB and 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise Hard Drives
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 2
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
Six-Core Processors
One of the following
Intel® Xeon® Processor X5680 (3.33 GHz, 12MB L3 Cache, 130W,DDR3-1333, HT, Turbo
depending on Model
1/1/1/1/2/2)
Intel® Xeon® Processor X5670 (2.93 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo
2/2/2/2/3/3)
Intel® Xeon® Processor X5660 (2.80 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo
2/2/2/2/3/3)
Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo
2/2/2/2/3/3)
Quad-Core Processors
Intel® Xeon® Processor X5677 (3.46 GHz, 12MB L3 Cache, 130W, DDR3-1333, HT, Turbo
1/1/2/2/3/3)
Intel® Xeon® Processor X5667 (3.06 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5630 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor W5580 (3.20 GHz, 8MB L3 Cache, 130W, DDR3-1333, HT, Turbo 1/1/1/2)
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor L5630 (2.13 GHz, 12ML L3 Cache, 40W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
Dual-Core Processors
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
NOTE: Up to 2 processors supported. Performance configurations include two processors. Mixing
different processor models is not supported.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5600 and 5500 Series, the letter preceding the model number indicates the
performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise
Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 3
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Cache Memory
One of the following
depending on Model
12MB (1 x 12MB) Level 3 cache
8MB (1 x 8MB) Level 3 cache
4MB (1 x 4MB) Level 3 cache
NOTE: Cache size is dependent on processor.
Chipset
Intel® 5520 chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
Upgradeability
Upgradeable to two processors
Memory Protection
Advanced ECC
Mirroring mode
Lockstep mode
Online Spare mode
Memory
One of the following
depending on Model
Type
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard (Performance
12GB (6 x 2GB) RDIMM
Models)
Standard (Base Models)
6GB (3 x 2GB) RDIMM
Standard (Entry Model)
4GB (2 x 2GB) RDIMM
Maximum (RDIMM)
192GB (12 x 16GB) for Registered Memory configurations
Maximum (UDIMM)
48GB (12 x 4GB) for Unbuffered Memory configurations
NOTE: If only one processor is installed, only half the DIMM slots are available.
NOTE: when populating with the 16GB Memory Kits (Quad-Rank), only 12 DIMMs can be populated.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at
1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:
www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy
Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
Network Controller
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 4
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Expansion Slots
NOTE: Nine (9) available PCI-Express Gen2 expansion slots to provide you with the latest I/O
performance; PCI-X (optional).
Expansion Slots
Technology
Bus Width
Connector
Form Factor
Notes
#
Width
1
PCIe
x4
x8
Half length, full
height
2
PCIe2
x4
x8
Full Length/Full
Height
3
PCIe2
x16
x16
Full Length/Full
Height
4
PCIe2
x4
x8
Full Length/Full
Height
5
Full Length/Full
Height
6
PCIe2
x8
x16
Full Length/Full
Height
7
PCIe2
x4
x8
Full Length/Full
Height
8
PCIe2
x16
x16
Full Length/Full
Height
9
PCIe2
x4
x8
Full Length/Full
Height
10
PCIe2
X8
X8
Half length, full Utilized by NIC
height
controller "Use
the correct
model number
for the NIC"
11
PCI-X
See note
See note
Full Length/Full (optional) *Up to
Height
64bits/133Mhz
speed when only
one device
install in slot 11
and 12
*up to
64bits/100Mhz
speed when
both slot 11 and
12 are utilized.
12
PCI-X
See note
See note
Full Length/Full
(optional)
Height
*Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
*PCI-X support is limited to PCI-X cards only
DA - 13242
PCIe2
x4
x8
Worldwide — Version 28 — November 3, 2010
Page 5
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Storage Controller
One of the following
depending on Model
Entry Models
HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Entry Models available for ML370 G6 models only.
HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0/6)
Internal Storage Devices
Diskette Drive
None Standard
Optical Drive
SATA DVD ROM (standard in all models)
Hard Drives
None Standard
NOTE: Two open half-height media bays available for tape drives, optical media, optional SAS HDD
cage.
Maximum Internal
Storage
Hot Plug SFF SAS
14.4TB
24 x 600GB
Hot Plug LFF SAS
28TB
14 x 2TB
NOTE: Up to 24 small form factor (SFF) or 14 large form factor (LFF) hot-plug drive bays to support
Serial-attached SCSI (SAS) and Serial ATA (SATA) drives.
Interfaces
Serial
Video
Network RJ-45 (Ethernet)
ILO 2.0 remote
management port
Keyboard
Pointing Device (Mouse)
SD slot
USB 2.0 Ports
Base Models
Performance Models
(487790-xx1 and
576411-xx1 Models)
Performance Model
HP Smart Array P410i/1G FBWC Controller (RAID 0/1/1+0/5/5+0/6)
(595166-xx1 Model)
Available upgrades: 256MB, 512MB with BBWC, 512MB with FBWC, 1G with FBWC, Battery kit
upgrade (for the 256MB cache), and Smart Array Advanced Pack (SAAP).
Dedicated USB 2.0 Port
DA - 13242
1 (rear)
1 (+1 front video on rack models)
4 (rear)
1
1
1
1
5 (2 on the rear, 2 on the front, 1 internal)
NOTE: Please see the following URL for additional information regarding
USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
1 (available for DAT USB tape connectivity)
NOTE: Internal USB ports are optimal for the attachment of HP DAT USB
Internal Tape Drives
Worldwide — Version 28 — November 3, 2010
Page 6
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI-Express Gen2
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
SMBIOS 2.6.1
Server Power Cords
High voltage power cord ships standard with all part numbers. Localized cables included with
geographic specific models in other world regions.
NOTE: ProLiant DL servers no longer ship standard with NEMA power cords (187335-001) that allow
connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to
PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a
user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the above NEMA power
cord must be ordered separately.
Common Slot Power
Supplies
The Common Slot (CS) Power Supply provides the customer with commonality in power supplies across
multiple platforms to save on the cost of spares and allows HP to offer multiple power solutions to fit the
customers' needs. Many HP ProLiant Servers come with or are compatible with high-efficiency HP CS
Power Supplies. These power supplies are designed to provide high-efficiency power without degrading
performance of the ProLiant server. All HP Common Slot power supplies are hot-plug and meet the
requirements for UL and CE Mark Compliance.
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for
your needs.
HP's ProLiant Common Slot Power supplies (460W & 750W) meet multiple Energy Efficiency Initiatives
including Climate Savers Computing Initiative (CSCI) GOLD and ECOS Consulting/80PLUS GOLD
certifications.
The HP 1200W CS Power Supply meets multiple Energy Efficiency Initiatives including CSCI Silver and
ECOS Consulting/80PLUS Silver certifications.
Redundant Power: Optional (1+ 1 redundant) power supplies can be purchased through power supply
option kits (see Redundant Options for part numbers).
System Fans
(3) Hot Plug fans ship standard
NOTE: For full redundancy you can purchase the HP ML370 G6 and DL370 G6 Redundant Fan Kit;
PN: 508107-B21.
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 7
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
Solaris
VMware
HP Citrix Essentials for XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server including how to purchase from
HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download
page http://www.hp.com/support/ML370G6.
Required Cabling
For external storage cabling information, refer to the Web site at: www.hp.com/servers/dl370 or
www.hp.com/servers/ml370.
Graphics
Integrated ATI RN50, 64 MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.
Graphics Cards: Supports up to 3 x 300W Graphic Cards via Graphic Card Power Adapter kit.
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8 (electrical)
Form Factor
4U Tower Chassis and 4U Rack Optimized Chassis (7 in, 17.8 cm)
NOTE: Redesigned 4U Tower Chassis and the new 4U Rack Optimized Chassis to better meet our
customer's density requirements.
HP Insight Software
HP Insight Foundation
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex
Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecylce. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
The foundation pack includes:
HP SmartStart
HP Management
HP ProLiant Firmware Maintenance
HP Integrated Lights-Out
(iLO)
DA - 13242
SmartStart version supported (minimum): SmartStart 8.20
http://www.hp.com/servers/smartstart
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and
Worldwide — Version 28 — November 3, 2010
Page 8
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
can be accessed from any location via a web browser. HP iLO works handin-hand with HP Systems Insight Manager, Insight Control suites, and Insight
Dynamics for ProLiant, helping customers unleash the value of the ProLiant
platform and deliver the highest possible quality of IT service. For more
information, visit: www.hp.com/go/iLO
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Serial interface control
Administrator's password
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is
available for three years from date of purchase. Support for software and initial setup is available for 90
days from date of purchase. Enhancements to warranty services are available through HP Care Pack
services or customized service agreements. Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business
day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR)
parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A
travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2)
Optional CSR parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge. Additional information
regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 9
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Optional Features
HP Insight management
software
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, remote control, and optimize your IT infrastructure
through a single, simple management console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP
Insight Control for Linux, and HP Insight Control. See
www.hp.com/go/insightcontrol
HP Insight Dynamics for
ProLiant
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant, a product option, is advanced
infrastructure management software that enables IT staff to instantly adjust
their environments to meet dynamic business demands by provisioning,
optimizing and protecting complex infrastructure in minutes. It's a powerful
toolkit, integrated-by-design, that accelerates complex technology projects
and simplifies daily operations, transforming data center economics. With
Insight Dynamics IT professionals can plan capacity and power continuously,
balance workloads across physical and virtual resources, and ensure costeffective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared resources
using a self-service portal. Resources provisioned can range from a single
virtual machine to complex multi-tier environments and their associated
physical and virtual resource requirements. In addition to the previous
functional benefits, it also provides a cost-effective disaster recovery for
physical and virtual environments that works with HP StorageWorks
Continuous Access software for both the Enterprise Virtual Array and the XP
storage array allowing application environments to be reactivated in minutes
with the touch of a button to a remote location.
NOTE: For more information, visit: http://www.hp.com/go/insightdynamics
HPC Interconnects
NOTE: High Performance Computing (HPC) interconnect technologies are available for this server
under the Cluster Platform product portfolio. These high-speed interconnects are fully supported by HP
when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility
with the help of configuration tools. Please visit the following URL to configure HPC Clusters with
InfiniBand or Gigabit Ethernet Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html
PCI-Express adapters
InfiniBand
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 10
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Optional Features
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise
Configurator
The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration, please contact HP's Customer Business
Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 11
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Service and Support
Service and Support
HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and
ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what
levels of support you may need. Our portfolio of service options reduce deployment and management
worries while helping you get the most out of your server and storage investments. We take a holistic
approach to your environment, bridging servers, blades, storage, software and network infrastructures
with our packaged HP Care Pack Services for servers and storage.
Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured
along with technology. Good news that can also create problems stemming from depending on
standard warranties designed to only protect against product defects and some downtime causes. Using
a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks
and provides operational consistency for mission-critical and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and storage warranties cost
effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold
separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides
a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical
Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and
technical services. HP Proactive Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options include offers for server,
storage, network, SAN device, software, environment and education services.
HP server and storage lifecycle support services offer a full spectrum of customer care-from technology
support to complex migrations to complete managed services. HP Factory Express provides
customization, integration and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most out of your server and storage
investments. HP Financial solutions extend innovative financing and cost-effective asset management
programs-from purchase to equipment retirement.
Learn more: www.hp.com/services/servers and www.hp.com/services/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 12
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Service and Support
Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the
system to help return the hardware to operating condition within 6 or 24 hours of the initial service
request to the HP Global Solution Center.
HP is committed to repairing your hardware within a maximum of six or twenty four hours. The benefits
include:
Improved system uptime
Predictable repair times
More effective IT resource planning
Consistent level of hardware support across your multi-technology systems
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized representative who will arrive
on site any time and day of the year to begin hardware maintenance service within 4 hours of the service
request being logged.
This service provides a trained HP service specialist to perform an installation that meets HP quality
standards, for:
Help improve or maintain system uptime
Convenient onsite support
Committed response time
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner.
Expedited installation, with all service prerequisites met before the installation is performed
Installation in accordance with manufacturer's specifications, enhancing the supportability of your
HP-installed hardware and software
Service delivery at a mutually scheduled time
Allows your IT resources to stay focused on their core tasks and priorities
Availability of an HP service specialist to answer questions during the onsite delivery of this service
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 13
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Service and Support
Optional HP Care Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Support Plus 24
As an alternative to our recommended support level, for customers who need access to responsive 24x7
hardware and software support plus software updates on HP and selected third party products:
For a higher return on your server and storage technology, our 3-year combined reactive support service
delivers integrated onsite hardware/software support services available 24x7x365, including access to
HP technical resources, 4-hour response onsite hardware support and software updates.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE
3-Year HP Proactive 24
As an alternative to our recommended support level, for customers who want enhanced operational
effectiveness and proactive problem identification:
Provides improved stability, availability and operational effectiveness with an integrated hardware and
software support service that combines industry-leading reactive technical assistance with proactive
account services, giving your IT manage support from a team of service specialists.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-1614ENUC
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
include
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 14
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Service and Support
X 7, so you can spend less time solving problems and more time focused on your business. You can
have your systems remotely monitored for hardware failure using secure technology that's been proven at
thousands of companies around the world. In many cases, you can avoid problems before they occur.
Customer Technical
Training
In today's cost-conscious business environment, IT professionals, developers, consultants and users face
an interesting challenge: how to keep up with the latest technologies and expand important skills while
delivering profitable results on current projects. To help address this challenge, HP offers innovative
training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix,
Microsoft® and open source/Linux-related topics-while spending less time away from business-critical
activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support excellence by customers,
partners, industry organizations and publications around the world. Recent honors and award reflect our
services team's dedications, technical expertise, professionalism and uncompromising commitment to
customer satisfaction.
Additional Services
Information
To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products,
please contact your HP sales representative or HP Authorized Channel Partner. Or visit:
www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 15
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Pre-configured Models
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options
section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be
shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this
QuickSpecs.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Base Rack Models
HP ProLiant DL370 G6
E5530 2.40GHz QuadCore SFF Base Rack
Server
487794-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Fans
Form Factor
Warranty
(1) Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 cache, 80W, DDR31066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) L3 cache
6GB (3 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
(1) HP 750W Common Slot High Efficiency Power Supply Kit (hot plug,
redundancy optional)
(3) Hot Plug Fans
4U Rack
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Performance Rack Models
HP ProLiant DL370 G6
Processor
X5650 2.66GHz Six-Core
SFF High Performance
Cache Memory
ICE Rack Server
Memory
595166-xx1
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Insight Control
DA - 13242
(2) Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 cache, 95W,
DDR3-1333, HT)
12MB L3 cache
12GB (6 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/1GB with FBWC
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
(2) HP 750W Common Slot High Efficiency Power Supply Kits (hot plug,
redundant)
HP Insight Control No Media single server license, including 1 year of 24x7
Technical Support and Updates
Worldwide — Version 28 — November 3, 2010
Page 16
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Pre-configured Models
Fans
Form Factor
Warranty
HP ProLiant DL370 G6
Processor
X5550 2.66GHz QuadCore SFF High
Cache Memory
Performance Rack Server
Memory
487790-xx1
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Fans
Form Factor
Warranty
HP ProLiant DL370 G6
X5550 2.66GHz QuadCore SFF Performance
ICE Rack Server
576411-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Insight Control
Fans
Form Factor
Warranty
DA - 13242
(5) Fully Redundant Hot Plug Fans
4U Rack
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
(2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 cache, 95W, DDR31333, HT, Turbo 2/2/3/3)
8MB (1 x 8MB) L3 cache
12GB (6 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/512MB with BBWC
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
(2) HP 750W Common Slot High Efficiency Power Supply Kits (hot plug,
redundant)
(5) Fully Redundant Hot Plug Fans
4U Rack
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
(2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 cache, 95W, DDR31333, HT, Turbo 2/2/3/3)
8MB (1 x 8MB) L3 cache
12GB (6 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/512MB with BBWC
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(2) HP 750W Common Slot High Efficiency Power Supply Kits (hot plug,
redundant)
HP Insight Control No Media single server license, including 1 year of 24x7
Technical Support and Updates
(5) Fully Redundant Hot Plug Fans
4U Rack
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Worldwide — Version 28 — November 3, 2010
Page 17
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Pre-configured Models
Base Tower Models
HP ProLiant ML370 G6
E5540 2.53GHz QuadCore SFF Base Tower
Server
487791-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Fans
Form Factor
Warranty
(1) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 cache, 80W, DDR31066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) L3 cache
6GB (3 x 2GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
(1) HP 750W Common Slot High Efficiency Power Supply Kit (hot plug,
redundancy optional)
(3) Hot Plug Fans
4U Tower
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Entry Tower Models
HP ProLiant ML370 G6
E5620 2.40GHz QuadCore SFF Entry Tower
Server
625591-xx1
Processor
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Fans
Form Factor
Warranty
HP ProLiant ML370 G6
E5520 2.26GHz QuadCore SFF Entry Tower
Server
Processor
Cache Memory
DA - 13242
(1) Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
12MB (1 x 12MB) L3 cache
4 GB (2 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
(1) HP 460W HE 12V Hot Plug AC Power Supply Kit (hot plug, redundancy
optional)
(3) Hot Plug Fans
4U Tower
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
(1) Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 cache, 80W, DDR31066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) L3 cache
Worldwide — Version 28 — November 3, 2010
Page 18
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Pre-configured Models
Server
487795-xx1
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
Power Supply
Fans
Form Factor
Warranty
Country Code Key
xx=00
xx=01
xx=03
xx=04
xx=05
xx=20
xx=29
xx=37
xx=42
xx=AA
DA - 13242
4 GB (2 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
NOTE: Total of 18 DIMM slots.
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
(1) HP 460W HE 12V Hot Plug AC Power Supply Kit (hot plug, redundancy
optional)
(3) Hot Plug Fans
4U Tower
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Tower Code Key
U.S.
Australia
UK
Germany
France
Brazil
Japan
A/P
Europe
PRC
Rack Code Key
U.S.
N/A
N/A
N/A
N/A
Brazil
Japan
A/P
Europe
PRC
Worldwide — Version 28 — November 3, 2010
Page 19
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on
configurable product offerings and requirements.
NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is only available as a factory installable option.
Step 1: Base Configuration (choose one of the following configurable models)
HP Models
HP ProLiant ML370 G6 Tower Models
HP ProLiant ML370 G6 SFF CTO Chassis
NOTE: Supports Small Form Factor (SFF) - 2.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor
HP ProLiant ML370 G6 Tower CTO Chassis
HP ProLiant ML370 G6 LFF CTO Chassis
NOTE: Supports Large Form Factor (LFF) - 3.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(6) Hot-Plug (LFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor
HP ProLiant DL370 G6 Rack Models
HP ProLiant DL370 G6 SFF CTO Chassis
NOTE: Supports Small Form Factor (SFF) - 2.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
4U Rack Form Factor
HP ProLiant DL370 G6 LFF CTO Chassis
NOTE: Supports Large Form Factor (LFF) - 3.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
DA - 13242
Worldwide — Version 28 — November 3, 2010
483880-B21
483879-B21
483874-B21
483873-B21
Page 20
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
HP Smart Array P410i/Zero Memory Controller
(6) Hot-Plug (LFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
4U Rack Form Factor
Step 2: Choose Required Options (only one of the following from each list)
HP Processors
NOTE: If High Performance Model features are desired, 2nd processor is included in
the Performance Pack part numbers in Step 3 below.
Six-Core Processors
HP ML/DL370 G6 Intel® Xeon® X5680 (3.33GHz/6-core/12MB/130W) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO
Processor Kit
Quad-Core Processors
HP ML/DL370 G6 Intel® Xeon® X5677 (3.46GHz/4-core/12MB/130W) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5667 (3.06 GHz/4-core/95W/12MB) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) FIO
Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO
Processor Kit
Intel® Xeon® W5580 3.20GHz Quad Core 130 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® X5570 2.93GHz Quad Core 95 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® X5560 2.80GHz Quad Core 95 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® X5550 2.66GHz Quad Core 95 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® E5540 2.53GHz Quad Core 80 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® E5530 2.40GHz Quad Core 80 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® E5520 2.26GHz Quad Core 80 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Intel® Xeon® E5506 2.13GHz Quad Core 80 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
DA - 13242
Worldwide — Version 28 — November 3, 2010
601320-L21
601321-L21
601322-L21
601323-L21
626957-L21
631740-L21
601324-L21
601325-L21
601326-L21
495928-L21
495930-L21
495932-L21
495934-L21
495936-L21
495938-L21
495940-L21
495942-L21
Page 21
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
HP Memory
HP Power Supplies
Intel® Xeon® E5504 2.0GHz Quad Core 80 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
HP ML/DL370 G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) FIO
Processor Kit
Intel® Xeon® L5520 2.26GHz Quad Core 60 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Dual-Core Processors
Intel® Xeon® E5502 1.86GHz Dual Core 80 Watts ML/DL370 G6 Factory
Integrated Processor Option Kit
Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low
Power Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
HP 8GB (1x8GB) Dual Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7
Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: PC3L is a low voltage memory.
CAUTION: Many HP ProLiant Servers now offer new power options, including
Common Slot Power Supplies. These power supplies come in multiple power ratings
DA - 13242
Worldwide — Version 28 — November 3, 2010
495944-L21
601328-L21
505511-L21
495946-L21
500656-B21
500658-B21
500660-B21
593339-B21
604504-B21
516423-B21
500662-B21
604506-B21
500666-B21
500668-B21
500670-B21
500672-B21
Page 22
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
and higher efficiency levels to offer Right-Size solutions to fit your configuration. This
provides improved power delivery and the advantage of reclaiming lost power. Prior
to making a power supply selection it is "highly recommended" that the "HP Power
Advisor" is run to determine the right size power supply for your server configuration.
The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor. In ProLiant
Servers that have more than one power slot (bay), only same size power supplies are
recommended. If non-matched power supplies are inserted you will get errors and
operation will fail.
HP 460W HE 12V Hot Plug AC Power Supply Kit
HP 750W Common Slot High Efficiency Power Supply Kit
HP 1200W 12V Hot Plug AC Power Supply
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
503296-B21
512327-B21
500172-B21
Step 3: Choose Additional Factory Integratable Options
HP Storage Controllers
HP Performance Packs
HP Insight Software
NOTE: If Additional Memory Cache Module or Controller is Required please pick one
of the following:
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller
HP Smart Array P410/256 2-ports Int PCIe x8 FIO SAS Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 FIO SAS Controller
HP Smart Array P812/1G FBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller
Optional Upgrades
NOTE: These Optional Upgrades are Supported on the Smart Array P410i Controller
only.
HP 256MB Factory Integrated P-Series Cache Module
HP 512MB P-Series Battery Backed Write Cache Upgrade
HP 512MB Flash Backed Write Cache
HP 1GB Flash Backed Cache
Performance Packs are necessary to configure a HP ProLiant DL370 G6 or a HP
ProLiant ML370 G6 to a High Performance Model which includes the latest
performance technologies and enterprise class availability features pre-installed for
convenience and value. The Performance Pack includes a 2nd processor, redundant
fans, power supply, and memory expansion board.
NOTE: Must also select 447326-B21 to achieve parity to DL370 G6 or ML370 G6
High Performance Models (Including the DL370 G6 Performance Model with ICE).
HP ML370 G6 X5650 HPM FIO Perf Kit
HP ML370 G6 and DL370 G6 X5550 HPM FIO Perf Kit
HP Insight Control suite, No Media 1-Server License Factory-Integratable Option
(FIO) including 1 year of 24x7 Technical Support and Updates
HP Insight Control for Linux, No Media 1-Server License Factory-Integratable Option
(FIO) including 1 year of 24x7 Technical Support and Updates
491191-B21
491195-B21
491193-B21
487204-B21
534108-B21
462967-B21
534916-B21
534562-B21
605555-B21
516727-B21
582765-B21
TC203A
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 23
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Core Options
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use
of an HP approved configurator. Contact your local sales representative for additional information.
(8) Small Form Factor (SFF) 2nd Drive Cage Kit
507803-B21
HP Unique Options
(6) Large Form Factor (LFF) Backplane Kit
507810-B21
(2) Large Form Factor (LFF) Drive Cage Kit
487936-B21
HP ML370 G6 Tower to Rack Conversion Kit
515031-B21
HP ML370 G6 and DL370 G6 Redundant Fan Kit
508107-B21
HP ML370 G6 and DL 370 G6 Graphic Card Adapter Kit
537721-B21
NOTE: An option kit will be required per Graphic Card)
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8
(electrical)
HP ML370 G6 and DL370 G6 PCI-X Riser Kit
516434-B21
NOTE: Customers purchasing the PCI-X Riser Kit, must also purchase the Redundant
Fan kit (508107-B21)
NOTE: PCI-X support is limited to PCI-X cards only
HP Processors
Six-Core Processors
HP ML/DL370 G6 Intel® Xeon® X5680 (3.33GHz/6-core/12MB/130W) Processor
Kit
HP ML/DL370 G6 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) Processor Kit
Quad-Core Processors
HP ML/DL370 G6 Intel® Xeon® X5677 (3.46GHz/4-core/12MB/130W/) Processor
Kit
HP ML370/DL370 G6 Intel® Xeon® X5667 (3.06GHz/4-core/12MB/95W)
Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® W5580 (3.20GHz/4-core/8MB/130W) Processor
Kit
HP ML/DL370 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) Processor Kit
HP ML/DL370 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit
Dual-Core Processors
DA - 13242
Worldwide — Version 28 — November 3, 2010
601320-B21
601321-B21
601322-B21
601323-B21
626957-B21
631740-B21
601324-B21
601325-B21
601326-B21
495928-B21
495930-B21
495932-B21
495934-B21
495936-B21
495938-B21
495940-B21
495942-B21
495944-B21
601328-B21
505511-B21
Page 24
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
HP ML/DL370 G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) Processor Kit
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low
Power Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
495946-B21
500656-B21
500658-B21
500660-B21
593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
HP 8GB (1x8GB) Dual Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7
Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
604504-B21
HP Optical Drives
HP Half-Height SATA DVD-ROM Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
HP Slim SATA DVD-ROM Optical Drive
HP Slim SATA DVD RW Optical Drive
447326-B21
447328-B21
481041-B21
481043-B21
HP Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
DA - 13242
Worldwide — Version 28 — November 3, 2010
516423-B21
500662-B21
604506-B21
500666-B21
500668-B21
500670-B21
500672-B21
Page 25
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Core Options
the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 300GB 3G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 3G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 3G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 72GB 3G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
DA - 13242
Worldwide — Version 28 — November 3, 2010
581286-B21
581284-B21
507127-B21
492620-B21
512547-B21
504062-B21
507125-B21
418367-B21
512545-B21
418371-B21
516828-B21
516816-B21
454232-B21
516814-B21
416127-B21
384854-B21
507610-B21
507616-B21
507614-B21
461137-B21
Page 26
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Core Options
HP 750GB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
461135-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html
(Worldwide)
454146-B21
458928-B21
DA - 13242
Worldwide — Version 28 — November 3, 2010
507750-B21
530888-B21
507632-B21
460355-B21
458924-B21
571230-B21
458945-B21
572071-B21
572073-B21
570761-B21
570763-B21
Page 27
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Core Options
HP Networking
Gigabit Ethernet adapters
HP NC112T PCIe Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server
Adapters allowed in this server.
HP NC365T 4-port Ethernet Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC375T PCI Express Quad Port Gigabit Server Adapter
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
10 Gigabit Ethernet adapters
NOTE: No more than two 10GbE I/O devices are supported in a single ProLiant
server.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately.
HP NC522SFP Dual Port 10GbE Gigabit Server Adapter
HP NC524SFP Dual Port 10GbE Server Adapter
HP NC550SFP Dual Port 10GbE Server Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs.
Smart-mini DIMM Module
HP 512MB DDR2 244P Mini DIMM Module Kit
NOTE: By plugging the Smart-mini DIMM Module to the HP NC375i Integrated
Quad Port Multifunction Gigabit Server Adapter, TCP/IP Offload Engine (TOE) for
Windows is enabled/supported.
HP I/O Expansion
Options
HP DL370 G6 2 Slot PCI-X Riser Kit
NOTE: Customers purchasing the PCI-X Riser Kit, must also purchase the Redundant
Fan kit (508107-B21)
NOTE: PCI-X support is limited to PCI-X cards only
DA - 13242
Worldwide — Version 28 — November 3, 2010
503746-B21
412648-B21
435508-B21
593722-B21
394793-B21
394791-B21
538696-B21
458492-B21
468332-B21
489892-B21
581201-B21
519808-B21
516434-B21
Page 28
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
HP Power Supplies
HP Cooling Options
CAUTION: Many HP ProLiant Servers now offer new power options, including
Common Slot Power Supplies. These power supplies come in multiple power ratings
and higher efficiency levels to offer Right-Size solutions to fit your configuration. This
provides improved power delivery and the advantage of reclaiming lost power. Prior
to making a power supply selection it is "highly recommended" that the "HP Power
Advisor" is run to determine the right size power supply for your server configuration.
The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor. In ProLiant
Servers that have more than one power slot (bay), only same size power supplies are
recommended. If non-matched power supplies are inserted you will get errors and
operation will fail.
HP 460W HE 12V Hot Plug AC Power Supply Kit
HP 750W Common Slot High Efficiency Power Supply Kit
503296-B21
512327-B21
HP 1200W 12V Hot Plug AC Power Supply
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
500172-B21
HP ML370 G6 and DL370 G6 Redundant Fan Kit
508107-B21
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 29
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use
of an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software
HP Insight Control
HP Insight Control, Single-Server License including 1 year of 24x7 Technical Support
452148-B22
and Updates
HP Insight Control suite, No Media, Electronic License including 1 year of 24x7
T9074BAE
Technical Support and Updates
HP Insight Control, Electronic License for bundling with ProLiant ML/DL server,
TC278AAE
including 1 year of 24x7 Technical Support and Updates
HP Insight Control, Tracking License for bundling with ProLiant ML/DL server,
TC275A
including 1 year of 24x7 Technical Support and Updates
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains HP Systems Insight
Manager, HP Insight Control, HP Insight Dynamics, HP Insight Control for Microsoft
System Center, and Virtual Connect Enterprise Manager software. Uses an integrated
installer to perform quick and accurate software installation and updates.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update
Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical
Support and Updates, Electronic
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7
Technical Support and Updates
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP
Systems Insight Manager, HP Insight Control power management, HP Insight Control
virtual machine management, and an integrated installer. Servers must be acquired
separately.
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click
on Download button).
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see
the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
DA - 13242
Worldwide — Version 28 — November 3, 2010
436222-B21
TC213AAE
TC209A
TC208A
Page 30
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP Integrated Lights-Out (iLO) Advanced
HP Integrated Lights-Out Advanced, No Media, 1-Server License, including 1 year of
24x7 Technical Support and Updates
HP ProLiant Essentials Integrated Lights-Out Advanced Pack, Electronic, including 1
year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via HP iLO
Advanced. Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or via fax in
order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software
Technical Support Service
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: For additional license kits, including electronic delivery options, please see the
QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
HP Insight Control server deployment
HP Insight Control server deployment Electronic License including 1 year 24x7
Technical Support and Updates
HP Insight Control server deployment 1-Server License including 1 year 24x7
Technical Support and Updates
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered
separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
512485-B21
TA850AAE
T9082AAE
452151-B21
HP Drive Cage Options
(8) Small Form Factor (SFF) 2nd Drive Cage Kit
(6) Large Form Factor (LFF) Backplane Kit
(2) Large Form Factor (LFF) Drive Cage Kit
507803-B21
507810-B21
487936-B21
HP Graphic Options
HP ML370 G6 and DL370 G6 Graphic Card Cable Kit
NOTE: An option kit will be required per Graphic Card.
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8
(electrical)
537721-B21
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 31
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP I/O Accelerator
Options
HP 160GB SLC PCIe ioDrive
NOTE: A low-profile PCI bracket is included for use in low-profile slots.
HP 320GB MLC PCIe ioDrive
NOTE: A low-profile PCI bracket is included for use in low-profile slots.
HP 320GB SLC PCIe ioDrive Duo
HP 640GB MLC PCIe ioDrive Duo
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13587_div/13587_div.html
(Worldwide)
600278-B21
HP Security - TPM
HP Trusted Platform Module Option Kit
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM
deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or loosing the key could result in data loss.
488069-B21
HP Storage Controllers
SAS Controllers
Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller
HP Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller
HP Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller
HP Smart Array P411 Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller
DA - 13242
Worldwide — Version 28 — November 3, 2010
600279-B21
600281-B21
600282-B21
381513-B21
462828-B21
462834-B21
462862-B21
462864-B21
578230-B21
572532-B21
462830-B21
462832-B21
578229-B21
572531-B21
487204-B21
Page 32
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
Optional Upgrades
NOTE: These Optional Upgrades are Supported on the Smart Array P410i Controller
only.
HP 256MB P-series Cache Upgrade
HP 512MB P-Series Battery Backed Write Cache Upgrade
HP 512MB Flash Backed Write Cache
HP 1GB Flash Backed Cache
HP 8484 to Mini SAS 33in Cable Assembly
NOTE: Cable for use connecting the Smart Array P800 Controller to internal hard
disk drives on select HP ProLiant G6 Servers.
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates
Single Server License
NOTE: This part number can be used to purchase a single license or to order multiple
licenses with a single activation key. Customers will receive a license entitlement
certificate via e-mail. The license entitlement certificate must be redeemed online or
via fax in order to obtain the license activation key(s). Include one year of 24x7 HP
Software Technical Support Services.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)
SAS Controller Options
HP 24 Bay 3Gb SAS Expander Card
NOTE: For use with the additional 8 SFF drive cage (507803-B21).
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13232_div/13232_div.html
(SAS Expander Card)
SAS HBA
HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: This is a 2 x4 External Port HBA
NOTE: This is only approved for the HP StorageWorks P2000 G3 SAS Modular Smart
Array.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html
(SC08Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/13651_div/13651_div.html
(SC08e 6Gb HBA)
DA - 13242
Worldwide — Version 28 — November 3, 2010
462968-B21
462967-B21
534916-B21
534562-B21
591734-B21
516471-B21
468406-B21
488765-B21
614988-B21
Page 33
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP Power Cords
NOTE: HP ProLiant servers ships with an IEC-IEC power cord used for rack mounting
with Power Distribution Units (PDUs).
Nema 5-15P to IEC320-C13, North America low voltage (6 ft/2 m)
Power Cord, Euro, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, UK, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, Danish, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, Swiss, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, Italian, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, South Africa, 10A 250 V Straight (8.2 ft/2.5 m)
HP Backup & Recovery
Software
HP Data Protector Express
HP Data Protector Express 5.0 for 1 Server
HP Data Protector Express 5.0 for 3 Servers
HP Data Protector Express 5.0 for 10 Servers
HP Data Protector Express 5.0 for 1 Server Upgrade from HP Data Protector Express
Basic
NOTE: One of these Data Protector Express base products is required. To see
available options: http://www.hp.com/go/dataprotectorexpress
HP Tape Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries
and media see: http://www.hp.com/go/tape. For hardware and software compatibility
of HP StorageWorks tape backup products see: http://www.hp.com/go/connect.
DAT 160 USB Internal Tape Drive
HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE: For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount
Kit (AG576B). No peripheral bay available for installation into the server. Connection
using HP P212 SAS Smart Array Controller (462828-B21) recommended.
HP StorageWorks LTO-5 Ultrium 3000 SAS External Tape Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation.
Connection using HP P212 SAS Smart Array Controller (462828-B21) recommended.
HP StorageWorks DAT 320 USB Internal Tape Drive
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP StorageWorks Ultrium 448 SAS Internal
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
DA - 13242
Worldwide — Version 28 — November 3, 2010
AF556A
AF568A
AF570A
AF566A
AF565A
AF571A
AF567A
TC330AAE
TC331AAE
TC332AAE
TC333AAE
Q1580A
Q1587A
EH958A
AK377A
AJ825A
AJ830A
DW085A
EH847A
Page 34
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP StorageWorks LTO-4 Ultrium 1840 SAS External WW Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP StorageWorks LTO-5 Ultrium 3280 Internal Tape Drive
NOTE: For installation into 3U SAS rack kit (AG576B). No peripheral bay available
for installation into the server. Connection using HP P212 SAS Smart Array Controller
(462828-B21) recommended.
HP StorageWorks LTO-5 Ultrium 3000 SAS Internal Tape Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP StorageWorks 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation.
Connection using HP P212 SAS Smart Array Controller (462828-B21) recommended.
HP StorageWorks MSL2024 Tape Library with one LTO-5 Ultrium 3000 SAS Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP MSL2024 1 LTO-4 Ultr 1760 SAS Library
HP StorageWorks MSL4048 Tape Library with one LTO-5 Ultrium 3000 SAS Drive
NOTE: Connection using HP P212 SAS Smart Array Controller (462828-B21)
recommended.
HP MSL4048 2 LTO-4 Ultr 1760 SAS Library
HP Disk Backup
NOTE: For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and
media see: http://www.hp.com/go/rdx. For hardware and software compatibility of
HP StorageWorks disk backup products see: http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE: 1.5TB of useable network disk backup capacity. Network connected appliance
with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI
initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of useable network disk backup capacity. Network connected appliance
with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI
initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
HP StorageWorks D2D4112fc Backup System
NOTE: 9.0TB (expandable to 18.0TB) of useable network disk backup capacity. Fibre
Channel SAN connected appliance. Direct server attach is not supported, requires
connection via SAN fabric.
HP StorageWorks RDX Removable Disk Backup Systems USB
HP StorageWorks RDX160 Internal Removable Disk Backup System
DA - 13242
Worldwide — Version 28 — November 3, 2010
EH919A
EH861A
EH899A
EH957A
BL536A
BL537A
AK378A
BL538A
AK380A
EJ001B
EJ002B
EH993B
AJ765A
Page 35
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 320GB of disk capacity per data
cartridge.
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 500GB of disk capacity per data
cartridge.
HP StorageWorks RDX750 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 750GB of disk capacity per data
cartridge.
HP StorageWorks
Options
StorageWorks Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and
Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP StorageWorks 81B PCI-e FC HBA Single Port
HP StorageWorks 82B PCI-e FC HBA Dual Port
HP StorageWorks 41B 4Gb PCI-e FC HBA
HP StorageWorks 42B 4Gb Dual-Port PCI-e FC HBA
Emulex Fibre Channel HBAs
HP StorageWorks 81E PCI-e FC HBA Single Port
HP StorageWorks 82E PCI-e FC HBA Dual Port
HP StorageWorks FC2142 4Gb PCI-e HBA
HP StorageWorks FC2242 Dual Channel 4Gb PCI-e HBA
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e FC HBA Single Port
HP StorageWorks 82Q PCI-e FC HBA Dual Port
HP StorageWorks FC1142 4Gb PCI-e HBA
HP StorageWorks FC1242 Dual Channel 4Gb PCI-e HBA
StorageWorks Converged Network Adapter
HP CN1000E 2P Converged Network Adapter
DA - 13242
Worldwide — Version 28 — November 3, 2010
AJ767A
AJ934A
AW577A
AP769A
AP770A
AP767A
AP768A
AJ762A
AJ763A
A8002A
A8003A
AK344A
AJ764A
AE311A
AE312A
AW520A
Page 36
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP Disk Storage Systems MSA SAN Storage Arrays
HP StorageWorks 60 Modular Smart Array
NOTE: Supports 12 SFF drives, and SAS 3 Gb/s and SATA 3 Gb/s.
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html
(Worldwide)
HP StorageWorks 70 Modular Smart Array
NOTE: Supports 25 SFF drives, and SAS 3 Gb/s and SATA 3 Gb/s.
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html
(Worldwide)
Disk Enclosures
HP StorageWorks D2600 Disk Enclosure
HP StorageWorks D2700 Disk Enclosure
NOTE: Please see the QuickSpecs for additional information including configuration
steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html
(Worldwide)
HP Uninterruptible Power HP Tower UPS
Systems
HP T1000 G3 UPS Models
HP T1000 G3 UPS, NA
HP T1000 G3 UPS, INTL
HP T1000J UPS, Japan
HP T1500 G3 UPS Models
HP T1500 G3 UPS, NA
HP T1500 G3 UPS, INTL
HP T1500J UPS, Japan
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html
(Worldwide)
HP Rack-mountable UPS
HP R1500 G2 UPS
HP, R1.5kVA UPS, 1U, NA
HP, R1.5kVA UPS, 1U, INTL
HP, R1.5kVA UPS, 1U, JPN/TW
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html
(Worldwide)
NOTE: For additional information on HP Uninterruptible Power Systems please go to:
www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.
DA - 13242
Worldwide — Version 28 — November 3, 2010
418408-B21
418800-B21
AJ940A
AJ941A
AF448A
AF449A
AF457A
AF450A
AF451A
AF458A
AF419A
AF418A
AF421A
Page 37
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link.
That link will list cable descriptions, requirements, and specifications for UPS and PDU
units. Please see the following link: www.hp.com/products/powercords.
HP Power Distribution
Units
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)
HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)
NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)
Modular Power Distribution Units 1U/0U (Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and
9000 series racks).
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)
(NA, Japan)
8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)
HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC)
(Int'l)
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC)
(WW)
NOTE: This PDU has a detachable input power cord and allows for adaptability to
country specific power requirements.
NOTE: Please see the following QuickSpecs for additional options including shorter
jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html
(Worldwide)
NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu.
Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link.
That link will list cable descriptions, requirements, and specifications for UPS and PDU
units. Please see the following link: www.hp.com/products/powercords.
DA - 13242
Worldwide — Version 28 — November 3, 2010
AF914A
AF915A
252663-D72
252663-D73
252663-B31
252663-B24
Page 38
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP Rack Series
HP Rack Options
HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment
installed.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets and Telco Rack support,
please see the following URL: http://www.hp.com/go/rackandpower.
NOTE: The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series Racks
provide enhanced airflow for maximum cooling, allowing these racks to be fully
loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements
to ensure adequate airflow and to prevent damage to the equipment: Front and rear
doors: If your 42U server rack includes closing front and rear doors, you must allow
830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to
permit adequate airflow (equivalent to the required 64 percent open area for
ventilation). Side: The clearance between the installed rack component and the side
panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel Uspaces in the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide or the
Documentation CD provided with the server, or to the server documentation located
in the Support section at the following URL: www.hp.com/servers/ml370-g6.
Quick deploy rail system provides tool-free support for racks with square or round
mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with
an adjustment range of 24" - 36". The ambidextrous cable management arm can be
mounted on either the left or right side for improved cable management.
Keyboards and Monitors
HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor
DA - 13242
Worldwide — Version 28 — November 3, 2010
AF001A
AF002A
AZ870A
AZ871A
AZ872A
AZ873A
AZ874A
AZ875A
AZ876A
AZ877A
AZ878A
AZ879A
AZ880A
AZ881A
Page 39
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html
(Worldwide)
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
TFT7600 Rackmount Keyboard Monitor GR
TFT7600 Rackmount Keyboard Monitor FR
TFT7600 Rackmount Keyboard Monitor IT
TFT7600 Rackmount Keyboard Monitor SP
TFT7600 Rackmount Keyboard Monitor DEN
TFT7600 Rackmount Keyboard Monitor NOR
TFT7600 Rackmount Keyboard Monitor SE/FI
TFT7600 Rackmount Keyboard Monitor SWI
TFT7600 Rackmount Keyboard Monitor PORT
TFT7600 Rackmount Keyboard Monitor BEL
TFT7600 Rackmount Keyboard Monitor JPN2
TFT7600 Rackmount Keyboard Monitor RUS
TFT7600 Rackmount Keyboard Monitor INTL
HP TAA TFT7600 US Rkmntkybd 17in Monitor
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12417_div/12417_div.html
(Worldwide)
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
1U Rackmount Keyboard with USB, GR
1U Rackmount Keyboard with USB, FR
1U Rackmount Keyboard with USB, ITL
1U Rackmount Keyboard with USB, SP
1U Rackmount Keyboard with USB, NOR
1U Rackmount Keyboard with USB, SE/FI
1U Rackmount Keyboard with USB, SWI
1U Rackmount Keyboard with USB, PORT
1U Rackmount Keyboard with USB, BEL
1U Rackmount Keyboard with USB, JPN2
1U Rackmount Keyboard with USB, RUS
1U Rackmount Keyboard with USB, INTL
DA - 13242
Worldwide — Version 28 — November 3, 2010
AZ882A
AZ883A
AZ884A
AZ885A
AG052A
AG053A
AG054A
AG055A
AG056A
AG057A
AG058A
AG059A
AG060A
AG061A
AG062A
AG063A
AG064A
AG065A
AG066A
AG067A
AG072A
AG073A
AG074A
AG075A
AG076A
AG077A
AG079A
AG080A
AG081A
AG082A
AG083A
AG084A
AG085A
AG086A
Page 40
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12465_div/12465_div.html
(Worldwide)
HP Server Console Switches
HP Server console switch 0x2x8
HP Server console switch 0x2x16
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html
(Worldwide)
HP Server Console Switch G2 with Virtual Media & CAC
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html
(Worldwide)
HP IP Console Switch G2 with Virtual Media & CAC
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)
Rack Kits
HP ML370G6 Tower to Rack Conversion Kit
HP USB and SD Options HP USB 2-Button Optical Scroll Mouse
HP Standard USB Keyboard US
HP 4GB SD Flash Media Kit
NOTE: Blank SD media device is supported for use with VMware and Citrix. SD
media must be installed in the internal slot of the ProLiant server. Learn more at:
http://www.hp.com/go/proliantvirtualization.
HP 2GB USB Flash Media Drive Key
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software like SmartStart.
HP recommends this industry standard USB flash device for use with VMware ESXi.
USB device must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
DA - 13242
Worldwide — Version 28 — November 3, 2010
AF616A
AF617A
AF618A
AF619A
AF620A
AF621A
AF622A
515031-B21
DC172B
DT528A#ABA
580387-B21
608447-B21
Page 41
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP Care Pack Services
HP ProLiant ML370 G6 Service & Support Offerings
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Installation & Start-up Services
Hardware Installation, Electronic
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the
Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am5pm, M-F, excl. HP holidays, Electronic
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech
support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP
holidays, Electronic
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
HP ProLiant DL370 G6 Service & Support Offerings
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Installation & Start-up Services
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/services/carepack.
DA - 13242
Worldwide — Version 28 — November 3, 2010
U4528E
U4529E
U4530E
U4538E
U4539E
U4540E
U4541E
U6311E
UM752E
UM753E
UM754E
UM763E
UM764E
Page 42
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL370 G6 Models
HP ProLiant ML370 G6 Models
DDR3 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Some DIMM installation guidelines are summarized below:
For servers with eighteen (18) memory slots:
There are three (3) channels per processor; six (6) channels per server
There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
To maximize performance, balance the total memory capacity between all installed processors
It is not required, but it is recommended to load the channels similarly if possible
If any Quad rank DIMMs are installed, all channels are limited to only 2 DIMMs per channel.
You can only install two quad-rank DIMMs per channel
You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots
will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
Low Voltage DIMMs can only be used with the Intel® Xeon® processors 5600 series
If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of
supporting 1.5V operations
DIMM slot/capacity/populated speed table
Registered DIMMS
(RDIMMs)
DIMM Type
DIMM Rank
Single
Rank (1R)
DIMM Capacity
4G
DIMM Native Speed
1333
(MHz)
Voltage
LV/Reg
18 slot servers
2GB
1333
Reg
Dual Rank (2R)
4GB
8GB
1333
1066
Reg
Reg
8GB
1333
Quad Rank (4R)
4GB
16GB
1066
1066
Unbuffered with ECC DIMMs
(UDIMMs)
Single
Rank (1R)
Dual Rank (2R)
1GB
2GB
4GB
1333
1333
1333
LV/Reg
Reg
Reg
Reg
Reg
Reg
SLOTS THAT CAN BE POPULATED
18
18
18
18
18
12
12
12
12
12
MAXIMUM CAPACITY (GB)
72
36
72
144
48
192
12
24
48
144
POPULATED DIMM SPEED (MHz)
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 43
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
1 DIMM Per Channel 1333
1333
1333
1066
1333
2 DIMM Per Channel 1333*
1333*
1333*
1066
1333*
3 DIMM Per Channel 800
800
800
800
800
* Supported with ROM update via ROM Based Setup Utility (RBSU)
NOTES:
1066
800
n/a
1066
800
n/a
1333
1066
n/a
1333
1066
n/a
1333
1066
n/a
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz
Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the
slower DIMM is on the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other
channels, the maximum speed will be 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
Maximum memory speed will also depend on the processor
References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second, "C" third, etc.
Chnl 1
slot #
1
2
3
18 DIMM SLOTS (9 per CPU node)
CPU1
CPU2
population order
slot #
population order
G
1
G
D
2
D
A
3
A
Chnl 1
Chnl 2
4
5
6
H
E
B
4
5
6
H
E
B
Chnl 2
Chnl 3
7
8
9
I
F
C
7
8
9
I
F
C
Chnl 3
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 44
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; empty
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; empty
E; empty
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; empty
F; empty
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory plus optional memory (1 CPU model)
54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
3x 2GB dual-rank PC3-10600 RDIMMs
6x 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration
72GB, consisting of nine (9) 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 45
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C:8GB DIMM
7
8
9
I; empty
F; empty
C:empty
Chnl 3
UDIMM maximum configuration (1 CPU model)
24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 4GB DIMM
A; 4GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; empty
E; 4GB DIMM
B; 4GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; empty
F; 4GB DIMM
C; 4GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration
192GB, consisting of twelve (12) 16GB Quad-Rank PC3-8500 RDIMMs
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 46
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 16GB DIMM
A; 16GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; 16GB DIMM
A; 16GB DIMM
Chnl 1
Chnl 2
4
5
6
H; empty
E; 16GB DIMM
B; 16GB DIMM
4
5
6
H; empty
E; 16GB DIMM
B; 16GB DIMM
Chnl 2
Chnl 3
7
8
9
I; empty
F; 16GB DIMM
C; 16GB DIMM
7
8
9
I; empty
F; 16GB DIMM
C; 16GB DIMM
Chnl 3
UDIMM maximum configuration (2 CPU model)
48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 4GB DIMM
A; 4GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; 4GB DIMM
A; 4GB DIMM
Chnl 1
Chnl 2
4
5
6
H; empty
E; 4GB DIMM
B; 4GB DIMM
4
5
6
H; empty
E; 4GB DIMM
B; 4GB DIMM
Chnl 2
Chnl 3
7
8
9
I; empty
F; 4GB DIMM
C; 4GB DIMM
7
8
9
I; empty
F; 4GB DIMM
C; 4GB DIMM
Chnl 3
NOTE: Capacity references are rounded to the common Gigabyte values.
1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
16GB = 16384MB
DDR3 memory options part number decoder
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 47
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Memory
Following are memory options available from HP:
Registered DIMMs (RDIMMs)
HP Memory
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low
Power Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
HP 8GB (1x8GB) Dual Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7
Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
DA - 13242
Worldwide — Version 28 — November 3, 2010
500656-B21
500658-B21
500660-B21
593339-B21
604504-B21
516423-B21
500662-B21
604506-B21
500666-B21
500668-B21
500670-B21
500672-B21
Page 48
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Memory
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 49
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
A
Removable media bay
B
SATA DVD-ROM Drive (Standard in all BTO Models)
C
Optical Drive (blank)
1-8
Eight SFF SAS/SATA HDD Bays (Standard in all BTO
Models)
A
Removable media bay
B
SATA DVD-ROM Drive (Standard in all BTO Models)
C
Optical Drive (blank)
1-8
Eight SFF SAS/SATA HDD Bays (Standard in all BTO
Models)
1-24 Twenty-four small form factor (SFF) hot-plug drive bays
to support Serial-attached SCSI (SAS) and Serial ATA
(SATA) drives with optional drive cages (up to three 8
SFF drive cage can be installed)
1-14 Fourteen large form factor (LFF) hot-plug drive bays to
support Serial-attached SCSI (SAS) and Serial ATA
(SATA) drives with optional drive cages
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 50
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
Drive Support
Removable Media
Half-Height SATA DVDROM Optical Drive
Half-Height SATA DVD
RW Optical Drive
HP Slim SATA DVD-ROM
Optical Drive
HP Slim SATA DVD RW
Optical Drive
Quantity
Supported
Position
Supported
Up to 2
A, B
Integrated IDE
Up to 2
A, B
Integrated IDE
1
NOTE: Also
please use if the
3 drive cage is
populated
1
NOTE: Also
please use if the
3 drive cage is
populated
C
Integrated IDE
C
Integrated IDE
Controller
Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should
operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
Quantity
Position
Supported
Supported
Controller
600GB 6G SAS 10K DP
Up to 24
1-8
HP Smart Array P800/512 BBWC Controller
450GB 6G SAS 10K DP
1-24
HP Smart Array P212/Zero Memory Controller
300GB 6G SAS 10K DP
HP Smart Array P212/ 256 MB Controller
300GB 3G SAS 10K DP
HP Smart Array P410/256 MB Controller
146GB 6G SAS 15K DP
HP Smart Array P410/512 MB BBWC Controller
146GB 3G SAS 15K DP
HP Smart Array P410/512 MB FBWC Controller
146GB 6G SAS 10K DP
HP Smart Array P410/1G FBWC Controller
146GB 3G SAS 10K DP
HP Smart Array P411/256 MB Controller
72GB 6G SAS 15K DP
HP Smart Array P411/512 MB BBWC Controller
72GB 3G SAS 15K DP
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
Quantity
Position
Supported
Supported
600GB 6G SAS 15K DP
Up to 14
1-14
450GB 6G SAS 15K DP
DA - 13242
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
Worldwide — Version 28 — November 3, 2010
Page 51
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
450GB 3G SAS 15K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
500GB 6G SAS 7.2K DP
Up to 14
1-14
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
HP 2TB 6G SAS 7.2K
Up to 14
1-14
HP 1TB 6G SAS 7.2K
1TB 3G SAS 7.2K DP
750GB 3G SAS 7.2K DP
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
500GB 3G SATA 7.2K
Up to 24
1-8
160GB 3G SATA 7.2K
1-24
DA - 13242
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
Worldwide — Version 28 — November 3, 2010
Page 52
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
2TB 3G SATA 7.2K
Up to 14
1-14
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives
Quantity
Position
Supported
Supported
250GB 3G SATA 5.4K
Up to 24
1-8
120GB 1.5G SATA 5.4K
1-24
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
Quantity
Position
Supported
Supported
250GB 3G SATA 7.2K
Up to 14
1-14
160GB 3G SATA 7.2K
DA - 13242
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
Worldwide — Version 28 — November 3, 2010
Page 53
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
SATA Hot Plug Midline (MDL) Solid State Drives
Quantity
Position
Supported
Supported
60GB 3.0G SATA SSD
Up to 24
1-8
120GB 3.0G SATA SSD
1-24
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
Quantity
Position
Supported
Supported
60GB 3.0G SATA SSD
Up to 14
1-14
120GB 3.0G SATA SSD
DA - 13242
Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Worldwide — Version 28 — November 3, 2010
Page 54
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
External Storage
Quantity
Supported
Up to 4
Up to 8
Position
Supported
External
70 Modular Smart Array
Up to 2
Up to 4
External
D2600 Disk Enclosure
Up to 4
Up to 8
External
D2700 Disk Enclosure
Up to 2
Up to 4
External
60 Modular Smart Array
Host Controller or Adapter
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Tape and Disk Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models,
see: http://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software
compatibility of HP StorageWorks disk and tape backup products see: http://www.hp.com/go/connect.
HP StorageWorks SCSI
Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
Position
Supported
Internal or
External
Controller
HP U320e SCSI Dual Channel Controller
DA - 13242
Worldwide — Version 28 — November 3, 2010
Part Number
AH627A
Page 55
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks USB
Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
Internal or
External
USB 2.0 Port
N/A
HP StorageWorks USB
Rack Mount Kits
1U USB Rack-Mount Kit
External
USB 2.0 Port
USB 2.0 Port
HP StorageWorks SAS
Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
Internal or
External
HP P212 SAS Smart Array Controller
462828-B21
HP StorageWorks SAS
Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP StorageWorks SCSI
Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP StorageWorks SCSI
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
HP StorageWorks SAS
Tape Autoloaders and
External
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP P212 SAS Smart Array Controller
462828-B21
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP U320e SCSI Dual Channel Controller
AH627A
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP U320e SCSI Dual Channel Controller
AH627A
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP P212 SAS Smart Array Controller
DA - 13242
Worldwide — Version 28 — November 3, 2010
462828-B21
Page 56
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
NOTE: Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks Fibre
Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs for connectivity information and the
supported Fibre Channel HBAs shown in this QuickSpecs.
N/A
HP StorageWorks USB
RDX Removable Disk
Backup System
RDX160
RDX320
RDX500
RDX750
Internal or
External
USB 2.0 port
N/A
HP StorageWorks D2D
Backup Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If the server requires a hardware
iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
N/A
HP StorageWorks D2D
Backup Systems, Fibre
Channel
D2D4000fc
External
Direct server attach is not supported, requires connection via SAN
fabric. See: http://www.hp.com/go/connect
N/A
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 57
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Power Specifications
HP 460W HE 12V Hot Plug AC Power Supply Kit
Part Number
Input Voltage Range ( V rms )
Frequency Range (Nominal) ( Hz )
Nominal Input Voltage ( Vrms )
Maximum Rated Output Wattage Rating
Nominal Input Current ( A rms )
Maximum Rated Input Wattage Rating ( Watts )
Maximum Rated VA ( Volt-Amp )
Efficiency ( % )
Power Factor
Leakage Current ( mA )
Maximum Inrush Current ( A peak )
Maximum Inrush Current duration ( mS )
Maximum British Thermal Unit Rating ( BTU-Hr )
503296-B21
100 to 240
50/60
100
460
5.5
526
548
87.5
120
460
4.5
520
542
88.5
200
460
2.6
505
527
91
0.42
0.50
0.83
1794
1773
1725
HP 750W Common Slot High Efficiency Power Supply Kit
Part Number
512327-B21
Input Voltage Range ( V rms )
100 to 240
Frequency Range (Nominal) ( Hz )
50/60
Nominal Input Voltage ( Vrms )
100
120
Maximum Rated Output Wattage Rating
750
750
Nominal Input Current ( A rms )
8.9
7.4
Maximum Rated Input Wattage Rating ( Watts )
857
847
Maximum Rated VA ( Volt-Amp )
894
884
Efficiency ( % )
87.5
88.5
Power Factor
Leakage Current ( mA )
0.42
0.50
Maximum Inrush Current ( A peak )
Maximum Inrush Current duration ( mS )
Maximum British Thermal Unit Rating ( BTU-Hr )
2925
2892
DA - 13242
200
750
4.3
824
859
91
0.83
2812
208
460
2.5
505
527
91
0.97
0.87
30
20
1725
208
750
4.1
824
854
91
0.97
0.87
30
20
2812
Worldwide — Version 28 — November 3, 2010
220
460
2.4
503
524
91.5
230
460
2.3
503
524
91.5
240
460
2.2
503
524
91.5
0.92
0.96
1.00
1715
1715
1715
220
750
3.9
820
854
91.5
230
750
3.7
820
854
91.5
240
750
3.6
820
91.5
0.92
0.96
1.00
2797
2797
2797
Page 58
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Power Specifications
HP 1200W 12V Hot Plug AC Power Supply
Part Number
Input Voltage Range ( V rms )
Frequency Range (Nominal) ( Hz )
Nominal Input Voltage ( Vrms )
Maximum Rated Output Wattage Rating
Nominal Input Current ( A rms )
Maximum Rated Input Wattage Rating ( Watts )
Maximum Rated VA ( Volt-Amp )
Efficiency ( % )
Power Factor
Leakage Current ( mA )
Maximum Inrush Current ( A peak )
Maximum Inrush Current duration ( mS )
Maximum British Thermal Unit Rating ( BTU-Hr )
500172-B21
100 to 240
50/60
100
120
800
900
9.7
9.0
930
1034
970
1079
86
87
200
1200
7.0
1348
1406
89
0.42
0.50
0.83
3174
3530
4600
208
1200
6.8
1348
1406
89
0.97
0.87
30
20
4600
220
1200
6.4
1348
1406
89
230
1200
6.1
1348
1406
89
240
1200
5.9
1348
1406
89
0.92
0.96
1.00
4600
4600
4600
To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at
URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL370 G6 or ML370 G6
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 59
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
System Unit
Tower Dimensions
(H x W x D) (with bezel)
Rack Dimensions
(H x W x D) (with bezel)
Tower Weight
(approximate)
Rack Weight
(approximate)
Input Requirements
(per power supply)
BTU Rating
Power Specifications
18.52 x 9.75 x 29.12 in (47.04 x 24.77 x 73..96 cm)
6.88 x 19.03 x 27.53 in (17.48 x 48.34 x 69.93 cm)
Maximum
(All hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Maximum
(All hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Rated Line Voltage
99.2 lb (45.00 kg)
66.14 lb (30.00 kg)
85.91 lb (38.97 kg)
52.90 lb (24.00 kg)
90 - 132 VAC,
180 - 264 VAC
Rated Input Current
7.5A (at 100 VAC),
3.8A (at 200 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
980W (at 100 VAC)
1035W (at 120 VAC)
1170W (at 240 VAC)
Maximum
460W - 1773 BTU / hr (at 120 VAC), 1715 (at
240 VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at
240 VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600 (at
240 VAC)
To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at URL: www.hp.com/go/proliantenergy-efficient
- Click on the system of interest. Example: DL370 G6 or ML370 G6
- Follow the instructions of the next screens.
Power Supply Output
Rated Steady-State Power 460 W (at 100 VAC)
(per power supply)
Maximum Peak Power
460 W (at 200 VAC)
460 W (at 100 VAC)
460 W (at 200 VAC)
NOTE: See Power Supply Specifications tables
for complete details on 460W PSU and optional
750W and 1200W Power Supply Options.
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 60
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
Emissions Classification
(EMC)
DA - 13242
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
10 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions
were measured in accordance with ISO 7779 (ECMA 74) and declared in
accordance with ISO 9296 (ECMA 109).
Idle
L WAd
4.6 B for 1P Non-Redundant; 4.9 B for 2P
Redundant
L pAm
28 dB for 1P Non-Redundant; 31 dB for 2P
Redundant
Operating
L WAd
4.7 B for 1P Non-Redundant; 5.0 B for 2P
Redundant
L pAm
29 dB for 1P Non-Redundant; 32 dB for 2P
Redundant
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
FCC Rating
Class B
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; CNS13438; GB9254;
K22;K24; EN 61000-3-2; EN 61000-3-3; EN
60950-1; IEC 60950-1
Worldwide — Version 28 — November 3, 2010
Page 61
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements.
Smart Array P410i
Controller
Dimensions
(not including bracket)
Disk Drive and Enclosure
Interface - Transfer rate
Low Profile PCIe Form Factor
7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal (Mini-SAS) x8 wide port connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s
maximum bandwidth.
Server Interface
x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth
SAS Speed
x8 3G SAS provides 2.4GB/s maximum bandwidth
Cache Memory
40-bit 256MB ECC protected cache (72-bit 512MB BBWC module
upgrades available); transportable with battery-backed upgrade
Logical Drives Supported Up to 64 logical drives
Maximum Logical Drive Greater than 2TB
Capacity
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID 6, 6+0 (Advanced Data Guarding)
RAID Support
NOTE: The minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade is required to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data Guarding)
NOTE: The 256MB upgrade is required to enable RAID 5 support on the
Smart Array P410i.
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware with recovery ROM feature
Upgradeable Firmware
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 62
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
NC375i Integrated Quad Network Interface
Port Multifunction Gigabit Compatibility
Server Adapter
10Base-T/100Base-TX/1000Base-TX
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
PCI Express, four lanes (x4)
Qlogic/NetXen NX3031
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
Data Transfer Method
Controller
Network Transfer Rate
100Base-TX (Half-Duplex)
100Base-TX (Full-Duplex)
1000Base-TX (Half and
Full-Duplex)
RJ-45
10Base-T
100Base-TX
1000Base-TX
Connector
Cable Support
HP Integrated Lights-Out Architecture
2 (iLO 2)
Processor
integrated on system
Upgradeability
board
Operating System
Support
Client Browser Support
DA - 13242
100 Mb/s
200 Mb/s
2000 Mb/s
Categories 3, 4 or 5 UTP up to 328 ft (100 m)
Category 5 or higher UTP; up to 328 ft (100 m)
Category 5 or higher UTP; up to 328 ft (100 m)
32-bit PCI-based health and remote management ASIC
32-bit RISC processor core running at 66MHz
Option firmware upgradeable via Flash ROM
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and
Windows Server 2003 for Extended Systems Standard Edition, Enterprise
Edition
Red Hat Enterprise Linux 5.4 (32bit and 64bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Linux Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Worldwide — Version 28 — November 3, 2010
Page 63
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
Command Line Support
Telnet, Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2 (Password and certificate)
Security
Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface
RC4 encryption of video
Directory Support Services Active Directory v1.0 (Windows 2003)
Driver Support
Health Driver (HP ProLiant iLO 2 Management Controller Driver)
iLO Management Channel Interface Driver
SNMP 2, IPMI 2.0 (KCS interface), DMTF Server Management Command
Management protocols
supported
Line Protocol Specification
(SM CLP), DMTF Web Services Management Specification (WS Management)
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13242
Worldwide — Version 28 — November 3, 2010
Page 64
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
