S
P
E
F
C
I
L
E

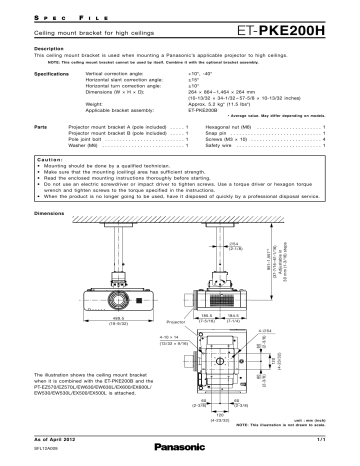

ET-PKE200H
Ceiling mount bracket for high ceilings
Description
This ceiling mount bracket is used when mounting a Panasonic’s applicable projector to high ceilings.
NOTE: This ceiling mount bracket cannot be used by itself. Combine it with the optional bracket assembly.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
+10°, -40°
±15°
±10°
264 × 864 – 1,464 × 264 mm
(10-13/32 × 34-1/32 – 57-5/8 × 10-13/32 inches)
Approx. 5.2 kg* (11.5 lbs*)
ET-PKE200B
Weight:
Applicable bracket assembly:
* Average value. May differ depending on models.
Parts
Projector mount bracket A
Projector mount bracket B
Pole joint bolt . . . . . . . . .
Washer (M6) . . . . . . . . . .
(pole included)
(pole included)
.............
.............
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
1
Hexagonal nut (M6)
Snap pin . . . . . . . .
Screws (M3 × 10) .
Safety wire . . . . . .
...
....
....
....
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
4
1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
951–1,551* 2
( 37-7/16 – 61-1/16 )
Adjustable in
30 mm (1-3/16 ) steps
Dimensions
∅54
( 2-1/8 )
489.5
(19-9/32)
Projector
185.5
(7-5/16 )
184.5
(7-1/4)
4-∅54
60
( 2-3/8 )
4-10 × 14
120
(4-23/32)
(13/32 × 9/16 )
60
( 2-3/8 )
The illustration shows the ceiling mount bracket
when it is combined with the ET-PKE200B and the
PT-EZ570/EZ570L/EW630/EW630L/EX600/EX600L/
EW530/EW530L/EX500/EX500L is attached.
60
( 2-3/8 )
60
( 2-3/8 )
120
(4-23/32)
As of April 2012
SFL12A009
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/1
