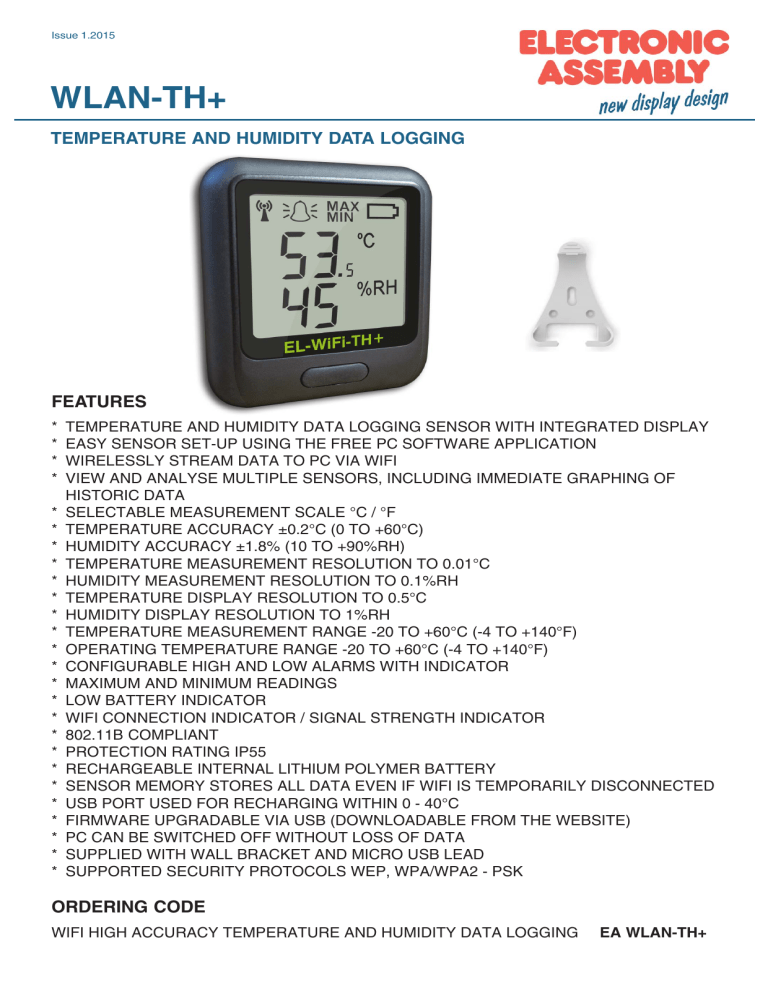

WLAN-TH+
TEMPERATURE AND HUMIDITY DATA LOGGING
FEATURES
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
TEMPERATURE AND HUMIDITY DATA LOGGING SENSOR WITH INTEGRATED DISPLAY
EASY SENSOR SET-UP USING THE FREE PC SOFTWARE APPLICATION
WIRELESSLY STREAM DATA TO PC VIA WIFI
VIEW AND ANALYSE MULTIPLE SENSORS, INCLUDING IMMEDIATE GRAPHING OF
HISTORIC DATA
SELECTABLE MEASUREMENT SCALE °C / °F
TEMPERATURE ACCURACY ±0.2°C (0 TO +60°C)
HUMIDITY ACCURACY ±1.8% (10 TO +90%RH)
TEMPERATURE MEASUREMENT RESOLUTION TO 0.01°C
HUMIDITY MEASUREMENT RESOLUTION TO 0.1%RH
TEMPERATURE DISPLAY RESOLUTION TO 0.5°C
HUMIDITY DISPLAY RESOLUTION TO 1%RH
TEMPERATURE MEASUREMENT RANGE -20 TO +60°C (-4 TO +140°F)
OPERATING TEMPERATURE RANGE -20 TO +60°C (-4 TO +140°F)
CONFIGURABLE HIGH AND LOW ALARMS WITH INDICATOR
MAXIMUM AND MINIMUM READINGS
LOW BATTERY INDICATOR
WIFI CONNECTION INDICATOR / SIGNAL STRENGTH INDICATOR
802.11B COMPLIANT
PROTECTION RATING IP55
RECHARGEABLE INTERNAL LITHIUM POLYMER BATTERY
SENSOR MEMORY STORES ALL DATA EVEN IF WIFI IS TEMPORARILY DISCONNECTED
USB PORT USED FOR RECHARGING WITHIN 0 - 40°C
FIRMWARE UPGRADABLE VIA USB (DOWNLOADABLE FROM THE WEBSITE)
PC CAN BE SWITCHED OFF WITHOUT LOSS OF DATA
SUPPLIED WITH WALL BRACKET AND MICRO USB LEAD
SUPPORTED SECURITY PROTOCOLS WEP, WPA/WPA2 - PSK
ORDERING CODE
WIFI HIGH ACCURACY TEMPERATURE AND HUMIDITY DATA LOGGING
EA WLAN-TH+
Printing and typographical errors reserved.
ELECTRONIC ASSEMBLY reserves the right to
change specifications without prior notice.
WLAN-TH+
GENERAL
The EA WLAN-TH+ sensor measures the temperature and humidity of the environment in which it is situated.
This sensor is accurate to ±0.2°C (+5 to +60°C) and ±1.8%RH (10 to 90%RH @25 °C) humidity. Data is
streamed wirelessly over any WiFi network and can be viewed on a PC using free software package. During
configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It
can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the
network, it will log readings until it is able to communicate again with the PC application or cloud service (max
120 days at 10 second sample interval). Although the EA WLAN sensors have an impressive range this can be
increased by using WiFi extenders.
The EA WLAN-TH+ is a low powered battery device. When configured using typical transmission periods (e.g.
once every 5 minutes) the sensor will operate for over one year (at room temperature). The battery can then be
recharged via a PC or USB +5V wall adapter using the USB lead provided or can be permanently powered by
the USB wall adapter.
The software installed on the PC will allow set-up, data logging and data review. Set-up features will include
sensor name, °C/°F, sample rate, and high/low alarms. Once configured, historic data can be viewed via the
graphing tool or exported into Excel. This software is available to download for free from www.corintech.com.
The sensor is a freestanding unit, however, it can be attached to a wall or vertical surface using the bracket and
screws / sticky pad provided.
DIMENSION
all dimensions are in mm
