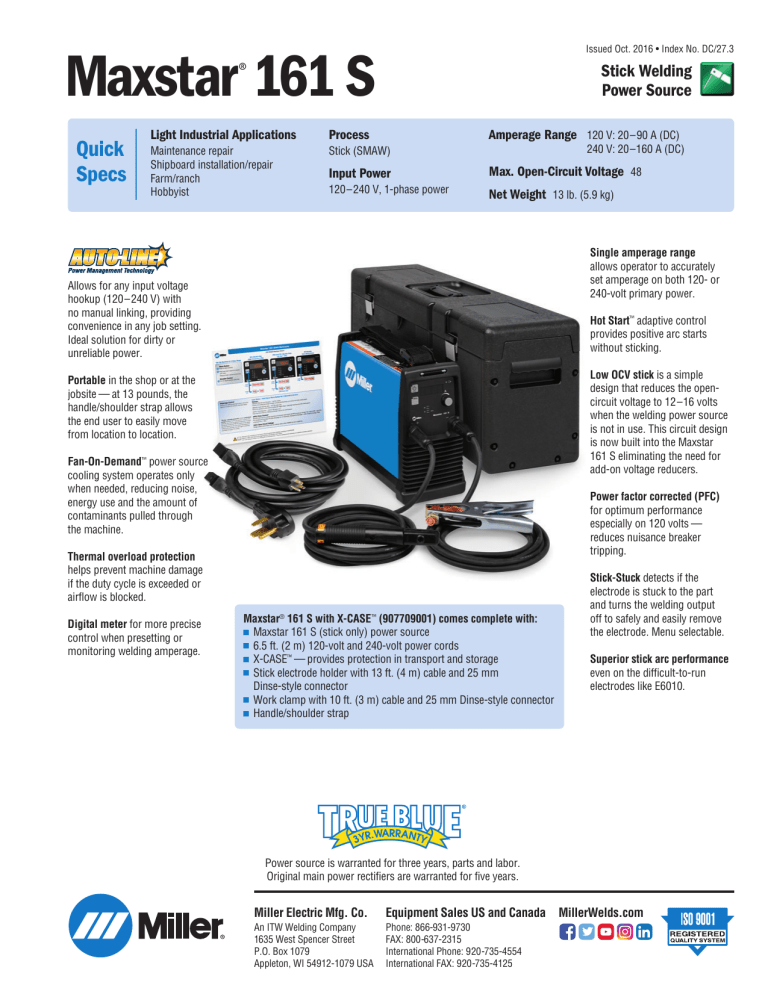

Maxstar 161 S
®
Quick
Specs
Stick Welding
Power Source
Light Industrial Applications
Process
Maintenance repair
Shipboard installation/repair
Farm/ranch
Hobbyist
Stick (SMAW)
Amperage Range 120 V: 20–90 A (DC)
240 V: 20–160 A (DC)
Input Power
Max. Open-Circuit Voltage 48
120–240 V, 1-phase power
Net Weight 13 lb. (5.9 kg)
Single amperage range
allows operator to accurately
set amperage on both 120- or
240-volt primary power.
Allows for any input voltage
hookup (120–240 V) with
no manual linking, providing
convenience in any job setting.
Ideal solution for dirty or
unreliable power.
Hot Start™ adaptive control
provides positive arc starts
without sticking.
Low OCV stick is a simple
design that reduces the opencircuit voltage to 12–16 volts
when the welding power source
is not in use. This circuit design
is now built into the Maxstar
161 S eliminating the need for
add-on voltage reducers.
Portable in the shop or at the
jobsite — at 13 pounds, the
handle/shoulder strap allows
the end user to easily move
from location to location.
Fan-On-Demand™ power source
cooling system operates only
when needed, reducing noise,
energy use and the amount of
contaminants pulled through
the machine.
Power factor corrected (PFC)
for optimum performance
especially on 120 volts —
reduces nuisance breaker
tripping.
Thermal overload protection
helps prevent machine damage
if the duty cycle is exceeded or
airflow is blocked.
Digital meter for more precise
control when presetting or
monitoring welding amperage.
Maxstar® 161 S with X-CASE ™ (907709001) comes complete with:
Maxstar 161 S (stick only) power source
6.5 ft. (2 m) 120-volt and 240-volt power cords
X-CASE™ — provides protection in transport and storage
Stick electrode holder with 13 ft. (4 m) cable and 25 mm
Dinse-style connector
Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
Handle/shoulder strap
Stick-Stuck detects if the
electrode is stuck to the part
and turns the welding output
off to safely and easily remove
the electrode. Menu selectable.
Superior stick arc performance
even on the difficult-to-run
electrodes like E6010.
Power source is warranted for three years, parts and labor.
Original main power rectifiers are warranted for five years.
Miller Electric Mfg. Co.
Equipment Sales US and Canada MillerWelds.com
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
Specifications (Subject to change without notice.)
Input
Power
Welding
Amperage Range
Rated Output
Amps Input at Rated
Output, 50/60 Hz
KVA at
Duty Cycle
KW
120 V,
20 A
20–90 A
60 A at 22.4 VDC, 100% duty cycle
14.68
1.75
1.71
90 A at 23.6 VDC, 30% duty cycle
23.16
2.78
2.76
240 V
20–160 A
110 A at 24.4 VDC, 100% duty cycle
14.31
3.43
3.30
160 A at 26.4 VDC, 20% duty cycle
22.55
5.41
5.25
Max. OpenCircuit Voltage
48 VDC
(12 –16 VDC*)
Dimensions
H: 10.3 in.
(262 mm)
W: 5.6 in.
(142 mm)
D: 13.5 in.
(343 mm)
Net
Weight
13 lb.
(5.9 kg)
*Sense voltage for stick.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Control Panel
Performance Data
Duty Cycle Chart
4
1
2
5
Output Amperes
250
200
150
100
50
0
10
3
6
Stick 240 V
Stick 120 V
20
30
40
50
60 70 80 90 100
% Duty Cycle
1. Power Switch
2. Menu Button
3. Positive Weld Output Receptacle
4. Ready Light
5. Amperage Adjustment Control
6. Negative Weld Output Receptacle
Ordering Information
Power Source and Options
Stock No.
Description
Maxstar 161 S (only)
907709
Includes electrode holder, work clamp, and 120-volt and 240-volt power cords
Maxstar ® 161 S with X-CASE™
907709001
Includes 907709 plus X-CASE™
301429
Carrying case for Maxstar 161
®
Qty.
Accessories
X-CASE™ (only)
Date:
Distributed by:
© 2016 Miller Electric Mfg. Co.
Total Quoted Price:
Price
