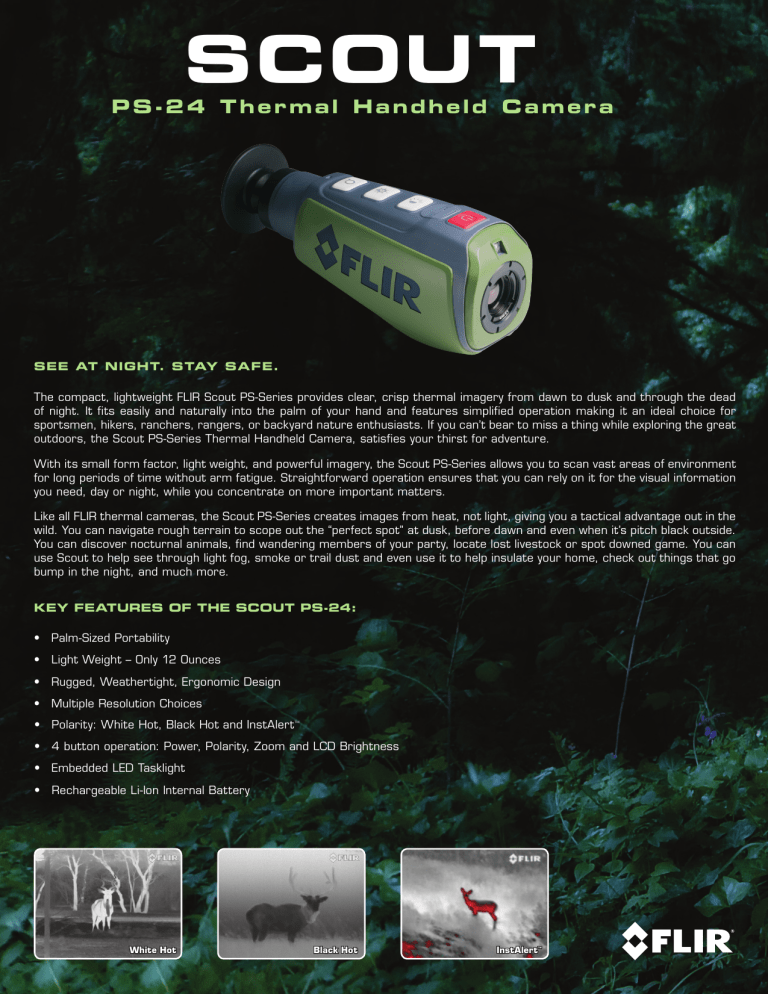

SCOUT PS-24 Thermal Handheld Camera

SCOUT PS-24 Thermal Handheld Camera
SCOUT
PS-24 Thermal Handheld Camera
SEE AT NIGHT. STAY SA FE.
The compact, lightweight FLIR Scout PS-Series provides clear, crisp thermal imagery from dawn to dusk and through the dead
of night. It fits easily and naturally into the palm of your hand and features simplified operation making it an ideal choice for
sportsmen, hikers, ranchers, rangers, or backyard nature enthusiasts. If you can’t bear to miss a thing while exploring the great
outdoors, the Scout PS-Series Thermal Handheld Camera, satisfies your thirst for adventure.
With its small form factor, light weight, and powerful imagery, the Scout PS-Series allows you to scan vast areas of environment
for long periods of time without arm fatigue. Straightforward operation ensures that you can rely on it for the visual information
you need, day or night, while you concentrate on more important matters.
Like all FLIR thermal cameras, the Scout PS-Series creates images from heat, not light, giving you a tactical advantage out in the
wild. You can navigate rough terrain to scope out the “perfect spot” at dusk, before dawn and even when it’s pitch black outside.
You can discover nocturnal animals, find wandering members of your party, locate lost livestock or spot downed game. You can
use Scout to help see through light fog, smoke or trail dust and even use it to help insulate your home, check out things that go
bump in the night, and much more.
KEY FEATURES OF THE SCOUT PS-24:
• Palm-Sized Portability
• Light Weight – Only 12 Ounces
• Rugged, Weathertight, Ergonomic Design
• Multiple Resolution Choices
• Polarity: White Hot, Black Hot and InstAlert
TM
• 4 button operation: Power, Polarity, Zoom and LCD Brightness
• Embedded LED Tasklight
• Rechargeable Li-Ion Internal Battery
White Hot
Black Hot
InstAlert
TM
SCOUT
PS-24
SPECIFICATIONS
System
Detector Type
Focal Length
Field of View (H × W)
Waveband
Digital E-Zoom
Start-up
Diopter Adjustment
240 × 180
VOx Microbolometer
19 mm Fixed Focus
24° × 18°
7.5 - 13.5 µm
No
< 5 Seconds
+2
USB Port
Software Updates/Upgrades/Charging
Tasklight
LED
IMAGE PRESENTATION
Built-In Viewfinder Display
Polarity / Detection Palettes
Image Optimization
Video Output
Color VGA LCD Display*
White Hot; Black Hot; InstAlert
TM
FLIR Proprietary Digital Detail Enhancement
NTSC
PHYSICAL
Weight (with battery)
Size (L × W × H)
Fixed Use
Standard Warranty
12 oz (340 g)
6.70” x 2.31” x 2.44” (172 × 58.7 × 62 mm)
Standard Tripod Mount
2 Years
POWER
Battery Type
Battery Recharging
Battery Life (Operating)
5+ Hours Typical
IP-67 (submersible)
Operating Temp.
Handheld Package Includes:
Optional Accessories
-4°F to 122°F (-20°C to +50°C)
Scout PS-Series Thermal Handheld Camera, USB Cable,
AC Adapter, Wrist Strap, Soft Drawstring Bag,
Product CD
Charging Cradle, MOLLE-Compatible Belt Pouch
RANGE PERFORMANCE
Detect Man-Sized Target
(1.8 m × 0.5 m)
FLIR Systems, Inc.
70 Castilian Dr.
Goleta, CA 93117
USA
PH: + 1 877 773 3547
PH: + 1 805 964 9797
FX: + 1 805 685 2711
[email protected]
Internal Battery/Li-Ion
USB Cable for Internal Battery; AC Adapter;
Optional Charging Cradle
ENVIRONMENTAL
Rating
FLIR Systems, Inc.
CS World Headquarters
~350 yds (~320 m)
EUROPE
CS Eurasian Headquarters
FLIR Systems CS BV
Charles Petitweg 21
4847 NW Teteringen - Breda
Netherlands
PH: +31 (0) 765 79 41 94
FX: +31 (0) 765 79 41 99
[email protected]
FLIR Systems, Inc.
Corporate Headquarters
FLIR Systems, Inc.
27700 SW Parkway Ave.
Wilsonville, OR 97070
USA
PH: + 1 877 773 3547
FX: + 1 503 498 3153
[email protected]
Actual range may vary depending on camera setup, environmental conditions, user experience, and display method.
w w w.flir.com
* No onboard image/video capture.
Always consult federal, state, and local laws governing fishing, hunting, and shooting sports prior to the use of this thermal/infrared night
vision camera to ensure full compliance with all appropriate regulations governing sportsman use. State and local laws vary, so regularly
consult those specific to the region of use/activity of interest. Equipment described herein may require US Government authorization for
export purposes. Diversion contrary to US law is prohibited. ©2011 FLIR Systems, Inc. Specifications are subject to change without notice.
Visit flir.com for the most up-to-date specifications. 060611
