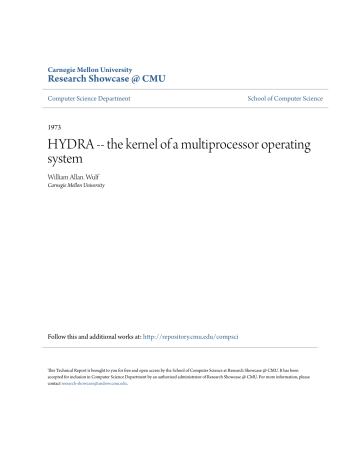

Carnegie Mellon University
Research Showcase @ CMU
Computer Science Department
School of Computer Science
1973
HYDRA -- the kernel of a multiprocessor operating
system
William Allan. Wulf
Carnegie Mellon University
Follow this and additional works at: http://repository.cmu.edu/compsci
This Technical Report is brought to you for free and open access by the School of Computer Science at Research Showcase @ CMU. It has been
accepted for inclusion in Computer Science Department by an authorized administrator of Research Showcase @ CMU. For more information, please
contact [email protected]
NOTICE WARNING CONCERNING COPYRIGHT RESTRICTIONS:
The copyright law of the United States (title 17, U.S. Code) governs the making
of photocopies or other reproductions of copyrighted material. Any copying of this
document without permission of its author may be prohibited by law.
HYDRA: THE KERNEL OF A
MULTIPROCESSOR OPERATING SYSTEM*
Wulf, Cohen, Corwin, Jones, Levin, Pierson, Pollack
JUN
1973
Abstract
This paper describes the design philosophy of HYDRA - the kernel of an
operating system for C.mmp, the Carnegie-Mellon Multi-Mini-Processor. This
philosophy is realized through the introduction of a generalized notion of
'resource', both physical and virtual, called an 'object'. Mechanisms are presented
for dealing with objects, including the creation of new types, specification of new
operations applicable to a given type, sharing, and protection of any reference to
a given object against improper application of any of the operations defined with
respect to that type of object. The mechanisms provide a coherent basis for
extension of the system in two directions: the introduction of new facilities, and
the creation of highly secure systems.
•This work was supported by the Advanced Research Projects Agency of the
Office of the Secretary of Defense (F44620-70-C-0107) and is monitored by the
Air Force Office of Scientific Research.
THE HYDRA KERNEL
2
Introduction
The Hydra system is the 'kernel' base for a collection of operating systems
designed to exploit and explore the potential inherent in a multiprocessor
computer system. Since the field of parallel processing in general, and
multiprocessing in particular, is not current art, the design of Hydra has a dual
goal imposed upon it: (1) to provide, as any operating system must, an
environment for effective utilization of the hardware resources, and (2) to
facilitate the construction of such environments. In the latter case the goal is to
provide a meta-environment which can serve as the host for exploration of the
space of user-visable operating environments.
The particular hardware on which Hydra has been implemented is C.mmp, a
multiprocessor constructed at Carnegie-Mellon University. Although the details of
the design of C.mmp are not essential to an understanding of the material which
follows, the following brief description has been included to help set the context
(a more detailed description may be found in [WB72]). Figure 1 illustrates that
C.mmp permits the connection of (up to) 16 processors 32 million bytes of shared
primary memory through a cross-bar switch (Smp). The processors are any of
the various models of PDP-11* minicomputers. Each processor is actually an
independent computer system with a small amount of private memory, secondary
memories, i/o devices, e t c Processors may interrupt each other at any of four
priority levels; a central clock serves both for unique-name generation (see
below) and broadcasts a central time base to all processors. Relocation hardware
(D.map) on each processor's bus provides mapping of virtual addresses on that
bus to physical addresses in shared primary memory.
•Manufactured by Digital Equipment Corporation.
THE HYDRA KERNEL
FIGURE 1; CMU MULTl-M1WI-PI\0CRSS0f\
HKc
KC
ri
K.clock
>
Kio
K.inntcrrupt
WHEREi
Hp • PRIMARY tlEttORY;
Pc « PROCESSOR}
Snp « PROCE^SOR-TO-ttErtQRY SWITCH;
Step » PROCESSOR-TO-IO SWITCH;
Dmap • ADDRESS RELOCATION flAP;
K i o « 10 DEVICE CONTROLLERS
Kc - SPECIAL IIPROlinRE CONTROL
K.clock • 60-BIT CLOCK
K. Innt'orrupt » INTER-PROCESSOR INTERRUPT
Kip
THE HYDRA KERNEL
4
Design Philosophy
The design philosophy of Hydra evolved from both the environment in which
the system was to function and a set of principles held by its designers. The
central goals of the system together with the attitudes expressed below suggest
that, at the heart of the system, one should build a collection of facilities of
'universal applicability' and 'absolute reliability' — a set of mechanisms from
which an arbitrary set of operating system facilities and policies can be
conveniently, flexibly, efficiently, and reliably constructed. Moreover, lest the
flexibility be constrained at any instant, it should be possible for an arbitrary
number of systems created from these facilities to co-exist simultaneously. The
collection of such facilities has been called the kernel or nucleus [Br70] of an
operating system. The more specific considerations are listed below:
1. Multiprocessor environment: Although multiprocessors have been
discussed for well over a decade and a few have been built, both the
potentials and problems of those systems are dimly perceived. The
design of Hydra was constrained to be sufficiently conservative to
insure its construction and utility in a reasonable time frame, yet
flexible enough to permit experimental exploration within the design
space bounded by its hardware capabilities.
2. Separation of mechanism and policy: Among the major causes of our
inability to experiment with, and adapt, existing operating systems is
their failure to properly separate mechanisms from policies. (Hansen
[Br70] has presented that policy. This systematic exclusion from the
kernel of policy-making code markedly contributes to the flexibility of
the system, for it leaves the complex decisions in the hands of the
. person who should make them - the higher-level system designer.
When necessary, the kernel instantiates policy decisions by invoking
various "policy modules" in a higher level system associated with the
program for which the decision must be made. Thus, the designer of
an operating environment for C.mmp is obligated to consider precisely
those units of code which are his exclusive responsibility. We believe
this represents a major step forward from conventional systems.
. 3. Integration of the design with implementation methodology: It has
been observed that the structure of extant operating systems bear a
remarkable resemblance to that of the organization which created
them. This observation is one of a set which asserts the (practical)
impossibility of separating the design from the methodology to be
used in implementing the design. The authors' predisposition for
THE HYDRA KERNEL
implementation methodology is a cross between structured
programming as advocated by Dijkstra and others [DDH72] and the
modularization philosophy of Parnas [Pa71].
4. Rejection of strict hierarchical layering: The notion of a strict
hierarchically layered system has become popular since first
described by Dijkstra for the THE system [Dij68a]. While we believe
that the system as viewed by any single user should be hierarchically
structured, we reject the notion as a global design criterion. We
believe that if the entire system is so structured, the design will
severely limit the flexibility available to the high-level user and will
strangle experimentation; in particular, there is no reason to believe
that the same hierarchical relation should exist for control as for
resource allocation, or as for protection, etc.
5. Protection: Flexibility and protection are .closely related, but not
inversely proportional. We believe that protection is not merely a
restrictive device imposed by "the system" to insure the integrity of
user operations, but is a key tool in the proper design of operating
systems. It is essential for protection to exist in a uniform manner
throughout the system, and not to be applied only to specific entities
(e.g., files). The idea of capabilities (in the sense of Dennis [DVH66])
is most important in the Hydra design; the kernel provides a
protection facility for all entities in the system. This protection
includes not only the traditional read, write, execute capabilities, but
arbitrary protection conditions whose meaning is determined by
higher-level software.
6. Reliability: The existence of multiple copies of critical hardware
resources suggests the possibility of highly reliable operation. Our
desire is to provide commensurate reliability in the software. We
include under the title reliability - data integrity, both system and
user; crash rate; percentage of uptime, etc. In conventional
multiprogramming and timesharing systems reliability is heavily
weighted by the hardware reliability and, in general, if the (central)
processor goes down, the system goes down - often with a
considerable loss of information. In a uni-processor configuration the
alternatives are few, while common sense suggests that a symmetric
multiprocessor arrangement should be able to do better. A primary
consideration in the design of Hydra is the desire for intelligent
detection of, and recovery from, hardware failures. (By "intelligent"
we do not mean "take a core dump and reload".) In a multiprocessor
THE HYDRA KERNEL
6
configuration it should be possible to isolate and disable a
malfunctioning processor and transfer its load to the remaining ones
with a minimal loss of continuity. Thus, symmetry considerations in
the design of the hardware and software are most important.
Data consistency is as important as execution continuity, particularly
if the protection facility available at the kernel level is to be reliable.
It is essential to store vital data in such a fashion that the chances of
recovering from a random memory failure are maximized. As a
natural result of the protection mechanism, "vital data" includes not
only kernel tables but also data structures in the higher-level
software whose content is uninterpreted by the kernel, but whose
form is precisely known. Thus, we can provide the same consistency
checks for higher-level systems that we use for the kernel.
Another point should be made in connection with reliability. Integrity
of form may be sufficient to allow the lowest levels of the system to
function, but integrity of content is much more important to higherlevel software. When a hardware malfunction occurs, the kernel must
ascertain and correct any resulting errors in its own operations (e.g.,
verifying a table), but this is not sufficient in itself. Higher-level
programs must be notified that a malfunction has occurred which may
have altered some program or data entity [Pa72] (this is another
example of the non-hierarchical organization of Hydra). Reliability
requires intelligent error handling at all software levels in which this
type of recovery behavior is possible.
Defining a kernel with the attributes given above places an awesome
responsibility upon its designers. It is, nevertheless, the approach taken in the
Hydra system. Although we make no claim that the set of facilities provided by
the Hydra kernel is either minimal (the most primitive 'adequate' set) or maximally
desirable, we do believe the set provides primitives which are both necessary
and adequate for the construction of a large and interesting class of operating
environments. It is our view that the carefully chosen, well-integrated set of
functions provided by Hydra will enable the user of C.mmp to create his own
operating environment without being confined to pre-determined command and
file systems, execution scenarios, resource allocation policies, etc.
Given the general decision to adopt the 'kernel system' approach, the question
remains as to what belongs in a kernel and, perhaps more importantly, what does
not. Non-specific answers to this question are implicit in the attitudes
enumerated earlier, e.g., a set of mechanisms may be appropriate in a kernel, but
THE HYDRA KERNEL
7
policy decisions certainly are not. For other, more specific, answers we must
step outside these attitudes alone and consider the nature of the entity to be
built using the facilities of a Kernel.
If a kernel is to provide facilities for building an operating system, and we
wish to know what these facilities should be,then it is relevant to ask what an
operating system is. or does. Two views are commonly held: (1) An operating
system defines a Virtual machine' by providing facilities, or resources, which are
more convenient than those provided by the 'bare' hardware, and (2) An
operating system allocates (hardware) resources in such a way as to most
effectively utilize them. Of course these views are, respectively, the bird's-eye
and worm's-eye views of what is a single entity with multiple goals.
Nevertheless, the important observation for our purposes is the emphasis placed,
in both views, on the central role of resources — both physical and virtual.
The mechanisms provided by the Hydra kernel are all intended to support the
abstracted notion of a resource (incarnations of a resource are called objects).
These mechanisms provide for the creation and representation of new types of
resources, as well as operations defined on them, protected access to instances of
one or more resources within controlled execution domains, and controlled
passing of both control and resources between execution domains. The key
aspects of these facilities are the generalized notion of resource, the definition of
an execution domain, and the protection mechanism which allows or prevents
access to resources within a domain.
Overview OL the. Hydra Environment
Before proceeding to a detailed description of the mechanisms it will be
convenient to present a somewhat incomplete and simplistic view of the execution
environment created by the Hydra kernel. The material presented in this section
will be elaborated further in the following sections; however, the overview will
attempt to provide the context necessary to understand the more detailed
information.
In order to understand the execution environment which the kernel provides,
one must clearly understand the interrelationships of three object types:
procedure, LN£> and process. These primitive objects are provided by the kernel
specifically for the purpose of creating and manipulating an execution
environment.
The procedure object is simply an abstraction of the intuitive notion of
procedure or subroutine; that is, a procedure has some "code" and some "data"
THE HYDRA KERNEL
8
associated with it, it may accept parameters, and it may return values. Hydra
procedures go beyond this simple model by including protection facilities, as we
shall see shortly. The act of creating a procedure object is analagous to the task
of writing an ALGOL procedure; one produces a body of code, associates the code
with a name, declares the data which the code requires, and specifies the nature
of the parameters and return values which are involved. In more abstract terms*
one creates a sequence of instructions and describes the environment in which
they will ultimately execute; in Hydra this abstraction is made precise. Let us
consider the environment description first.
A procedure object contains a list of references to other objects which must
be accessed during the execution of the procedure's code. This is, in fact, a list
of capabilities [La69] and therefore defines not only which objects the procedure
may reference, but also what actions it may perform on those objects. The
capabilities which a procedure requires may be divided into two groups: those
which are caller independent and those which are caller dependent. These
groups naturally correspond to those objects which the procedure always
accesses (at least potentially), and those objects which are considered
parameters. Obviously, the former of these groups can be precisely specified at
the time the procedure is created, while the latter can only be characterized,
since the actual objects passed as parameters are unknown until execution time.
Thus, the environment defined by a procedure object contains some "holes" or
"parameter positions" which are only partially specified at creation time. These
holes are filled in for each execution of the procedure, using capabilities provided
by the caller. We will return to a discussion of the mechanism by which a
procedure characterizes its parameters, but first we must examine the LN£.
A procedure is a static entity; an LNS (Local name space) is the record of the
execution environment of a procedure when that procedure is invoked (called).
There is a unique LNS for each invocation, which disappears after the procedure
terminates. The LNS for a particular invocation is the result of combining the
caller-independent capabilites (listed in the procedure object) with callerdependent actual parameters (only characterized in the procedure object) to form
a single list of capabilities. The LNS defines the totality of capabilities available
to a procedure during the execution resulting from a particular invocation. The
elements of an LNS are called items and consist of a reference to an object
together with the capabilities just described. Note that the LNS, while heavily
dependent upon the corresponding procedure for its initialization, is a wholly
independent object thereafter, and alterations of the LNS do not affect the
procedure object; this implies, among other things, that procedures are reentrant
and potentially recursive.
THE HYDRA KERNEL
9
A procedure object may contain templates for items in addition to the usual
collection of caller-independent capabilities. Templates characterize the actual
parameters expected by the procedure. When the procedure is called, the slots
in the LNS which correspond to parameter templates in the procedure object are
filled with "normal" items derived from the actual parameters supplied by the
caller. This "derivation" is, in fact, the heart of the protection-checking
mechanism, and the template defines the checking to be performed. If the caller's
rights are adequate, an item is constructed in the (new) LNS which references the
object passed by the caller and which contains rights formed by merging the
caller's rights with the rights specified in the template. This implies that a callee
may have greater freedom to operate on an object than the caller who passed it
as a parameter, but the caller can in no way obtain that freedom for. himself. We
shall see that this potential expansion of rights across environment domains is a
key factor in achieving the flexibility goals of the kernel and in allowing us to
reject hierarchical structures without introducing chaos.
Before proceeding let us review the major actions of the CALL mechanism. An
executing body of code first notifies the kernel that it wishes to call a procedure.
The kernel examines the actual parameter items specified by the caller and
determines whether all protection requirements are met. If so, the kernel creates
a hew LNS which defines the new environment; the caller's LNS is superceded by
this new LNS for the duration of the called procedure's execution. The body of
code associated with the callee receives control from the kernel and begins
executing. When it completes its function, it will return control to its caller by
way of the kernel. The kernel will delete the callee's LNS and restore that of the
caller, thus returning to the previous environment.
Processes
Up to this point, nothing we have described suggests any exploitation of the
parallel processing capabilities of C.mmp. The actions involved in calling and
returning from procedures are strictly sequential in nature, being in essence
formalizations of traditional subroutine behavior. We come now to the unit of
asynchronous processing in Hydra - the process. A process in the technical
sense defined by Hydra corresponds closely to one's intuitive notion of a process.
Viewed from the outisde, it is the smallest entity which can be independently
scheduled for execution. Viewed from the inside, it constitutes a precise record
of the changes of environment induced by a sequence of calls. In other words, a
process is a stack of LNS's which represents the cumulative state of a single
sequential
task.
Hydra
implements
inter-process
communication
and
synchronization by providing elementary message buffering primitives and
Dijkstra-style semaphore operations. These facilities are well-understood
[Dij68b] and will not be discussed here.
THE HYDRA KERNEL
10
Scheduling a process for execution involves two fundamentally different tasks:
(1) making policy decisions which determine the process's priority, and (2)
performing the mechanical job of starting the process when the proper time
arrives. The former of these tasks is associated with the so-called scheduling
algorithm and is implemented via policy modules which reside outside the kernel.
The kernel handles the second task by providing a scheduling mechanism which
performs process multiplexing according to parameters set by the higher-level
policy-maker. These issues wil be discussed more fully later when the
appropriate context is available.
Ihfi. Protection Mechanism
The protection mechanism is at the heart of the Hydra design. In describing
the mechanism it is important at the outset to distinguish between protection and
security and to determine what is to be protected and against what.
Protection is, in our view, a mechanism. A system utilizing that mechanism may
be more or less secure depending upon policies governing the use of the
mechanism (for example, passwords and the like are policy issues) and upon the
reliability of the programs which manipulate the protected entities. Thus the
design goal of the Hydra protection mechanism is to provide a set of concepts and
facilities on which a system with an arbitrarily high degree of security may be
built, but noi to inherently provide that security. A particular consequence of
this philosophy has been to discard the notion of 'ownership'. While ownership is
a useful, perhaps even important* concept for certain 'security' strategies, to
include the concept at the most primitive levels would be to exclude the
construction of certain other classes of truly secure systems.
Our rejection of hierarchical system structures, and especially ones which
employ a single hierarchical relation for all aspects of system interaction, is also,
in part, a consequence of the distinction between protection and security. A
failure to distinguish these issues coupled with a strict hierarchical structure
leads inevitably to a succession of increasingly privileged system components, and
ultimately to a "most privileged" one, which gain their privilege exclusively by
virtue of their position in the hierarchy. Such structures are inherently wrong.
and are at the heart of society's concern with computer security. Technologists
like hierarchical structures; they are elegant, but experience from the real world
shows they are not viable security structures. The problem, then, which Hydra
attempts to face squarely, is to maintain order in a non-hierarchical environment.
The obvious candidate for (the unit of) protection is the obj&ct since this is
the abstracted notion of an arbitrary resource. Similarly, the Hydra procedure is
THE HYDRA KERNEL
considered to be the abstraction of an
protection mechanism for the application of
of resources (objects). All of the familiar
delete), memory (e.g., read, write, execute),
this way. In addition a large additional class
11
operation. Thus Hydra provides a
operations (procedures) to instances
security for files (e.g., read, write,
etc., can be conveniently modeled in
of secure systems can be built.
Everything of interest in the Hydra view is the abstracted notion of a
resource, called an object, or a reference to an object, called an item. Each
object has a unique name, a type part, and a representation (consisting of an item
part, and a data part).
The unique name of an object distinguishes the object not only from all other
extant objects, but from all objects which have existed or will exist. Knowledge
of the unique name of an object does noi grant access to the object since, objects
may only be referenced through items (which are not manipulable except by the
kernel).
The type part of an object serves to identify the object with that class of
objects whose type parts have an identical value. The type part contains, in fact,
the unique name of a distinguished object which serves as the representative of
such a class. Since there is a potentially infinite supply of unique names, there is
a potentially infinite number of object types as well. A new class of objects may
be created simply by creating a single object to serve as its distinguished
representative.
Objects become inaccessible only when there are no references to them. It is
possible to generate self-referential structures, and although a general garbagecollection deletion mechanism is required, these structures are rare. Hence a
reference count is maintained in each object and objects are deleted* when this
count becomes zero.
The representation portion of an object contains whatever information is
relevant to the representation of the resource which the object denotes. This
information may be of two types: data (which is uninterpreted by the kernel) and
references to other objects. These two kinds of information are stored in the
data and item parts of the object respectively. Given the appropriate access
rights a program may manipulate the data part of an object freely. Even with the
most liberal access rights, however, the item part of an object may be
manipulated only by invocation of kernel functions.
•The deletion strategy is not essential to an understanding of Hydra, therefore
this attribute of objects will not be discussed further.
THE HYDRA KERNEL
12
On purely formal grounds, the object-universe described above may be
derived by starting with a single distinguished object whose unique name** is
TYPE and whose type is TYPE — that is, it names itself as the representative of
the class with only a single member. Subsequent objects are created by naming
an extant object as their representative. Although it is possible to allow any
object to serve as the representative, nothing is gained by doing so; therefore,
we restrict the representatives to being objects whose type is TYPE. Consider,
for example, the following collection of objects:
NAME
TYPE
TYPE
PAGE
FILE
DISK
PI
P2
Fl
Dl
D2
TYPE
TYPE
TYPE
TYPE
PAGE
PAGE
FILE
DISK
DISK
In this case we have four distinct classes of objects: TYPE, PAGE, FILE, and
DISK. The objects with these names and type TYPE are the representatives of
the classes. The members of the classes are, respectively, {TYPE, PAGE, FILE,
DISK}, { P I , P2}, { F l } , { D l , D2}. Thus, for example, PI and P2 are actual page
objects; presumably the data part of these two objects would contain the actual
bit configurations one would expect to find in our usual intuitive concept of a
page. Notice that we have purposely used objects in the example to represent
both virtual resources (files) and physical resources (disks); this is precisely how
they are used in Hydra.
On practical grounds, it is both inconvenient and inefficient to begin with a
single distinguished object. The following object types are some of those present
in the base system:
**We have tried to use suggestive names for objects in the example. In
practice, of course, the unique names of objects have no visible representation;
they are 64-bit values obtained from K.clock (Figure 1).
THE HYDRA KERNEL
13
TYPE
NULL
LNS
PROCEDURE
as described above
the empty object
the 'current' LNS defines the execution
combined code and partial environment
(complete environment definition when
procedure is 'called')
PROCESS
the smallest separately schedulable
SEMAPHORE
Dijkstra style [Dij68b] synchronization
PAGE
the counterpart of pages in TSS, etc.
{various device-type objects, e.g., disk}
As mentioned briefly several times previously, in addition to objects Hydra
supports references to. object? (called items). Items are, however, more than
simple pointers. Together with the CALL mechanism (for crossing execution
domains), items are the key to the protection mechanism. As such, items may only
exist in the item part of an object and may be directly manipulated only by the
kernel.
Each item includes information detailing the operations which may be
performed on the object referenced by the item. This information is in the form
of a capability list [La69], called the rights list; hence an item consists of two
parts: the name of an object and a rights list. Whenever an operation is
attempted on an. object, the requestor supplies an item referencing that object.
The kernel examines the rights list and prevents the operation when a protection
failure occurs (i.e., when the requestor does not have the appropriate
capabilities). It is important to understand that the rights checking operation
does not require interpretation of the list; the kernel can determine when a
protection failure has occurred without assigning meaning to the individual rights
bits.
Not all rights are type-dependent; there exist operations worthy of protection
which are well-defined for any object. These are precisely the operations which
the kernel provides for controlled manipulation of objects. Accordingly, we
partition the rights list of an item into two mutually exclusive sets — the t y p e independent rights (called kernel rights), and the type-dependent rights (called
auxilliary rights). A 'right' in either set grants permission to pass the item as a
parameter to any procedure in a particular class. The kernel defines these
classes for type-independent rights, and the creator of the type defines them for
auxilliary rights.
The notions of object and item now permit us to be more specific about one of
THE HYDRA KERNEL
14
the object types mentioned earlier - the LNS. At any instant of time.the'
execution environment of a program is defined by an LNS object associated with
it. The item part of the LNS contains references to objects wich may be accessed
by that program at that instant. (In addition, of course, the program may be able
to access objects referenced by the objects referenced in its LNS, and so on.)
The LNS provides a mapping function between local names in a program (i.e., small
integers naming 'slots' in the LNS) and globally unique objects. More than this,
however, the rights lists in each item define the permissible access rights of this
program at this instant.
Thus far we have described two essential elements of the protection
mechanism, objects and items. The third and final element is the rule governing
the passing from one execution domain to another and how protection changes at
this interface. The execution domain is, at any instant, defined by the current
LNS and an LNS is uniquely associated with an invocation of a procedure; thus,
execution domains change precisely when a procedure is entered or exited. The
kernel provides two primitive functions, CALL and RETURN which allow a
procedure to invoke a new procedure or to return to the current procedure's
caller.
The essential function of the CALL mechanism is to instantiate a procedure: to
create an LNS for its execution domain, and to transfer control to the code body.
The essential aspect of the CALL mechanism for the present, however, is its
parameter passing/checking mechanism. Since a procedure is an object it has an
item- part; this item part serves as the prototype for the procedure's LNS when it
is instantiated (i.e.* the procedure is CALLed). Thus the item part of a procedure
contains items which reference the caller-independent capabilities of any
invocation of the procedure.
In addition, the item part of a procedure may contain parameter templates for
items which will be passed as actual parameters when the procedure is CALLed.
The template contains a type attribute, which specifies the required type of the
corresponding actual parameter. (One can also have a template which accepts
any type.) If a type mismatch occurs, the call is not permitted and an error code
is returned to the caller. If the types agree, the rights are then checked, using a
special field present only in templates called the "check-rights field". The rights
contained in the actual parameter item must include the rights specified in the
check-rights field of the template; otherwise, a protection failure occurs and the
call is not permitted. If the caper's rights are adequate, an item is constructed in
the (new) LNS which references the object passed by the caller, but which
contains a rights list specified by the template. (A template has a "regular" rights
field distinct from the check-rights which specifies the rights which the callee (i.e.,
THE HYDRA KERNEL
15
the procedure) will need to operate on the actual parameter.) This implies that a
callee may have greater freedom to operate on an object than the caller who
passed it as a parameter, but the caller can in no way obtain that freedom for
himself (since the additional rights are present only in the callee's LNS - the
caller's LNS is unchanged). Also, by appropriate use of the check-rights and type
fields in a template, the creator of a procedure can implement arbitrary t y p e dependent protection checking. (This follows from the observation that the
check-rights field is not interpreted by the kernel; the interpretation of the
auxilliary rights is up to the user.)
An Example
In this section we present an example which demonstrates the power of the
protection mechanism described above to accomplish in a natural way a kind of
protection wwich can be achieved in existing systems, if at all, only by rather
artificial devices. While the specific example is itself somewhat artificial, it has
v e r y realistic counterparts.
Consider the case of a research worker who, being a diligent fellow, wishes to
keep himself abreast of the relevant literature in his field. Also having access to
a computer, this researcher has written sbme programs to maintain an annotated
bibliography on that computer. The programs permit him to update the
bibliography either by inserting new entries or changing existing ones; he may
also print the bibliography in total, or selectively on any one of several criteria;
he may also wish to completely erase an entire bibliography occasionally. In
addition, our hero has organized both the programs and the bibliography
structure to be very efficient. It's a nice system of programs, indeed!
Now, in the fullness of time, the researcher decides that it would be to his
advantage to allow his colleagues, and perhaps his students, to use his programs
and his bibliographies.
In addition to creating their own independent
bibliographies, the colleagues may be able to add new entries to the researcher's
own or to add annotations which (may) provide the researcher with additional
insights. He is concerned, however, about several aspects of the protection of
both his programs and data:
1. No one, except himself, should be able to erase his bibliographies.
2. He worked hard on his system of programs and he would not like
anyone else to copy or modify them. In any case his supervisor has
informed him that since the programs were developed on the
employer's time, the employer is considering selling them as a
proprietary package.
THE HYDRA KERNEL
16
3. Some of the items cited in his own bibliography were written by his
colleagues. His annotations are occasionally cryptic, and he would
prefer that they were not read by everyone. He would like to
choose selectively who may read the annotations.
4. The data structures used to contain the bibliography items are highly
optimized and 'delicate'. He would like to insure that when an update
is done, the data structures are correctly manipulated.
5. From time to time he changes the programs; either to correct errors
or to add new features. For a period of time after the changes are
made he would like to allow only a small, sympathetic subset of his
(growing) user community to use the new versions of his programs.
6. He suspects that after he has allowed others to use his programs and
build their own bibliographies they will share some of his concerns,
e.g., items (1), (3) and (5). In particular, they will npt want him to be
able to erase or examine their bibliographies, or to force a new
,version of the programs upon them.
Several of our researchers' concerns can, of course, be handled by most
'reasonable' protection systems; others, however, cannot.
The most
straightforward implementation of the bibliography would be to store the
bibliographic information in a single file*; therefore let us frame the discussion in
that context.
Since most file systems only protect read access to an entire file there is no
way to enforce selective printing, i.e., to distinguish between the accessors who
may print the entire file and those which may not print the annotations. Similarly,
undifferentiated read access may permit an unscrupulous user to dump an entire
bibliography file, determine its structure, and thus compromise the proprietary
nature of the programs.
Undifferentiated write access implies analogous problems. Clearly the
operation of updating the file implies writing on it; in fact it may conceivably
imply a massive reorganization in order to maintain the 'optimal' data structure.
The concept of 'ownership', and its corollary privileges, present in many
•Some, but not all, of the problems raised can be solved by an esoteric multifile structure for the bibliography; however, these solutions violate the
'naturalness' criterion so will not be mentioned.
THE HYDRA KERNEL
17
extant systems may imply that the user of this system cannot protect himself
(unless he takes special, explicit precautions) from examination of his
bibliographies by the author of the system and/or from unexpected alteration of
the system. In particular he may not be able to protect himself from alteration in
ways which penetrate the security of his bibliographies.
Now let us consider the 'natural' implementation of the bibliography system in
Hydra and how this implementation overcomes the problems mentioned above.
Clearly a bibliography is a new type of virtual resource. Therefore we would
create a new object type; call it BIBLIO. In fact, of course, we will want to use
existing file mechanisms to represent bibliographies. In all likelihood an instance
of a bibliography object will have an empty data part and its item part will merely
consist of a single item which references a file object.
Even though the representation of a bibliography is a file, file operations are
not applicable to bibliography ojects; they are applicable only to file objects, we
can create new operatons (procedures), however, which are applicable to
bibliography objects, for example:
U/3,pi,...,p )
P(/3,Pi,...,p )
PWOA(APi,..,Pm>
E(/3)
n
w
Update
Print
Print WithOut Annotations
Erase
In each of these
must be an item which references a bibliography object
and the pi's further specify the nature of the update, print, etc., to be done.
(Notice that even though P and PWOA are distinct procedures, in the sense of
being distinct objects, they need not necessarily have distinct code bodies; that is,
the item part of each of these procedure objects, their prototype LNS's, may
reference some or all of the same page objects.)
For simplicity, let us assume that each of the procedures above is uniquely
associated with a single bit in the 'auxiliary rights' field of an item which
references a bibliography object; denote these bits by the lower case version of
the procedure name, i.e., u, p, etc. Thus in order to validly execute 'CALL LK/S,...)'
it is first necessary that /? be a reference to a bibliography object, and second
that the V bit of fi be set.
Figure 2 illustrates (incompletely) a situation involving several 'users' and
THE HYDRA KERNEL
18
several bibliographies which might exist at some instant of time. Rectangular
boxes denote objects. Directed arrows illustrate item references, and the lower
case letters along these arrows signify which of the auxilliary rights bits are set
in these items.
Th§ following kinds of information may be gleaned by inspection of Figure 2:
1. User 1 may access all of the procedures U, P, PWOA, and E. He may
also access bibliography objects B l and B2. He may perform any of
the operations U, P, PWOA, and E on B l , but he may only perform U
and PWOA on B2.
2. User 2 may also access all of the procedures and, in addition, may
access three bibliography objects: B2, B3, and B4. He may only
perform PWOA on B2, but may perform U, P, or E on B3 and B4.
3. User 3 may only access three of the procedures; he does not have a
reference to E. He may access three bibliography objects - B l , B4,
and B5 and may, in principle, perform U or P on B l , and U, P, or E on
B4, and P on B5. Notice, however, that the right, in principle, to
perform E on B4 is useless to him since he does not have a reference
to E.
THE HYDRA KERNEL
FIGURE 2: BIBLIOGRAPHY EXAMPLE
PROCEDURES
USERS
LNS « 3
BIBLIOGRAPKES
THE HYDRA KERNEL
20
It should now be clear that each of the protection concerns expressed by our
friend the researcher is neatly handled by this scheme. For example,
1. Since the operation of printing is the protected 'right' in the system
rather than the act of reading, it is possible to distinguish between
printing the entire bibliography and printing it without annotations.
Moreover, since the concept of 'read' is not defined with respect to
bibliographies al alL it is simply impossible for someone to examine
the representation of a bibliography object and determine its
structure; the proprietary nature of the system is therefore insured.
2. Similarly, since the operation of updating a bibliography is distinct
from that of writing the file which represents it, the internal integrity
of the data structure is guaranteed (at least if the procedure U works
correctly).
We would like to make one more point with respect to the example before
leaving it. The conventional view with respect to sharing resources is that there
are precisely two cases: (1) the shared resource is passed to another 'user' - in
which case the 'rights' which may be passed must be a subset of those of the
passer, or (2) the shared resource is passed to the 'operating system' - in which
case the set of 'rights' expands drastically. We reject both of these cases as
inadequate to serve as the basis of a truly secure system.
As discussed in the previous section, the rights acquired by a procedure to an
item passed to it as an actual parameter are obtained from the template in that
procedure's prototype LNS. These rights may be a subset, superset, or totally
disjoint from those of the caller. The point is that a procedure is invested with
those rights, and only those rights, which it needs to do its job. (By way of
analogy, I am not permitted to repair my telephone. I am permitted, however, to
invoke an operation, namely a telephone repairman, that can repair it. The
repairman inherently has the right to repair telephones; he does not, however,
have access to my particular telephone until I grant him access to it.)
Systems, and Subsystems
The previous sections describe how the kernel supports the notion of an
object, operations on objects, and protection. It is now time to question to what
extent these mechanisms permit and facilitate the construction of operating
systems; part of the response is implicit in what has already been described, and
part is not.
/
THE HYDRA KERNEL
21
An 'operating system', in the sense of a monolithic entity which provides
various facilities to the user, is not an appropriate image of a user environment
as it would exist in the Hydra context. Rather, a user environment consists of a
collection of resources (objects) of various types and procedures which operate
on them. The environment in which one user operates may or may not be the
same as that for another user; it may be totally different, or may partially
overlap.
It is entirely possible, for example, that at some point in the evolution of the
Hydra environment several different 'file systems' will have been devised. Each
such 'system' will consist of a distinct object type to denote the style of file
supported by that system, and a collection of operations (procedures) for dealing
with that style of file. The various styles of files, for example, may correspond to
different access methods, different queueing strategies for dealing with disk, or
different security policies. An individual user may use any one of the systems, or
because the various systems are optimized along distinct dimensions, he may use
more than one. Similar comments, of course, apply to every type of facility
provided by an operating system, e.g., command interpreters, synchronization
mechanisms, etc.
It should be clear from the discussion above that the Hydra mechanisms
provide a consistent framework within which the 'virtual machine' visble to the
individual user may be easily defined and modified. The second goal of an
operating system, however, is to optimize the utilization of the underlying
hardware. This optimization involves policy decisions which must be made in 'real
time'. (Two prime examples of these decisions are those involving scheduling
processes and processors, and those involving paging operations.) The primary
goal of this section is the description of how these policy decisions have been
factored out of the kernel and framed in the object procedure context.
While the goal of separating mechanism and policy is a laudable one, it is
impossible to achieve a complete separation in practice. Any mechanism limits the
set of policies to those which are feasible with respect to that mechanism.
Therefore the original, goal transmutes into one which attempts, by careful choice
of the mechanism, to limit the class of feasible policies as little as possible.
Further, we suspect a universal law which states that flexibiliiy, in this case with
respect to the class of feasible policies, has a cost. Therefore the practical goal
is to minimize the constraints on feasible policies subject to the real time
constraints imposed by the need for a policy decision. The result has been to
limit both the nature of feasible policies and the times at which they can be
invoked.
THE HYDRA KERNEL
22
Notice, too, that the kernel need not have any explicit knowledge of those
object types and procedures which implement the user-visible aspects of an
operating system. The opposite is true for those which implement policy; that is,
the kernel, and only the kernel, may be aware that a policy decision must be
made. Thus the kernel must either make the decision itself or know how to
invoke someone to make it.
The uniform reaction of a Hydraphile when presented a problem is, "Well,
create an object which....". That is precisely how we shall introduce policy
decision features.
A 'subsystem' object is another object type recognized by the kernel. A
subsystem object contains references to procedures which implement those policy
decisions required by the kernel. Each process object contains a reference to
such a subsystem object; hence, whenever a policy decision relative to a given
process is required the kernel executes a call on the appropriate policy
procedure.
It is worthwhile to make two observations relative to this scheme: first, since
subsystem objects are associated with a process, it is possible that several
subsystems are coextant — each making policy decisions appropriate to distinct
classes of jobs; second, this is another example of the non-hierarchical nature of
Hydra.
Rather than detail the various policy/mechanism issues, which are the subject
of another report [Wu73], we shall simply illustrate the nature of these issues
with a single example; that of scheduling.
Scheduling a process for execution involves three separable tasks: (1)
determining the process's importance relative to others, (2) preparing the process
for execution, e.g., making sure that the relevant pages are 'in-core', and (3)
performing the mechanical jobs involved in actually starting the process when the
appropriate time arrives. The first two of these are performed by policy
procedures in a subsystem. Only the last is done by the kernel. More
specifically, the subsystem specifies to the kernel a set of parameters which
control a simplistic multiplexing algorithm among processes which the subsystem
has specified are eligible for execution. Short term, 'time critical' decisions are
made by the kernel on the basis of these parameters. Longer-term decisions are
made by the subsystem. In particular, one parameter allows the subsystem to
specify when it should be consulted again; thus, in the limiting case, the
subsystem may intercede on each scheduling decision.
Conclusion
THE HYDRA KERNEL
23
An operating system, even the kernel of one, is a large undertaking. It
involves many interrelated decisions. Indeed we believe that the consistency and
cleanliness of this interrelation is more important to the ultimate utility of the
system than any of the individual decisions. It is this aspect of the Hydra design
that we feel is most important.
Acknowledgments
It is difficult to give proper credit to the sources of all the ideas presented
above. Although we have felt free to change terminology, the work of Dennis
[DvH66], Dijkstra [Dij68b], Hansen [Br70], and especially Lampson [La69] and
Jones [Jo73] have had a significant impact. The ideas of these individuals will
clearly show through to those who are familiar with them. The remaining ideas
and the cement which holds the design together emerged in discussion between
the authors.
THE HYDRA KERNEL
24
References
[Br70] Brinch-Hansen, P., "The Nucleus of a Multiprogramming System," CACM 13
(4/70), 238.
[Dij68a] Dijkstra, E.W., "The Structure of THE Multiprogramming System," CACM
11,5 (4/68), 341-6.
[DvH66]
Dennis, J. B. and Van Horn, E. C , "Programming Semantics for
Multiprogrammed Computations," CACM 9,3 (3/66), 143-55.
[Dij68b]
Dijkstra, E. W., "Cooperating Sequential Processes," Programming
Languages (ed. F. Genuys), Academic Press (1968), 43-112.
[La69] Lampson, B. W., "Dynamic Protection Structures," Proc. AFIPS Conf. 35
(FJCC 1969).
[Jo73]
Jones, A. K., Protection
University, 1973.
Structures,
Ph.D. Thesis,
Carnegie-Mellon
[Pa72] Parnas, D. L., Response to Detected Errors in Well-Structured Programs,
Carnegie-Mellon University, Computer Science Department report,
July, 1-972.
[Pa71] Parnas, D. L., On the Criteria to be Used in Decomposing Systems into
Modules, Carnegie-Mellon University, Computer Science Department
report, August, 1971.
[Wb72] Wulf, W. A. and Bell, C. G., "C.mmp - A Multi-Mini-Processor," Proc. AFIPS
EJCC 1312s 765-77.
[DDH72] Dahl, 0. J., Dijkstra, E. W., and Hoare, CAR., Structured Programming.
Academic Press, 1972.
[Wu73] Wulf, W. et al., Policy/Mechanism Separation in the HYDRA System,
Carnegie-Mellon University, Computer Science Department report, to
be published.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
